Atess 5kW 10kW 30kW 50kW 100kW 150kW 3 Phase Solar Hybrid Inverter Price 150kW 250kW 500kW Hybrid Inverter
- Category: >>>
- Supplier: Sunwave Technology Co. Ltd.
Share on (1601134822697):
Product Overview
Description
Products Description
Product Specifications

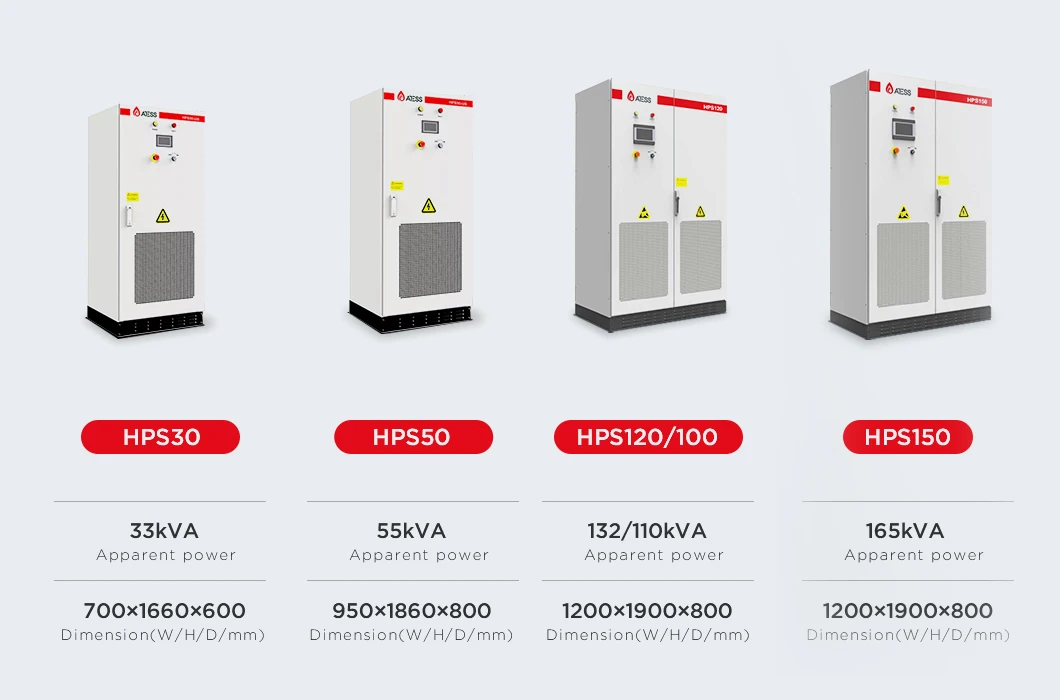

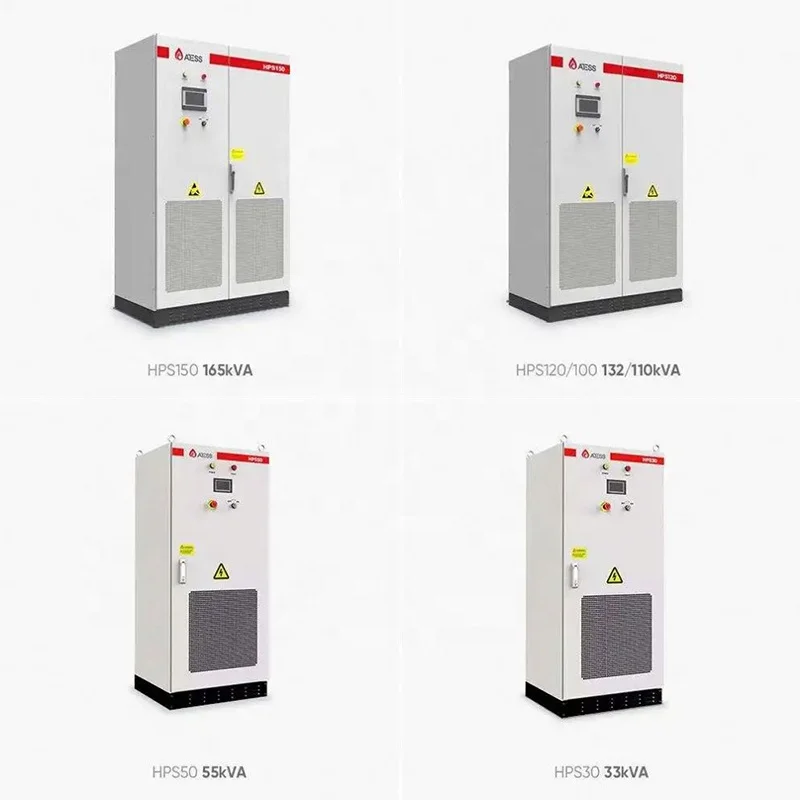

Model Type | HPS30 | HPS50 | HPS100 | HPS150 | ||||
AC (Grid-connected) | ||||||||
Apparent power | 33kVA | 55kVA | 110kVA | 165kVA | ||||
Rated power | 30KW | 50KW | 100KW | 150KW | ||||
Rated voltage | 400V | |||||||
Rated current | 43A | 72A | 144A | 217A | ||||
Voltage range | 360V-440V | |||||||
Rated frequency | 50/60Hz | |||||||
Frequency range | 45-55/55-65Hz | |||||||
THDI | ﹤3% | |||||||
PF | 0.8 lagging-0.8 leading | |||||||
AC connection | 3/N/PE | |||||||
AC input | 200kVA | |||||||
AC (Off-grid) | ||||||||
Apparent power | 33kVA | 55kVA | 110kVA | 165kVA | ||||
Rated power | 30KW | 50KW | 100KW | 150KW | ||||
Rated voltage | 400V | |||||||
Rated current | 43A | 72A | 144A | 217A | ||||
THDU | ≦2% linear | |||||||
Rated frequency | 50/60Hz | |||||||
Overload capability | 110%-10mins,120%-1min | |||||||
DC (Battery and PV) | ||||||||
Max.PV ope-circuit voltage | 1000V DC | |||||||
Max.PV power | 45kWp | 75kWp | 150kWp | 225kWp | ||||
PV MPPT voltage range | 480V-800V DC | |||||||
Battery voltage range at Max.charge power | 450V-600V | 500V-600V | 500V-600V | 500V-600V | ||||
Battery voltage range | 352-600V | |||||||
Max.charge power | 45KW | 75KW | 150KW | 225KW | ||||
Max.discharge power | 33KW | 55KW | 110KW | 165KW | ||||
Max.charge current | 100A | 150A | 300A | 450A | ||||
Max.discharge current | 93A | 156A | 313A | 467A | ||||
General Information | ||||||||
Protecyion degree | IP 20 | |||||||
Noise emission | ﹤65dB(A)@1m | |||||||
Operating temperature | -25℃-55℃ | |||||||
Cooling | Forced-air | |||||||
Relative humidity | 0-95% non-condensing | |||||||
Maximum altitude | 6000m (derate over 3000m) | |||||||
Dimension(W/H/D) | 700x1660x600mm | 950x1860x750mm | 1200x1900x800mm | 1200x1900x800mm | ||||
Weight | 355kg | 610kg | 948kg | 1230kg | ||||
Bulid-in transformer | Yes | |||||||
Transfer between on/off grid | Automatic≦10ms | |||||||
Standby consumption | ﹤30W | |||||||
Communication | ||||||||
Display | Touch screen | |||||||
Communication | RS485/CAN | |||||||
Certifaicate | ||||||||
CE,MEA,PEA,AS4777.2,EN61000-6-4:2007+A1:2011,EN6100-6-2:2005,EN62109-1:2010,EN62109-2:2011,EN50549-1:2019,IEC62109.1,IEC62109.2,NRS 097-2-1:2017,G99,VDE-AR-N 4105:2018,DIN VDE V 0124-100:2020-06 | ||||||||

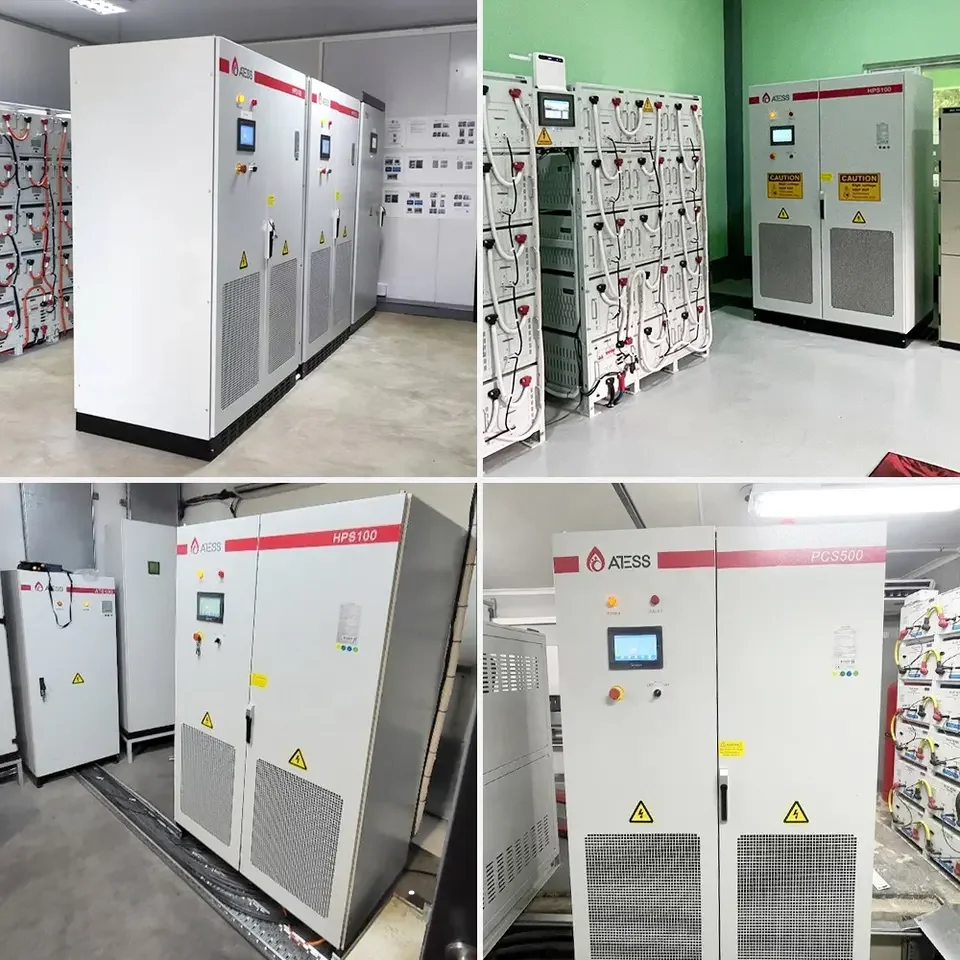

Project Case

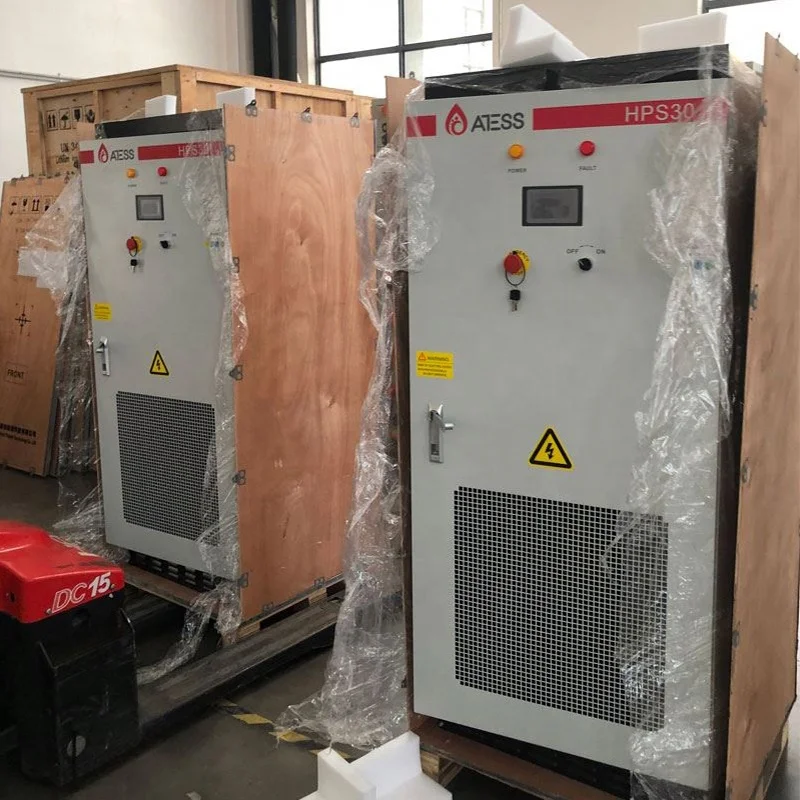

Product Packaging

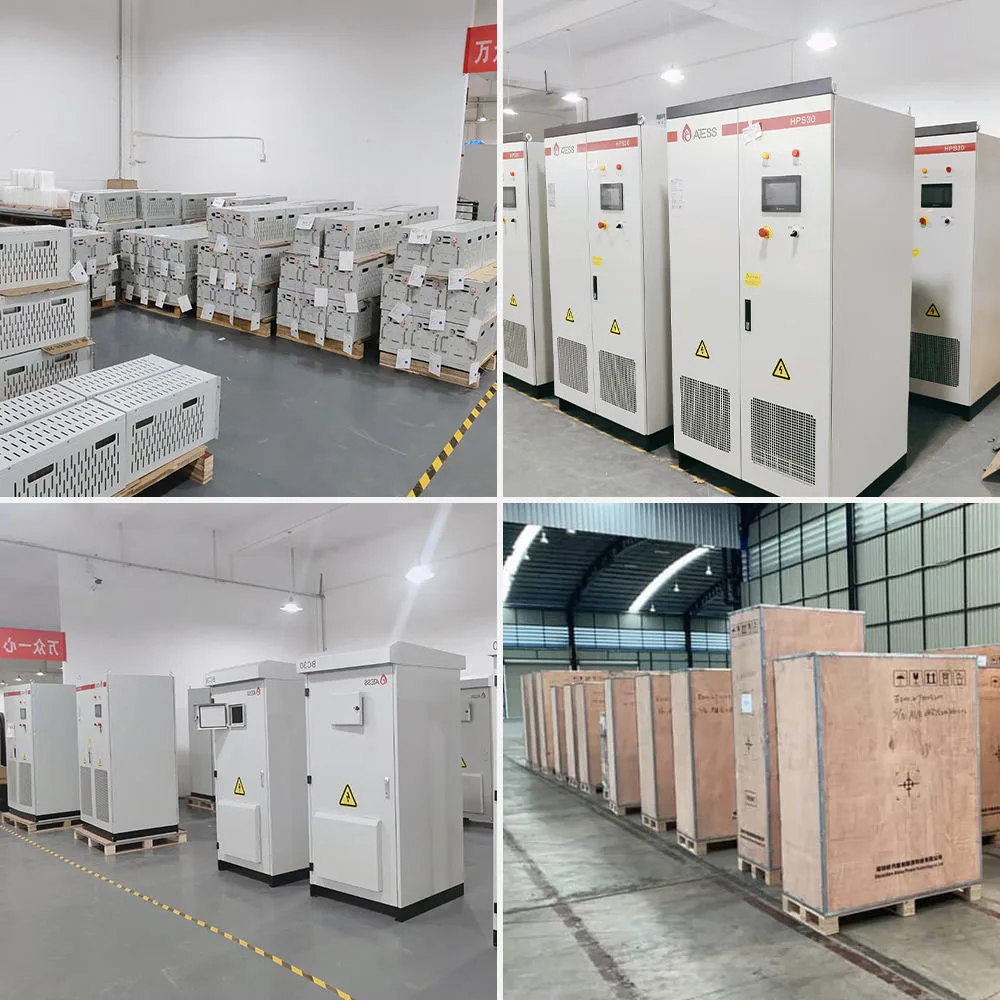

Why Choose Us
Sunwave Technology Co., Ltd., established in 2007, is a professional lithium-ion battery manufacturer and solar system supplier focusing on one-stop solar energy system services. After 15 years of development, our factory covers an area of 30,000 square meters, our R&D department has 11 engineers, our sales team has 94 salespeople, our factory has more than 100 workers, and more than 80% of automated production, Our monthly production capacity reaches 5,000 pieces to fully meet customer requirements.
We have served 160 countries and design residential solar systems and industrial&commercial energy systems for free. We can provide one-stop service of design, production, OEM/ODM and after-sales service. We are committed to being your most reliable partner for renewable energy products and continue providing the most reliable products to our customers.We believe that our experience, expertise and values set us apart from our competitors. We sincerely look forward to cooperating with you to build a mutually beneficial and win-win partnership with you!
We have served 160 countries and design residential solar systems and industrial&commercial energy systems for free. We can provide one-stop service of design, production, OEM/ODM and after-sales service. We are committed to being your most reliable partner for renewable energy products and continue providing the most reliable products to our customers.We believe that our experience, expertise and values set us apart from our competitors. We sincerely look forward to cooperating with you to build a mutually beneficial and win-win partnership with you!
