Zhongnan Detachable Custom flat pack house panelready home cheap tiny house modular portable prefabricated container houses
- Category: >>>
- Supplier: Suzhou Zhongnan Steel Structure Co. Ltd.
Share on (1601134863124):
Product Overview
Description

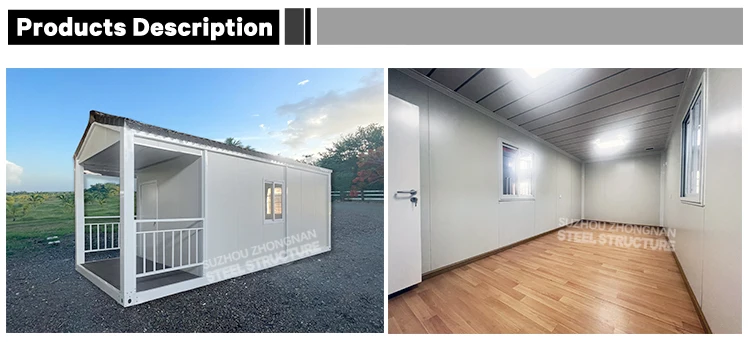

Products Description

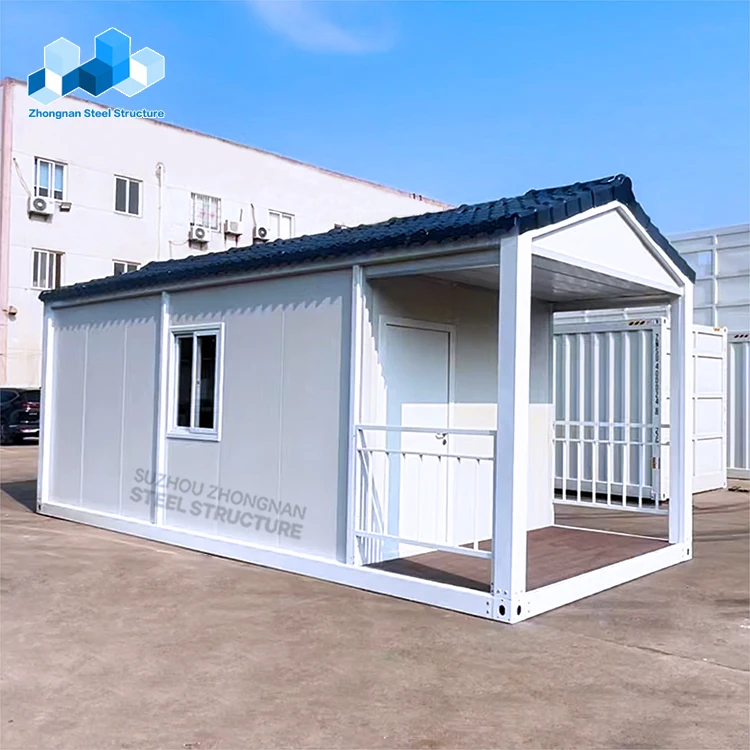

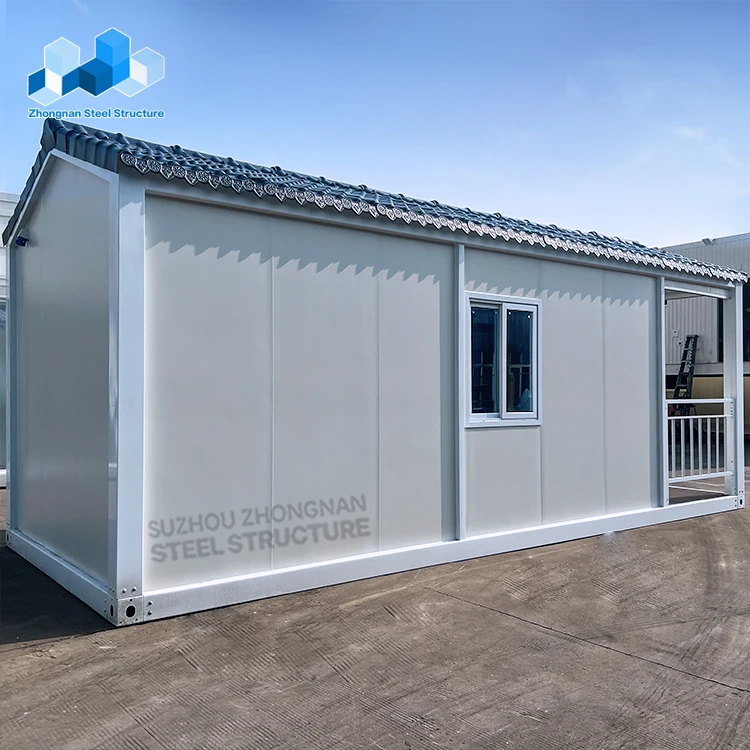

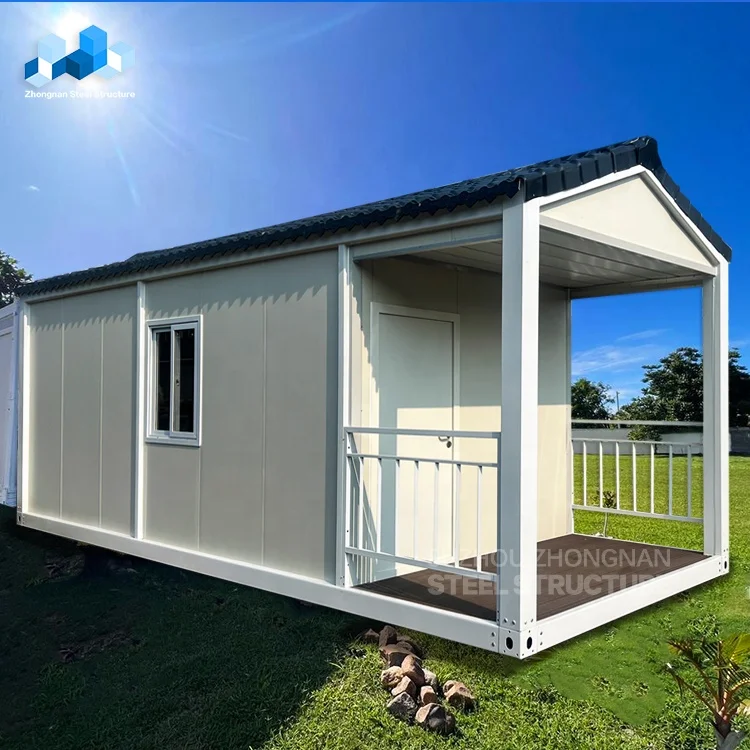

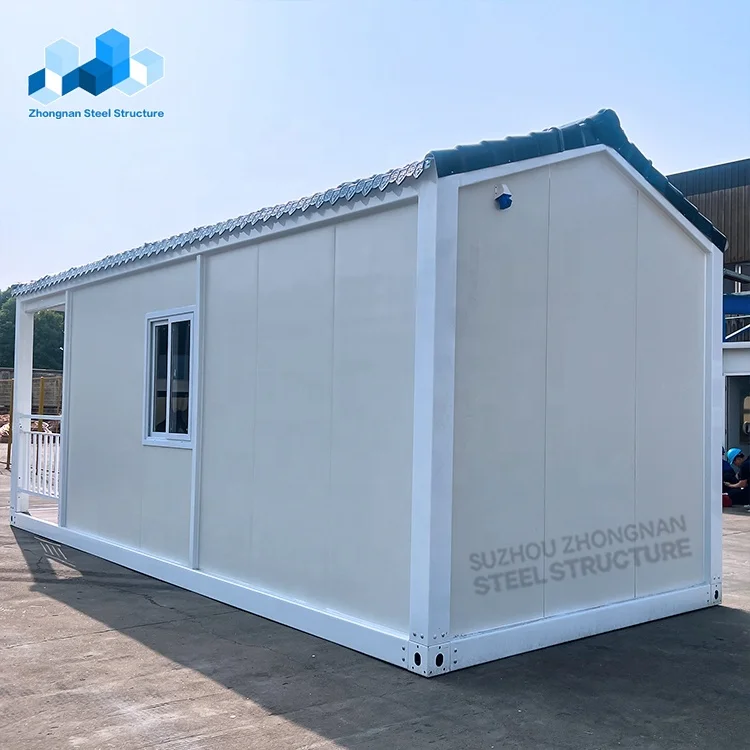

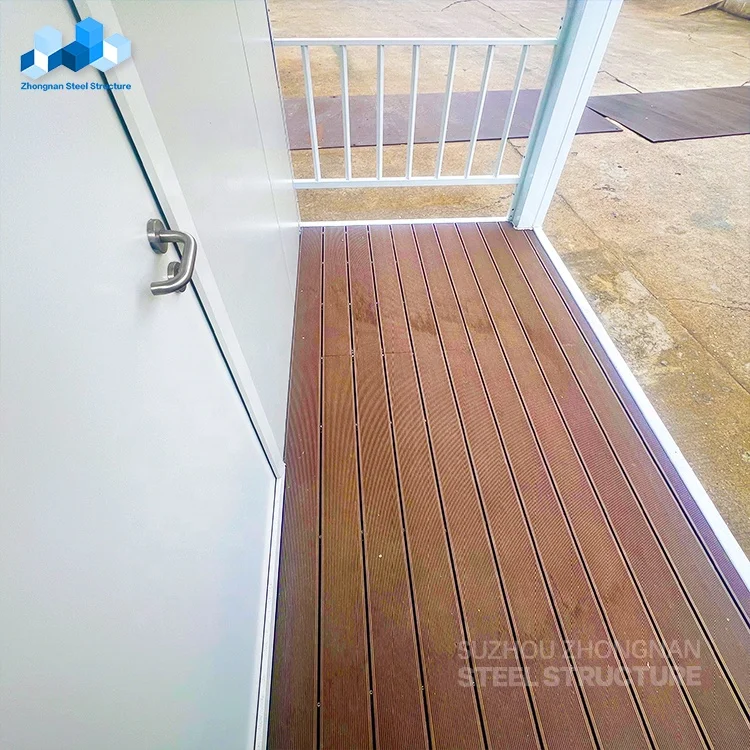

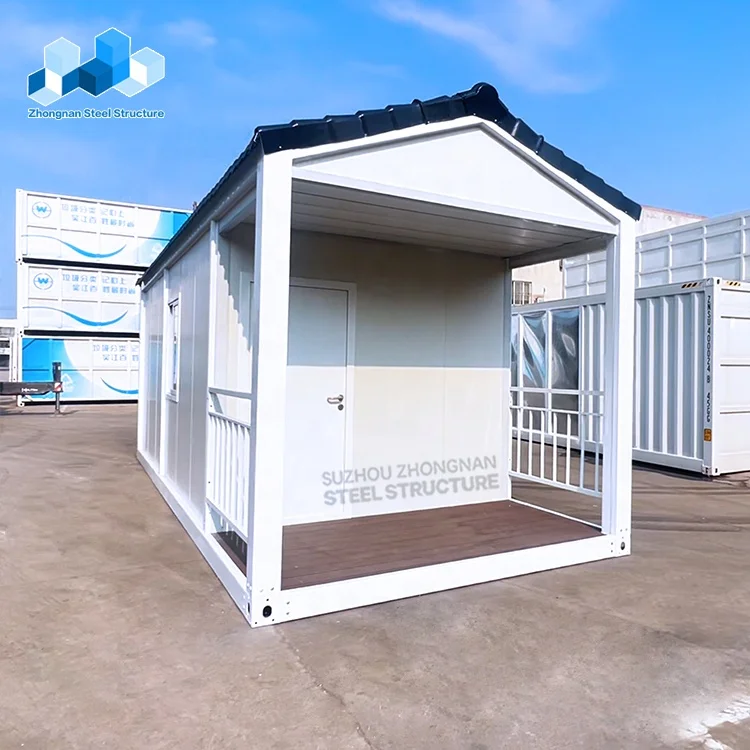

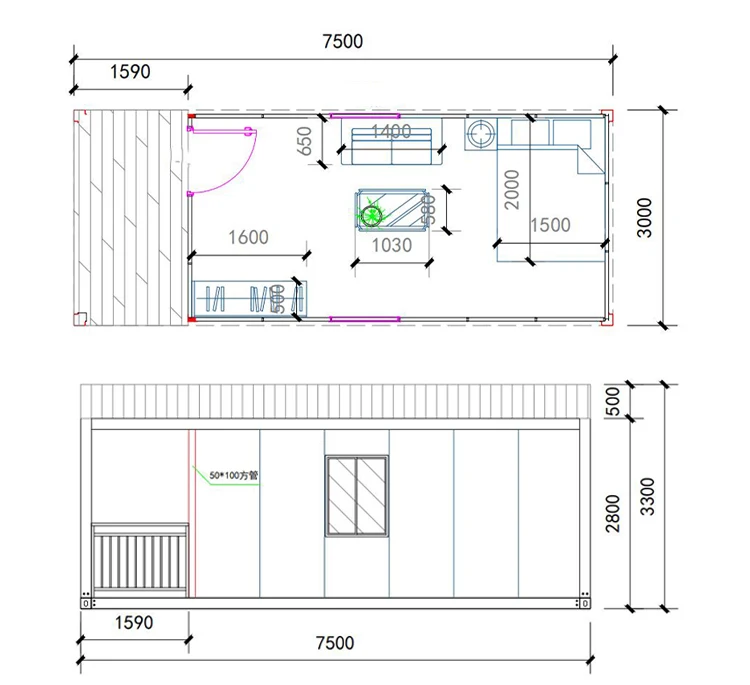

Inspired by minimalism, the exterior dimensions are 7500*3000*2800, providing an interior area of 22.5 square meters. Equipped with a spacious terrace, residents can fully enjoy outdoor leisure time. The modular structure, with an outer frame thickness of 2.3mm and coated with white paint, combines aesthetics with practicality.

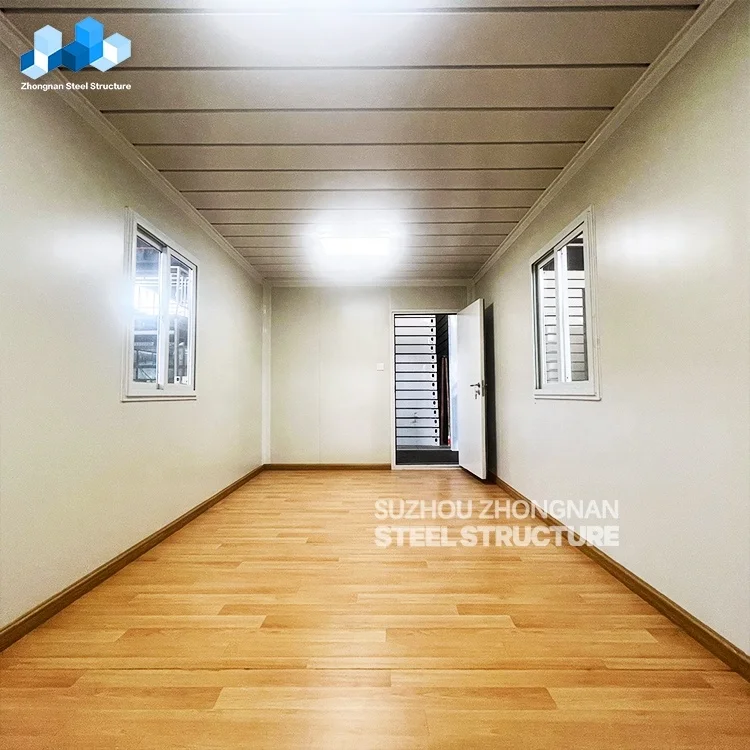

The roof features a tripod truss and 8# C-section steel bars, paired with black resin tiles, providing reliable waterproofing and protection, ensuring comfortable living in any weather conditions. The bottom beams are composed of 4*8 and 8*8 square pipes, laid with fireproof magnesium oxide boards. The interior flooring is covered with 2.0mm thick PVC wood grain floor leather for comfort and practicality. The terrace section features outdoor-specific wood-plastic composite flooring laid with encrypted secondary beams, showcasing a natural style and creating a comfortable outdoor leisure space.
The roof features a tripod truss and 8# C-section steel bars, paired with black resin tiles, providing reliable waterproofing and protection, ensuring comfortable living in any weather conditions. The bottom beams are composed of 4*8 and 8*8 square pipes, laid with fireproof magnesium oxide boards. The interior flooring is covered with 2.0mm thick PVC wood grain floor leather for comfort and practicality. The terrace section features outdoor-specific wood-plastic composite flooring laid with encrypted secondary beams, showcasing a natural style and creating a comfortable outdoor leisure space.
Product Paramenters
Zhongnan container House Parameters | ||||
Size | 20FT/40FT Customized | |||
Life span | More than 35 years | |||
Steel Frame | Main Beam For Floor And Bottom | Galvanized formed beam | ||
Thickness:3.0mm,2.5mm,2.3mm | ||||
Top Frame | C shape steel:C80*1.3mm,galvanized | |||
Square tube: 20*20*1.0mm,galvanized | ||||
Insulation:75mm fiber glass wool with sliver paper,density:14kg/m³ | ||||
Bottom Frame | Square tube: 50*100*1.2mm,galvanized | |||
Insulation:75mm fiber glass wool with sliver paper,density:14kg/m³ | ||||
Column | Galvanized steel Column | |||
Corner fitting | Galvanized steel | |||
Wall system | 75mm Sandwich Panel | 75mm rock wool board,density≥80kg/m3 | ||
Floor | Fiber Cement Board | Thickness :18mm | ||
Vinyl flooring | Thickness:1.6mm/2.0mm | |||
House size | External Dimensions | 7500*3000*2800mm(L*W* H) | ||
Window | House Internal Dimensions | 5790*2780*2500mm(L*W* H) | ||
Door | Corridor Size | 3000*1710mm(L*W) | ||
Electrical Device | 100V- 250V, 2P63A, Using IP44 standard power distribution box. main power cable is 6m², AC cable is 4m², socket cable is 2.5m², lighting & switch cable is 1.5m². Four sockets, 1pc AC socket of three holes 16A, 3pcs socket of five holes 10A. 1pc single connection switch, 2pcs LED light,2*15W.ADAPTS power supply according to different countries and regions | |||
Accessories | Screw ,Blot, Silicon sealant,etc | |||
Details Images

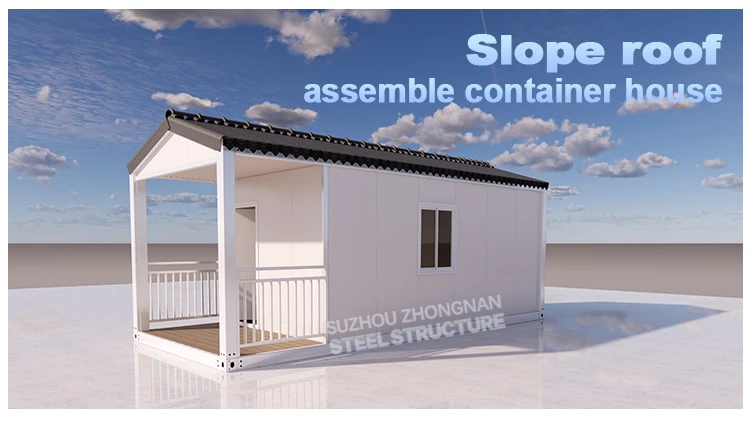

ZN House is a professional prefab home manufacturer specializing in fast assemble container homes. The slope roof assemble container house is a visually appealing and rapidly installable living container featuring a pitched roof design and terrace configuration, ensuring both aesthetics and privacy, while being suitable for regions with high rainfall.
Advantages of prefabricated assembly container :
1.Performance advantages: High sealing and security, waterproof, windproof, fireproof, corrosion-resistant, cold-resistant, earthquake-resistant, soundproof, heat-insulating, and reusable. Enhances comfort and safety attributes.
2.Cost advantages of use: Steel frame structure, sturdy and durable, reusable for up to 30 years. Convenient deployment, long-term and large-scale users can significantly reduce usage costs.
3.Transportation cost advantages: Folding structure, compressed shipping, facilitating transportation by sea, land, and air. Significantly reduces batch transportation costs.
4.Installation cost advantages: Various assembly forms, no need for large machinery or installation experience, a set of houses can be easily built in a few hours, greatly reducing labor and time costs.
5.Storage cost advantages: Small footprint after disassembly, storing the most houses in the smallest space, greatly reducing storage costs.
6.Environmental advantages: From production, transportation, installation to storage, there is no disassembly loss, no generation of any construction waste, no occupation, no damage to farmland, safe, low-carbon environmental protection, green production, green use. People-oriented, environmentally friendly.

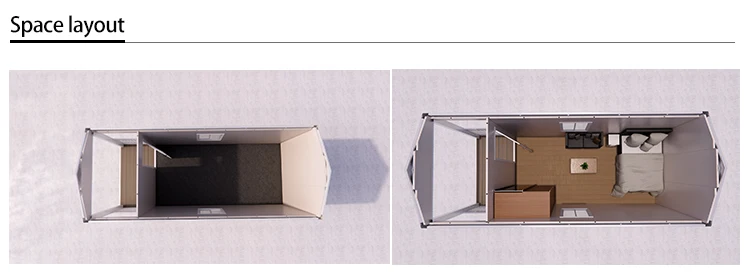

Interior layout can be customized according to requirements
Each Country socket is different, we will change according to the customer country
Container house can be stacked two levels, and add veranda,gazebo ,canopy, railing, stair.
We have free designers to set up the layout and structure for you, and there are 3D designs
Company Profile
Zhongnan container house can be folded repeatedly, recycled, in line with emergency living standards.
It is widely used for labor camp, office, dormitories, and storeroom.We have shipped prefab houses to more than 80 countries. Australia, New Zealand, the United States, Canada, France, Sweden,Qatar,Peru, Brazil, Malaysia, Philippines, Malaysia,Thailand,India and other countries. We also often provide container houses for the Chinese government.This kind of quick folding house is very popular with the market.
It is widely used for labor camp, office, dormitories, and storeroom.We have shipped prefab houses to more than 80 countries. Australia, New Zealand, the United States, Canada, France, Sweden,Qatar,Peru, Brazil, Malaysia, Philippines, Malaysia,Thailand,India and other countries. We also often provide container houses for the Chinese government.This kind of quick folding house is very popular with the market.
Certifications: ISO, CE, SGS, BV.More than 50 patents
Production base: Five factories and one international trade company.
OEM or Customized Service is available.
Production base: Five factories and one international trade company.
OEM or Customized Service is available.
Shipments
FAQ
1.Q: Could you please design a new and unique prefab house for me?
A: Absolutely! We are able to provide you with not only construction scheme, but landscape design! One-stop service is our
outstanding superiority with no doubt.
2.Q: What should I provide to build a prefab house?
A: So easy! Sketch drawing would be a better reference for us. However, you will never mind if you don't have any. Simply notify us your requirements, such as the area, usage and the stories of the house. Before long, you'll possess an amazing design.
3.Q: How could I ensure the cost of building a prefab house?
A: Firstly, the designing scheme should be accepted. Then, the kinds of building materials should be confirmed since different types and qualities make various prices. After that, we will send you a detailed quotation.
4.Q: How Long does it take to build a light steel prefab house?
A: It depends on the size of the house. Generally, one 50 square meter house five workers 1-3days finished installation, save manpower and time
5.Q: Is it difficult to build a prefab house?
A: Totally not, you can build the house independently according to the construction drawings as long as you know how to use anelectric tool.
6.Q: Does this kind of house can only be used in residential buildings?
A: Absolutely not. It can be used in all kinds of buildings, such as hotel, office, school, entertainment club, light industrial
workshop, etc.
7.Q: Is prefab house stable?
A: Set your hearts at rest! You are completely safe living in light steel prefab house even if there are hurricanes of 200km/h and 9-grade earthquake outside.
8.Q: what are the advantages of prefab house compared to the traditional building?
A: Better isolation of sound and heat, Better fireproof and anti-seismic, Wind resistance, Time and labor saving, More usable area, Excellent termite-proof capability
9.Q: Does prefab house look different from the ordinary one?
A: Yes. prefab house is more beautiful and suitable for any style.
10.Q: How do we cooperate on certain project?
A: Firstly, please send us your project details and your requirements. Then we will design accordingly, free of charge.
Afterwards, please check and confirm whether you like the drawings. If not, we shall get the drawings revised until your
confirmation. Finally, we make a deal on alibaba.com with Trade Assurance.
Project details ---> Drawings for your project ---> Revised drawings ---> Transaction confirmation with Trade Assurance
11.Q: What is the delivery time?
A: Delivery time depends on order quantities. Generally, the delivery time will be 15-25 days after receiving the deposit.
A: Absolutely! We are able to provide you with not only construction scheme, but landscape design! One-stop service is our
outstanding superiority with no doubt.
2.Q: What should I provide to build a prefab house?
A: So easy! Sketch drawing would be a better reference for us. However, you will never mind if you don't have any. Simply notify us your requirements, such as the area, usage and the stories of the house. Before long, you'll possess an amazing design.
3.Q: How could I ensure the cost of building a prefab house?
A: Firstly, the designing scheme should be accepted. Then, the kinds of building materials should be confirmed since different types and qualities make various prices. After that, we will send you a detailed quotation.
4.Q: How Long does it take to build a light steel prefab house?
A: It depends on the size of the house. Generally, one 50 square meter house five workers 1-3days finished installation, save manpower and time
5.Q: Is it difficult to build a prefab house?
A: Totally not, you can build the house independently according to the construction drawings as long as you know how to use anelectric tool.
6.Q: Does this kind of house can only be used in residential buildings?
A: Absolutely not. It can be used in all kinds of buildings, such as hotel, office, school, entertainment club, light industrial
workshop, etc.
7.Q: Is prefab house stable?
A: Set your hearts at rest! You are completely safe living in light steel prefab house even if there are hurricanes of 200km/h and 9-grade earthquake outside.
8.Q: what are the advantages of prefab house compared to the traditional building?
A: Better isolation of sound and heat, Better fireproof and anti-seismic, Wind resistance, Time and labor saving, More usable area, Excellent termite-proof capability
9.Q: Does prefab house look different from the ordinary one?
A: Yes. prefab house is more beautiful and suitable for any style.
10.Q: How do we cooperate on certain project?
A: Firstly, please send us your project details and your requirements. Then we will design accordingly, free of charge.
Afterwards, please check and confirm whether you like the drawings. If not, we shall get the drawings revised until your
confirmation. Finally, we make a deal on alibaba.com with Trade Assurance.
Project details ---> Drawings for your project ---> Revised drawings ---> Transaction confirmation with Trade Assurance
11.Q: What is the delivery time?
A: Delivery time depends on order quantities. Generally, the delivery time will be 15-25 days after receiving the deposit.
