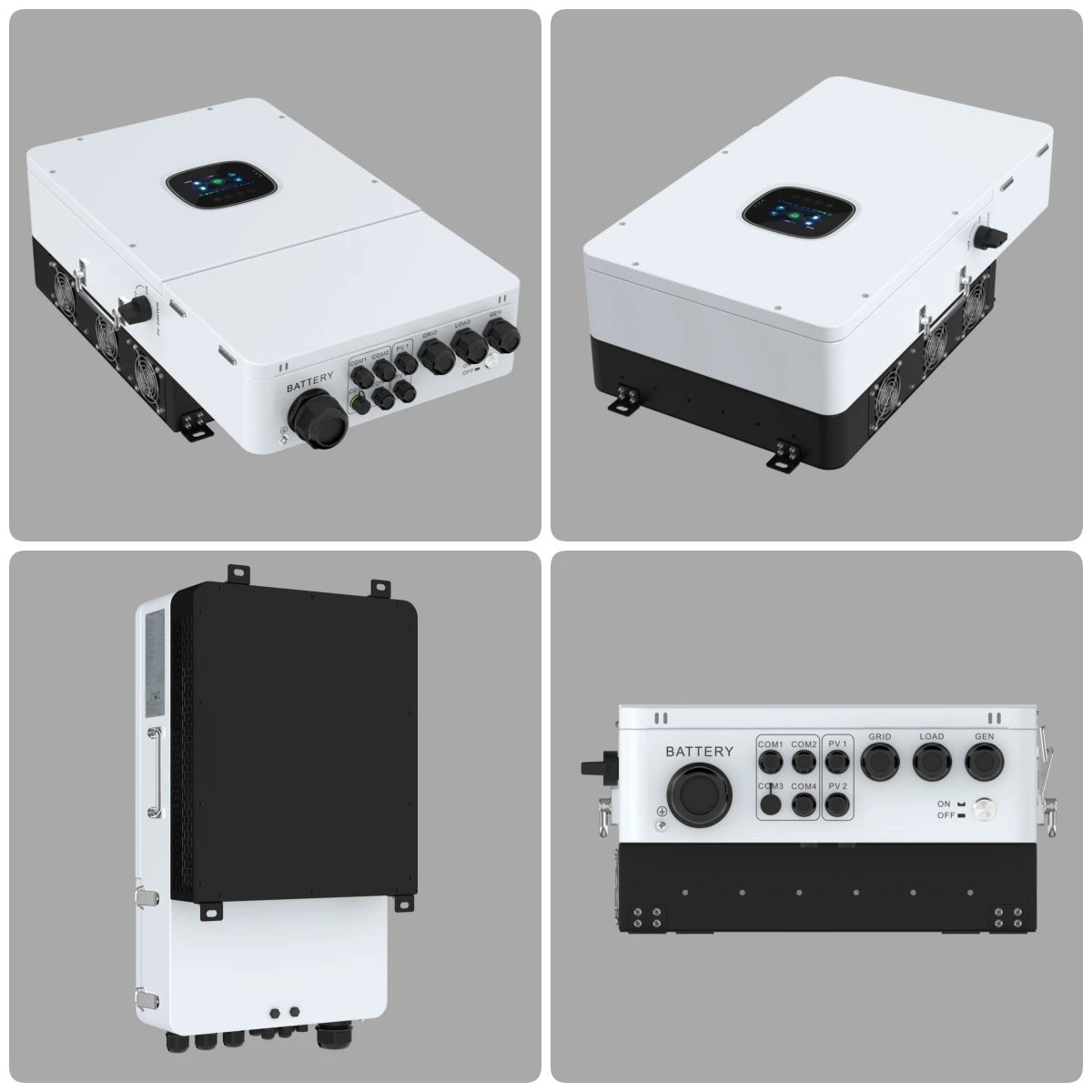

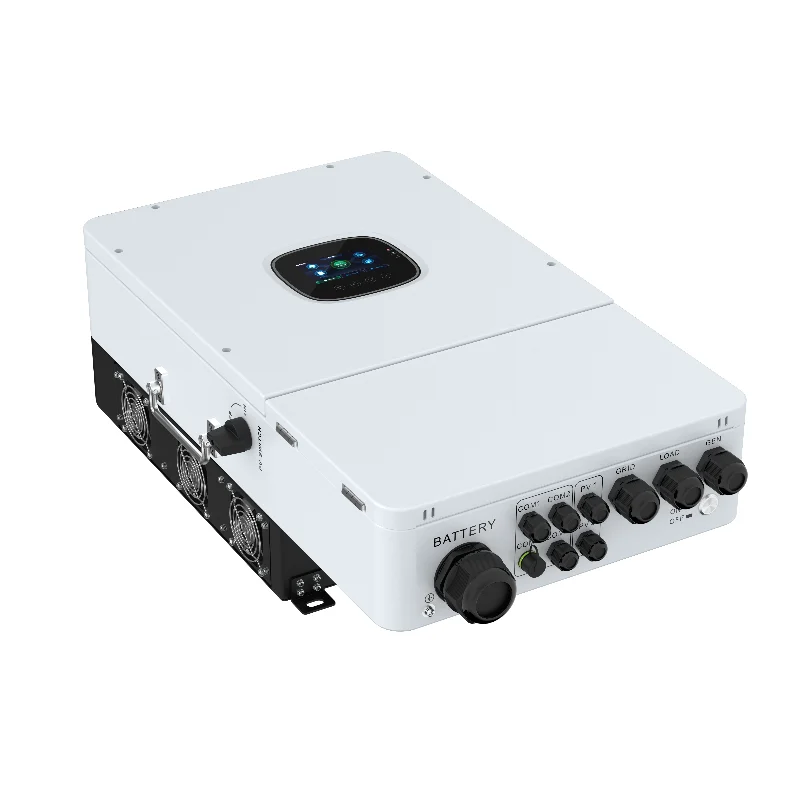

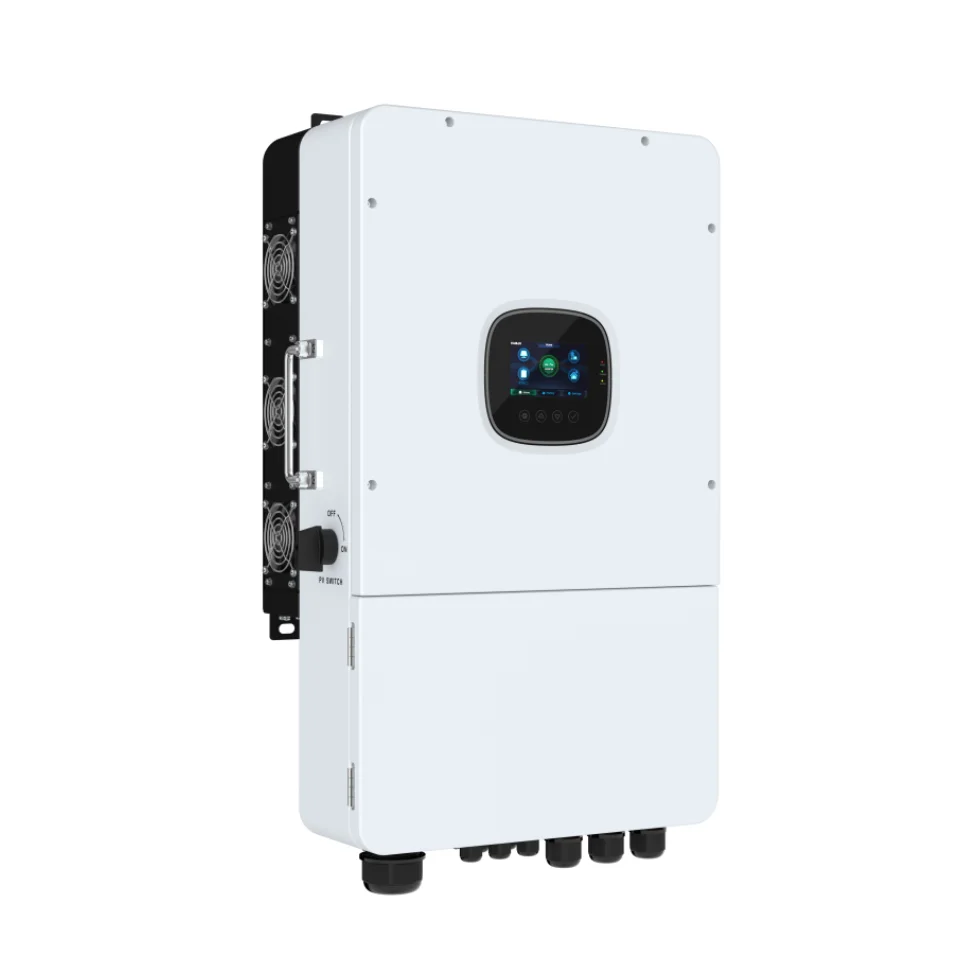

American IP65 12KW AC 48V DC Up To 6 Units Parallel Support BMS Split Phase srne ON Grid OFF Grid Solar Storage Hybrid Inverter
- Category: >>>
- Supplier: Harbin Shinenovo Technology Development Co. Ltd.
Share on (1601134881489):
Product Overview
Description
Product Description

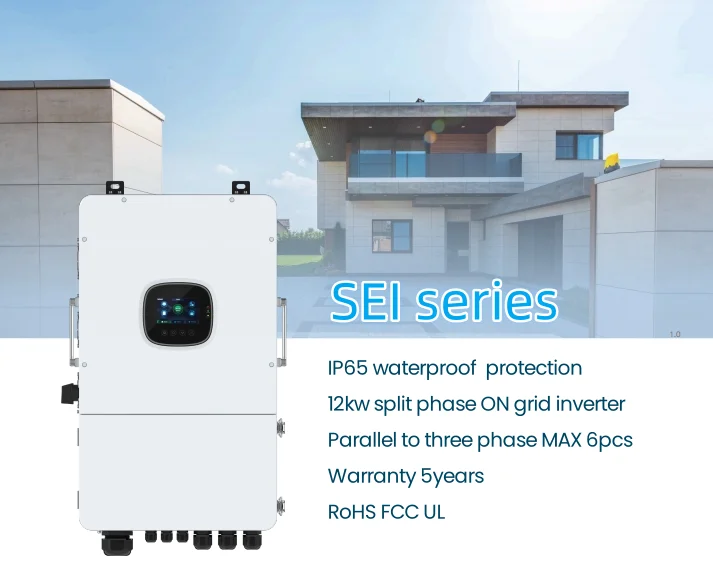

American IP65 12KW 120V/240V AC 48V DC Up To 6 Units Parallel Split Phase srne ON/OFF Grid Hybrid Inverter
Feature
Supports lead acid battery and li-ion battery connnections.
With a dual activation function when the li-ion battery is dormant; either mains/photovoltaic power supply access can trigger the activation of the li-ion battery.
Support single-phase pure sine wave output.

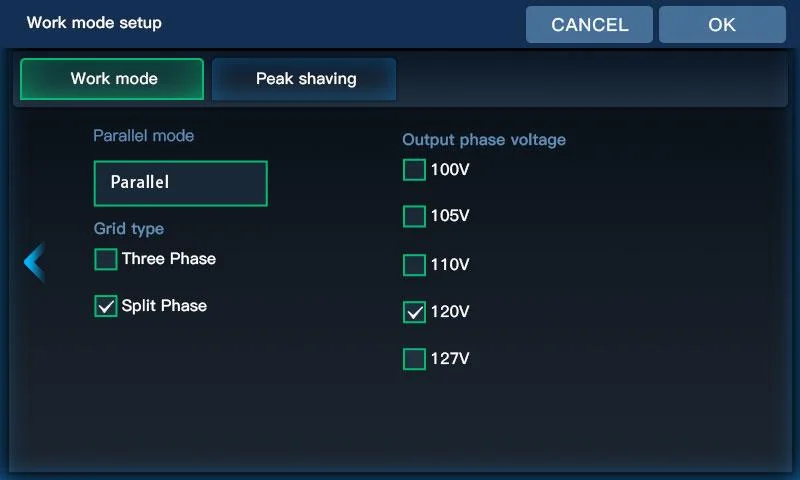

Supports four different voltage levels of 100\\105\\110\\120\\127Vac per phase.
American IP65 12KW 120V/240V AC 48V DC Up To 6 Units Parallel Split Phase srne ON/OFF Grid Hybrid Inverter
Specification
MODEL | SEI-8K-UP | SEI-10K-UP | SEI-12K-UP | CAN BE SET | ||||
INVERTER OUTPUT | ||||||||
Rated Output Power | 8800W | 10000W | 12000W | |||||
Max. Peak Power | 17600VA | 20000VA | 24000VA | |||||
Rated Output Voltage | 120/240Vac, single-phase / split-phase / three-phase(parallel) | √ | ||||||
Load Capacity of Motors | 5HP | 6HP | ||||||
Rated AC Frequency | 50/60HZ | |||||||
BATTERY | ||||||||
Battery Type | Lead-acid / Li-ion / User-defined | |||||||
Rated Battery Voltage | 48V | |||||||
Max. PV Charging Current | 200A | √ | ||||||
Max. Mains Charging Current | 120A | √ | ||||||
Max. Alternator Charging Current | 60A | |||||||
Max. Hybrid Charging Current | 200A | √ | ||||||
PV INPUT | ||||||||
Num. of MPPT | 2 | |||||||
Max. PV Array Power | 5,500W+5,500W | 6,600W+6,600W | ||||||
Max. Input Current | 22A+22A | |||||||
Max. Open-circuit Voltage | 500Vdc+500Vdc | |||||||
MPPT Operating Voltage Range | 125-425VDC | |||||||
MAINS / GENERATOR INPUT | ||||||||
Input Voltage Range | 90～140Vac | √ | ||||||
Frequency Range | 50/60HZ | |||||||
GENERAL | ||||||||
Num. of Parallel | 1-6 units | |||||||
Dimensions | 750*440*240mm (2.46*1.44*0.79ft) | |||||||
Weight | 42kg (92.59lb) | |||||||
Protection Degree | IP65 | |||||||
Operating Temperature Range | -25~60℃,>45℃ derated | |||||||
Cooling Method | Intelligent air-cooling | |||||||
Warranty | 5 years | |||||||
COMMUNICATION | ||||||||
Embedded Interfaces | RS485 / CAN / USB / Dry contact | √ | ||||||
External Modules (optional) | Wi-Fi / GPRS | √ | ||||||
CERTIFICATION | ||||||||
Safety | IEC62109-1, IEC62109-2 | |||||||
Rohs | Yes | |||||||
American IP65 12KW 120V/240V AC 48V DC Up To 6 Units Parallel Split Phase srne ON/OFF Grid Hybrid Inverter
Product Details

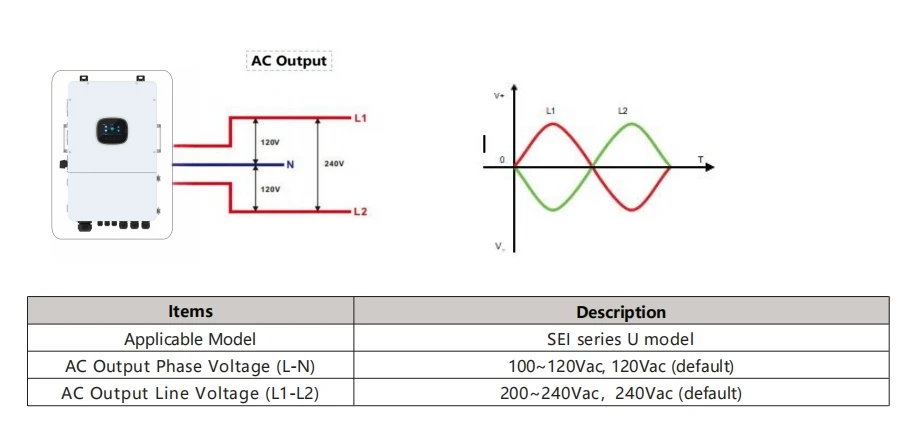

Split-phase / Three-phase parallel connection （max 6pcs）

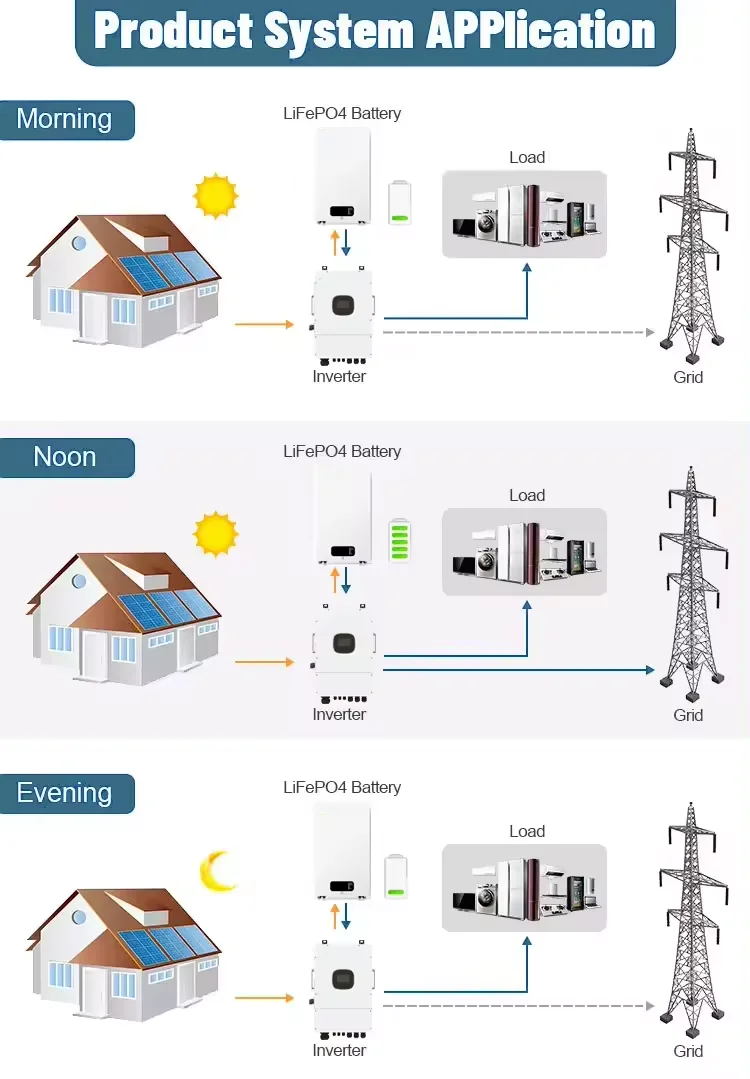

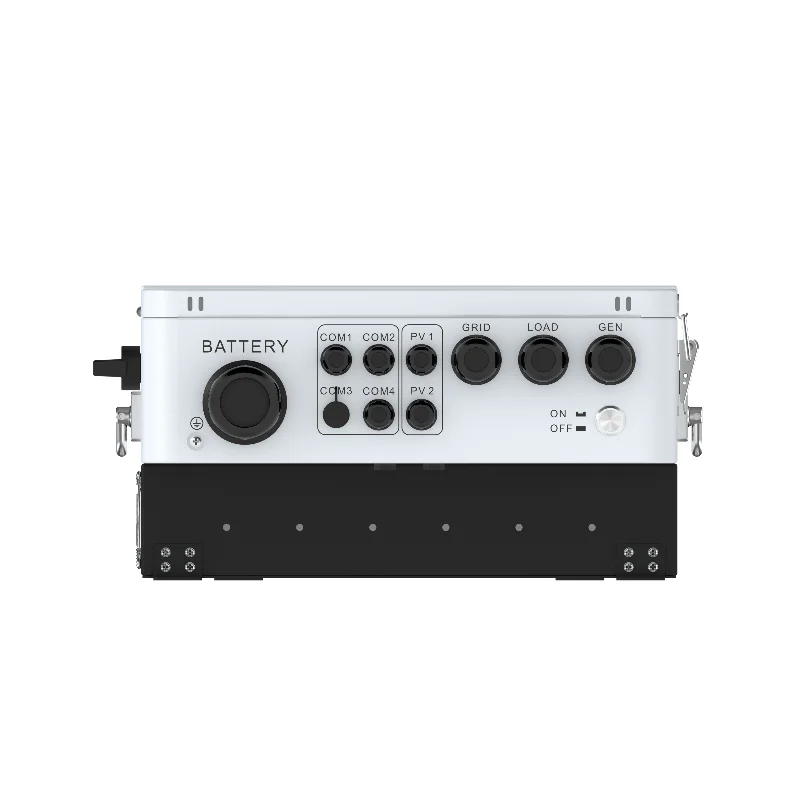

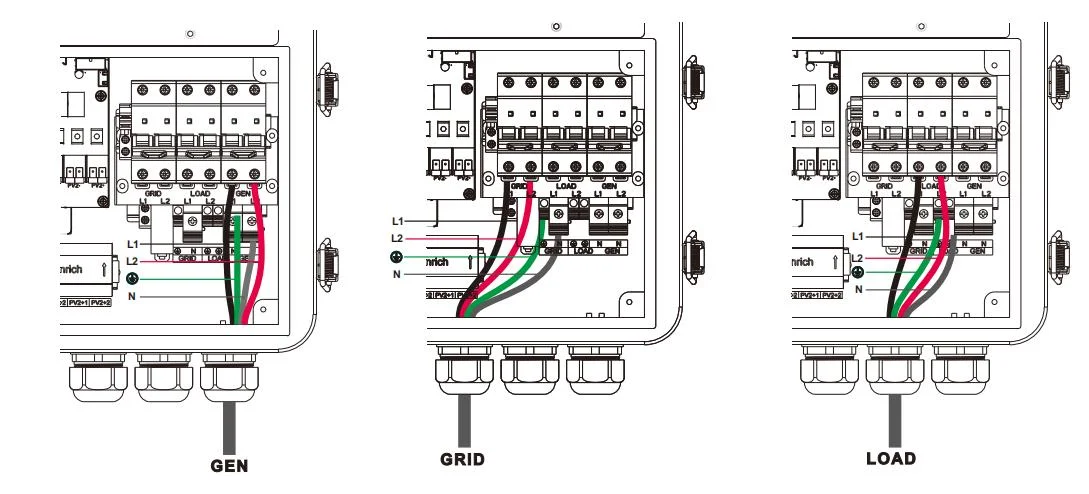

GRID & LOAD & GEN connection
Our Company
We, Harbin Shinenovo Technology Development Co., Ltd., are exporter and service provider, specializing in exporting solar power products, designing solar systems and providing solar engineering services. We have a wide range of solar products, includingsolar panel, solar inverter, solar controller, portable solar lighting system, solar garden light and DC & AC solar system. All of our products have been passed CE, TUV, ISO, CQC and other certifications. Our service team provides customers with professional, patient and high-quality services and technical support, including solar power design, fault clearance and after service. We aim at continuously expanding variety of products and improving quality standards to offer an overall understanding to the customers and make them buy various related products. If you have any questions about our products, please contact us timely. We arestriving for our common sustainably developing future and advanced technology. In order to solve climate and resources problems,we are willing to achieve our common dream toghther with you.
