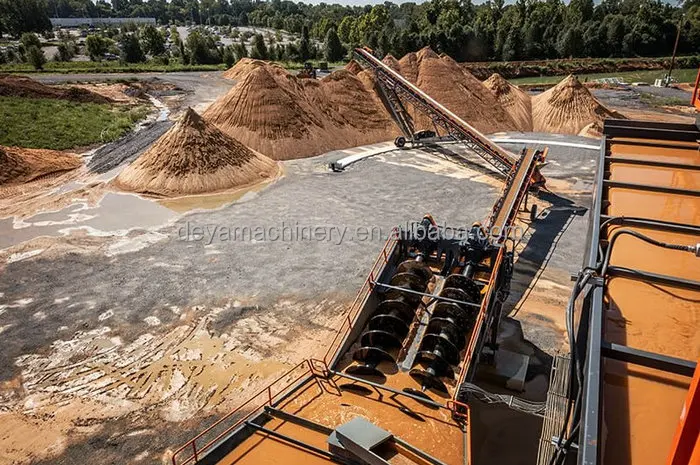

Radial stacker belt conveyor system for quarry plant

A radial stacker is a conveyor built into an inclined rigid truss that rests on wheels. This configuration allows it to rotate freely as it deposits material onto a pile at a rate of up to 1,200 tons of material per hour.

The radial stacker raises the material at a grade of up to 20° or more and then discharges it onto the top of the stockpile. Steeper inclines are possible but, depending on material properties, may require a specific conveyor belt design.

The intelligent design solves one of the most common stockpiling challenges. As aggregate stacks get higher, they get more difficult to work with, thereby hindering production and profitability. Radial stacker conveyors fix this problem.

Rotating radially in an arc will allow you to stockpile a significant amount of material in high and wide piles. This will prevent you from having to continuously move the equipment once the pile reaches a certain height.

Benefits of radial stacker systems

An operator can start a new stack by simply repositioning the conveyor head once the stockpile reaches a preferred height. In other words, no more time-consuming halts to relocate equipment.

It will realize greater uptime, production, and profits with a radially moving stacker.

Other benefits include:

1. Boost Workplace Safety, the operators don’t have to move heavy equipment to continuously create new stacks. This helps lessen the risk of an industrial accident.

2. Increase Production, Without the shutdowns for relocating a conventional stacker, there’s less idle time and more throughput of materials.

3. Better Business Profits, As throughput goes up, operating costs go down. Radial stackers enable fewer equipment moves, meaning to get higher profits.

Technical data of radial stacker

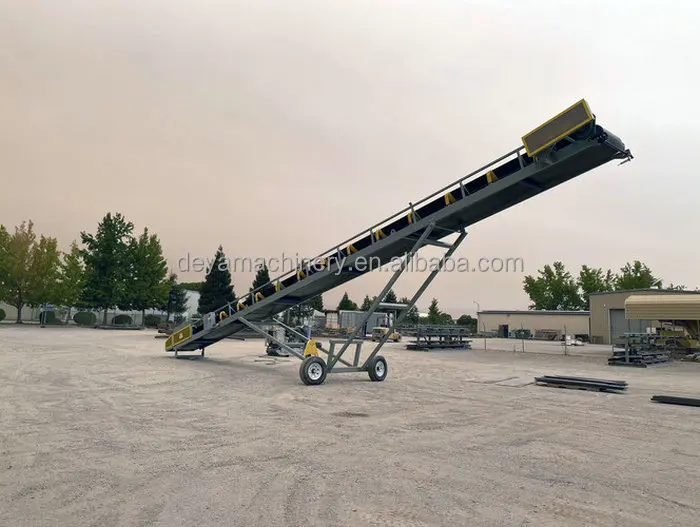

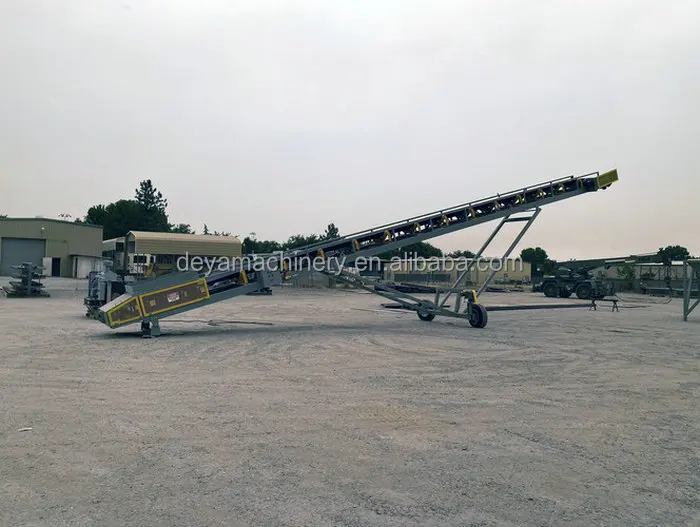

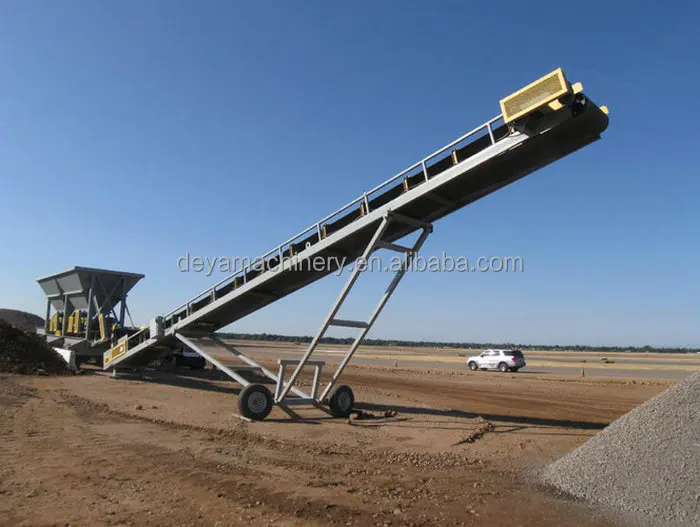

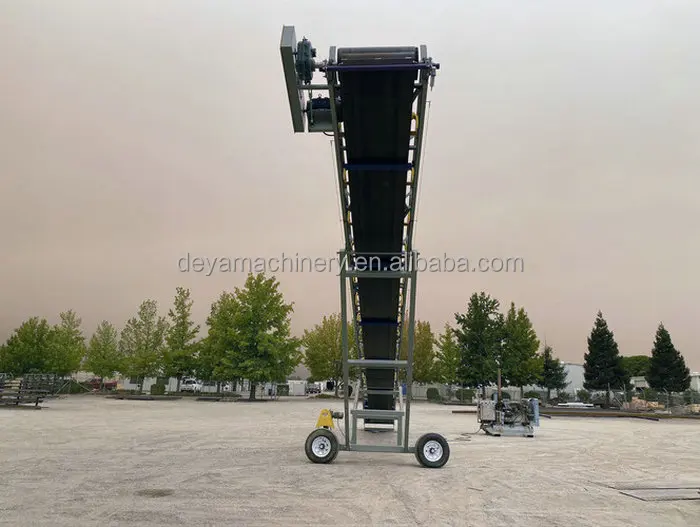

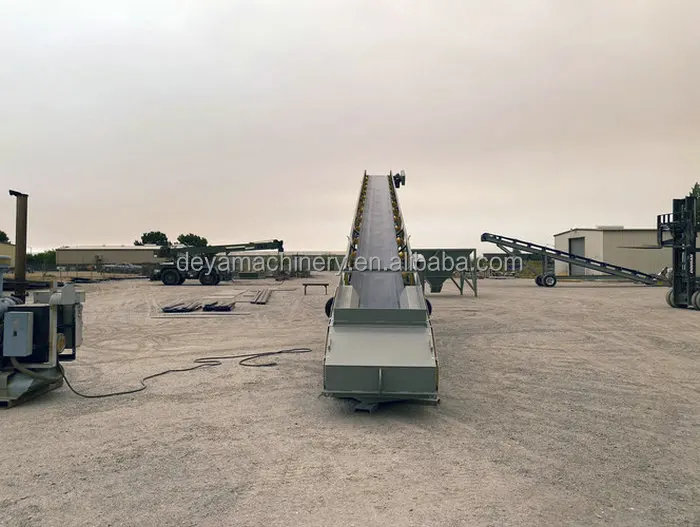

Photos of the radial belt conveyor

Henan Deya Machinery Co., Ltd. is a professional manufacturer of crushing equipment, mineral processing equipment, construction machinery equipment and their spares; the company was established in early 1990’s with an area of one hundred and twenty thousand square meters which includes forty thousand square meters of standard industrial workshop.

Deya Machinery lays much emphasis on quality and service; the company has acquired ISO 9001: 2008 certificate, and it has independent quality control department and after sale service department. Main equipment includes Sand making machine, Cone crusher, Jaw Crusher, Vibrating screen, Ball Mill, complete crusher plant and mineral process plant. Main processing equipment includes φ8.0m, φ5.0m hobbing, φ6.3m, φ5.0m heavy vertical lathe, φ3.5m, φ2.5m CNC vertical lathe, φ6.0m × 18.0m barrel sleeper, φ220mm, φ160mm boring, φ160mm boring and milling machine, CNC cutting machine, milling machine, automatic welding center, 60mm × 3m Bending and other NTU, fine processing equipment.

As a customer oriented company, Deya People with high level of professionalism, and responsibility; total satisfaction from clients becomes the top priority, and long-term cooperation is what we always sought and cherished for. The products have exported to over 50 countries like Indonesia, Philippines, Vietnam, India, Pakistan, Turkey, Tanzania, Zambia, South Africa, Ghana, Peru, Bolivia, Mexico, Chile, etc. We sincerely hope can establish business cooperation with your esteemed company in the long run.
