Excavator attachment kv3600 sy350 breaker hydraulic magnetic circuit hammer with control valve for cat 320 330D 30ton 36ton
- Category: >>>
- Supplier: Yantai Baicai Machinery Co. Ltd.
Share on (1601135099924):
Product Overview
Description
Suitable Excavator Model

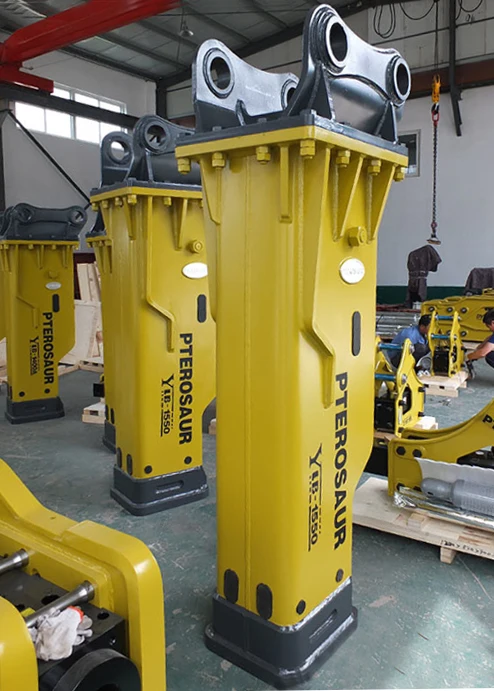

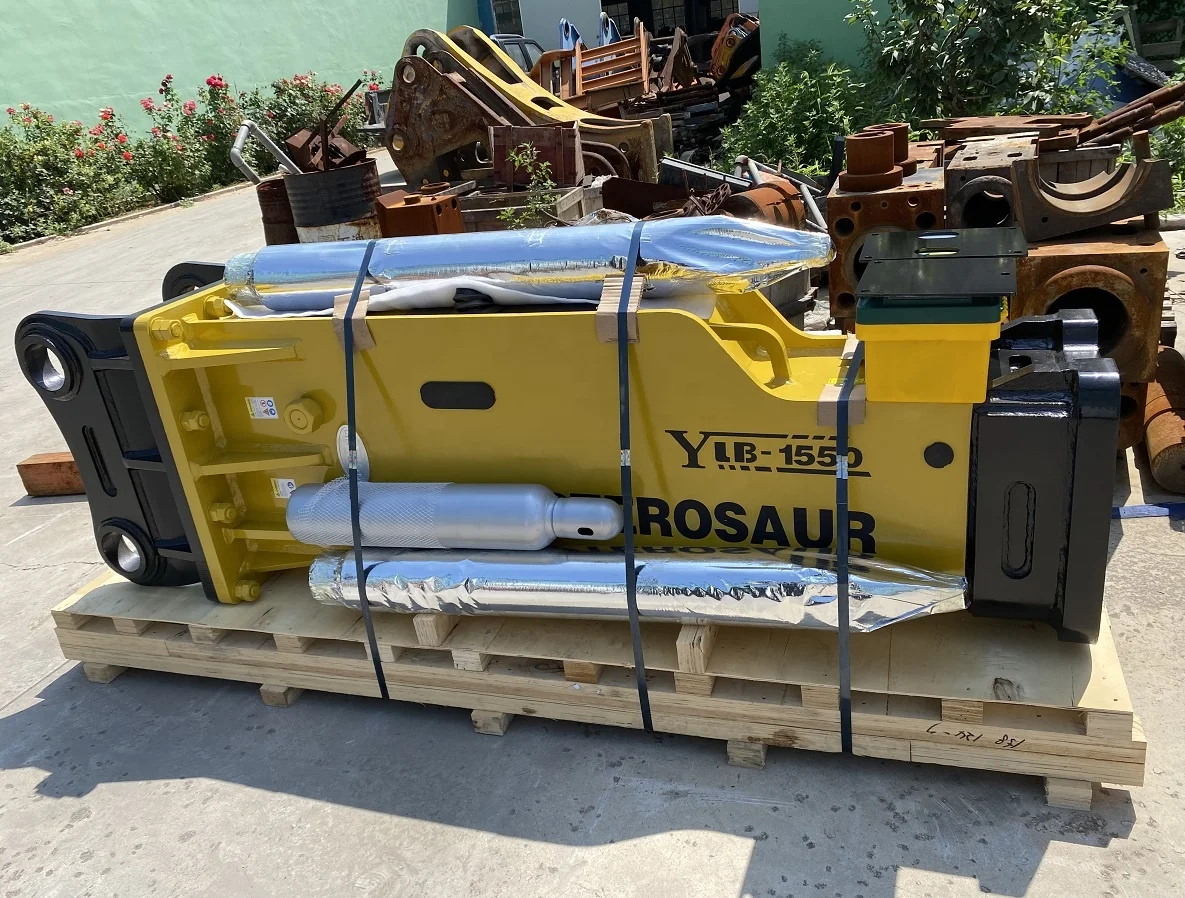

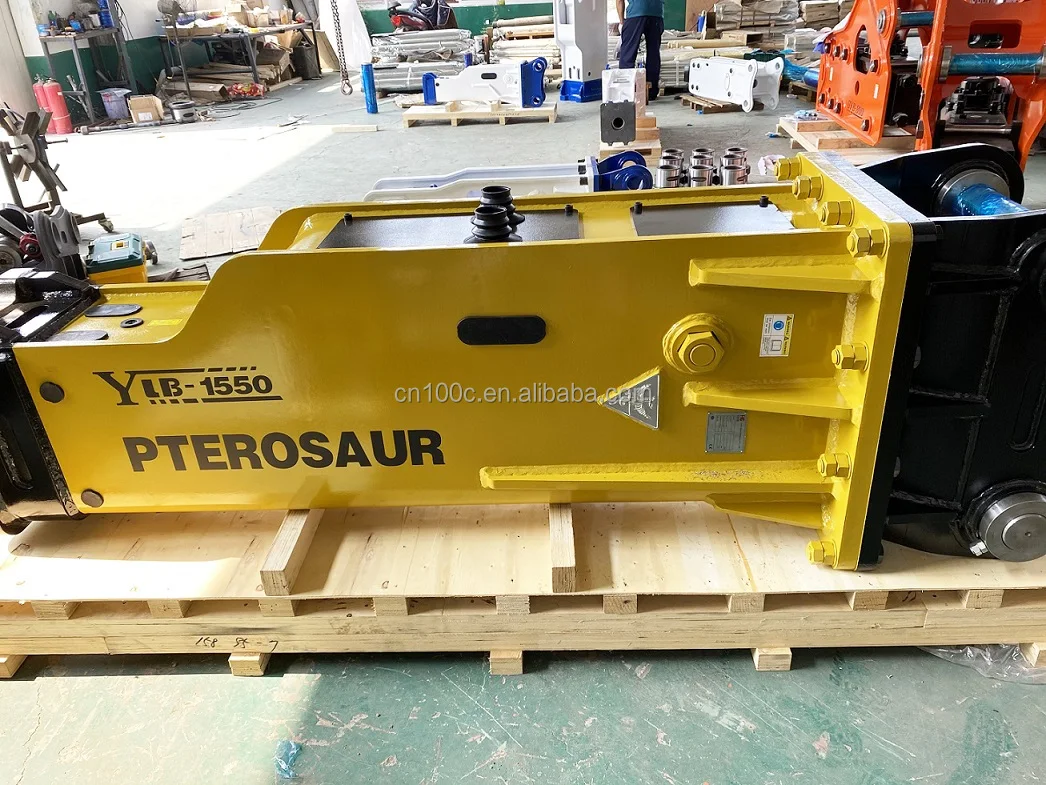

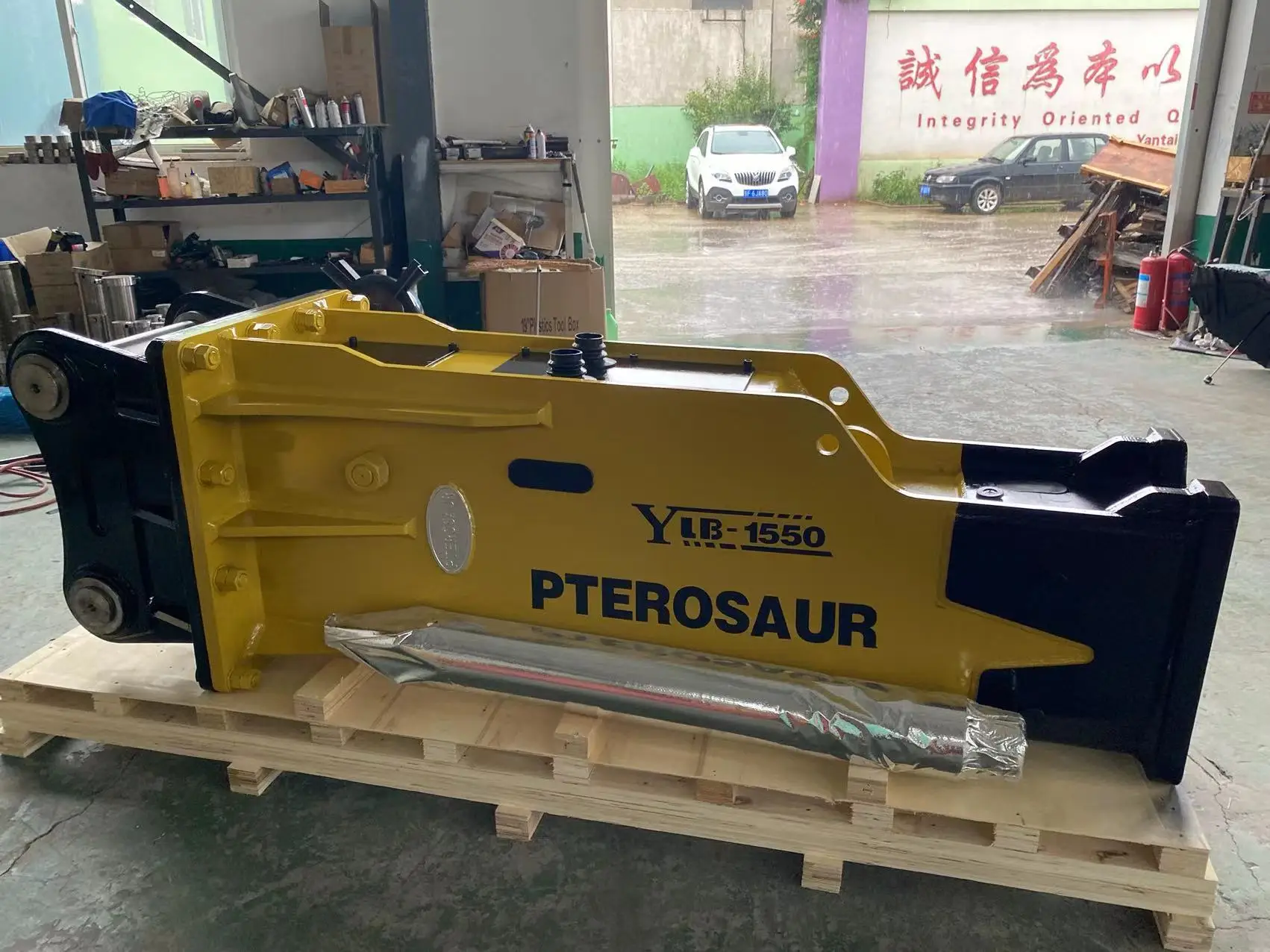

YLB1550 model technical data
Required Oil Flow:170-220L/min
Impact Rate:300-450bmp
Working Pressure:170-190kg/cm2
Rod diameter:155mm
Valve Ass’y Position:internal
operating weight:2850/2780/2600kgs
Applicable Carrier:28-35ton
Impact Rate:300-450bmp
Working Pressure:170-190kg/cm2
Rod diameter:155mm
Valve Ass’y Position:internal
operating weight:2850/2780/2600kgs
Applicable Carrier:28-35ton
The parts size and working performance are same as the SOOSAN brand made in Korea.
Brand | YLB1550 for excavator model | |
CAT | 330 220 225 239 E300 | |
KOMATSU | PC250 PC300 | |
DOOSAN DAEWOO | DH300 | |
HYNUDAI | R360 R290 R420 | |
HITACHI | ZX300 ZX330 ZX350 | |
KOBELCO | SK300 SK320 SK330 SK350 | |
VOLVO | EC290 | |
KUBOTA | ||
SANY | SY285C-9 SY305C-9H SY335C-9 SY335C-9H SY365C-8 | |
STRONG | JCM933D GC338LC-8 | |
LINGONG | LG6300E | |
XGMA | 330LC-8 | |
SUNWARD | SWE330 | |
ZOOMLION | ZE330E | |
XCMG | 330 | |
If you cannot confirm the model, please click to contact us online to help you. | ||
Tips: Tonnage and excavator model are important parameters for hydraulic breaker selection
If you can not confirm the model to be install your excavator, please contact me in time, we can been in this field for more than 20 years with rich experience. We will provide reasonable suggestions for you.

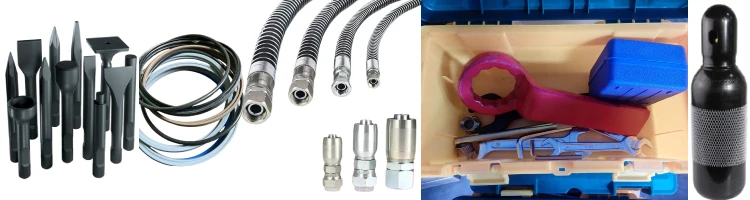

Standard Accessories:
*Chisels x 2 pcs
*Seal kit x 1 set
*Hydraulic Oil Hoses x 2 pcs
*Tool Box with necessary maintenance tools x 1 set
*Nitrogen Charging Kit with Pressure Gauge x 1 set
*Nitrogen Bottle x 1 pcs
* User's Manual x 1 pcs.
*Hydraulic Oil Hoses x 2 pcs
*Tool Box with necessary maintenance tools x 1 set
*Nitrogen Charging Kit with Pressure Gauge x 1 set
*Nitrogen Bottle x 1 pcs
* User's Manual x 1 pcs.
SOOSAN breakers technical data
Model | Excavator tonnage | Operating Weight Box/Open/Side | Working Flow | Working Pressure | Impact Rate | Hose Dia. | Tool Dia. | |||||||
(ton) | (kgs) | (L/min) | (bar) | (bpm) | (inch) | (mm) | ||||||||
Light Type Hydraulic Breakers | ||||||||||||||
YLB450 (SOOSAN 20) | 0.8-3 | 120/100/80 | 15-30 | 90-120 | 600-1200 | 1/2 | 45 | |||||||
YLB530 (SOOSAN 30) | 2.5-4.5 | 180/152/130 | 25-50 | 90-120 | 550-1000 | 1/2 | 53 | |||||||
YLB680 (SOOSAN 40) | 4-7 | 350/320/300 | 40-70 | 100-140 | 500-800 | 1/2 | 68 | |||||||
YLB750 (SOOSAN 43) | 6-9 | 435/400/396 | 50-90 | 120-150 | 450-800 | 1/2 | 75 | |||||||
YLB1000 (SOOSAN 50) | 11-16 | 860/820/760 | 80-120 | 160-180 | 350-700 | 3/4 | 100 | |||||||
Medium Type Hydraulic Breakers | ||||||||||||||
YLB1350 (SOOSAN 70) | 18-21 | 1780/1720/1650 | 100-150 | 180-210 | 350-600 | 1 | 135 | |||||||
YLB1400 (SOOSAN 81) | 20-26 | 1825/1780/1750 | 130-170 | 190-220 | 350-500 | 1 | 140 | |||||||
YLB1500 (SOOSAN 100) | 25-30 | 2300/2230/2100 | 150-210 | 210-230 | 300-450 | 5/4 | 150 | |||||||
YLB1550 (SOOSAN 121) | 28-35 | 2850/2780/2600 | 170-220 | 220-240 | 300-450 | 5/4 | 155 | |||||||
Heavy Type Hydraulic Breakers | ||||||||||||||
YLB1650 (SOOSAN 131) | 30-40 | 3560/3350/3200 | 200-260 | 230-250 | 250-400 | 5/4 | 165 | |||||||
YLB1750 (SOOSAN 151) | 35-45 | 3990/3850/3750 | 210-260 | 240-260 | 250-350 | 5/4 | 175 | |||||||

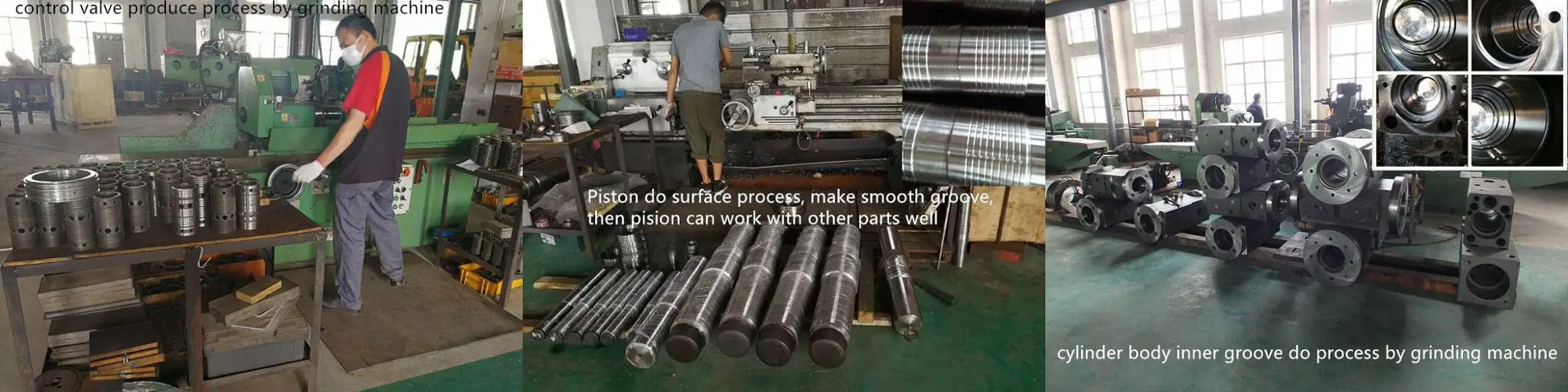

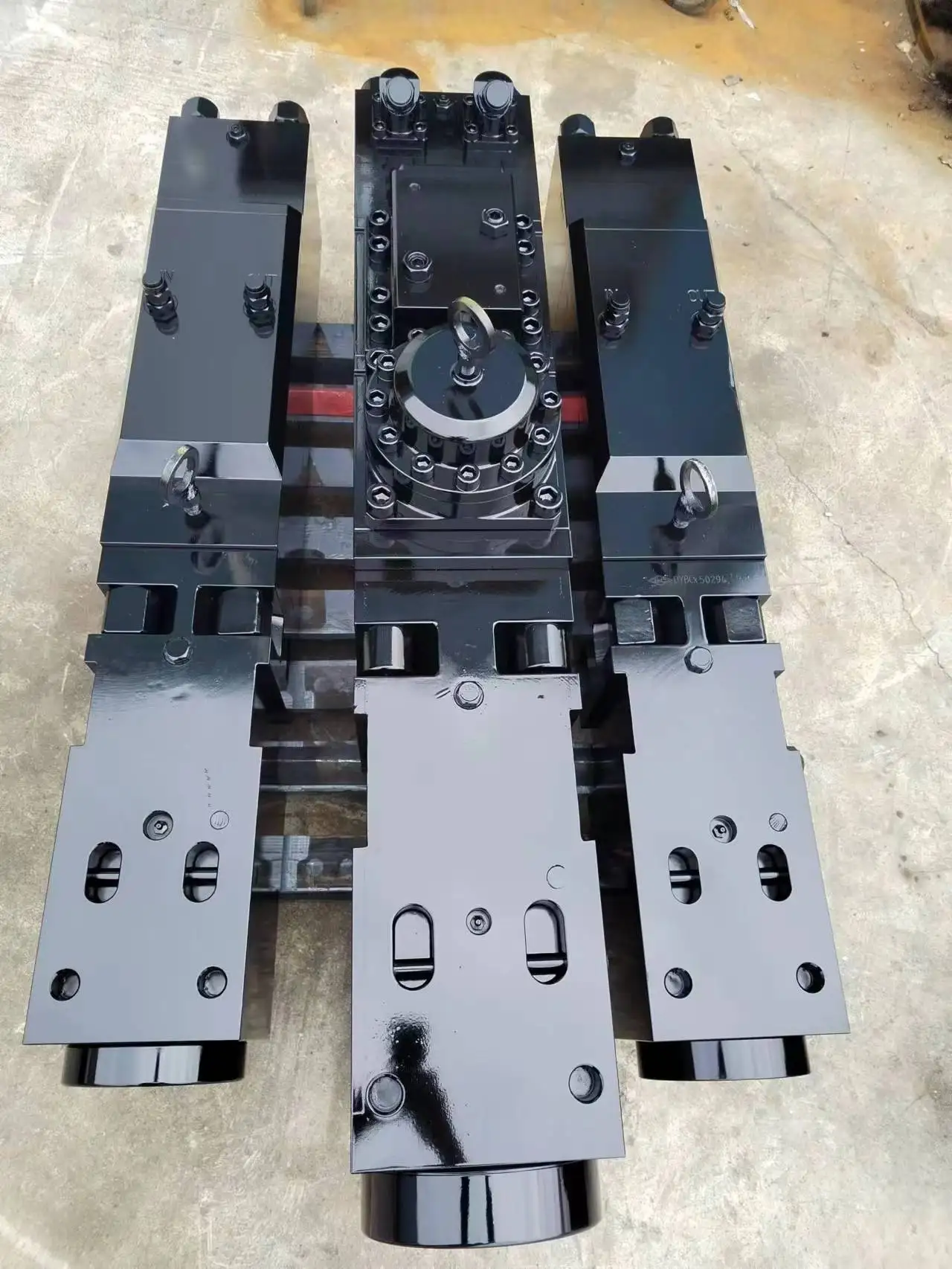

Production Procedure
Control valve-15CrMo
Do grinding process with high precision.
Piston-20Cr2Ni4
Do grinding process. It will have good concentricity. It will reduce the piston scratch problem.
Cylinder inner-20CrMo
61.8HRC hardness. Main body is resistant to deformation, ripping, or scratching
We produce all kinds of accessories for breakers, each part is strictly quality controlled including the raw material, heat treatments, size and production technology, etc. All adopt best raw material in the Chinese market purchasing from large steel mill.
Main body including front head, cylinder body, back head: 20CrMo
Front cover and inner bushing: 20CrMo Piston: 20Cr2Ni4
Though bolts, side bolts, Rod Pin, Chisel: 42CrMo
Control valve: 15CrMo
Seal kit: NOK and Parker brand made in Japan and America
Cylinder-20CrMo
Cylinder-20CrMo
Brackets-Q345 steel
Bushing-20CrMo
Imported DONGYANG brand breaker from Korea since 1998 and participate in the Shanghai Bauma exhibition together, and as Korean brand stable supplier now with positive reviews
Always hire Korea Engineers to study Korean technology to produce SOOSAN and FURUKAWA series breakers
Specialized in R&D Heavy-duty hydraulic breakers. already successfully developed breakers with 210 mm and 230 mm diameter. Chisel

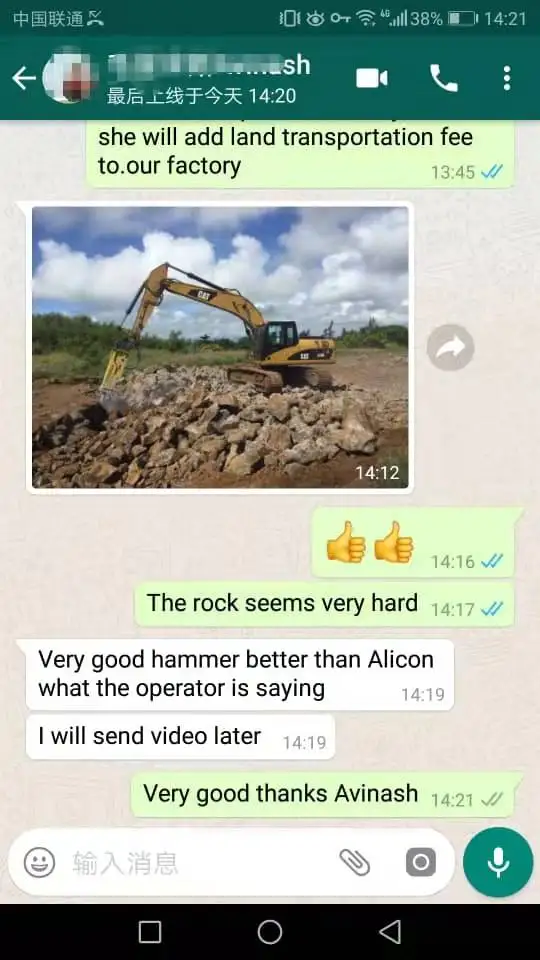

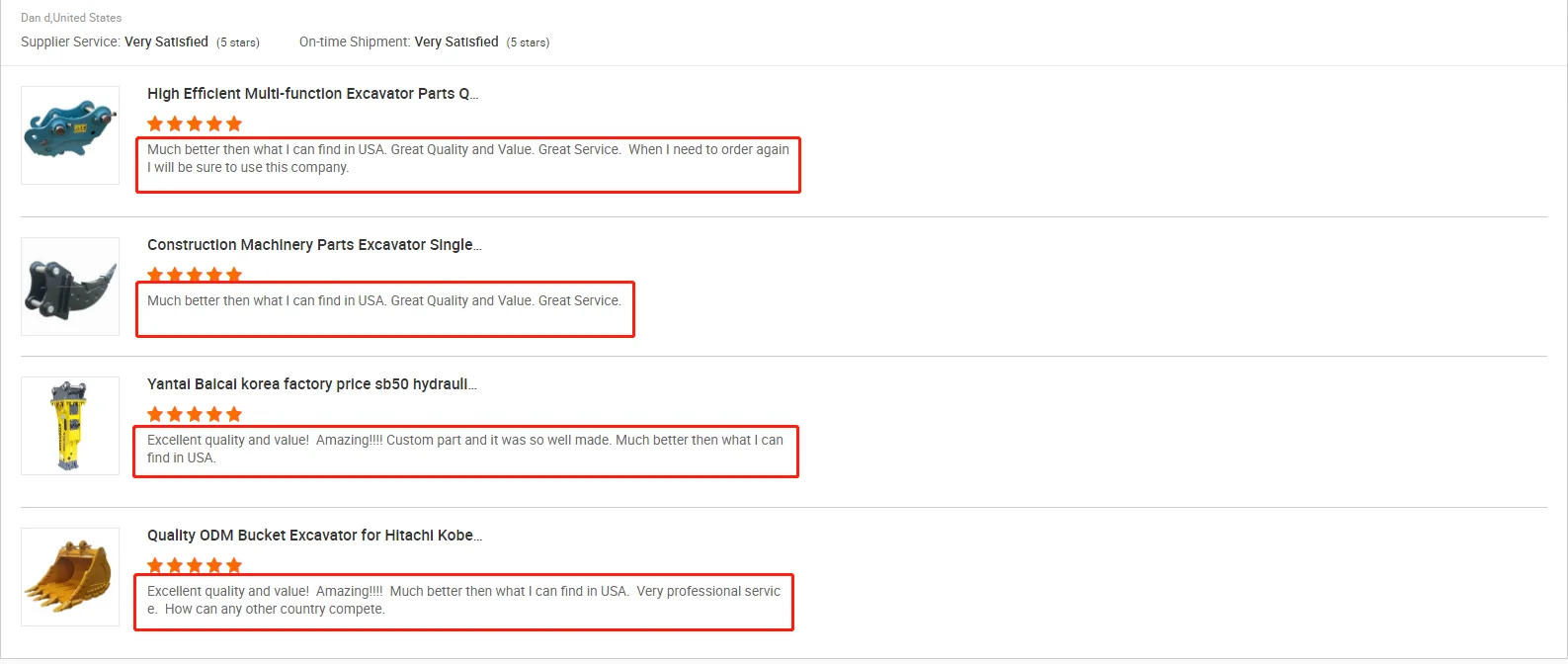

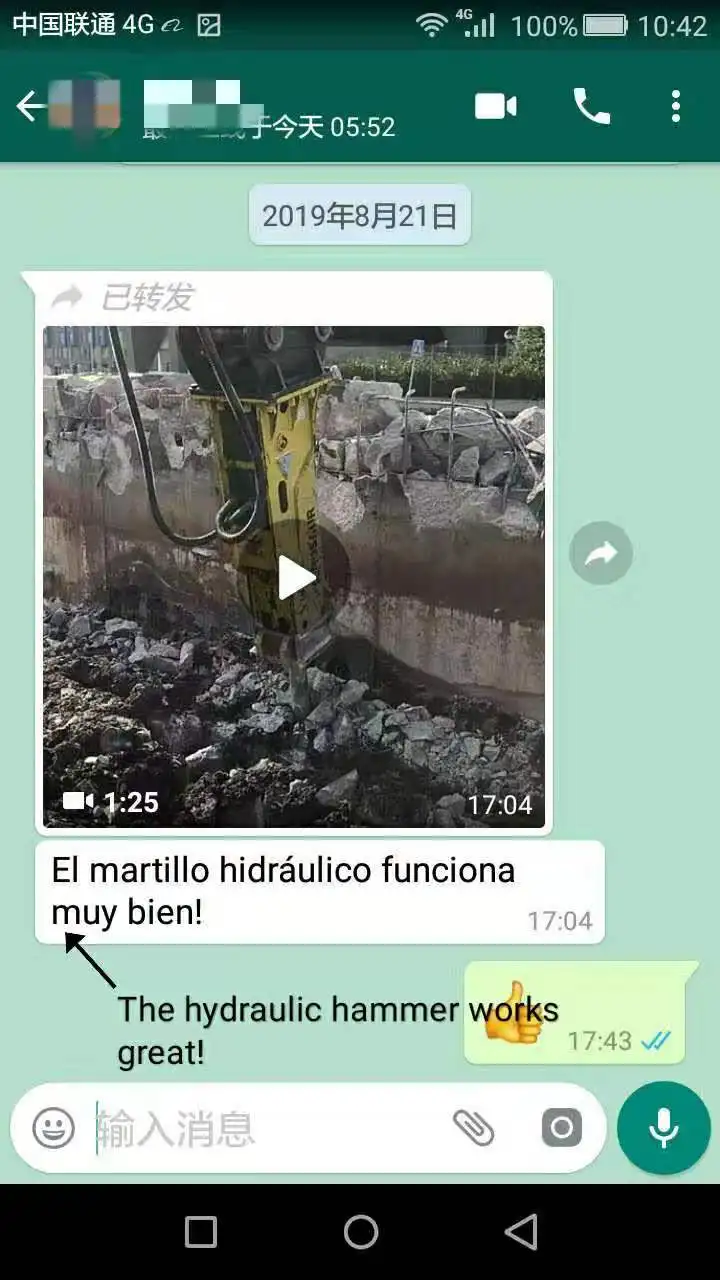

Comments from Customers
A harsh working environment can test the quality of a product. Feel free to contact me to view more customer reviews. Our hydraulic breakers are mostly used in mines and quarries for round-the-clock work.
How to make your money and goods safe?
We can make a deal through Alibaba, and draft an assurance order, you can pay it through credit card and bank transfer. It can protect your side interests. You also track the shipping information of your goods

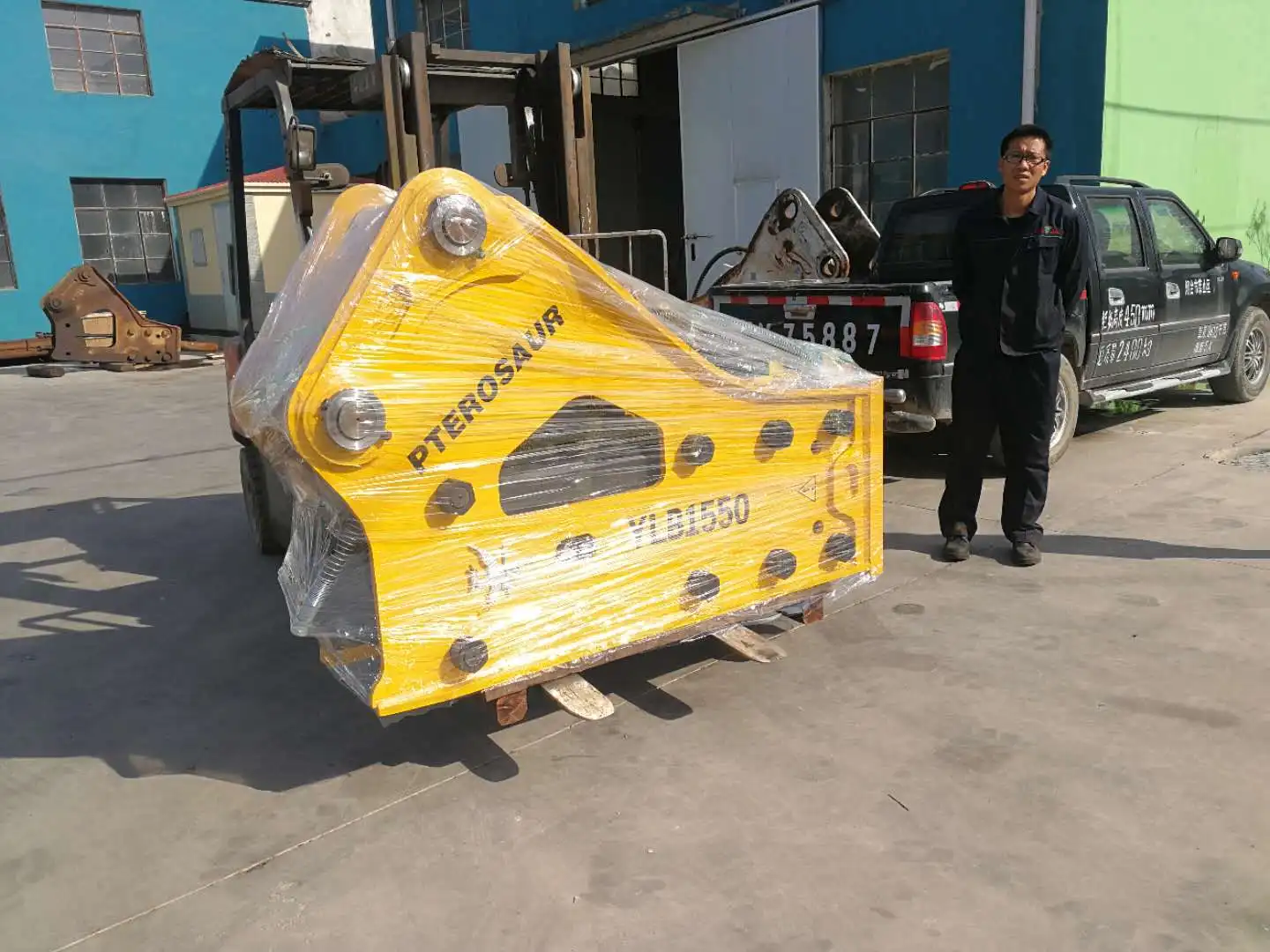

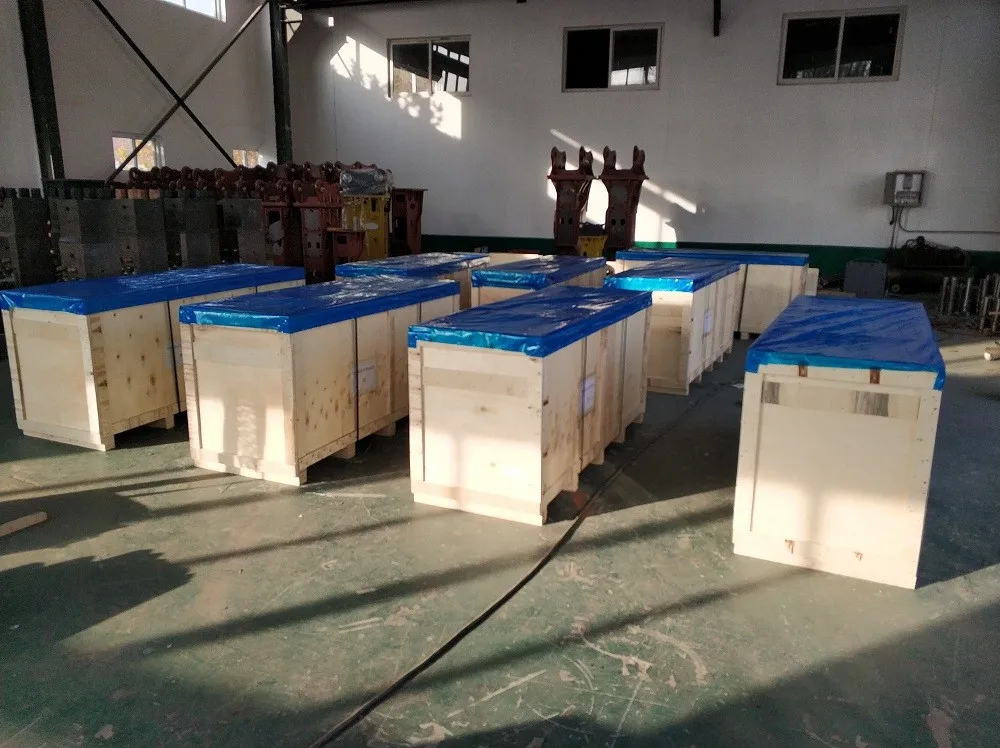

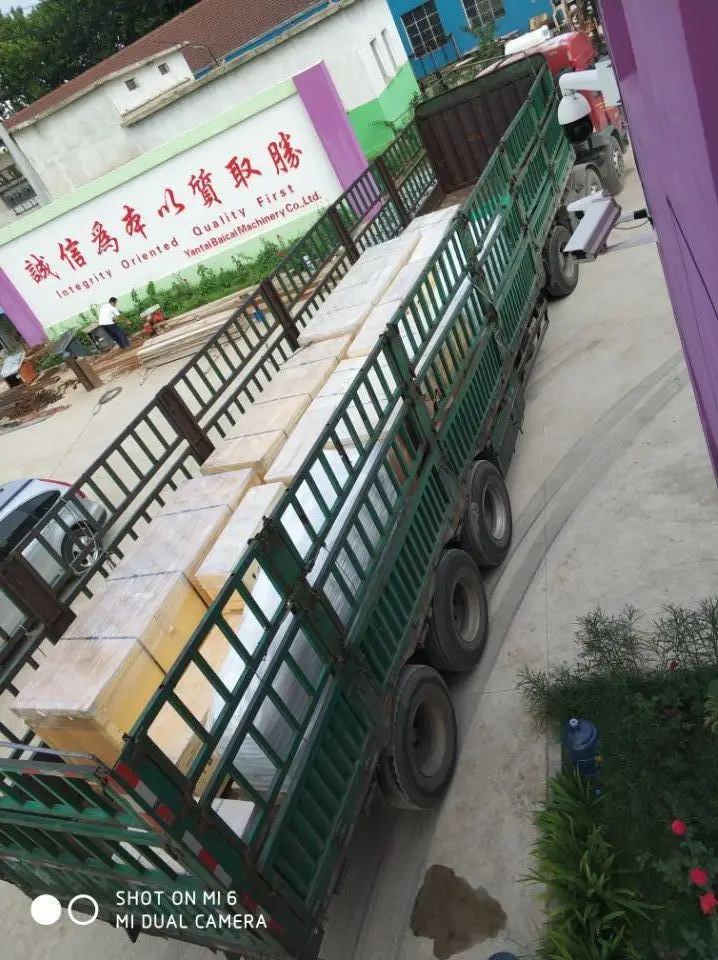

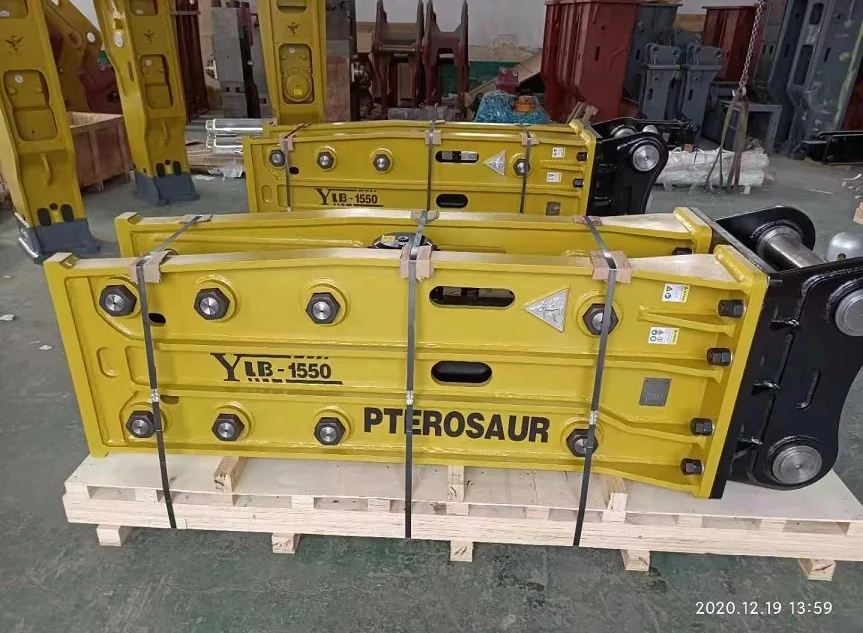

Packing and Delivery
Packing:
1. Inner is stretch film
2. Outside is export wooden case
3. As per customer's request
Delivery time: Usually 3-7days after down payment. We could arrange ocean or air transportation according to your request from any port of China.
2. Outside is export wooden case
3. As per customer's request
Delivery time: Usually 3-7days after down payment. We could arrange ocean or air transportation according to your request from any port of China.

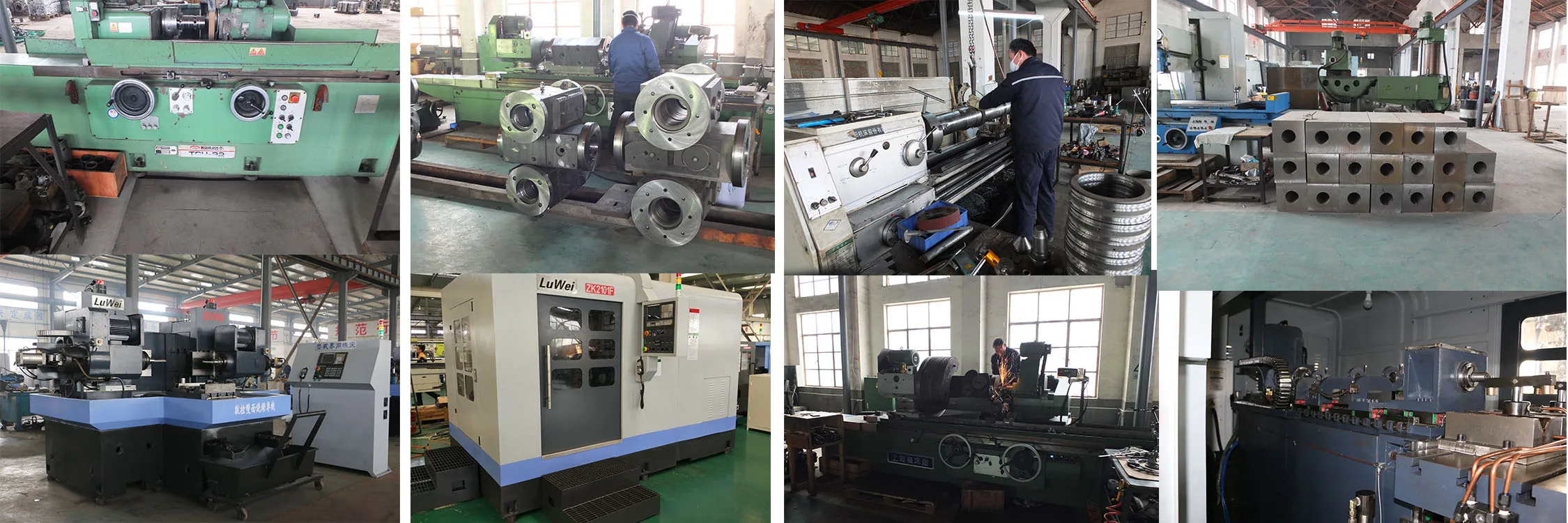

Factory in a Glance

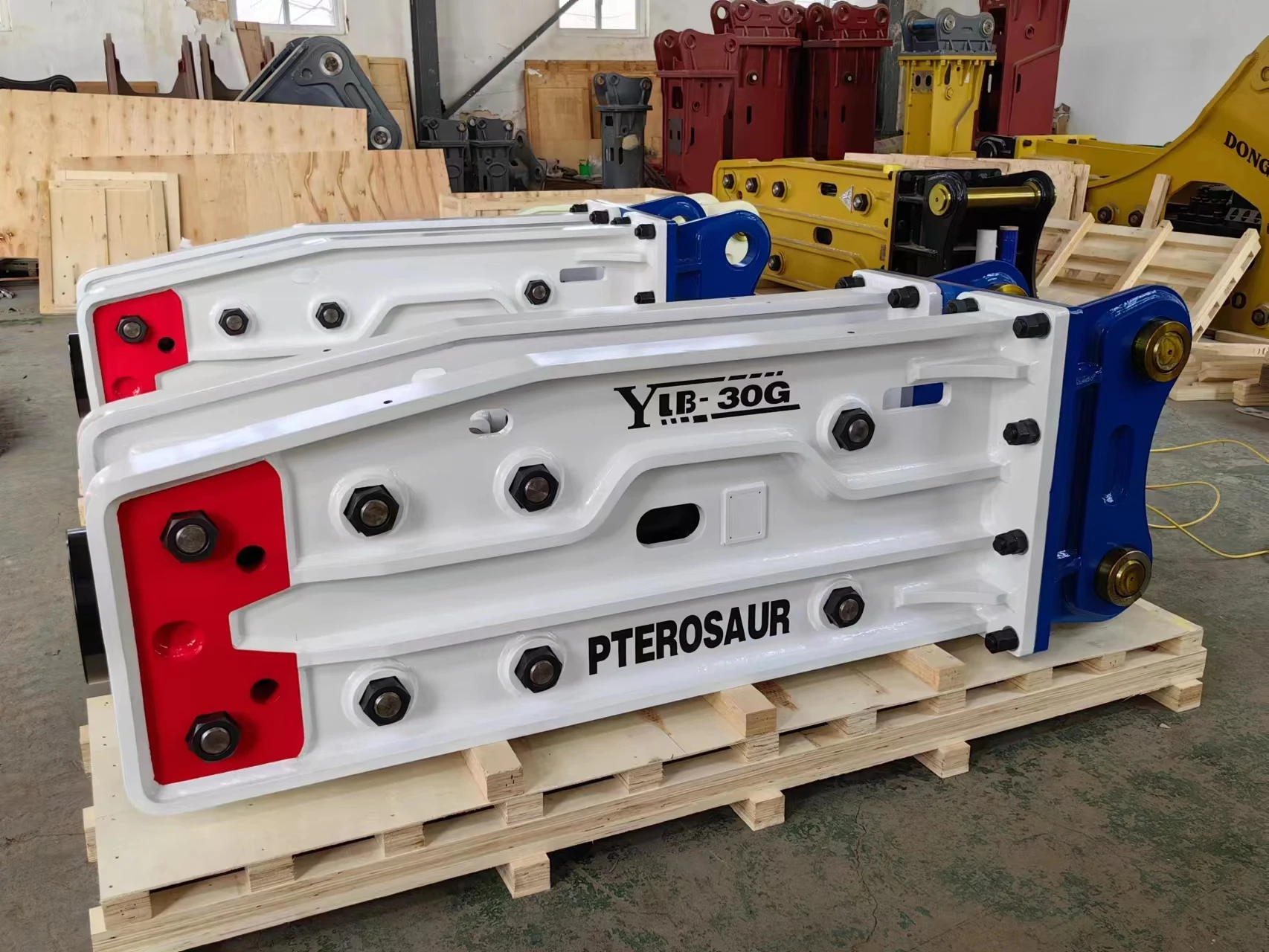

FURUKAWA breakers technical data
Description/Model | Unit | YLB-15G (KOMAC KB1500V) | YLB-20G (KOMAC KB2000V) | YLB-30G (KOMAC 3600V) | YLB-40G (KOMAC 5000V) | YLB-50G | ||||||||
Operating Weight | Box | kg | 1310 | 1777 | 2540 | 3110 | 4150 | |||||||
Open | kg | 1230 | 1740 | 2420 | 3020 | 4100 | ||||||||
Side | kg | 1200 | 1700 | 2380 | 2900 | 3922 | ||||||||
Required Oil Flow | L/min | 90-120 | 130-150 | 150-190 | 190-250 | 180-350 | ||||||||
Working Pressure | kg/cm3 | 160-180 | 160-180 | 170-190 | 180-200 | 200-220 | ||||||||
Rod Diameter | mm | 120 | 135 | 150 | 160 | 180 | ||||||||
Impact Rate | bpm | 400-900 | 400-800 | 300-750 | 250-500 | 110-190 | ||||||||
Hose Diameter | inch | 3/4 | 1 | 1 | 5/4 | 5/4 | ||||||||
Excavator tonnage | ton | 13-18 | 18-22 | 27-30 | 35-45 | 35-50 | ||||||||
The parts size and working performance are same as the KOMAC brand made in Korea. | ||||||||||||||

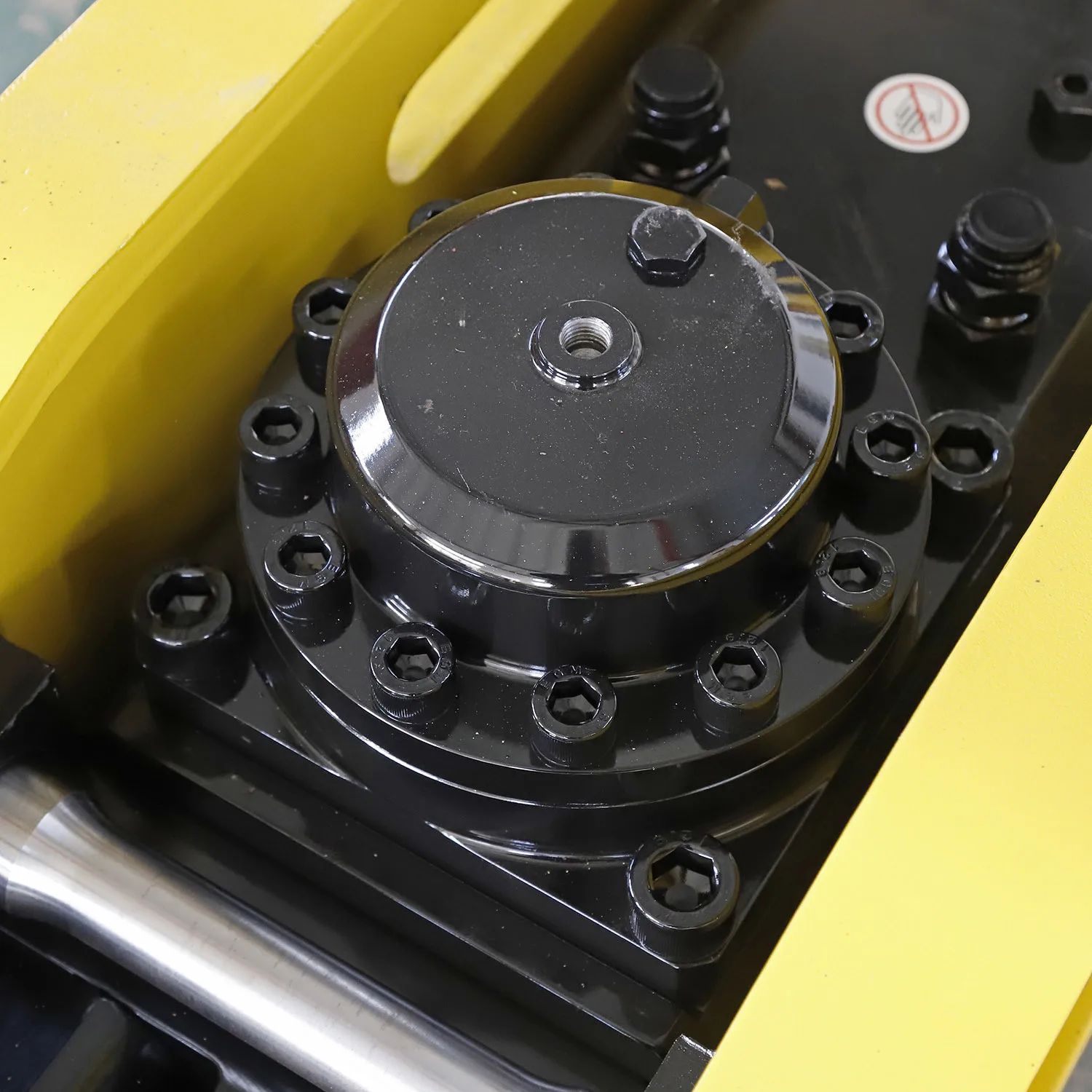

Accumulator with powerful impact force
two adjustment valves for adjusting piston stroke and frequency
FURUKAWA HB20G
FURUKAWA HB20G
Our Service and RFQ
You deserve a good a good sales and service person and product.
1. 7Days*24Hours after-sales service by email and phone2. Providing local market information and trends and how to develop market
3. Your inquiry will be replied in 24 hours during working days
4. Our customer-oriented sales and technical team are always at your service
5. Warranty: 18 months warranty for hydraulic breaker, beyond the warranty period, all spare parts offered to you with our cost price (not including freight).
Q: Are you a manufacturer?
A: Yes, our factory was established in 2009 and we have ability to trading
Q: Are you sure your product will fit my excavator?
A: Yes, we are professional about this, you can also tell me your excavator model, and we will check it for you.
Q: Can you provide customers' design?
A: Sure, we can provide OEM and ODM services. Also, we can design new appearance for you
Q: What's the MOQ and payment terms?
A: MOQ is 1set. Payment via T/T, Western Union accepted, other terms can be negotiated.
Q: How about the delivery time?
A: 5-25 workdays after the payment, depending on your quantity.
Q: How about the package?
A: Our hydraulic breaker wrapped by stretch film, packed by pallet or polywood case.
