PLK china telescopic mini spider crane heigh efficiency construction machine
- Category: >>>
- Supplier: Jinan Plk Machinery Co. Ltd.Jinan Ltd.
Share on (1601135164092):
Product Overview
Description

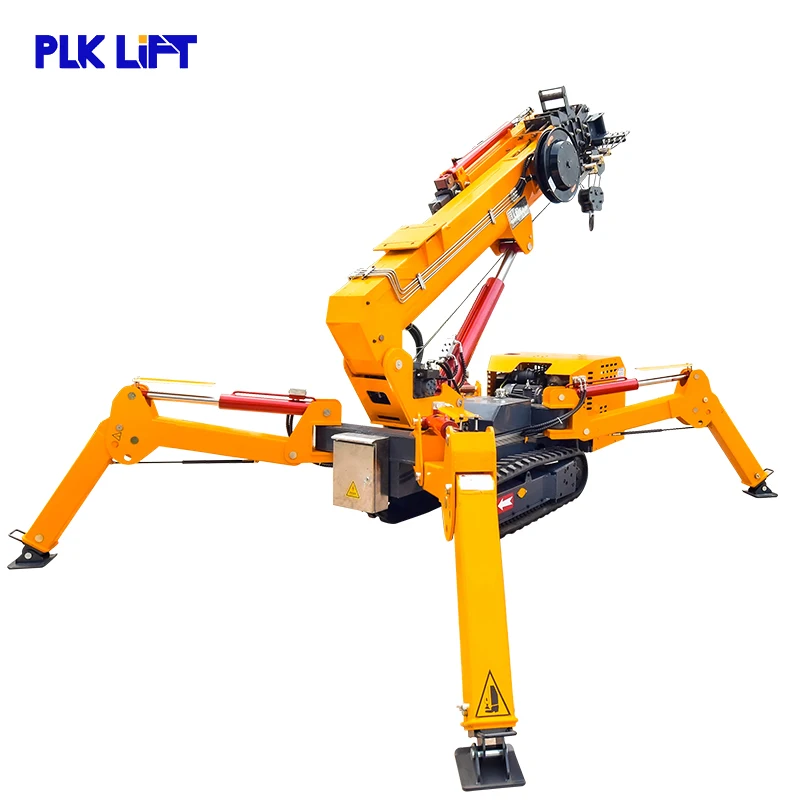

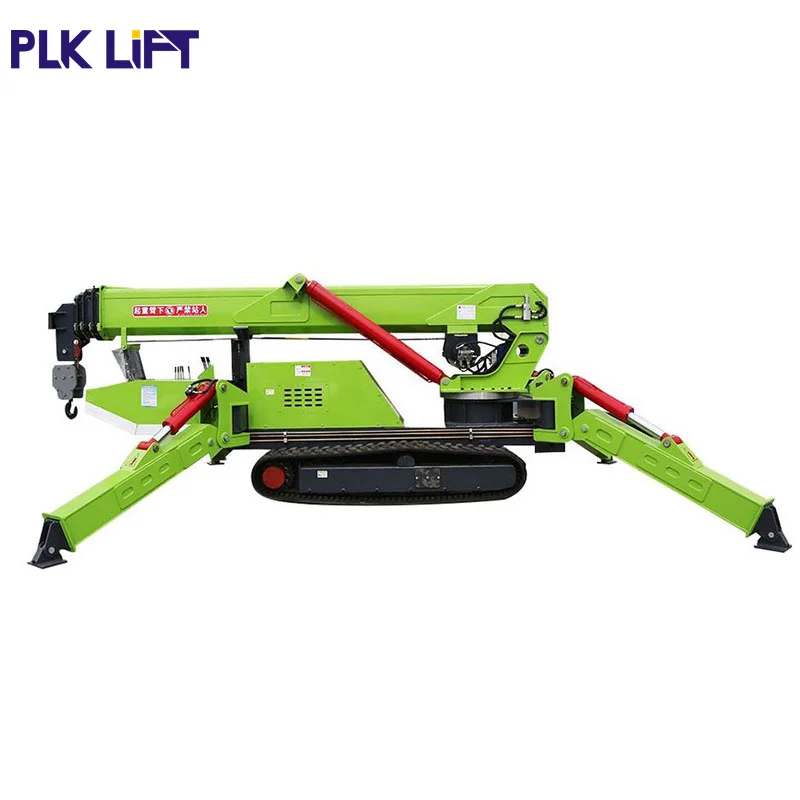

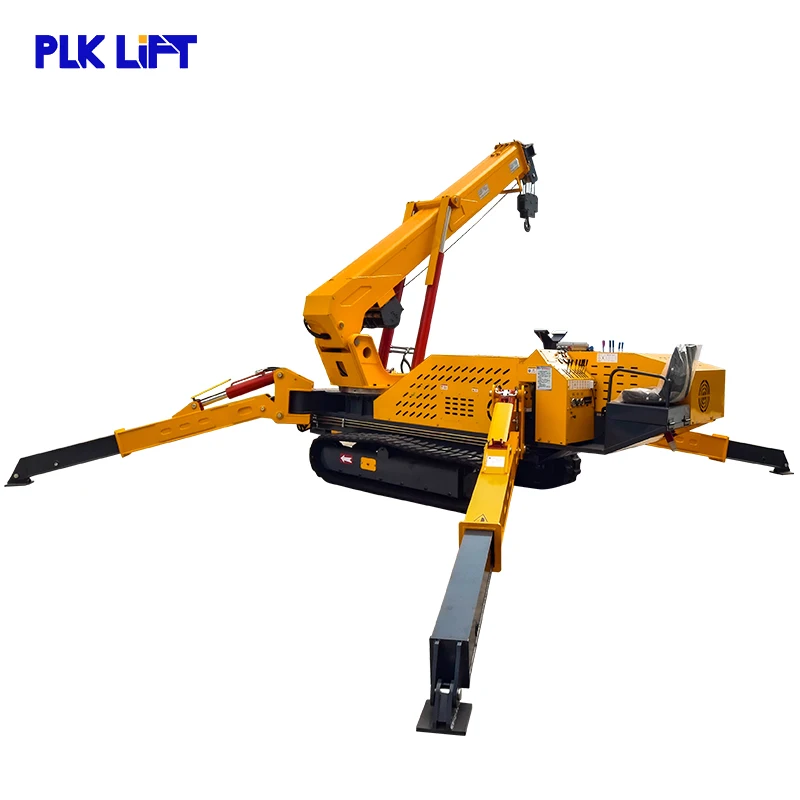

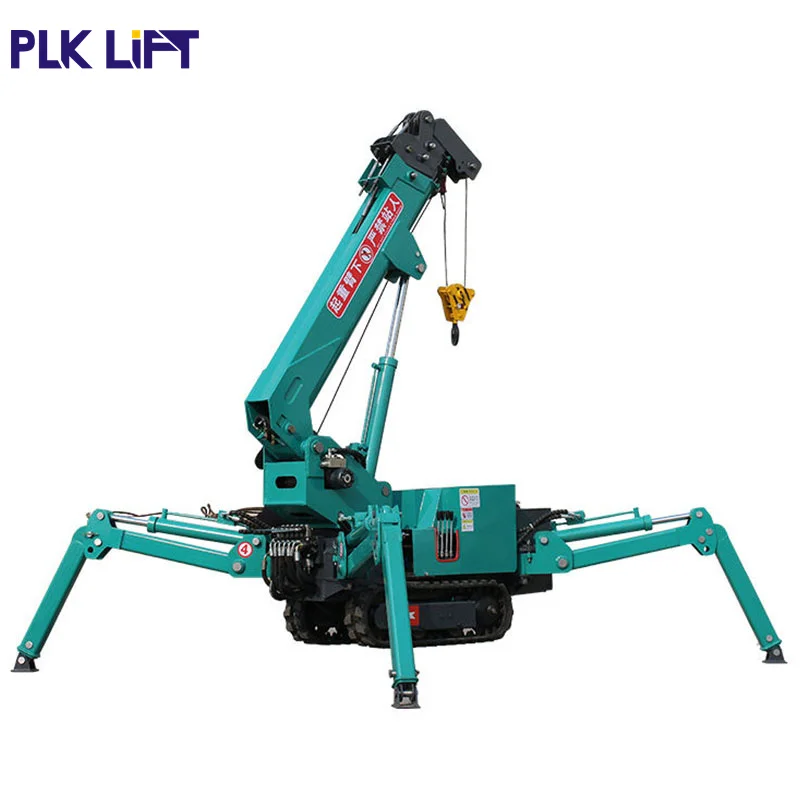

PLK LIFT Crawler Spider Crane combines the space-saving qualities of a spider crane with
the powerful lifting capabilities of a pick-and-carry crane inside one practical machine. This compa
ct equipment offers an alternate solution to the difficulties associated with lifting in areas with re
stricted access.
Features & Advantages:
1. The Crawler Spider Crane for moving loads quickly, easily, and safely.
2. Spider crane, suitable for occasions with limited space.
3. The spider crane is a full-slewing, boom-type, full-hydraulic transmission crane.

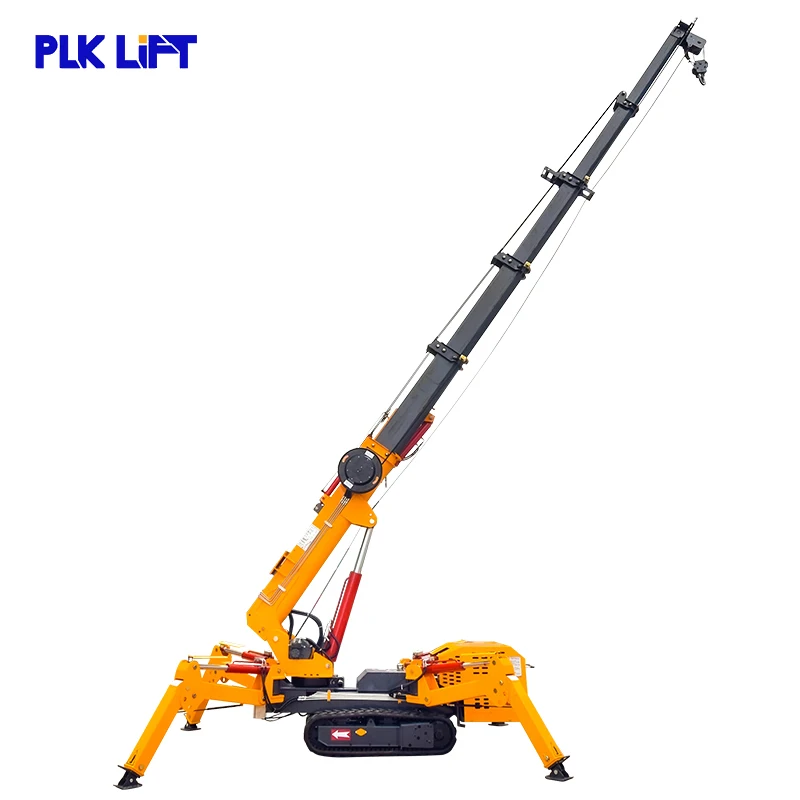

4. The main arm is 4-5 sections. The main arm section adopts a U-shaped structure. The single-st
age telescopic oil cylinder and the wire rope telescopic mechanism can realize the synchronous
expansion and contraction of the main arm.
5. The telescoping limit of the boom uses the double insurance of the marking line and the
alarm
Product Description

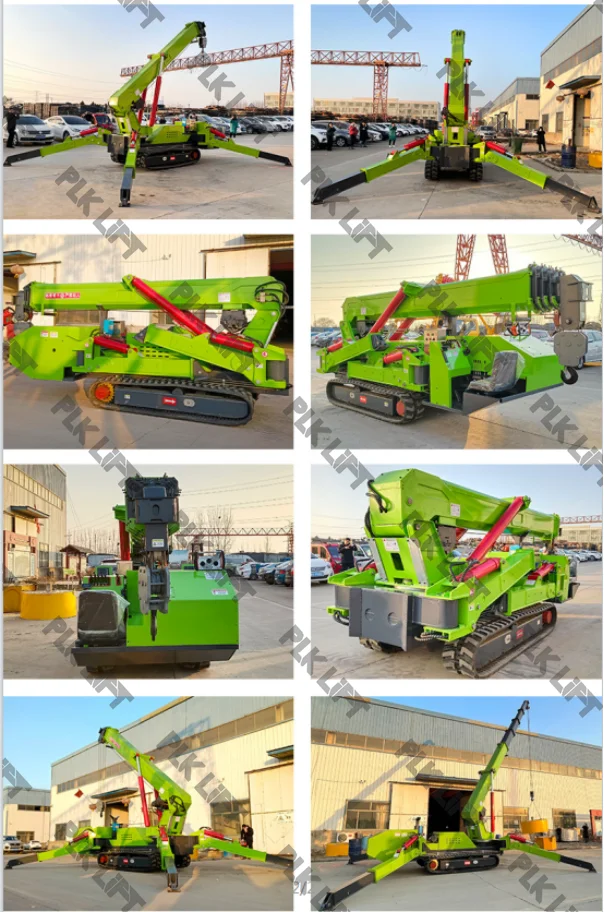

Order Display
The following are the main parameters of the equipment, we can also customize according to your requirements
Spider Lifting Crane
| Model Type | CL1.2 | CL2.0 | CL3.0 | CL5.0 | CL8.0 | CL12.0 | |
| lifting capacity | 1.2 ton | 2 ton | 3 ton | 5 ton | 8 ton | 12 ton | |
| Max lifting height | 5.8m | 6.8m | 10m | 16m | 18m | 24.5m | |
| Max working radius | 5m | 6m | 9m | 15.5m | 17m | 23m | |
| Walking device | way of walking | Hydraulic motor drive, two speed | |||||
| Walking speed | 0-2.5km/h | 0-2.5km/h | 0-2.5km/h | 0-5.5km/h | 0-5.5km/h | 0-5.5km/h | |
| gradeability | 20°(36%) | ||||||
| Engine | Start mode | Electric start | |||||
| boot performance | -5°C~40°C | ||||||
| fuel/volume | Gasoline/8L | Gasoline/8L | Diesel/45L | Diesel/45L | Diesel/45L | Diesel/45L | |
| Battery capacity | 12v 45AH | 12v 45AH | 24v 45AH | 24v 45AH | 24v 45AH | 24v 45AH | |
| Vehicle Size(e( L*W*H)) | 2095 * 600 * 11393mm | 2400 * 700 * 1600mm | 3100 *800 * 1650mm | 4500 *1360 * 2100mm | 4950 *1560 * 2235mm | 6000 *1850 * 2600mm | |
| weight(KG) | 1800kg | 2000kg | 2500kg | 6500kg | 7800kg | 11500kg | |
Company Information
Our Services
1.We can design the customerized electric crane as per your requirement.
2.The most suitable model will be recommended to you once we know about your requirement.
3.Shipment can be arranged from our port to your destination port.
4.Opetion video can be sent to you if needed.
5.Maintenance video will be given once the electric crane break down to help you repair.
6.Parts of crane can be sent to you by express within 7 days if needed.
