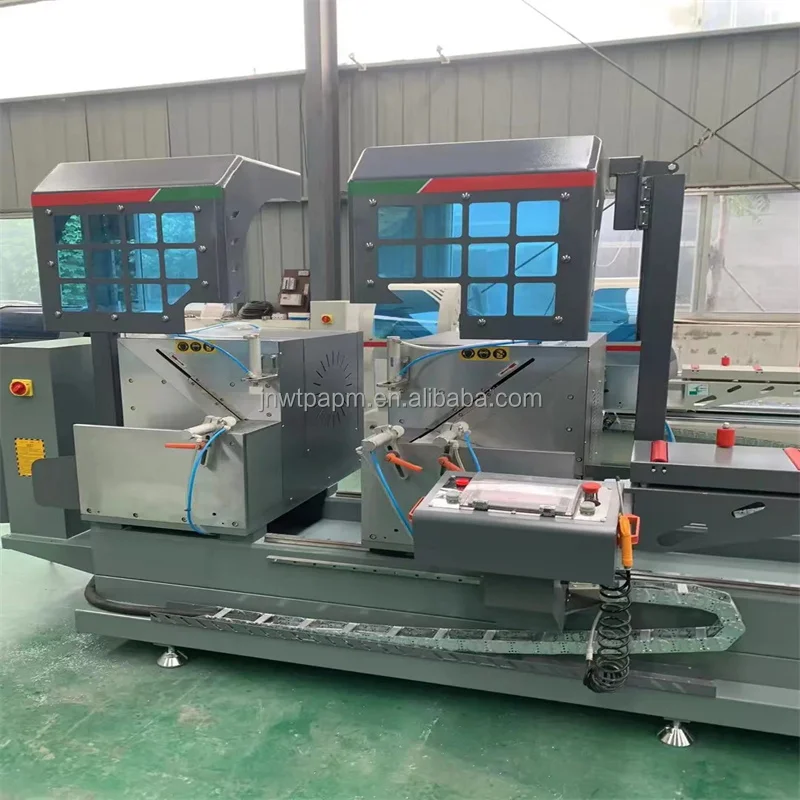

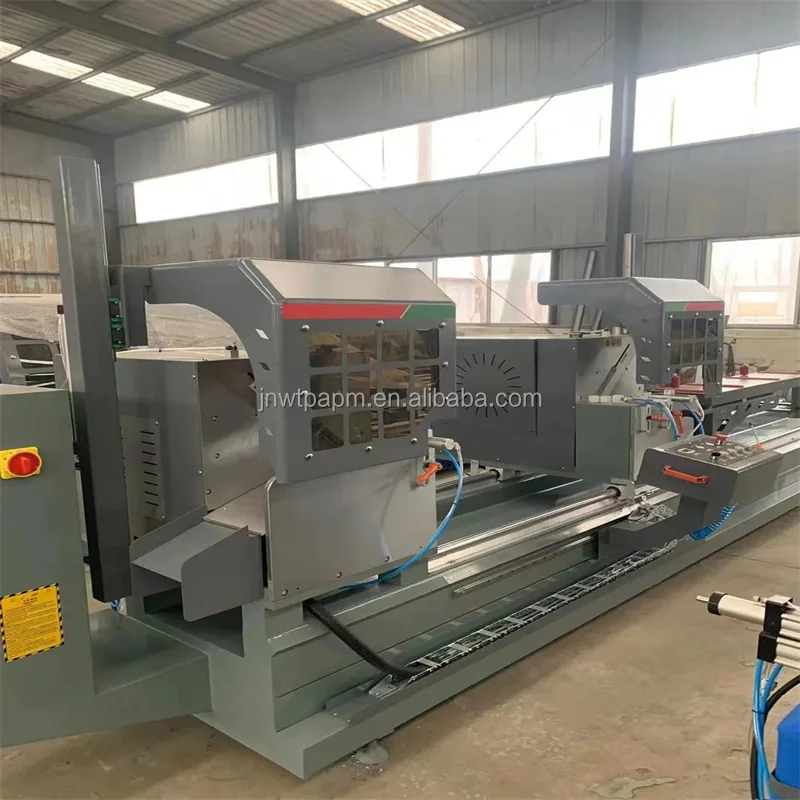

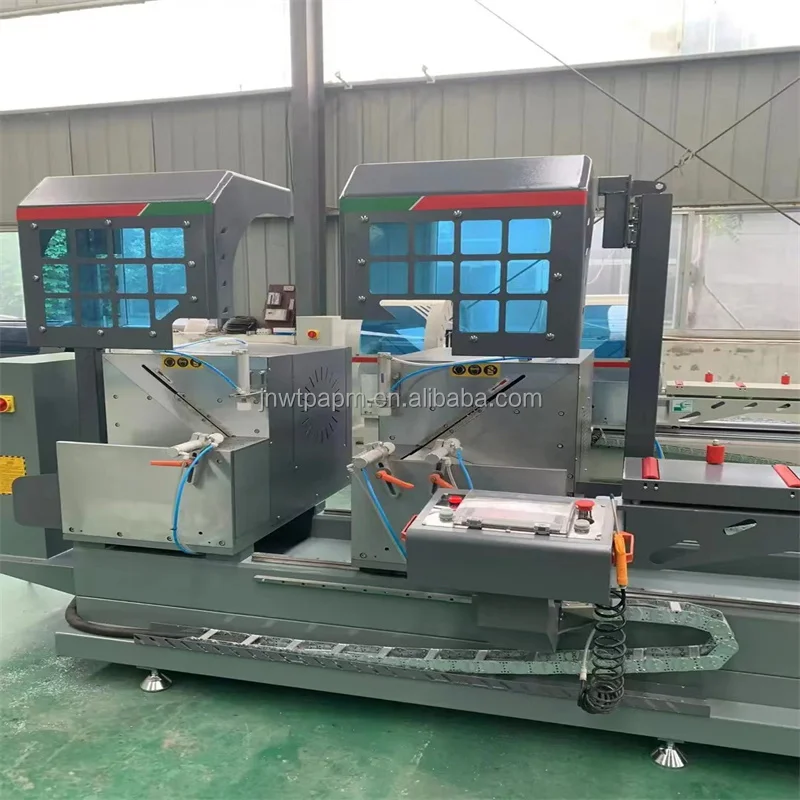

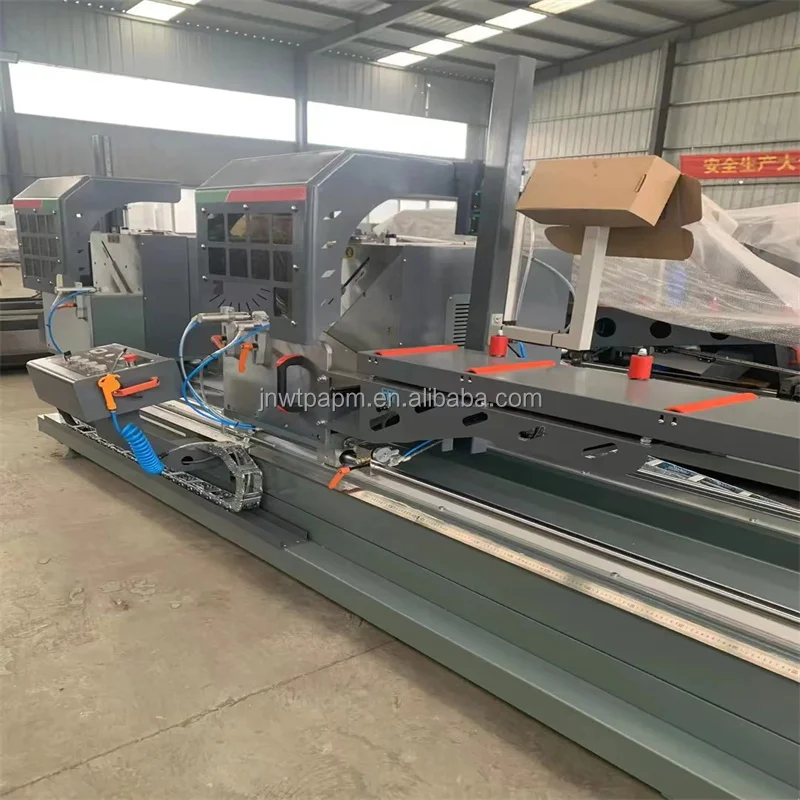

China window frame aluminium curtain wall digital display double head precision cutting saws for 45 degree
- Category: >>>
- Supplier: Tieneng Intelligent Equipment (shandong) Co. Ltd.
Share on (1601135358034):
Product Overview
Description
--FEATURES
Used for aluminum profile, high precision window and door frame cutting. And it can be customized different cutting size according to your requirement.

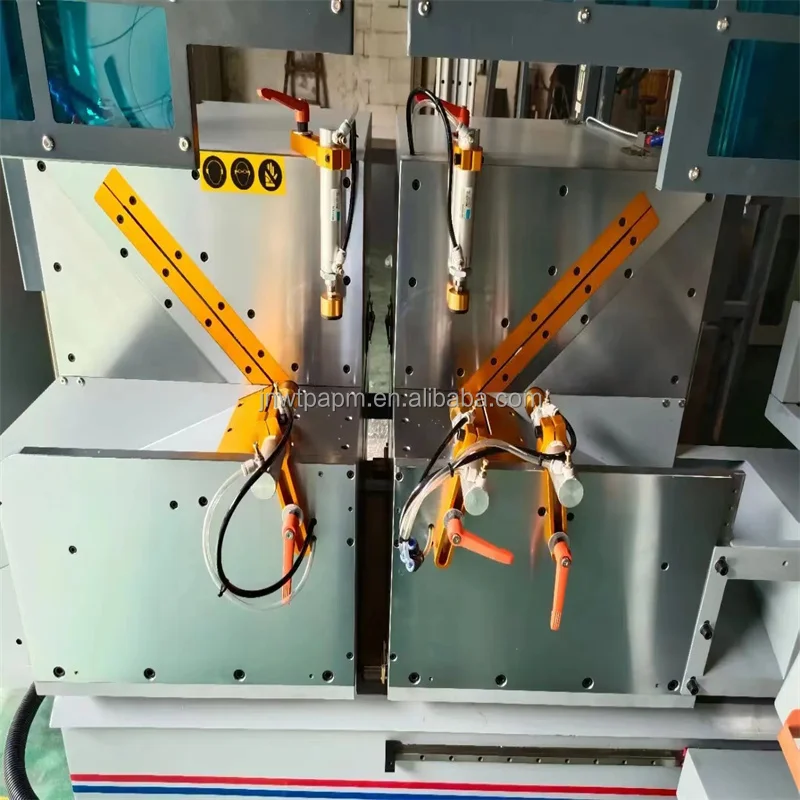

*1. Used for aluminum profile 45° angle cutting.
*2. Good quality steel ruler equipped can be easy readout the accurate cutting length and quantity automatically, ensures a high accurate re-load position and convenient man operation work.
*3. Linear bearing/gear and gear racks moving parts ensure a smooth cutting head moving.
*4. Imported carbide saw ensures stable and high quality cutting.
*5. Right head moving is manually moved,steel ruler measuring.
*6. Hydro-pneumatic driving system gives stable feeding.
*7. Especially for 45° angle cutting and large capacity of 4 profiles cut in one cycle.
*8. It has the features of easy operation,reliable performance,advanced technique and convenient maintenance.
*1. Used for aluminum profile 45° angle cutting.
*2. Good quality steel ruler equipped can be easy readout the accurate cutting length and quantity automatically, ensures a high accurate re-load position and convenient man operation work.
*3. Linear bearing/gear and gear racks moving parts ensure a smooth cutting head moving.
*4. Imported carbide saw ensures stable and high quality cutting.
*5. Right head moving is manually moved,steel ruler measuring.
*6. Hydro-pneumatic driving system gives stable feeding.
*7. Especially for 45° angle cutting and large capacity of 4 profiles cut in one cycle.
*8. It has the features of easy operation,reliable performance,advanced technique and convenient maintenance.
--SPECIFICATIONS
Model | LZXJX-500X4200W |

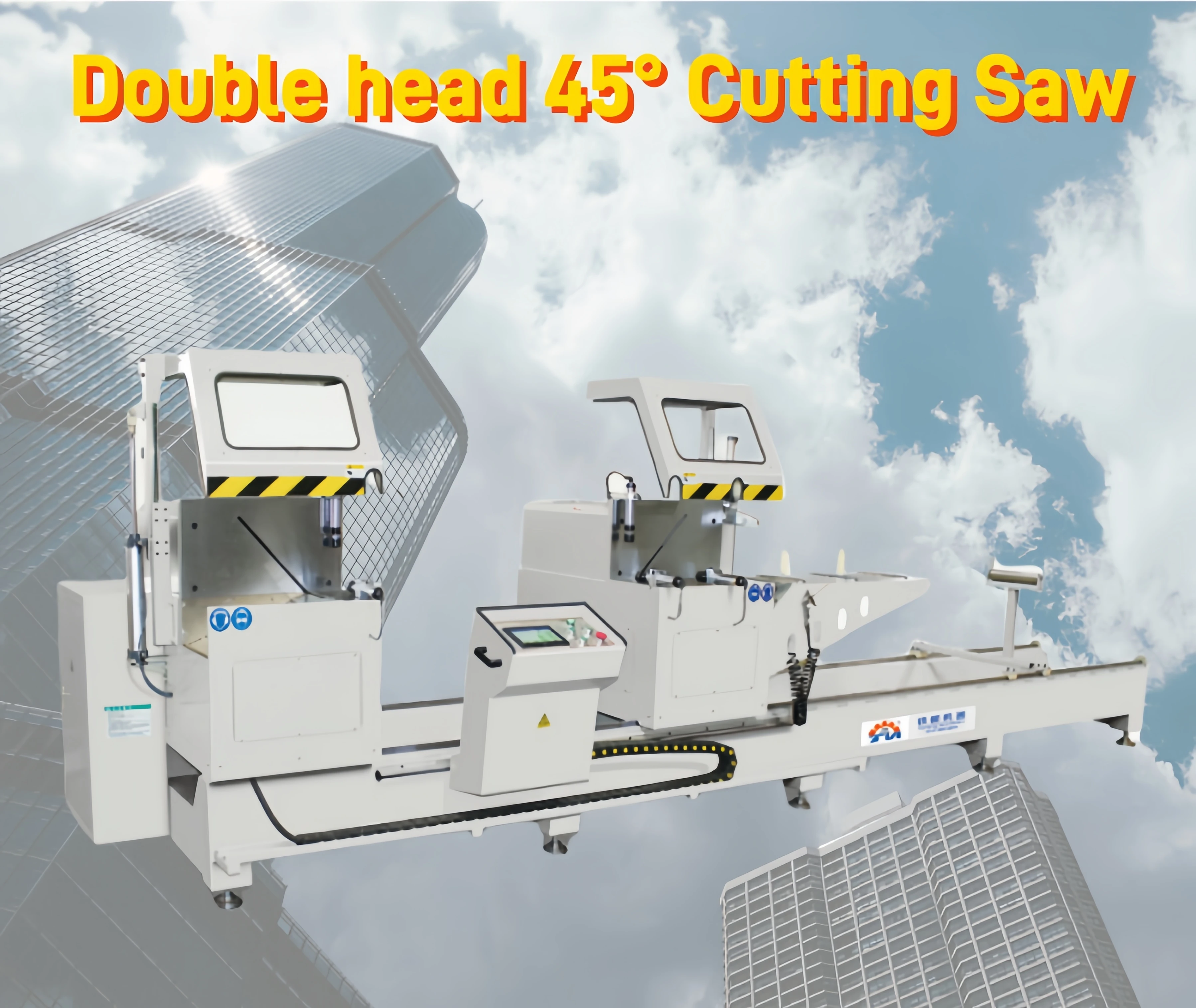

Product Name | Double-Head 45° Cutting Saw |
Saw Blade Specification | Φ500×Φ30×4.4mm |
Saw Speed | 2800r/min |
Cutting Length | 350-4700mm |
Cutting Width | 230mm |
Cutting Height | 500mm saw blade: 45° MAX 135mm (For your reference) |
MAX Cutting Section | 500mm saw blade:135mmX230mm H*W (For your reference) |
Cutting angle | 45° |
Overall dimensions | 6500×1300×1700mm |
Power supply | 380V 50HZ/220V 50HZ/CUSTOMIZED |
Input Power | 2X3KW |
Air Pressure | 0.5-0.8Mpa |
Air Consumption | 60L/min |
--RELEVANT PRODUCTS RECOMMENDATION
China TOP 10 professional producer of aluminum profile processing machine,plastic profile processing machine and insulated glass processing machine.
Wintech machinery Co.,Ltd,also known as Tieneng Intelligent Equipment Co., Ltd.,in China,established in 2000,which is SGS-approved 5A credit company.
In the past 20 years, nearly 100 million machines have been sold, and our brand is well-known throughout world.We have exported to more than 1000 countries like Thailand, Germany,Guatemala,Oman,Russia,India and etc.
Wintech machinery Co.,Ltd,also known as Tieneng Intelligent Equipment Co., Ltd.,in China,established in 2000,which is SGS-approved 5A credit company.
In the past 20 years, nearly 100 million machines have been sold, and our brand is well-known throughout world.We have exported to more than 1000 countries like Thailand, Germany,Guatemala,Oman,Russia,India and etc.
