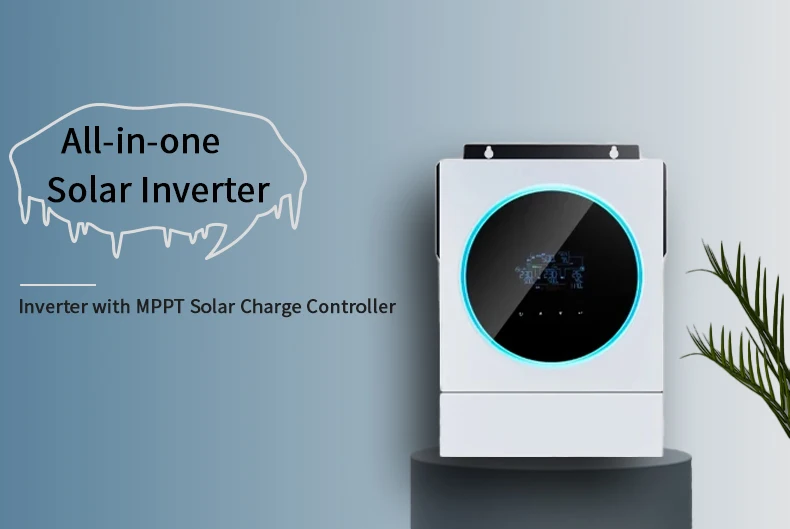

Lovsun high frequency 12v 24v 48v off grid mppt soler inverter 220v solar home system 3.6kw 4kw 5kw 6kw 7kw solar inverter
- Category: >>>
- Supplier: Lovsun Solar Energy Co.Ltd
Share on (1601135484146):
Product Overview
Description
Product Description
Feature
Specification
Model | VM IV 3600 | VM IV 5600 | VM IV 4000 | VM IV 6000 | ||||
Rated Power | 3600VA/3600W | 5600VA/5600W | 4000VA/4000W | 6000VA/6000W | ||||
Input | ||||||||
Voltage | 230VAC | 230VAC | 220/230/240VAC | |||||
Select-able Votage Range | 170-280VAC (For Personal Computers) 90--280VAC (For Home Appliances) | 170-280VAC(For Personal Computers) 90-280VAC (For Home Appliances) | ||||||
Frequency Range | 50Hz/60 Hz(Auto sensing) | 50Hz/60 Hz(Auto sensing) | ||||||
Output | ||||||||
AC Volage Regulation(Batt.Mode ) | 230VAC±5% | 220/230/240VAC±10% | ||||||
Surge Power | 7200VA | 11200VA | 8000VA | 11200VA | ||||
Efficiency (Peak) | 90-93% | |||||||
Transfer Time | 15ms (For Personal Ccmputers), 20ms(For Home Appliances) | |||||||
Waveform | Pure sine wave | |||||||
Battery | ||||||||
Battery Voltage | 24VDC | 48VDC | 24VDC | 48VDC | ||||
Floating Charge Voltage | 27VDC | 54VDC | 27VDC | 54VDC | ||||
Overcharge Protection | 33VDC | 63VDC | 33VDC | 63VDC | ||||
SOLAR CHARGER &AC CHARGER | ||||||||
Solar Charger Type | MPPT | |||||||
Max PV Array Power | 4000W | 6000W | 5000W | 6000W | ||||
MPP Range | 120-450VDC | 60-450VDC | ||||||
Open Circuit Voltage | 500VDC | |||||||
Max AC Charge Current | 100A | |||||||
PHYSiCAL | ||||||||

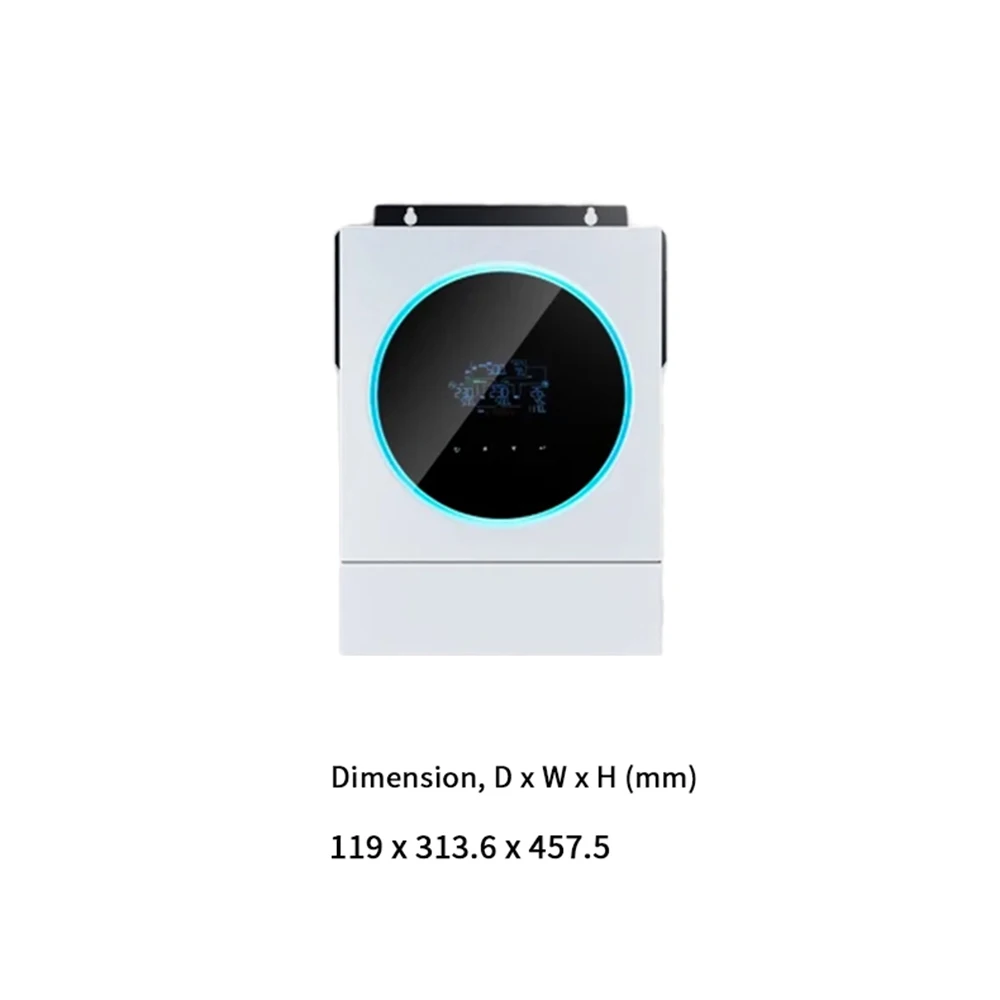

Dimension,D*W*H(mm) | 119*313*422 | 115*300*400 | ||||||
Net Weight(kgs) | 10 | 12 | 9 | 10 | ||||
Communication lnterface | USB/RS232/RS485/WIFI/Dry-contact | |||||||
OPERATING ENVIRONMENT | ||||||||
Humidity | 5% to 95%Relative Humidity (Non-condensing) | |||||||

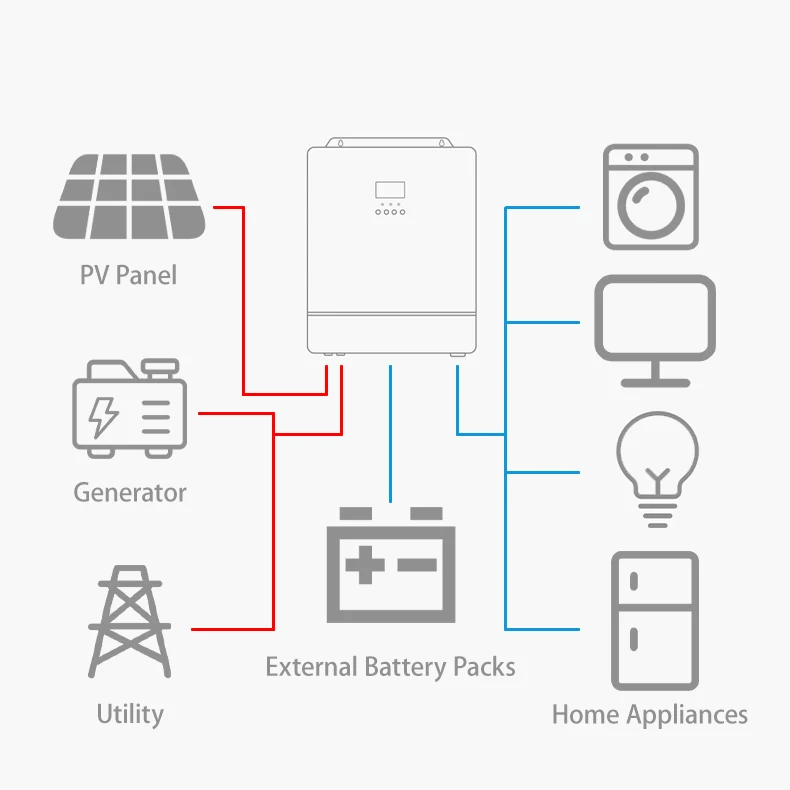

System Design

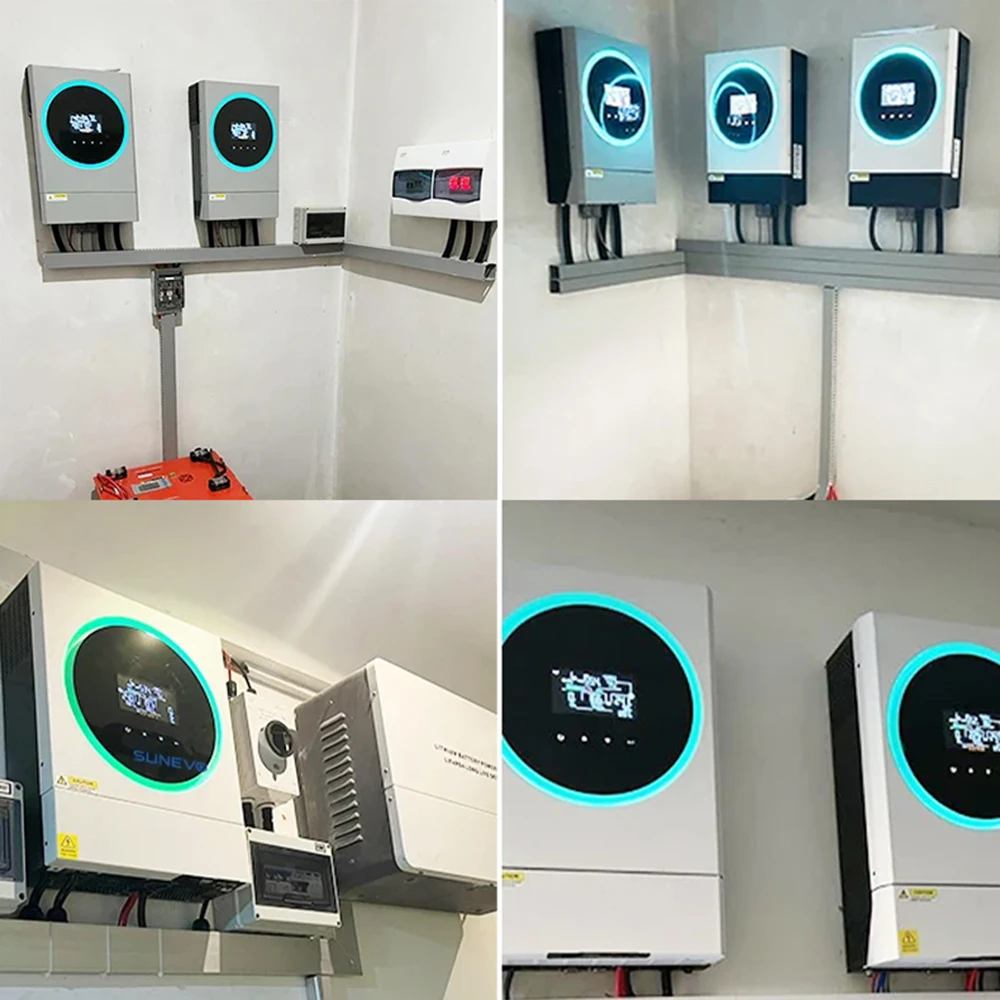

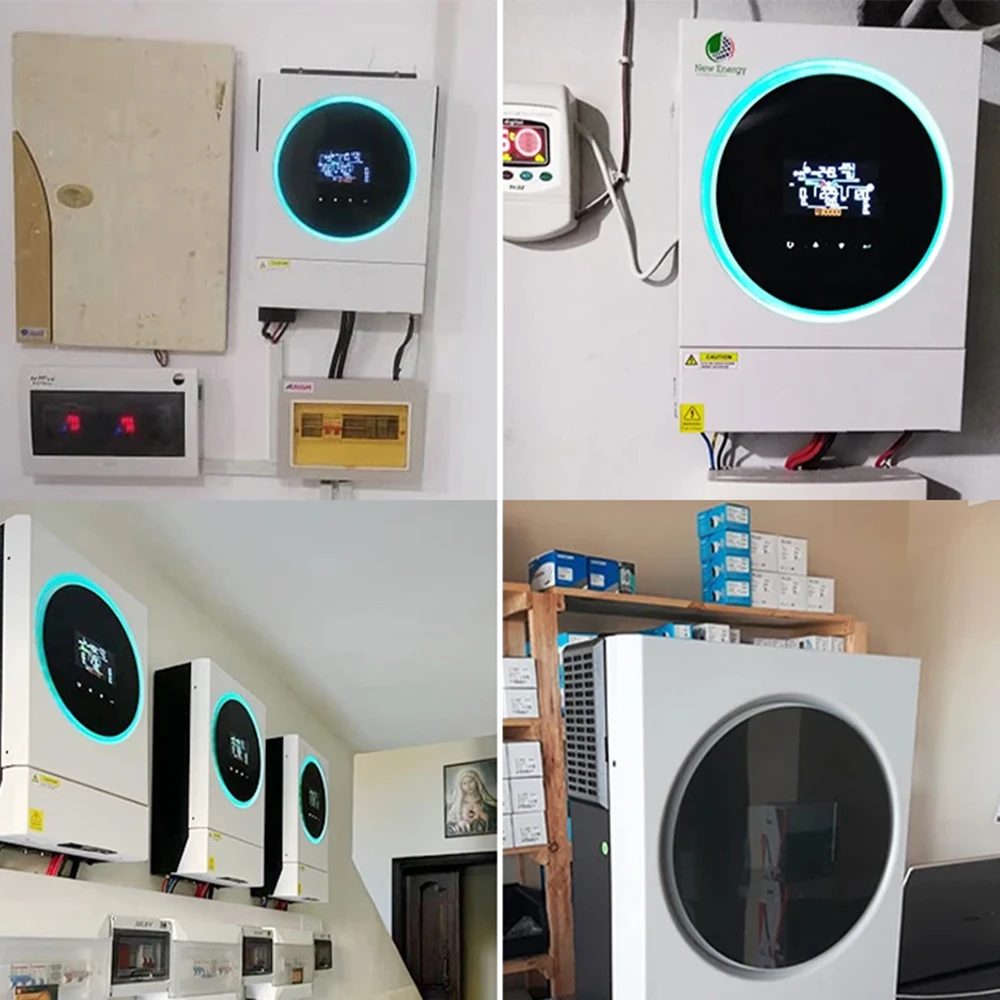

Project Case

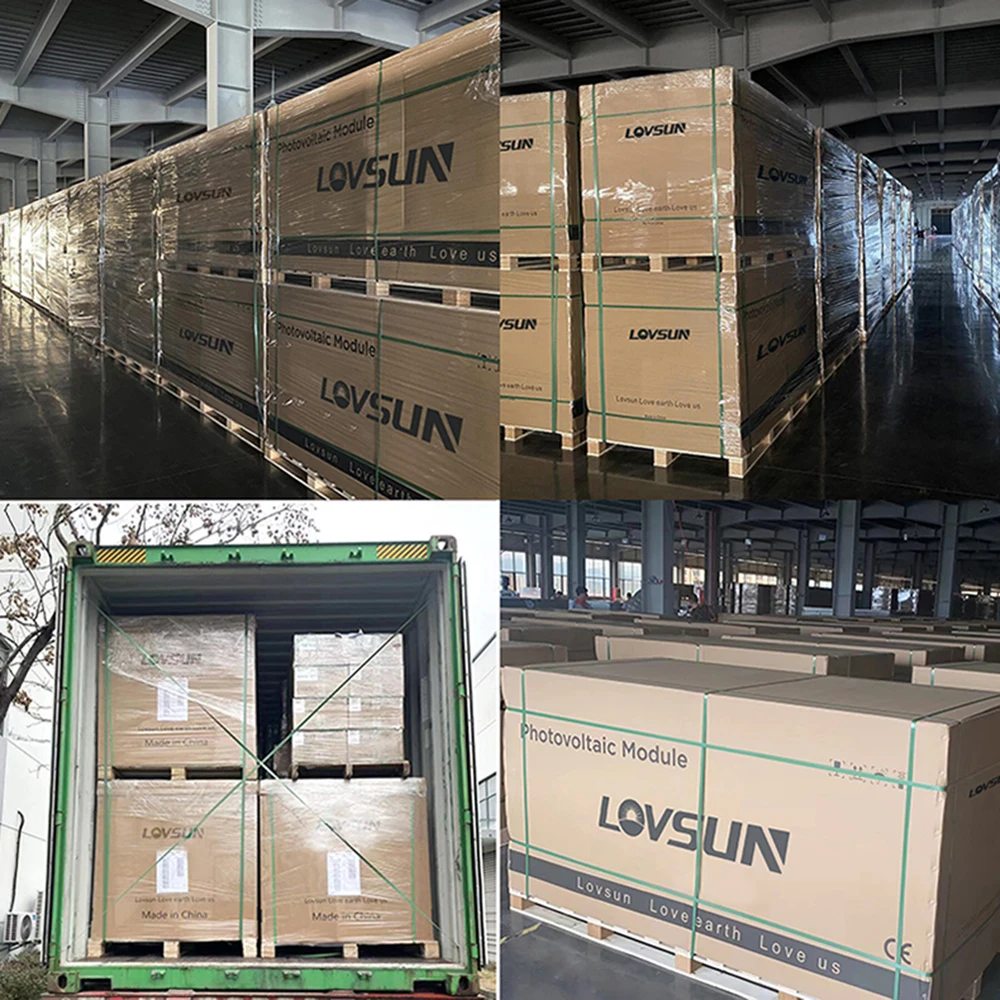

Packing & Delivery
