High Definition 2 Color 4 Color 6 Color Printing  Plastic Film Flexo Printing Machine Factory


flexo printing machine







Product Description







The Flexo Printing Machine is used to print such packing materials as polyethylene, polypropylene bag, cellophane and roll paper, etc. It is a kind of ideal printing equipment for producing paper packing bag for good, supermarket handbag, t-shirt bag and clothes bag, etc.

Performance and Characteristics:

1. Easy operation, flexible starting, accurate color register.

2. The meter counter can set printing quantity according to the requirements. Stop the machine automatically at the quantity        or when the material is cut off.

3. The printing cylinder lift and lower, is will stir the printing ink automatically after lifting.

4. The printing ink is spread by the knurled cylinder with even ink color.

5. Reliable drying system coordinated with high-speed rotation, it will automatically break circuit when the machine stops.

6. 360°continuous and adjustable longitudinal register device.

7. The frequency control of motor speed adapts to different printing speeds.

8. There are Inching/Stopping buttons on the plate roller base and material rolling rack so as to make it easy operate the machine when the plate is installed.
























































































Model


YT-2-600


YT-2-800


YT-2-1000


Max printing width


560mm


760mm


960mm


Max Roll width


600mm


800mm


1000mm


Max printing length



180mm-1200mm



180mm-1200mm


180mm-1200mm


Printing Speed



0-60m/min



0-60m/min


0-60m/min


ACCuracy Of registration



±0.2mm



Thickness of plate


2.38mm


2.38mm


2.38mm


Raw Material


PE ,PP ,PVC ,POF ,CPP ,OPP, PET ,Paper


Main Motor


2.2KW


2.2kw


3kw


Inverter


2.2kw


2.2kw


3kw


ink motor


0.75


0.75


0.75


Total Power


8kw


10kw


12kw


Weight


1200KG


1600KG


2000KG


Overall dimession


2300x1600x2200


2300x1800x2200


2300x2000x2200

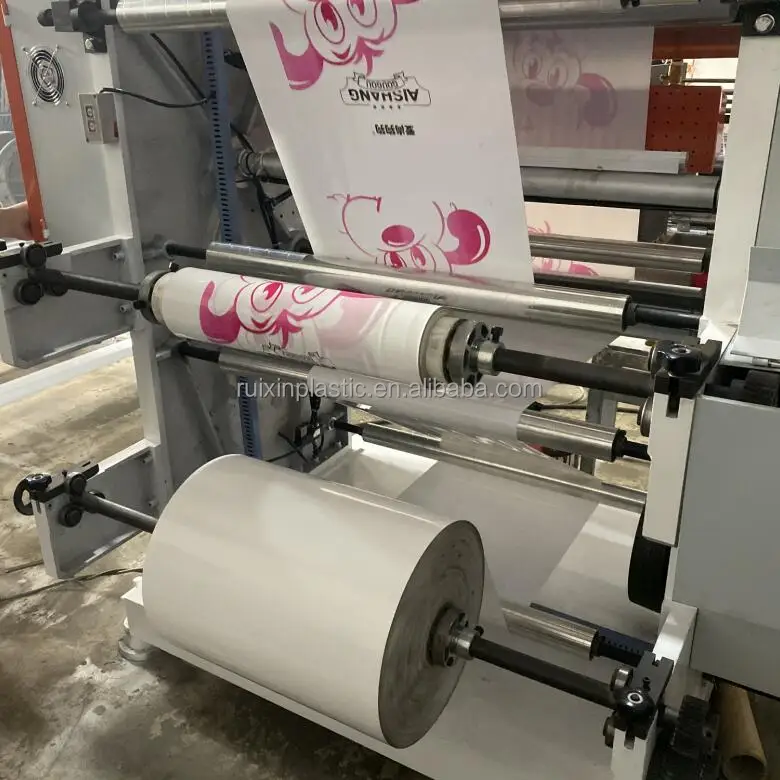

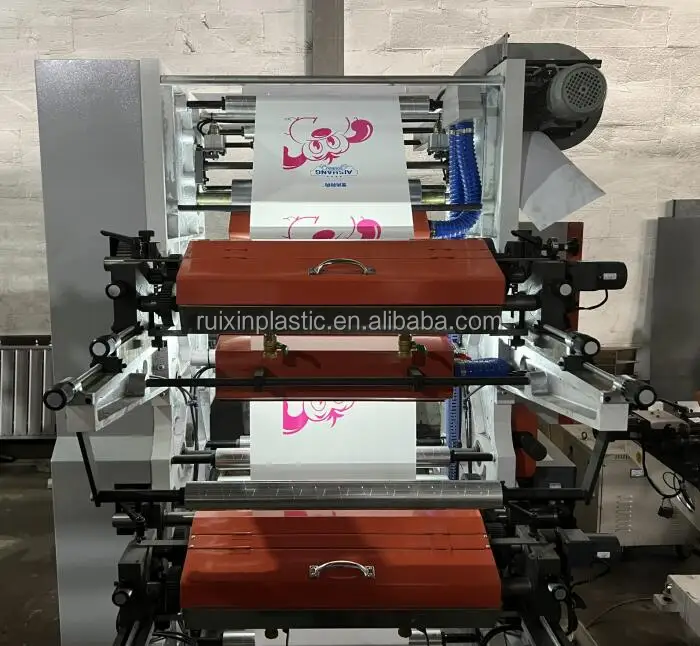

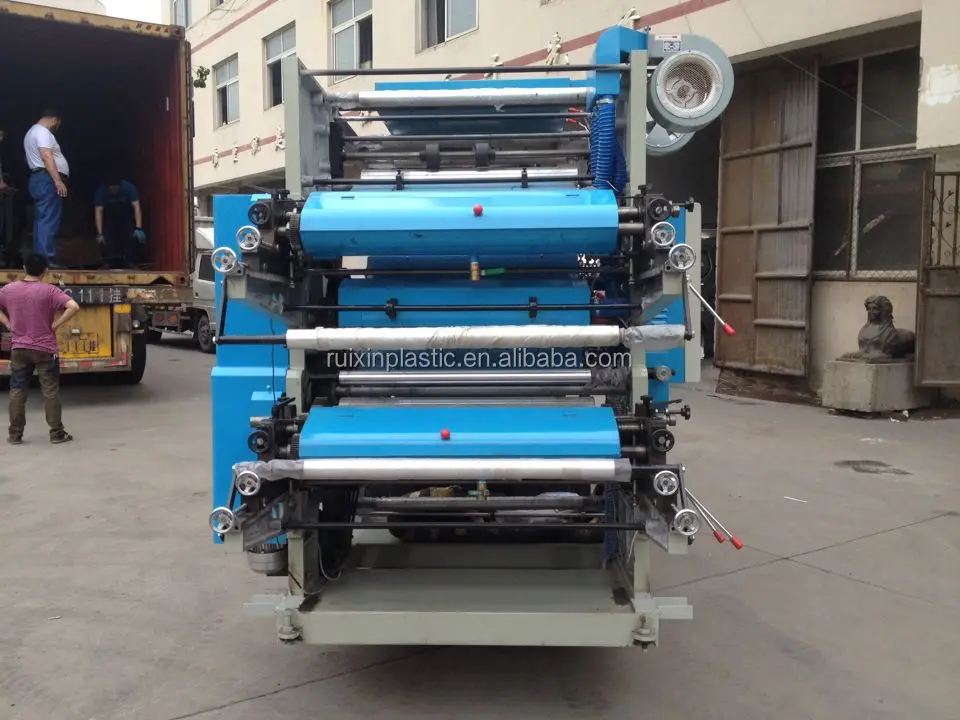

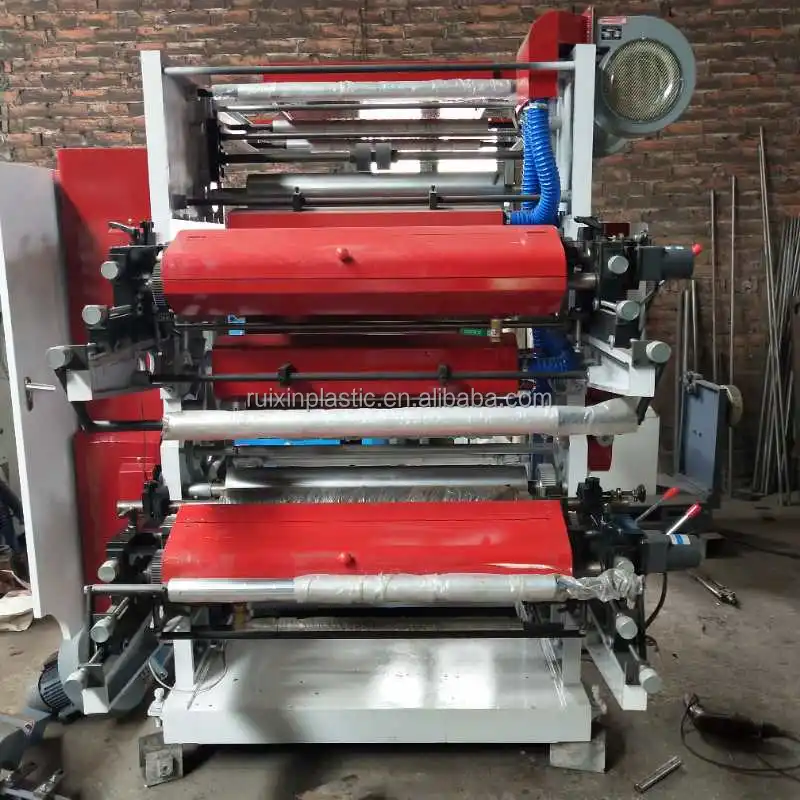

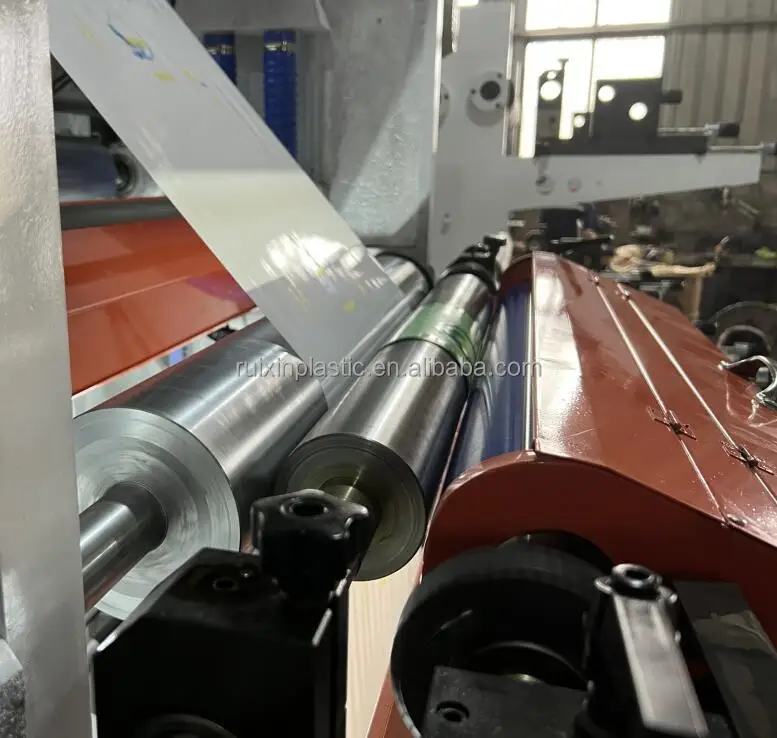

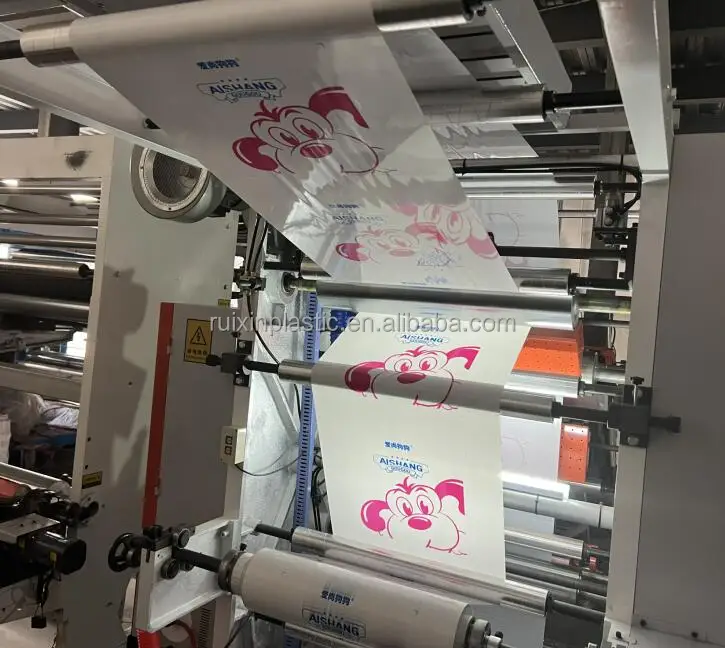

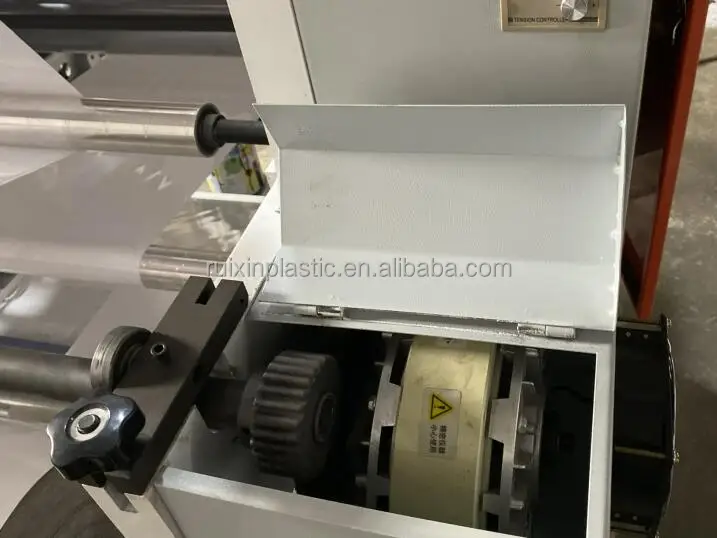

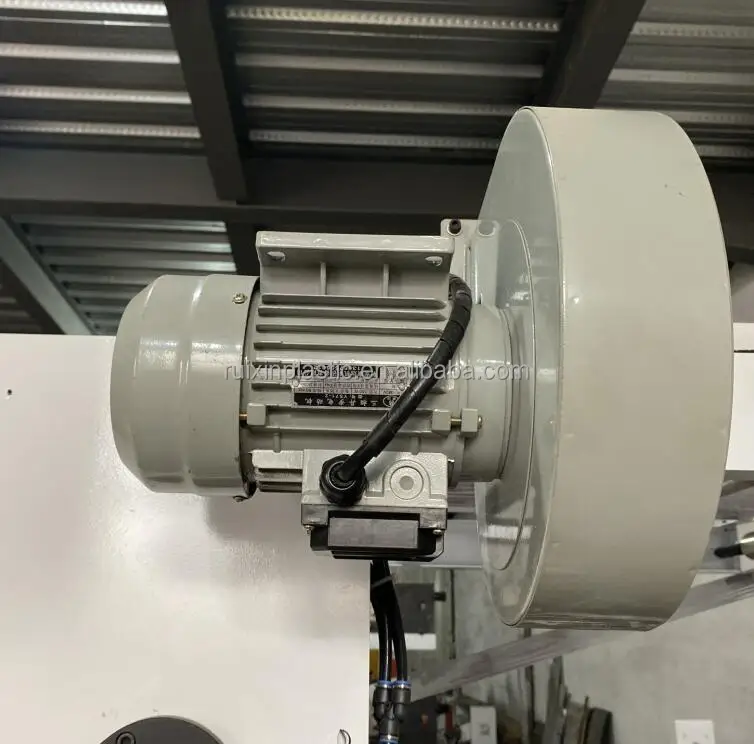

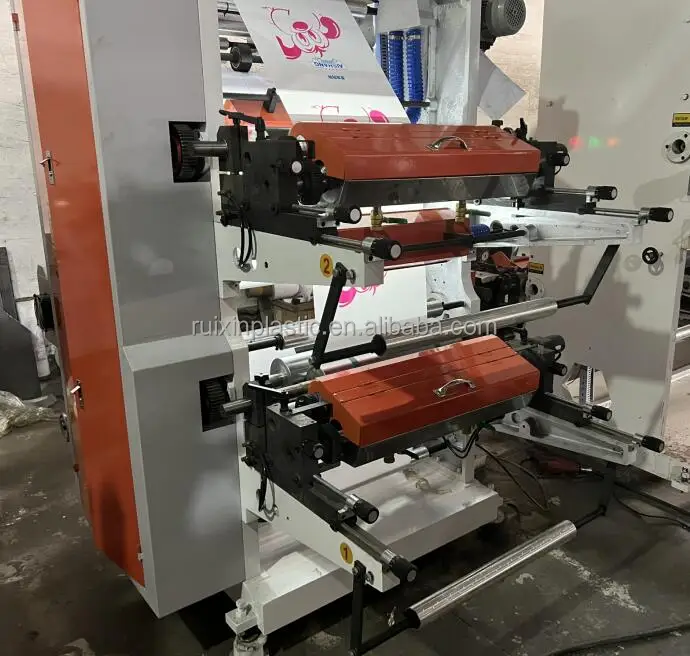

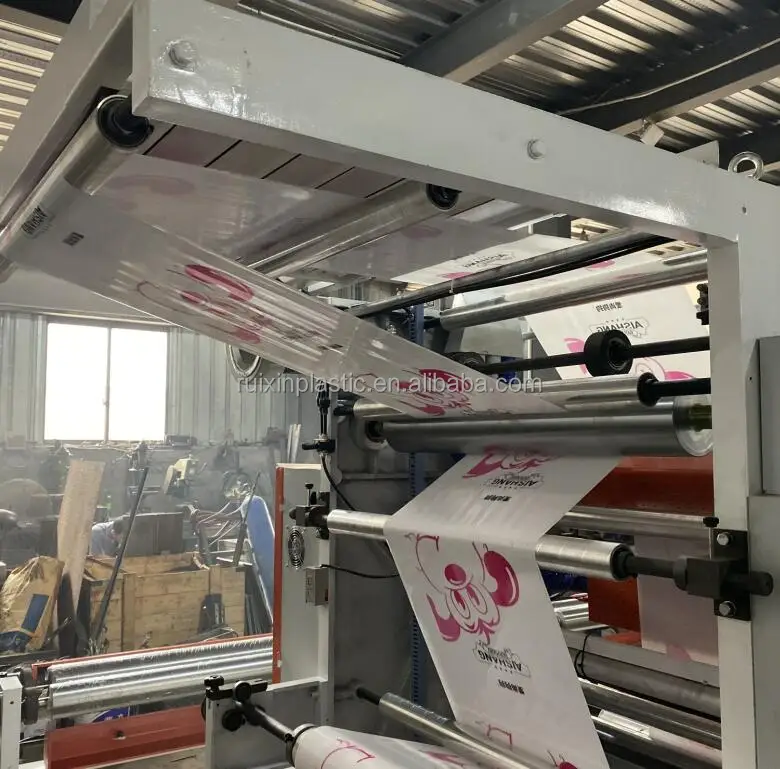

 Machine Pictures

2 1

 1



2


2

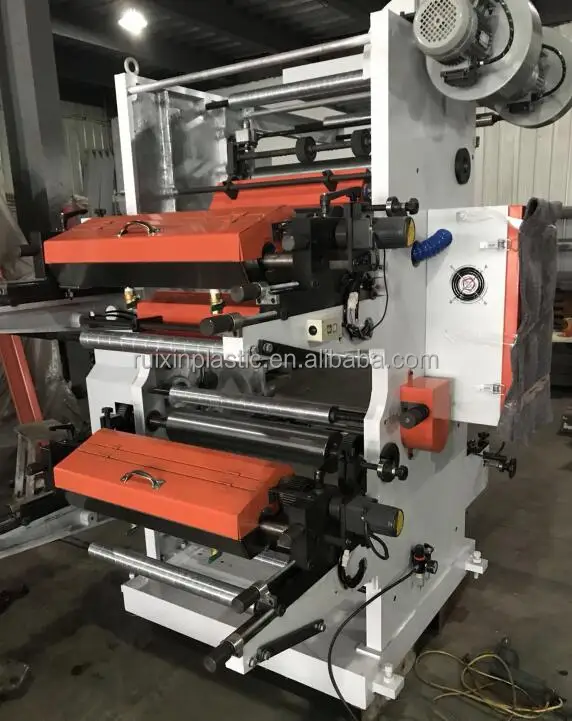

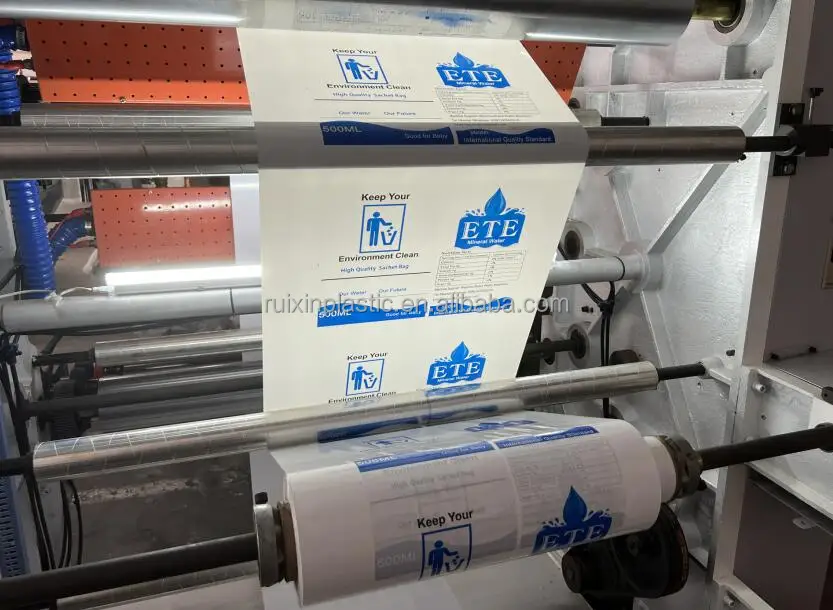

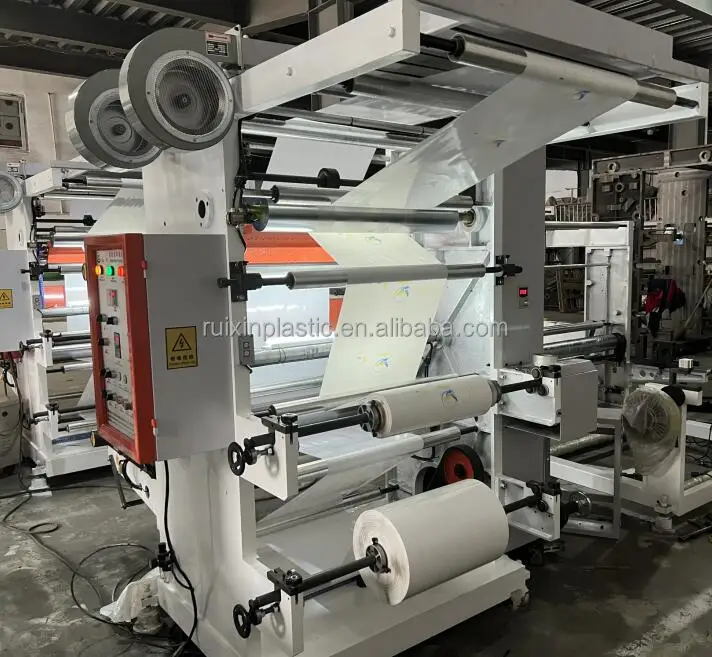

2 colors printing machine

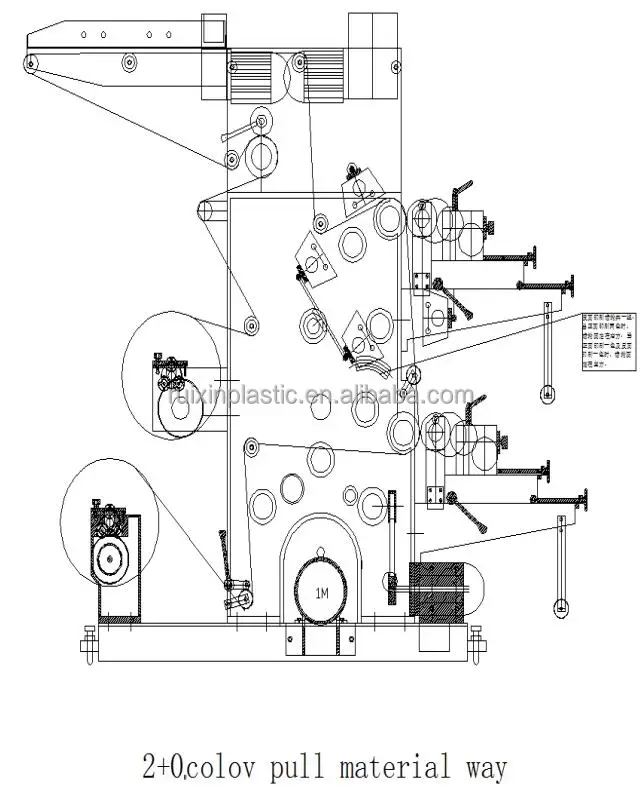

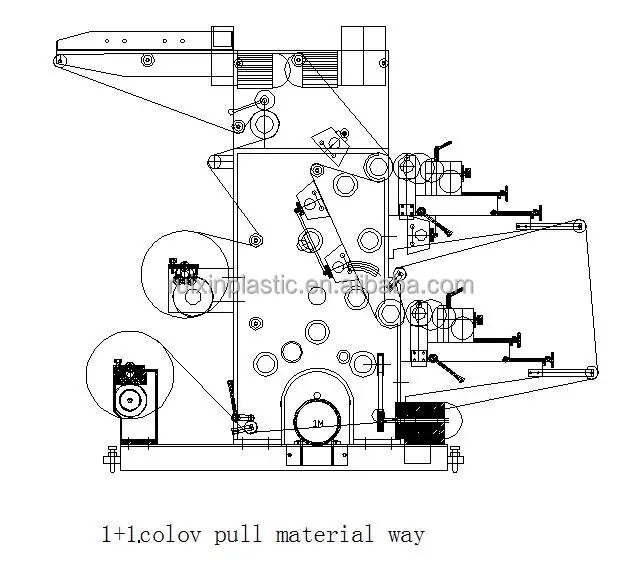

1+12+2

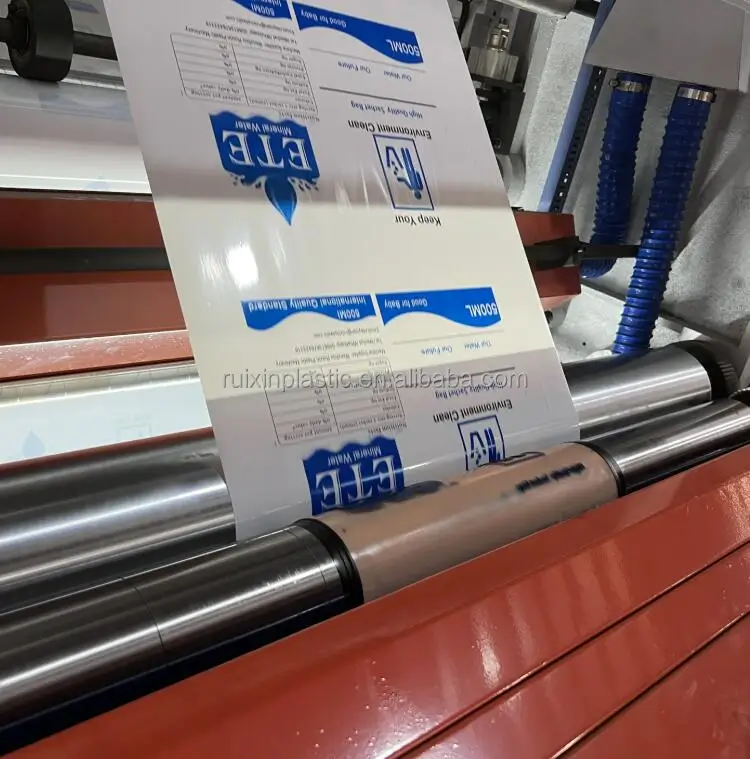

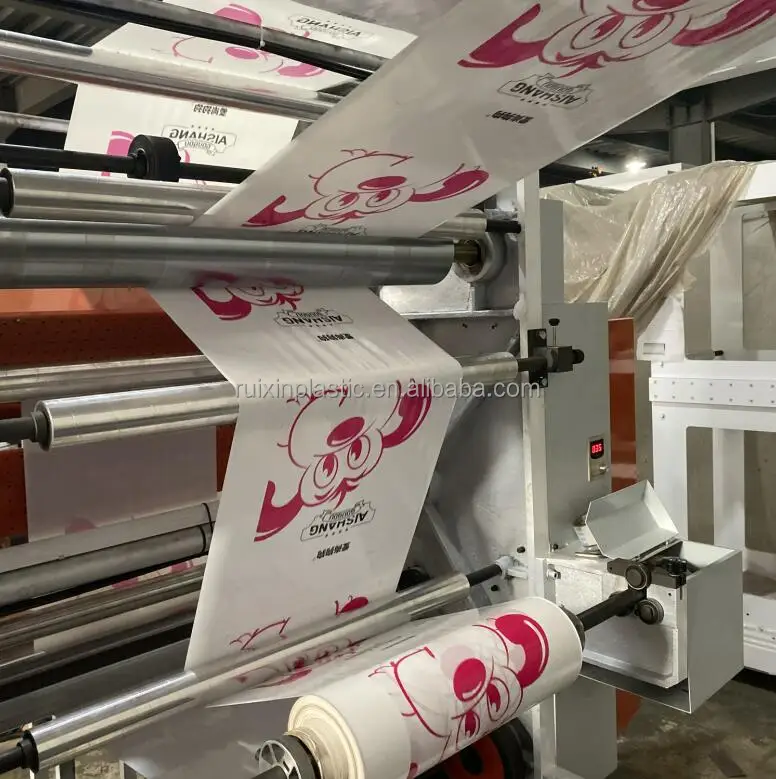

Printing Samples :

1

D2

2

m9694

DA3BBC59A2B

1

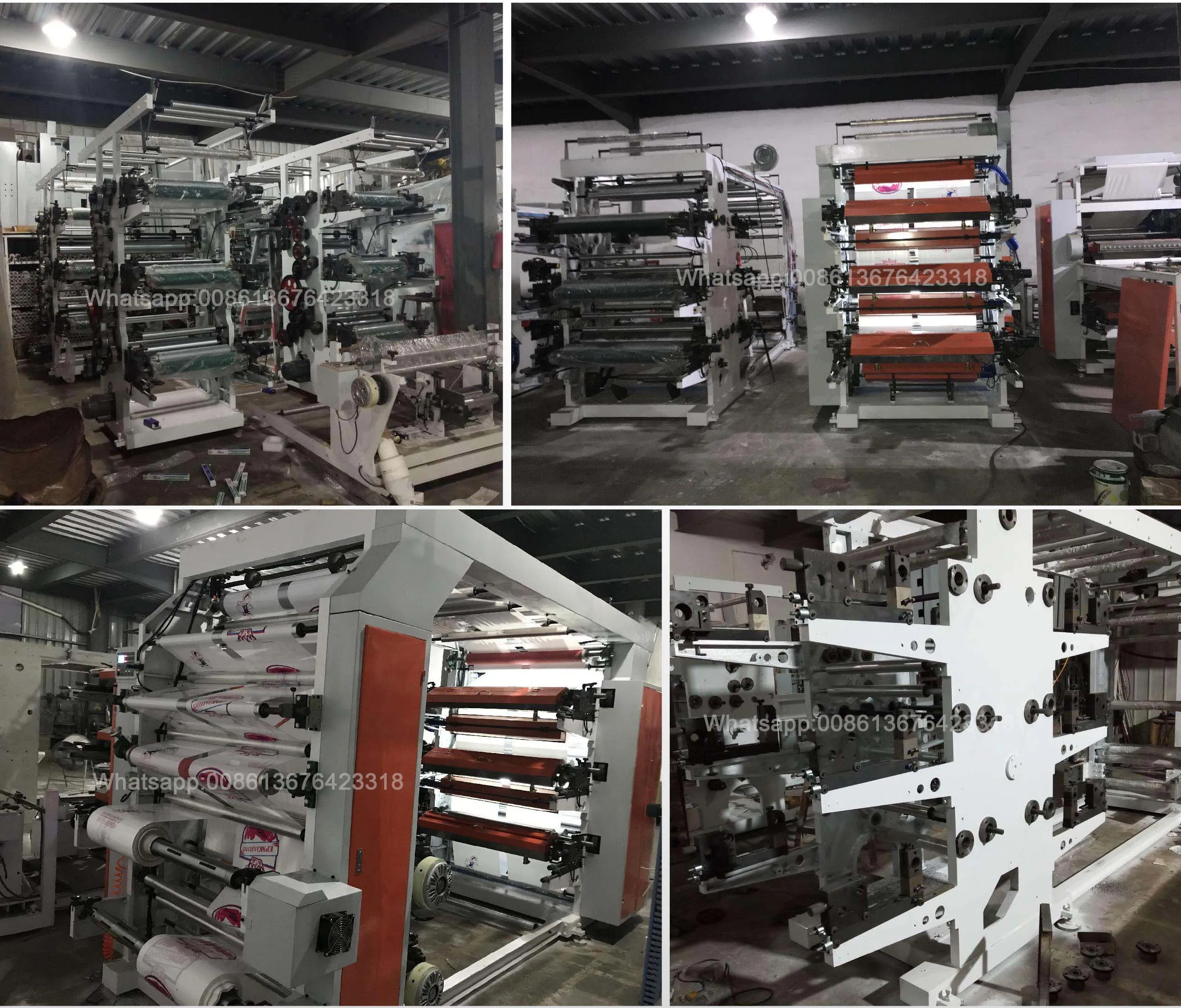

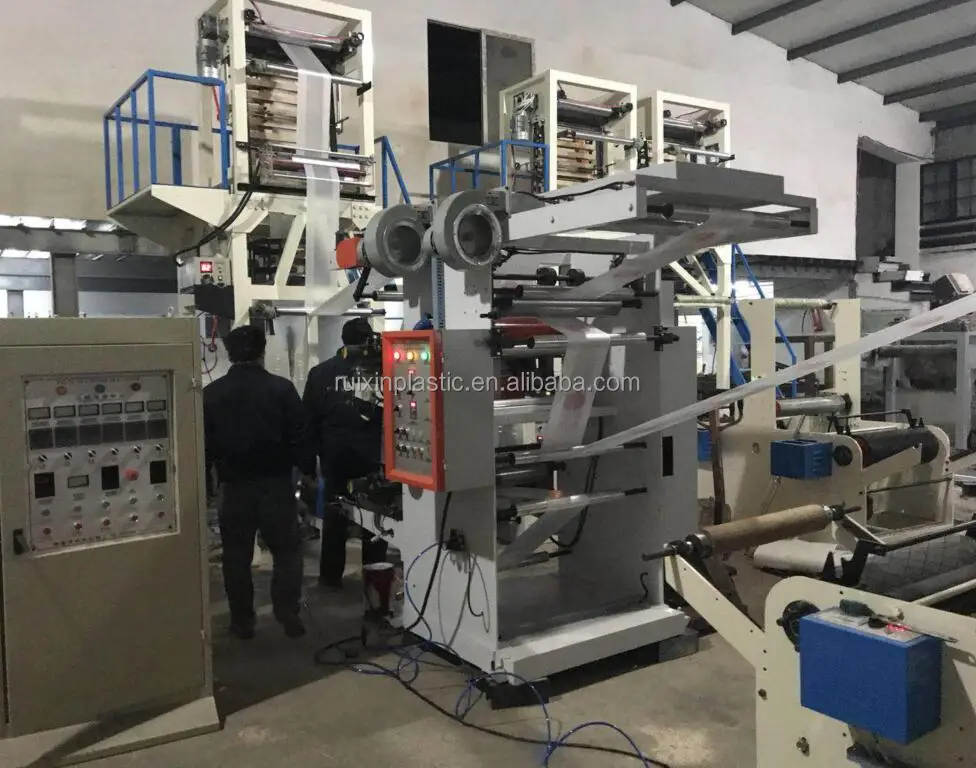

Our Factory


1





 1





4





6
