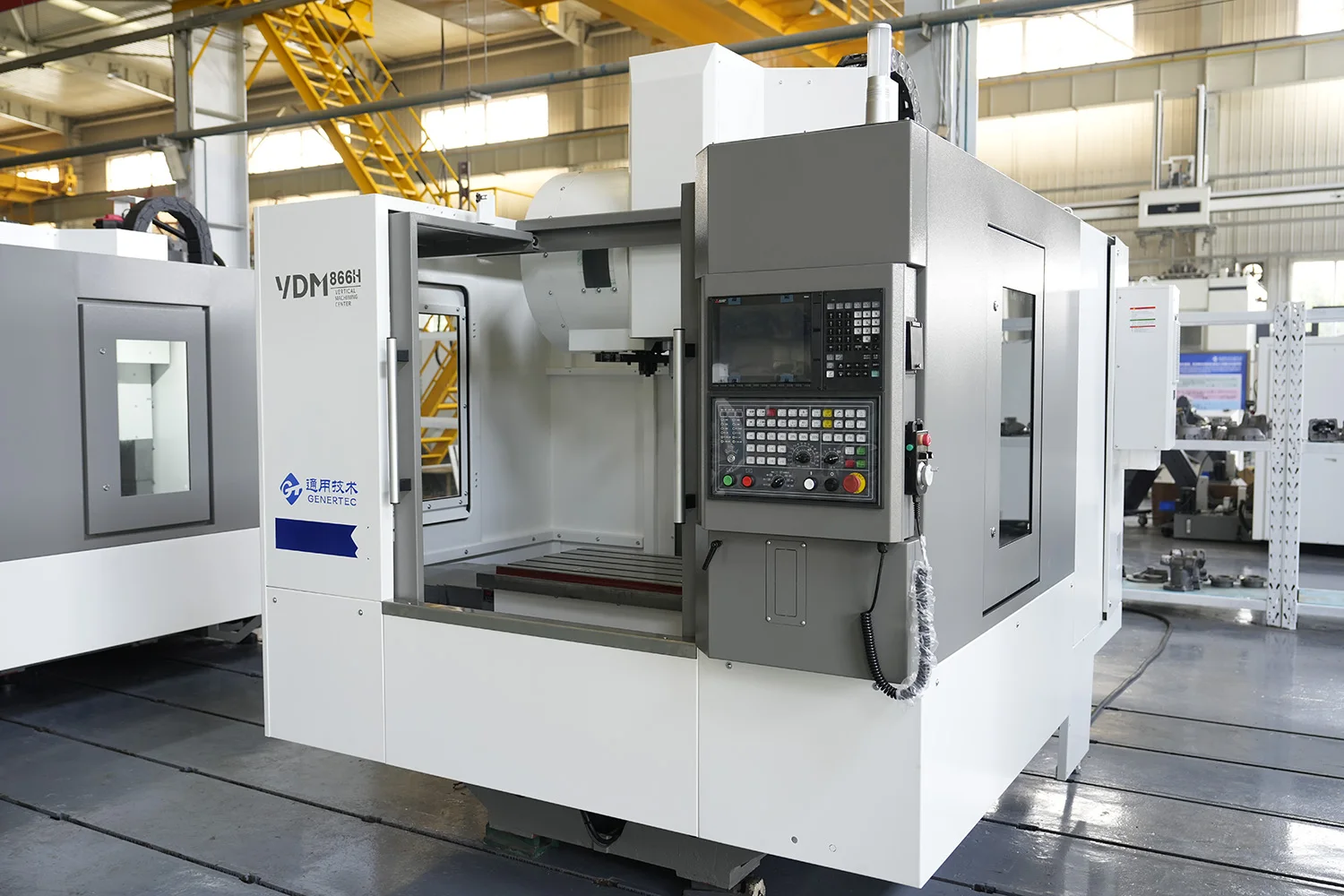

GT DMTG VDM866H New Vertical CNc Milling Machine High Precision Automatic Fresadora CNC 48/48/48 Rapid Feed speed KND Control
- Category: >>>
- Supplier: General Technology Group Dalian Machine Tool Import & Export Co. Ltd.
Share on (1601137355335):
Product Overview
Description
VR
PRODUCT DETAILS

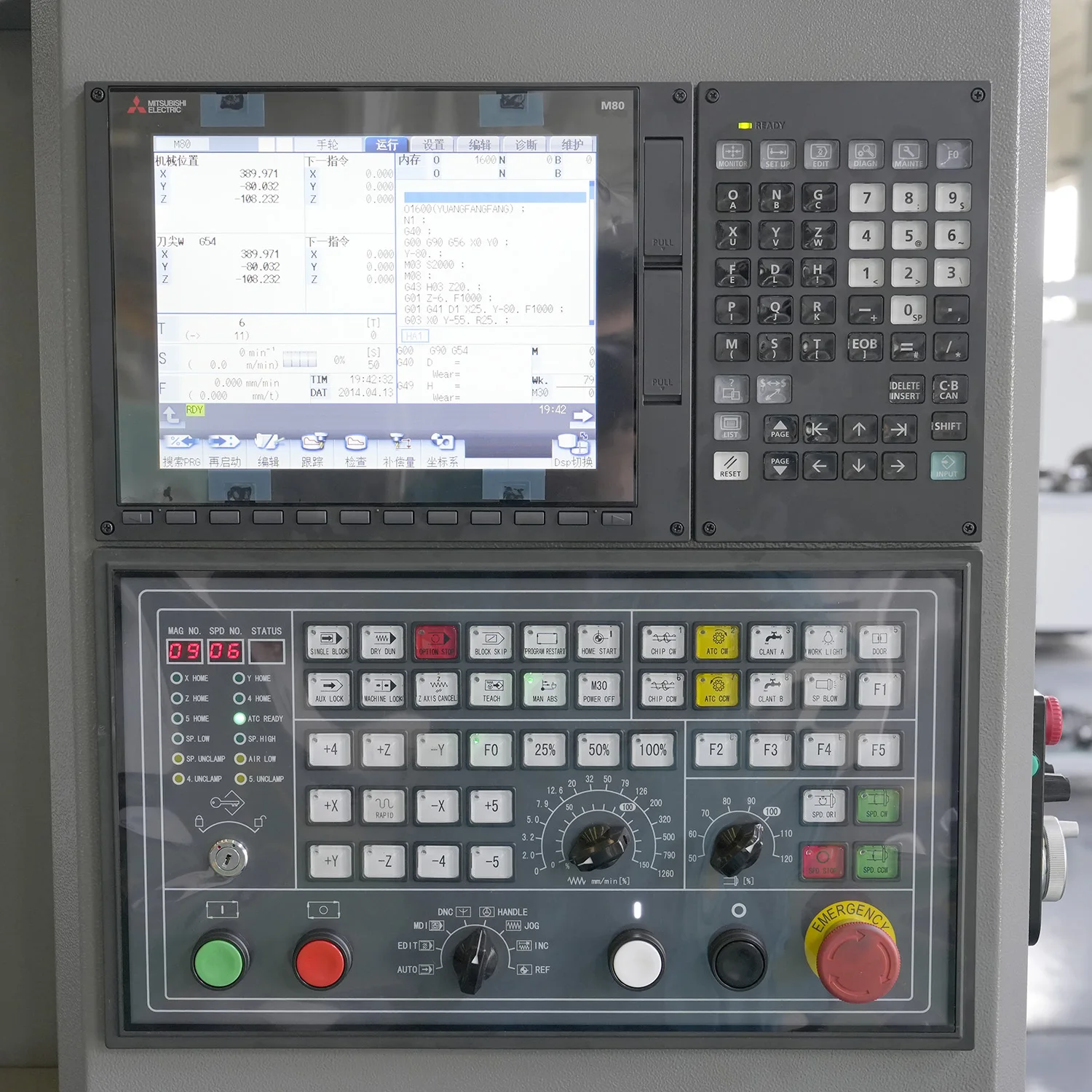

1.Mitsubishi M80B CNC System
2.Roller Linear Guides

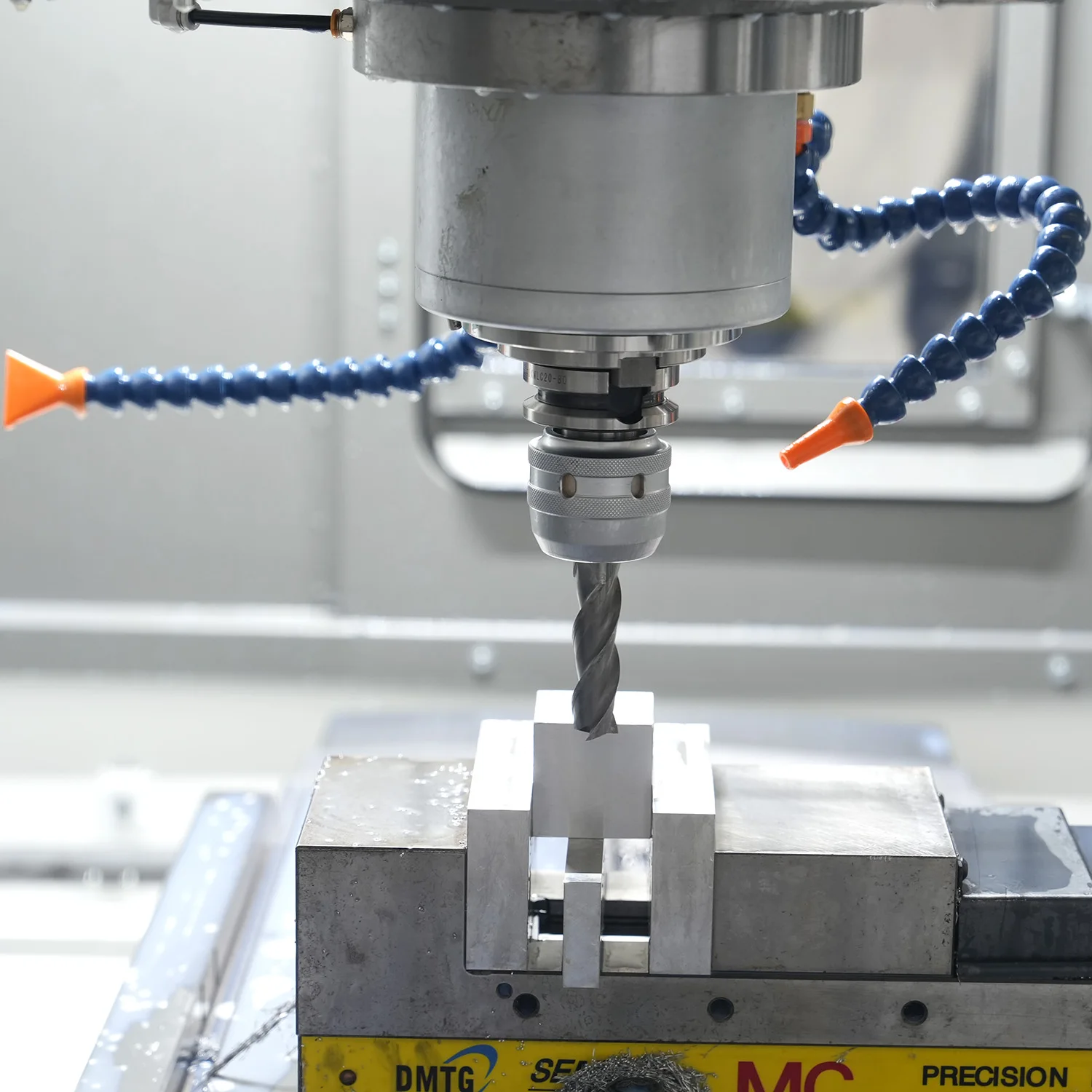

3.12000 RPM Direct Drive Spindle
(Spindle Oil Cooling Device)
4.24T Arm-type ATC
5.Rapid Traverse Speed of 48m/min
6.High Flow Coolant System
7.Dual Slant Bed Design with
6.High Flow Coolant System
7.Dual Slant Bed Design with
Rear Disposal and Rear Coolant Tank
8.Portable Handheld Control Unit
9.MPG
10.Electrical Cabinet Heat Exchanger
11.Interior Door Safety Guard
Specification | Unit | VDM866H |
Worktable size(LxW) | mm | 1000X500 |
Max.load | kg | 600 |
T-slots(numbers*width* centre distance) | mm | 5X18X100 |
X/Y/Z Axis travel | mm | 820/600/600 |
X/Y/Z Axis guide way type | Linear roller guideway | |
Distancetrom spind le centerto column | mm | 623 |
Distance from spindle nose to table | mm | 120~720 |
Rapid traverse of X/Y/Z axis | m/min | 48/48/48 |
Max. Cutting feed rate | m/min | 10 |
Spindle motor power | kw | 7.5/11 |
Max. spindle speed | r/min | 12000(direct drive) |
Spindle taper | No.40(7:24) | |
Toolmagazine capacity | 24T/Arm | |
Tooi shank type | BT40-45° | |
Max. tool weight | kg | 8 |
Max. tool diameter (w/o adjacent tools) | Φ75/Φ155 | |
Tool change time(T-T) | S | 2.5 |
X/Y/Z axis positioning accuracy | mm | 0.006/0.006/0.006 |
X/Y/Z axis repeatability accuracy | mm | 0.004/0.004/0.004 |
CNC controller | MITSUBISHI M80B,FANUC 0i-MF(5)Plus, GSK25iMC,KND K2000MF3i | |
Machine dimensions(LXWXH) | mm | 3165*2280*2818 |
Machine weight | kg | 5800 |
COMPANY PROFILE
After-Sales Service
EXHIBITION
CUSTOMER
General Technology Group Dalian Machine Tool Co., Ltd. belongs to the central enterprise China General Technology Group, formerly known as DMTG, which was established in 1935.
Main products:Vertical Machining Center,Horizontal Machining Center,Gantry Machining Center,CNC Lathe,Turning center,Five Axis Machine,Manual Lathe,CNC Boring Machine,Automatic Lines etc.DMTG has 2590 employees worldwide,Including 500 technical engineers and 150 service engineers.DMTG is ready to serve the world!

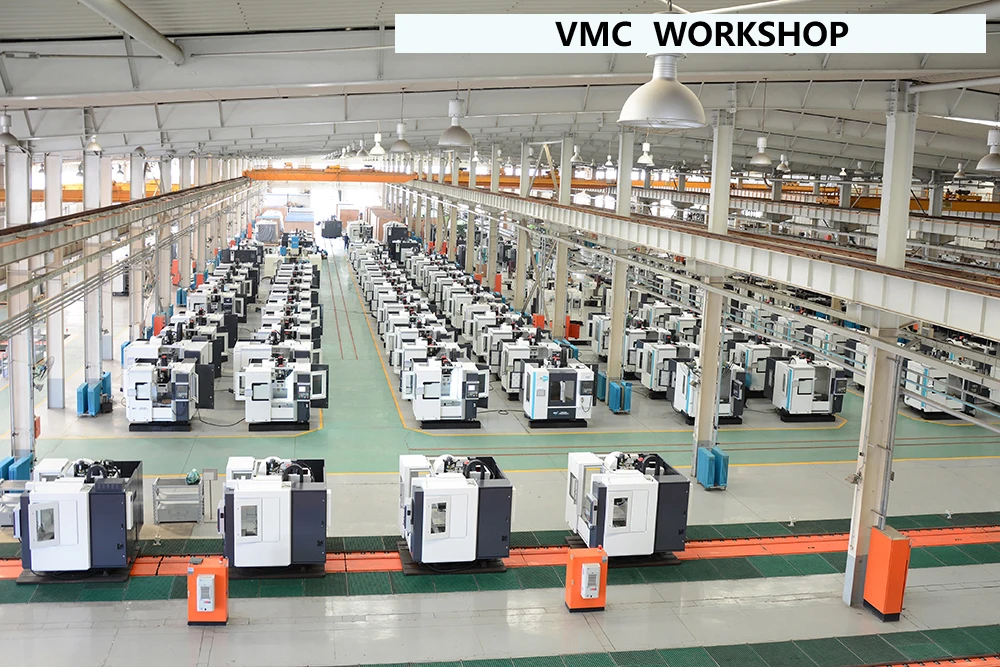

We have 7 factories in China and 1 research center,158 agents of global network,15 global service centers,Local sales, Installation,Commissioning,Training,Maintenance And repair support.Quality You Can Trust!
Main products:Vertical Machining Center,Horizontal Machining Center,Gantry Machining Center,CNC Lathe,Turning center,Five Axis Machine,Manual Lathe,CNC Boring Machine,Automatic Lines etc.DMTG has 2590 employees worldwide,Including 500 technical engineers and 150 service engineers.DMTG is ready to serve the world!
We have 7 factories in China and 1 research center,158 agents of global network,15 global service centers,Local sales, Installation,Commissioning,Training,Maintenance And repair support.Quality You Can Trust!
