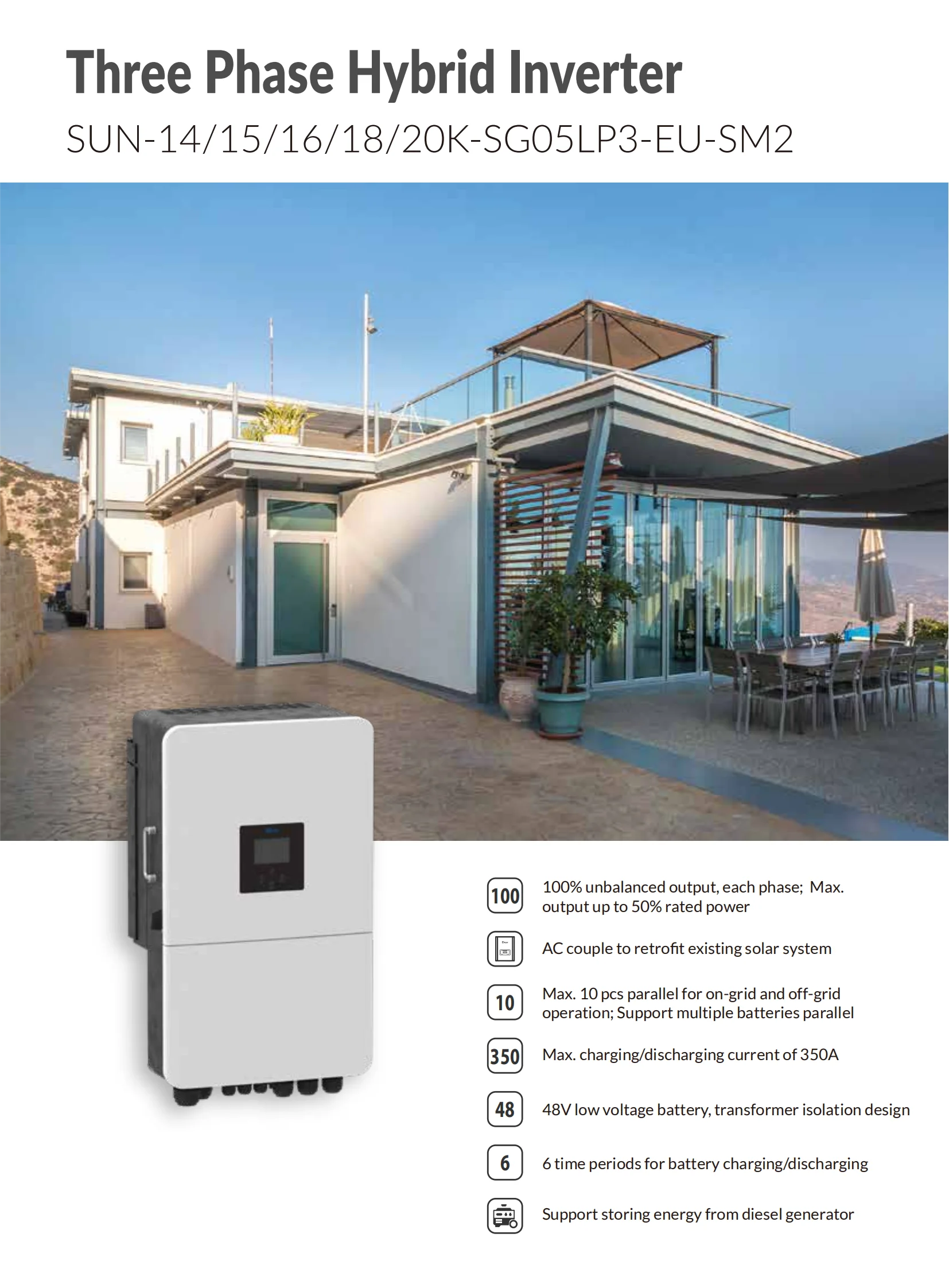

Deye May 2024 New Product SUN 18K SG05LP3 EU SM2 18kva Three Phase Hybrid Inverter Pv Complete Panel Kit Solar Energy System
- Category: >>>
- Supplier: Ningbo Dcloud Information Technology Co. Ltd.
Share on (1601137384160):
Product Overview
Description
Product specifications
Model | SUN-14K-SG05LP3 -EU-SM2 | SUN-15K-SG05LP3 -EU-SM2 | SUN-16K-SG05LP3 -EU-SM2 | SUN-18K-SG05LP3 -EU-SM2 | SUN-20K-SG05LP3 -EU-SM2 | |||||
Battery Input Data | ||||||||||
Battery Type | Lead-acid or Lithium-ion | |||||||||
Battery Voltage Range (V) | 40-60 | |||||||||
Max. Charging Current (A) | 260 | 280 | 300 | 330 | 350 | |||||
Max. Discharging Current (A) | 260 | 280 | 300 | 330 | 350 | |||||
Charging Strategy for Li-ion Battery | Self-adaption to BMS | |||||||||
Number of Battery Input | 1 | |||||||||
PV String Input Data | ||||||||||
Max. DC Input Power (W) | 18200 | 19500 | 20800 | 23400 | 26000 | |||||
Max. DC Input Voltage (V) | 800 | |||||||||
Start-up Voltage (V) | 160 | |||||||||
MPPT Voltage Range (V) | 160-650 | |||||||||
Rated DC Input Voltage (V) | 550 | |||||||||
Max. Operating PV Input Current (A) | 36+20 | |||||||||
Max. Input Short-Circuit Current (A) | 54+30 | |||||||||
No.of MPPT Trackers/ No.of String Per MPPT Tracker | 2/2+2 | |||||||||
AC Input/Output Data | ||||||||||
Rated AC Input/Output Active Power (W） | 14000 | 15000 | 16000 | 18000 | 20000 | |||||
Max. AC Input/Output Apparent Power (VA) | 15400 | 16500 | 17600 | 19800 | 22000 | |||||
Rated AC Input/Output Current (A) | 21.3/20.3 | 22.8/21.8 | 24.3/23.2 | 27.3/26.1 | 30.4/29 | |||||
Max. AC Input/Output Current (A) | 23.4/22.4 | 25/24 | 26.7/25.6 | 30/28.7 | 33.4/31.9 | |||||
Max. Three-phase Unbalanced Output Current (A) | 31.9/30.5 | 34.1/32.7 | 36.4/34.8 | 41/39.2 | 45.5/43.5 | |||||
Max. Continuous AC Passthrough (grid to load) (A) | 70 | |||||||||
Peak Power (off-grid) (W) | 2 times of rated power, 10s | |||||||||
Power Factor Adjustment Range | 0.8 leading to 0.8 lagging | |||||||||
Rated Input/Output Voltage/Range (V) | 220/380V, 230/400V 0.85Un-1.1Un | |||||||||
Rated Input/Output Grid Frequency/Range(Hz) | 50/45-55, 60/55-65 | |||||||||
Grid Connection Form | 3L+N+PE | |||||||||
Total Current Harmonic Distortion THDi | <3% (of nominal power | |||||||||
DC Component of Grid | <0.5% In | |||||||||
Efficiency | ||||||||||
Max. Efficiency | 97.6% | |||||||||
Euro Efficiency | 97.0% | |||||||||
MPPT Efficiency | >99% | |||||||||
Equipment Protection | ||||||||||
Integrated | DC Polarity Reverse Connection Protection, AC Output Overcurrent Protection AC Output Overvoltage Protection, AC Output Short Circuit Protection, Thermal Protection DC Terminal Insulation Impedance Monitoring, DC Component Monitoring, Ground Fault Current Monitoring Power Network Monitoring, Island Protection Monitoring, Earth Fault Detection, DC Input Switch Overvoltage Load Drop Protection, Residual Current (RCD) Detection, Surge protection level | |||||||||
Surge Protection Level | TYPE II(DC), TYPE II(AC) | |||||||||
Interface | ||||||||||
Communication Interface | WIFI, RS485, CAN | |||||||||
General Data | ||||||||||
Operating Temperature Range (℃) | -40 to +60℃, >45℃ Derating | |||||||||
Permissible Ambient Humidity | 0-100% | |||||||||
Permissible Altitude | 3000m | |||||||||
Noise | ≤55 dB(A) | |||||||||
Ingress Protection(IP) Rating | IP 65 | |||||||||
Inverter Topology | Non-Isolated | |||||||||
Over Voltage Category | OVC II(DC), OVC III(AC) | |||||||||
Cabinet Size (WxHxD mm) | 456×750×266 (Excluding Connectors and Brackets) | |||||||||
Weight (kg) | 38 | |||||||||
Type of Cooling | Intelligent Air Cooling | |||||||||
Warranty | 5 Years/10 Years the Warranty Period Depends the Final Installation Site of Inverter, More Info Please Refer to Warranty Policy | |||||||||
Grid Regulation | IEC 61727, IEC 62116, CEI 0-21, EN 50549, NRS 097, RD 140, UNE 217002, OVE-Richtlinie R25, G99, VDE-AR-N 4105 | |||||||||
Safety / EMC Standard | IEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1, IEC/EN 62109-2 | |||||||||

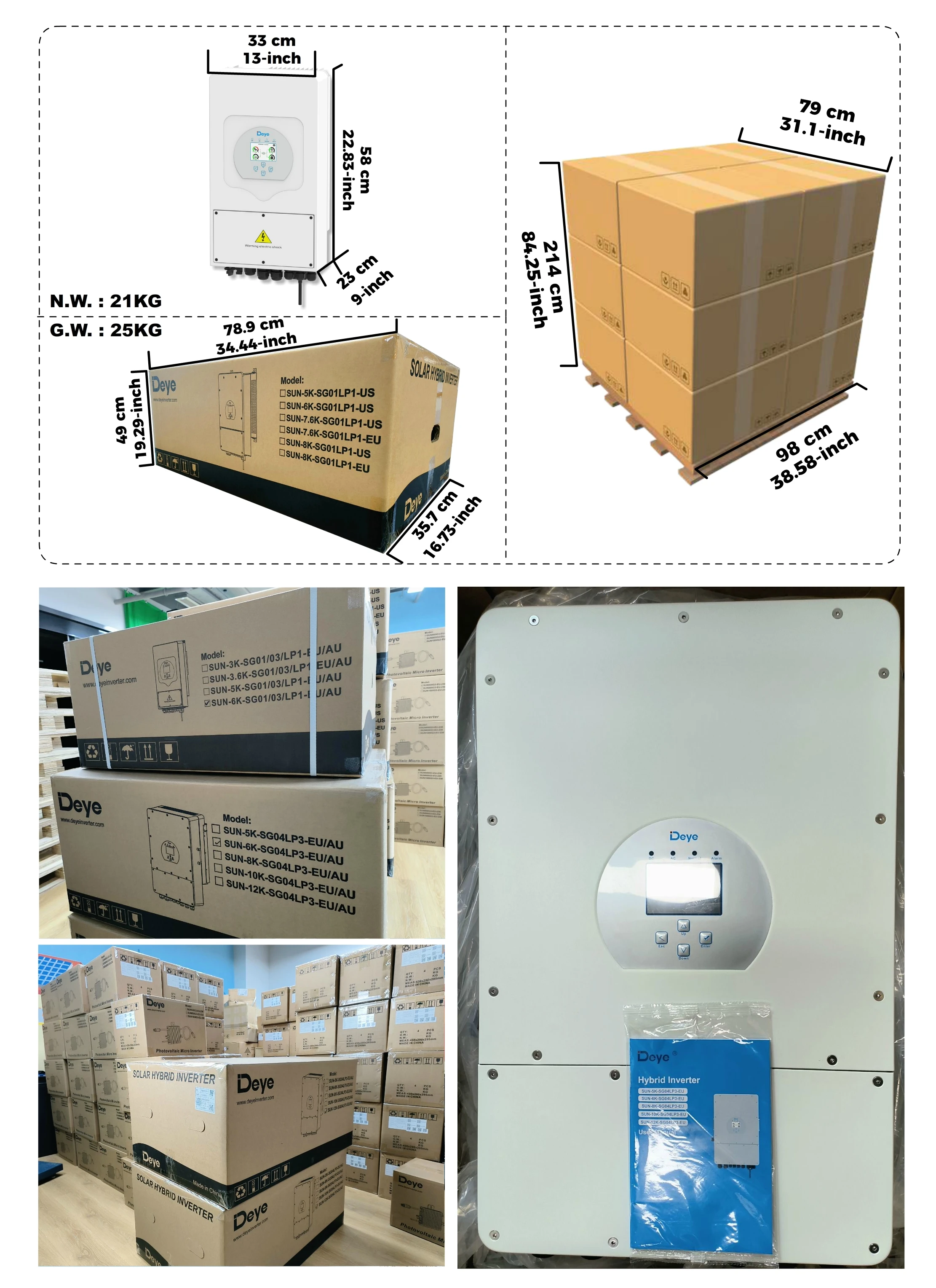

Product packaging
Company Profile
We have established long term strategic partnershipswith the following brands: Deye, Goodwe, Solis,Growatt, SRNE, SMA,Hoymiles,MUST, HUAWEl, etc
FAQ
1.Do you offer sample for testing purpose?
Yes,we do offer sample machine for testing.Please specify your requirements when contacting our agents.
2.What certificate do you have for micro inverters?
VDE 4105.EN50549-1.VDE0126-1-1.ABNT NBR 16149, ABNT NBR 16150, ABNT NBR 62116.RD1699. UNE 206006 IN, UNE 206007-1 IN, IEEE1547.Please double check with our agents for certificates.
3.Do you support OEM?
Yes, we do support OEM, however, there's requirement on quantities of your order.
4.What kind of shipment do you offer?
We offer land, sea and air freight upon your request. Fees varies.
5.How long does it take to receive goods I ordered?
For samples, the fastest you can receive is within one week. For bulk orders, dates may vary depending on quantity.
Yes,we do offer sample machine for testing.Please specify your requirements when contacting our agents.
2.What certificate do you have for micro inverters?
VDE 4105.EN50549-1.VDE0126-1-1.ABNT NBR 16149, ABNT NBR 16150, ABNT NBR 62116.RD1699. UNE 206006 IN, UNE 206007-1 IN, IEEE1547.Please double check with our agents for certificates.
3.Do you support OEM?
Yes, we do support OEM, however, there's requirement on quantities of your order.
4.What kind of shipment do you offer?
We offer land, sea and air freight upon your request. Fees varies.
5.How long does it take to receive goods I ordered?
For samples, the fastest you can receive is within one week. For bulk orders, dates may vary depending on quantity.
