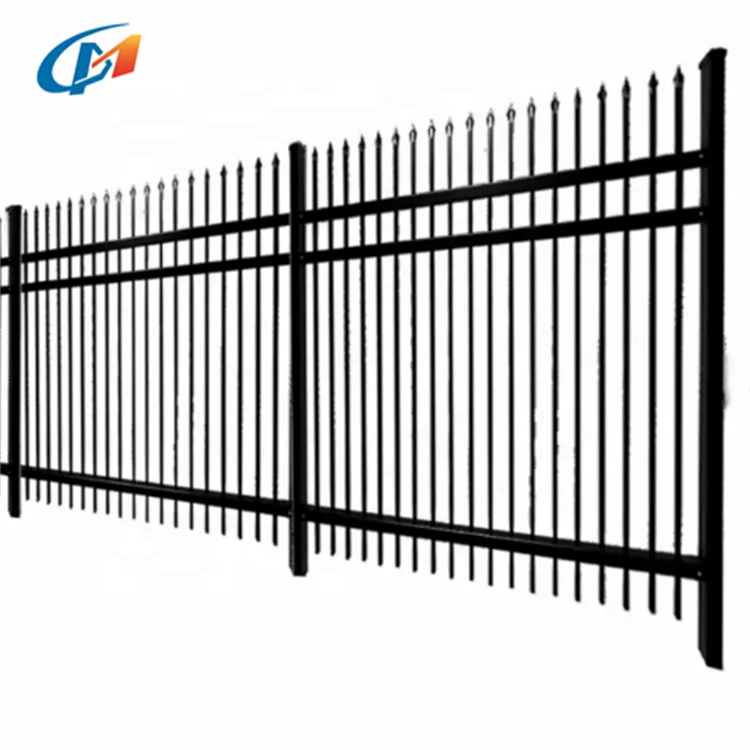

Waterproof Backyard Picket Spear Top Security Steel Fence Panels Ornamental Metal Wrought Iron Fence

Product Overview

Description



Steel Picket Fence Product Description

Steel Picket fence, also known as garrison fence or tubular steel fence, consists of vertical tubes, horizontal rails, spearheads, fence posts and accessories.

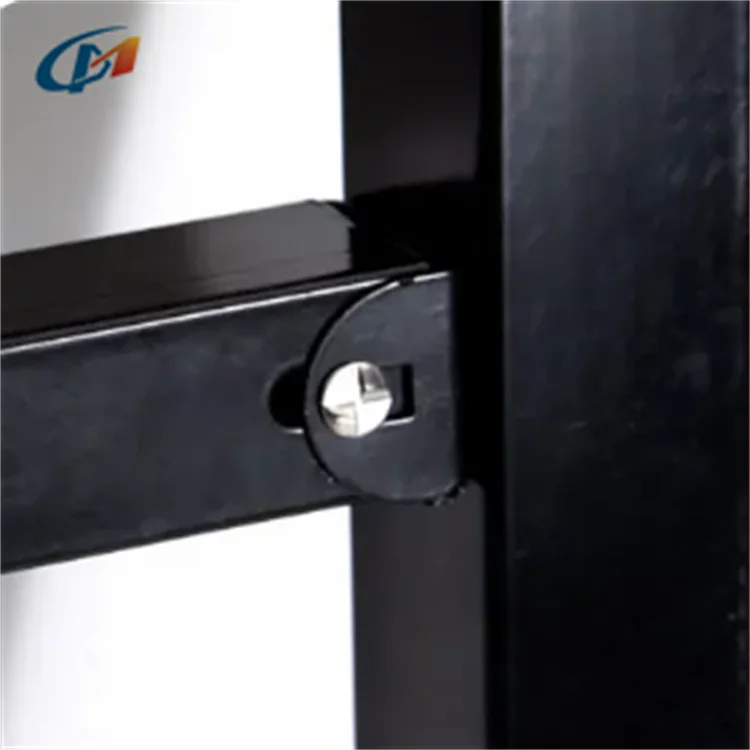

The horizontal railing and vertical railing are composed of panel, which is connected to the posts by anti-theft screws. The style is beautiful and diverse, which is perfect for parks, houses, yards and other places.



 Various Colors are Avilable

 Black is the Most Popular Color



Steel picket fence includes assembled or welded type, and there are various styles to choose from.

STEEL PICKET FENCE is generally welded with galvanized or aluminium tubes and then powder coated for strong corrosion resistance.
Gongmei company offers complete fences, including accessories and technical instructions, and the GM FENCING brand of steel picket fence can be guaranteed for more than ten years.



Process : Steel pipe cutting; spear pressing; tube hole punching

(punching holes for vertical bar; punching of horizontal bar; punching holes of post); welding;

washing; surface treatment; packing; installation.



1. First cut the steel or aluminum tube into the required length
2. Press spear tops
3, Punching holes of steel tubes
4. Use the mould to fix the cut tube then weld the rail and pickets. there are two welding methods:

·  A. full welding

·  B.point welding

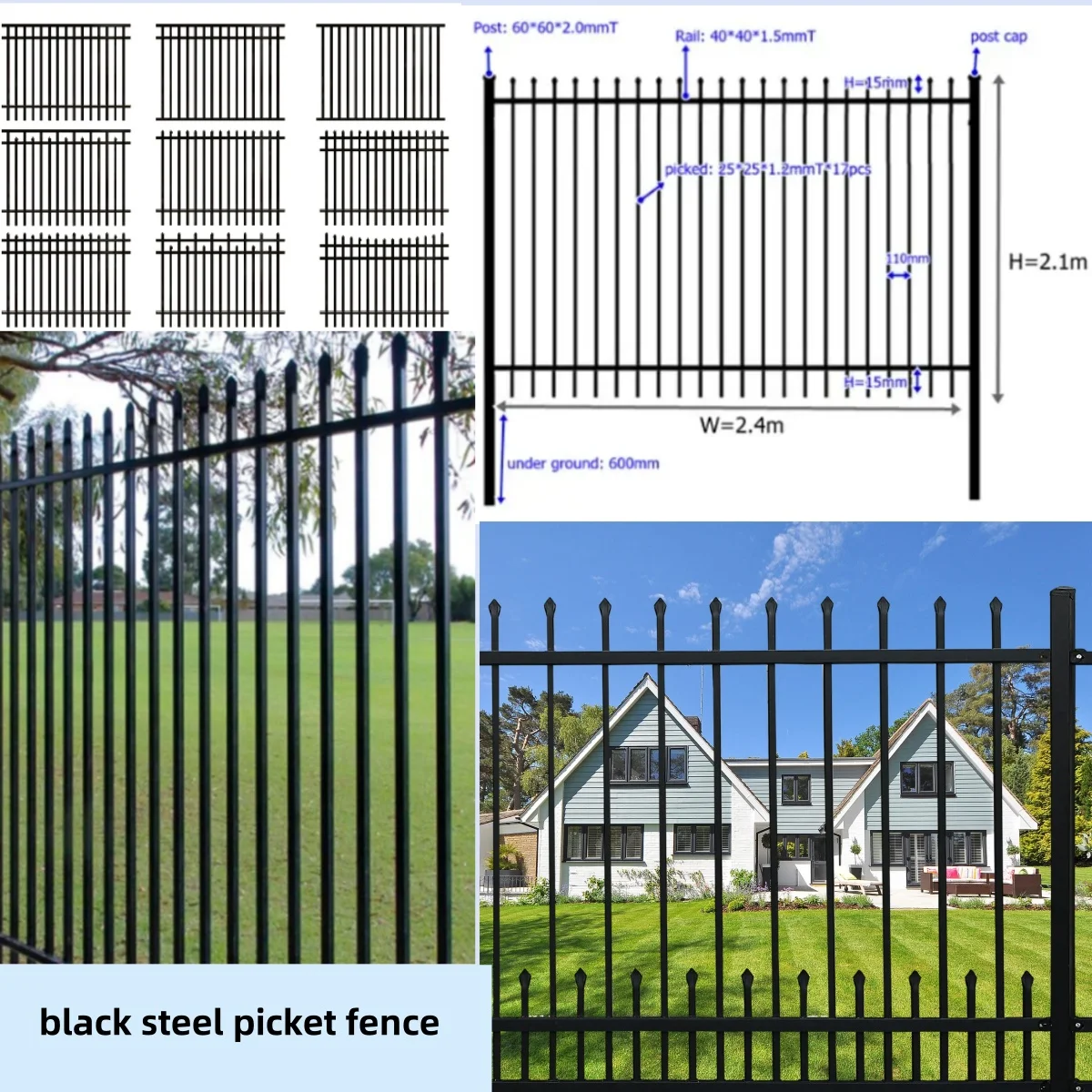

The Drawing with Size of Steel Picket Fence



Australia Standard Welded Tubular Steel Picket Fencing

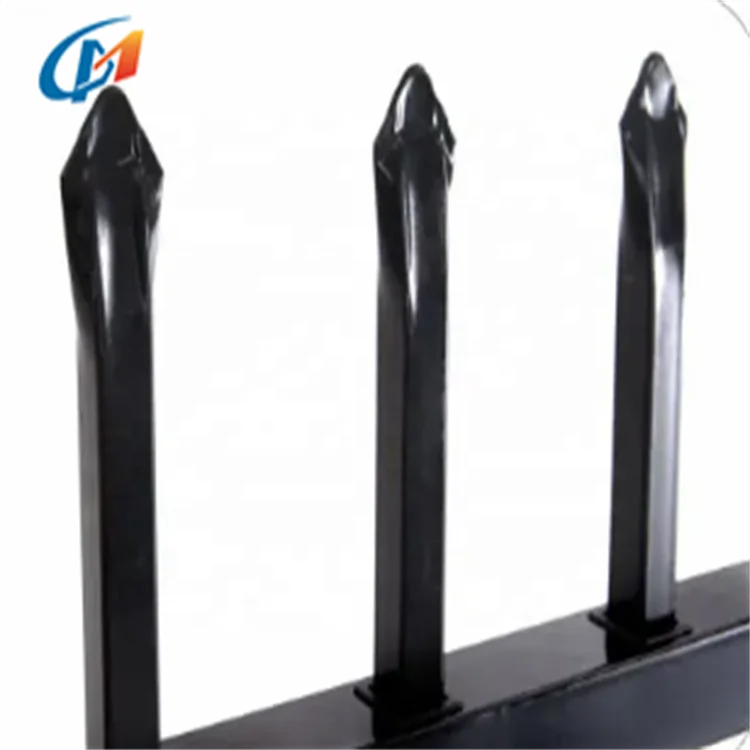

Spear-top picket fences with pressed spears top on the tubular posts
provide the classic outlook, bringing an aesthetically pleasing visual appeal to the residences.

Spear-top picket fence railing has decorative rings.

Material: Steel tube, or galvanized steel tube.

Surface: Hot dipped galvanized, Powder coated.

Color: Any RAL colors are available.



                                Spec of  Steel Picket Fence Railings

Material	Galvanized Steel Tube, Aluminum tube
Common Size	1.8m H x2.4m W or 2.1m Hx 2.4m W
Surface treatment	Galvanized or powder coating(phosphate treated before)
Rail	20x20,25X25mm;40X40x1.6mm,45X45mm
Pickets size	15x15mm, 20x20mm, 25x25mm, etc
Post	50 × 50 ×1.5, 60 × 60 × 2.0, 75 × 75 × 2.5mm
Accessories	posts, brackets, bolts, anti-theft screws
Uses	Roadside, Garden, School, Residential, Swimming Pool, etc
Color	Blue, Green, Black, White, black is the most popular
Gap	110mm, 130mm
Note	Other heights,widths ,specifications, colors can be customized



Structure Chart of Steel Picket Fence

1 fence set = 1 fence panel + 1 fence post + accessories (brackets, bolts&nuts, anti-theft screws)

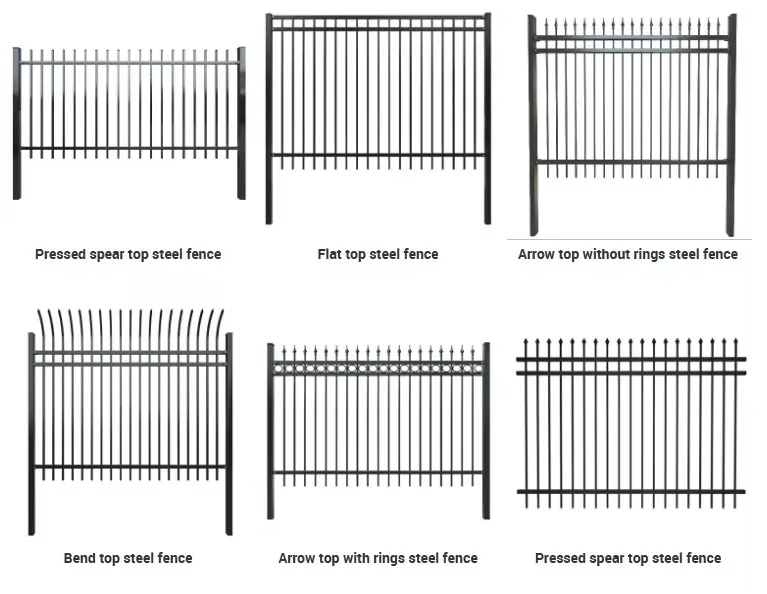

  More Types of Spear Top Fence

Popular Types:

There are many types of Steel Picket Fence, four of which are the most common: Spear top fence, flat top fence, loop top fence, extended top fence, and other types of Steel picket fence, Garrison Fence and tubular steel fence can be customized.



Advantages of Steel Picket Fence



Features of Steel Picket Fence

-------100% pre-galvanized and powder coated iron, which means virtually maintenance free

-------Anti-oxidation and weather resistance.Good impact resistance.

-------Dignified and generous,  Quick and easy installation.

--------Various color are available.Virtually Maintenance Free

--------Rigid welded steel construction - twice the strength of aluminum fence

---------Pre-punched mounting holes for simple and cost effective bracket installation.









The Application of Steel Picket Fence

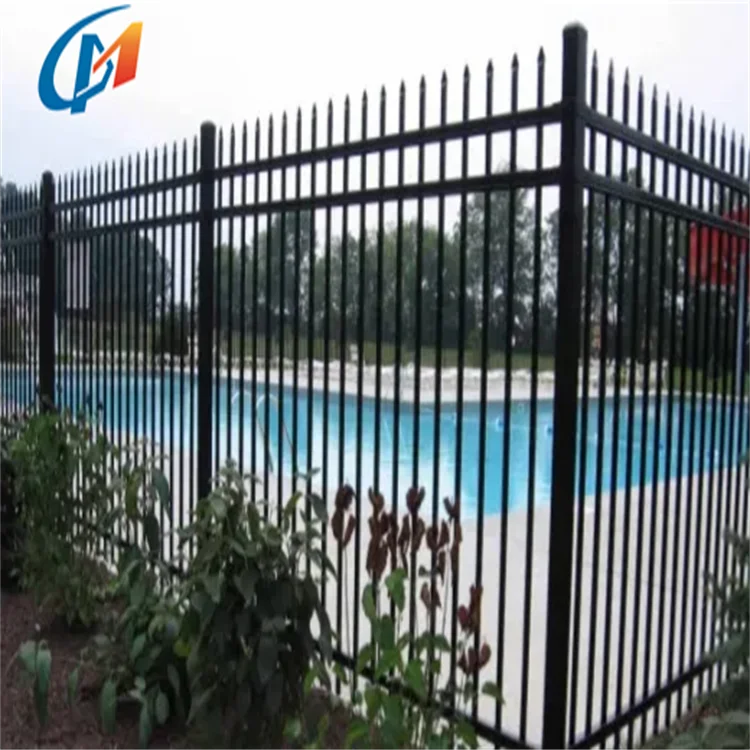

The Spear top design of this tubular fence creates an aesthetically pleasing fence which at the same time deters intruders.



This security level ornamental fence is suitable for gardens, residential, industrial and commercial properties, schools, pools and boundary fencing.

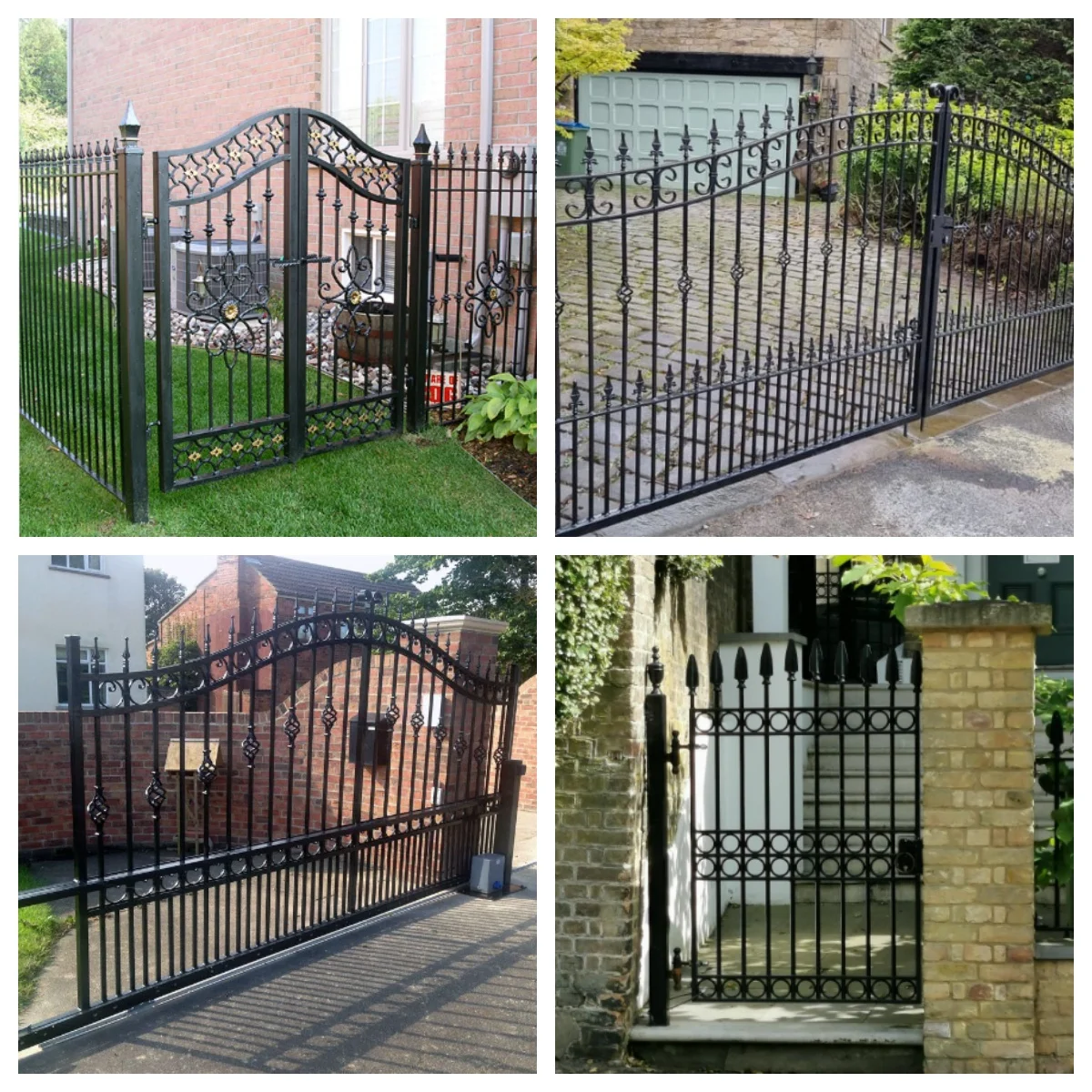

 Wrought  iron single gate , double gate and sliding gate

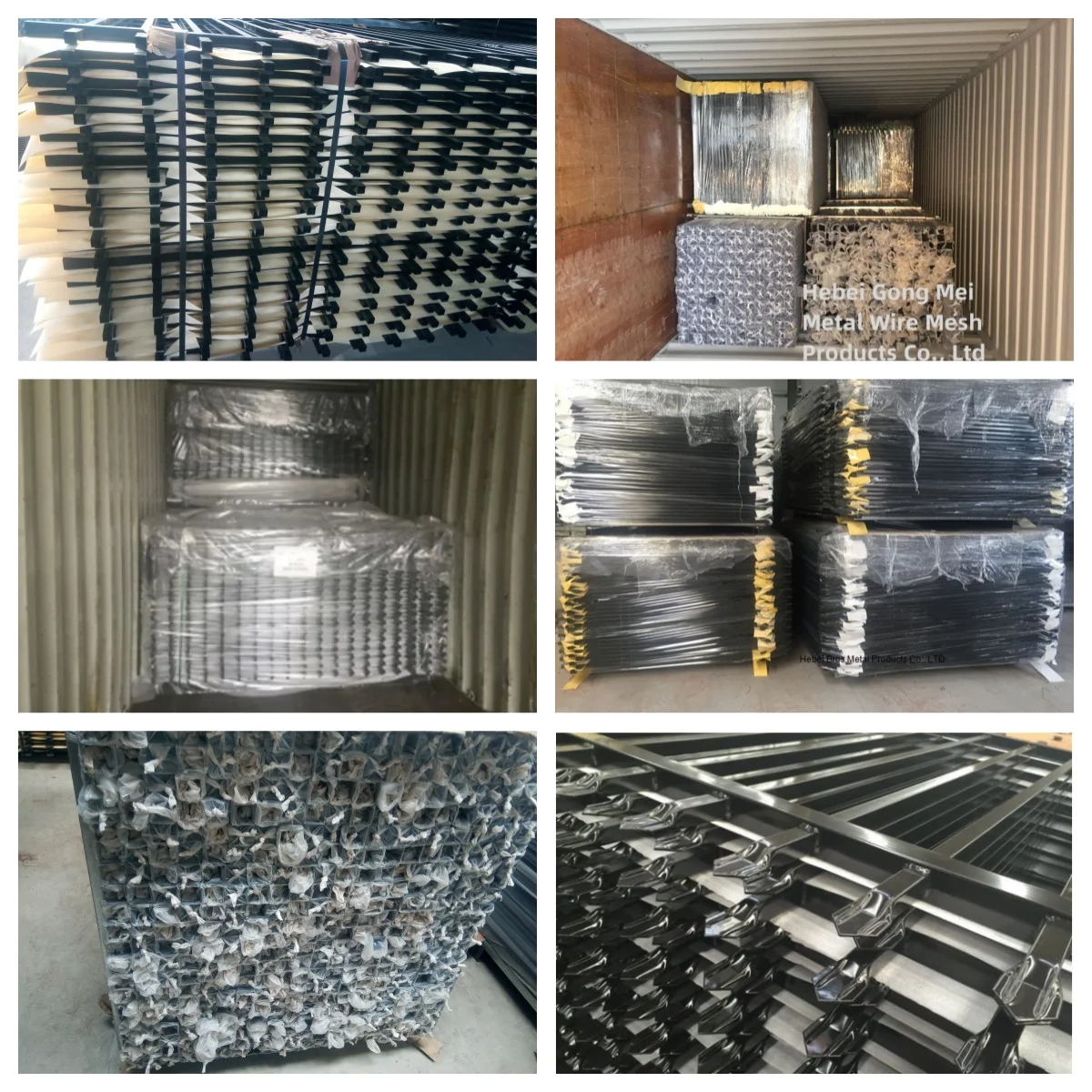

The Packages of Steel Picket Fence

Waterproof paper + plastic film+ wooden pallet

We put bubble film between each piece of mesh, put it on an iron pallet, fix it with strapping tape, then, wrap it with plastic film, and reinforce the corner protector with cardboard.

Or we secure it with strapping tape and put it in a wooden box. When you load or unload them, you just need to operate the forklift to put the packages into the container or your warehouse, very convenient.

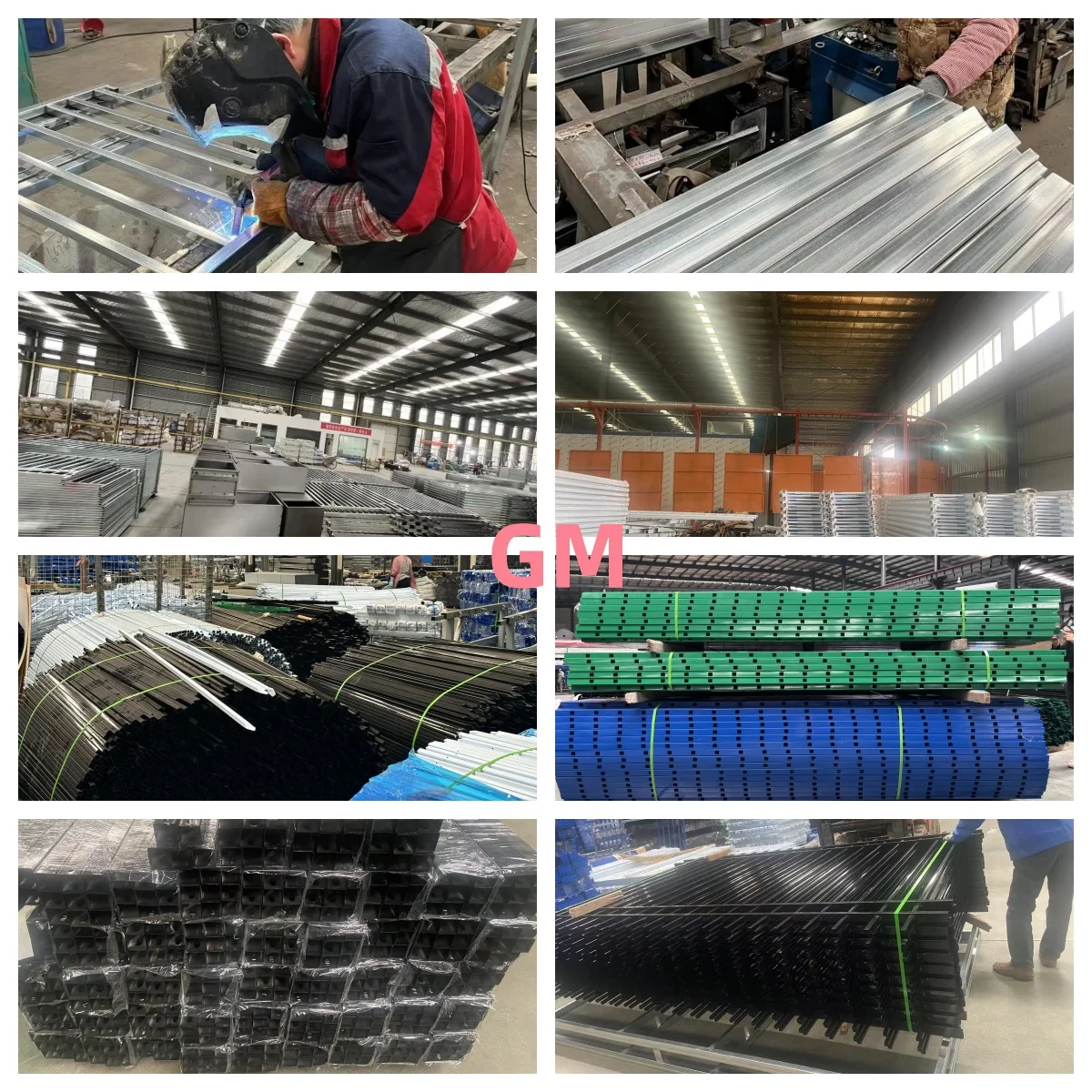

Production Workshop & Product Dispaly (fence panels , picket top , raills and posts)

Company Details



Hebei Gong Mei Metal Wire Mesh products Co.,Ltd is a manufacturer of wire mesh products with well-equipped testing equipment and strong technical force.

With high quality, competitive price, excellent technology, our products are widely used in construction engineering, home design, agricultural protection, industrial applications and other fields.

Our main products include: 3D curved fence panels,steel picket fence,cattle&horse fence, wrought iron fence, temporary fence, crowd control barrier, hexagonal wire mesh, chain link mesh,gabion box , expanded metal,  and other wire mesh products.

 As a professional manufacturer, our Steel picket fences mainly are exported to the United States and Australia, canada and has been praised unanimously by our comprehensive service. Welcome to your customized orders form different panel dimensions and mesh opening.
