Butterfly Valve Sanitary High Performance Butterfly Valves For Food Machines
Butterfly Valve Sanitary High Performance Butterfly Valves For Food Machines
Butterfly Valve Sanitary High Performance Butterfly Valves For Food Machines
Butterfly Valve Sanitary High Performance Butterfly Valves For Food Machines
Butterfly Valve Sanitary High Performance Butterfly Valves For Food Machines

Butterfly Valve Sanitary High Performance Butterfly Valves For Food Machines

Share on (1601137592448):


Price:$10.00-14.00

Quantity:


Product Overview

Description



Full Port Butterfly Valve Sanitary , High Performance Butterfly Valves For Food Machines



Features:
· Quick and simple open / close function
· Low fluid resistance suitalbe for frequent use
· Good sealing capability for long service life
· High-precision CNC lathes utilized to finish valve body
· Use of quality stainless steel and food grade rubber to meet all sanitary standards
· Valve body diameter exactly matches pipe system for large flow




Configurations:




Specifications


Driving Mode:
Manual
Connection Ends:
Welding, Thread, Clamp, Quick Install, Flange, all available
Quantity:
Single piece type, double pieces type, triple pieces type available
Size:
DN10 ~ DN200 , 1/2" ~ 8", Φ19 ~ Φ102, all other sizes can be customized
Material:
SUS304, or SUS316L
Seal Material:
Free choice among EPDM, PTF E, FPM or NBR
Working Pressure:
Low Pressure (Pn<1.6mpa)
Working Temperature:
-10℃ ~ +95℃
Surface Process:
Matt
Connection Standard:
3A, DIN, ISO, SMS, RJT, IDF


Main Types:

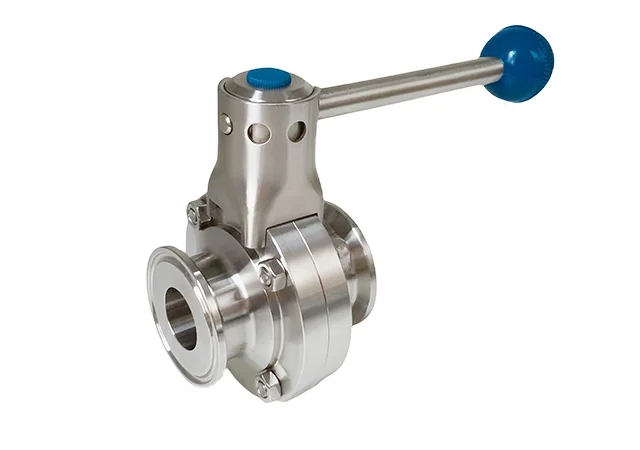

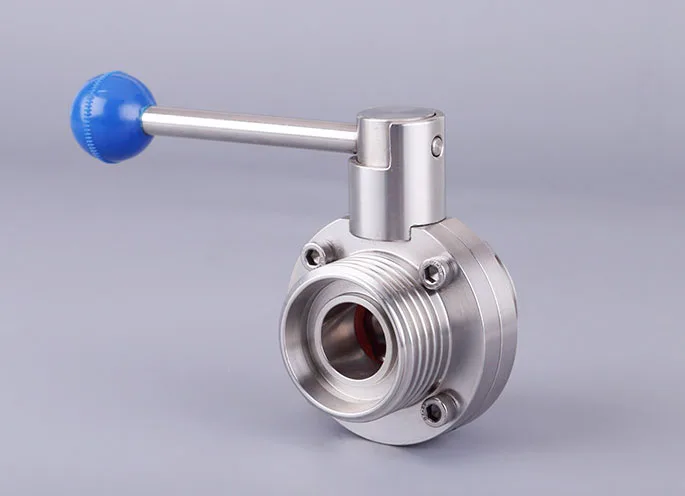

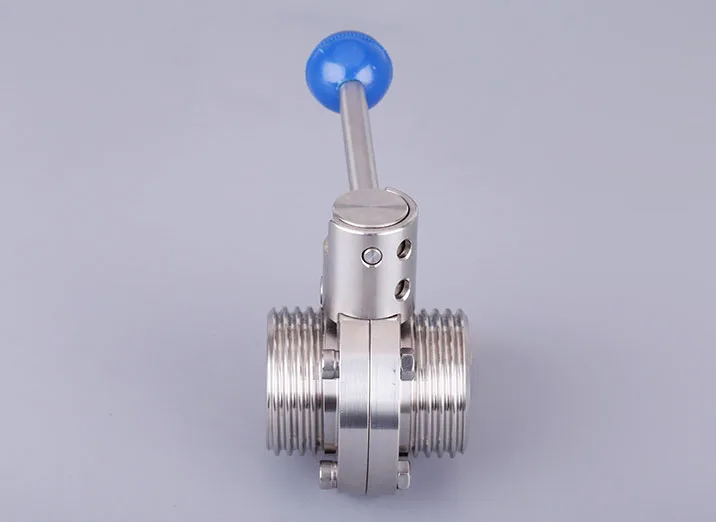

A. Sanitary butterfly vavle with Pull-rod handle:
1. 4 open and close multifunction positions
2. Handle operation to lock valve mechanically in a certain position, to control media flow
3. Low cost, simple operation

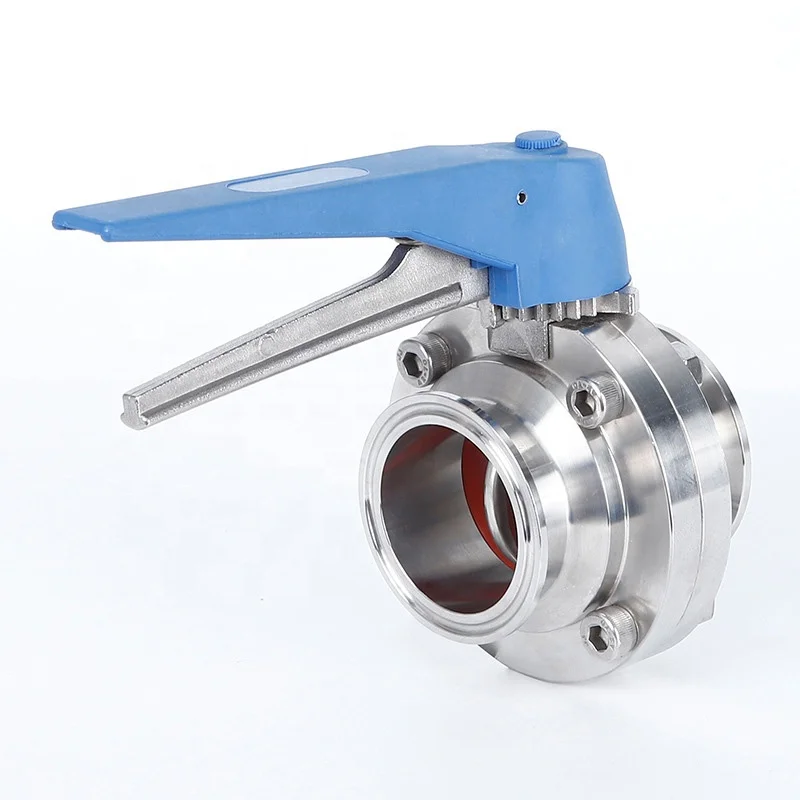

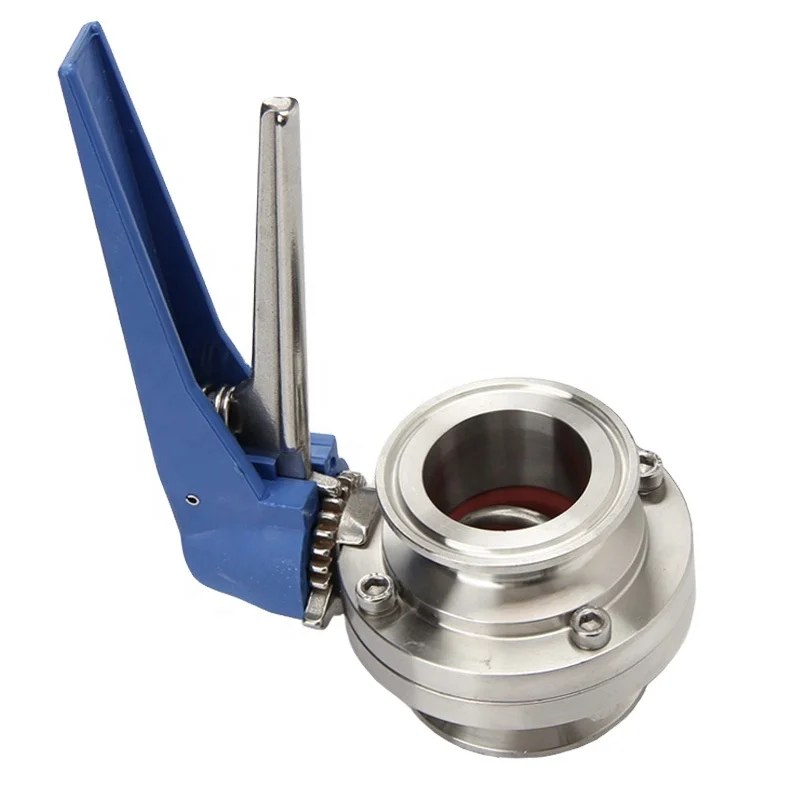

B. Sanitary butterfly valve with multiple position gripper handle:
1. 12 open and close multifunction positions
2. Handle can be adjusted by 15 degree angle, to lock valve mechanically in a certain position, control media flow
3. Flow control can be more accurate
