Android Bus Card Validator Ticketing Machine Access Smart Card Reader with 4 PSAM Card Slot NFC Payment Bus Terminal P18 Q
- Category: >>>
- Supplier: Shenzhen Hcc Technology Co. Ltd.Shenzhen Ltd.
Share on (1601137727589):
Product Overview
Description
Product Description

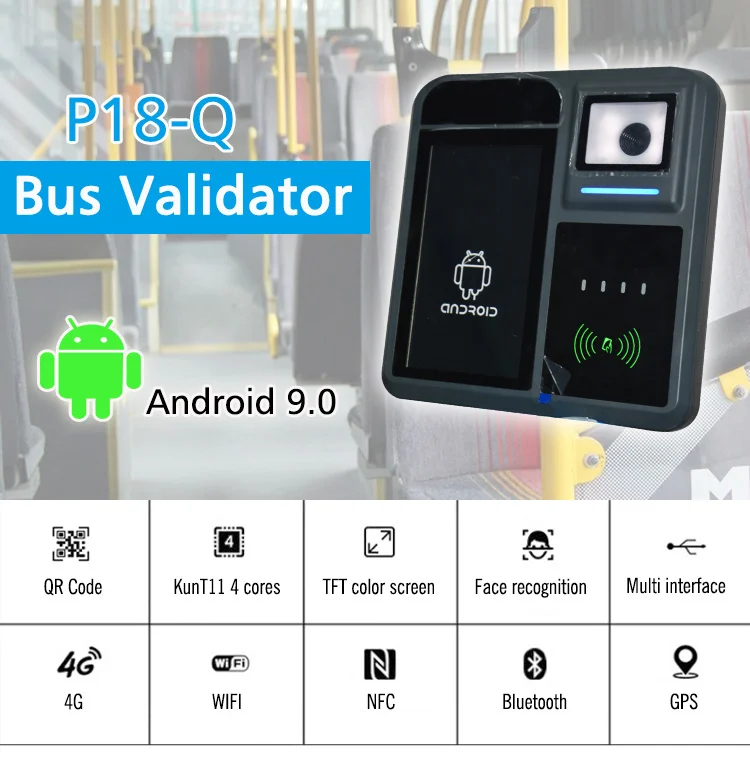

P18-Q Bus Validator Introduction
Public Transportation Fare Collection machine Features:
1. 6.95 inch display (touch/ original display),
2. Rich port (RS232,Ethernet,USB,USB TypeC,WiFi)
3. QR code hard decoding
4. 1*SIM,4*PSAM
5. GPS function
6. Monocular camera/Binocular camera is optional
Payments:
1. NFC payment is certificated.
2. QR code payment
Service:
1. Support OEM/ODM
2. Support free SDK to develop software
3. Support MDM (Mobile Device Management) service
4. Samples in stock, fast shipment after payment succeeded
Public Transportation Fare Collection machine Features:
1. 6.95 inch display (touch/ original display),
2. Rich port (RS232,Ethernet,USB,USB TypeC,WiFi)
3. QR code hard decoding
4. 1*SIM,4*PSAM
5. GPS function
6. Monocular camera/Binocular camera is optional
Payments:
1. NFC payment is certificated.
2. QR code payment
Service:
1. Support OEM/ODM
2. Support free SDK to develop software
3. Support MDM (Mobile Device Management) service
4. Samples in stock, fast shipment after payment succeeded
Memory | LPDDR4 2GB eMMC 16 GB TF 1* | Supply Voltage | 9-48 V DC |
RS232 | 2 RS232 interface | Supply Current | Max. 2A |
Ethernet | Built-in 10/100-base-T with RJ45 connector | Over Voltage Protection | Supported |
USB | 2 USB 2.0 Host Full Speed | Over Current Protection | Supported |
USB TypeC | OTG interface | WiFi | IEEE 802.11 b/g/n/ac |
GPS | Supported | BT (Optional) | BT4.0 + BR/EDR + BLE |
Barcode Scanner | 1D Barcode Scanning | Standard | ISO-14443 A & B part 1-4 |
2D Barcode Scanning | Protocol | Mifare® Classic Protocols, T=CL | |
QR Code Scanning | Operating Distance | Up to 50 mm | |
Number of Slots | 4 ID-000 slots | Operating Frequency | 13.56 MHz |
Card Connector Type | Contact | Protocol | T=0 or T=1 |
SIM | 1* | Firmware Upgradeable through | OTA |
Standard | ISO/IEC 7816 Class A, B (5V, 3V, 1.8V) | LCD Display | 600×1024 TFT LCD display with backlight, 6.95 inch (optional touchscreen) |
Speaker | Supported | LED Status Indicators | 4 LEDs for indicating status (from left most: blue, yellow, green, red) |
Buzzer | Supported | Other Features | Real Time Clock |
Work Conditions | Temperature: -40°C ~80°C Humidity: 5% to 93%, non-condensing | Certifications/Compliance | CE/FCC, RoHS, CCC, Contactless, IP54 |
