Product Overview
Description
Product Description
Module Efficiency(%) | SP100-200M-(36-39)cell | ||||||||
Peak Power Watts(Pmax/W) | 110W | 130W | 150W | 180W | 200W | ||||
Power Output Tolerance(W) | 3% | ||||||||
Maximum Power Voltage(Vmp/V) | 20.12 | 20.43 | 20.55 | 21.79 | 22.45 | ||||
Maximum Power Current(Imp/A) | 5.47 | 6.37 | 7.3 | 8.27 | 8.91 | ||||
Open Circuit Voltage(Voc/V) | 23.52 | 23.75 | 23.82 | 24.37 | 26.01 | ||||
Short Circuit Current(Isc/A) | 5.78 | 6.73 | 7.69 | 8.72 | 9.41 | ||||
Module Efficiency(%) | 19.03 | 18.97 | 19.7 | 18.14 | 20.8 | ||||
Dimension (mm) | 1075*540*30 | 1170*580*30 | 1080*705*30 | 1485*668*30 | 1485*668*30 | ||||

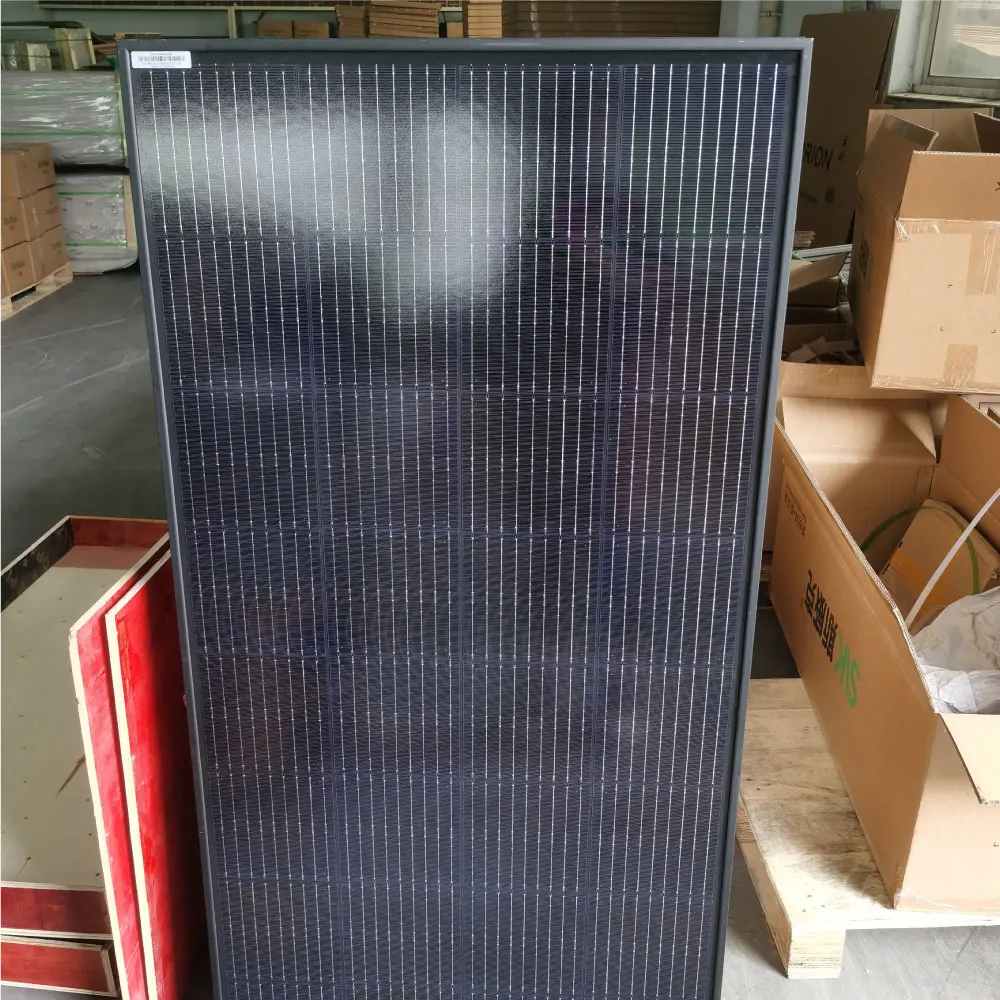

Sunpal 100w-200w Mini solar panels description .
* [Reliable] Advanced encapsulation material with multi-layered sheet laminations enhance cell performance and provide a long
service life. EL-tested solar panels; no hot-spot heating guaranteed. Bypass diodes minimize power drop caused by shade.TPT
back sheet ensures smooth performance over a long period of time.
* [Durable] This 200 watt solar panel guaranteed positive output tolerance (0-3%); withstands high winds (2400Pa) and snow loads
(5400Pa). A corrosion-resistant aluminum frame allows for extended outdoor use with a typical lifespan of decades.
Anti-reflective, high transparency, low iron tempered glass with enhanced stiffness and impact resistance. IP65 rated junction
box provides complete protection against environmental particles and low-pressure water jets.
* [Versatile] This solar panel can be used for many different applications. Ground mount compatible. Compatible with on-grid and
off-grid inverters.

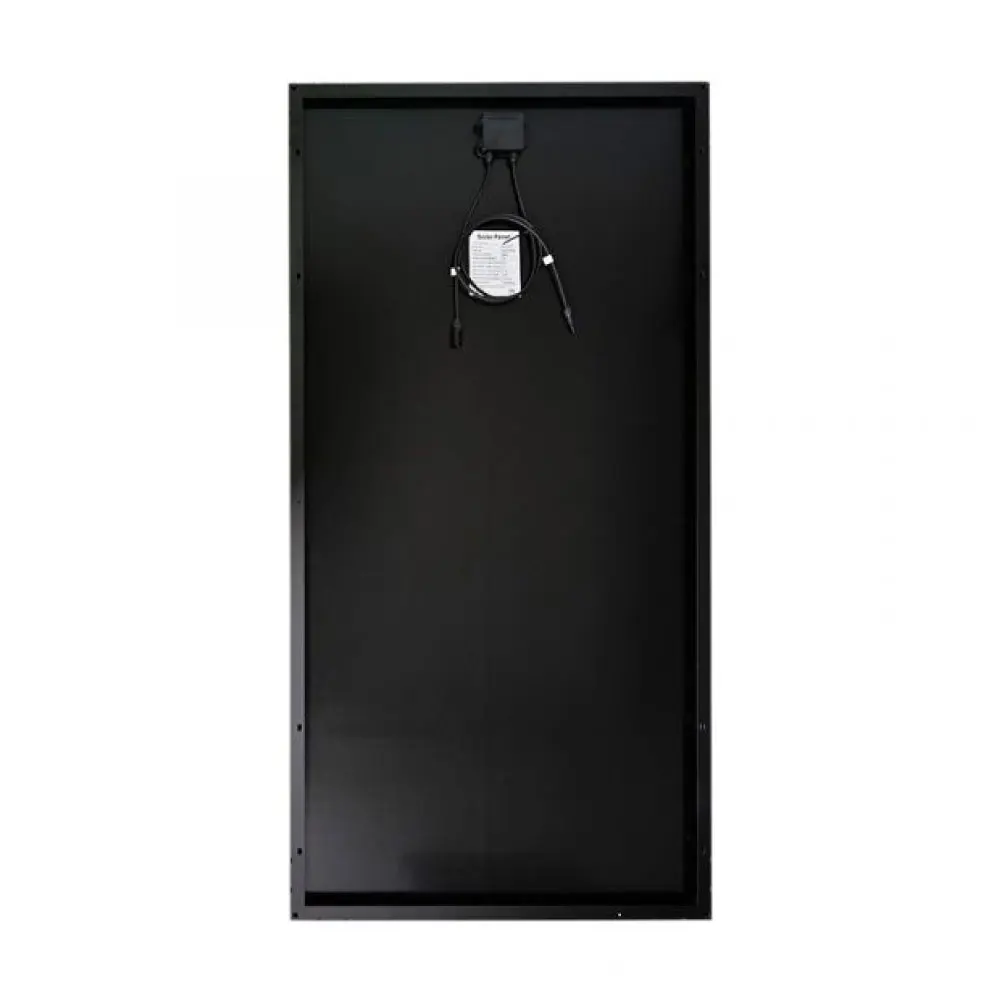

* [Installation Ready] Ready Pre-drilled holes on the back of the solar panel to allow for fast mounting and securing.
Pre-drilled holes included for grounding. Compatible with different Renogy mounting systems such as Z-Brackets, Pole Mounts,
and Tilt Mounts.
* [Proven Durable Quality] 10-Year Workmanship Warranty. Over 80% Output at 25 Years.
service life. EL-tested solar panels; no hot-spot heating guaranteed. Bypass diodes minimize power drop caused by shade.TPT
back sheet ensures smooth performance over a long period of time.
* [Durable] This 200 watt solar panel guaranteed positive output tolerance (0-3%); withstands high winds (2400Pa) and snow loads
(5400Pa). A corrosion-resistant aluminum frame allows for extended outdoor use with a typical lifespan of decades.
Anti-reflective, high transparency, low iron tempered glass with enhanced stiffness and impact resistance. IP65 rated junction
box provides complete protection against environmental particles and low-pressure water jets.
* [Versatile] This solar panel can be used for many different applications. Ground mount compatible. Compatible with on-grid and
off-grid inverters.
* [Installation Ready] Ready Pre-drilled holes on the back of the solar panel to allow for fast mounting and securing.
Pre-drilled holes included for grounding. Compatible with different Renogy mounting systems such as Z-Brackets, Pole Mounts,
and Tilt Mounts.
* [Proven Durable Quality] 10-Year Workmanship Warranty. Over 80% Output at 25 Years.

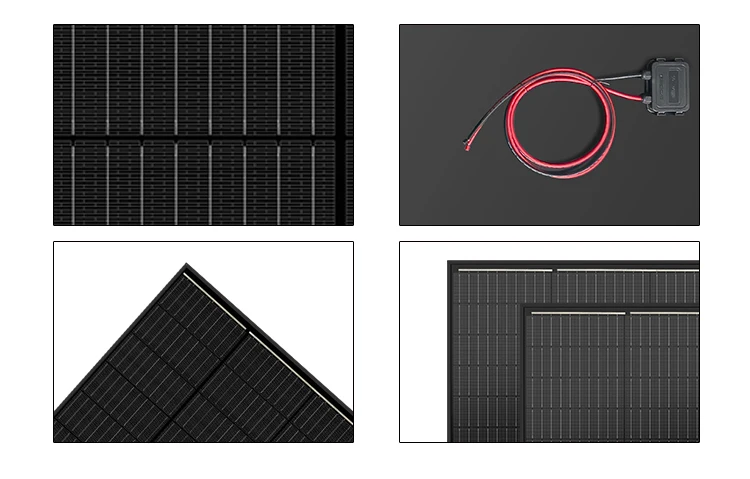

High Quality

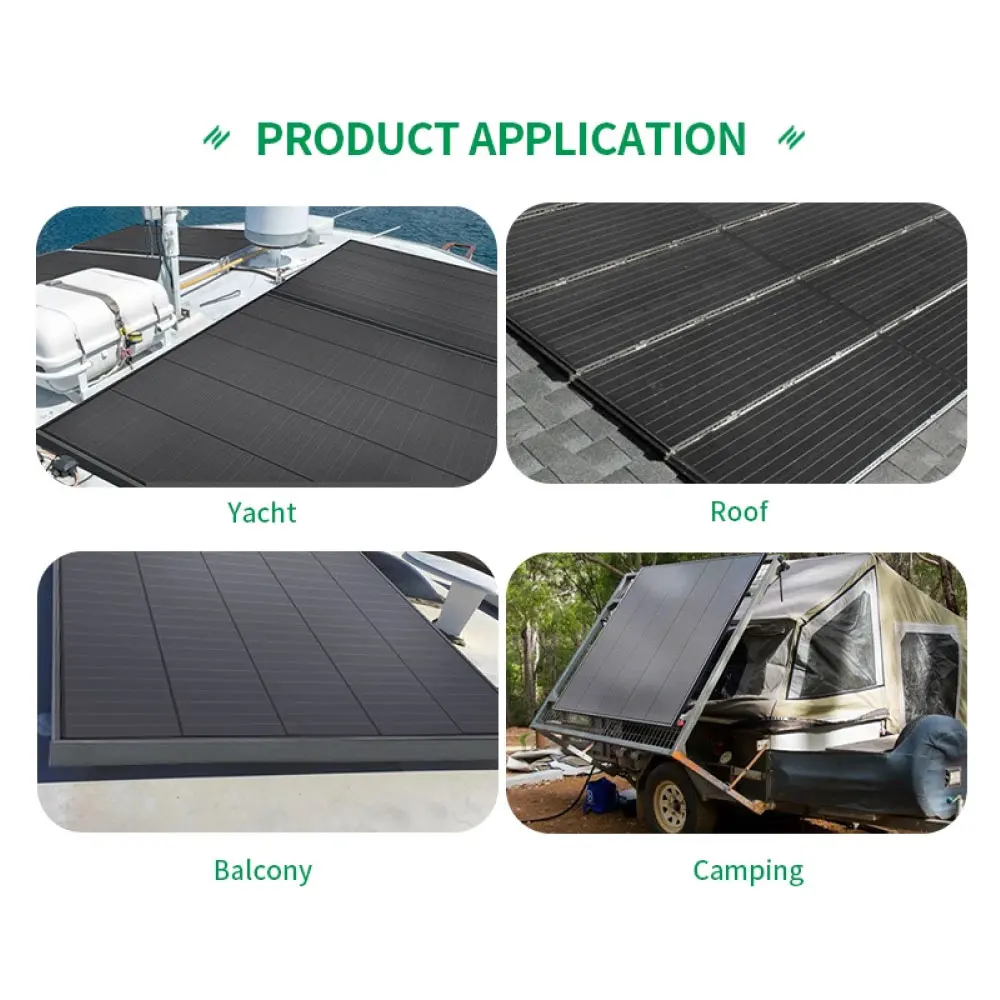

Application
100 watt is equal to 18-volts DC output, this solar panel is suitable for solar home lighting, small solar inverter, water pumping, off-grid applications, navigation lights, traffic signals and signals. This is a particularly good option if low light is a problem on your installation site. Solar panel of 200 watt has top quality cable and mounting hardware system, it works well even in all weather. Tempered glass construction and high efficiency crystalline solar cells are built in it.
OEM & ODM Services
Discover the future of renewable energy with PV 200w solar panel, a true embodiment of innovation and efficiency. Our range of 100w to 200w solar modules, equipped with the 182mm mono solar panel technology, promises not only a sleek aesthetic but also high conversion efficiency, making it a leader in the solar industry.
Experience the versatility of our customized solar module, tailored to meet specific energy needs. Coupled with the 36-cell solar module and the innovative PERC tech solar panel, these panels not only promise significant reductions in energy costs but also pave the way for a greener, more sustainable future.
Experience the versatility of our customized solar module, tailored to meet specific energy needs. Coupled with the 36-cell solar module and the innovative PERC tech solar panel, these panels not only promise significant reductions in energy costs but also pave the way for a greener, more sustainable future.
Our Factory
Sunpal solar
As a world-class solar products manufacturer, Sunpal specializes in research, development, production, and sales of solar PV
products. Since its foundation in 2008, Sunpal has accomplished significant achievements that outpaced most of our maincompetitors in terms of production capacity and the number of innovative designs. Sunpal factory is based in Jiangsu Province,
with a factory area of 150,000 square meters, 1000 workers, and 100 staff members in the sales team. The daily capacity is 1.3MW.
