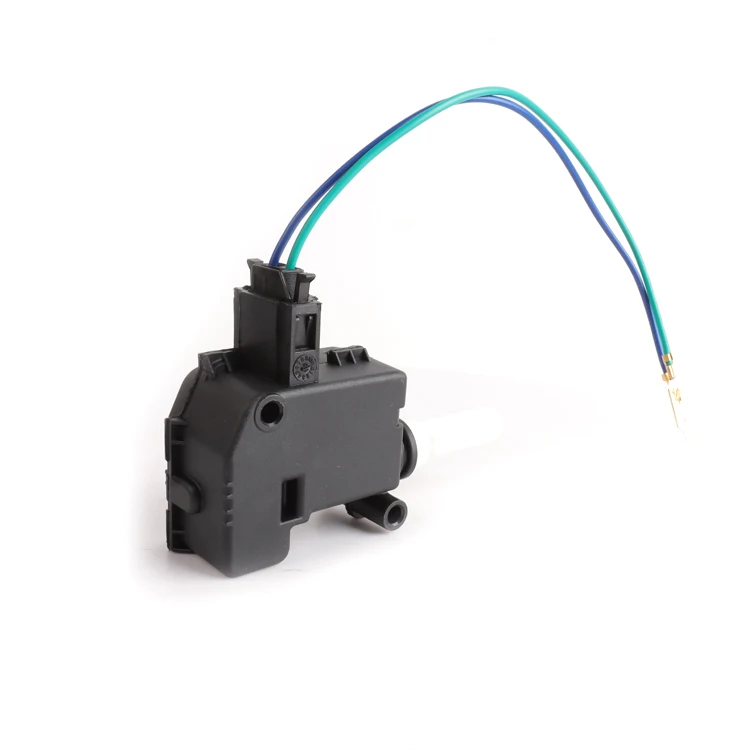

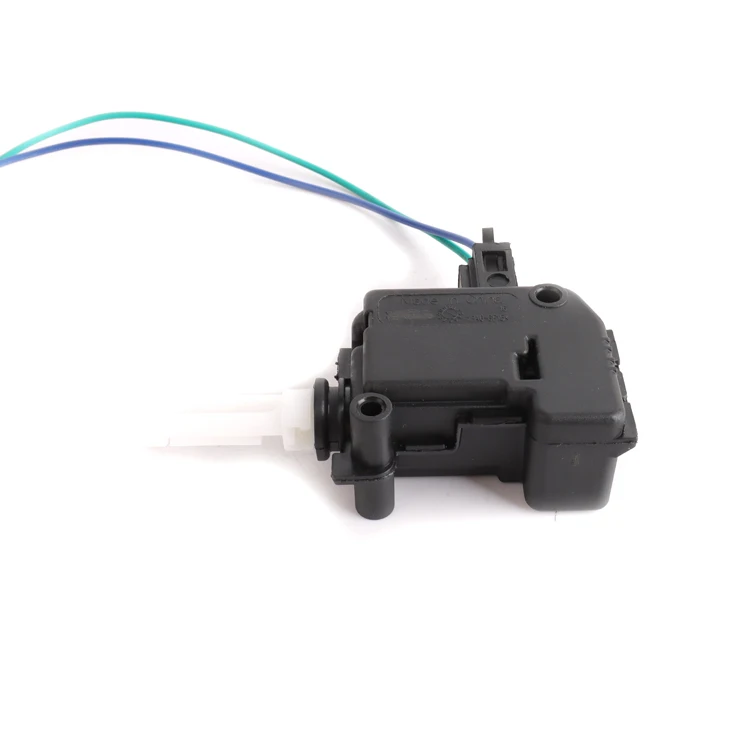

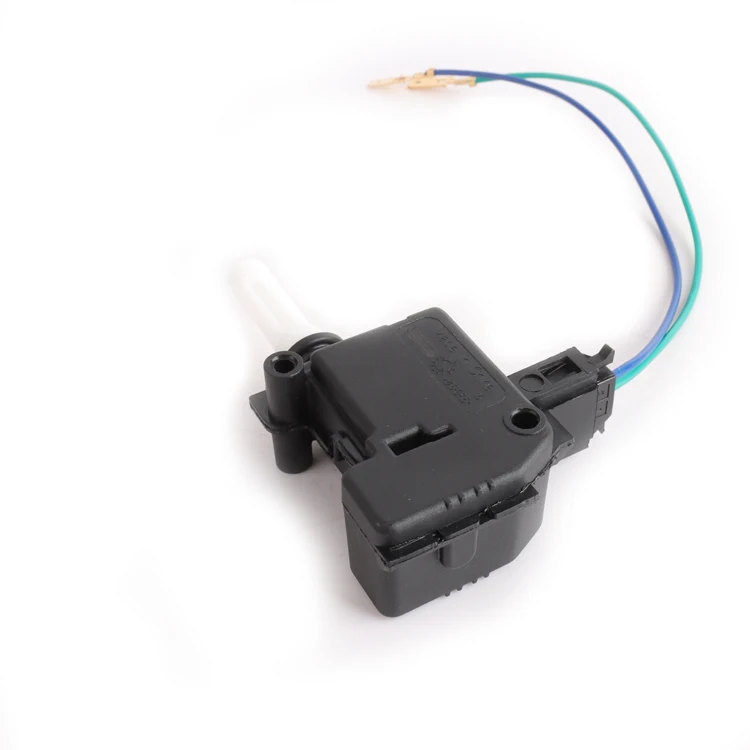

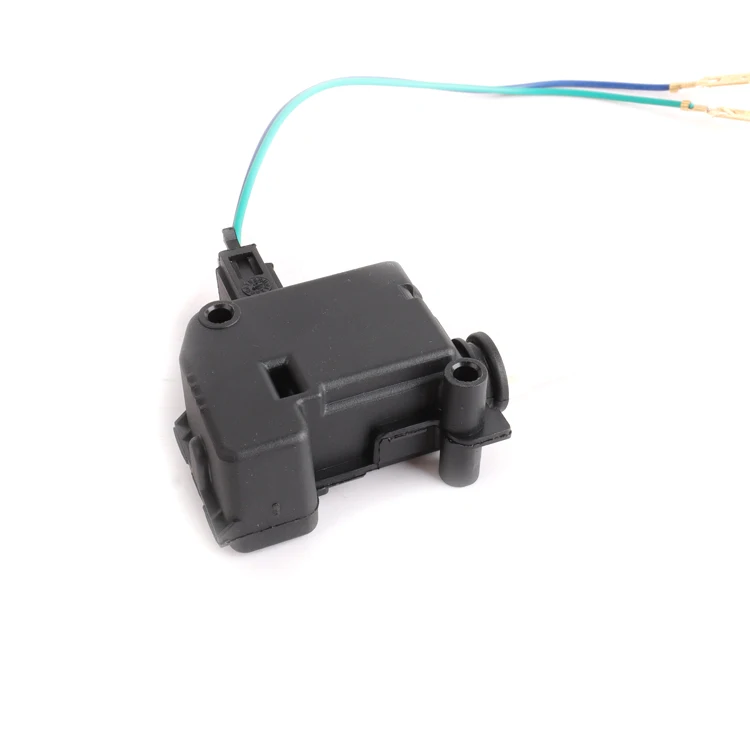

2 Wires Power Motor Heavy Duty Car Central Door Lock Actuator With Metal Accessories
- Category: >>>
- Supplier: Guangzhou Carform Electronice Technology Co. Ltd.
Share on (1601137902248):
Product Overview
Description
Universal DC 12V Car Motor Heavy Duty Central Door Lock Locking 5 Wires Actuator With Metal Accessories
Product Description
Feature
Life cycle: >50,000 times
Waterproof level: IPX3
Push/pull force: ≥4KG
Input voltage: 9~12VDC
Waterproof level: IPX3
Push/pull force: ≥4KG
Input voltage: 9~12VDC
Other Type
CF300A
Voltage: DC12V
Actuating force: 3.5-4KGS
Endurance(up&down): ≥ 60000 Times
Stroke: 17±1MM
No-load current: 1 .5A±5%&3A±10%
Temperature: -30°C to +65°C
The cover materials(Actuator&Mainunit): Recycle material
Hardware materials:Quality A
Actuating force: 3.5-4KGS
Endurance(up&down): ≥ 60000 Times
Stroke: 17±1MM
No-load current: 1 .5A±5%&3A±10%
Temperature: -30°C to +65°C
The cover materials(Actuator&Mainunit): Recycle material
Hardware materials:Quality A
CF301MA
Voltage: 12V
Actuating force: 4-4.3KGS
Endurance(up&down): ≥80000 times
Stroke: 16-18MM
No-load current: 0.17±5%&1.2A±10%
TEMPERTURE: -30°C- +65°C
The cover materials(Actuator&Mainunt): ABS
Hardware material: Quality A
Actuating force: 4-4.3KGS
Endurance(up&down): ≥80000 times
Stroke: 16-18MM
No-load current: 0.17±5%&1.2A±10%
TEMPERTURE: -30°C- +65°C
The cover materials(Actuator&Mainunt): ABS
Hardware material: Quality A
CF304BL
Voltage: 12V
Actuating force: 6.4KGS
Endurance(up&down): >100000 times
Stroke: 18-21MM
No-load current: 1.5A±5%&3A±10%
Temperature: -30°C- +80°C
The cover materials(Actuator&Mainunit): ABS
Actuating force: 6.4KGS
Endurance(up&down): >100000 times
Stroke: 18-21MM
No-load current: 1.5A±5%&3A±10%
Temperature: -30°C- +80°C
The cover materials(Actuator&Mainunit): ABS
CF307
Voltage: 12V;
Actuating force: 6-6.5KGS;
Endurance(up&down): ≥100000 times;
Stroke: 16-18MM;
No-load&load current: 1.5A±5%&3A±10%
Temperature: -30°C-+85°C;
The cover materials(Actuator & Main Unit): ABS
Actuating force: 6-6.5KGS;
Endurance(up&down): ≥100000 times;
Stroke: 16-18MM;
No-load&load current: 1.5A±5%&3A±10%
Temperature: -30°C-+85°C;
The cover materials(Actuator & Main Unit): ABS
CF308 Blue
Voltage: 12/24V
Actuating force: 4.5kgs
Endurance(up & down) >100000times
Stroke: 21-22mm
No-load &load current 1.5A+ OR -5% & 3A+ or - 10%
Operation temperature -30~80℃
Actuating force: 4.5kgs
Endurance(up & down) >100000times
Stroke: 21-22mm
No-load &load current 1.5A+ OR -5% & 3A+ or - 10%
Operation temperature -30~80℃
CF308 Black
Voltage: 12/24V
Actuating force: 4.5kgs
Endurance(up & down) >100000times
Stroke: 21-22mm
No-load &load current 1.5A+ OR -5% & 3A+ or - 10%
Operation temperature -30~80℃
Actuating force: 4.5kgs
Endurance(up & down) >100000times
Stroke: 21-22mm
No-load &load current 1.5A+ OR -5% & 3A+ or - 10%
Operation temperature -30~80℃
CF302ST4
Voltage: DC 12V±10%
Actuating force: 4-4.5 KGS
Endurance(up&down): 280000 times
Operation temperature -30~+75℃
Stroke: >18mm
Wiring 2 master: 35.3M; 1 master: 25.4M
No-load &load current 1.5A±5%
The cover materials(actuators & mainunit) ABS
Actuating force: 4-4.5 KGS
Endurance(up&down): 280000 times
Operation temperature -30~+75℃
Stroke: >18mm
Wiring 2 master: 35.3M; 1 master: 25.4M
No-load &load current 1.5A±5%
The cover materials(actuators & mainunit) ABS
CF306
Voltage: 12V
Actuating force: 5.5KGS
Endurance(up&down): ≥100000 times
Stroke: 21-22MM
No-load current: 1.5A±5%&3A±10%
TEMPERATURE: -30°C- +80°C
The cover materials(Actuator & Main Unit): 757ABS
Actuating force: 5.5KGS
Endurance(up&down): ≥100000 times
Stroke: 21-22MM
No-load current: 1.5A±5%&3A±10%
TEMPERATURE: -30°C- +80°C
The cover materials(Actuator & Main Unit): 757ABS
CF305
Voltage: 12V;
Actuating force: 5KGS;
Endurance(up&down): ≥100000 times;
Stroke:16-18MM;
No-load&load current: 1.5A±5%&3A±10%
Temperature: -30°C-+85°C;
The cover materials(Actuator & Main Unit): ABS
Actuating force: 5KGS;
Endurance(up&down): ≥100000 times;
Stroke:16-18MM;
No-load&load current: 1.5A±5%&3A±10%
Temperature: -30°C-+85°C;
The cover materials(Actuator & Main Unit): ABS
CF302
Voltage: 12V;
Actuating force: 4KGS;
Endurance(up&down): ≥80000 times;
Stroke:>18MM
No-load&load current: 1.5A±5%
Temperature:-30°C-+75°C;
The cover materials(Actuator & Main Unit): ABS
Actuating force: 4KGS;
Endurance(up&down): ≥80000 times;
Stroke:>18MM
No-load&load current: 1.5A±5%
Temperature:-30°C-+75°C;
The cover materials(Actuator & Main Unit): ABS
Remarks:
1-You can choose 1 master or 2 master.
2-You can choose the actuator head in white or black color.
A | 1 master: 1 pcs of 5 door actuators, 3pcs of 2 door actuators |
B | 2 master: 2 pcs of 5 door actuators, 2pcs of 2 door actuators |
Function:
Central locking is the car door locking system, which supporting the car door lock and unlock working, the 4 door actuators will provide the enough motor power to the car door system working well.
1-With the metal wheel inside of the door actuator which support the working of the high power motor 4.5kgs.2-Don't use the recycle plastic cover materials, all used ABS.
3-Long working life, the endurance is more than 80,000.00 times.
4-With tacks for each door actuator to make sure the door actuator will not blow out.
Packing | Size(cm) | Qty | 1 master Weight(kgs) | 2 master Weight(kgs) |
Color box | 25*15.5*8 | 1pcs | 1kgs | 1.15kgs |
Carton | 51.5*41.5*33.5 | 20pcs | 20kgs | 23kgs |
20GP container | 7000sets | 7000kgs | 8050kgs |
