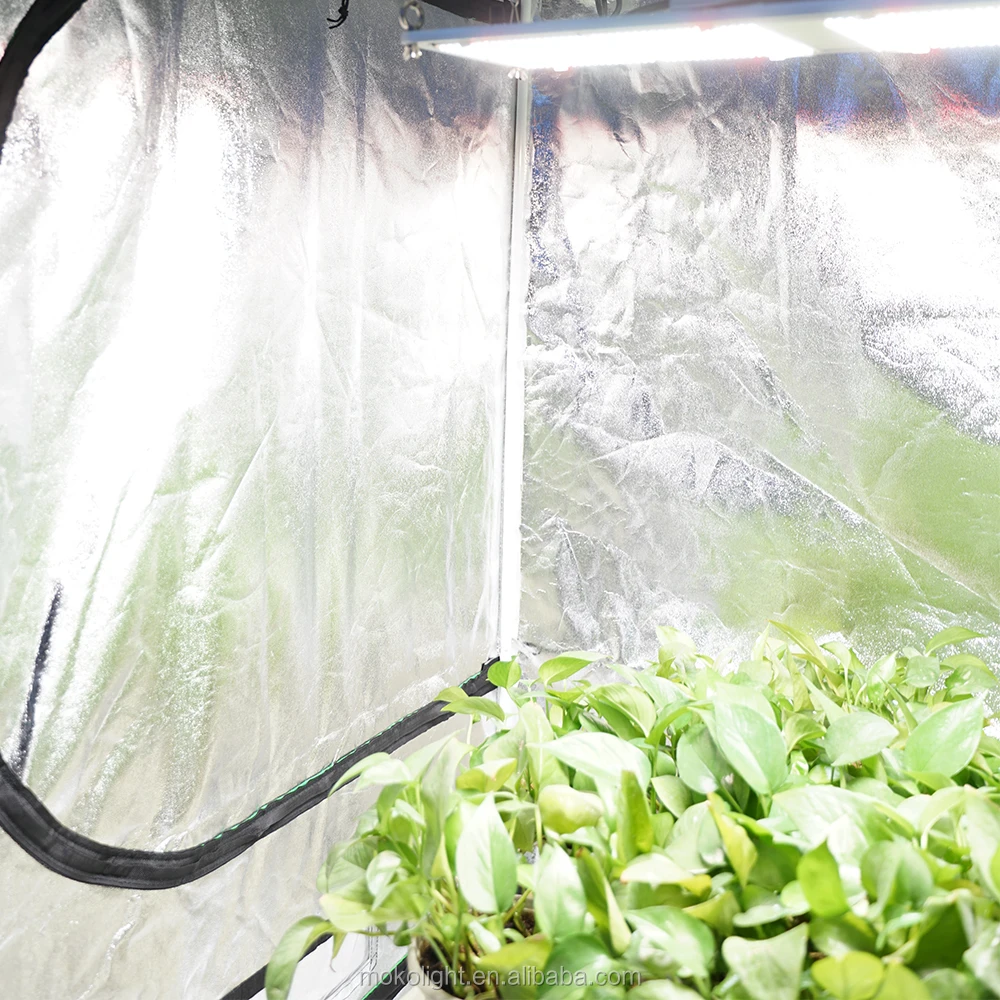

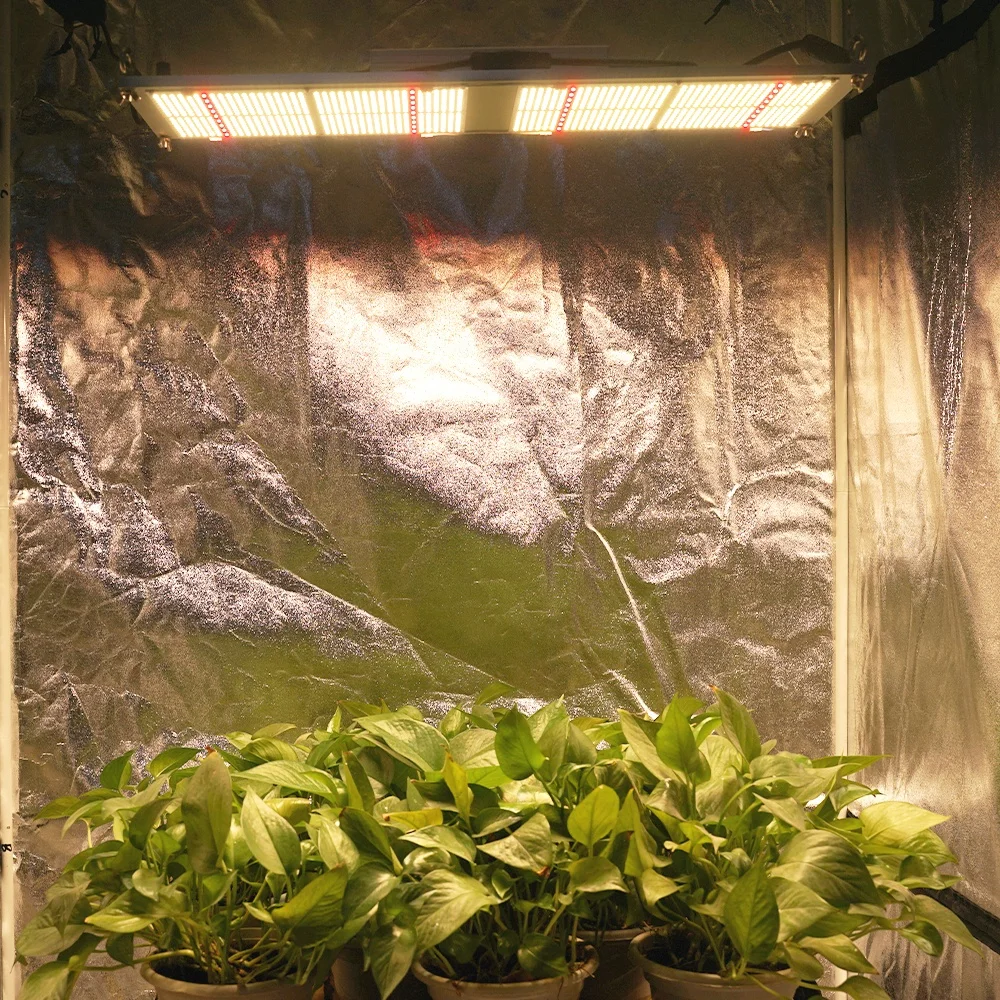

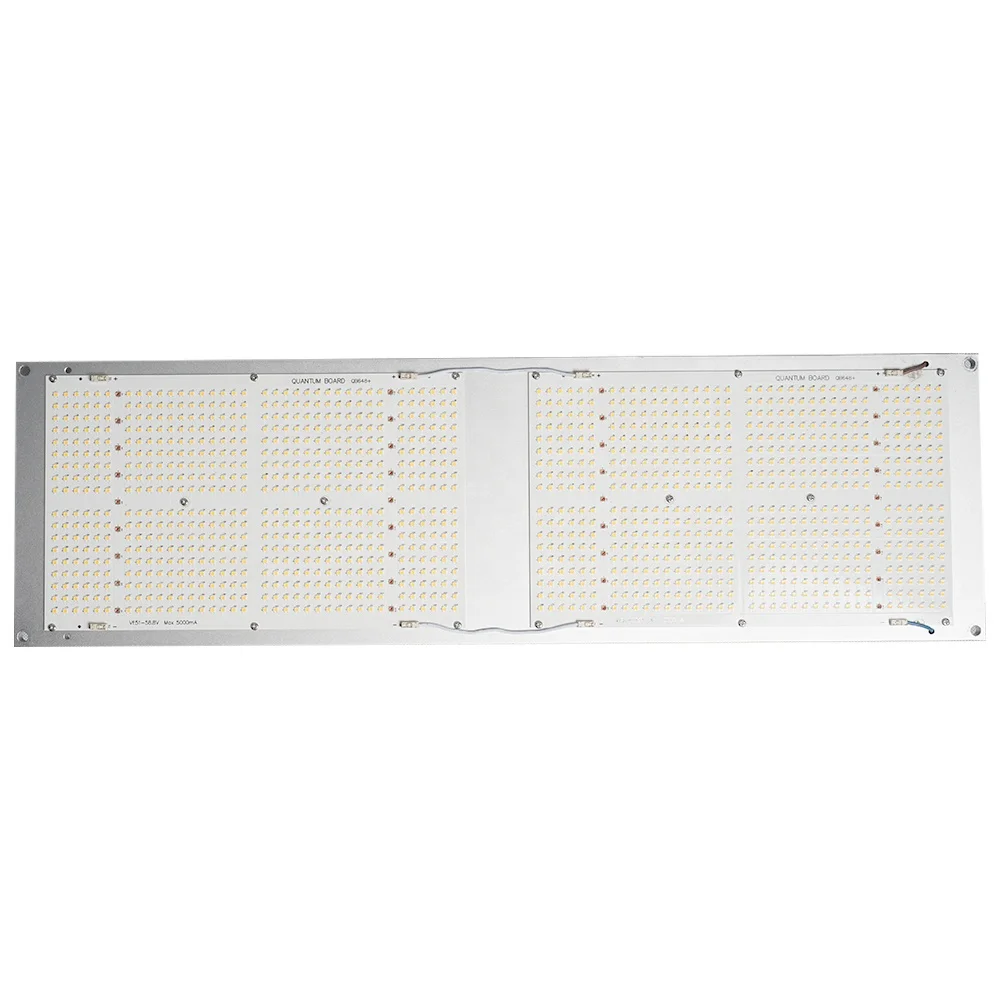

Wholesale Full Spectrum Led Plant Grow Light 120w/240w/320w with meanwell driver Led Grow Light Samsung Lm301h
- Category: >>>
- Supplier: Shenzhen Moko Technology Ltd.
Share on (1601138454830):
Product Overview
Description
Specification
Specification | ||
Item No. | MK240-GL03-Kit | |
Voltage | 100-277V | |
Power | 240W | |

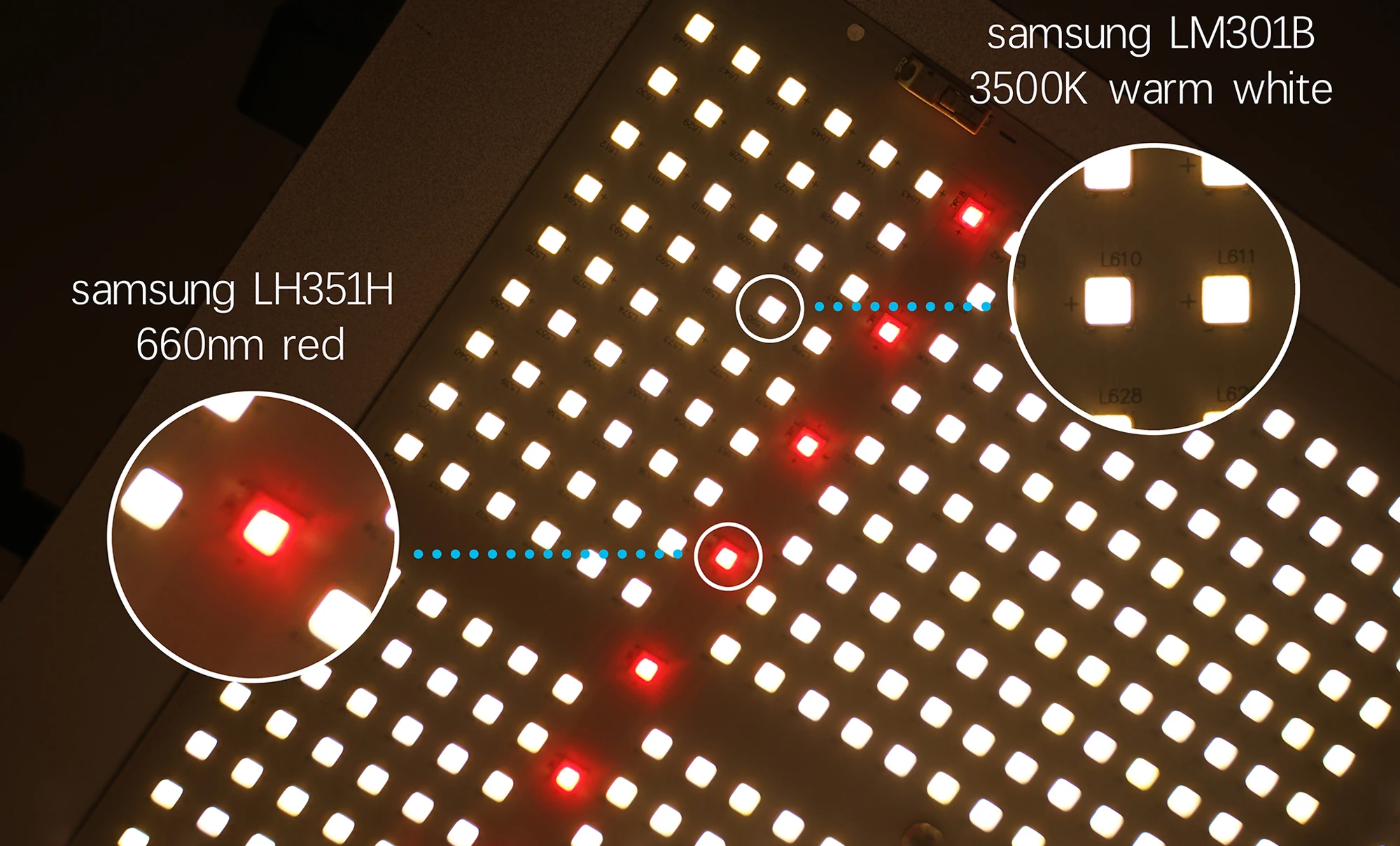

Led color | lm301B 3500K+ LH351H 660nm （white+Red） | |
Installation | Hanging | |
LED Chip | Samsung lm301b+ LH351H 660nm | |
Driver | MEANWELL XLG series | |
Warranty | 2 years for board, 5 years for driver | |
Product Description

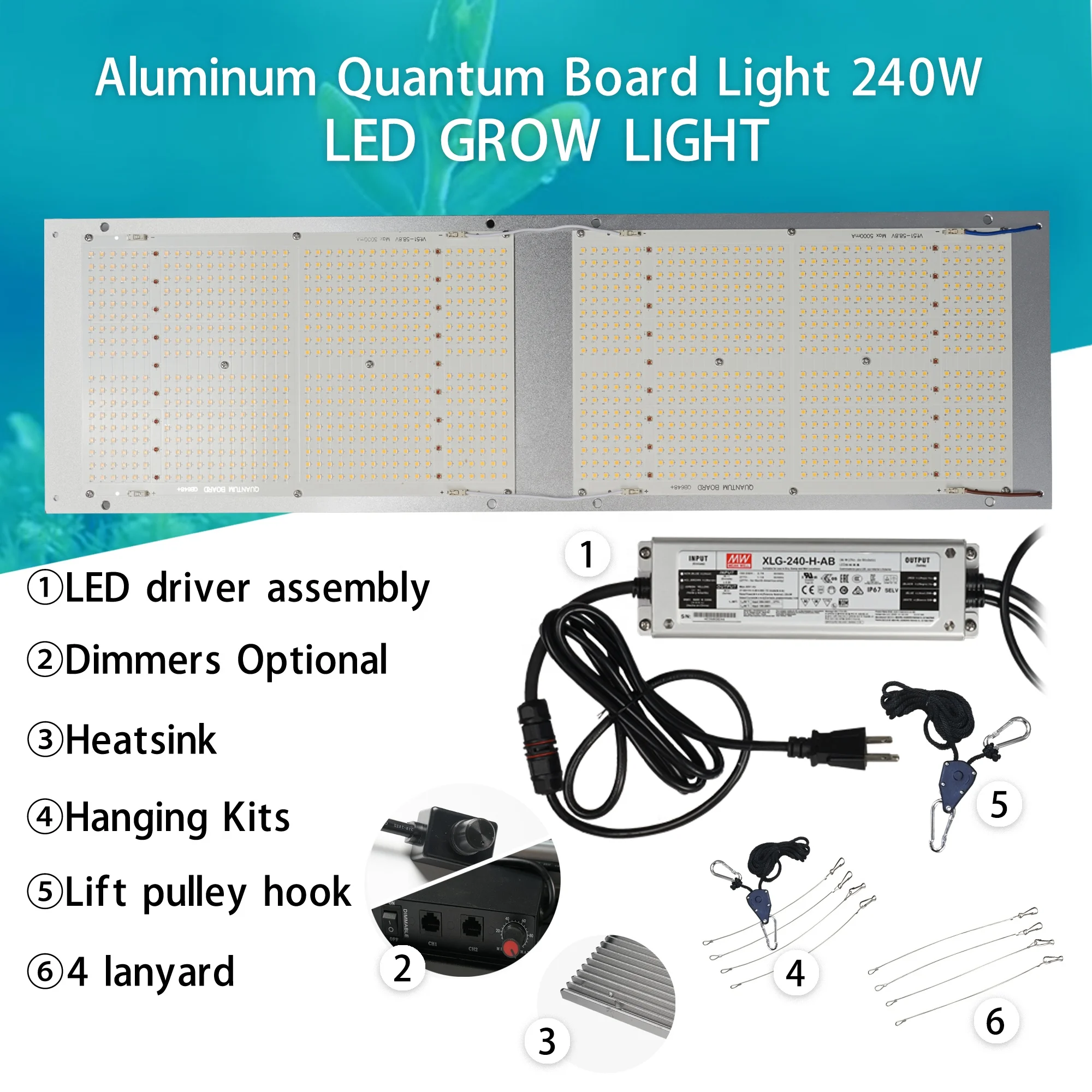

240W LM301B+LH351H RED XLG MeanWell Driver
Full Spectrum Grow Light For Indoor Plants
Product Name | LED Grow Light |
Model number | MK240-GL03-Kit |
Power | 240±2%W |
Spectrum | Full Spectrum+660nm |
Input Voltage | AC 100-277V |
Dimmable | 1-10V Dimming Button |
LED Chips | Samsung LM301B+ SamsungLH351H |
Power Factor | 0.98 |
Product Size | 285*174*1.6mm X2 |
Beam Angle | 120° |
lifespan | 50000 Hours |
MOQ | 1pcs |
Drop Shipping | Yes |
Custom UV LED | Yes |
Custom LOGO | Customized LOGO and Packaging |
Packaging | Master Carton |
Warranty | 2 years for board, 5 years for driver |

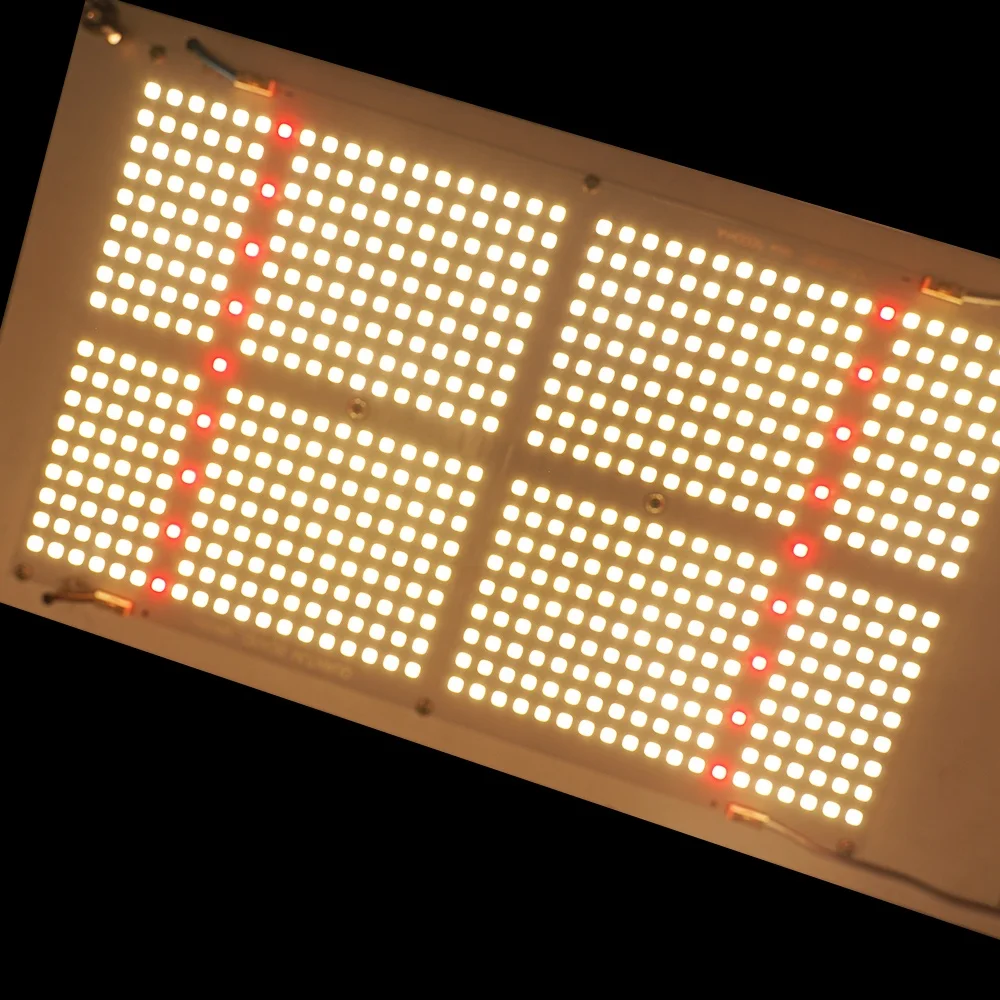

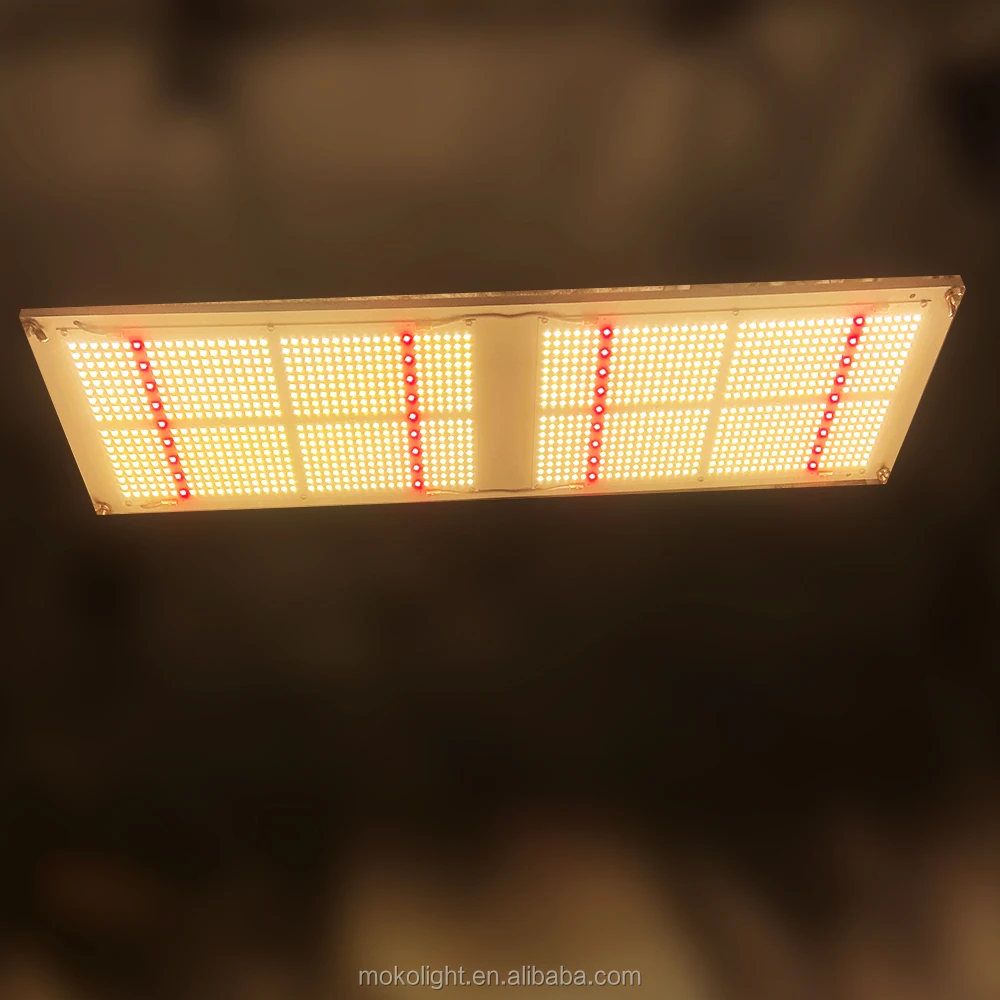

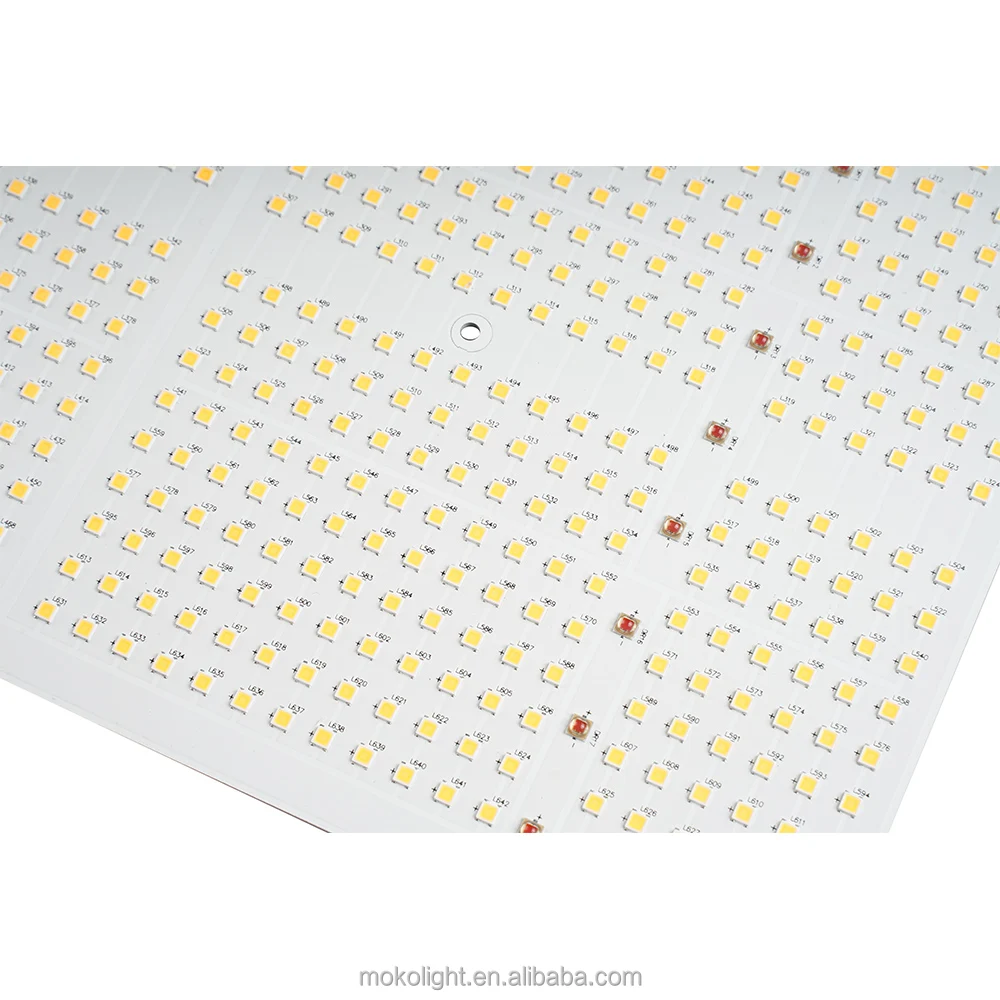

MK240-GL03-Kit uses our custom designed High efficiency white light led grow light. With a total of 648 pcs Samsung LM301B 3500K LED's and 18pcs Samsung LH351H 660nm red leds, this fixture produces about 240 Watts of power.

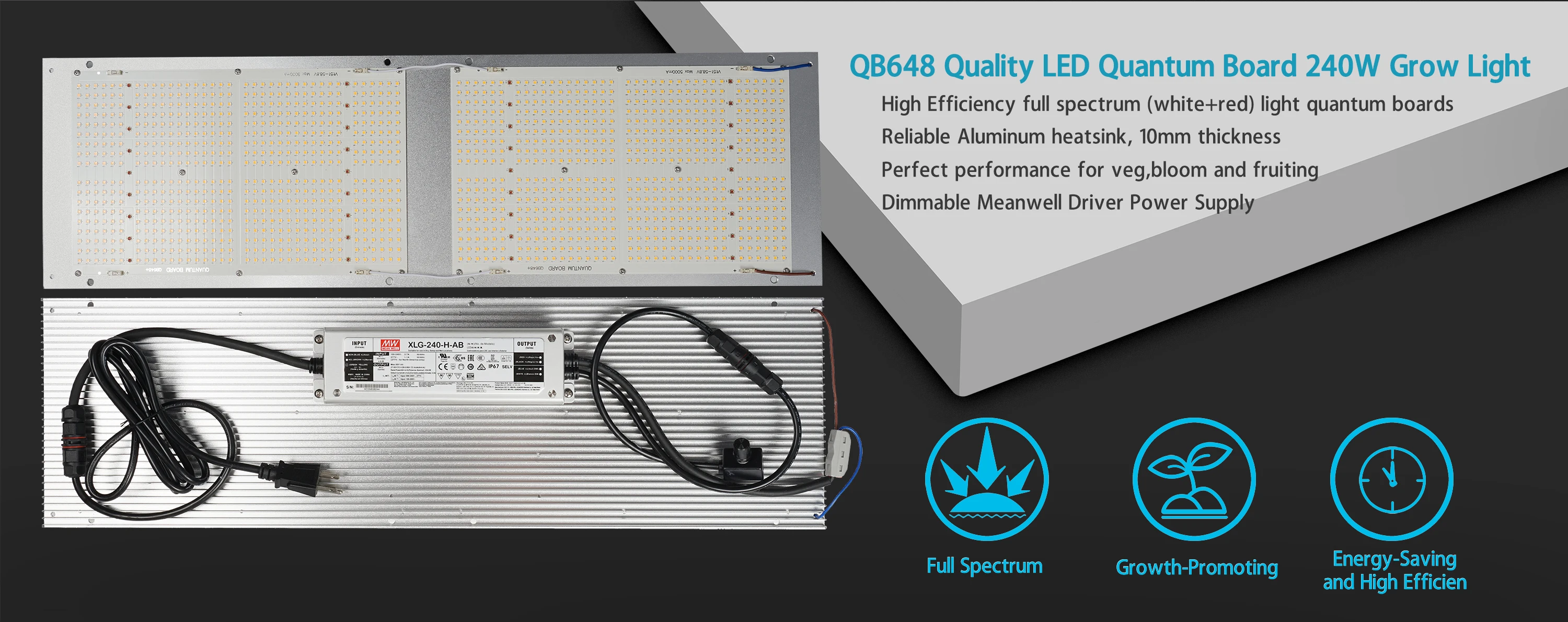

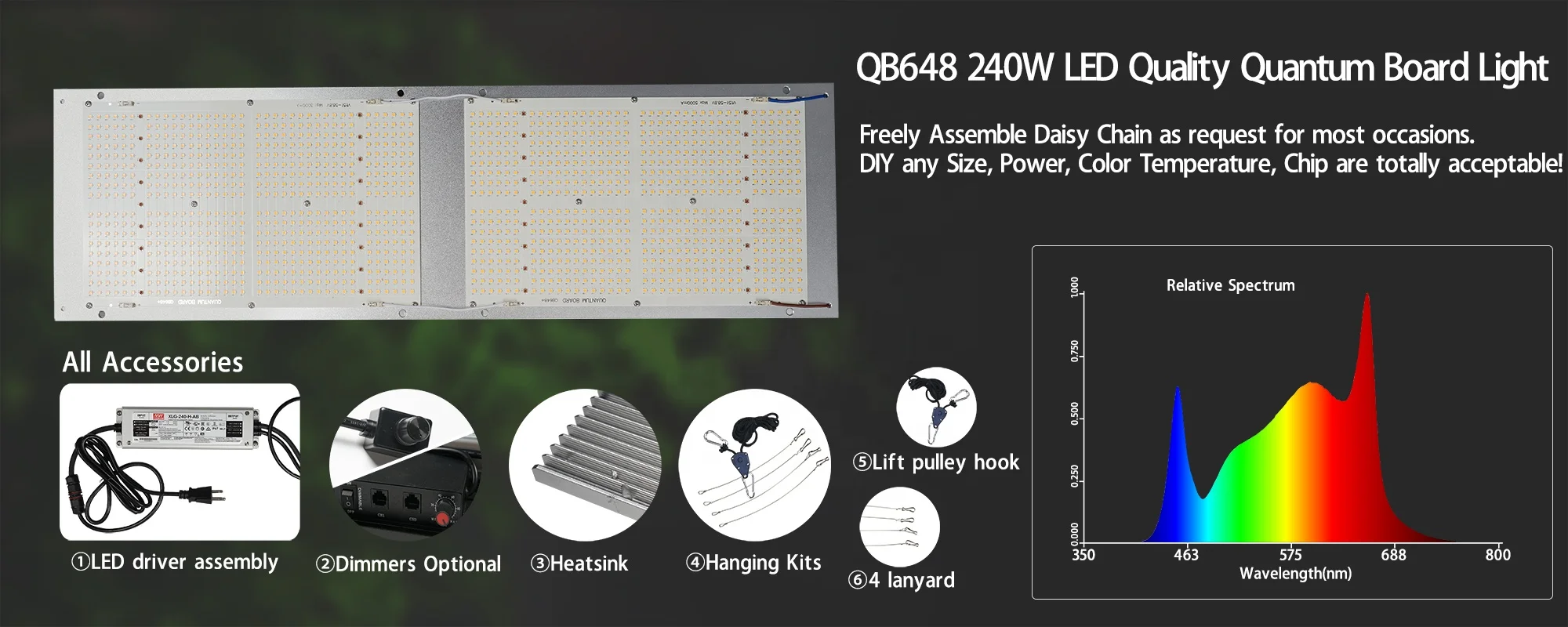

Dimmable 240W LM301B QB648 LED Grow Light Full Spectrum
1. Use the original LM301 White LED chip, the lifespan is up to 50000 hours.
2. Match with a high quality aluminum heatsink, well solve the cooling issue
3. Pre-assembled the Meanwell XLG dimmable driver, suitable for the 100V to 277V working voltage, and accessible to the US, EU, AU and other types of plug.

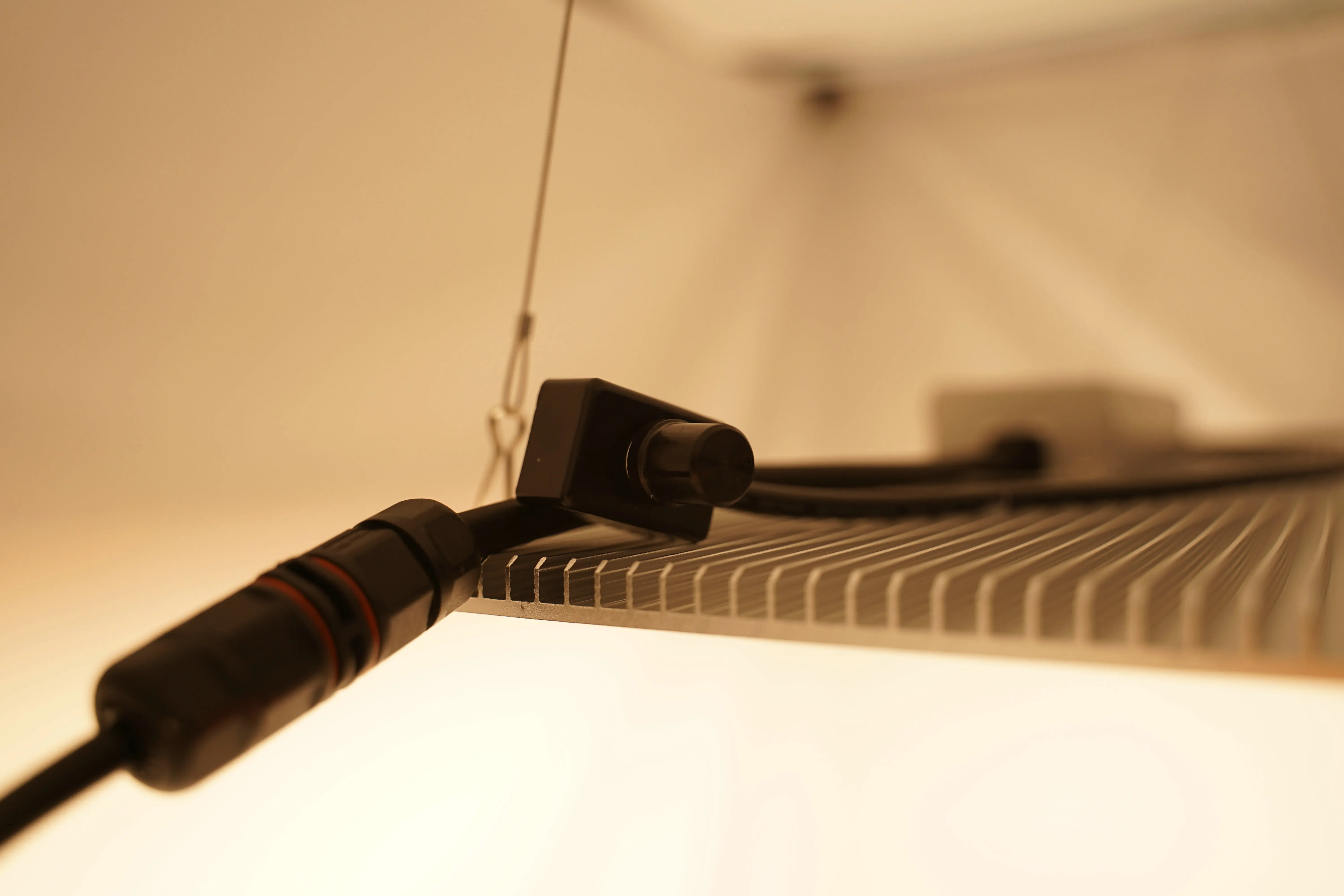

4. Assembled with a dimmable potentiometer, be available to 10% to 100% brightness dimming
5. High quality aluminum alloy frame, environment-friendly.
1. Use the original LM301 White LED chip, the lifespan is up to 50000 hours.
2. Match with a high quality aluminum heatsink, well solve the cooling issue
3. Pre-assembled the Meanwell XLG dimmable driver, suitable for the 100V to 277V working voltage, and accessible to the US, EU, AU and other types of plug.
4. Assembled with a dimmable potentiometer, be available to 10% to 100% brightness dimming
5. High quality aluminum alloy frame, environment-friendly.
Top Features:
1- High efficiency Samsung LM301B LEDs+LH351H LEDs
2- White Light Full Spectrum and 660nm for better results
3- Reliable passive cooled design, high quality thick heatsink
4- Better canopy light penetration with diffused light
5- Dimmable Meanwell Power Supply included with wire plug
6- white mix 660nm red color are all available
7- Perfect performance for veg and bloom
8- 2 Years Warranty for board, and 5 years Warranty for Meanwell driver
1- High efficiency Samsung LM301B LEDs+LH351H LEDs
2- White Light Full Spectrum and 660nm for better results
3- Reliable passive cooled design, high quality thick heatsink
4- Better canopy light penetration with diffused light
5- Dimmable Meanwell Power Supply included with wire plug
6- white mix 660nm red color are all available
7- Perfect performance for veg and bloom
8- 2 Years Warranty for board, and 5 years Warranty for Meanwell driver
OEM&ODM LED Grow Light

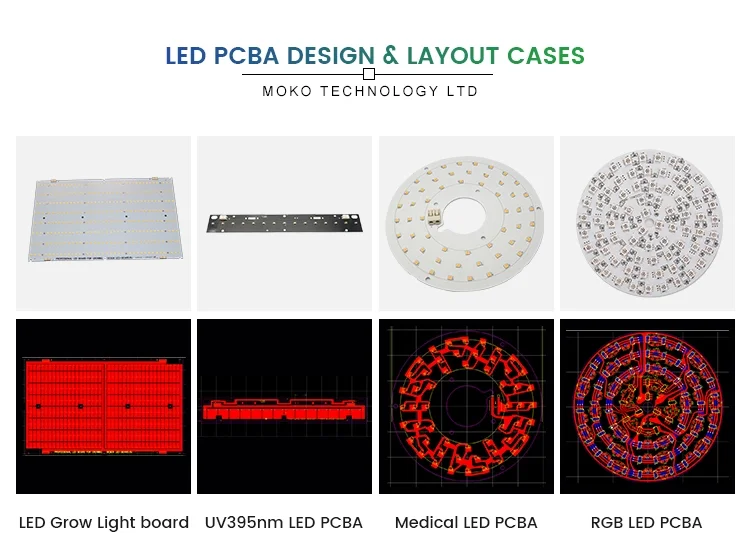

Moko Light can design led circuit board, Offering solution for Horticulture LED Light, which is including design led circuit board, offer Meanwell driver, heatsink and other parts. OEM service for Horticulture Light, we can assembly finished Horticulture Light, produce led pcba, led controller pcba, led driver pcba, assembly housing, wires, cover coating, and do testing.
IF you want to Custom LED Grow light, Quotation needs:
A) For OEM Project,Pls send us Gerber file & Bom list .
B).For ODM Project , pls give us below information :
1. PCB dimension
2. PCB material :alumium / fr4 (layers)
3.Soldermask color& silkscreen color
4. PCB thickness(1/1.2/1.6/2mm)
5.PCB copper (1oz 2oz 3oz)
6. LED Brand&LED Model
7.Watt&Voltage&Current
8.Led board function&Application
9.Order quantity
10.Your logo if you have
A) For OEM Project,Pls send us Gerber file & Bom list .
B).For ODM Project , pls give us below information :
1. PCB dimension
2. PCB material :alumium / fr4 (layers)
3.Soldermask color& silkscreen color
4. PCB thickness(1/1.2/1.6/2mm)
5.PCB copper (1oz 2oz 3oz)
6. LED Brand&LED Model
7.Watt&Voltage&Current
8.Led board function&Application
9.Order quantity
10.Your logo if you have

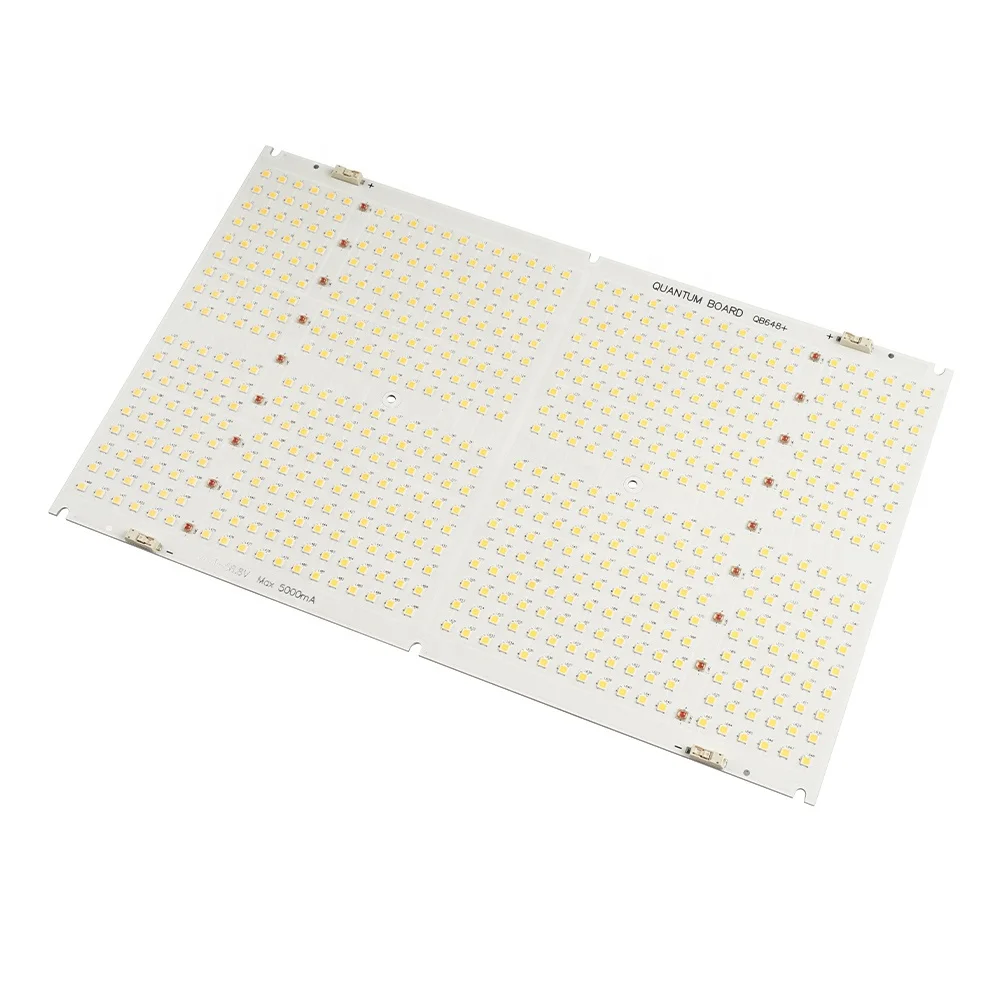

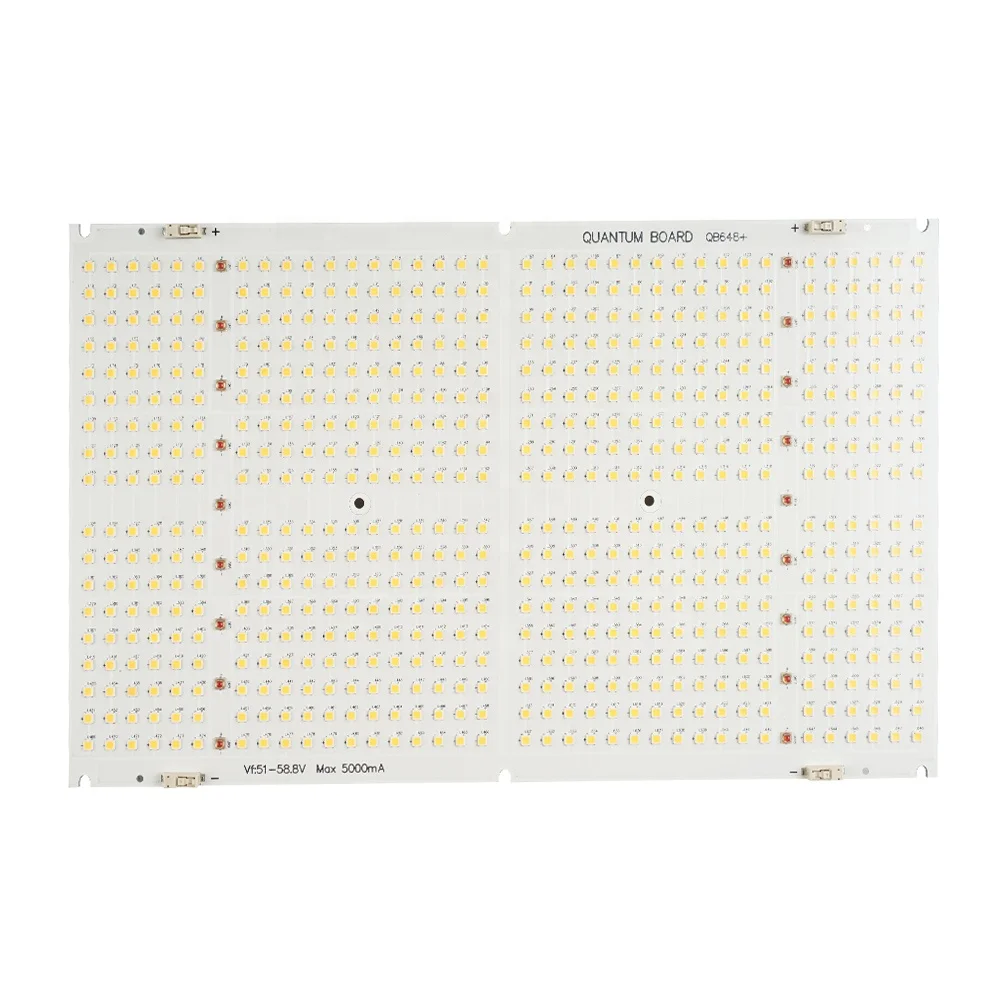

QB648 LED Grow Light Board is also for sale, Lead time: 5-7 days.
if you have any interests, pls feel free to contact us~

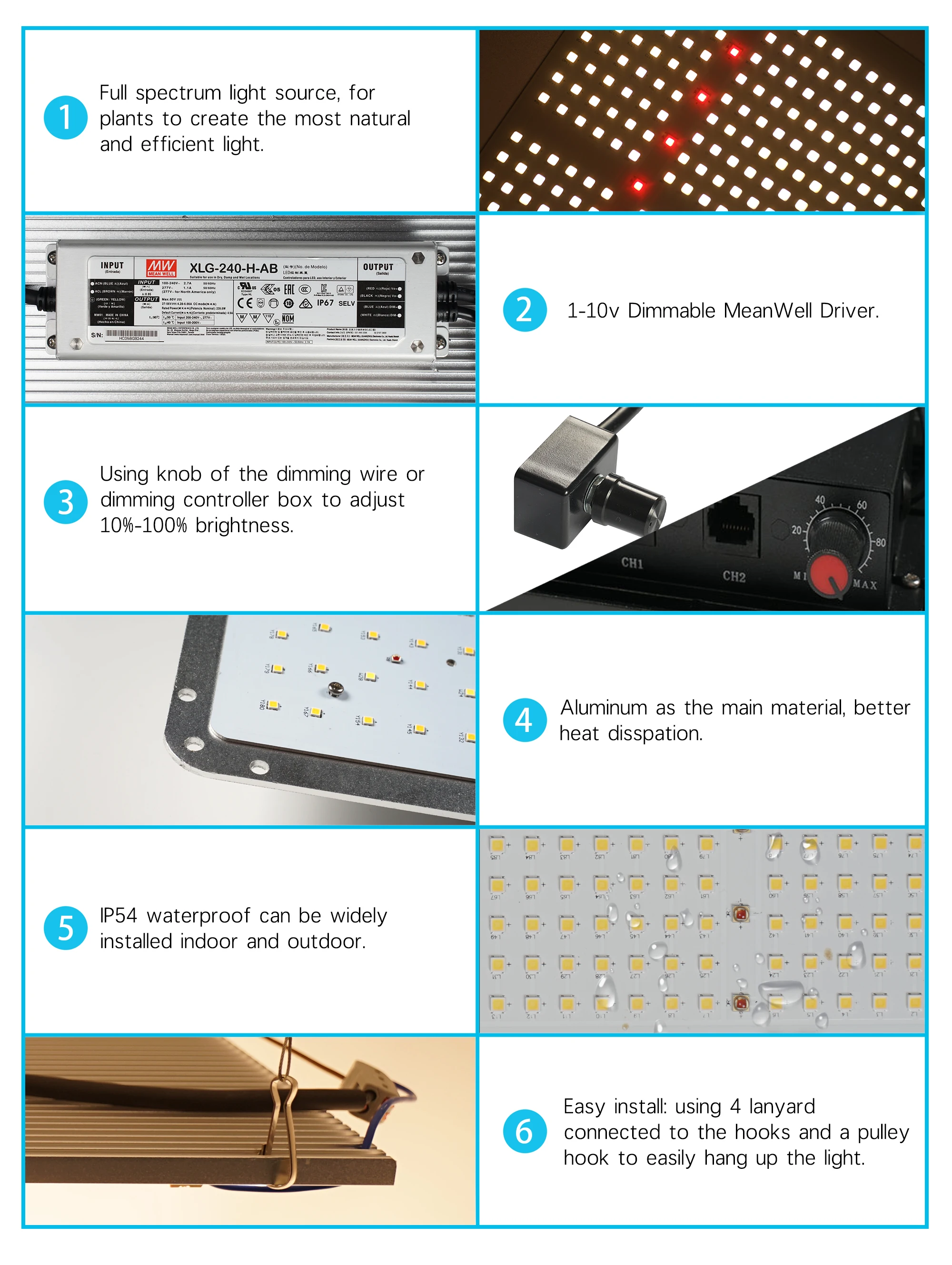

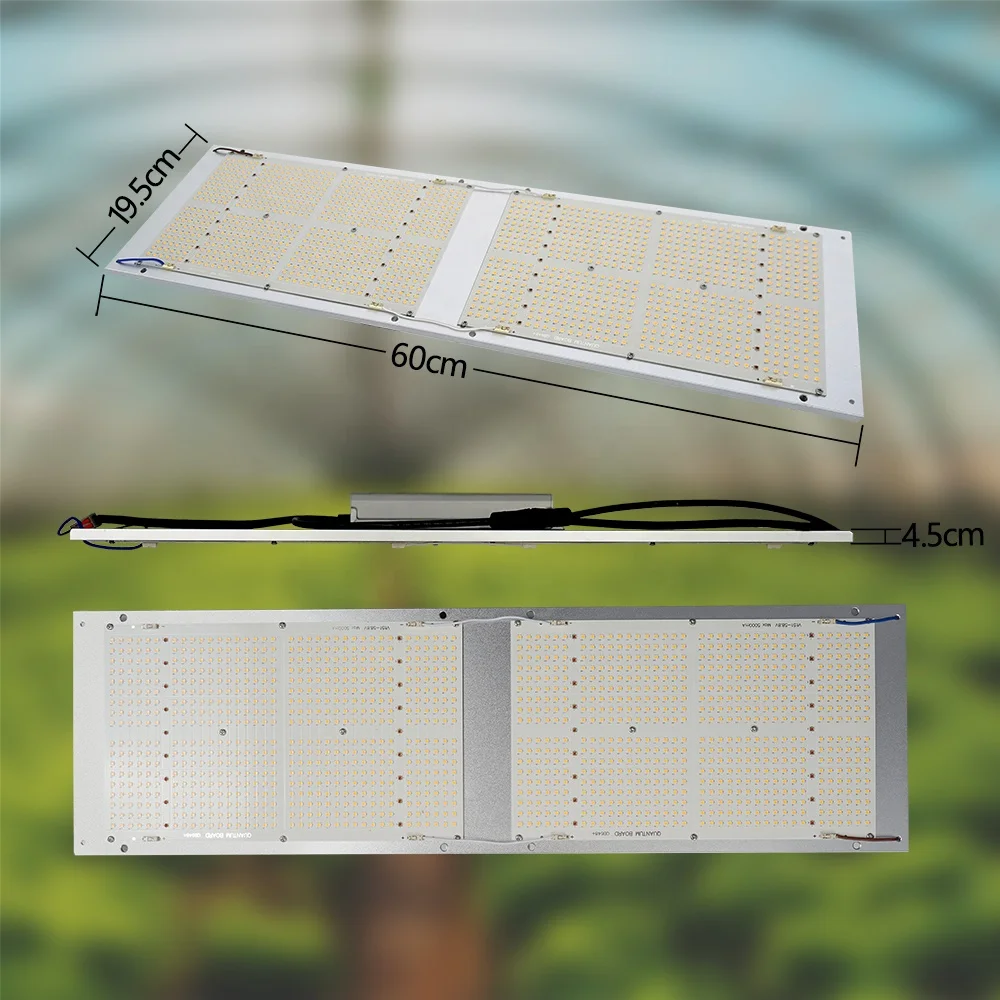

Details Images
Test Report

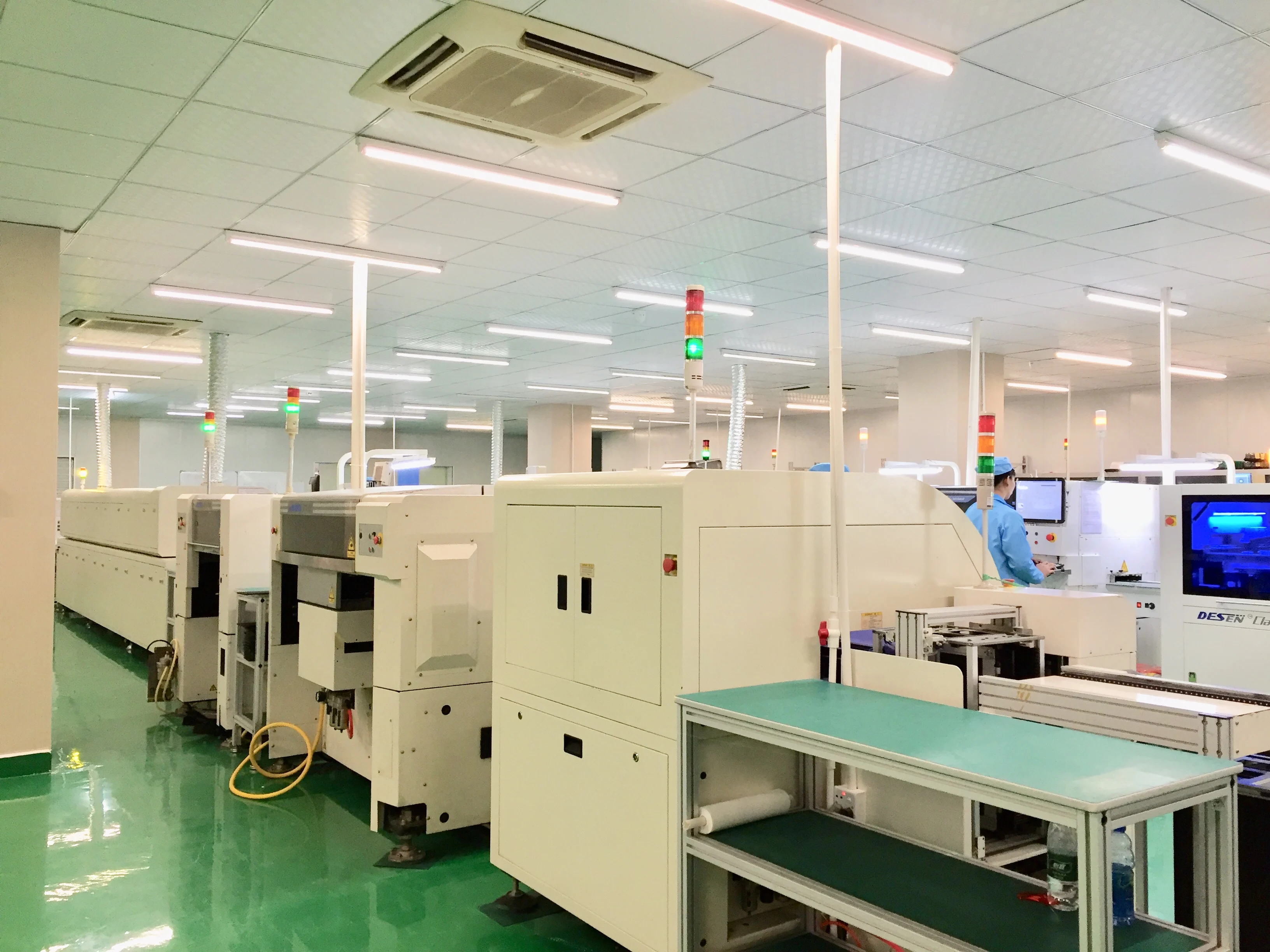

Office&Factory Introduction
MOKO was organized in 2001 that has been committed to the R&D, manufacturing and applying of qualified TOP LEDs since the year 2006, we are a professional large-scale manufacturer focus on designing and producing high performance Samsung Crees & Osram diodes LED grow lights from 30 watts to 800 watts. All those products are widely used in grow tents, house gardens, pot culture, hydroponics, greenhouse cultivation etc.In MOKO Ltd, we always do our best to provide high quality products, efficient production time,good after-sales service and reasonable price.our products mainly exported to America, Canada, UK,Germany, Italy, Spain,
France, Czech republic and other 20 countries and regions.Please don't hesitate to know more our products by contacting us!
Packing & Delivery
FAQ
Q1. Can I have a sample order for led light?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
A: Samples needs 3-5 days, mass production time needs 1-2 weeks for order quantity.
Q3. Do you have any MOQ limit for led light order?
A: Low MOQ, 1pc for sample checking is available
Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
Q5. How to proceed an order for led grow light?
A: Firstly, let us know your requirements or application.
Secondly,We quote according to your requirements or our suggestions.
Thirdly, customer confirms the samples and places deposit for formal order.
Fourthly. We arrange the production.
Q6. Is it OK to print my logo on led light product?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Q7: Do you offer guarantee for the products?
A: Yes, we offer 5 years warranty for the driver and 2 years warranty for the led board to our products.
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
A: Samples needs 3-5 days, mass production time needs 1-2 weeks for order quantity.
Q3. Do you have any MOQ limit for led light order?
A: Low MOQ, 1pc for sample checking is available
Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
Q5. How to proceed an order for led grow light?
A: Firstly, let us know your requirements or application.
Secondly,We quote according to your requirements or our suggestions.
Thirdly, customer confirms the samples and places deposit for formal order.
Fourthly. We arrange the production.
Q6. Is it OK to print my logo on led light product?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Q7: Do you offer guarantee for the products?
A: Yes, we offer 5 years warranty for the driver and 2 years warranty for the led board to our products.
Q8: What are payment terms for new customers?
A: Alibaba trade assurance, T/T, Paypal, Western Union, all of them are optional.
Q9: Can I place order directly?
A: Yes,You can click start order, choose color spectrum and quantity, then fill your delivery address and phone number, confirm your order, make payment, we can arrange delivery in 2 working days once received payment.
A: Alibaba trade assurance, T/T, Paypal, Western Union, all of them are optional.
Q9: Can I place order directly?
A: Yes,You can click start order, choose color spectrum and quantity, then fill your delivery address and phone number, confirm your order, make payment, we can arrange delivery in 2 working days once received payment.
