Product Overview
Description

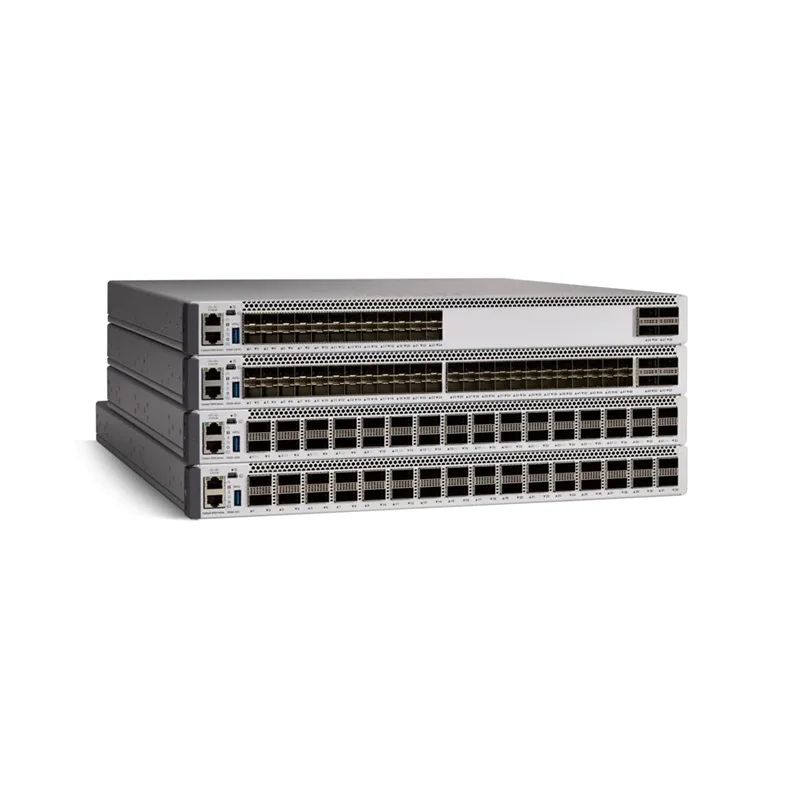

Catalys C9500-48Y4C-E 9500 48-port x 1/10/25G + 4-port 40/100G Catalys 9500 Series Switch
Catalys 9500 Series with Cisco DNA
The Cisco Catalyst 9500 Series is the industry’s first purpose-built 25, 40 and 100 Gigabit Ethernet line of switches targeted for the enterprise campus. These switches deliver unmatched table scale (MAC/route/ACL) and buffering for enterprise applications. The Cisco Catalyst 9500 Series includes nonblocking 40 and 100 Gigabit Ethernet Quad Small Form-Factor Pluggable (QSFP+, QSFP28) and 1, 10 and 25 Gigabit Ethernet Small Form-Factor Pluggable Plus (SFP/SFP+/SFP28) switches with granular port densities that fit diverse campus needs.
The Cisco Digital Network Architecture (Cisco DNA) with Software-Defined Access (SD-Access) is the network fabric that powers business. It is an open and extensible, software-driven architecture that accelerates and simplifies your enterprise network operations. The programmable architecture frees your IT staff from timeconsuming, repetitive network configuration tasks so they can focus instead on innovation.
Product Description
Product Code | C9500-48Y4C-A |
Description | Cisco Catalyst 9500 Series high performance 48-port 25G switch, NW Adv. License |
Switching capacity | Up to 3.2 Tbps |
Forwarding rate | Up to 1 Bpps |
DRAM | 16 G |
Flash | 16 G |
Dimensions (H x W x D) | 1.73 x 17.5 x 18.0 in |
Rack units (RU) | 1RU |
| Performance numbers for all switch models | C9500-24Q | C9500-12Q | C9500-40X | C9500-16X | C9500-32C | C9500-32QC | C9500-48Y4C | C9500-24Y4C |
| ASIC | UADP 2.0 | UADP 3.0 | ||||||
| Total number of IPv4 routes (Address Resolution Protocol [ARP] plus learned routes) | Up to 64,000 indirect* Up to 80,000 host* | Up to 212,000 indirect + direct* Up to 90,000 host/ARP* | ||||||
| Total number of IPv6 routes | Up to 32,000 indirect* Up to 40,000 host* | Up to 212,000 indirect + direct* Up to 90,000 host* | ||||||
| Total number of IPv4 Multicast routes | Up to 32,000* | Up to 32,000* | ||||||
| Total number of IPv6 Multicast routes | Up to 16,000* | Up to 32,000* | ||||||
| QoS ACL scale | Up to 18,000* | Up to 16,000* | ||||||
| Security ACL scale | Up to 18,000* | Up to 27,000* | ||||||
| FNF entries | Up to 512,000* | Up to 98,000* | ||||||
| DRAM | 16 GB | 16 GB | ||||||
| Flash | 16 GB | 16 GB | ||||||
| VLAN IDs | 4,094 | 4094 | ||||||
| PVST Instances | 300*** | 1,000 | ||||||
| STP Virtual Ports (Port* VLANs) for PVST | 13,000 | 16,000 | ||||||
| STP Virtual Ports (Port* VLANs) for MST | 13,000 | 52,000**** | ||||||
| Total Switched Virtual Interfaces (SVIs) | 1,000 | 1,000 | ||||||
| Jumbo frame | 9,198 bytes | 9,216 bytes | ||||||
