3KW 5KW 10KW Tulip Type Vertical Wind Turbine Solar Hybrid System 48V To 220V Noiseless Wind Generator
- Category: >>>
- Supplier: Nantong R&x Energy Technology Co. Ltd.Nantong Ltd.
Share on (1601141463214):
Product Overview
Description
3KW 5KW 10KW Tulip Type Vertical Wind Turbine Solar Hybrid System 48V To 220V Noiseless Wind Generator

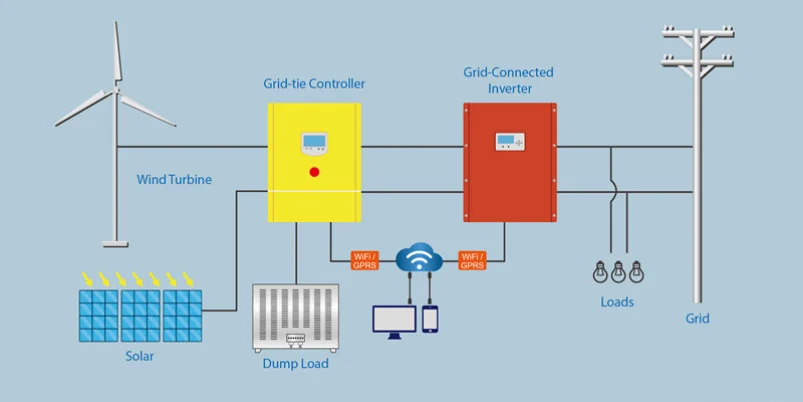

Wiring Diagram
Product Description

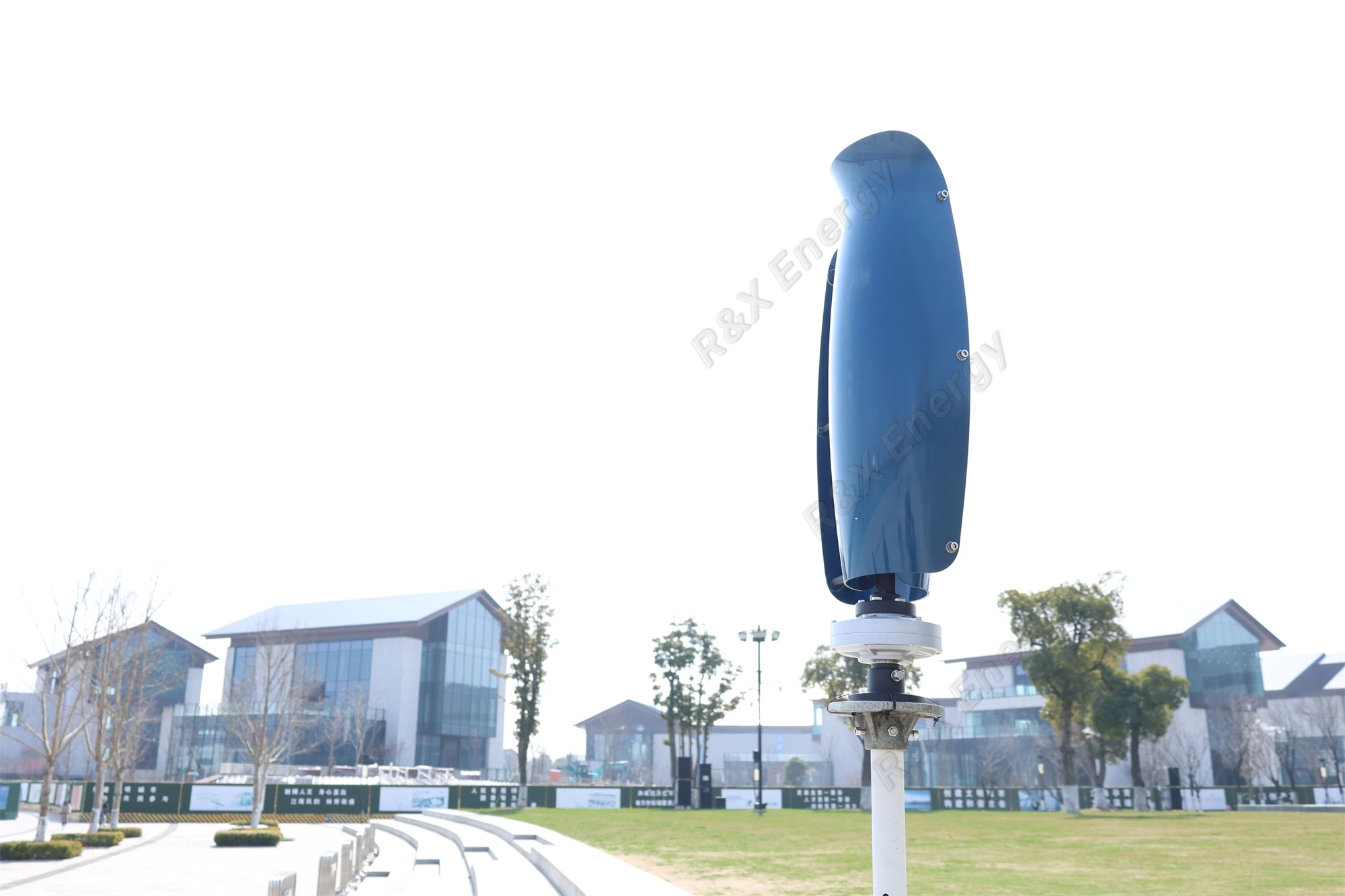

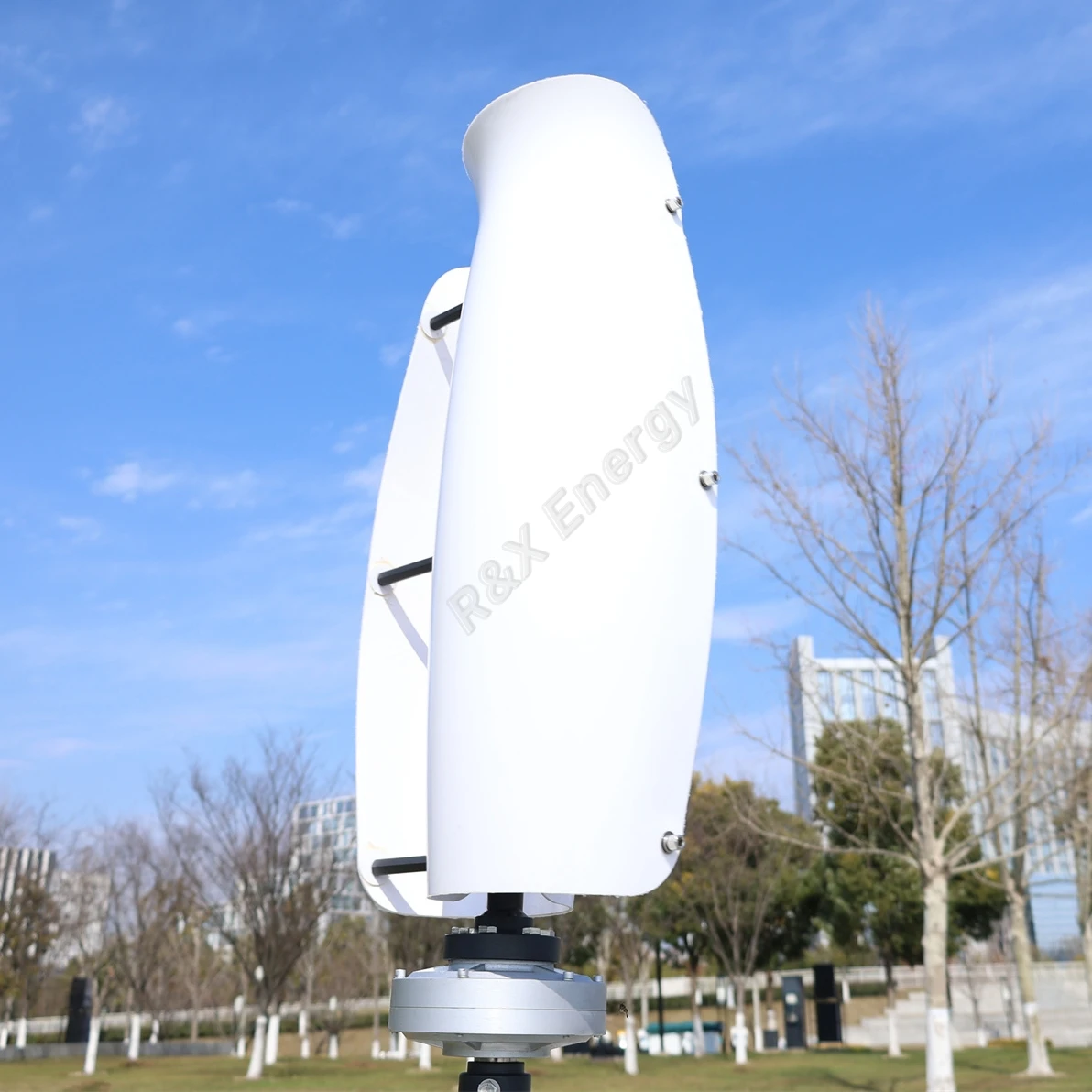

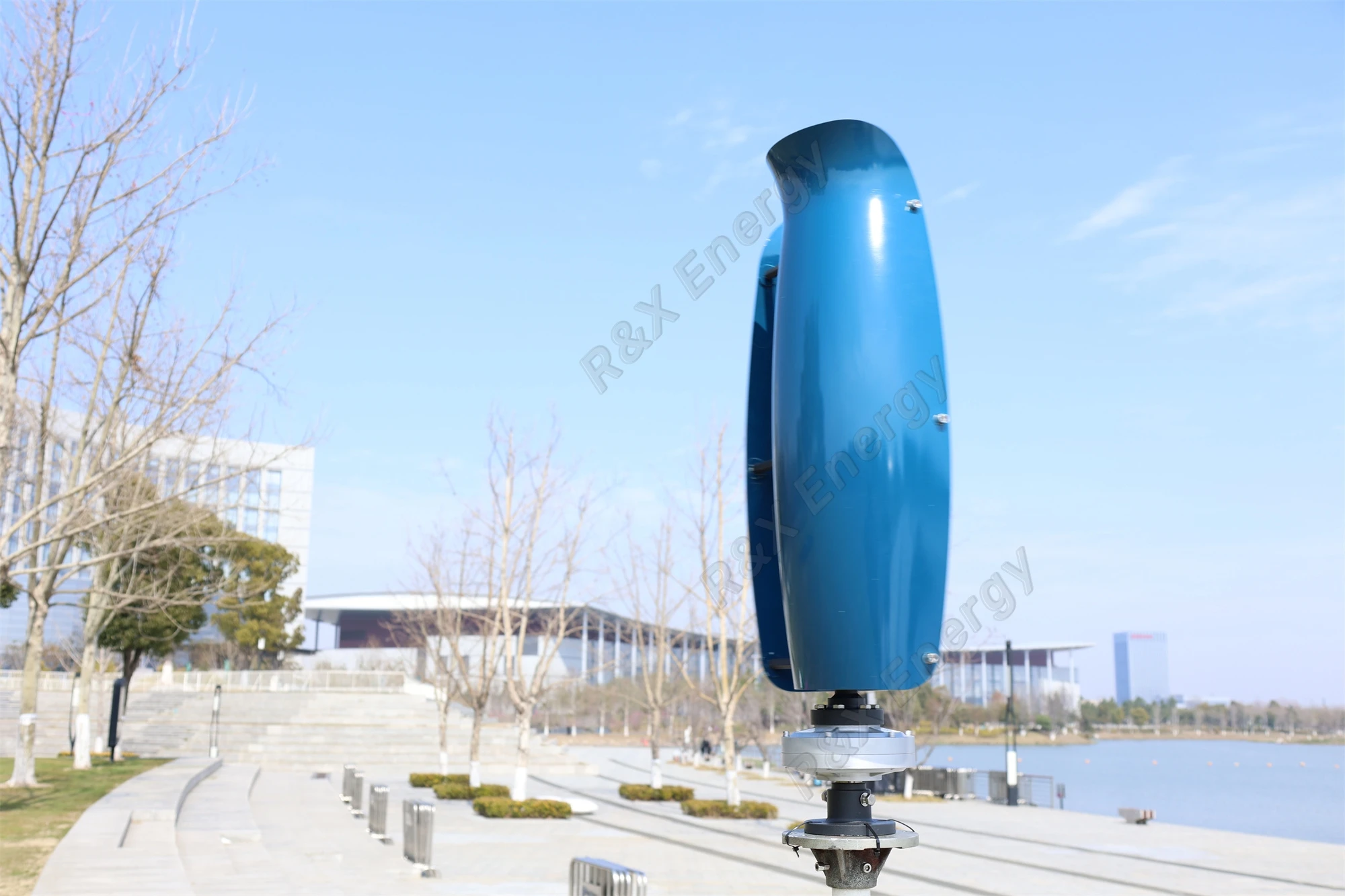

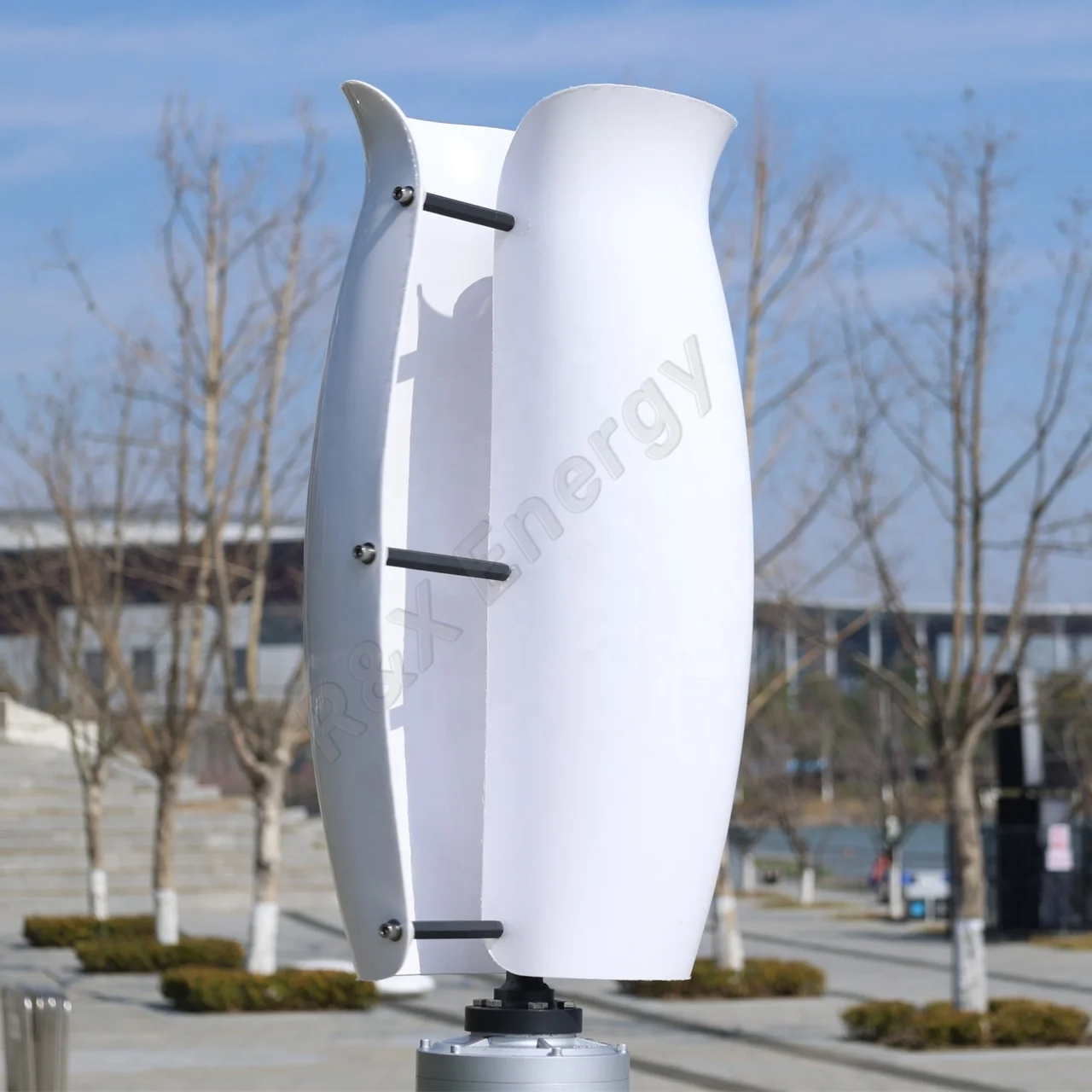

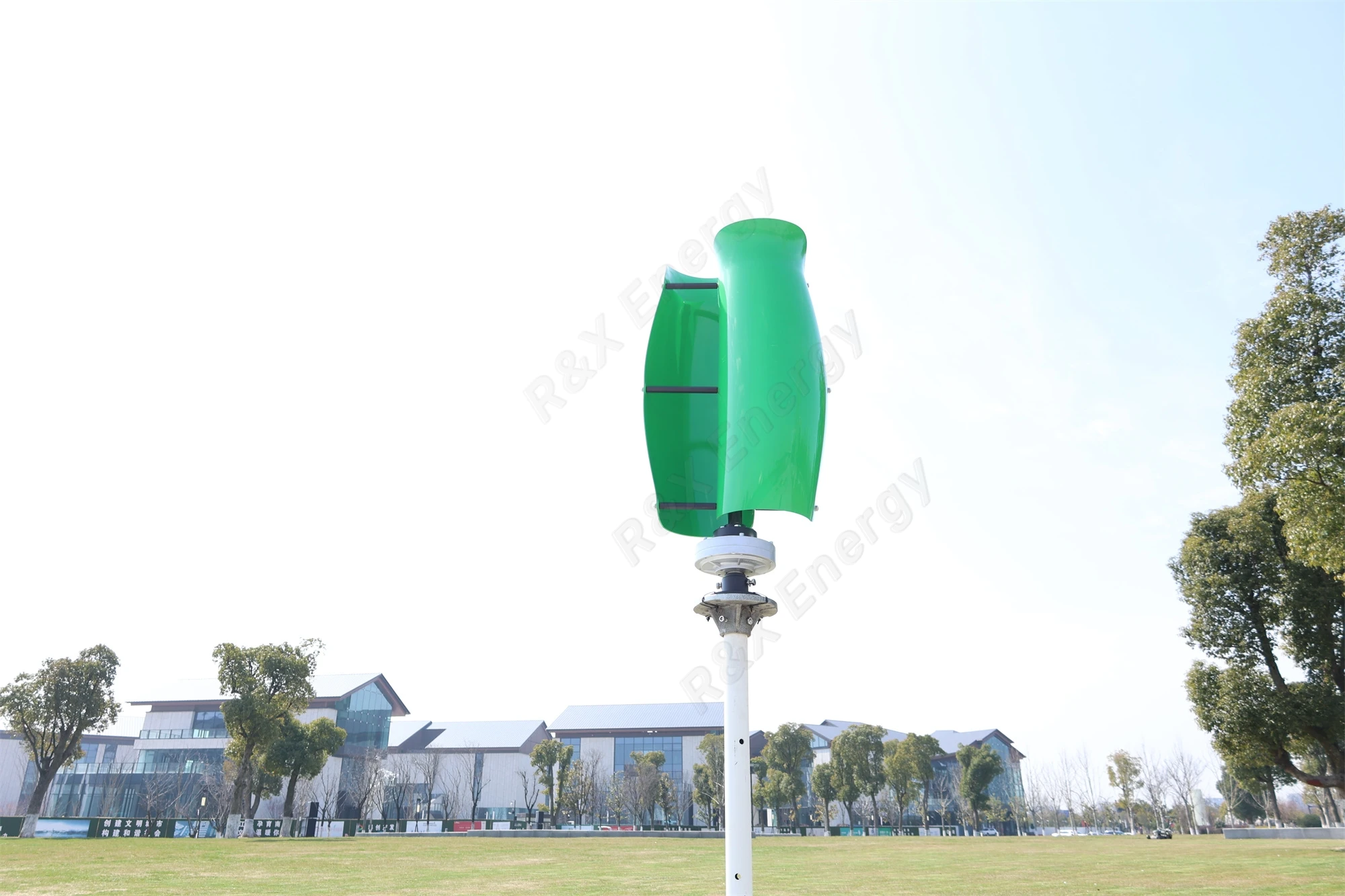

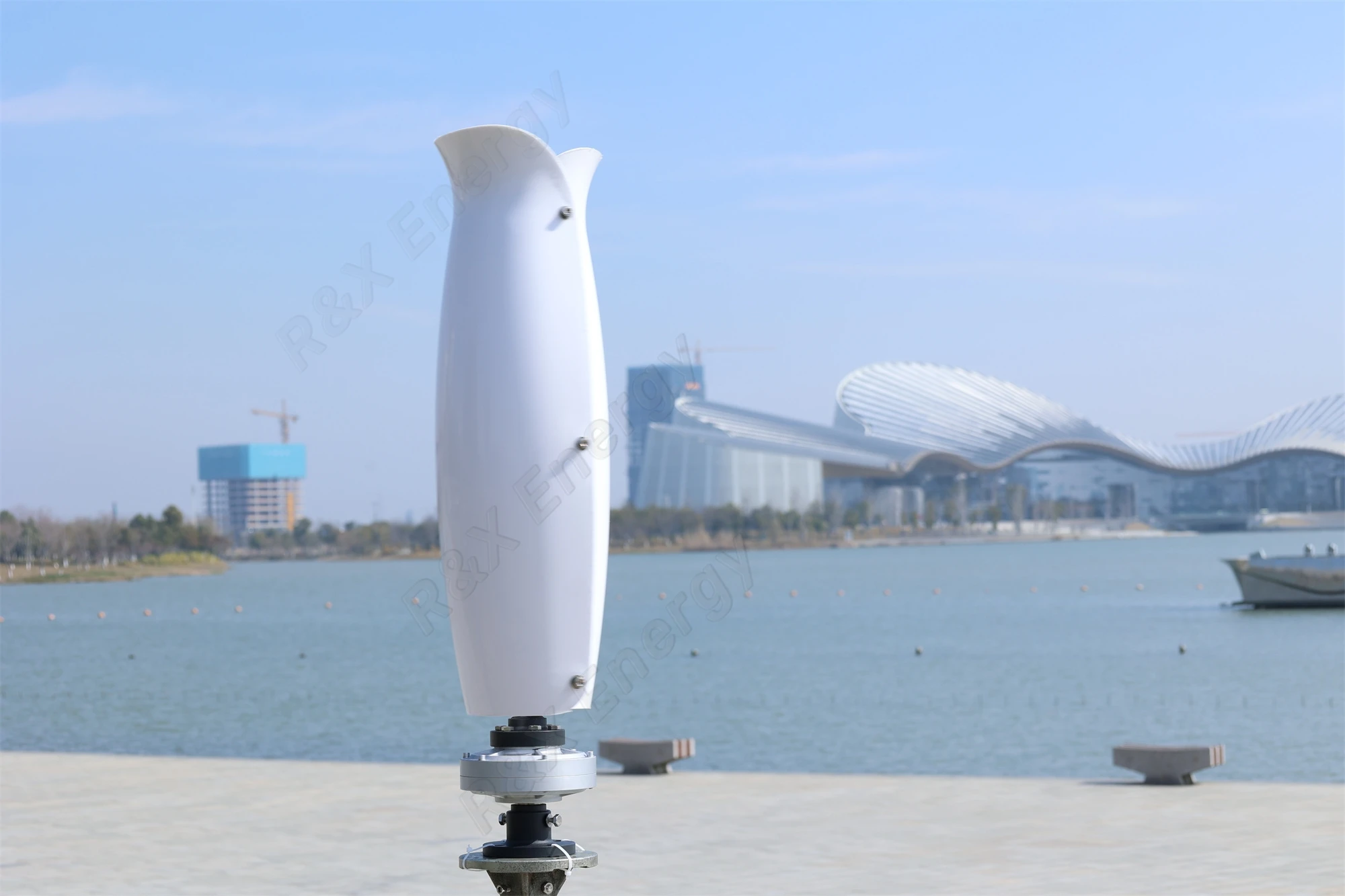

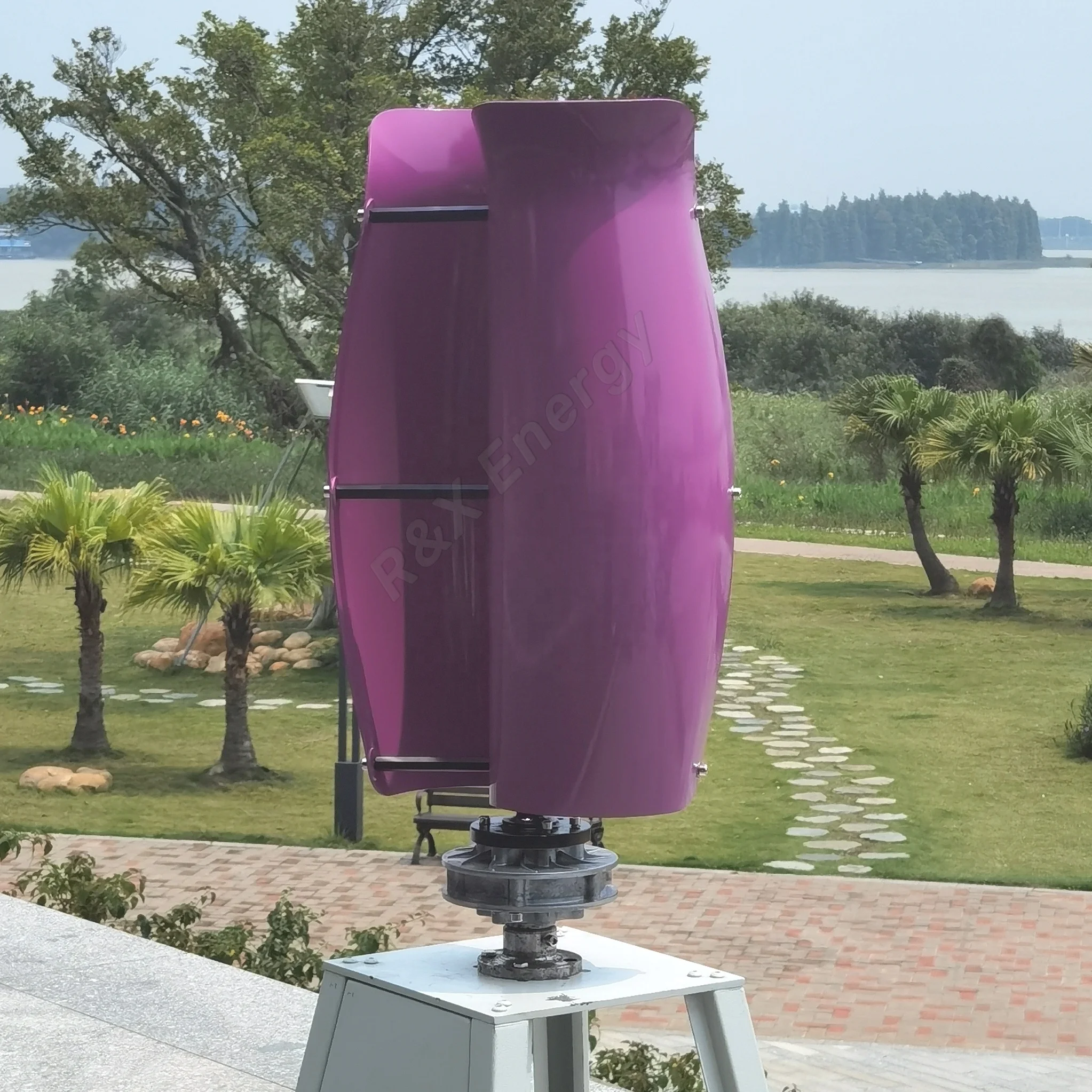

The tulip type VAWT has a cylindrical shape with curved blades that resemble tulip petals, which are mounted on a vertical axis. The blades are designed to capture wind energy in all directions and generate power efficiently even in low wind speeds. The turbine's shape also reduces the noise and vibration caused by the spinning blades.
Technical Data
Model | RX-TL600 | RX-TL1000 | RX-TL2000 | RX-TL3000 | RX-TL5000 | RX-TL10K | |||||||
Rated Power | 600W | 1KW | 2KW | 3KW | 5KW | 10KW | |||||||
Max Power | 650W | 1100W | 2100W | 3200W | 5200W | 10500W | |||||||
Blades Length | 0.65M | 0.65M | 1.2M | 1.7M | 2.0M | 2.0M | |||||||
Wheel Diameter | 0.5M | 0.5M | 0.7M | 1.0M | 1.2M | 1.2M | |||||||
Rated Voltage | 12~24V | 12~48V | 12~48V | 24V~96V | 48V~220V | 48V~220 | |||||||
Start Up Speed | 1.2m/s | 1.5m/s | 1.5m/s | 2.0m/s | 2.0m/s | 2.0m/s | |||||||
Rated Speed | 12m/s | 12m/s | 12m/s | 12m/s | 12m/s | 12m/s | |||||||
Cut-in Speed | 3.5m/s | 3.5m/s | 4.0m/s | 4.0m/s | 4.0m/s | 4.0m/s | |||||||
Survival Speed | 40m/s | 40m/s | 45m/s | 45m/s | 45m/s | 45m/s | |||||||
Blades Quantity | 2 | ||||||||||||
Blades Material | Fiber glass | ||||||||||||
Generator Type | Coreless Disc Type Maglev Levitation Permanent Magnet Generator | ||||||||||||
Working Temperature | -40℃~+40℃ | ||||||||||||
Protection Level | IP54 | ||||||||||||
Working environment humidness | ≤90% | ||||||||||||
Altitude | ≤4500m | ||||||||||||
Install Height | 3~12m | ||||||||||||
Overload Protection | Electromagnetic Brake | ||||||||||||
Power curve
Drawing

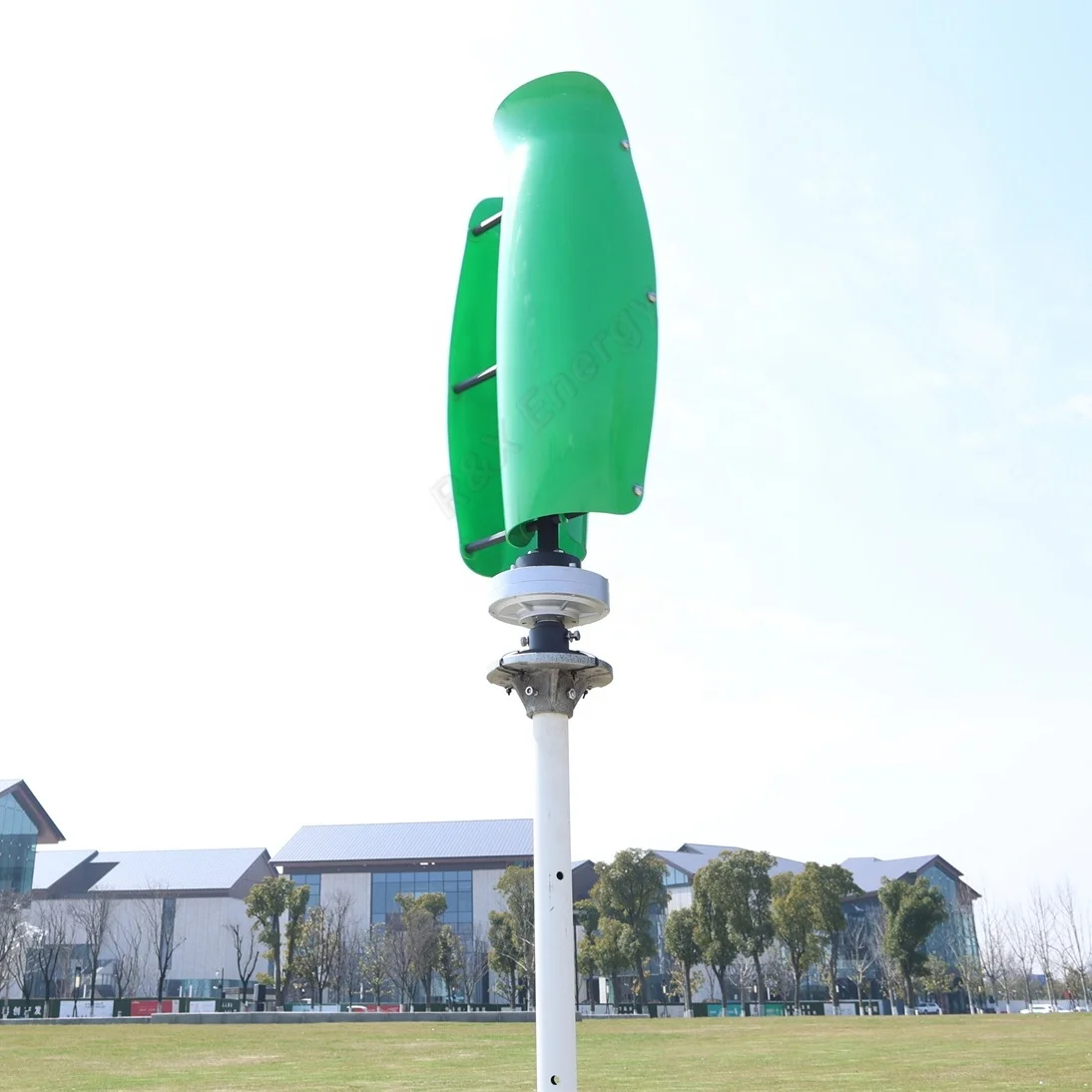

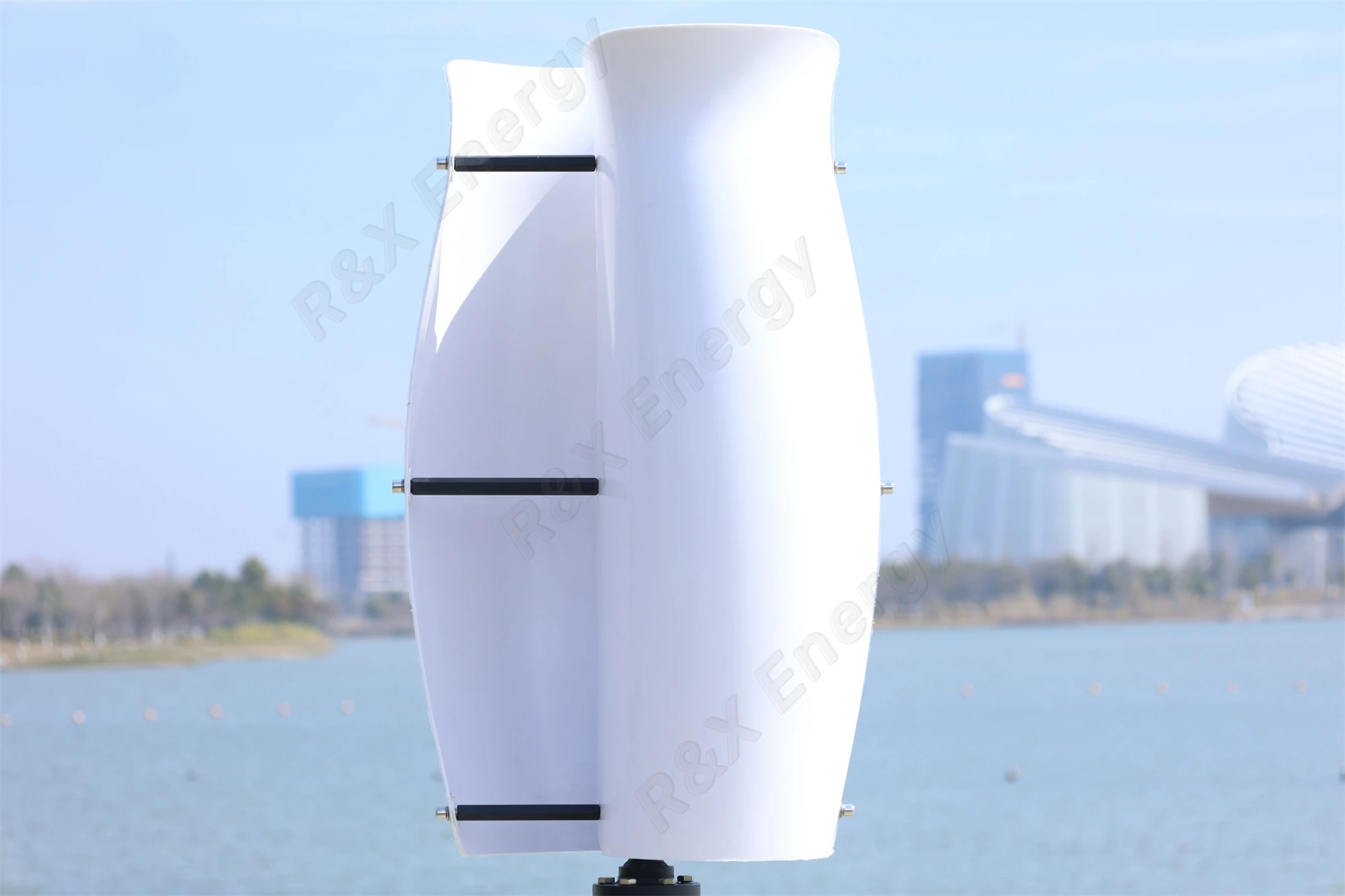

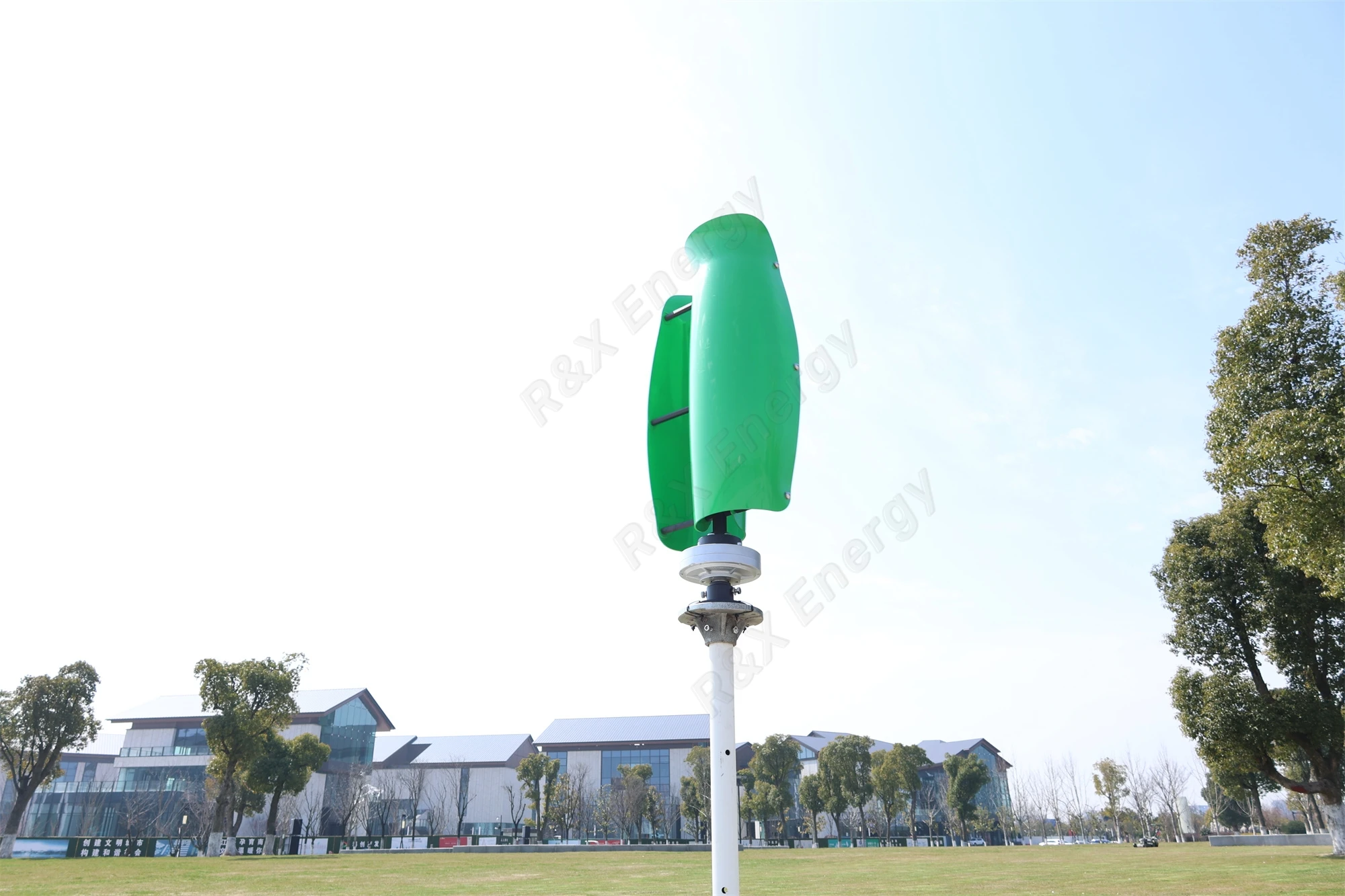

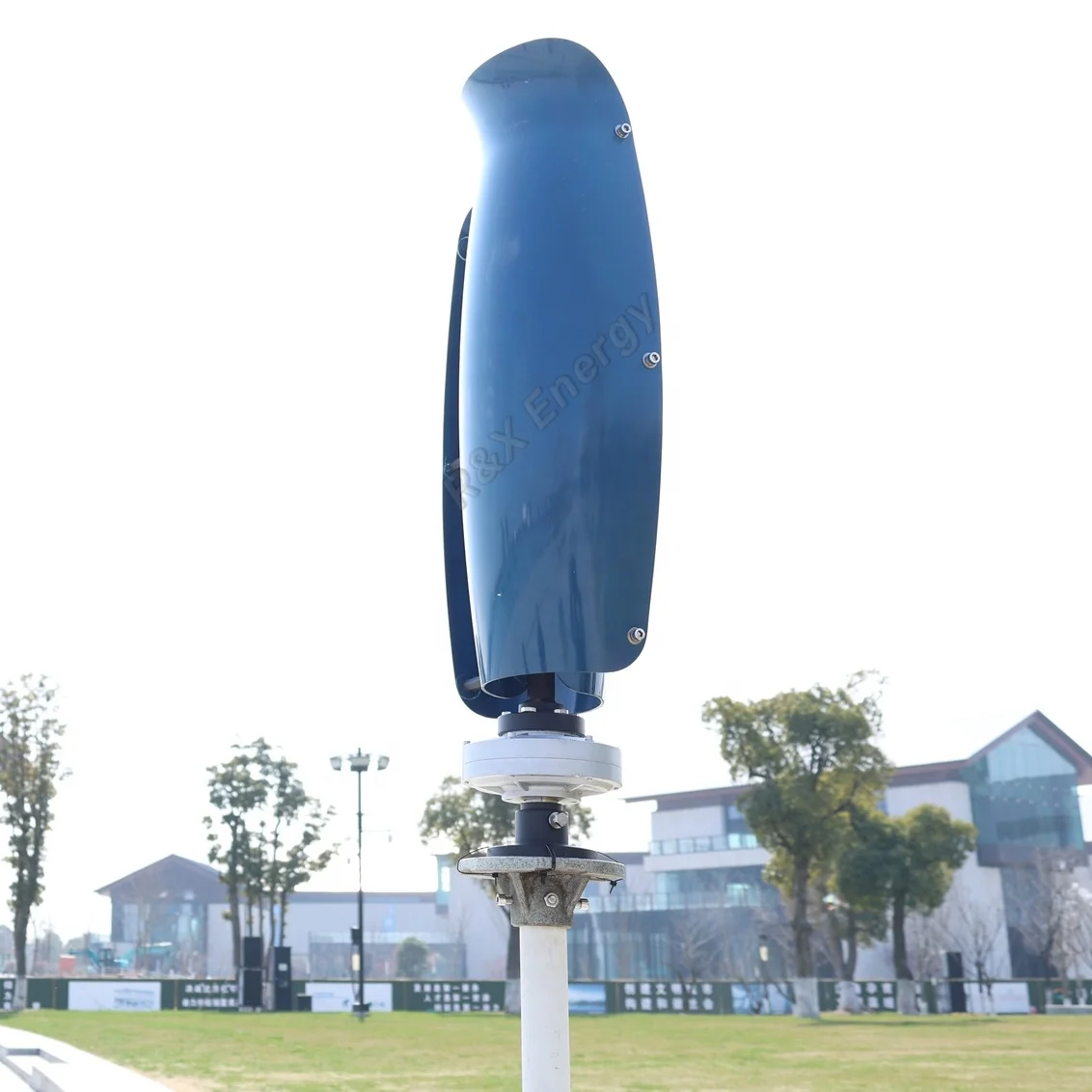

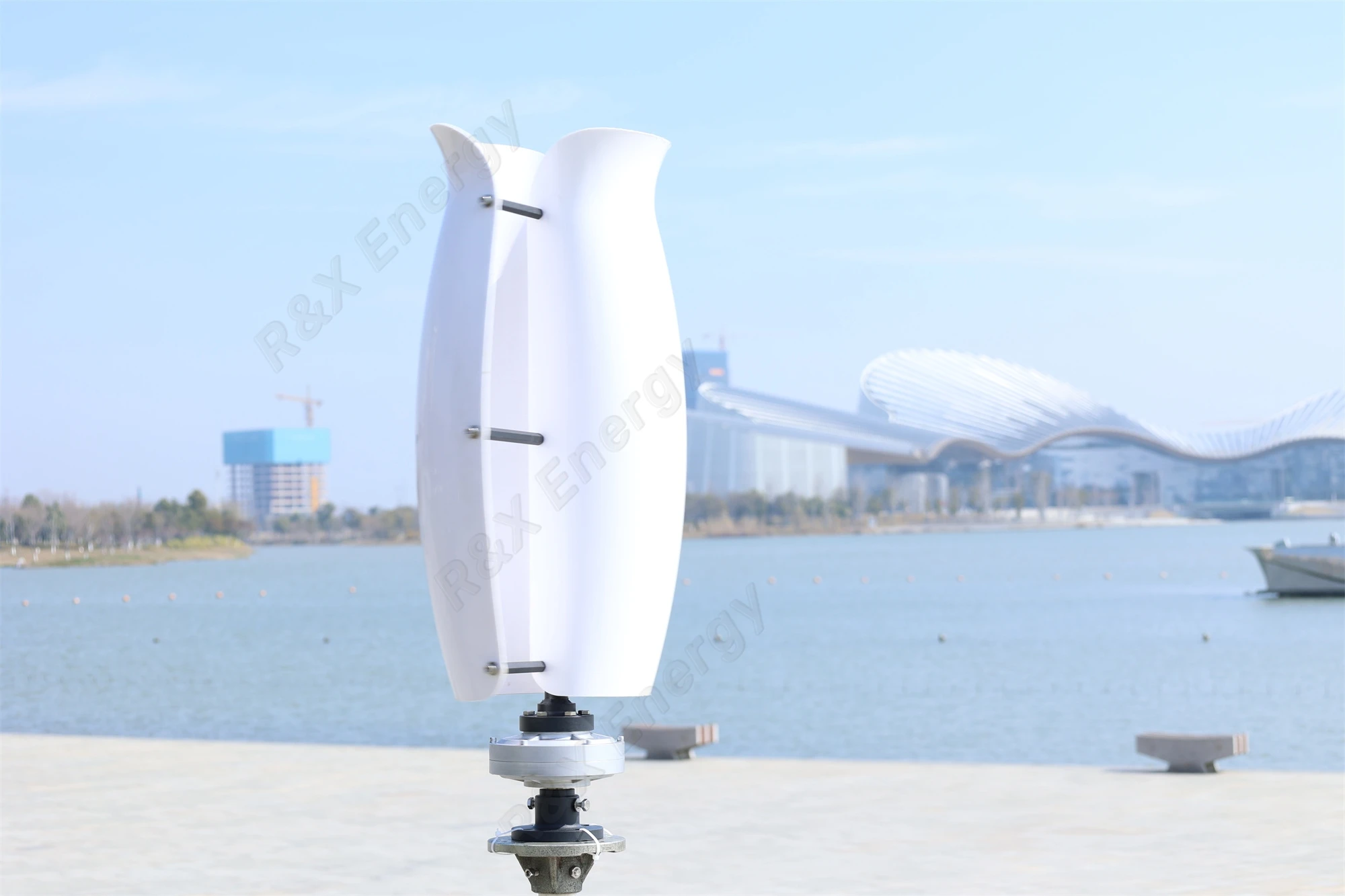

Detailed Images
