Tobee Effluent Handling
$12,600

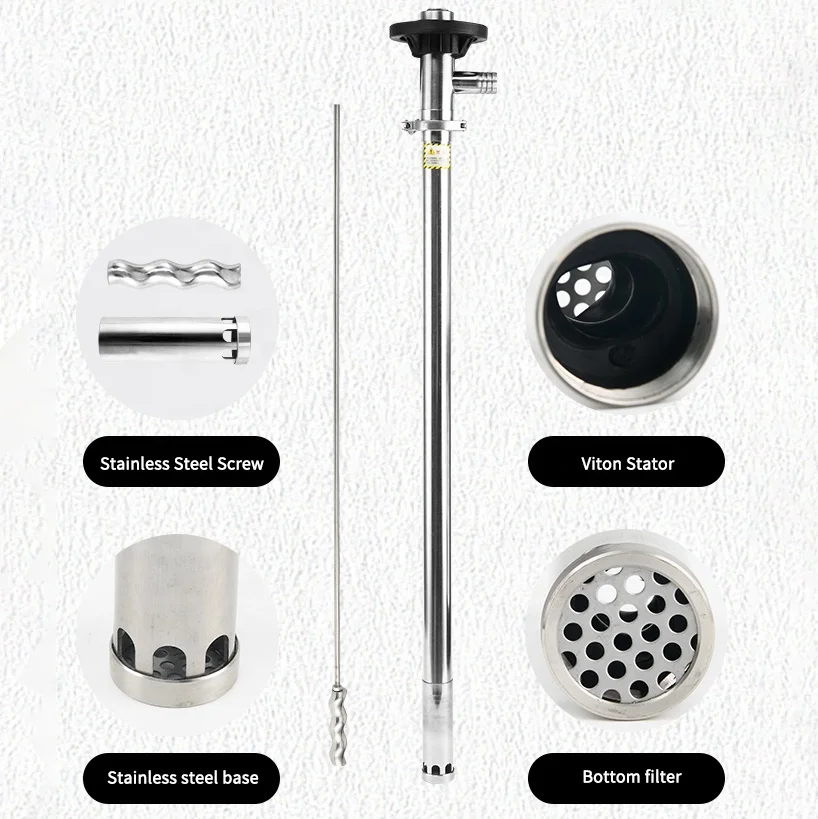

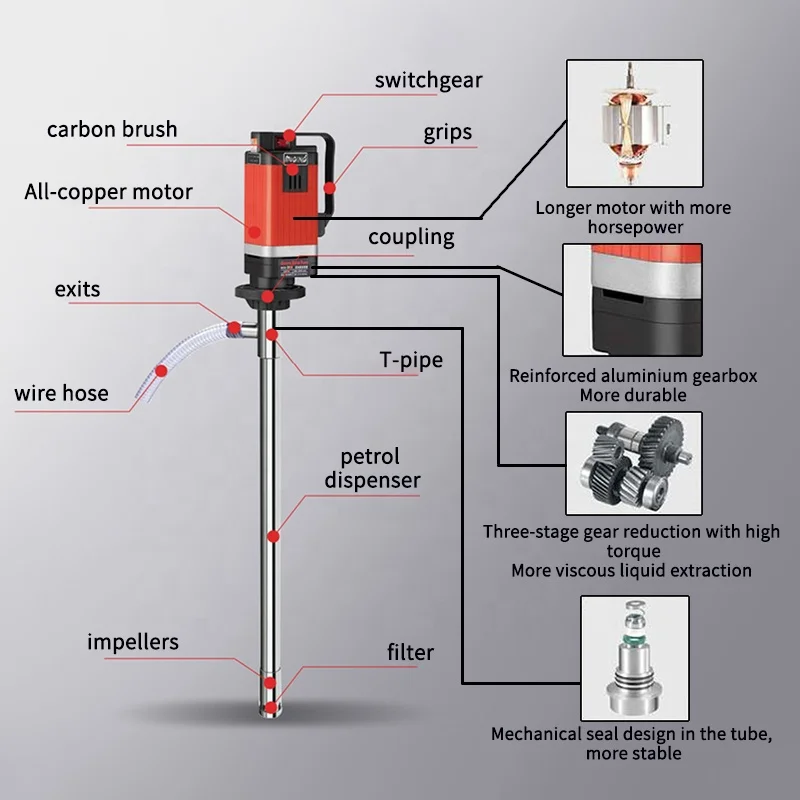

Drum vertical high viscosity pump SS316 honey electric barrel screw type high viscosity food grade drums pump for thick liquids
- Category: >>>
- Supplier: Rundao Technology (zhejiang) Co. Ltd.
Share on (1601141885364):
Product Overview
Description
Product Introduces
Model | Flow (L/min) | Pressure | Headlift | Tube Material | Impeller Material | Screw Material | Viscosity | Speed (r/min) | Power (W) |
D96 (Two-stage gear motors) | 160 | 2kg | 8m | SS316 | Teflon impeller worm gear | / | 5000cps | 12000 | 2000 |
D98 (Three-stage gear motors) | 100 | 2kg | 6m | SS316 | 8000cps | 8000 | 2000 | ||

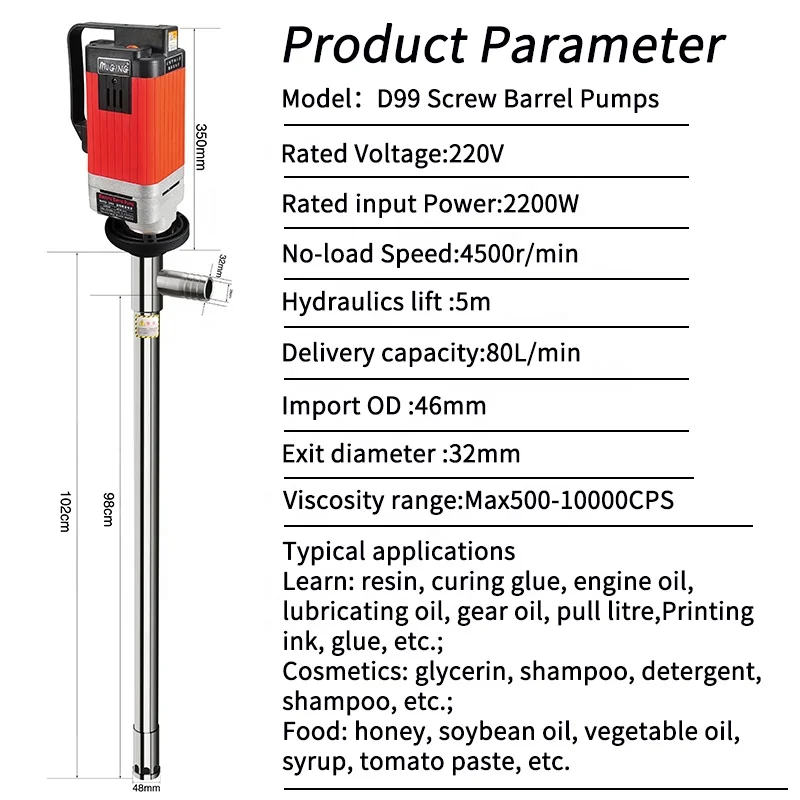

D99 (Two-stage gear motors) | 160 | 2kg | 8m | SS316 | 7000cps | 12000 | 2200 | ||
D99 (Three-stage gear motors) | 100 | 2kg | 6m | SS316 | 10000cps | 8000 | 2200 | ||

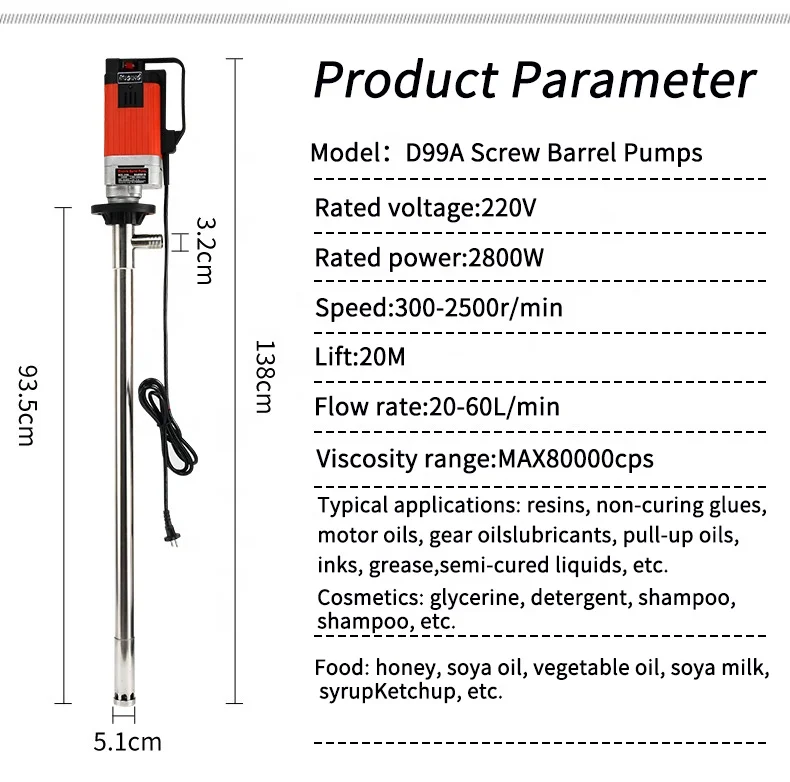

D99A Screw Type | 60 | 7kg | 20m | SS316 | / | SS316 | 80000cps | 2500 | 2800 |
Material | Max. Temp | Common Applications |
PPHT | 80℃/175℉ | ●Acetic Acid ●Sulfuric Acid ●Hydrochloric-20% ●Nitric Acid-20% ●Alkalies ●Ferric Chloride |
PVDF | 100℃/212℉ | ●Concentrated Nitric Acid ●Sulfuric Acid-66 Baume ●Sodium Hypochlorite ●Propionic Acid ●Stearic Acid ●Hydrofluoric Acid |
PTFE | 110℃/230℉ | ●Sulfuric acid ●Ester ●Hydrochloric acid ●Acetone ●Phosphoric acid ●Alcohol ●Hydrofluoric acid ●Benzene ●Sodium hydroxide ●Methane ●Chromic acid ●Formic acid ●Aqua regia |
SS304 | 100℃/212℉ | ●Alcohol ●Gasoline ●Aqueous Ammonia ●lsopropyl Ether ●Solvents ●Petoleum Products |
SS316L | 100℃/212℉ | ●Alcohol ●Gasoline ●Aqueous Ammonia ●lsopropyl Ether ●Solvents ●Petoleum Products |
AL | 100℃/212℉ | ●Sewage ●Diesel oil ●Low viscosity oil ●Lubricating oil |
Drum Pump Suggested Installation
Electric Drum Pump Installation
●Motor: Variable Speed Control Motor
●Pump Tube：304/316 Stainless Steel、Aluminium、PPHT（Fiberglass reiforced PP）、PTFE、PTDF
●Non-volatile solvent use
●Do not pump corrosive flammable or explosive liquids
EX Drum Pump Installation
●Pump Tube：304/316 Stainless Steel、
●Volatile solvent use
●For pumping corrosive flammable，or explosive liquids
EX Air Drum Pump Installation
●Pump Tube：304/316 Stainless Steel、
●Volatile solvent use
●For pumping corrosive flammable，or explosive liquids
