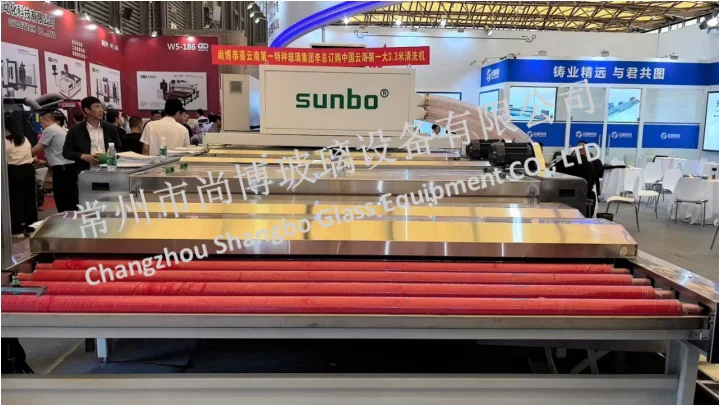

High Speed Two Step Glass Washing and Drying Machine Series G3 with Frequency Control

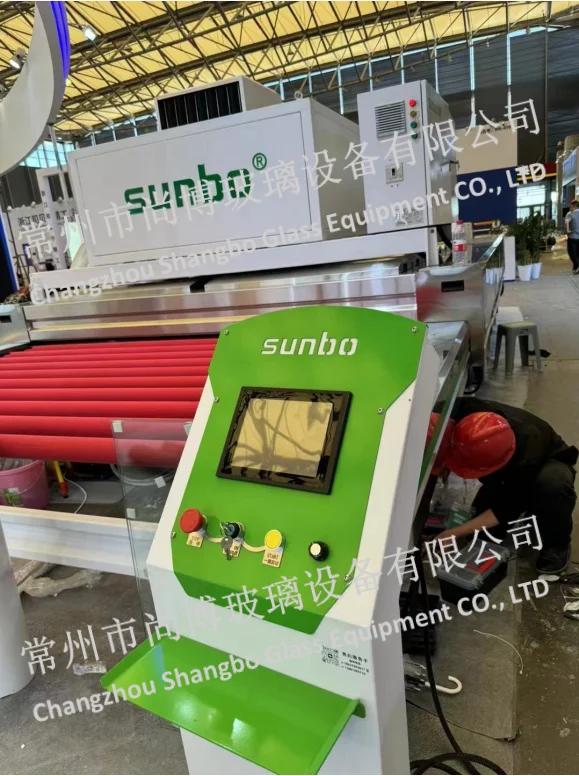

1.Modular assembled structure, aluminum alloy girders, touch screen +PLC control system, operating interface is simple and easy to understand.

2.The built-in energy-saving standby mode can save more than 75% of electricity in the energy-saving mode, which is greener than the environment.

3.The secondary cleaning structure,four pairs hair brush(Φ160 mm ) with stainless steel shaft, the up hard hair brush is controlled by pneumatic cylinder and can be lifted up independently, so the soft hair brush can wash the LOW-E glass, common coating film glass.

4. Helical teeth transmission driving system, frequency speed adjustment. The up and lower washing brushes are drive by two groups of independent gear belt system, with steady speed and longer working life.

5.Convenient thickness adjustment, the whole section can hoist 320mm to facilitate inner clean.

6.Can be equipped with standard Fen heating, temperature module collection, precise temperature control, energy saving, and high efficiency.

7.Can connected with high-speed double edging machine, automatic glass loading and unloading system to realize automatic processing

8.Fan, brush, conveying motors, lifting are all frequency control, more energy efficient

9.Double cleaning and drying, 4 pairs of brushes, special soft brush can wash LOW-E glass, ordinary coated glass.

10.Four pairs of air knives , two straight and two diagonal design.

11.Speed lower than 15M/min, use 1 blower;Speed higher than 15M/min, use 2 blowers with frequency control,more energy efficient.
