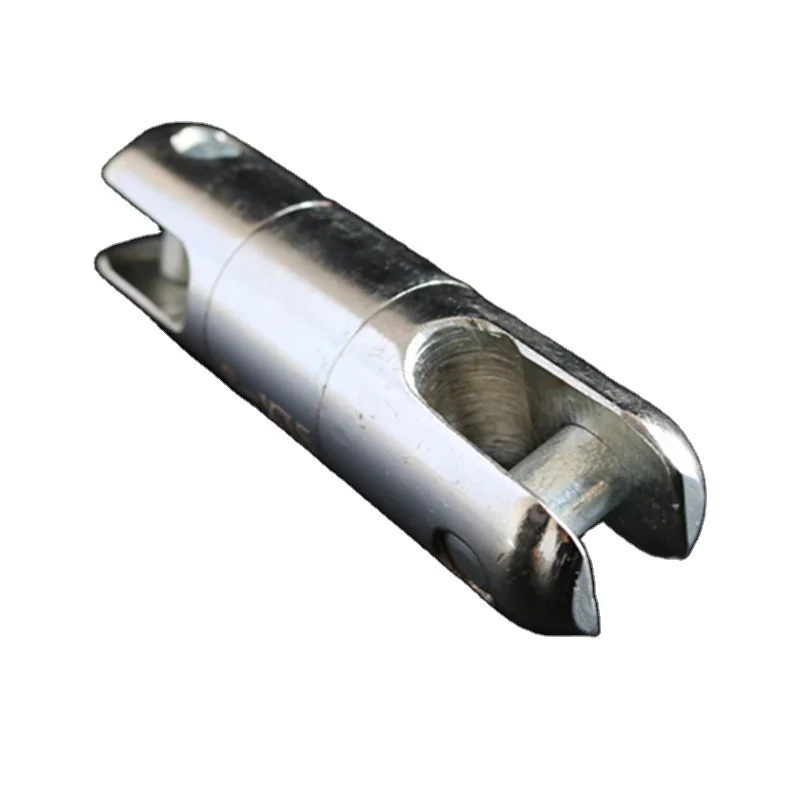

Accesorios para equipos de tendido Conector de junta giratoria de cable giratorio

Product Overview

Description

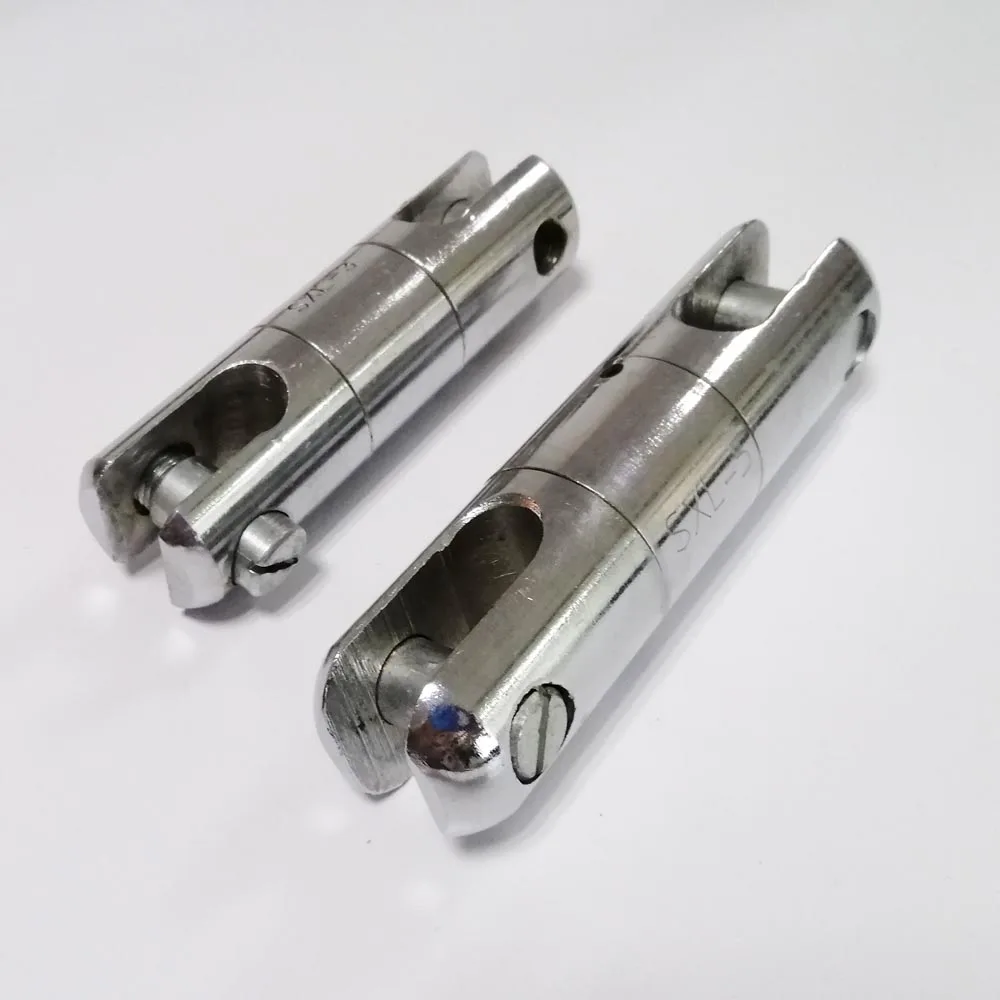

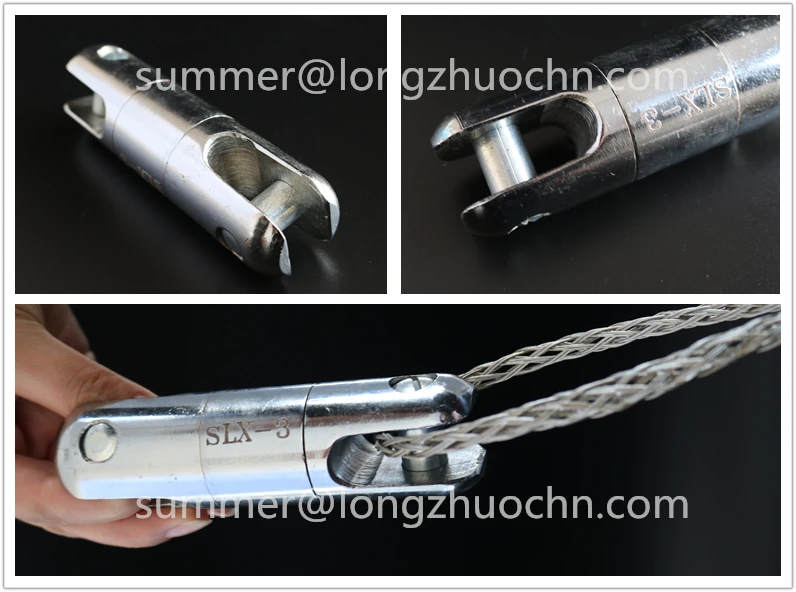

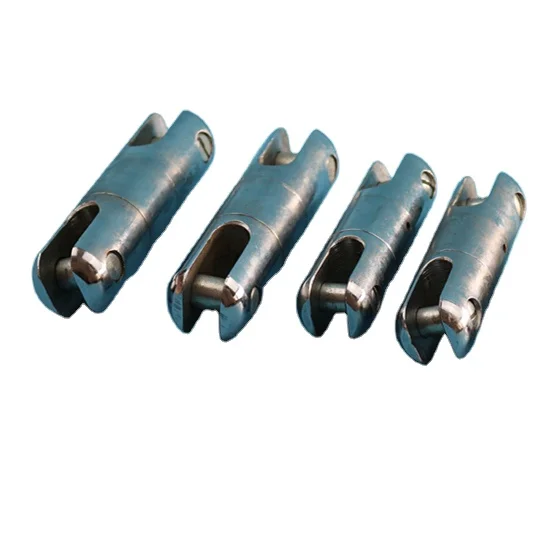

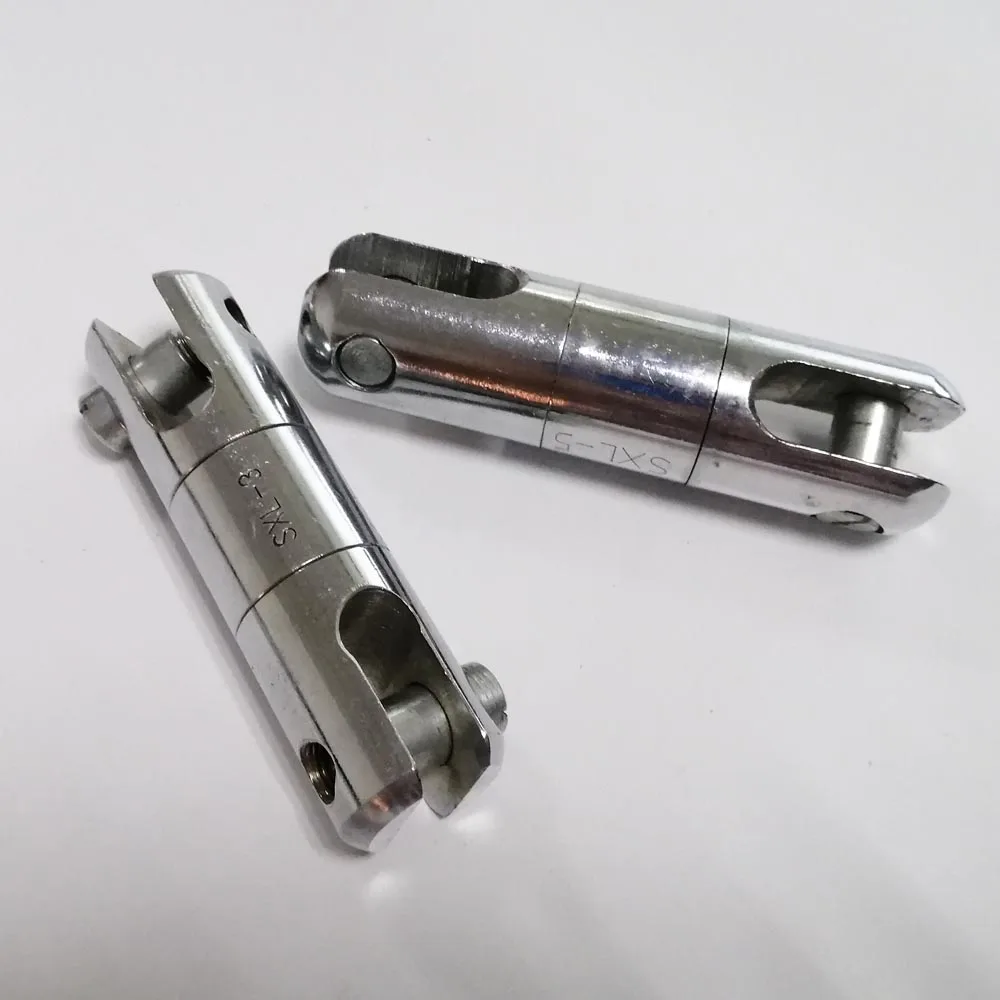

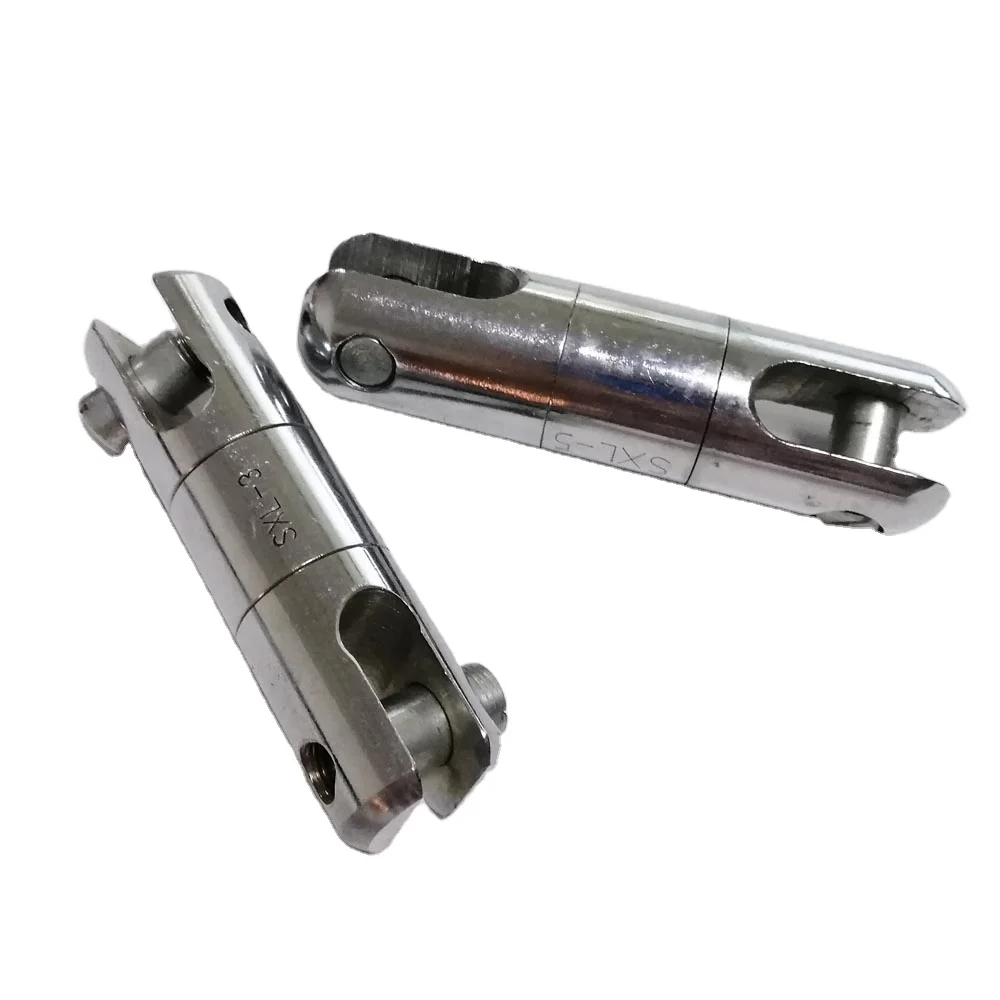

Cabel pulling swivel

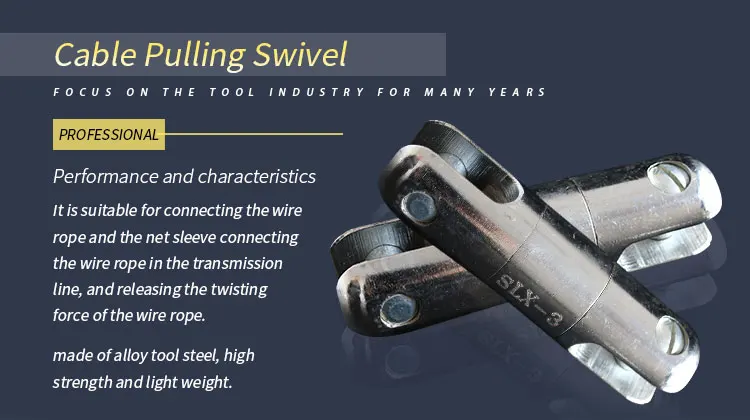

Performance and characteristics

Suitable for connecting wire rope and net cover connector when pulling wire or underground cable in transmission abd transformation lines,and releasing twisting force of wire rope made of aluminium alloy tools,high strength,light weight,can be smoothly through the pulley and tension machine,traction machine and other equipment.





Supplying you with full series,devoted on electric tools.



Model	Rated load	Outer diameter	Groove width	Weight
XL-1	5KN	18mm	8mm	0.2kg
XL-2	10KN	22mm	12.5mm	0.4kg
XL-3	30KN	30mm	14.5mm	0.65kg
XL-4	50KN	42mm	17mm	1.5kg
XL-5	80KN	55mm	22mm	2.4kg
XL-6	130KN	60mm	24mm	3.5kg
XL-7	180KN	72mm	30mm	7.2kg
XL-8	250KN	85mm	36mm	8.0kg



Control each details,select the best raw material,more than 30 years produce experience and developing,excellent quality product will make our customer feel reliable.



High reputation products and service will always surrouding you,welcome to contact us.
