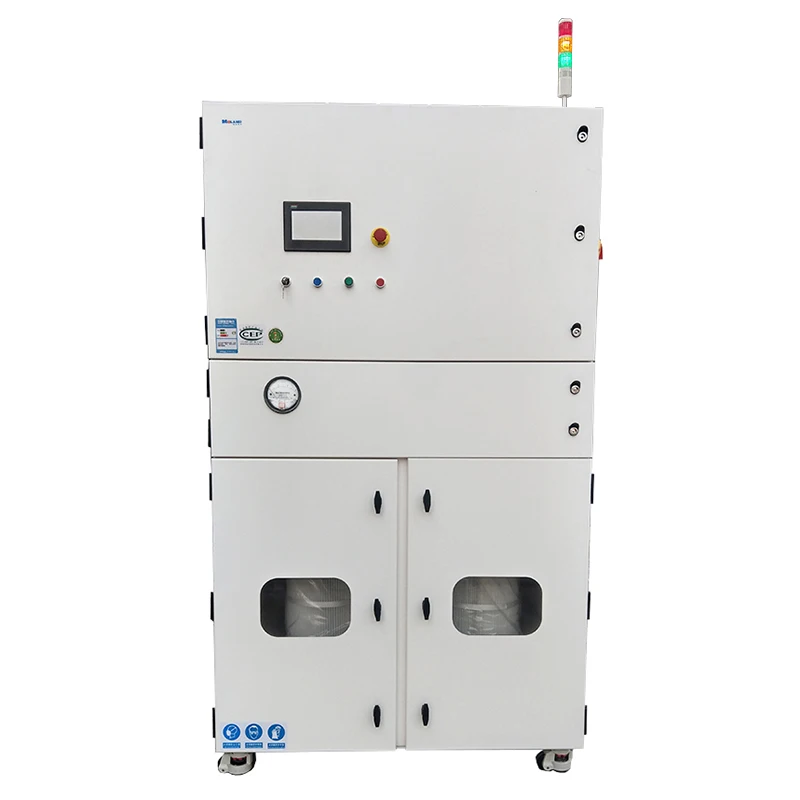

Cartridge Filter Industrial Dust Collector for Robot Manual Welding with PLC and Automatic Pulse Jet Cleaning System
- Category: >>>
- Supplier: Shandong Moland Environmental Tech Co. Ltd.Shandong Ltd.
Share on (1601144054216):
Product Overview
Description
Specification
Model | MLWF500-CG6T | MLWF500-CG6T Busket Type | MLWF500-CG9T |
Motor Power | 5.5KW | MLWF500-CG6T | MLWF500-CG6T |
Working Voltage | 380V 50Hz | 380V 50Hz | 380V 50Hz |
Air Volume | 5000~7000 m^3/h | 5000~7000 m^3/h | 5000~7000 m^3/h |
Filter Efficiency | 0.3um 99.9% | 0.3um 99.9% | 0.3um 99.9% |
Filter Material | Flame retardant coated polyester fiber | Flame retardant coated polyester fiber | Flame retardant coated polyester fiber |
Cleaning Mode | Automatic pulse jet cleaning | Automatic pulse jet cleaning | Automatic pulse jet cleaning |
Filter Area | 66m^2 | 66m^2 | 99m^2 |
Noise Level | 75±3 dBA | 75±3 dBA | 75±3 dBA |
Size | 1240*1130*2200mm | 1240*1130*2800mm | 1240*1470*2200mm |
Weight | 800kg | 900kg | 800kg |
Logo | Moland or customized | Moland or customized | Moland or customized |
Color | White or customized | White or customized | White or customized |
Application | suitable for plasma cutting, polishing and other dry dust collection. | suitable for centralized dust collection system, such as multi-welding-station fume extraction, plasma cutting fume extraction, polishing dust collection, etc. | 10m^2 welding stations * 2; manual welding station * 4; plasma cutting; 4025 laser cutting, etc. |
Details Images

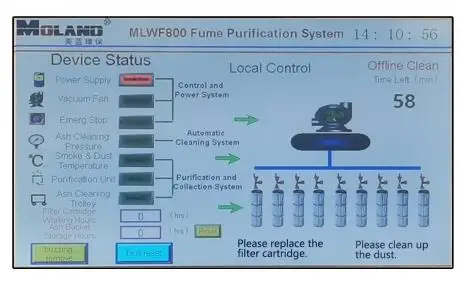

PLC Intelligent Control System
* Moland self developed intelligent control system.
* Clearly shows the situation of different units.
* You can touch the screen and adjust the parameters easily.
* Siemens PLC is optional.
Automatic Pulse Jet Cleaning System
The omni-directional pulse blowback dust removal system, which can automatically clean the filter cartridge with a filtration
efficiency of 99.9%.
efficiency of 99.9%.

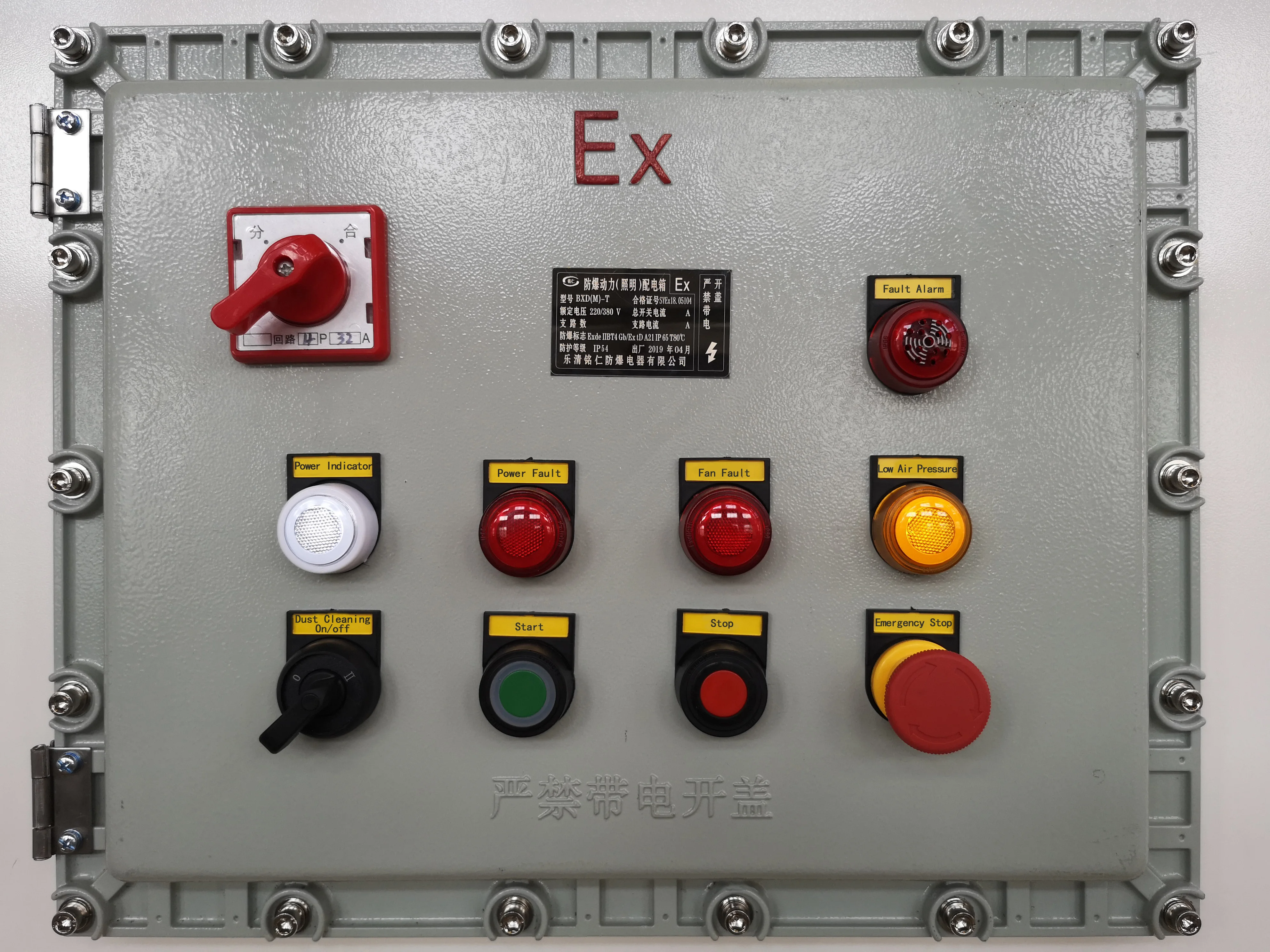

Electrical Control
As per the workpiece material you processed, we supply non-explosion-proof and explosion-proof type dust collector.
Explosion-proof device can be equipped to protect your workers when necessary.If you're not sure which type to choose, you can tell us your welding workpiece material, then we'll recommend you the suitable type.

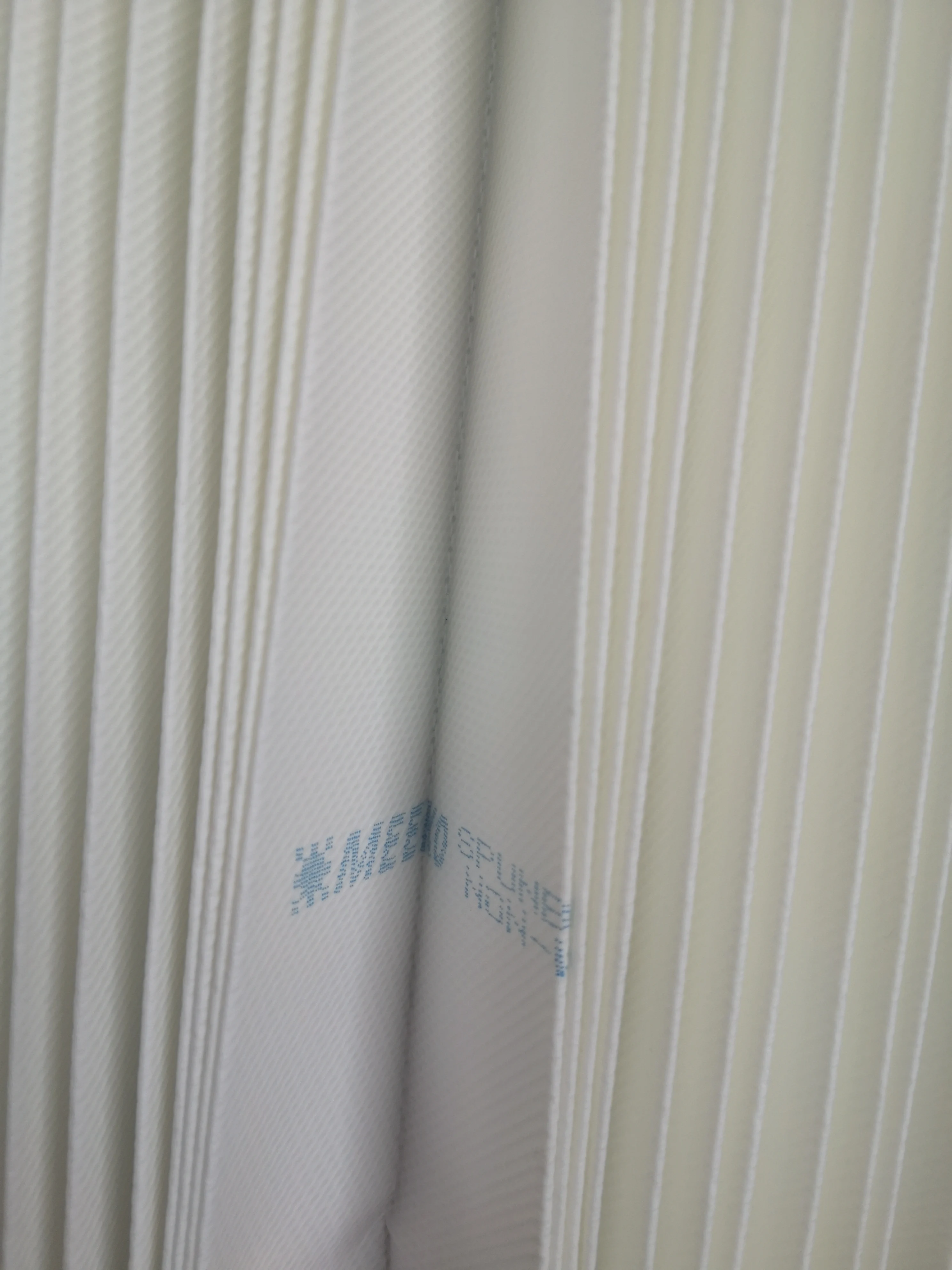

Cartridge Filter
Size: Φ325*660mm
Qty: 6 pcs
Material: Flame Retardant Coated polyester fiber
Material: Flame Retardant Coated polyester fiber
Brand: Japan Toray
Filter area: 66 m^2
Cleaning mode: Automatic pulse jet cleaning
Filtration efficiency: 0.3um >99.9%
Filter area: 66 m^2
Cleaning mode: Automatic pulse jet cleaning
Filtration efficiency: 0.3um >99.9%
Pressure Differential Gauge
The pointer visually displays the pressure difference, and the use of the filter cartridge is monitored in real time. When the pressure difference is too high, the dust collector automatically blows back and cleans the dust.

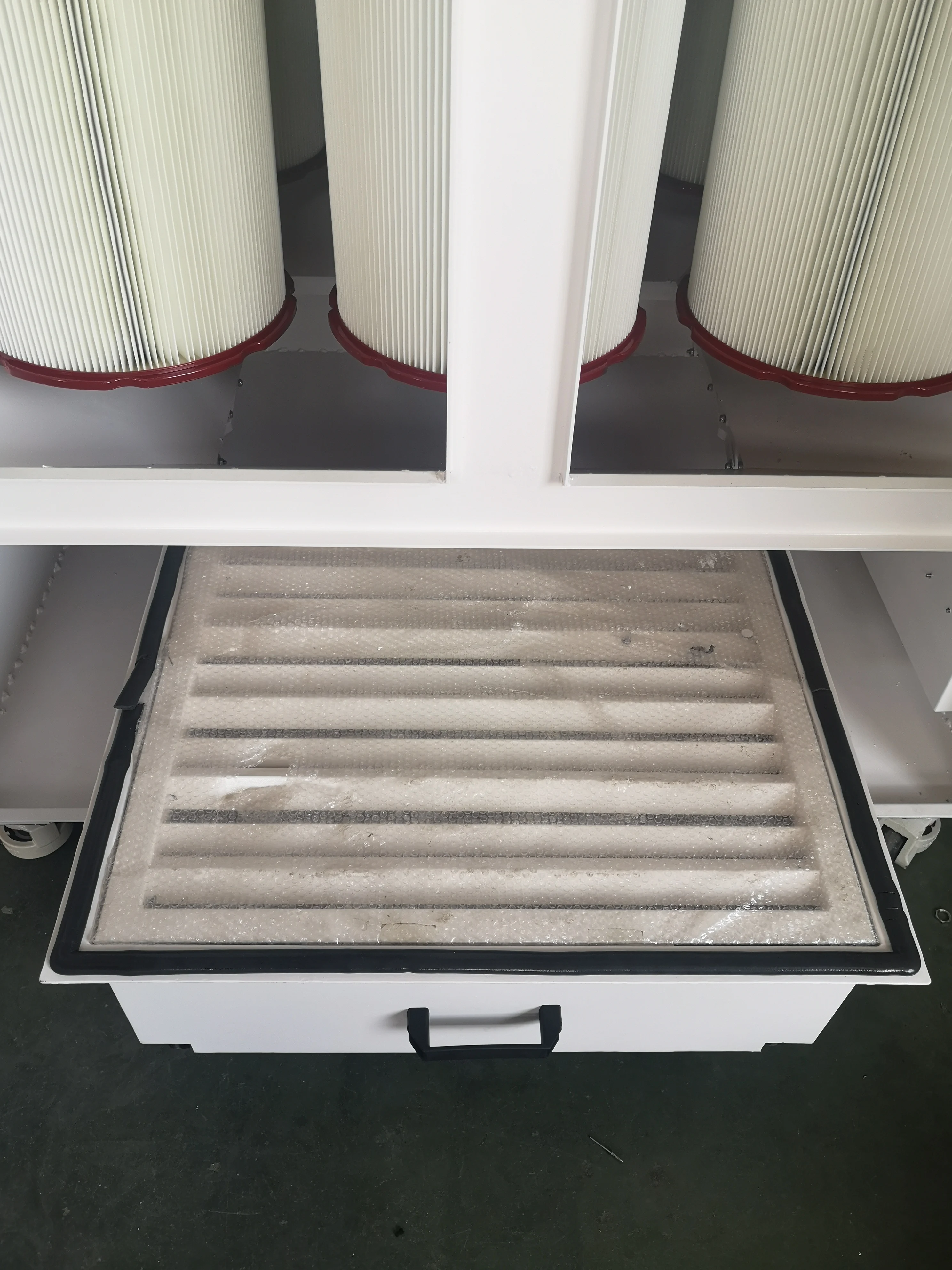

Dust Collection Drawer
* 125L Large capacity dust collection drawer
* Regularly dump the dust in it.
* With leakage-proof rubber sealing
* With anti-suction device
* With handle for you to pull it out and push it in easily
Company Profile

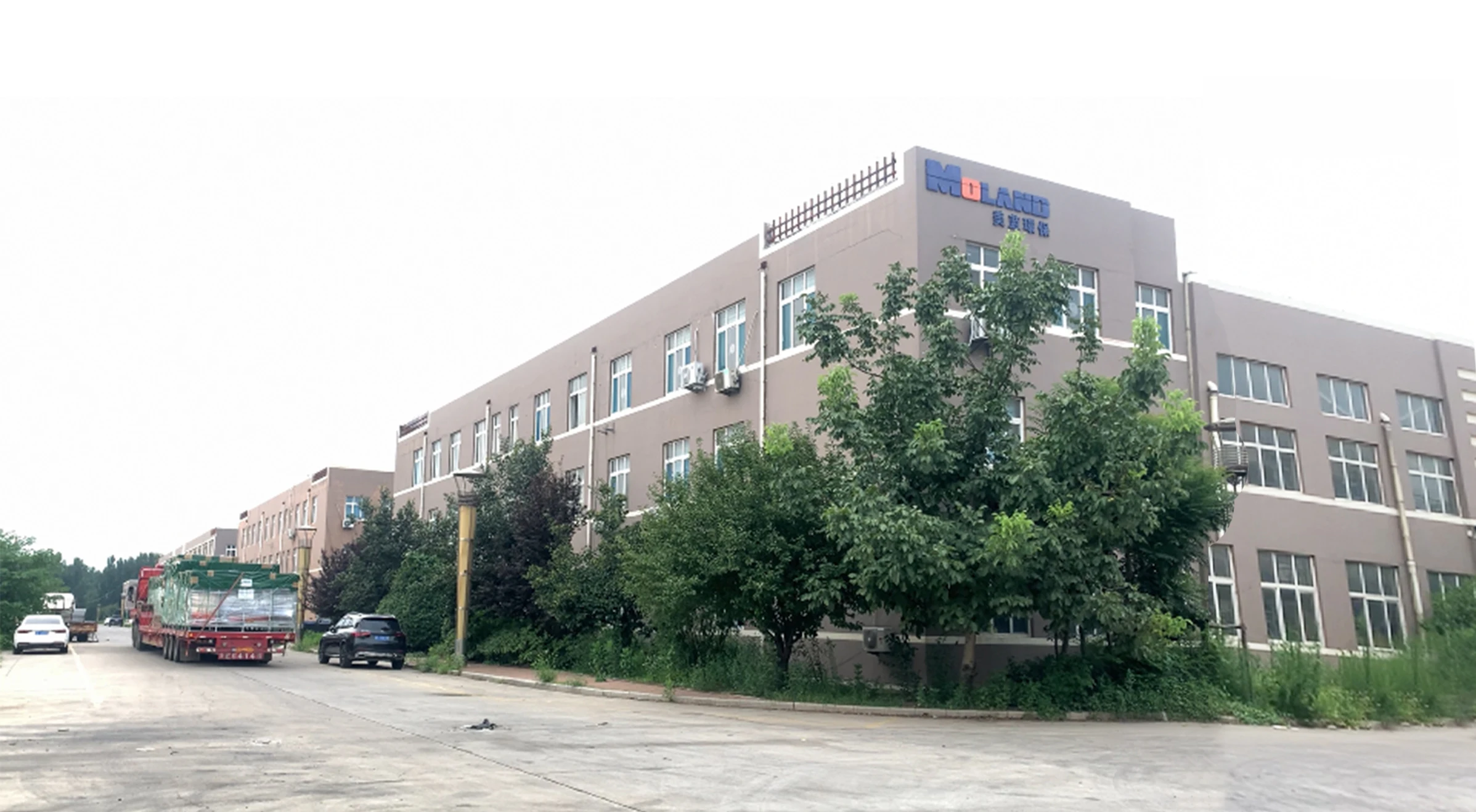

Shandong Moland Environmental Tech. Co.,Ltd
Shandong Moland Environmental Tech. Co.,Ltd is located in No. 11889 Jingshi West Road, Changqing District, Jinan City, Shandong, China, established in 2016. It’s an environmental protection technology enterprise specializing in research, development, manufacture and sale of efficient smoke purification systems.
The company is committed to reducing the environmental impact of production process, protecting workers from harmful gases and dust, and creating a cleaner working environment. At present, the company′s products have been successfully applied in automobile, railway, construction machinery, marine engineering, aviation and other mechanical processing industries, as well as new materials, grain, wood, recycled resources processing and other industries.
The company has passed the ISO 9001 quality management system certification, obtained the certification of China Environmental Protection Products issued by China Environmental Protection Industry Association, and CE certification of EU. It also has a number of invention patents, utility model patents and appearance patents. Through continuous R&D and innovation, many products of the company have reached the International leading level.
Moland′s environmental services cover the whole process from project design, product manufacturing to installation, commissioning and after-sales service. We will provide you with the most professional governance program and the best quality service.
Certifications
Product: CE, ISO9001, ISO14001, ISO45001, Third-party Inspection Reports, etc.
R&D: Utility Model Patent Certificate，Appearance Patent Certificate
Employee: Ecological Environment Technician Certificate， Senior Environmental Engineer， Welder Certificate， High Altitude Work Certificate, etc.
Company: High-tech Enterprise Certificate， Member of Environmental Protection Association， Honest Supplier Enterprise Certificate, CCTV Brand China column recommended brand, etc.
Employee: Ecological Environment Technician Certificate， Senior Environmental Engineer， Welder Certificate， High Altitude Work Certificate, etc.
Company: High-tech Enterprise Certificate， Member of Environmental Protection Association， Honest Supplier Enterprise Certificate, CCTV Brand China column recommended brand, etc.
Our advantage
Exhibition & Customer Feedback
FAQ
Q1:What's the OEM serivce of Moland?
A: Customized and OEM orders are welcome if you need. You only need to provide us with your logo drawing, function requirements, colors, etc.
Q2: What's the package?
A: We have 3 layers package. For the outside, we adopt wooden case. In the middle, the machine is covered by foam, to protect the machine from shaking. For the inside layer, the machine is covered by thickening plastic bag for waterproof.
Q3: Will the package damaged during transportation?
A: Our package is considerate all the damage factors and make it to be safe, and our shipping agent have rich experience in safe tranportation. We have exported to 80 countries worldwide. So please don't worry, you will receive the parcel in good condition.
Q4: How to install and run the machine?
A: Our technician have installed the machine before shipping. For some small parts installation, we will send detail training
video, user's manual along with the machine. 95% customers can learn by themselves.
Q5: How can I do if the machine goes wrong?
A: If confronted with such problems, please contact us asap and do not try fix the machine by yourself or someone else. We will response within 24 hours as quick as we can to solve it for you.
A: Customized and OEM orders are welcome if you need. You only need to provide us with your logo drawing, function requirements, colors, etc.
Q2: What's the package?
A: We have 3 layers package. For the outside, we adopt wooden case. In the middle, the machine is covered by foam, to protect the machine from shaking. For the inside layer, the machine is covered by thickening plastic bag for waterproof.
Q3: Will the package damaged during transportation?
A: Our package is considerate all the damage factors and make it to be safe, and our shipping agent have rich experience in safe tranportation. We have exported to 80 countries worldwide. So please don't worry, you will receive the parcel in good condition.
Q4: How to install and run the machine?
A: Our technician have installed the machine before shipping. For some small parts installation, we will send detail training
video, user's manual along with the machine. 95% customers can learn by themselves.
Q5: How can I do if the machine goes wrong?
A: If confronted with such problems, please contact us asap and do not try fix the machine by yourself or someone else. We will response within 24 hours as quick as we can to solve it for you.
