1 1/4' Y Type Agriculture irrigation equipment water filter machine for farm irrigation system
- Category: >>>
- Supplier: Fuzhou Qingcheng Irrigation Equipment Co. Ltd.
Share on (1601144314710):
Product Overview
Description
ARCK's WATER PURIFICATION FILTERS

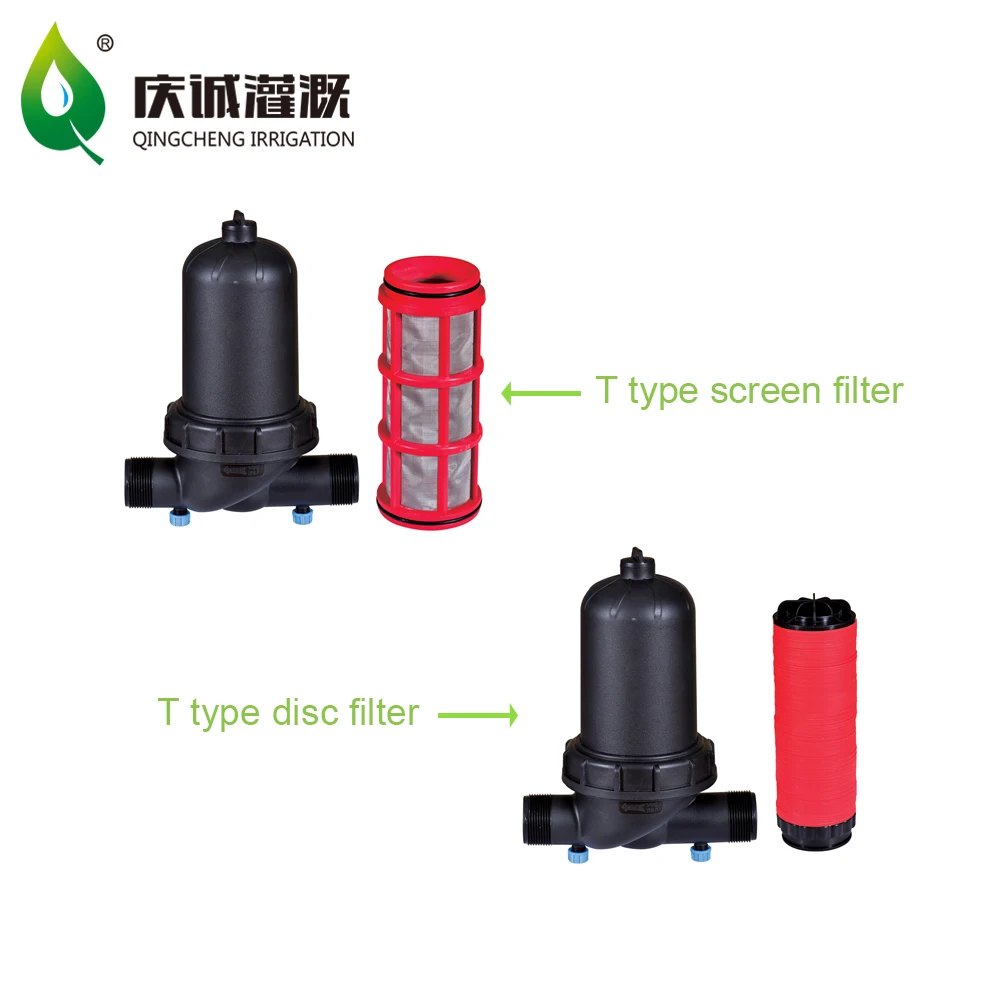

DISC FILTER & SCREEN FILTER
ARCK's screen filter uses a stainless steel wire mesh made of a special weaving process. It has the advantages of high strength,corrosion resistance, acid resistance and micron filtration accuracy.
We provide filters of different sizes and shapes to meet the special requirements of different pipe diameters and different flow rates. The filtration precision is between 20-600 microns.
ARCK's filters are suitable for domestic water, agricultural irrigation, garden irrigation, industrial water recycling.

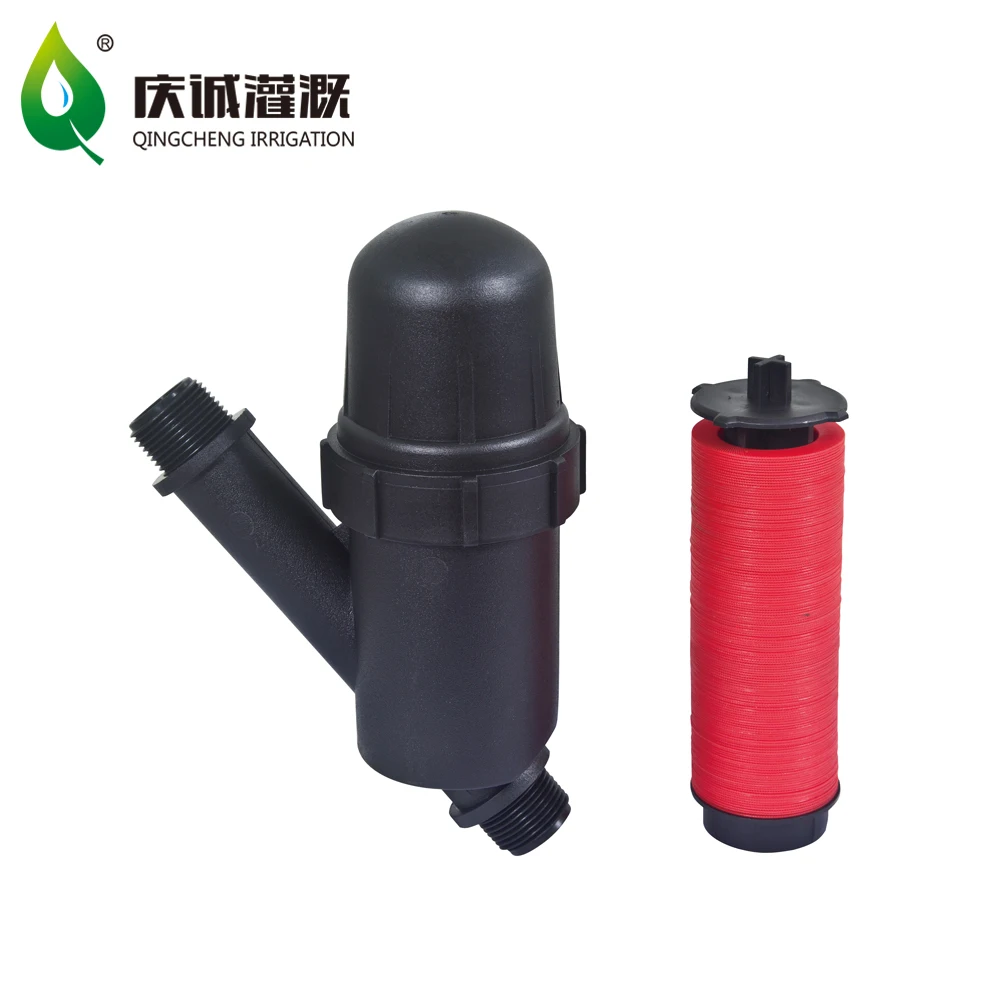

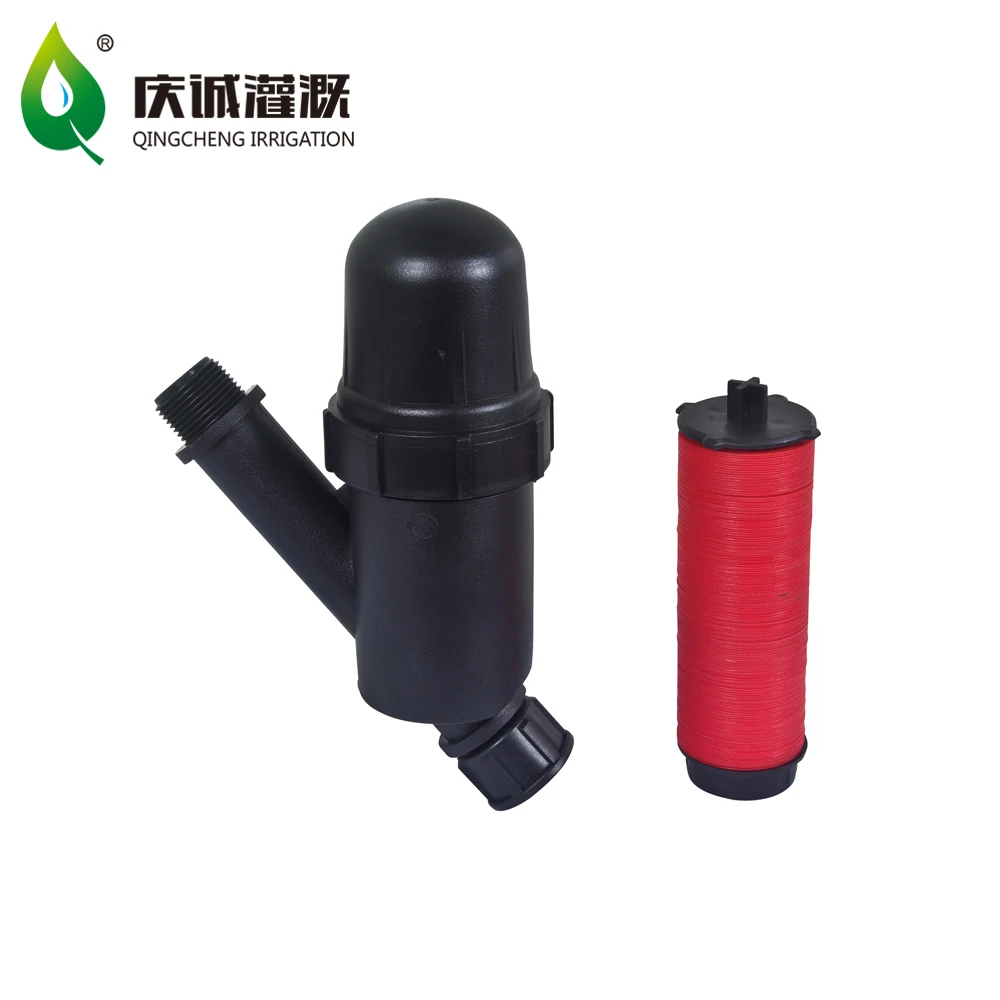

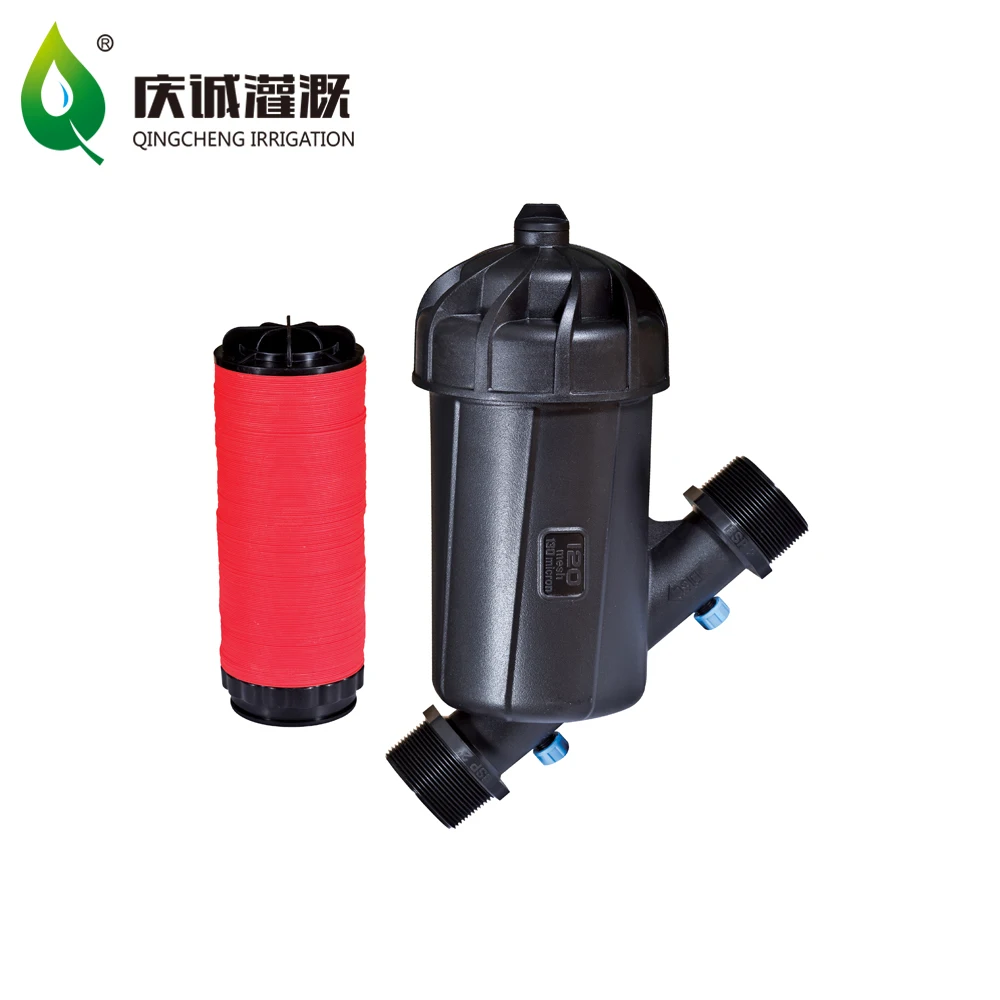

Both sides of each polypropylene disc are engraved with grooves in opposite directions.
All the discs are stacked in an orderly manner on the filter column, creating numerous small spaces due to the opposite direction of the grooves between adjacent laminations. Finally, a series of unique filter channels are formed to contain dirt impurities.
Therefore, every ARCK disc filter is a perfect depth filter unit. Filtration accuracy is determined by the depth and density of the grooves, and is distinguished by discs of different colors.
PRODUCT FEATURES
* Micron-level filtration precision.
* Innovative disc groove design, large dirt holding capacity.
* Acid and alkali resistance, corrosion resistance, long use time.
* Easy to assemble and disassemble, easy to clean the filter element.
* Various sizes and a wide range of choices.
* Innovative disc groove design, large dirt holding capacity.
* Acid and alkali resistance, corrosion resistance, long use time.
* Easy to assemble and disassemble, easy to clean the filter element.
* Various sizes and a wide range of choices.
AVAILABLE FILTER PRECISIONS | ||||||||||||
600 microns | 400 microns | 200 microns | 130 microns | 100 microns | 50 microns | 20 microns | ||||||
(30 mesh) | (30 mesh) | (30 mesh) | (30 mesh) | (30 mesh) | (30 mesh) | (30 mesh) | ||||||
Technical Parameter
MODEL & TECHNICAL DATA | ||||||
Model | Connection BSP/NPT | Max.Flow | Filtering Surface | |||
1725D120M | 3/4" | 5 m2/h | 90 m2 | |||
1732D120M | 1" | 6 m2/h | 90 m2 | |||
1725D120FM | 3/4" | 5 m2/h | 90 m2 | |||
MODEL & TECHNICAL DATA | ||||||
Model | Connection BSP/NPT | Max.Flow | Filtering Surface | |||
FDY025 | 3/4" | 6 m2/h | 180 m2 | |||
FDY032 | 1" | 6 m2/h | 180 m2 | |||
MODEL & TECHNICAL DATA | ||||||
Model | Connection BSP/NPT | Max.Flow | Filtering Surface | |||
1740D120 | 1-1/4" | 15 m2/h | 300 m2 | |||
1750D120 | 1-1/2" | 20 m2/h | 525 m2 | |||
FDY02120 | 2" | 25 m2/h | 525 m2 | |||
FDY02175 | 2-1/2" | 35 m2/h | 600 m2 | |||
FDY02190 | 3" | 35 m2/h | 600 m2 | |||
MODEL & TECHNICAL DATA | ||||||
Model | Connection BSP/NPT | Max.Flow | Filtering Surface | |||
1740DT120 | 1-1/4" | 15 m2/h | 300 m2 | |||
1750DT120 | 1-1/2" | 20 m2/h | 300 m2 | |||
1763DT120 | 2" | 20 m2/h | 300 m2 | |||
Dimension
Appearance Dimensions of The Product | ||||||||||||||
Model | A (BSP/NPT) | B (BSP/NPT) | E (BSP) | M (BSP) | H (mm) | W (mm) | X (mm) | |||||||
1725D120M | 3/4" Male | 3/4" Male | —— | —— | 140 | 180 | —— | |||||||
1732D120M | 1" Male | 1" Male | —— | —— | 140 | 180 | —— | |||||||
1725D120FM | 3/4" Female | 3/4" Male | —— | —— | 140 | 180 | —— | |||||||
FDY025 | 3/4" Male | 3/4" Male | 3/4" Male | 1/4" | 172 | 170 | 165 | |||||||
FDY032 | 1" Male | 1" Male | 3/4" Male | 1/4" | 172 | 170 | 165 | |||||||

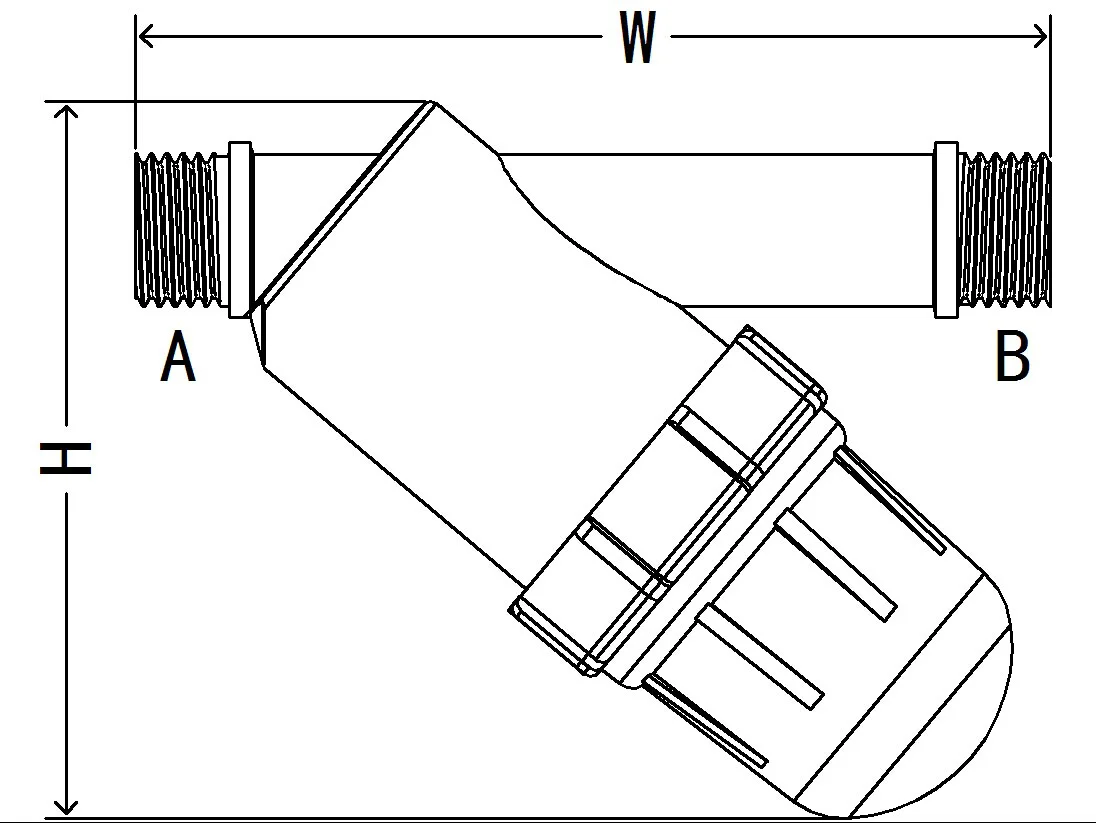

1725D120M/1732D120M

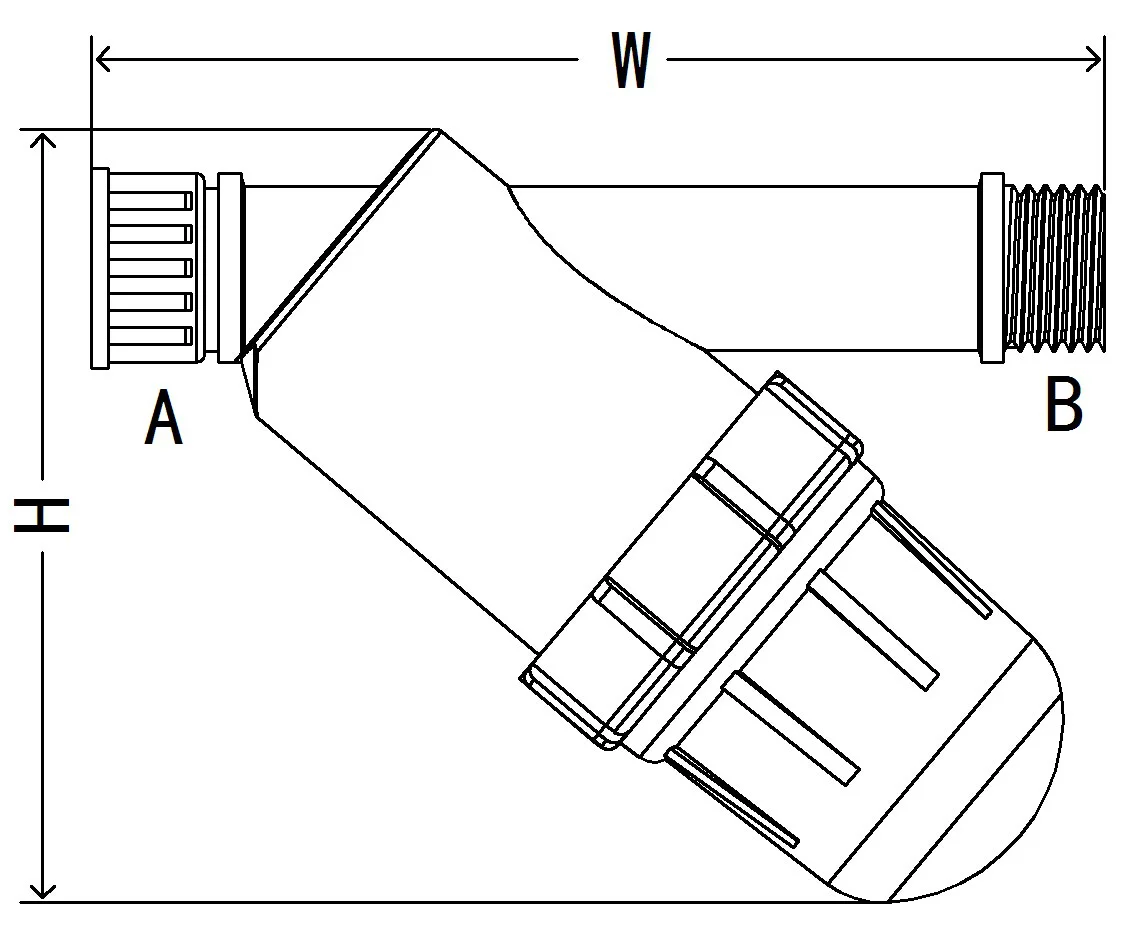

1725D120FM

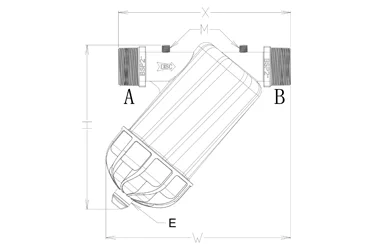

FDY025/FDY032

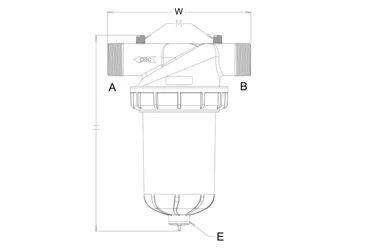

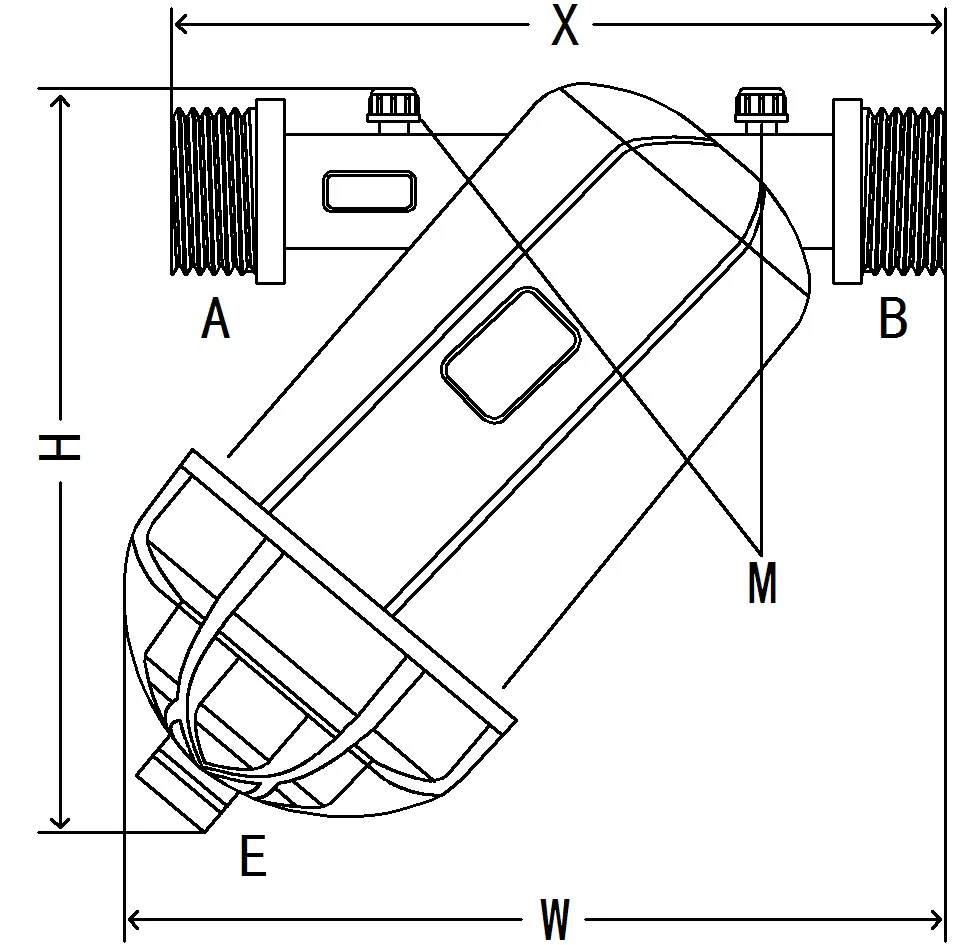

Appearance Dimensions of The Product | ||||||||||||||
Model | A (BSP/NPT) | B (BSP/NPT) | E (BSP) | M (BSP) | H (mm) | W (mm) | X (mm) | |||||||
1740D120 | 1-1/4" Male | 1-1/4" Male | 3/4" Male | —— | 200 | 245 | 245 | |||||||
1750D120 | 1-1/2" Male | 1-1/2" Male | 3/4" Male | —— | 200 | 245 | 245 | |||||||
FDY02120 | 2" Male | 2" Male | 3/4" Male | 1/4" | 220 | 270 | 270 | |||||||
FDY02175 | 2-1/2" Male | 2" Male | 3/4" Male | 1/4" | 323 | 339 | 290 | |||||||
FDY02190 | 3" Male | 3" Male | 3/4" Male | 1/4" | 323 | 339 | 290 | |||||||
1740DT120 | 1-1/4" Male | 1-1/4" Male | 3/4" Female | 1/4" | 280 | 205 | —— | |||||||
1750DT120 | 1-1/2" Male | 1-1/2" Male | 3/4" Female | 1/4" | 280 | 205 | —— | |||||||
1763DT120 | 2" Male | 2" Male | 3/4" Female | 1/4" | 280 | 205 | —— | |||||||
