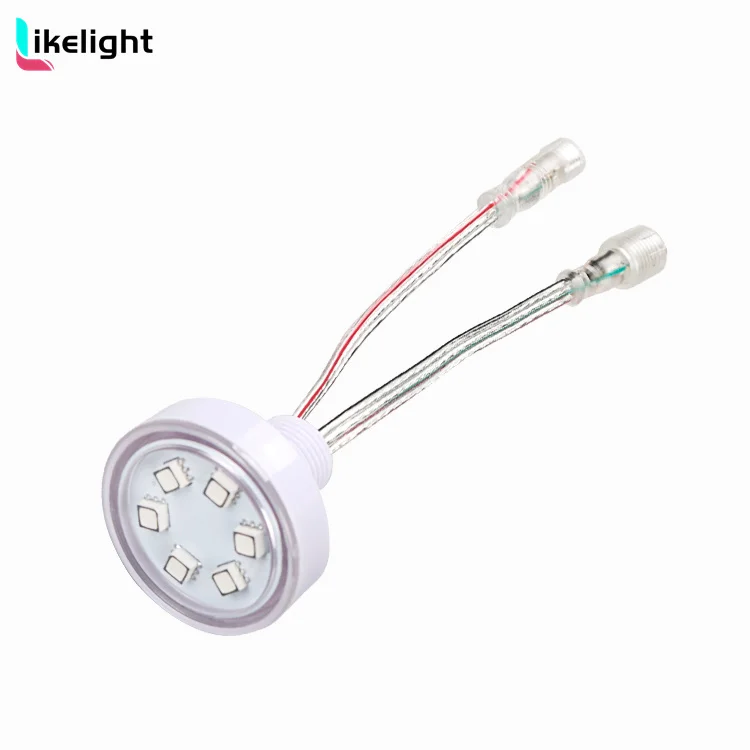

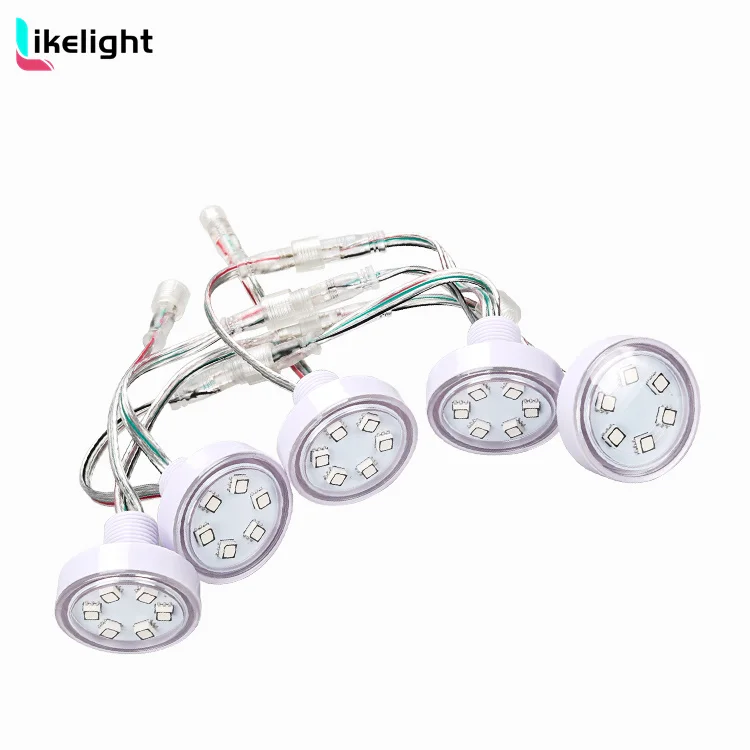

High quality Colorful SMD5050 led pixel module 38mm 6leds RGB cabochon shell Outdoor Amusement Carnival light
- Category: >>>
- Supplier: Shenzhen Like Light Co. Limited.
Share on (1601144521399):
Product Overview
Description
Products Description
Part NO： | L-D-386-24V |
Diameter (mm) : | 38 mm |
drilling hole size: | 18mm |
Waterproof Grade: | IP67 |

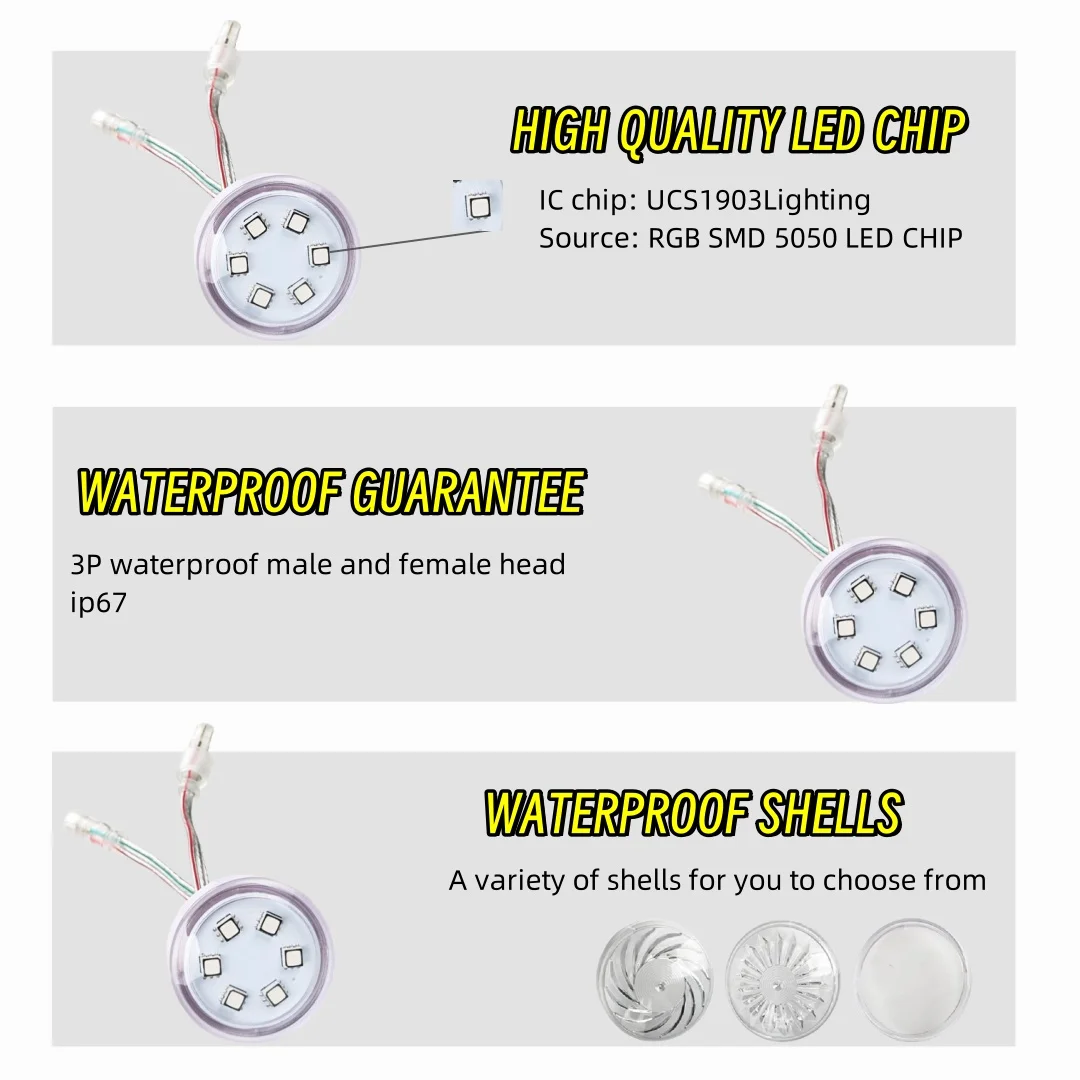

IC chip: | UCS1903 |
Lighting Source: | RGB SMD 5050 LED CHIP |
Operate Voltage : | DC24V |
Wattage : | 1.44W |
eam Angel : | 180 degree |
Features:

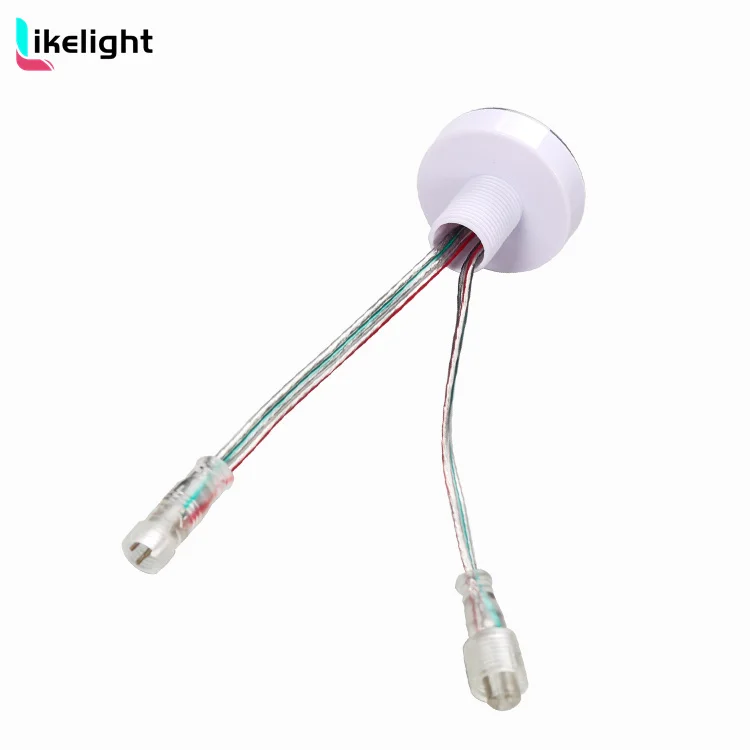

1.UCS1903 cabochon led rgb bulb light with UCS1903ic chip built in, 3PinJST SM connectors and power wire contained,
2.SPI signal, sd card led controller work together,support numerous color-changing effects.
3.5.5cm wire length ,7PCS SMD5050 RGB leds,long lifespan and lower power consumption,customized wire length is available.
4.Equipped with a plastic screw nut,easy to install.
5. Energy-saving, the same lighting efficiency than traditional bulb to save electricity 75-80%,CE & RoHS approval.
6.Lamps optical attenation: 1,000 hours attenuation less than 5%, Long-term use without the need for replacement
2.SPI signal, sd card led controller work together,support numerous color-changing effects.
3.5.5cm wire length ,7PCS SMD5050 RGB leds,long lifespan and lower power consumption,customized wire length is available.
4.Equipped with a plastic screw nut,easy to install.
5. Energy-saving, the same lighting efficiency than traditional bulb to save electricity 75-80%,CE & RoHS approval.
6.Lamps optical attenation: 1,000 hours attenuation less than 5%, Long-term use without the need for replacement

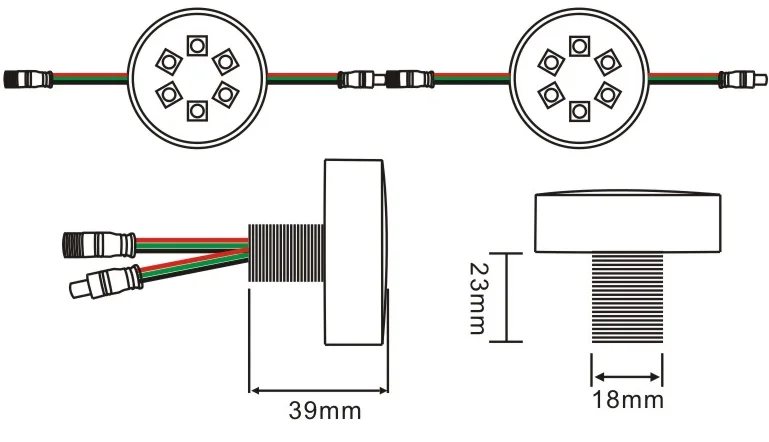

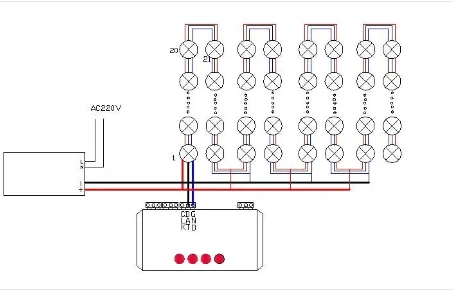

Dimensional drawing & installation

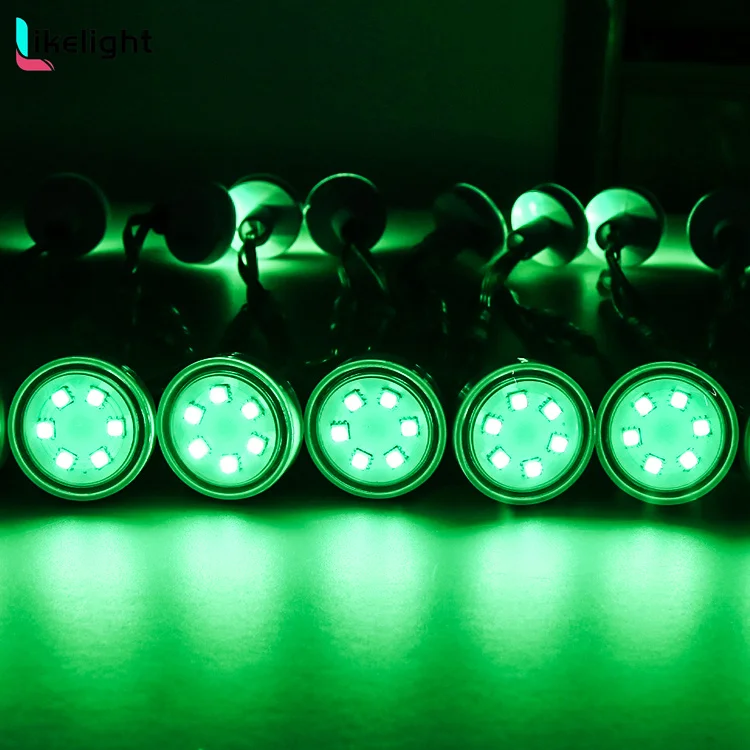

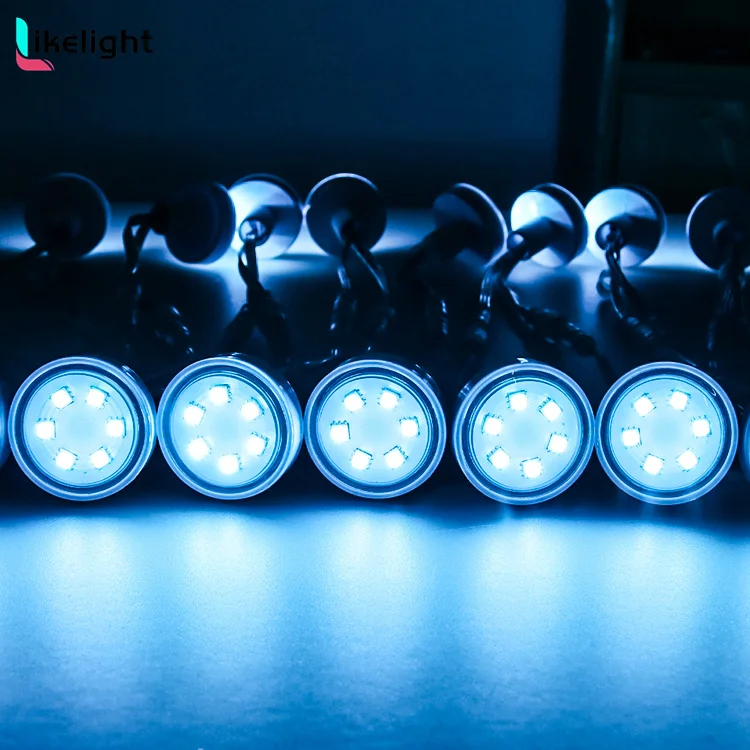

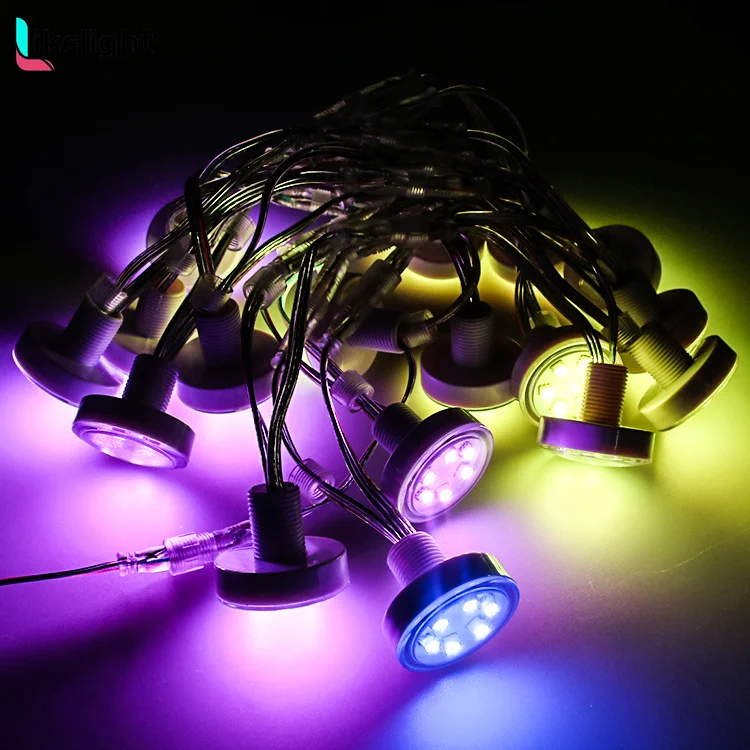

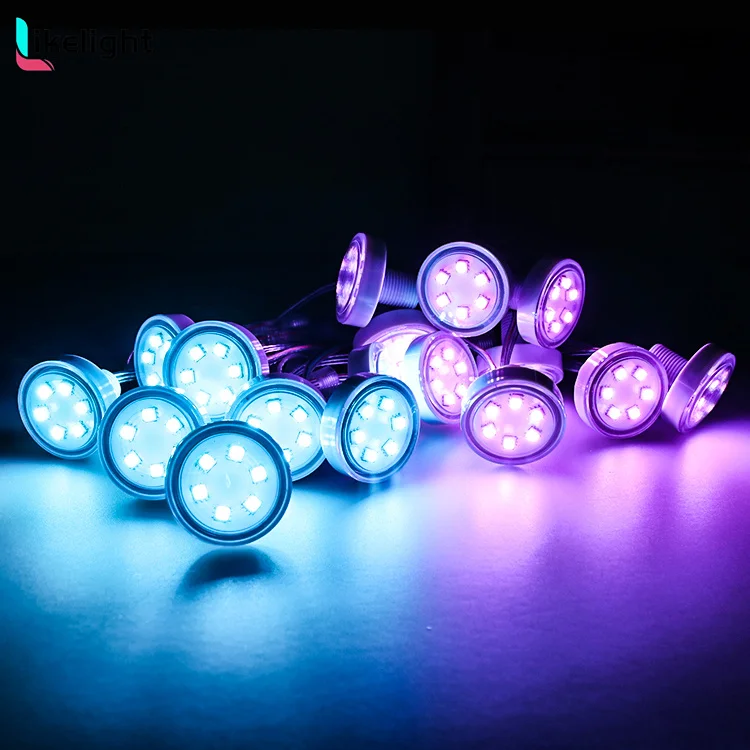

Lighting pattern

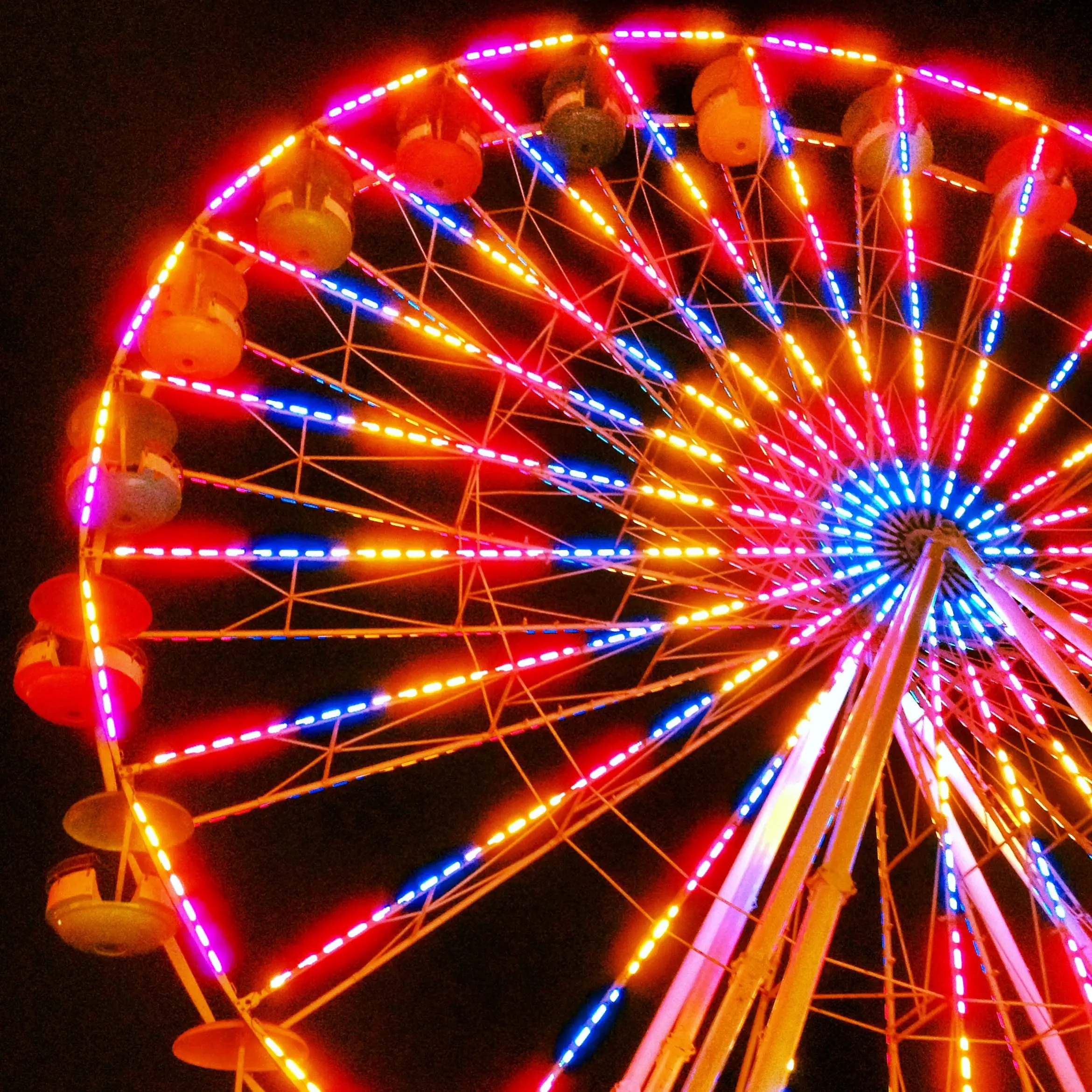

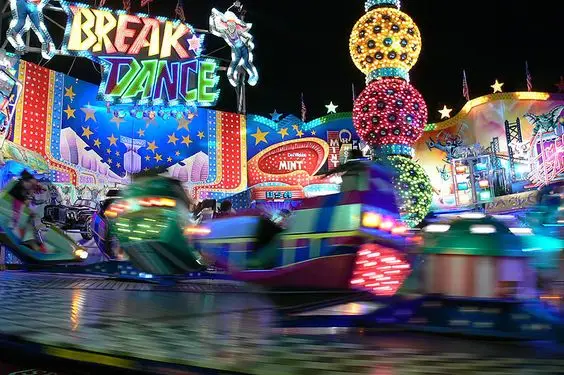

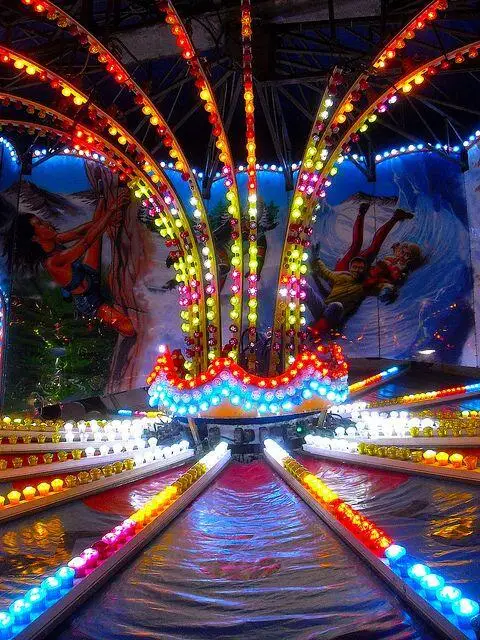

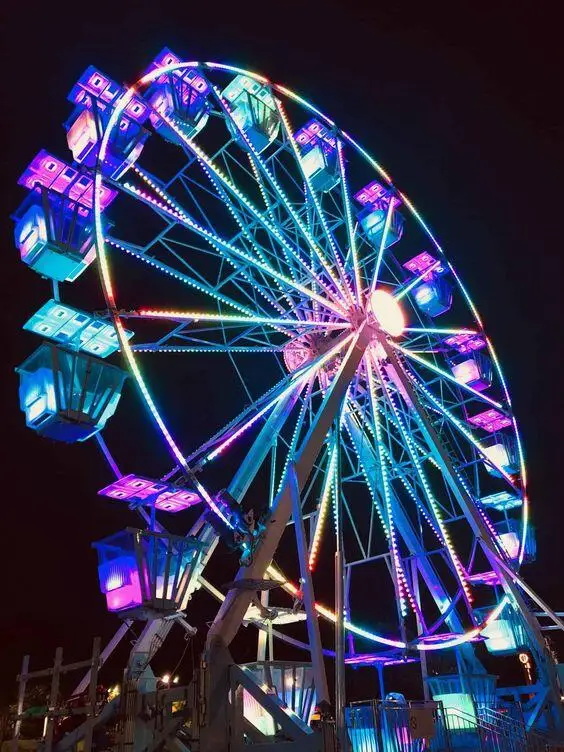

Applications
The 38mm 6led/9led pixel LED designed for
outdoor amusement park lighting,
Ferris wheels,
Outdoor signboard
Casino Sign
Amusement park rides
Playground fair lighting
Game machine, traveling funfair
Funfair playground, waltzer land
outdoor amusement park lighting,
Ferris wheels,
Outdoor signboard
Casino Sign
Amusement park rides
Playground fair lighting
Game machine, traveling funfair
Funfair playground, waltzer land

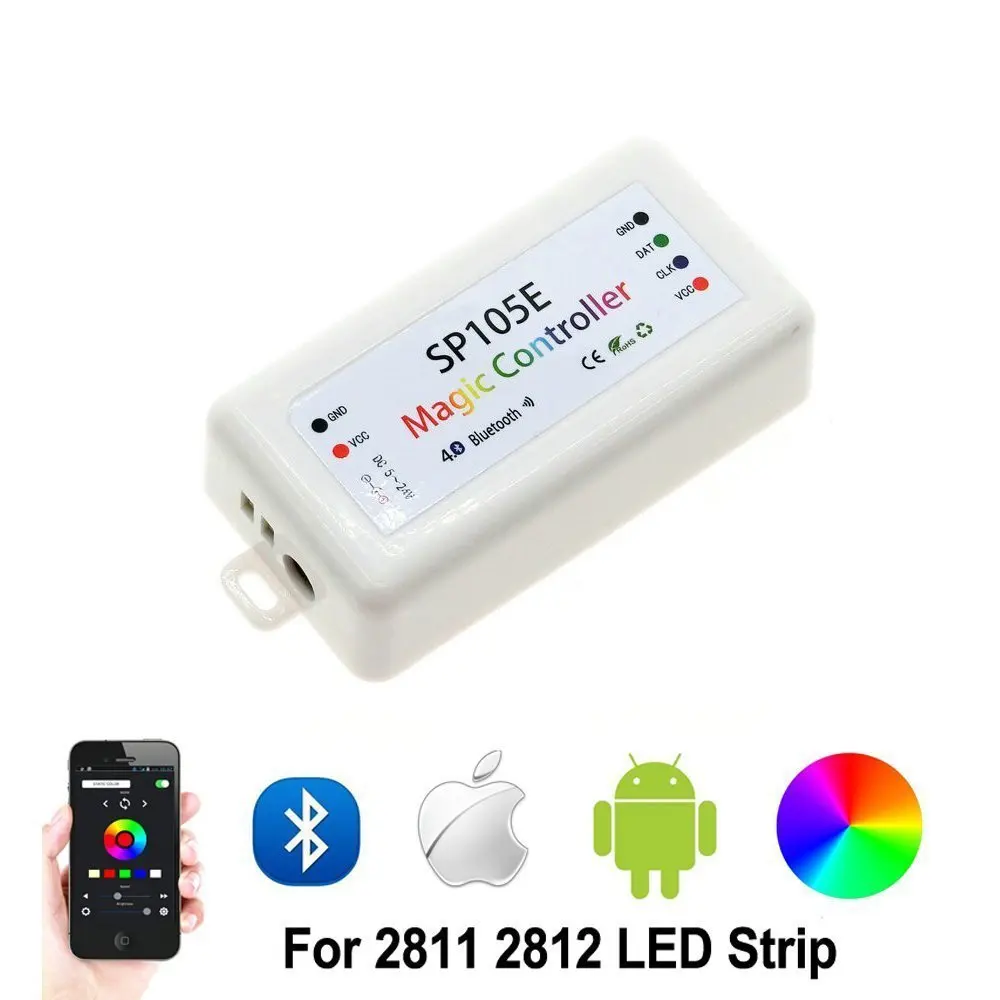

Control Components
Certifications
Company Profile
Packing & FAQ
1.PCB board: Like Light use at least 2 ounces pcb board, some are 3 ounces and 4 ounces for better dissipation. They are 100% pure copper. Most of our PCB board are UL listed from the PCB producer of Hongqi Lighting and Founder Soonest Electronics.
2.LED Chip: Epistar brand led chips. Like Light could do other brand chips according to customer's request, such as, Cree,
Samsung, Philips, San'an, Honglitronic and Smalite led chips. We only focus on high quality led chips.
3.Color Rendering Index: Like Light use at least Ra80 led chips to do our led strip lights. When we test by the integrating sphere machine, it usually shows Ra83 for most of our led chips. We also use many Ra90 and Ra95 led chips for special projects. We can offer the test report for each batch of our led strip light.
4.Uniformity: It's very important to our customers that Like Light always keep the same bin color temperature for all our led
strip lights.
5.Waterproof Rating: We could not only offer traditional IP65, IP67, IP68 waterproof process, but also new silicon extrusion
process for IP65, IP66, IP67, IP68 waterproof ratings in dotless milk encapsulations. Most of our waterproof mold are private mode.
6.Engineer Team: Like Light have our own engineer team. Whatever flexible strip pcb , rigid strip pcb or led pixel module, our engieer team can draw file for customers at first time. We welcome all OEM and ODM orders from all over t
7.Service: Like Light led strips are CE, ROHS, We warranty 2-3 years. Welcome to visit our factory !he world.
2.LED Chip: Epistar brand led chips. Like Light could do other brand chips according to customer's request, such as, Cree,
Samsung, Philips, San'an, Honglitronic and Smalite led chips. We only focus on high quality led chips.
3.Color Rendering Index: Like Light use at least Ra80 led chips to do our led strip lights. When we test by the integrating sphere machine, it usually shows Ra83 for most of our led chips. We also use many Ra90 and Ra95 led chips for special projects. We can offer the test report for each batch of our led strip light.
4.Uniformity: It's very important to our customers that Like Light always keep the same bin color temperature for all our led
strip lights.
5.Waterproof Rating: We could not only offer traditional IP65, IP67, IP68 waterproof process, but also new silicon extrusion
process for IP65, IP66, IP67, IP68 waterproof ratings in dotless milk encapsulations. Most of our waterproof mold are private mode.
6.Engineer Team: Like Light have our own engineer team. Whatever flexible strip pcb , rigid strip pcb or led pixel module, our engieer team can draw file for customers at first time. We welcome all OEM and ODM orders from all over t
7.Service: Like Light led strips are CE, ROHS, We warranty 2-3 years. Welcome to visit our factory !he world.
