Product Overview
Description
Can customize your logo

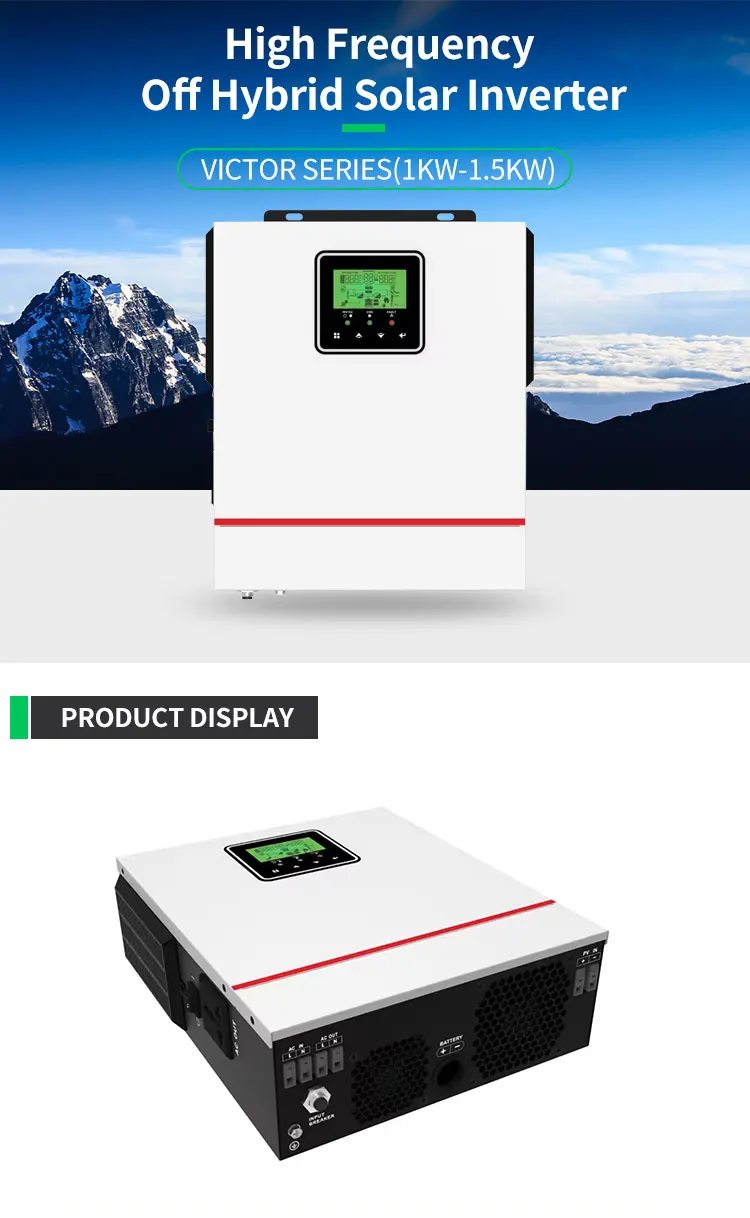

Product Display
Model | VICTOR XC-1000-12 | VICTOR XC-1500-24 | |||||
RATED POWER | 1000W/1000VA | 1500W/1500VA | |||||
Voltage | 230VAC | ||||||
Selectable Voltage Range | 170~280VAC(For Persona Computers) | ||||||
90~280VAC(For Home Appliances) | |||||||
Frequency Range | 50 Hz/60Hz(Auto sensing) | ||||||
AC Voltage Regulation | 230VAC±5% | ||||||
Surge Power | 2000VA | 3000VA | |||||
Efficiency(Peak)PV tcINV | 98% | ||||||
Efficiency (Peak)Battery to INV | 94% | ||||||
Transfer Time | 10 ms | ||||||
Battery Voltage | 12VDC | 24VDC | |||||
Floating Charge Vcltage | 13.5VDC | 27VDC | |||||
Overcharge Protection | 16VDC | 32VDC | |||||
Solar Charger Type | MPPT | ||||||
Maximum PV Array Power | 600W | 1200W | |||||
MPPT Range @ Operating Voltage | 20-150VDC | 30-150VDC | |||||
Maximum PV Array Open Circuit Voltage solar | 150VDC | ||||||
Maximu Solar Charging Current | 40A | ||||||
Maximum AC Charging Current | 40A | ||||||
Maximum Solar+A.C Charging Current | 80A | ||||||
Dimension,D*W*H(mm) | 290*240*91 | ||||||
Cartoor: Dimensior,D'W*Himm) | 340*295* 145 | ||||||
Net Weight(kgs) | 3 .5 | 3 .6 | |||||
GrosE Weight(kgs) | 4 .0 | 4 .2 | |||||
Humidity | 5% to 95% Relative Humidity(Non~condensing) | ||||||
Operating Temperature | -10℃-50℃ | ||||||
Complian CE Safety | CE | ||||||

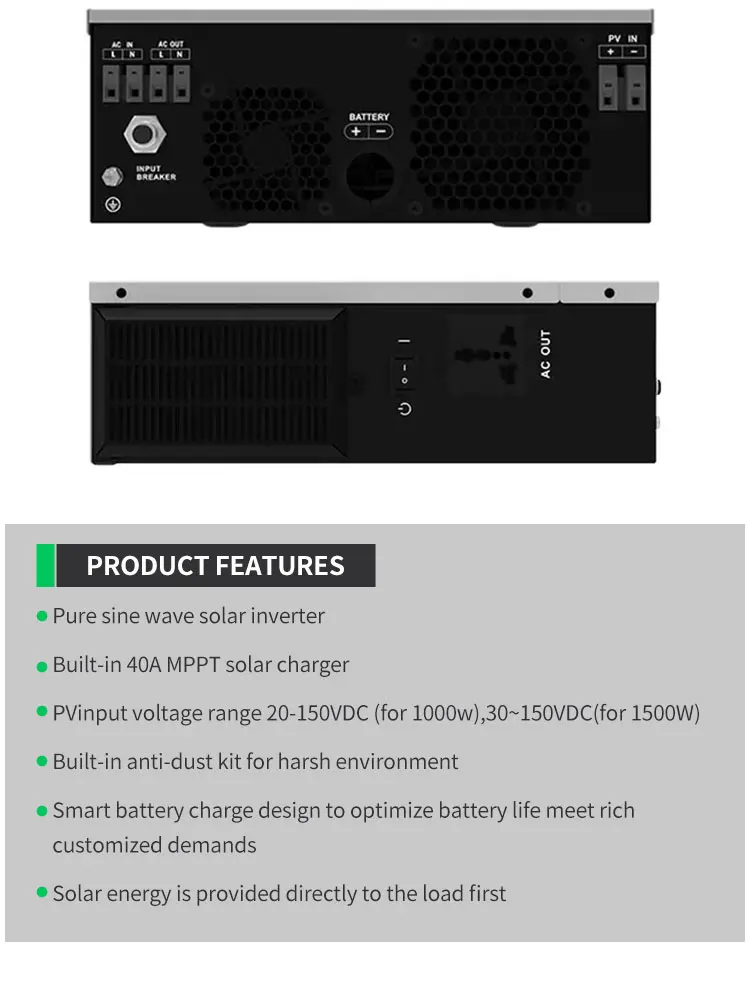

PRODUCT FEATURES
●Pure sine wave solar inverter
●Built-in 40A MPPT solar charger
●PVinput voltage range 20-150VDC (for 1000w),30~150VDC(for 1500W)
●Built-in anti-dust kit for harsh environment
●Smart battery charge design to optimize battery life meet rich customized demands
●Solar energy is provided directly to the load first
●Built-in 40A MPPT solar charger
●PVinput voltage range 20-150VDC (for 1000w),30~150VDC(for 1500W)
●Built-in anti-dust kit for harsh environment
●Smart battery charge design to optimize battery life meet rich customized demands
●Solar energy is provided directly to the load first

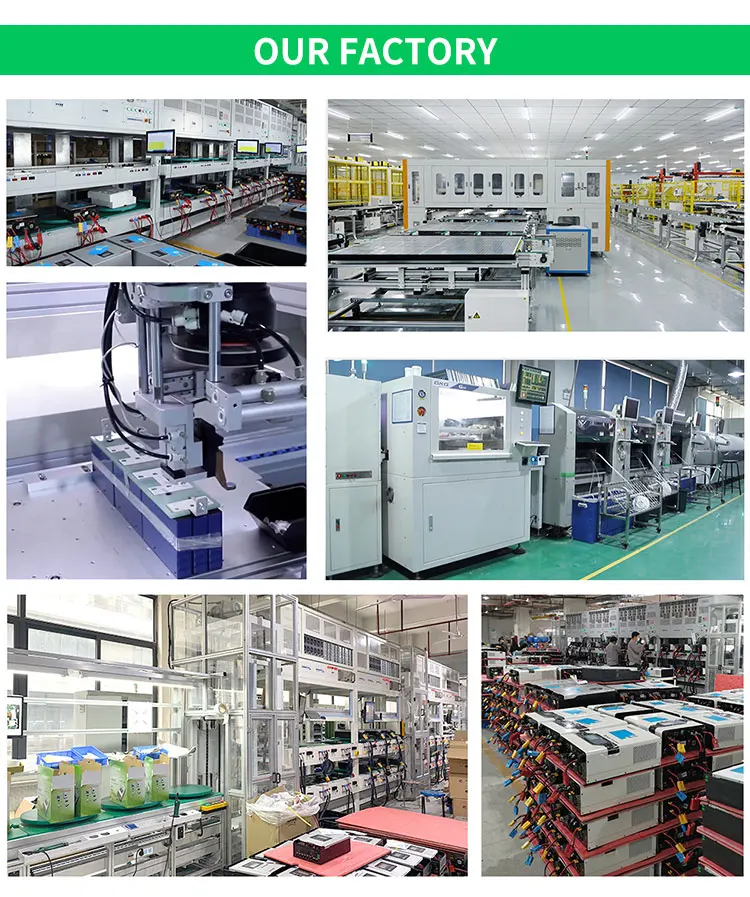

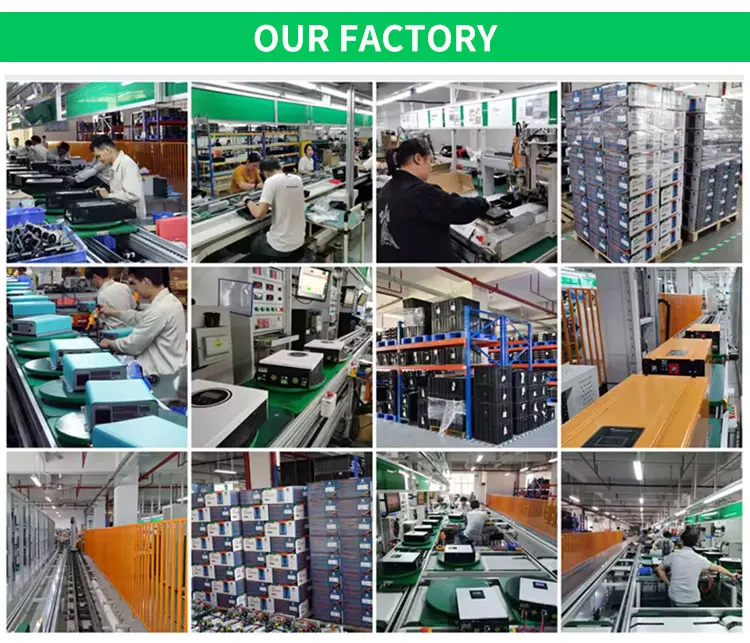

Our Factory
