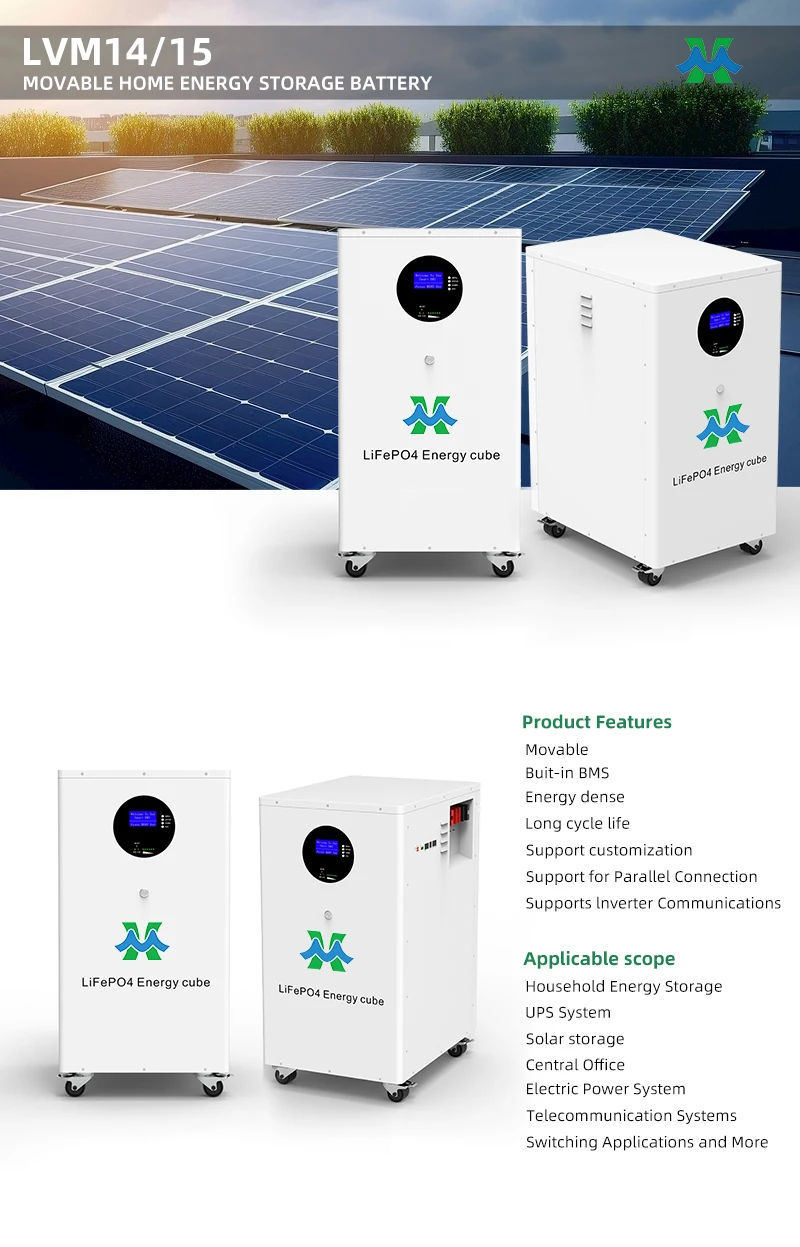

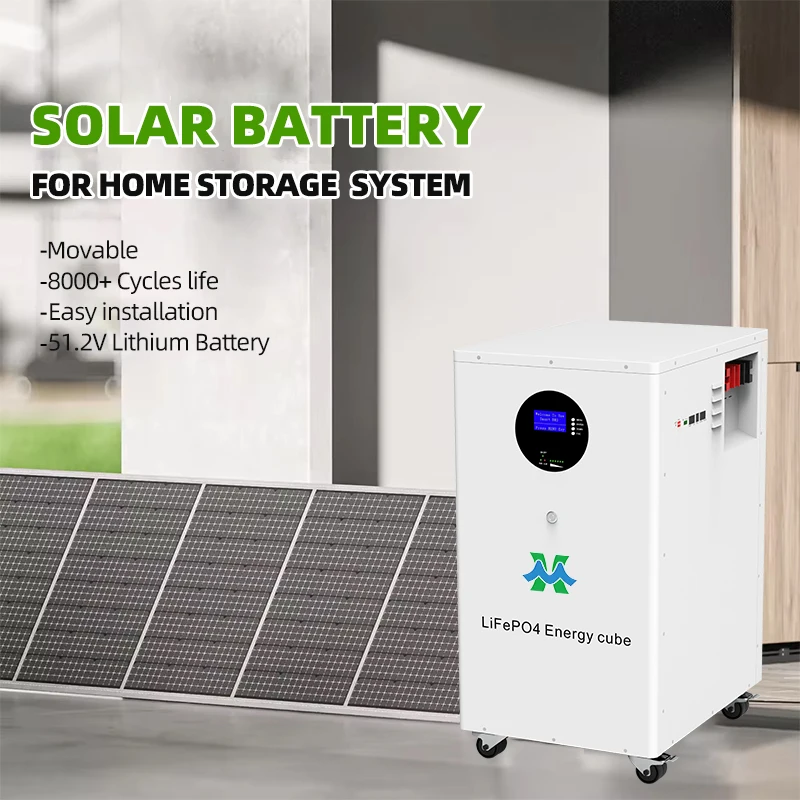

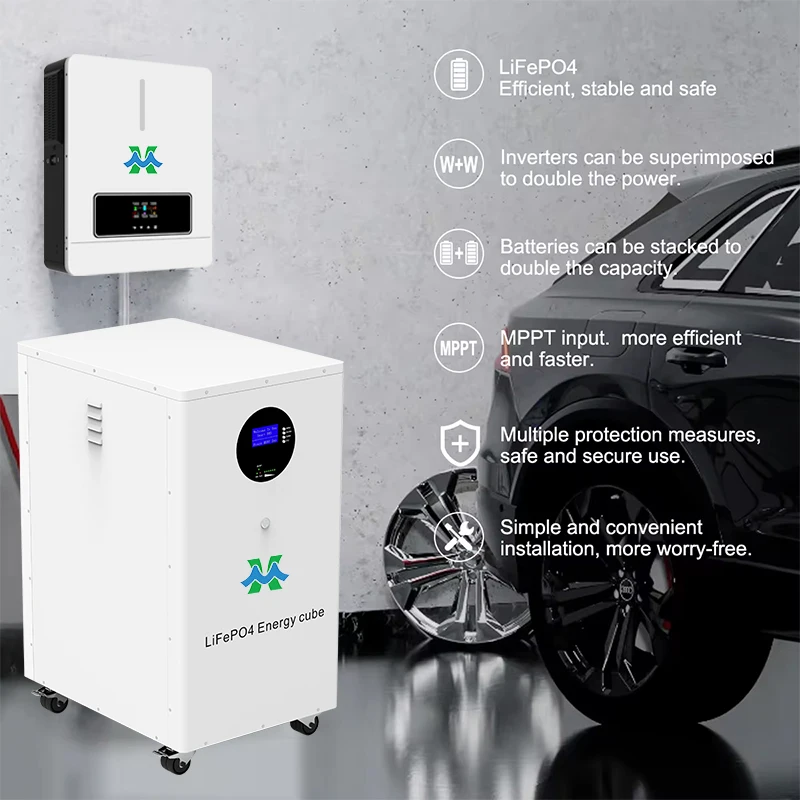

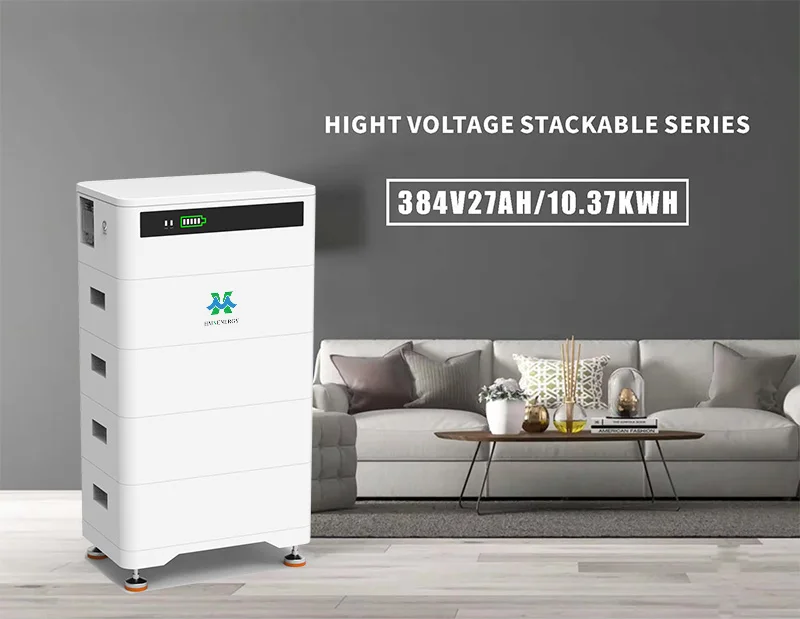

Home Energy Storage Battery 10kwh 20kwh 384V 27Ah Lifepo4 Battery High Voltage Lifepo4 Battery
- Category: >>>
- Supplier: Shenzhen Huiming New Energy Co. Ltd.
Share on (1601144660344):
Product Overview
Description
Product details
Specification
Model | HM-51.2V280Ah | HM-51.2V300Ah | |
Rated Voltage | 51.2V | 51.2V | |
Rated Capacity | 280Ah | 300Ah | |
Rated Energy | 14.34Kwh | 15.34Kwh | |
Charge cut-off voltage | 58.4V | ||
Discharge cut-off voltage | 44.8V | ||
Max. Charging Current | 150A | ||
Recommended Charging Current | 50A | ||
Max.Discharging Current | 150A | ||
Efficiency | >98% | ||
Dimension L*W*H( mm ) | 570*420*740 | 570*420*740 | |
Weight ( kg ) | ≈137kg | ≈152kg | |
Humidity | 5%~95% Relative humidity | ||
Discharge way | CC/CPVP | ||
Discharge current | 0.5C(standard) | ||
Maximum discharge current | 1C @25C | ||
Indicator | LED | ||
Communication interface | RS485/RS232/CAN | ||
Charging operating temperature | charging:0~+50℃ | ||
Discharge operating temperature | discharge:-20~+55℃ | ||
Warranty | 60 months | ||

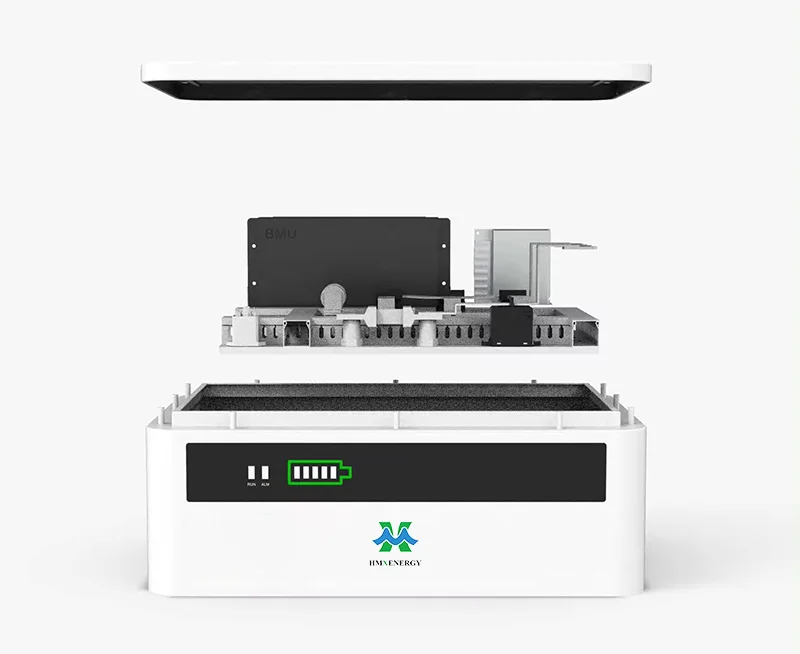

BMU-SMART BATTERY MANAGEMENT SYSTEM
For battery group and single series cells, it provides hardware and software protectionfunctions such as over voltage, under-voltage,charge-discharge ove-current,high-low temperature and short circult, etc.The system terminal recelves SOC and SOH information throuar:RS485-Aand RS485-B interfaces,it can calculate the presentbattery capacity by real-time monitoring voltage and current; makes relevant controland protection actions by monitoring various protection states; and has itelligent celeaua ization function to improve the battery pack's effective use time and cvcle ife
Communication Support

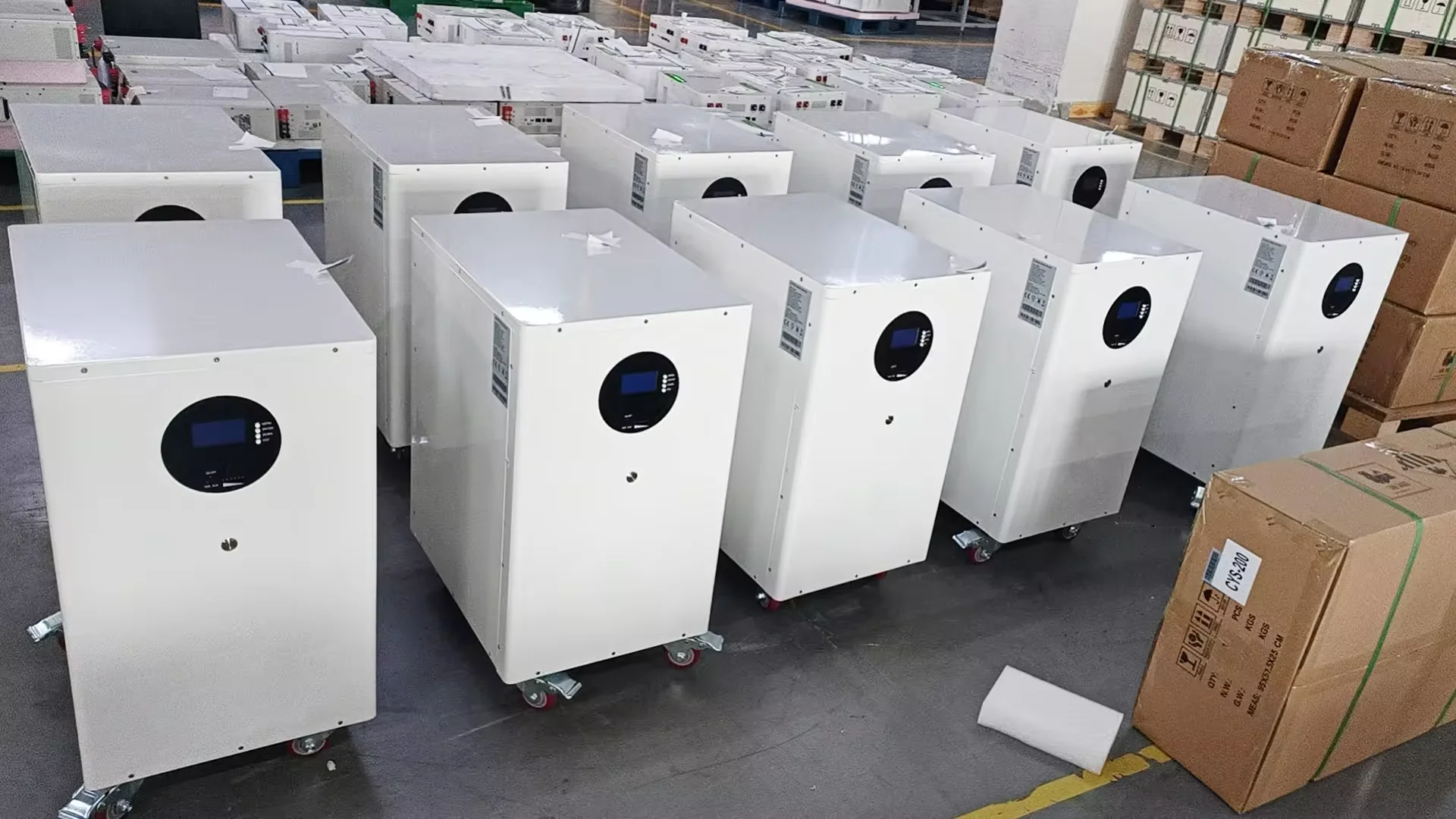

Packaging

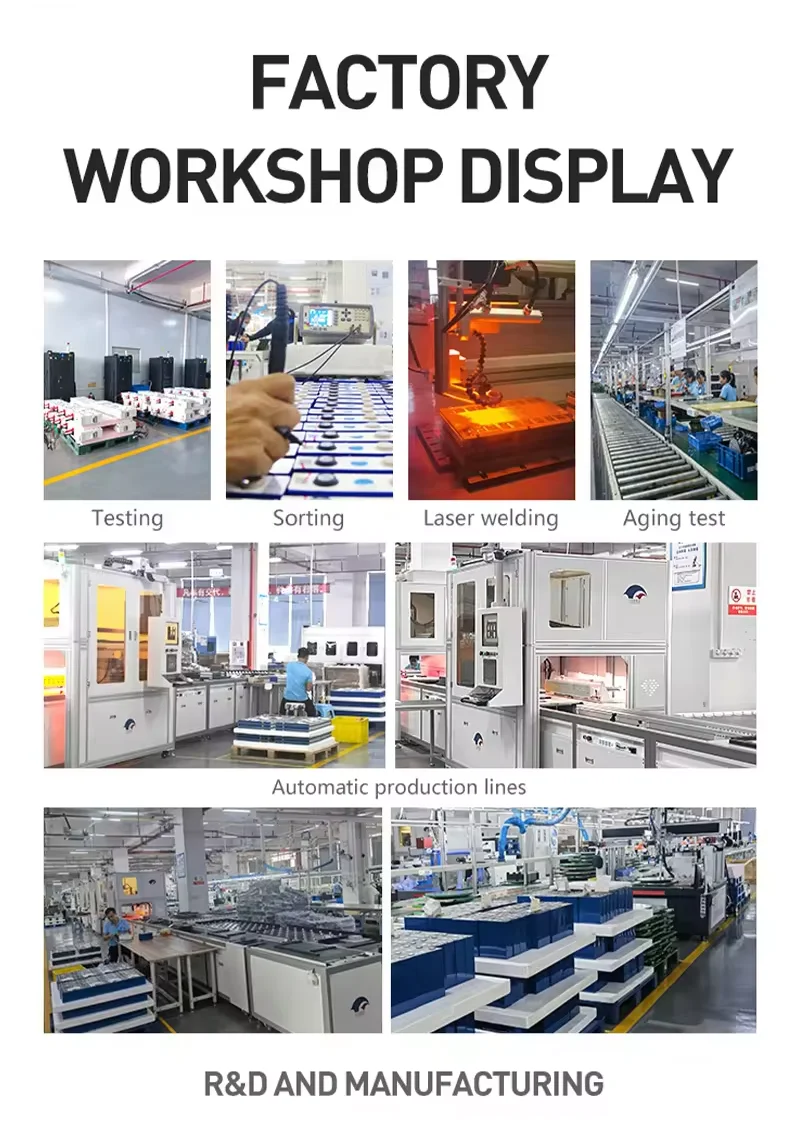

Company Profile
Certification
HMX-ENERGY have CB-IEC62619, CE-EMC, MSDS, UN38.3 and so on
FAQ and Precautions
1.Q:How long is the delivery time of your products?
A:Usually about 7days .
2.Q:What kind of certificates your products have?
A:GSL ENERGY battery products have acquired UN38.3, CE, FCC, UL and PSE certificates, which is able to satisfy most country’s importing requirements.
3.Q:Can you supply OEM &ODM service ?
A:Yes, Meet minimum order quantity required.
4.Q:Can you ship your battery products by sea or by air ?
A: Usually by sea, We have cooperated professional forwarder
5.Q:How long is the warranty?
A:Our warranty is from 10 years.
6.Q:How do you provide after-sales service?
A:Overseas branches can provide repair and replacement.
7.Q:Can I get a sample?
A:Yes, please leave your contact information and our sales manager will contact you soon.
A:Usually about 7days .
2.Q:What kind of certificates your products have?
A:GSL ENERGY battery products have acquired UN38.3, CE, FCC, UL and PSE certificates, which is able to satisfy most country’s importing requirements.
3.Q:Can you supply OEM &ODM service ?
A:Yes, Meet minimum order quantity required.
4.Q:Can you ship your battery products by sea or by air ?
A: Usually by sea, We have cooperated professional forwarder
5.Q:How long is the warranty?
A:Our warranty is from 10 years.
6.Q:How do you provide after-sales service?
A:Overseas branches can provide repair and replacement.
7.Q:Can I get a sample?
A:Yes, please leave your contact information and our sales manager will contact you soon.
