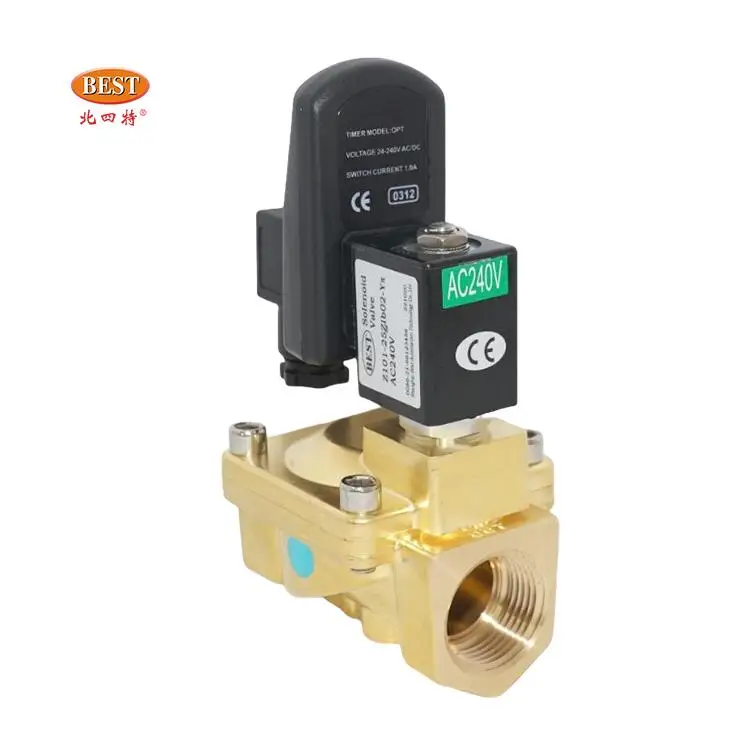

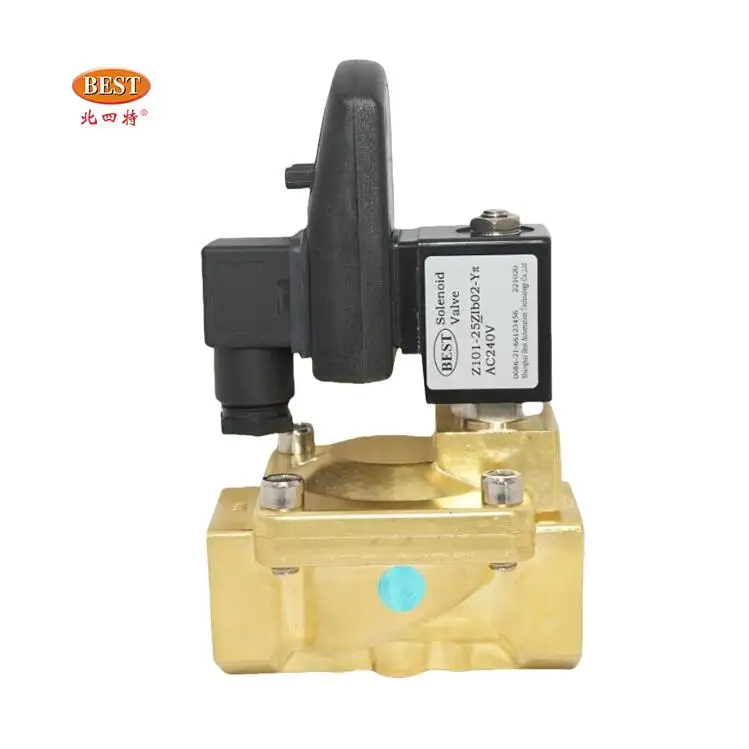

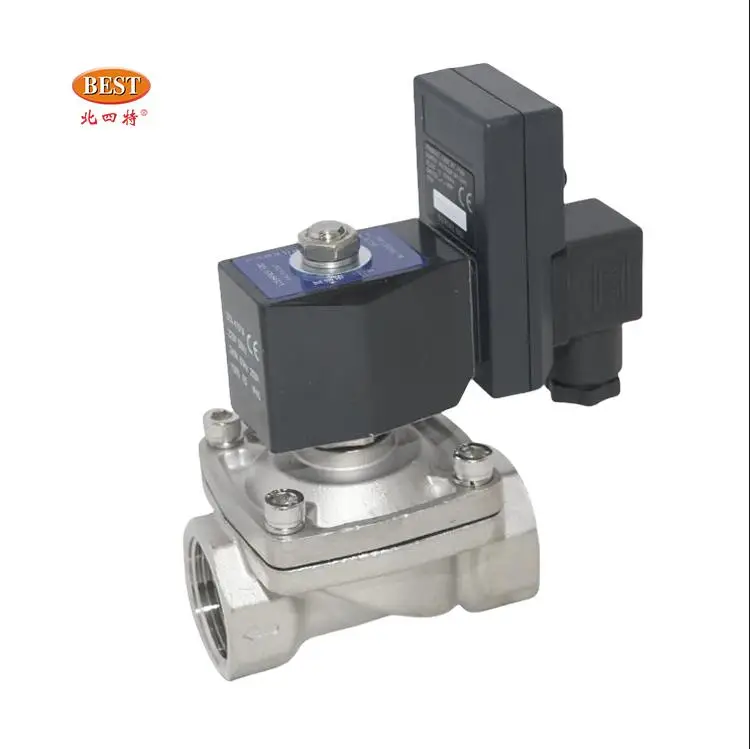

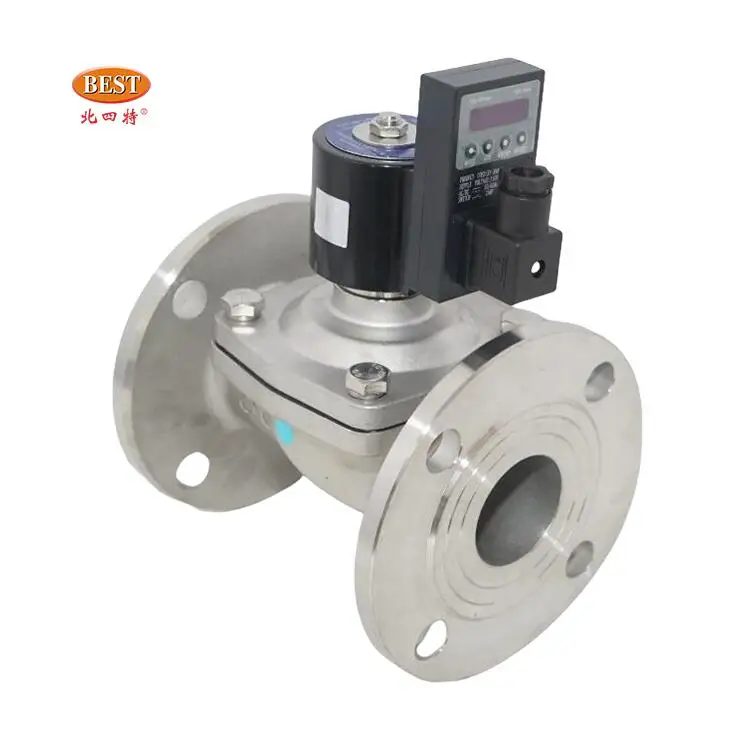

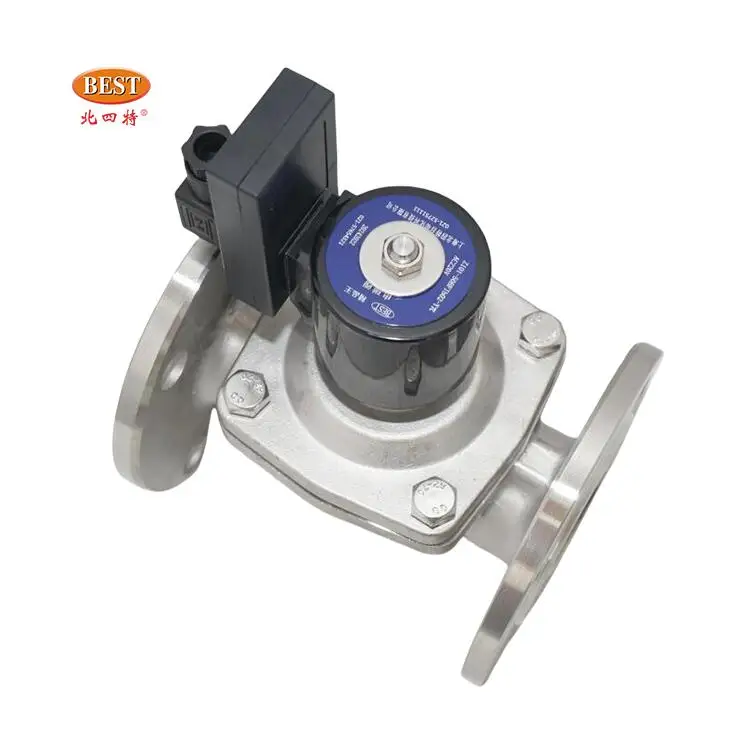

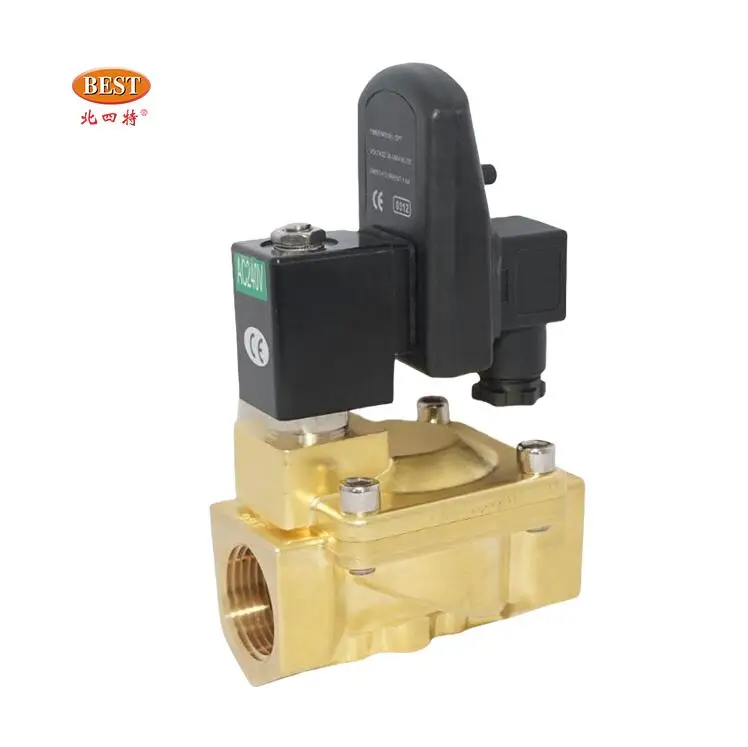

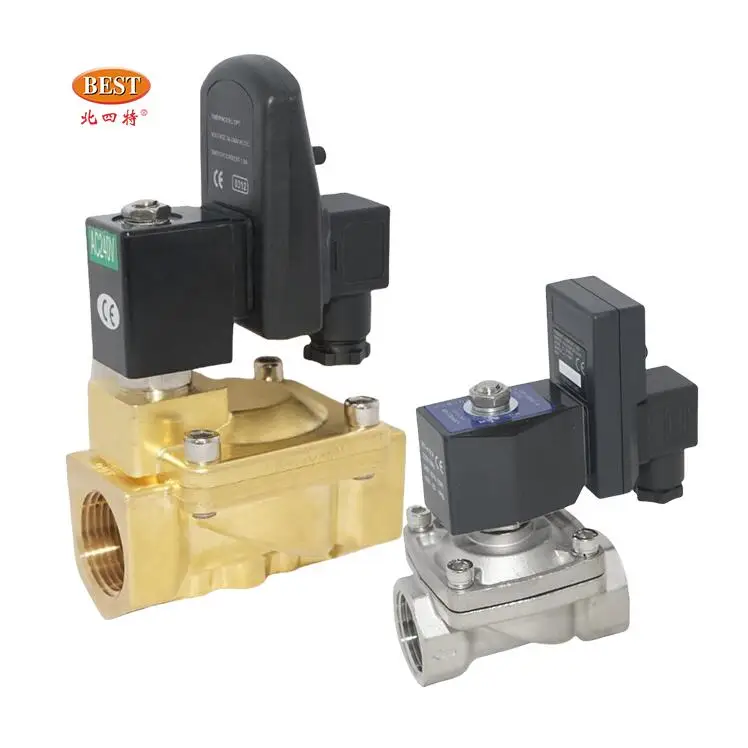

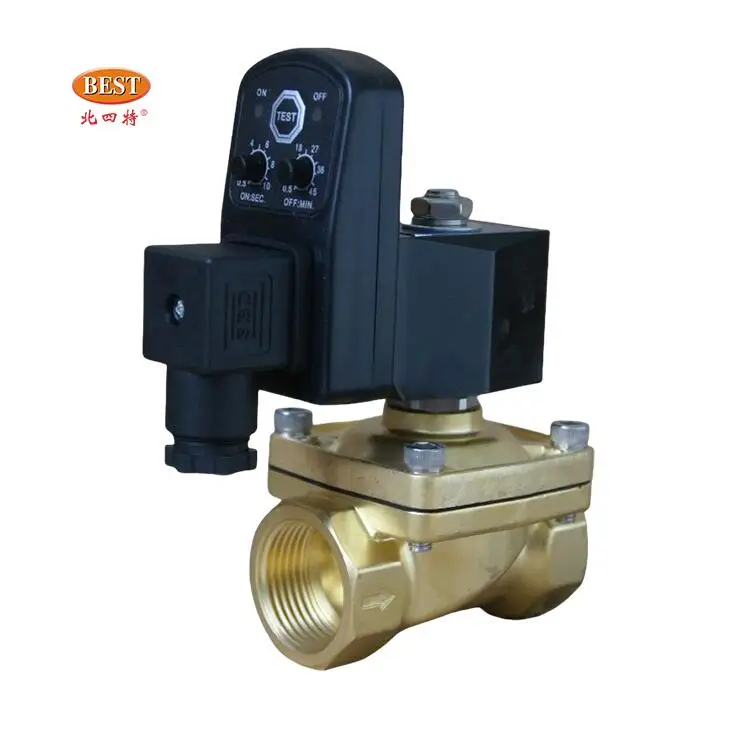

Valve Z101 Solenoid control timer valve
- Category: >>>
- Supplier: Shanghai Best Automation Technology Co. Ltd.
Share on (1601144674046):
Product Overview
Description
VR
Product Overview

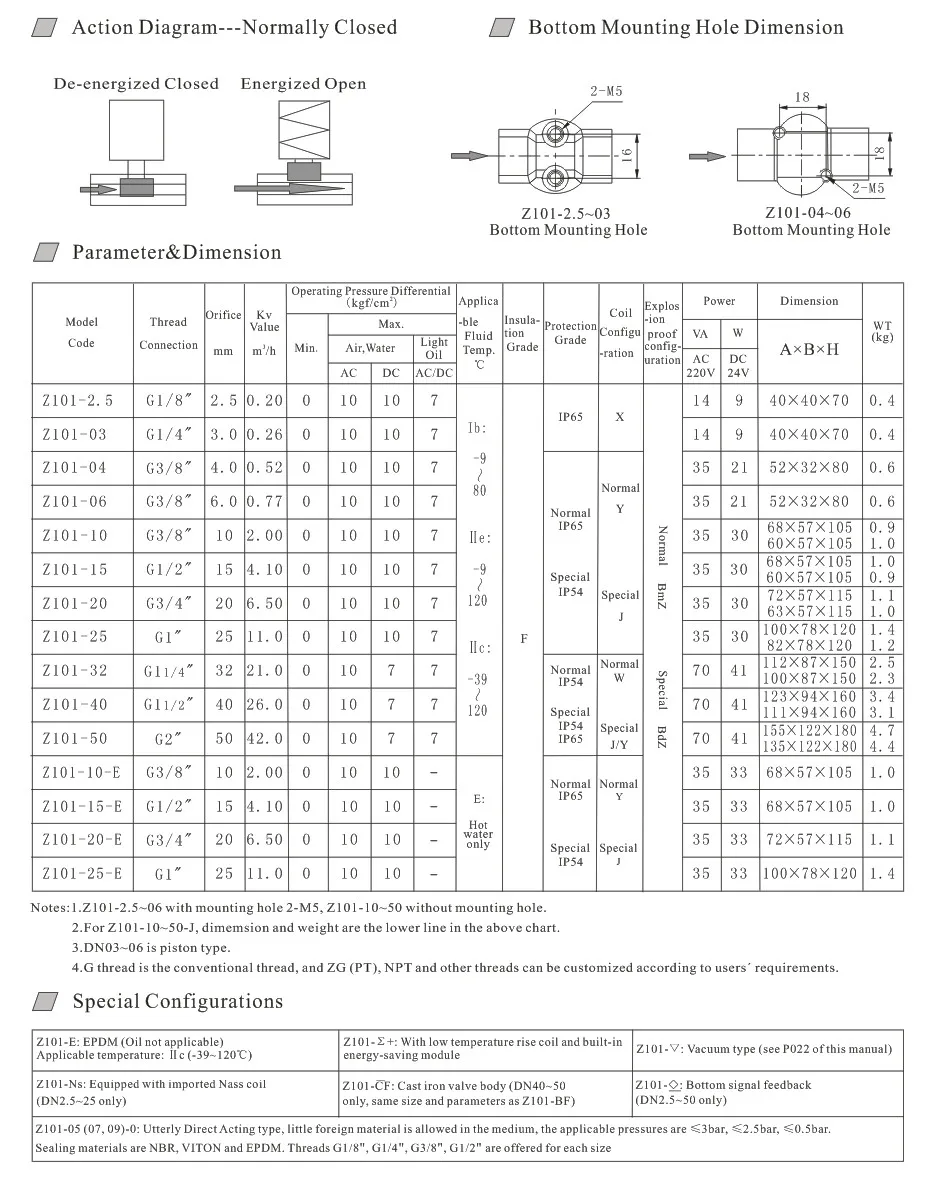

Name | Nominal diameter | Valve body material | Nominal pressure | Suitable temp. | ||||
Solenoid valve with timer | DN2.5-50 | Brass SS | 0-10bar | ＜120℃ | ||||
Others can customize according to your requirements | ||||||||

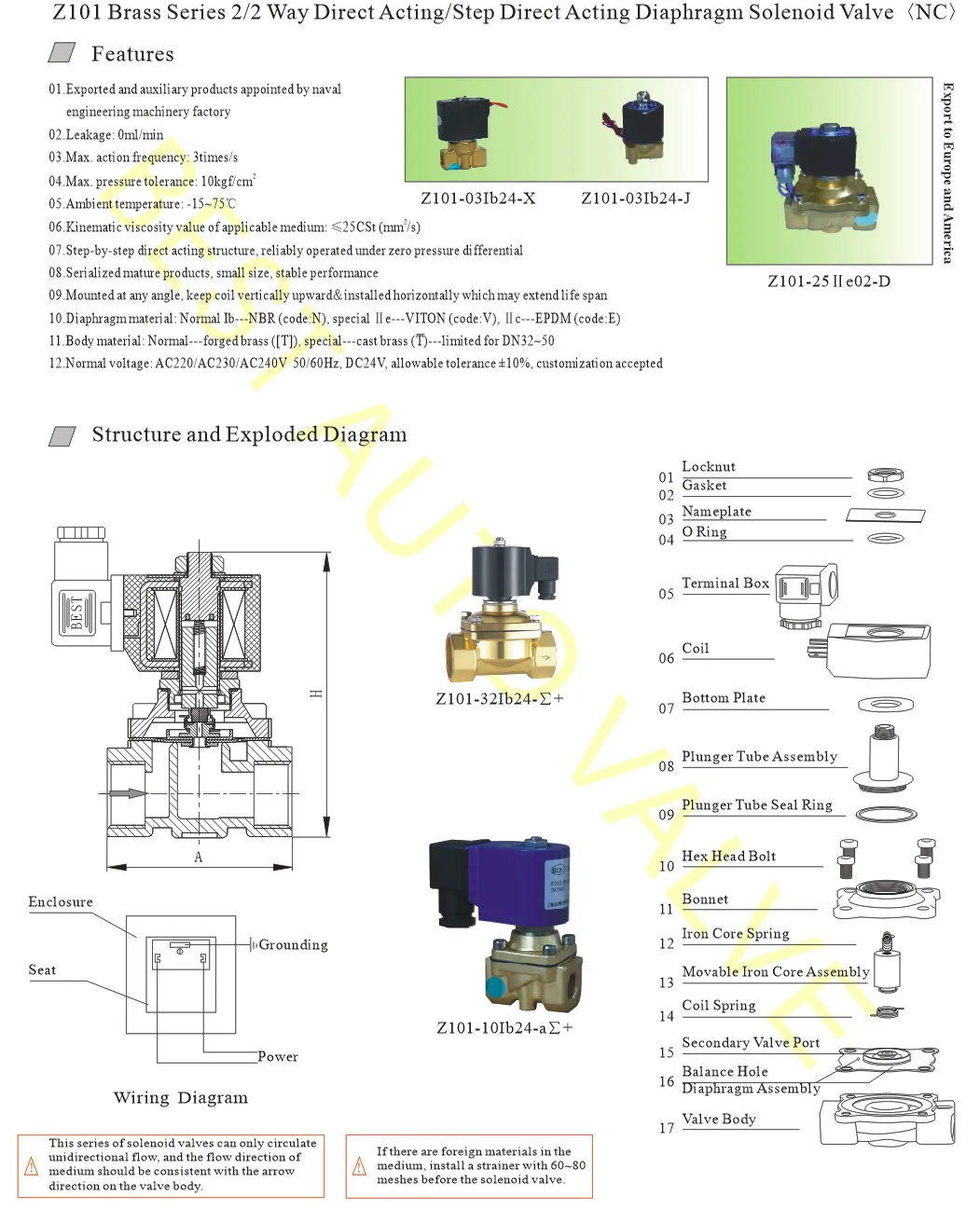

Key Specifications/Special Features:
01.Exported and auxiliary products appointed by naval engineering machinery factory
02.Leakage: 0ml/min
03.Max. action frequency: 3times/s
04.Max. pressure tolerance: 10kgf/cm2
05.Ambient temperature: -15~75℃
06.Kinematic viscosity value of applicable medium: ≤25CSt (mm2/s)
07.Step-by-step direct acting structure, reliably operated under zero pressure differential
08.Serialized mature products, small size, stable performance
09.Mounted at any angle, keep coil vertically upward＆installed horizontally which may extend life span
10.Diaphragm material: Normal Ib---NBR (code:N), special Ⅱe---VITON (code:V), Ⅱc---EPDM (code:E)
11.Body material: Normal---forged brass ([T]), special---cast brass (T)---limited for DN32~50
12.Normal voltage: AC220/AC230/AC240V 50/60Hz, DC24V, allowable tolerance ±10%, customization accepted
02.Leakage: 0ml/min
03.Max. action frequency: 3times/s
04.Max. pressure tolerance: 10kgf/cm2
05.Ambient temperature: -15~75℃
06.Kinematic viscosity value of applicable medium: ≤25CSt (mm2/s)
07.Step-by-step direct acting structure, reliably operated under zero pressure differential
08.Serialized mature products, small size, stable performance
09.Mounted at any angle, keep coil vertically upward＆installed horizontally which may extend life span
10.Diaphragm material: Normal Ib---NBR (code:N), special Ⅱe---VITON (code:V), Ⅱc---EPDM (code:E)
11.Body material: Normal---forged brass ([T]), special---cast brass (T)---limited for DN32~50
12.Normal voltage: AC220/AC230/AC240V 50/60Hz, DC24V, allowable tolerance ±10%, customization accepted
