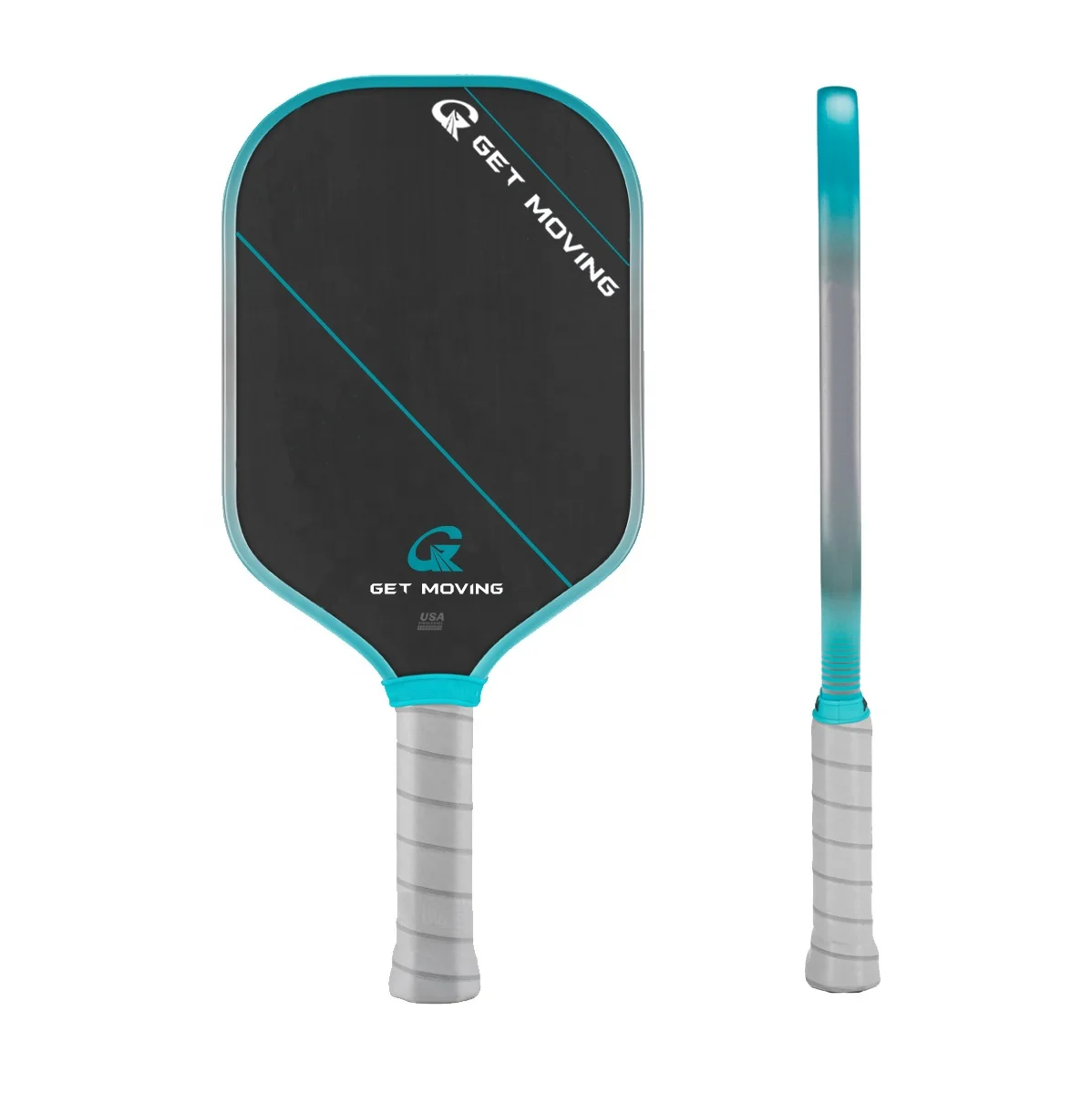

Lansda NFC CHIP ACCESIBLE USAPA Approved carbon fiber Propulsion Core 14mm 16mm Pickleball Paddle
- Category: >>>
- Supplier: Shenzhen Lansda Technology Co. Ltd.
Share on (1601145267303):
Product Overview
Description

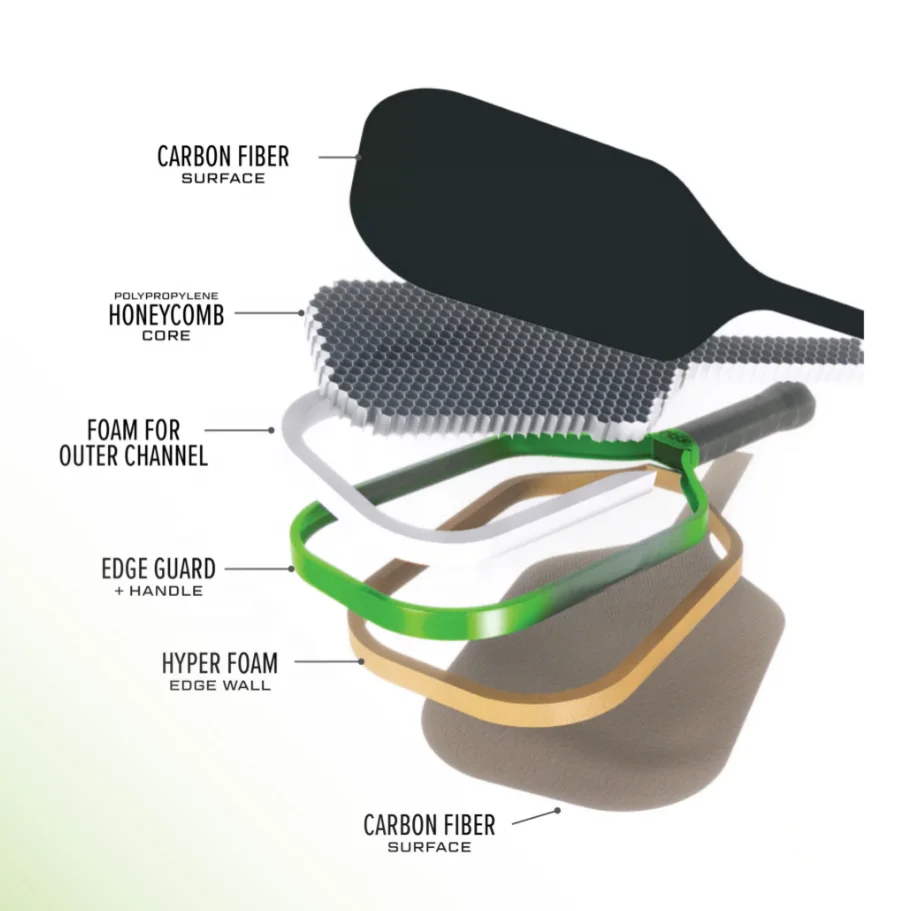

16MM Gen3 Paddle Propulsion Core Technology HONEYCOMB CORE+VIBRATION DAMPENING FOAM Offer Added Pop Power Refined Feel Control
Paddle Face | Carbon texture Or Customized |
Paddle Core | PP Honeycomb or Customized |
Weight | 230+/-10g |
Edge | Thermoforming edge guand. |
Color | Any Color From Pantone Color Chart Or Customized |
Sample Time | 7 Days For Our Reference Sample,7-14 Days For Customized Sample |
paddle Length | 419+/-1mm (16.5") |
paddle width | 190mm+/-1mm(7.48") |
paddle Thickness | 14mm/16mm |
Grip Length | 5.5" or Customized |
Paddle surface finish | rough textured surface or customized |
Thermoforming | Thermoformed 1.0 |
Usapa Approved | Meet USAPA Approved Standard |

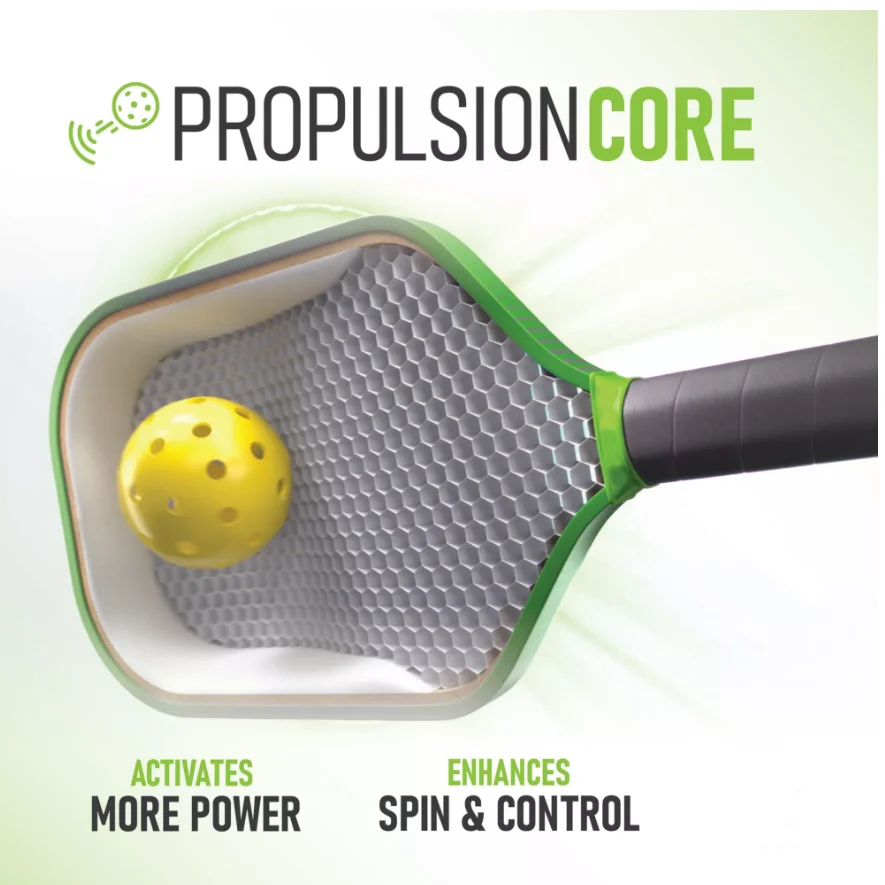

PROPULSION CORE
The patent-pending propulsion core allows for explosive power on drives, counters, and speed ups, but with refined feel and control on resets, drops and dinks.
Specially engineered paddle shape provides a larger sweet spot for optimal hitting feel and performance
GRADIENT EDGE SHIELD
Comes equipped with an enhanced, vibrant, colorful edge guard protection to help strengthen the solidity of the paddle core and help keep the surface from delaminating.
Termoforming Mold
The process used in thermoforming is pressure forming, which is used to stretch a heated thermoplastic material over the surface of a mold.
Racquet molds generally use copper molds
Hot Press Molding Machine
Three plies of unidirectional carbon fiber prepregs, along with the peel ply, are placed into a hot press molding machine .The upper mold is aligned with the lower mold symmetrically and the mold halves are closed. Pressure is applied using hydraulic presses while the mold is cured at high temperature for a certain amount of time. While curing, the epoxy resin is configured to flow and fully disperse and impregnate the matrix of carbon fibers. After the cooling cycle, the carbon fiber reinforced composite facesheet is removed from the mold.

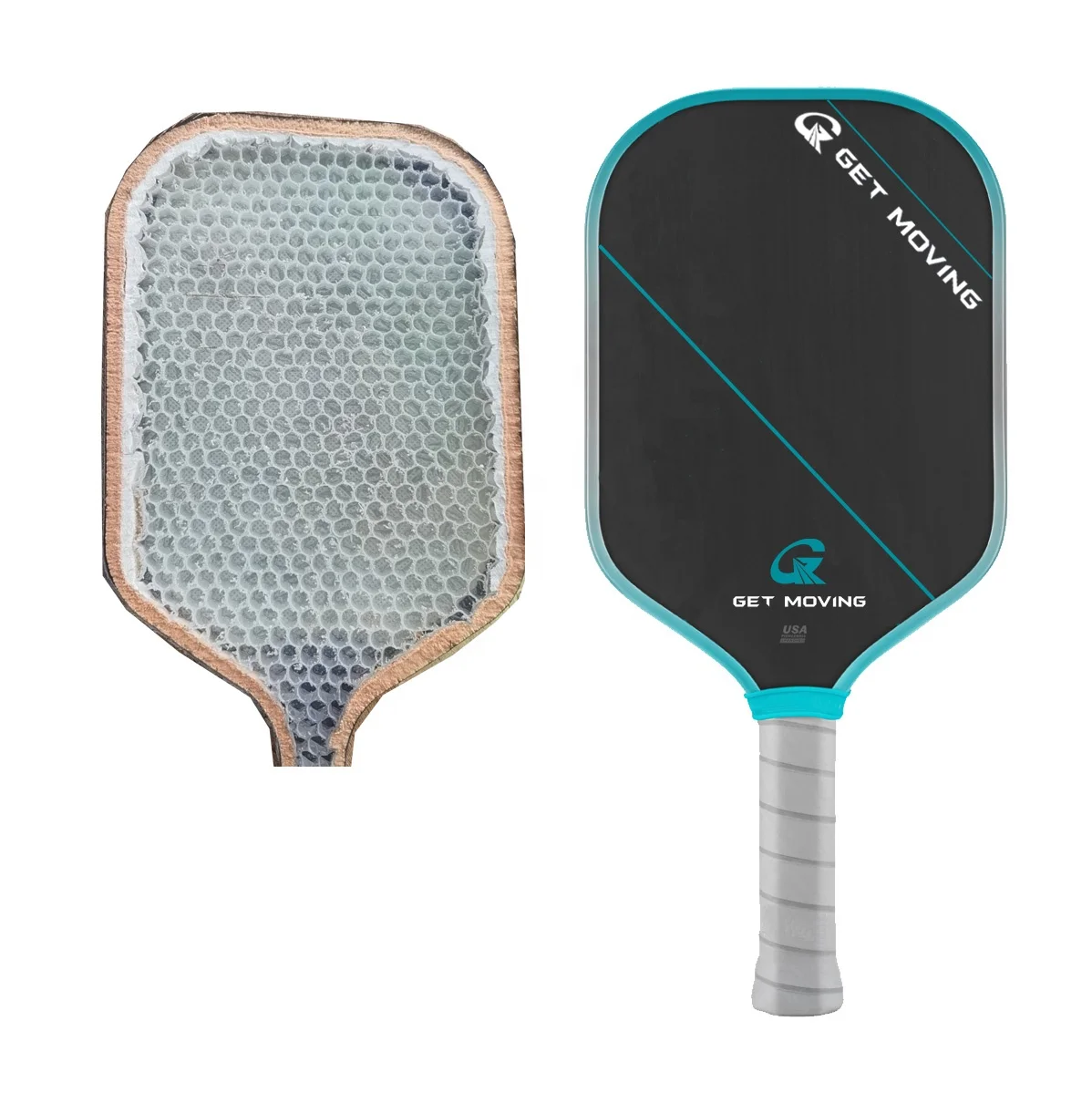

How To Comparison Between Cold Cut PP and Thermoformed PP?
The thermoformed PP honeycomb core material looks very flat and smooth to the naked eye, but at the microscopic level, there are inevitable changes in the thickness of the core material. This results in air spaces between the panels and the PP honeycomb core. Additionally, carbon seamed foam edges around the paddle create a fully enclosed one-piece structure. With the use of high temperature and high pressure, the air in the defects of the PP honeycomb core will expand and generate strong internal pressure. Therefore, parts of the PP honeycomb core may be crushed. After a certain amount of hitting the ball, the constant force of the ball hitting the racket causes more areas of the core to be crushed (compare image above). The increased power that players experience when using this racket can be explained by these inadvertently created pockets. Instead of the racket making contact with a solid racket surface, the pockets crushing the core racket create a trampoline effect.
How To Differentiate Between Cold Cut And Thermoformed Handles?
There is a clear difference between cooled and thermoformed handles, which can be easily seen in the picture below
Due to the edgeless, the paddle becomes brittle. We put KVL around the head of the racquet so that it doesn't change the sensitivity of the racquet when it hits the ball and makes it more durable
HOW TO START CUSTOMIZING YOUR PADDLE?
To that end, we've made this handy infographic
Thermoforming Model Available
Thermoforming is a welding & molding process that leads to a unibody solid piece of material.
Enhance your shots with the Thermoforming Unibody construction, combining a carbon-fiber-sealed unibody design and foam injection technology for improved durability and amplified power.
DIFFERENCE MATERIALS PADDLE CORE
Nomex honeycomb was the first material to be used for composite paddles. For those who want power and precision, these cores are very popular.this paddle will be the loudest and hardest on the market. Each time you make contact with the ball, you will hear a loud sound. If you prefer quiet paddles, you should choose one of the other options.
PP honeycomb are made from a special blend of plastic and are gaining a great deal of popularity. Polymer cores are made from a special blend of plastics and are gaining in popularity. Compared with NOMEX, it will be quieter and has a certain hardness, but PP honeycobm are some drawbacks, mainly the lack of power compared to Nomex cores. If you prefer control over power, pp honeycomb paddles may be the best choice.EVA core: EVA's soft and specially designed closed bubble structure reduces vibration and helps protect athletes' joints, tendons, and muscles.
ROUGH SURFACE
The surface of the paddle can be created in different ways to create friction and non-slip, to add unrelenting spin. The following two rough surfaces are the choice of most brands
①SAND BLASTING SURFACE TREATMENT PROCESS
Sand blasting uses compressed air as the power to form a high-speed jet beam, and sprays abrasives onto the surface of the workpiece to be treated at high speed, so that the appearance of the outer surface of the workpiece undergoes physical changes to meet the quality requirements.
Sandblasting can be freely selected between different roughness.
②CARBON TEXTURE SKIN
Textured Carbon Fiber is a HTV that has a textured carbon fiber-like surface to add an extra dimension to your heat transfer designs. Textured Carbon Fiber is not a print but rather a solid color vinyl that has been "engraved" to make it look like real carbon fiber.
Rubber ring
* High-quality soft materials and thinner thickness can provide a better racket feel.
Grip brand
The Silicone material is durable and soft. Suitable for most tennis rackets, as well as padel rackets, pickleball paddles,etc.
PADDLE HANDLE GRIP COLOR SAMPLE
Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine PET Bottle Making Machine is suitable for
producing PET plastic containers and bottles in all shapes.
producing PET plastic containers and bottles in all shapes.
Edge guand
High quality TPU/TPE edge guand
Back cover+logo
you can customize logo on back cover.
Shenzhen Lansda Technology Co.,Ltd.
Lansda is located in Shenzhen and enjoys convenient transportation. Lansda is a supplier of composite materials, carbon fiber products, carbon fiber profiled materials, carbon fiber sports equipment and carbon fiber industrial supplies, Lansda mainly engaged in carbon fiber products and accessories such as pickleball paddles and Beach Paddles Tennis Racket. UV color printing is done in-house for all products. In order to make a good sports brand and provide better service, we have also set up production lines for badminton rackets, tennis rackets, squash rackets and outdoor sports equipment.We are constantly using new materials and developing new production methods to bring the best peak rackets and beach rackets to the market. Our rackets and balls have been approved by the USAPA for tournament play in Pickleball tournaments. We also take OEM and ODM orders. We hope that through sports products, the spirit of sports will be integrated into daily life, so that everyone can feel the vitality of sports, sports to create a better way of life is our idea.
WHY CHOOSE US?
1. Provide OEM/ODM solutions according to your design;
2. More than 20 years of working experience in the field of carbon fiber, with strong research and development capabilities, as long as you tell us your ideas, we will give suggestions to jointly discuss products and realize them;
3. BSCI and ISO9001 certified automation equipment and manual production;
4. Production capacity of 200,000 pieces per month, fast delivery of samples and bulk orders;
5. We always put quality first, and always choose the best materials to meet the market competitiveness of Pickleball paddles.
2. More than 20 years of working experience in the field of carbon fiber, with strong research and development capabilities, as long as you tell us your ideas, we will give suggestions to jointly discuss products and realize them;
3. BSCI and ISO9001 certified automation equipment and manual production;
4. Production capacity of 200,000 pieces per month, fast delivery of samples and bulk orders;
5. We always put quality first, and always choose the best materials to meet the market competitiveness of Pickleball paddles.
Q1: What can you buy from us?
A1:Beach padle tennis racket,Pickleball padle,tennis racket,squash racket,badminton racket,bicycle bottle cage, carbon fiber product.
Q2:How long about the delivery time?
A2: 10-20 days after receive deposit, depends on the order quantity. For some series,we have available frame or products.
Q3:What is the MOQ?
A3: Normlly it's 500pcs per style per color, for some special styles, we can do lower MOQ,for example,100pcs,depend on style.
Q4: Can I customize my logo?
A4: Yes. you can customize design and logo on it.
Q5: Can you send the sample? and is there sample cost?
A5: Yes. there is sample cost. and the sample cost depend on the material and design. if you no need to customize design or logo. then we send the existing stock without any logo or pattern.
Q6. How can I get the quotation of OEM?
A6. becuase the quotation is difference as per difference material or pattern logo. you need to provide below detail before order:product material, pattern logo, quantity. destination. special requirements ect.Then we can make quotation as per your detial.
Q7:How about the payment?
A7: T/T 30% in advance as deposite,the balance paid before delivery.
Q8: How many delivery time?
A8: It depend on differenec styles and quantity. normally it takes 30~45day such as pickleball padle,tennis racket.
Q9: How do you arrange shipping for us?
A9: According to the destination country,we will check the optimal logistics solution and comform by you.
A1:Beach padle tennis racket,Pickleball padle,tennis racket,squash racket,badminton racket,bicycle bottle cage, carbon fiber product.
Q2:How long about the delivery time?
A2: 10-20 days after receive deposit, depends on the order quantity. For some series,we have available frame or products.
Q3:What is the MOQ?
A3: Normlly it's 500pcs per style per color, for some special styles, we can do lower MOQ,for example,100pcs,depend on style.
Q4: Can I customize my logo?
A4: Yes. you can customize design and logo on it.
Q5: Can you send the sample? and is there sample cost?
A5: Yes. there is sample cost. and the sample cost depend on the material and design. if you no need to customize design or logo. then we send the existing stock without any logo or pattern.
Q6. How can I get the quotation of OEM?
A6. becuase the quotation is difference as per difference material or pattern logo. you need to provide below detail before order:product material, pattern logo, quantity. destination. special requirements ect.Then we can make quotation as per your detial.
Q7:How about the payment?
A7: T/T 30% in advance as deposite,the balance paid before delivery.
Q8: How many delivery time?
A8: It depend on differenec styles and quantity. normally it takes 30~45day such as pickleball padle,tennis racket.
Q9: How do you arrange shipping for us?
A9: According to the destination country,we will check the optimal logistics solution and comform by you.
