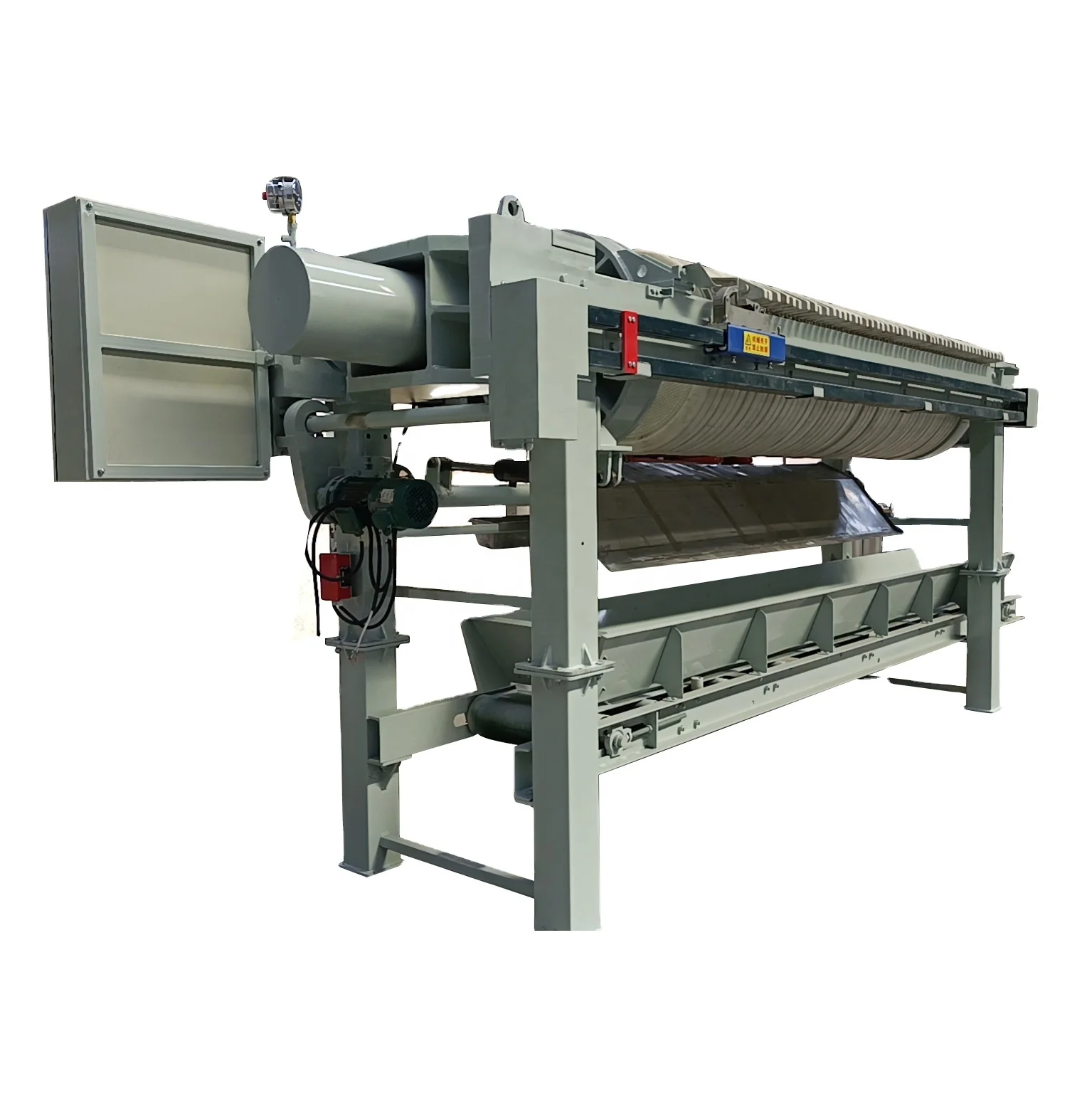

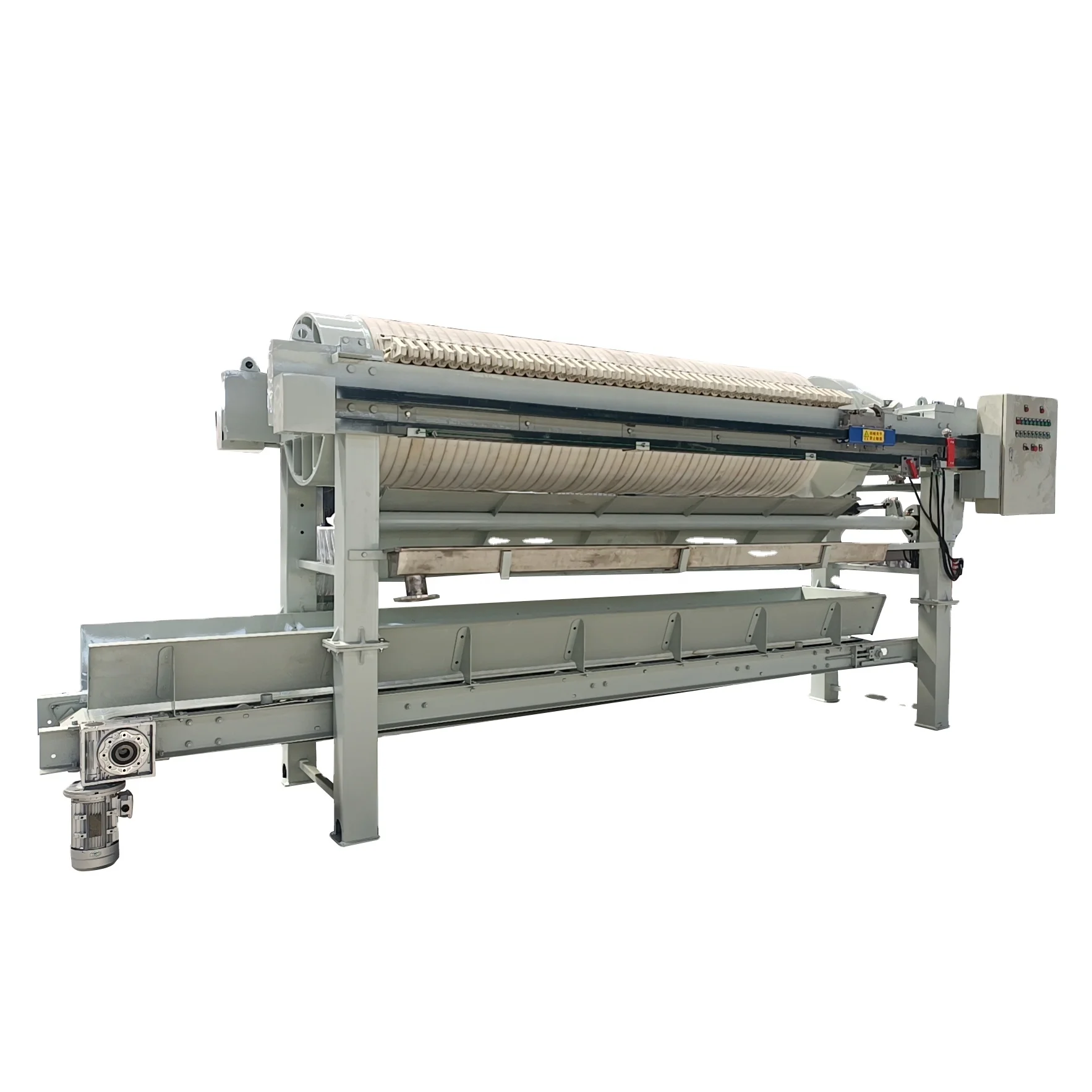

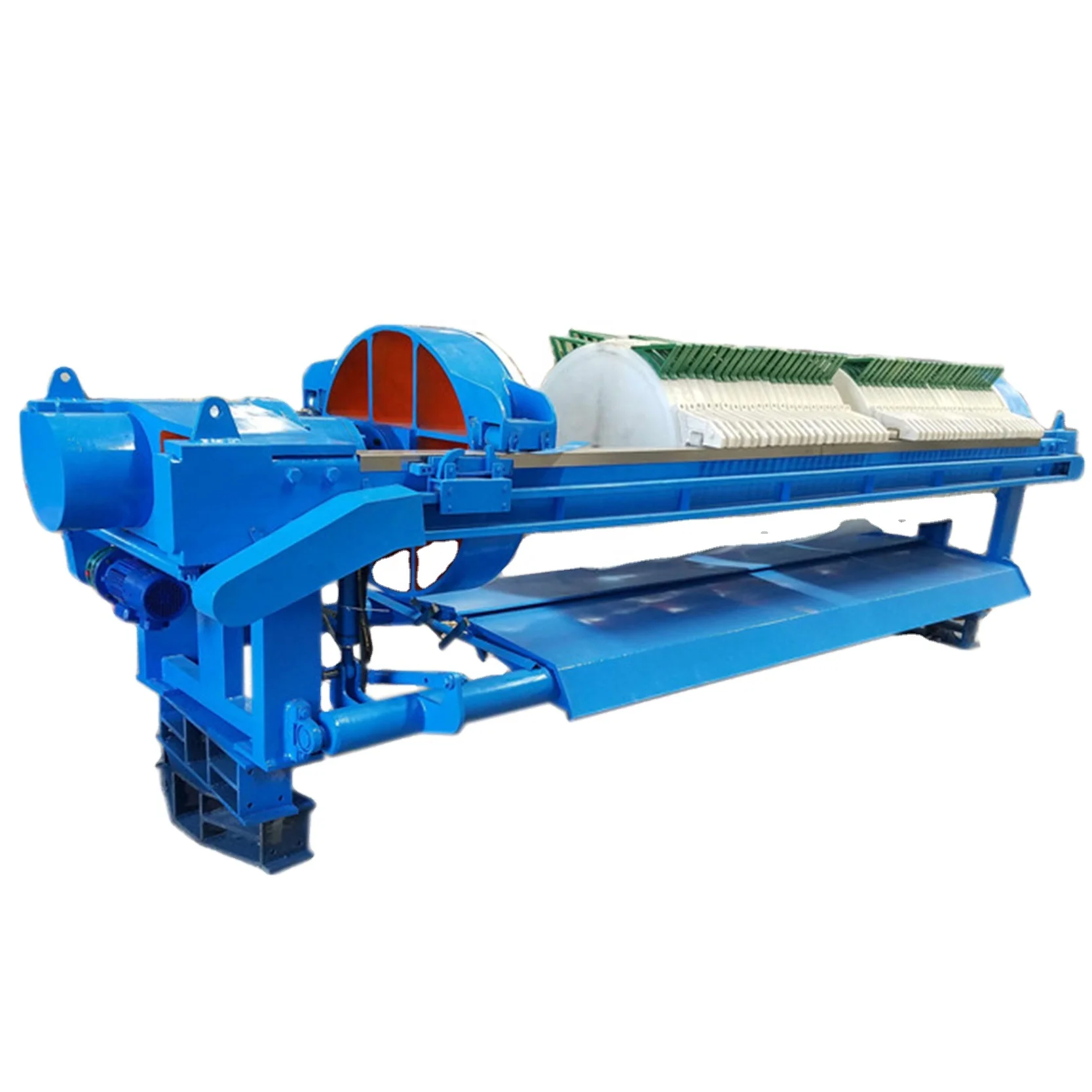

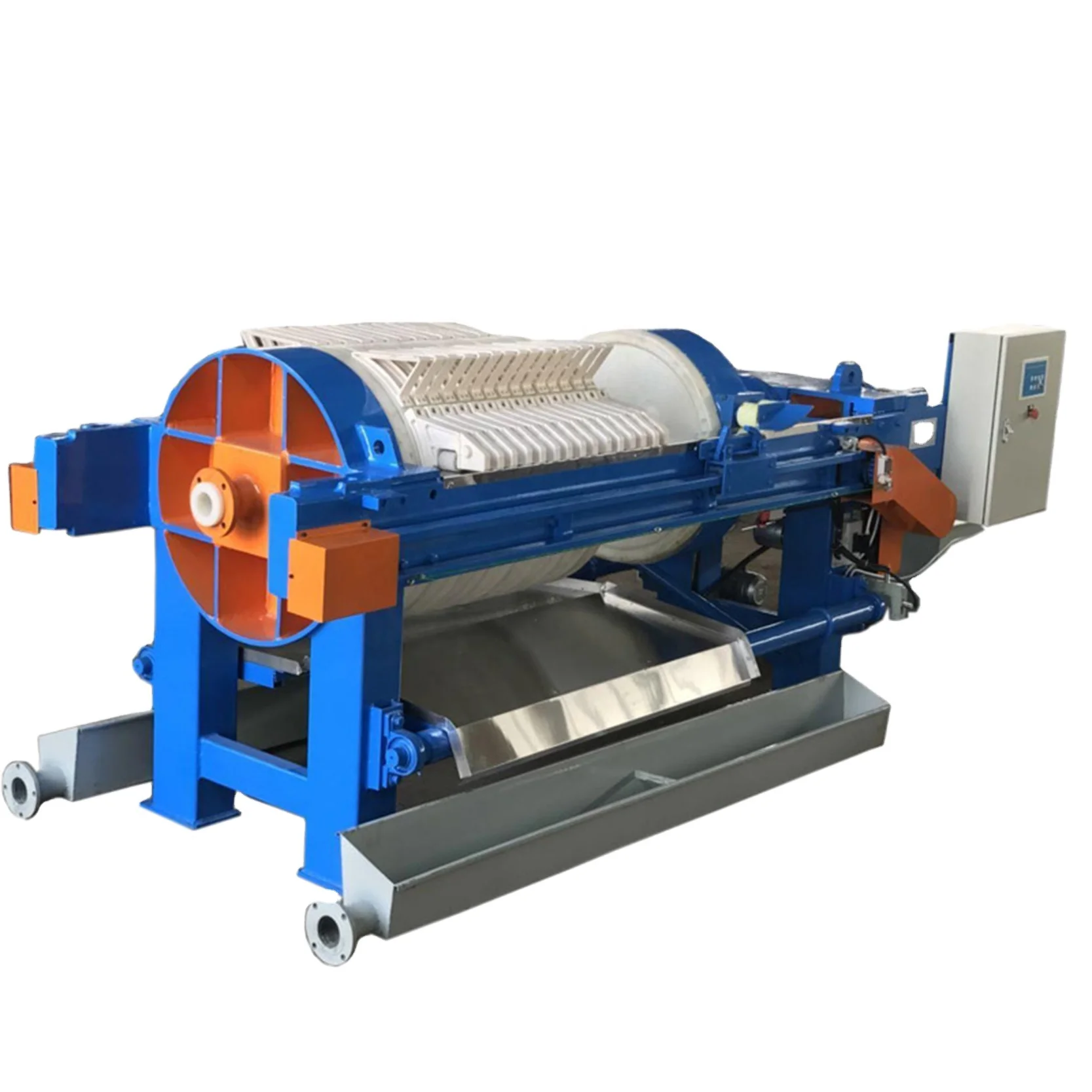

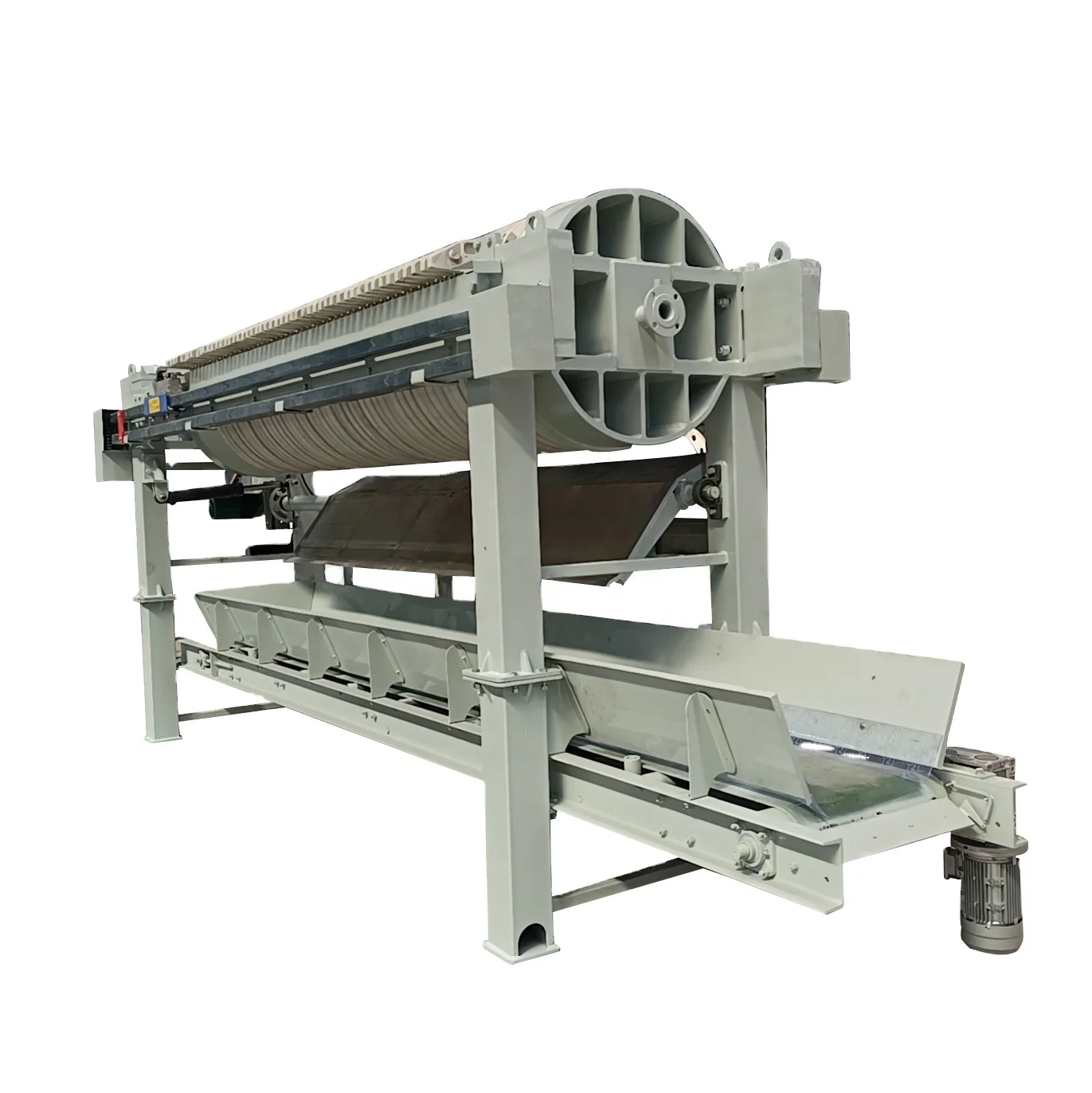

High Pressure Round Clay Kaolin Filter Press Circular Filter Press
- Category: >>>
- Supplier: Shanghai Junyi Filter Equipment Co. Ltd.Shanghai Ltd.
Share on (1601147109054):
Product Overview
Description
Product Description

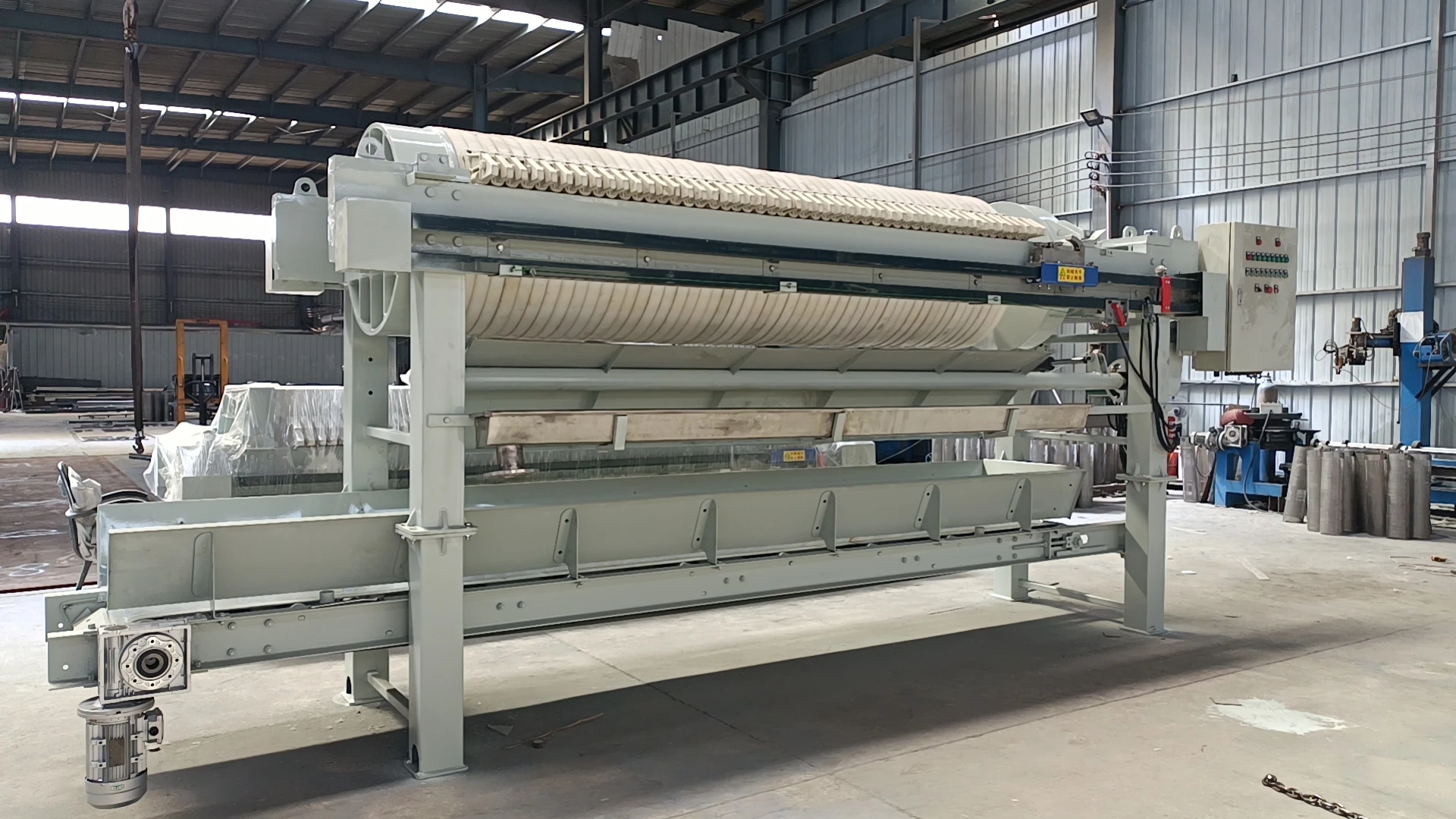

Round Filter Press
Its high pressure is at 1.0---2.5Mpa. It has the feature of higher filtration pressure and lower moisture content in the cake.
It is widely used in the yellow wine filtration, rice wine filtration, stone wastewater, ceramic clay, kaolin and the construction material industry.
It is widely used in the yellow wine filtration, rice wine filtration, stone wastewater, ceramic clay, kaolin and the construction material industry.
Feature
A. Filtration pressure: 2.0 Mpa
B. Discharge filtrate method - Open flow: The filtrate flows out from the bottom of the filter plates.

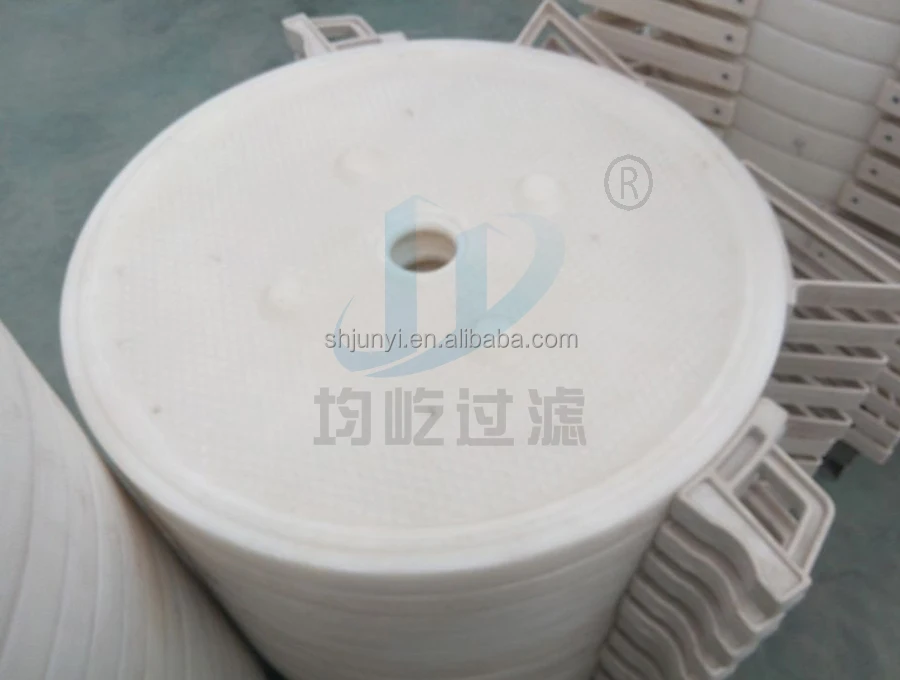

C. Choice of filter cloth material: PP non-woven cloth.
C. Choice of filter cloth material: PP non-woven cloth.
D. Rack surface treatment: When the slurry is PH value neutral or weak acid base: The surface of the filter press frame is sandblasted first, and then sprayed with primer and anti-corrosion paint.When the PH value of slurry is strong acid or strong alkaline, the surface of the filter press frame is sandblasted, sprayed with primer, and
the surface is wrapped with stainless steel or PP plate.
the surface is wrapped with stainless steel or PP plate.

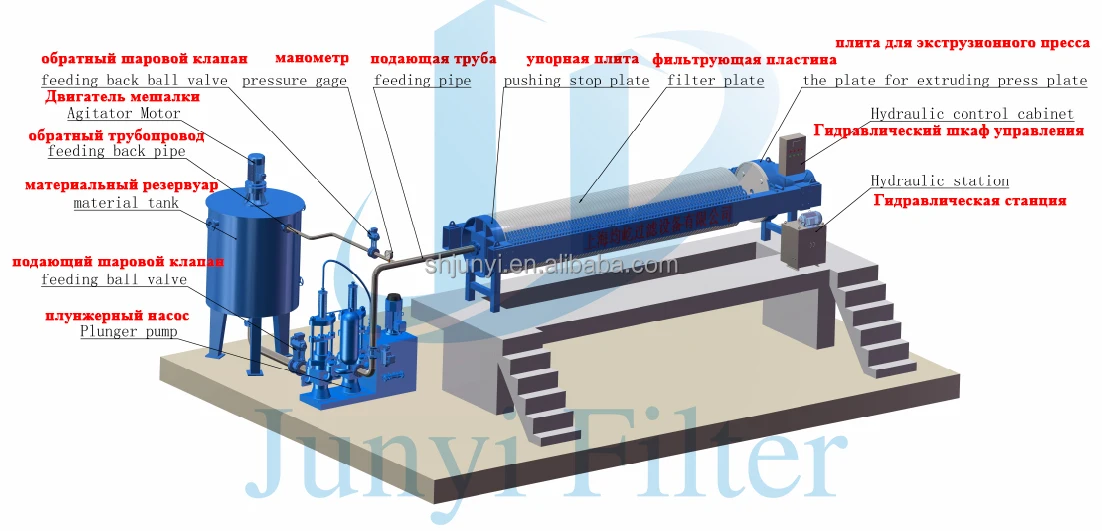

Circular filter press operation: Automatic hydraulic pressing, manual or automatic pull filter plate when discharging cake. Optional devices of filter press: Drip tray, cake conveyor belt, water sink for receiving filtrate, etc.
E、Circle filter press supporting the choice of feed pump: High-pressure plunger pump, please email for details.
Specification
Model | Filtration Area (m2) | Size of Filter Plate (mm) | Volume of Chamber (L) | QTY of Filter Plate (PCS) | Weight (Kg) | Thickness of Filter Cake (mm) | Filtration Pressure (Mpa) | Power of Motor (KW) |
XAMY30/φ800-25 | 30 | Φ800 | 377 | 30 | 3590 | 25 | 1.0/2.0 | 2.2 |
XAMY40/φ800-25 | 40 | 499 | 40 | 4554 | ||||
XAMY50/φ800-25 | 50 | 621 | 50 | 5150 | ||||
XAMY60/φ800-25 | 60 | 750 | 60 | 5600 | ||||
XAMY80/φ800-25 | 80 | 1200 | 64 | 6860 |
