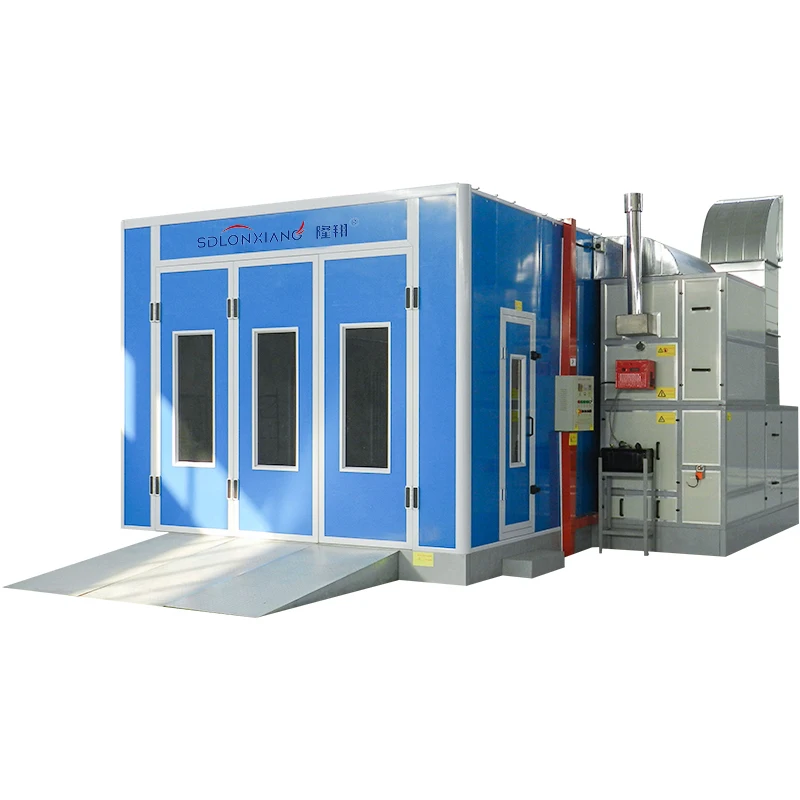

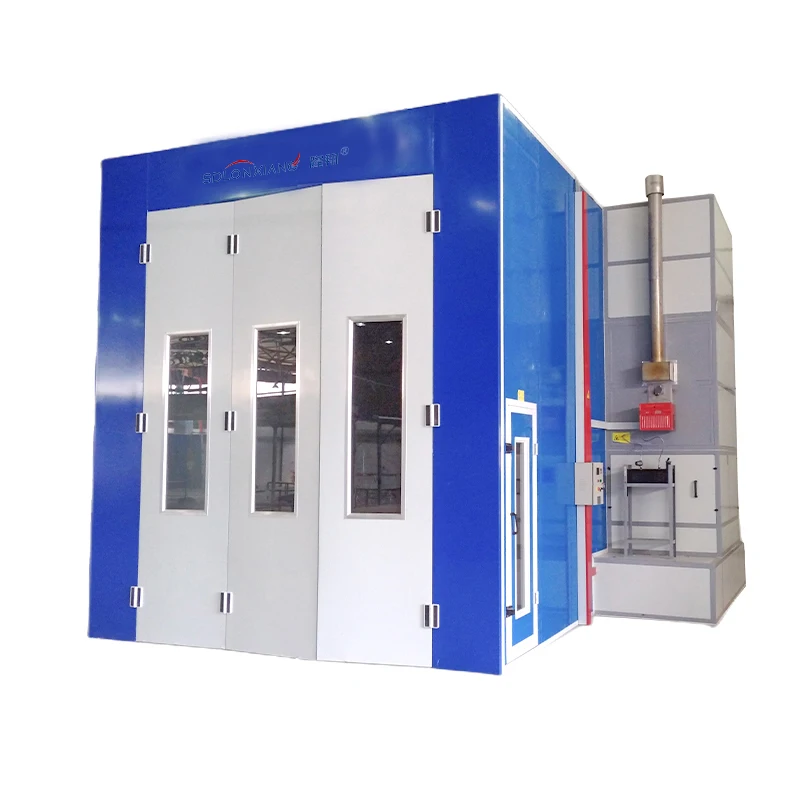

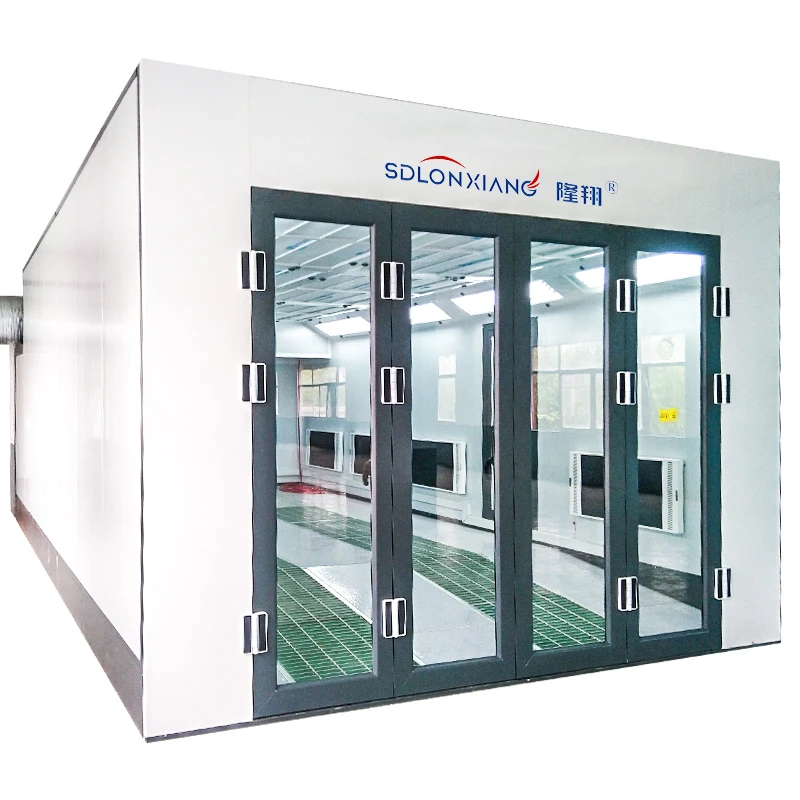

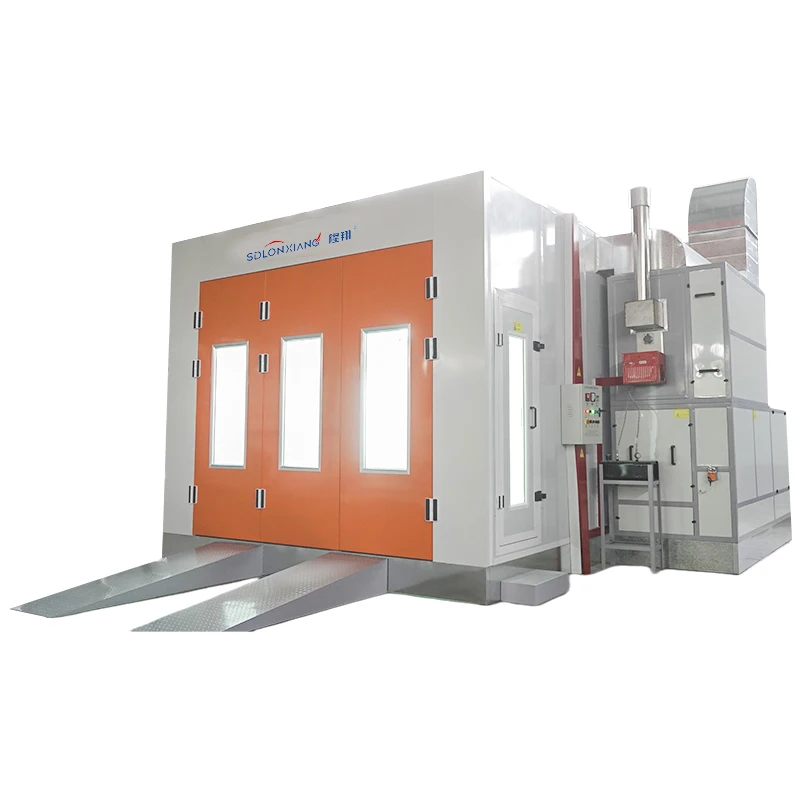

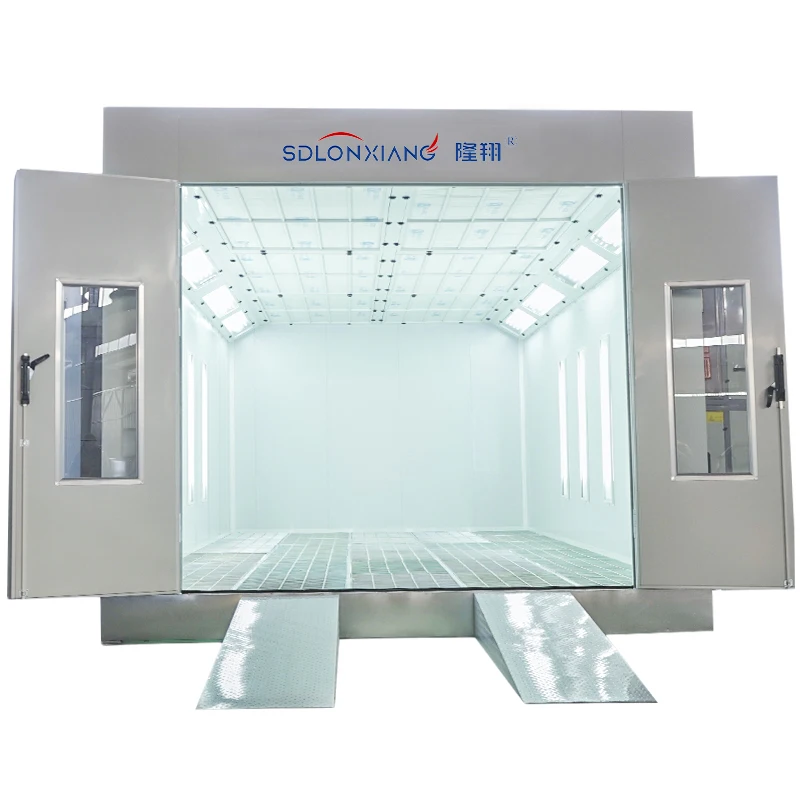

LX D3 Professional manufacturer mobile paint spray booth with thickness wall panels
LX-D3 Professional manufacturer mobile paint spray booth with thickness wall panels
LX-D3 Professional manufacturer mobile paint spray booth with thickness wall panels
LX-D3 Professional manufacturer mobile paint spray booth with thickness wall panels
LX-D3 Professional manufacturer mobile paint spray booth with thickness wall panels
LX-D3 Professional manufacturer mobile paint spray booth with thickness wall panels
LX-D3 Professional manufacturer mobile paint spray booth with thickness wall panels

LX D3 Professional manufacturer mobile paint spray booth with thickness wall panels

Share on (1601147284435):


Price:$5,000.00 - $5,600.00

Quantity:


Product Overview

Description



Products Description


LX-D3
Outside size
7000×5200×3400mm(L×W×H)
Inside size
6900×3900×2650mm(L×W×H)
Entrance door
3 folds，3000x2600 mm(W×H), bending steel door,cast aluminum hinge, tempered glass window
Emergency door
650*2000mm(W*H),with pressure lock，with glass window，with step
Main System
Main System
Wall panel
-Sandwich style EPS 50mm,0.4mm thick steel, anti-flame and heat-insulation.
-High quality galvanized steel roof panel.
Basement
-Galvanized steel assemble,280mm high,quadrate steel support,3 rows of grills,2 rows of indented plates.
-2 ramps,external setting,620*2000mm(W*L)/pc
Ventilation system
Inlet fan
2*3kw double-intake centrifugal fans, air capacity:10000m³/h for each set
Outlet fan
1*5.5kw double-intake centrifugal fans, air capacity:15000m³/h for each set
Cabinet setting type
-Intake air from side upper ,adopt powder quadrate steel frame , strong and beautiful .
-Cabinet for the fan*1unit ,910mm air duct *2units,
-Elbow:90°*1 unit
Heating system
Electric
Adopt infrared heating system, 10 sets of 3KW single door far-infrared lamp. Maximum operating temperature: 80℃, heating rate
(20-80℃) : 15-20min.
Lighting system
Ceiling lights
8*4pcs*16w LED lighting
Side lights
5*2pcs*16w LED lighting.
Filtering system
Primary filter
Grade G2 plate type , filtering rate＞83%
Ceiling filter
EU5 grade high efficient filter,filtering rate＞98%
Floor filter
Multi-layer fiberglass filter,filtering rate＞70%
Control system
Control panel
Intelligent control system
Function
Lighting, temperature time setting, painting, constant temperature painting, baking,emergency stop, failure indication, time
accumulate, etc
Total power
42KW
Voltage/Frequency
380V,50HZ,3phase


Details Images








Why Choose Us






Product Process




Company Profile














Exhibition






Packaging&Shipping




FAQ


1. Q: What is your delivery date?
A: Normally we will ship you our standard specifications goods about 7-10 days after receiving your payment.
It depends on the quantities you order.

2. Q: Can you design the spray booth according to our request?
A: Of course. All product can be customized with your own designs.

3. Q: Are you a factory or a trading company?
A: We are a factory and have the own design&production&competitive price advantages.

4. Q: Can I order special color which I like?
A: Yes, we can produce machines with blue, white, red and grey to meet your requirement.

5. Q: Where is your factory located? How can I get there?
A: Our factory is located in Longyao Industrial park, Shandong province, china. About an hour from Jinan international airport.
Welcome to our factory from all over the world.

6. Q: How about your service?
All product have one year warranty and life-long technology support.
