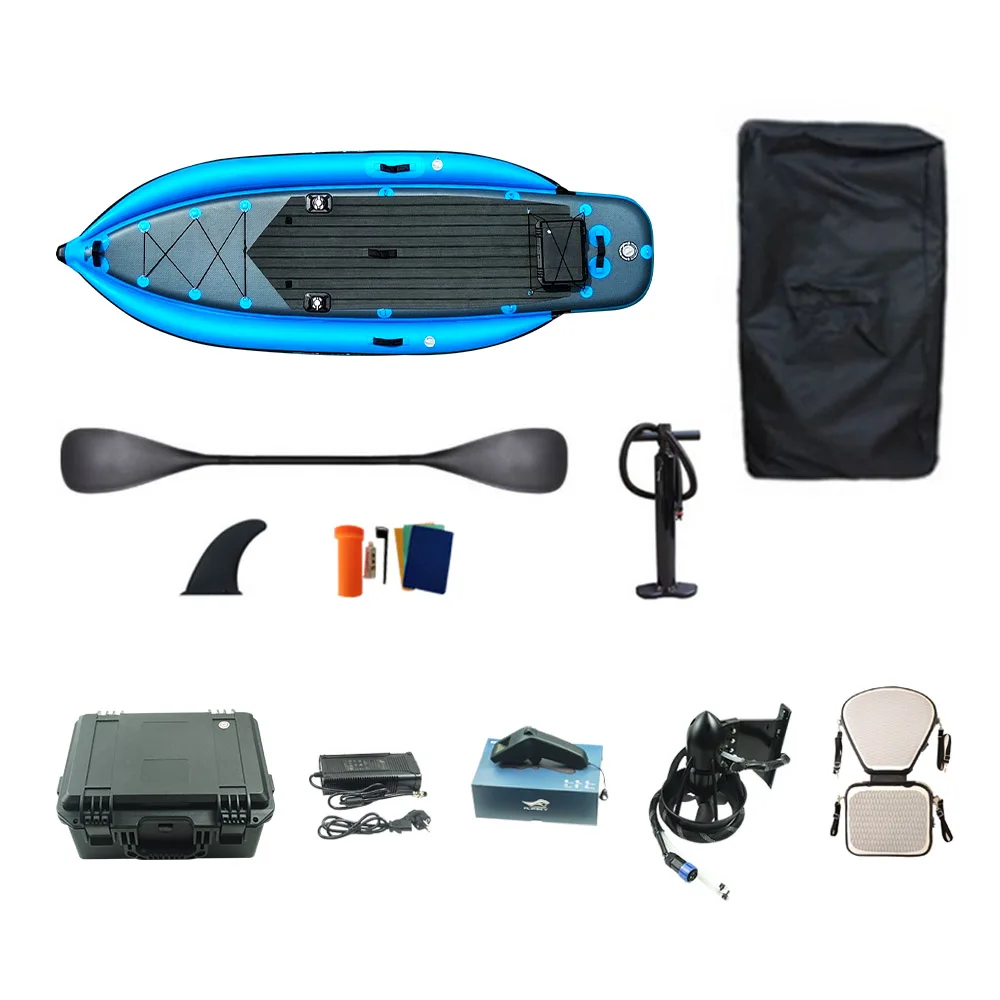

Flipsky Brushless Motor 7070 4300W Waterproof Underwater Thruster electric boat thruster for ROV RC Boat /Jet boards

Product Overview

Description

Flipsky Brushless Motor 7070 4300W Waterproof Underwater Thruster electric boat thruster for ROV RC Boat /Jet boards

Spec:

• Paddle board length, width and height Size: 350*81*15cm


• Safe load: 100KG


• Hull material: environmentally PVC


• Product Category: Inflatable Paddle Board

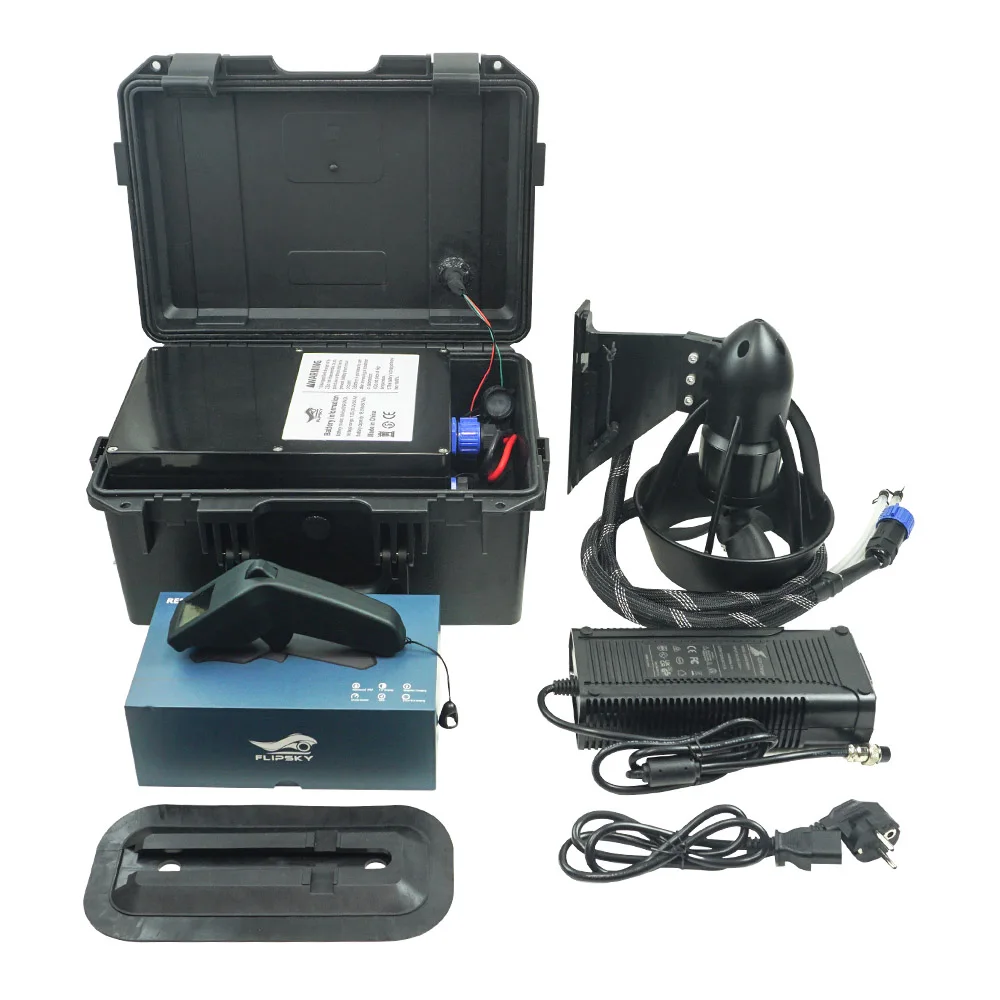

Battery box parameters

• Battery outer box size: 371*269*186mm


• Waterproof grade: IP67


• Battery box material: ABS


• Voltage:50.4V


• Cell specifications: Molicel P42A 27100


• Battery capacity: 12S 4P 16.8AH/846.72WH/16800mah.


• Environment: (-20 degrees Celsius + 50 degrees Celsius)


• Charger: 50.4V 5.5A


• Charging time: about 2.6 hours

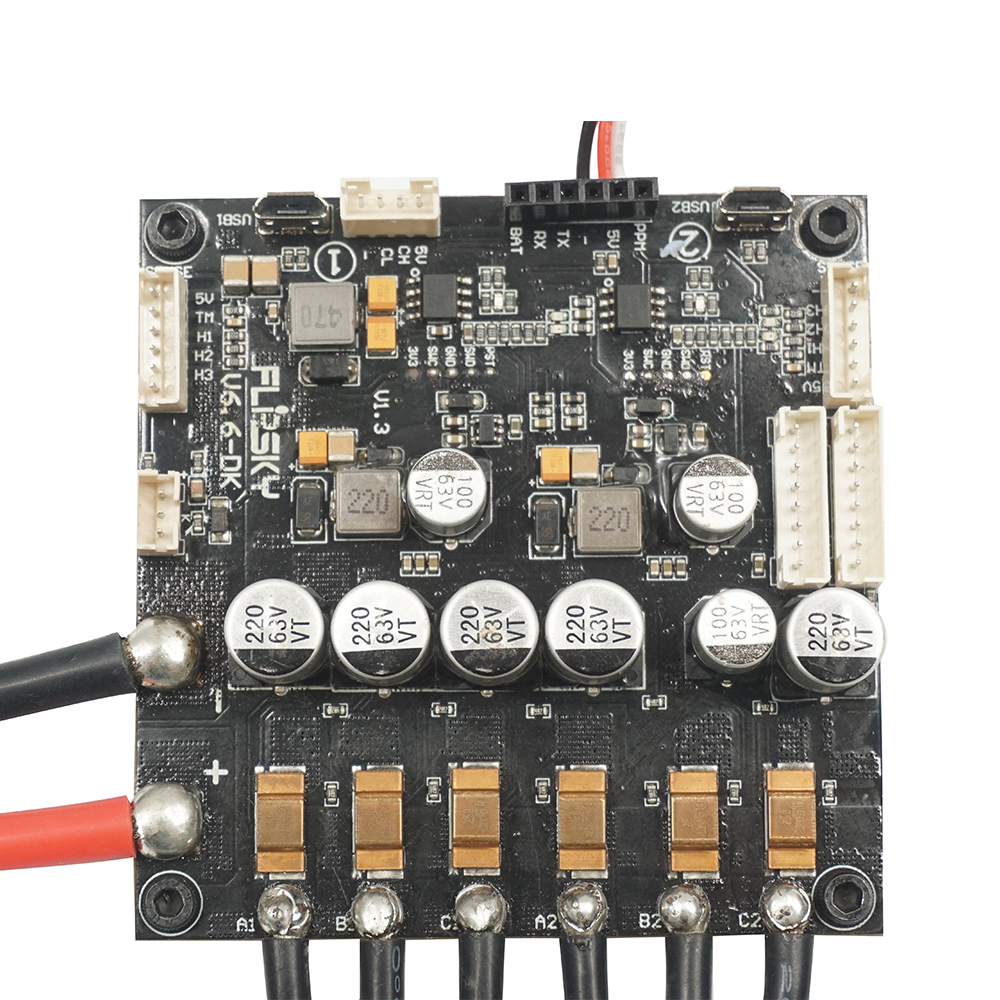

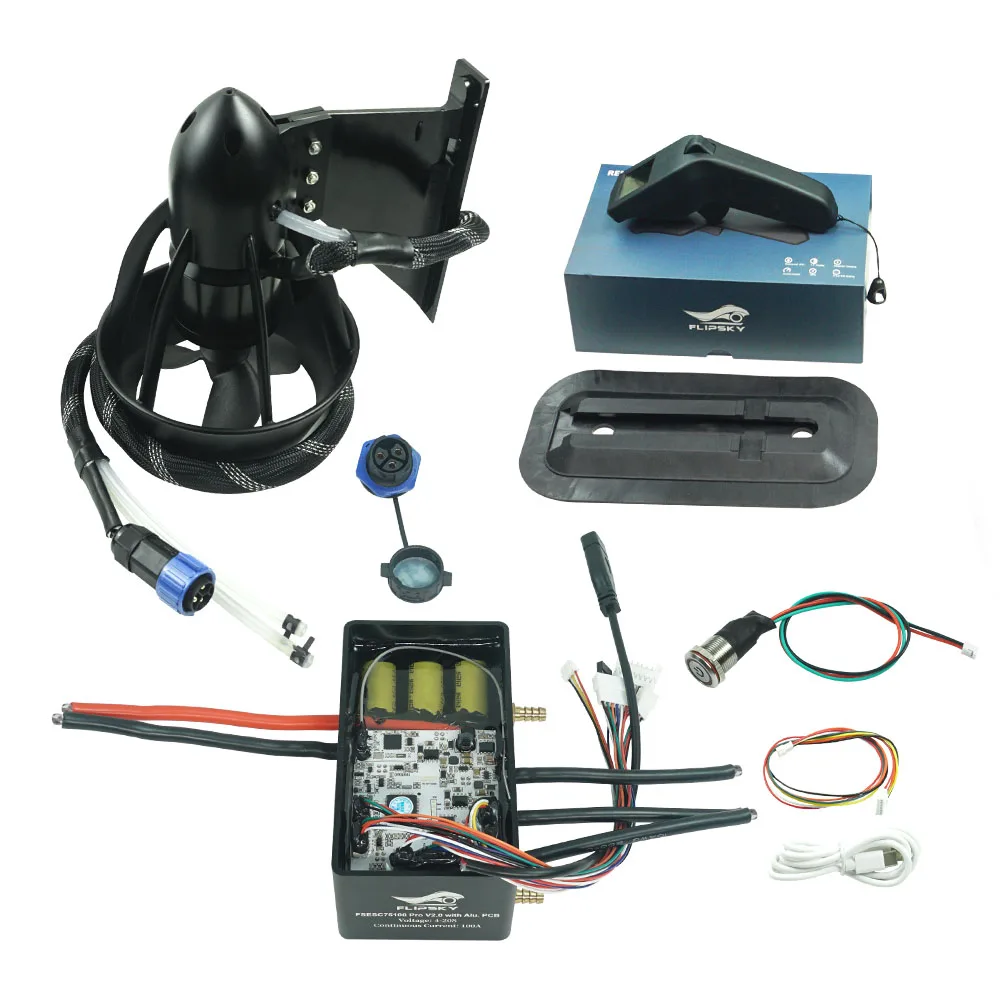

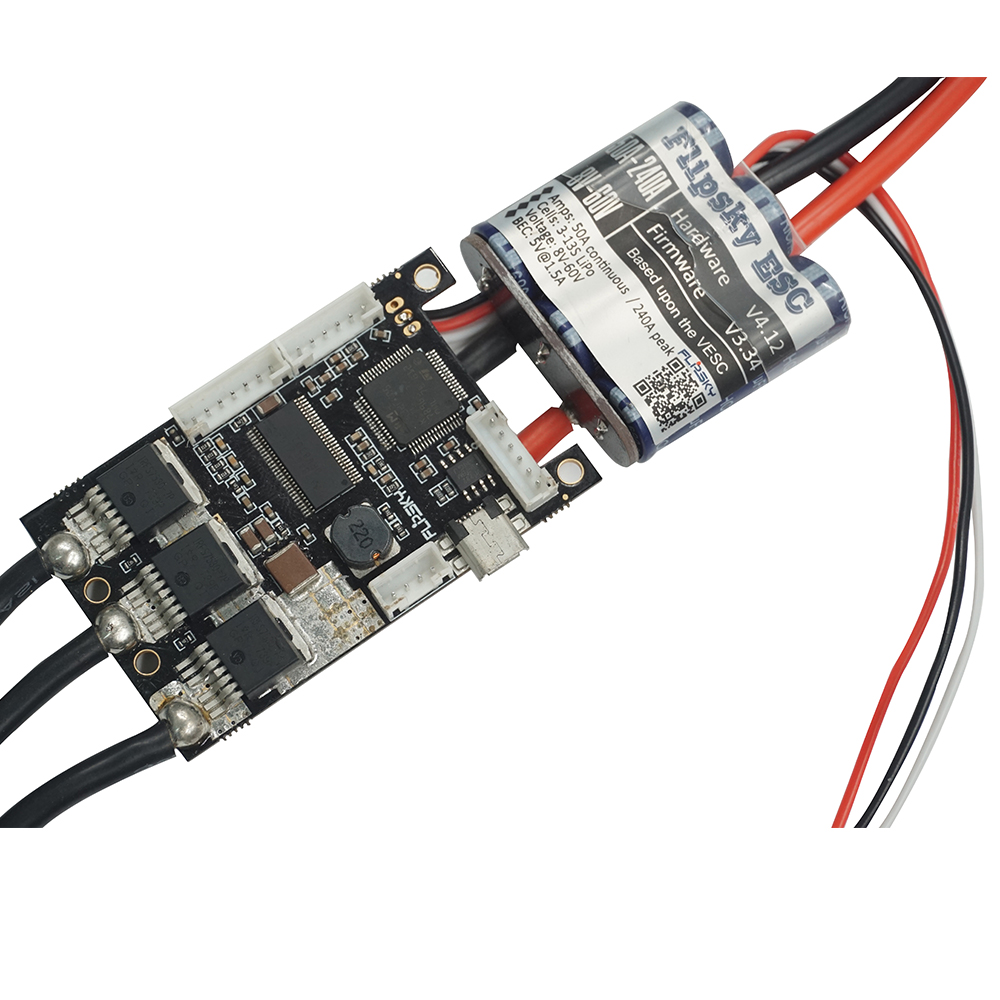

ESC

• ESC model:75100 prov2.0


• Maximum discharge current: Maximum continuous 100A


• Voltage Range: 6-20s (25.2*84v)


• Heat dissipation method: water cooling (water pipe outer diameter 8MM, inner diameter 3MM)


• Support control protocols ppm, uart, adc, nrf, pas

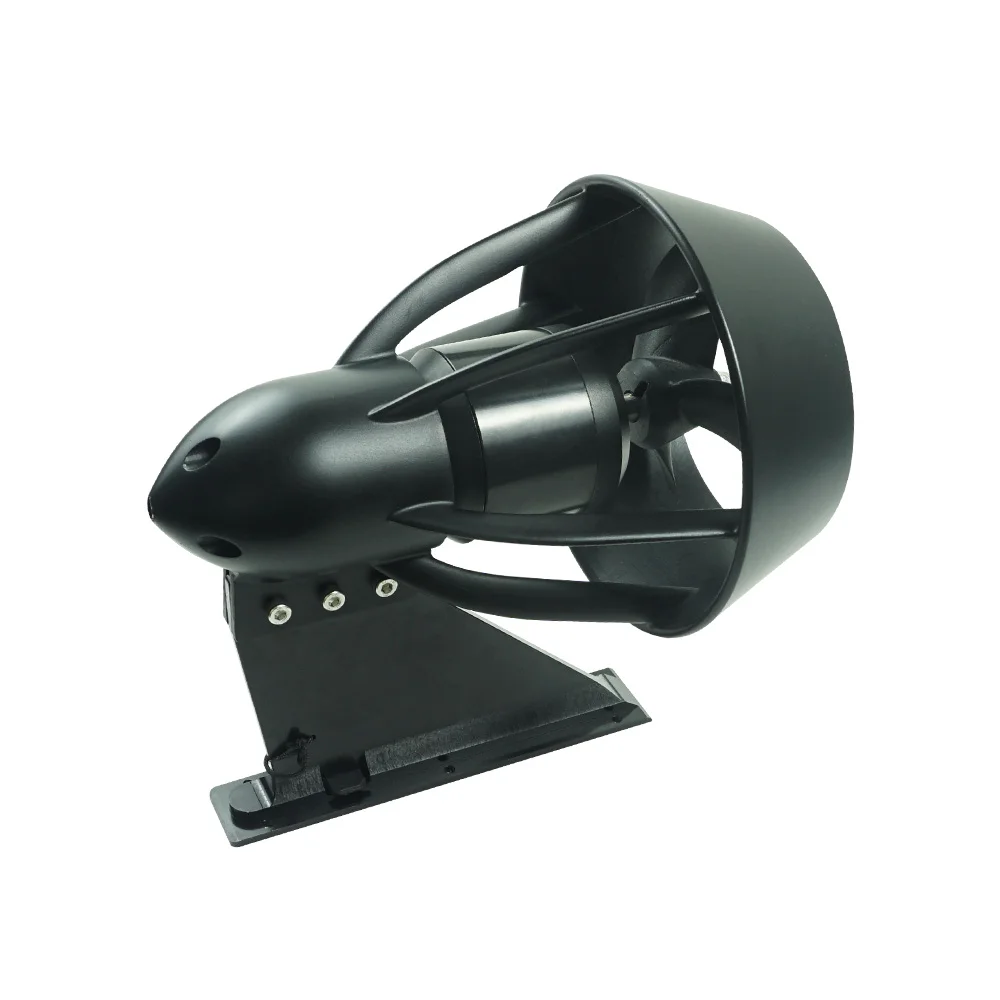

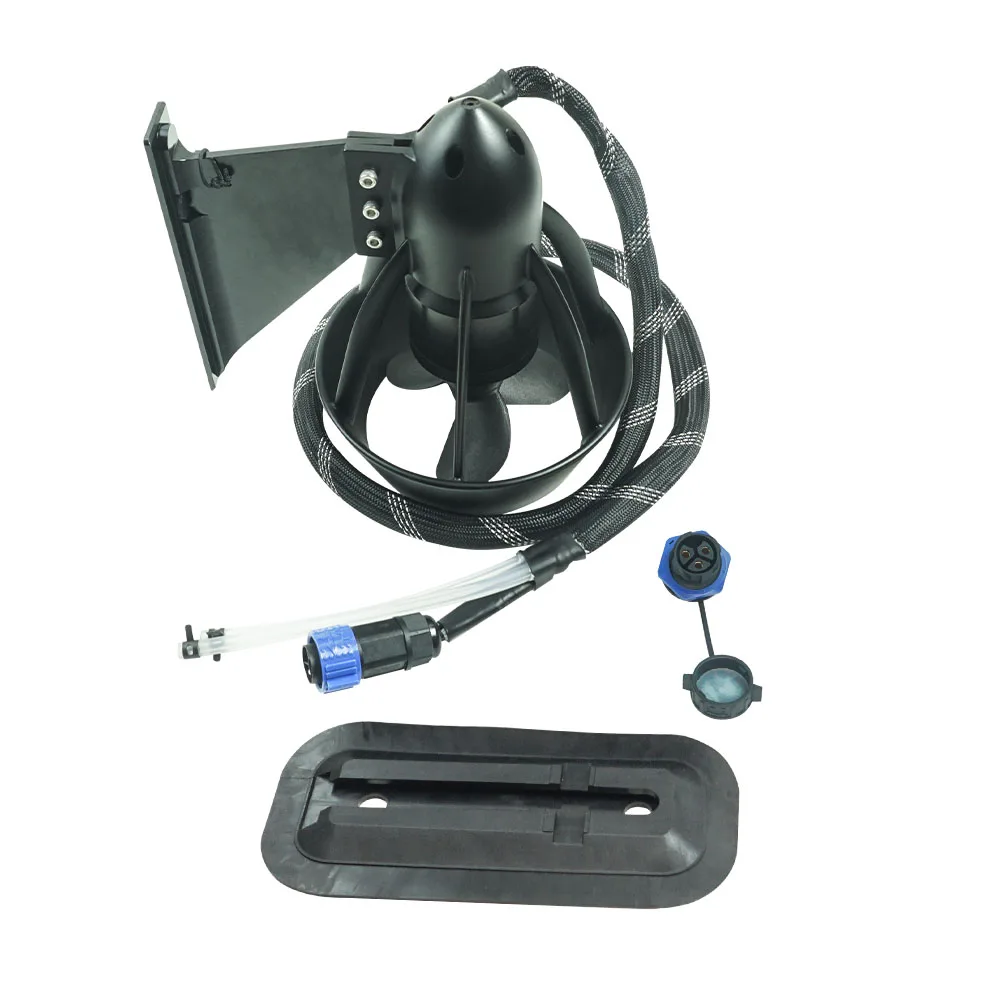

7070 motor parameters

• Motor :7070/110KV


• Waterproof grade :IP58


• Guard material :ABS


• Fixing bracket:6061 aluminum alloy


• Propeller: 3 pcs propeller 3.8 inches


• Voltage range 6-20s (25.4-84v)


• Rated power 2200w


• Maximum power: 4300W

Remote control

• remote control:vx3pro


• Control mode :UART


• Remote control distance: no interference, 25 meters in a straight line


• Waterproof grade:Ip67


• There are 3 adjustable gears (L/M/H)


• Functions: Cruise control, GPS speed display, infinite throttle

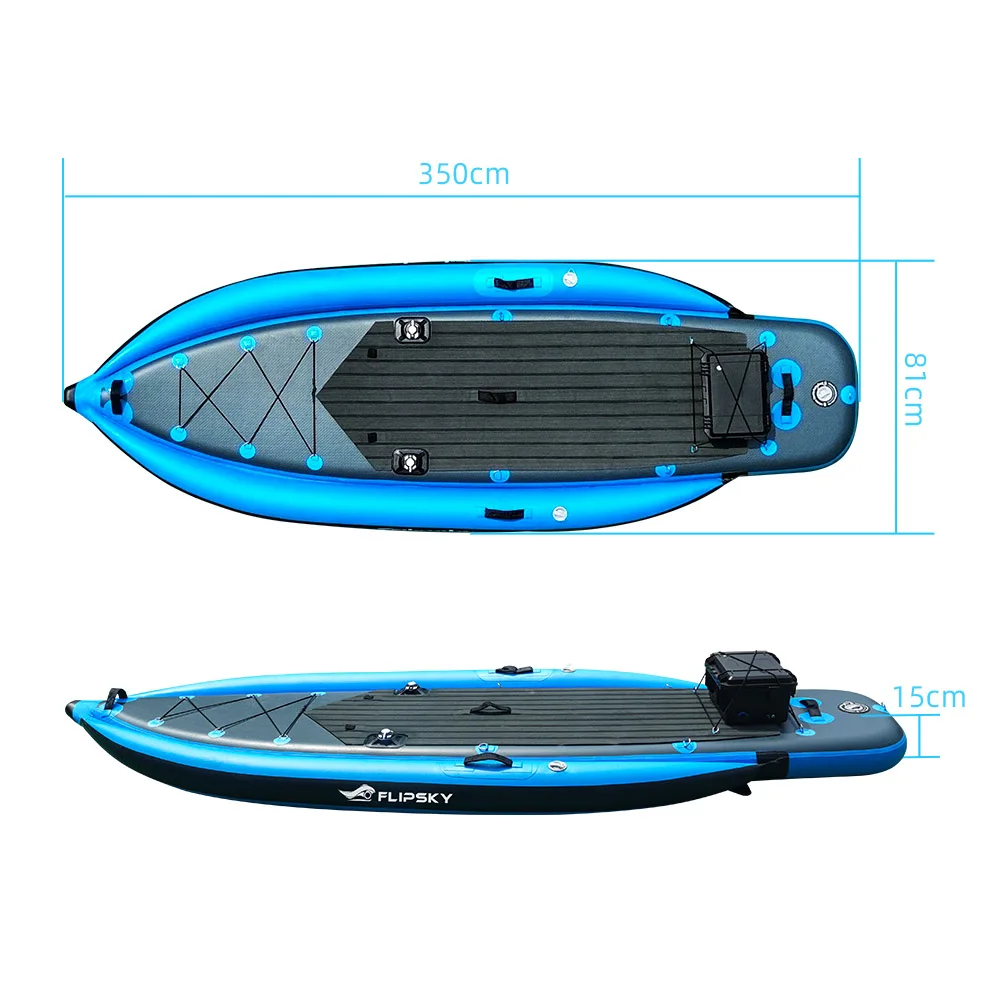

Inflatable Fishing Boat With Electric Motor Size:

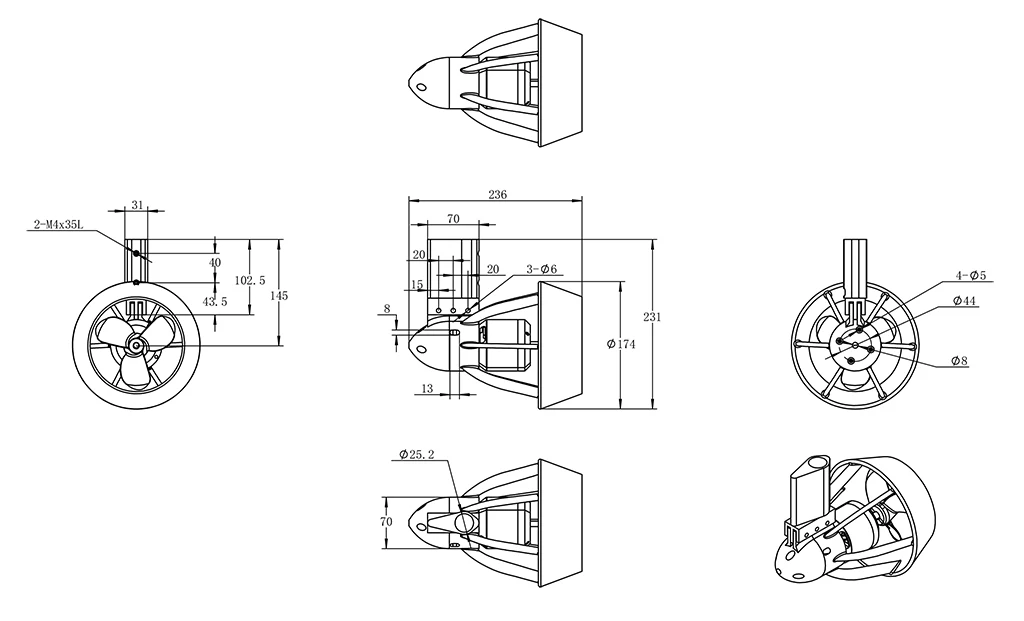

7070 electric fin motor drawing:

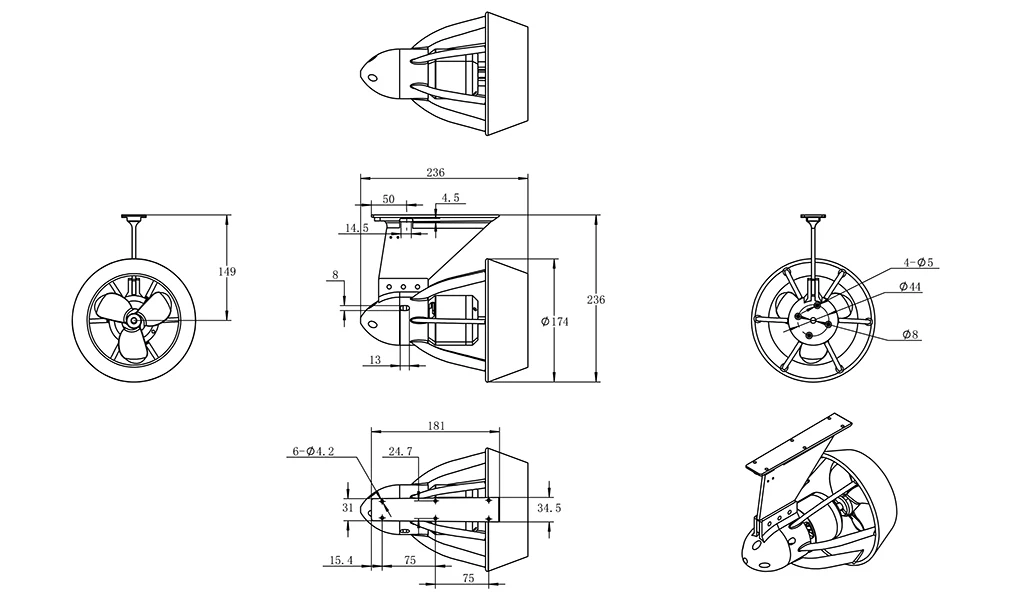

7070 Electric fin thruster drawing:
