Automotive fabric embossing machine

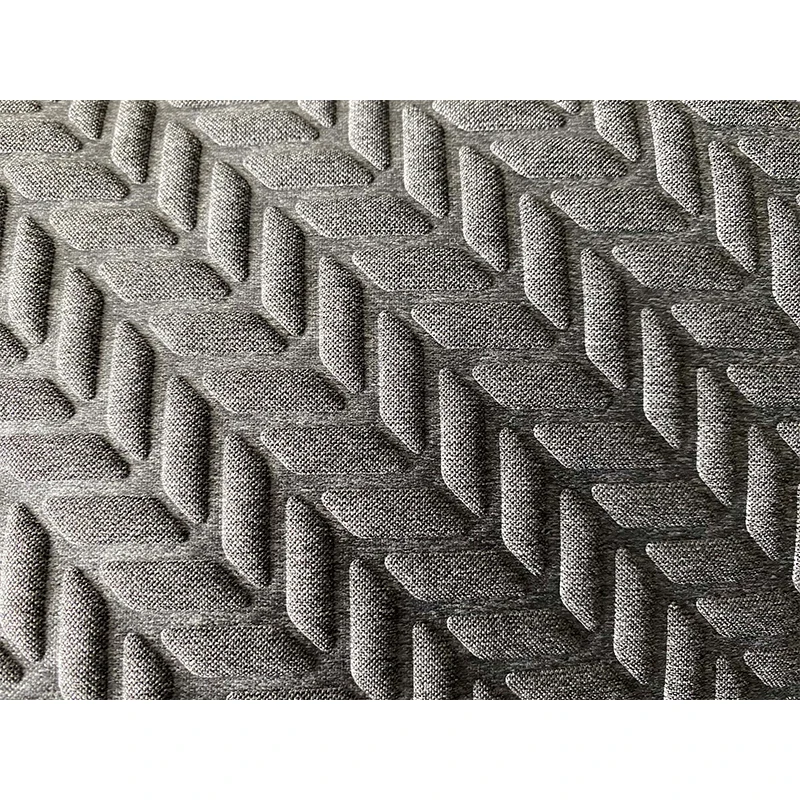

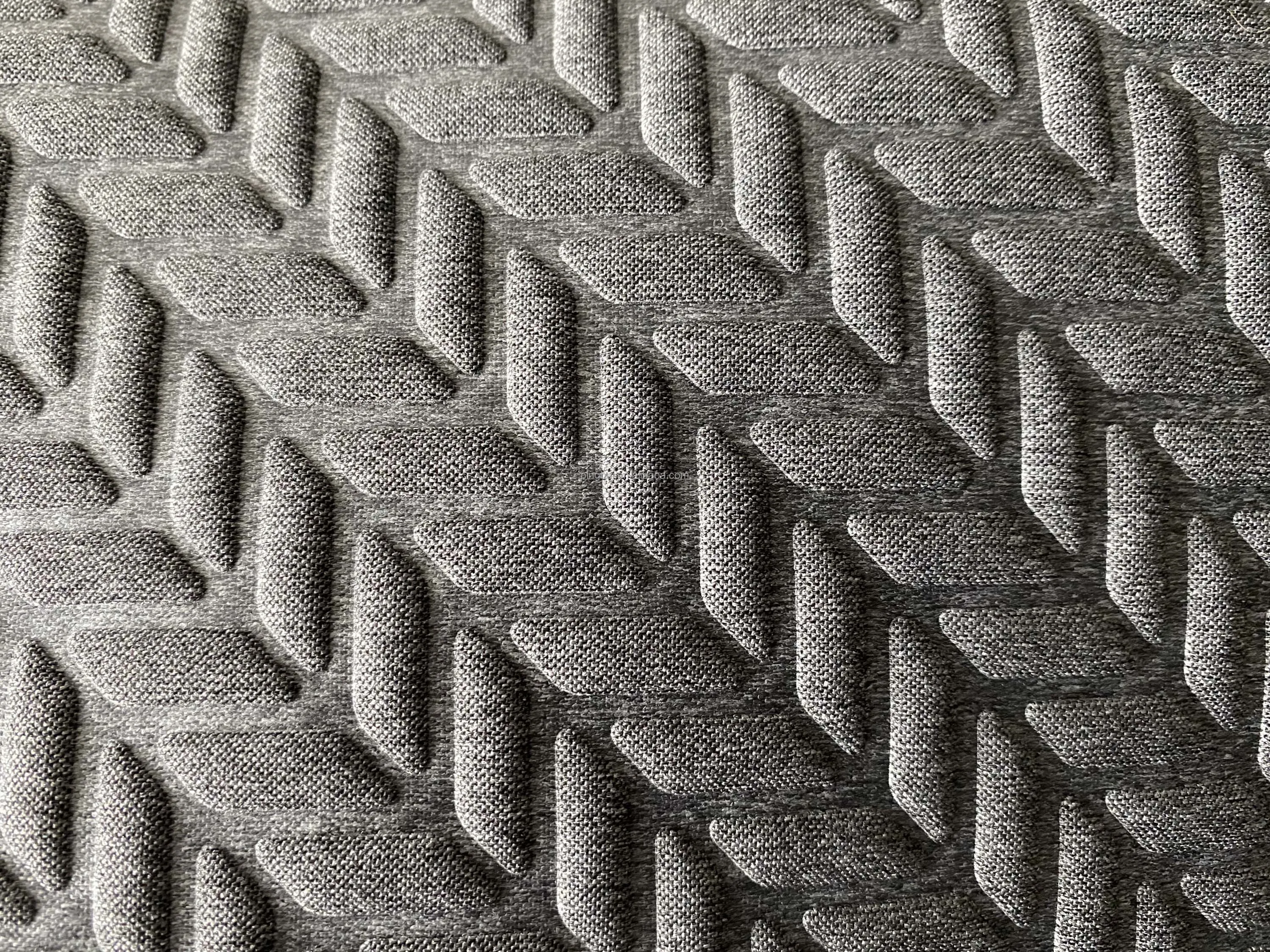

The automotive fabric embossing machine is used to emboss the laminated (with foam) and unlaminated fabric from roll to roll.The laminated fabric would appear high deep 3-D pattern after embossing.

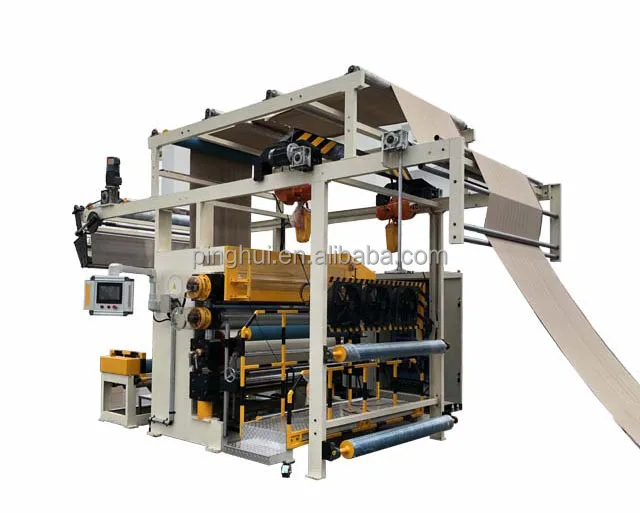

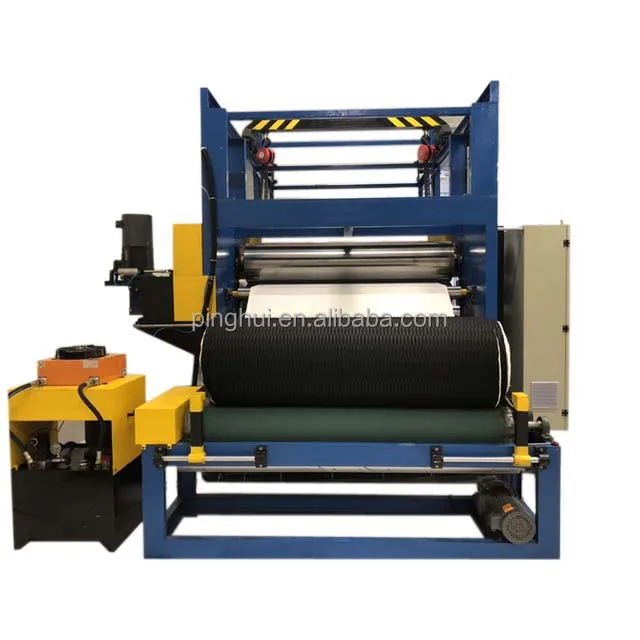

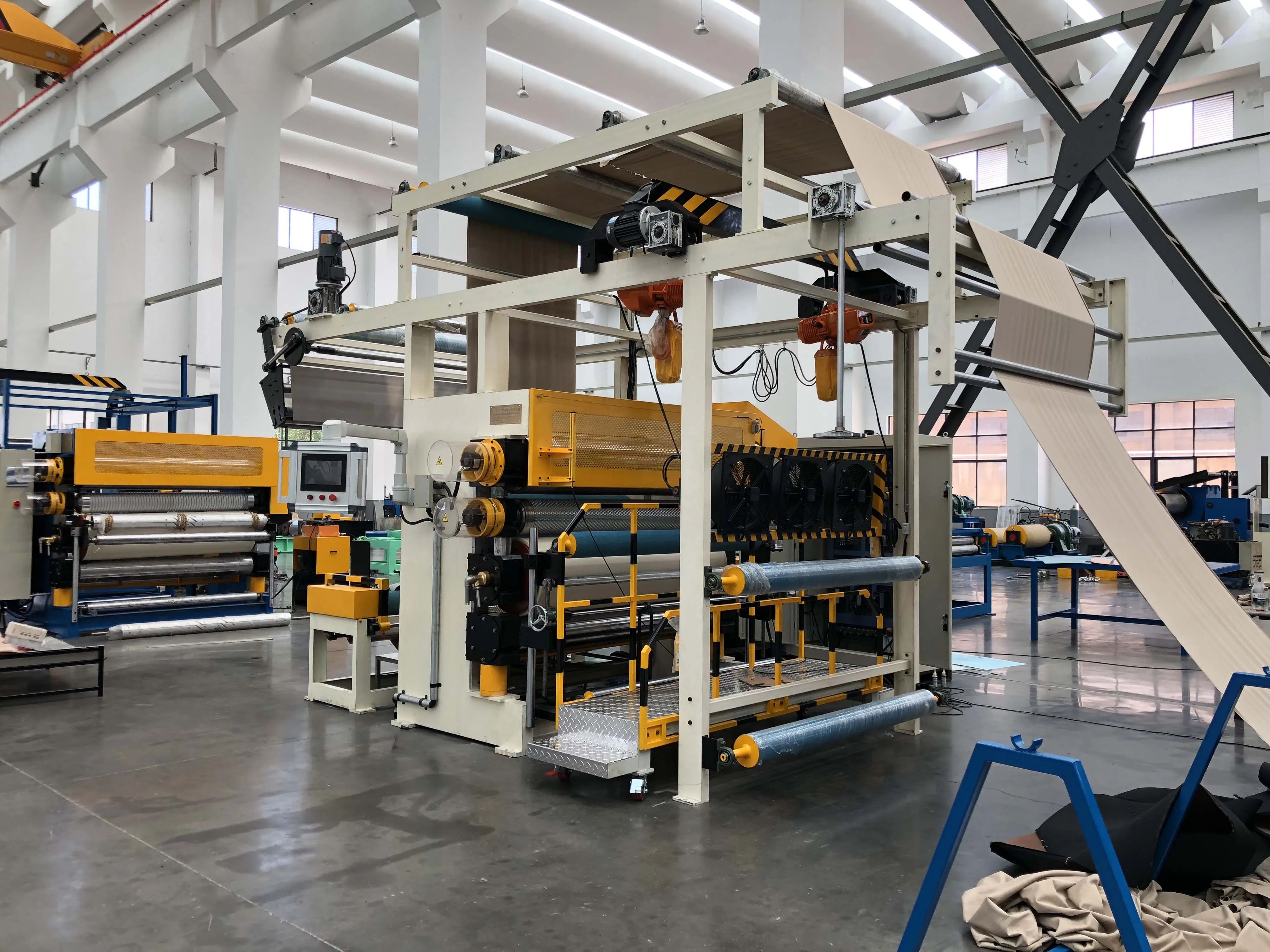

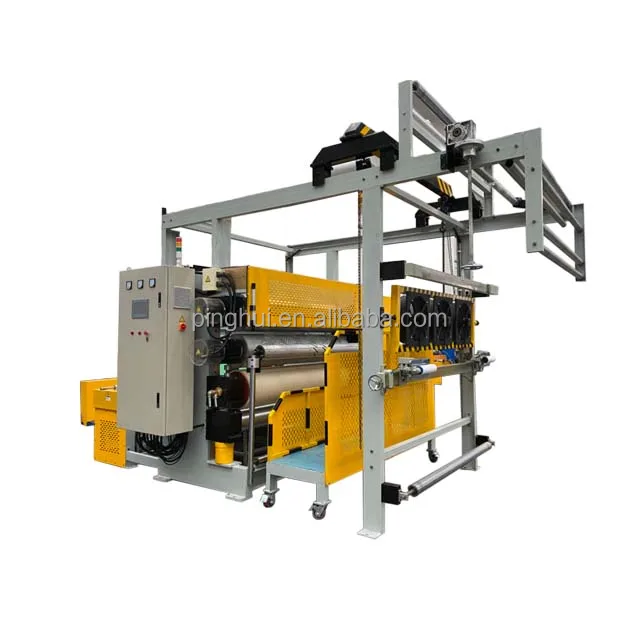

This machine is formed by embossing rolls, heating system, hydraulic system and rewinder, automatically controlled and visualized by PLC.
The automotive fabric embossing machine is used to emboss the laminated (with foam) and unlaminated fabric from roll to roll.The laminated fabric would appear high deep 3-D pattern after embossing.
This machine is formed by embossing rolls, heating system, hydraulic system and rewinder, automatically controlled and visualized by PLC.

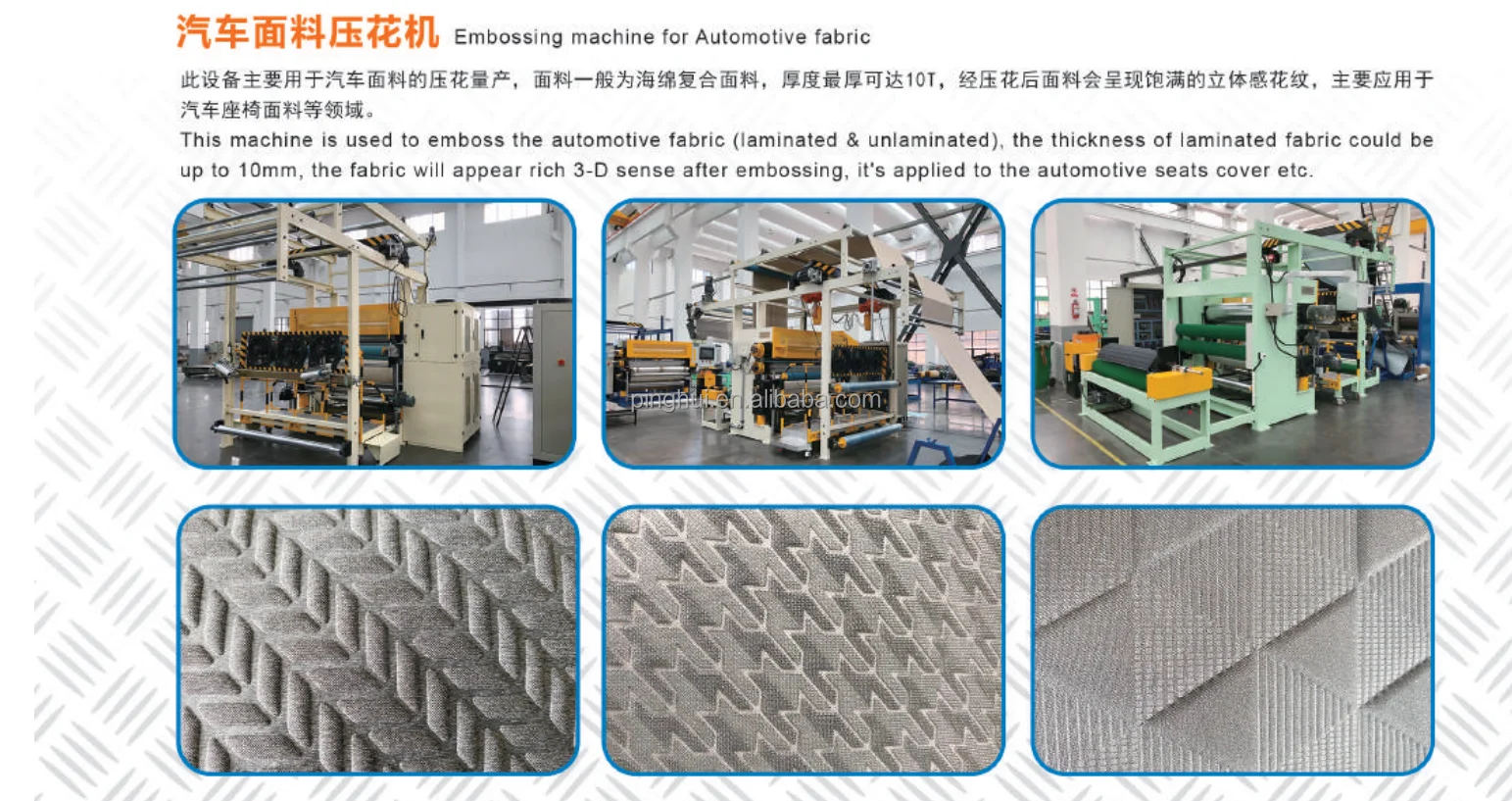

This machine is used to emboss the automotive fabric laminated & unlaminated), the thickness of laminated fabric could beup to 10mm, the fabric will appear rich 3-D sense after embossing, it's applied to the automotive seats cover etc.
Specification Sheet
1 | Max. width of the machine: | 4.5m |
2 | Max. length of the machine: | 5.5m |
3 | Thickness of fabric: | 0.5~10mm |
4 | Width of fabric: | ≤ 2000 mm |
5 | Material to be emboss: | Laminated fabric with foam or unlaminated face fabric |
6 | Embossing pattern | As customer’s designs |
7 | Tolerance of temperature | ±1℃ |
8 | Heating medium | Oil |
9 | Pressure | Hydraulic max.12Mpa, with sensor closed-loop control |
10 | Drive system | Frequency control or servo drive |
11 | Operation speed: | 0.2~10m/min |
12 | Main Functions: | automatic, step, manual |
