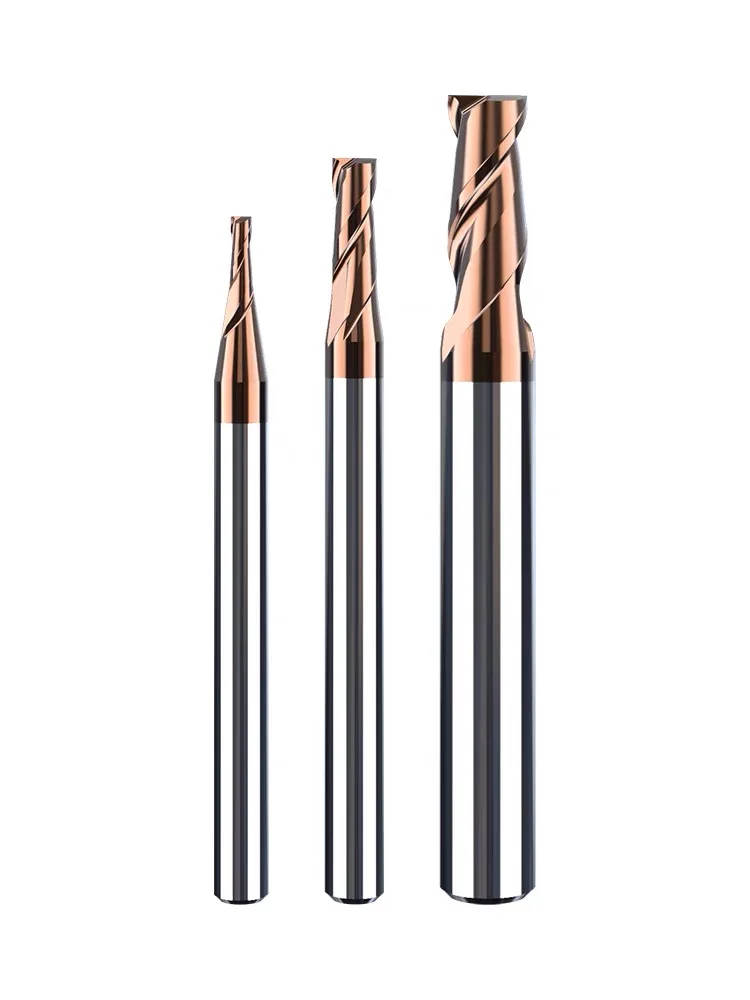

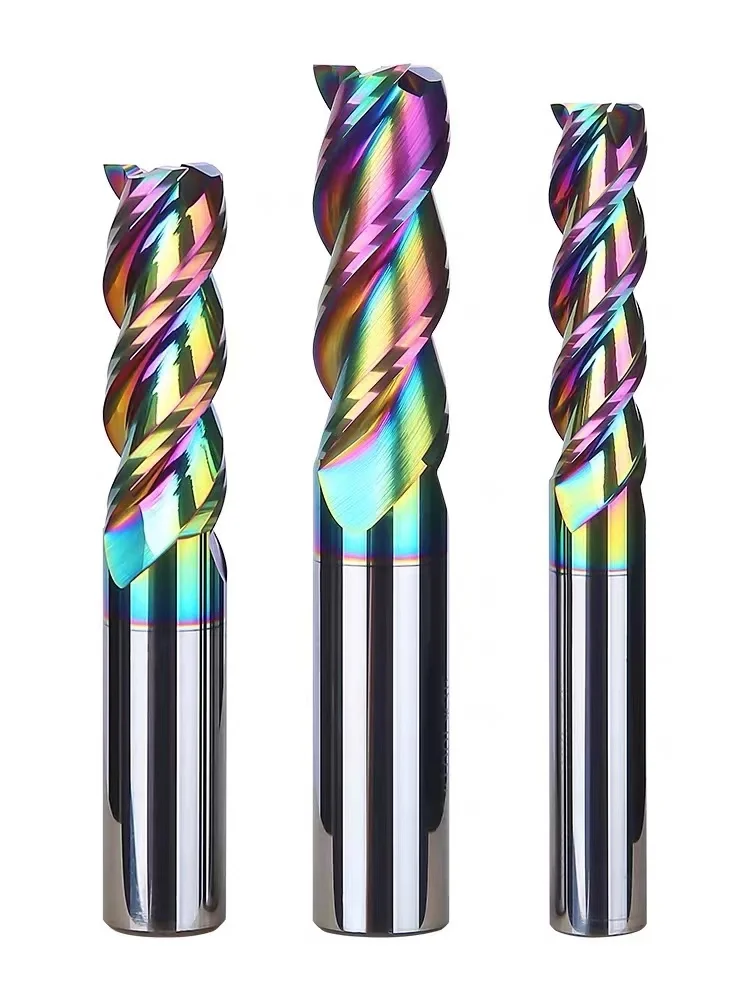

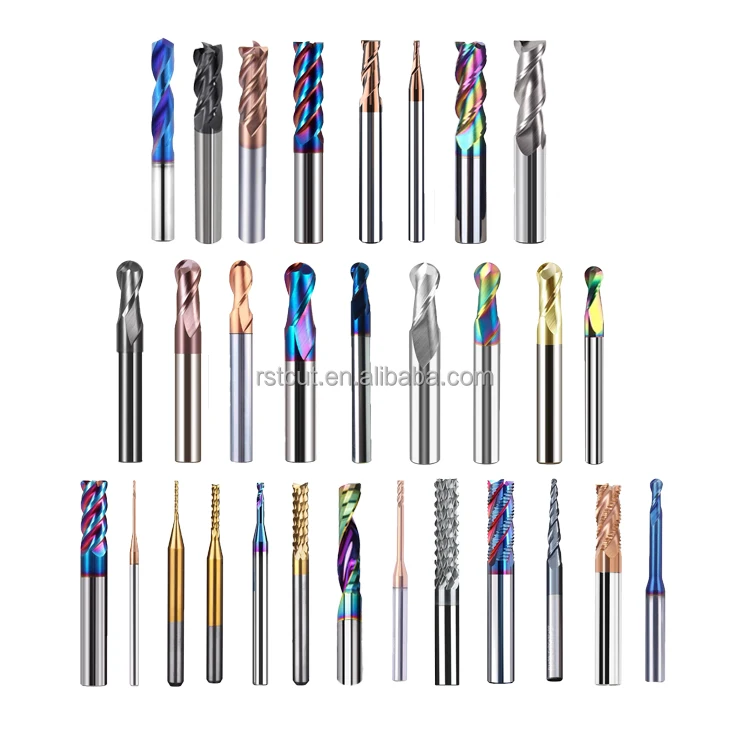

RST Solid Carbide Endmill Cnc Cutter Tool For Metal Milling Cutter Router Square Face End Mill Hrc 45/55/60/70

Product Overview

Description

Tungsten Milling Cutter Customizable 2-6 Flute Carbide Micro Diameter Long Neck EndMill Ball Nose Flat Roughing En

RST Solid Carbide Endmill Cnc Cutter Tool For Metal Milling Cutter Router Square Face End Mill Hrc 45/55/60/70

d Mill



Specification:





2/4 Flute End Mill
Flute Diameter(d)	Shank Diameter(D)	Flute Length(l)	Overall Length(L)
1.0	4	3	50
1.5	4	4.5	50
2.0	4	6	50
2.5	4	7	50
3.0	4	8	50
4.0	4	11	50
5.0	6	16	50
6.0	6	15	50
7.0	8	18	60
8.0	8	20	60
9.0	10	23	75
10.0	10	25	75
11.0	12	28	75
12.0	12	30	75
16.0	16	40	100
20.0	20	40	100



Tips: The above specifications are standard Size, with a large amount of stock. At the same time, we support OEM customized production, the diameter is 0.2mm to 25mm, the Total length is 50mm to 200mm, include inch size end mill , the number of Flute is 4F, 5F, 6F, 8F and the logo could be customized.



Cutting Parameters
Diameter	RPM(min-1)	Feed Speed(mm/min)
3mm	20000-24000	800-1200
4mm	20000-24000	1000-1600
5mm	18000-22000	1200-2000
6mm	16000-22000	1300-2200
8mm	16000-20000	1400-2300
10mm	13000-20000	1600-2600
12mm	12000-20000	1800-3200







Q: Is OEM available?

A: Yes, OEM and customization are available. Also, we can provide label printing service.



Q: Are samples available?

A: Free samples are available while freight is chargeable.



Q: What is your payment terms?

A: T/T,L/C,D/A,D/P,Paypal for different circumstances.



Q: What's your delivery way?

A: Express delivery, air shipping, sea shipping are available for your request.



Q: What's your delivery time?

A: Usual delivery time is 5-10days after recieving the advance payment; For the customized product, 15-30 days after receiving the advance payment.
