Высокая безопасность 250 тонн 4000 мм CNC Пресс тормоз строительный материал Обработка гибочный пресс Cnc
Высокая безопасность 250 тонн 4000 мм CNC Пресс-тормоз строительный материал Обработка гибочный пресс Cnc
Высокая безопасность 250 тонн 4000 мм CNC Пресс-тормоз строительный материал Обработка гибочный пресс Cnc
Высокая безопасность 250 тонн 4000 мм CNC Пресс-тормоз строительный материал Обработка гибочный пресс Cnc
Высокая безопасность 250 тонн 4000 мм CNC Пресс-тормоз строительный материал Обработка гибочный пресс Cnc
Высокая безопасность 250 тонн 4000 мм CNC Пресс-тормоз строительный материал Обработка гибочный пресс Cnc
Высокая безопасность 250 тонн 4000 мм CNC Пресс-тормоз строительный материал Обработка гибочный пресс Cnc

Высокая безопасность 250 тонн 4000 мм CNC Пресс тормоз строительный материал Обработка гибочный пресс Cnc

Share on (1601147680034):


Price:$7,000.00 - $8,000.00

Quantity:


Product Overview

Description



Products Description




◆The press brake consists of a frame: a column, a ram, a workbench, a main cylinder and a back gauge welding structure. Some accessories are tempered by large tempering furnace equipment to eliminate deformation caused by welding force and processing stress and ensure the accuracy of the machine tool. The slider position feedback accuracy is high, the operation is accurate and smooth, the synchronization performance is good, the bending accuracy and the slider repeat positioning accuracy are high.
◆The backgauge adopts a multi-axis backgauge mechanism with more complete functions.
◆The hydraulic system adopts an integrated control system, which reduces pipeline installation, overcomes oil leakage, ensures.
the working stability of the machine tool, and has a simple and beautiful appearance.
◆It can be equipped with a mechanical deflection automatic compensation mechanism to eliminate the impact of slider deformation on workpiece quality. The CNC system automatically adjusts the compensation amount, making the operation easy and accurate.
◆The CNC system can choose from various brands of special CNC systems for bending machines.


product name
Remark
Control System
Estun E21/Other systems available
Servo motors and drives
Estun
main hydraulic valve
BOSCH-REXROTH
Hydraulic pump
United States SUNNY
ball screw
Taiwan
Linear Guides
Taiwan
Connector
German EMB
Cylinder sealing ring
Swedish SKF
Main electrical components
Schneider or imported joint venture brand
Main motor
Siemens

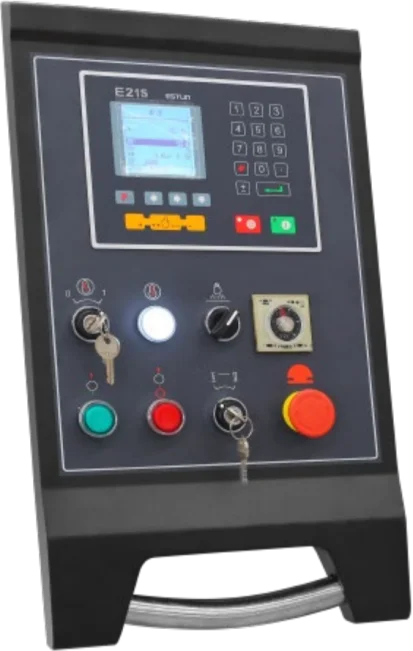

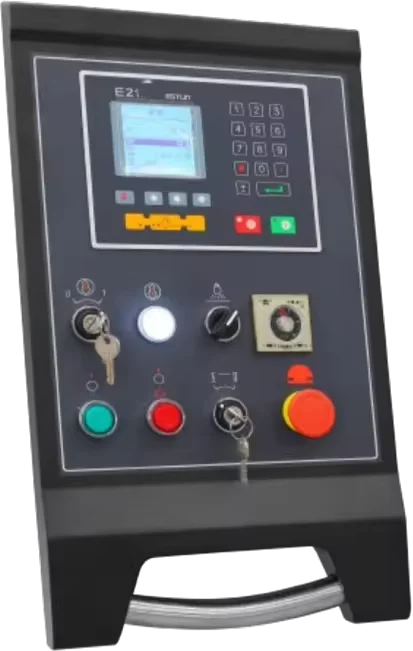

Standard system E21
■ Chinese and English languages are available, and the programming parameters are displayed on one page, making it faster and more convenient to write programs.
■ Intelligent positioning of X and Y axes.
■ Built-in pressure holding time and unloading delay setting functions.
■ With one-key parameter backup and recovery function.
■ Support multi-step programming.
■ All buttons on the panel are micro switches to ensure the stability and service life of the product.


optional systems

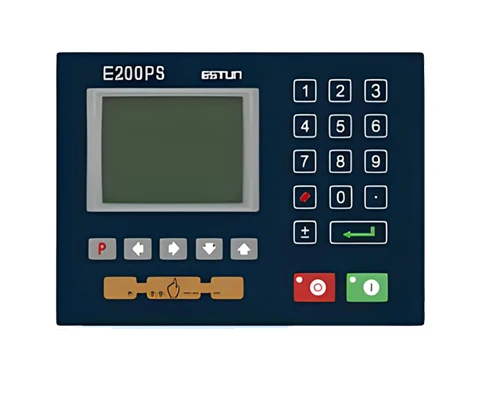

Estun E200PS

Servo control can realize back gauge and high-precision control device.
Single-sided and double-sided arrangement improves positioning accuracy and reduces lead screw clearance.
The main actions of the machine can be customized, such as quick closing, pressing, decompression, and opening.
The backgauge can be adjusted automatically
The rear stop can be adjusted using the hand keys.
All ports can be configured directly on the device page, and the device has a self-test function.

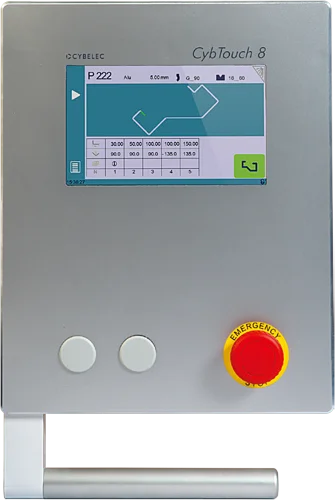

Cyptouch 8

CYBELEC CybTouch 8 PS 2D graphics CNC system
CybTouch 8 PS is designed for synchronized press brakes. Part of the CybTouch family, it features an intuitive, vibrant color touchscreen and a high degree of feature integration.
7" color graphics CRT screen
Create 2D graphics profiles with manual sorting
Up to 4 axes (Y1, Y2 + 2 axes)
Calculation of bending tolerances.
Pressure-convexity calculation.
CNC crown control
Correction of angles and tailgate.
Comes with standalone PC1200 software.

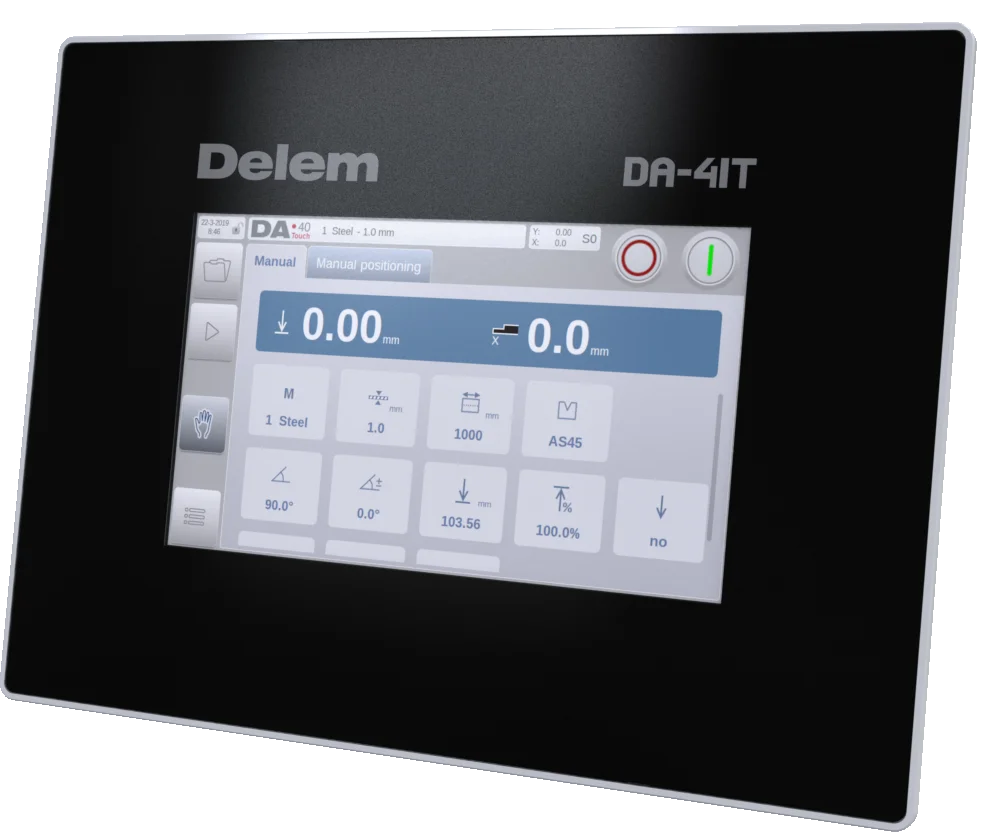

Delem DA41

DELEM DA41T touch color CNC system
The DA41 CNC machine tool is ideally suited for torsion axis bending machines, providing a complete and cost-effective solution for most machines, with high productivity, flexible configuration, compact structure, ease of use and high reliability.
Color LCD display
7-inch TFT widescreen, high brightness
1024 x 600 pixels, 32-bit color
Full touch control (PCT-touch)
The program memory can hold 100 programs.
25 steps in the program
Tool Library
USB flash drive


STRESS RELIEF

KUKA CNC press brake features a rigid frame for minimum deflection under the load. Machine welding is made by welding apparatus & welding robots. After the welding, we make a stress relief process by high-temperature tempering or vibration system to improve the mechanical properties of materials, reduce deformation and rebound, improve the stability and durability of the workpiece, and machine frame sensitivity is protected for a long lifetime.




mechanical compensation

The CNC crowning system calculates compensation values based on the overall deformation of the slide and table surface.
This allows the deformation curve of the bed to be seamlessly aligned with the compensation curve, ensuring stability.




Optional molds


MULTI-V MOLD

Users can choose the specifications of the mold according to their own needs. The mold is forged, with high precision, high hardness, wear resistance and impact resistance.

FAST CLAMP

The standard equipped fast clamp will help you replace
the top punch in very short time.Convenient and
time-saving.


Details Images

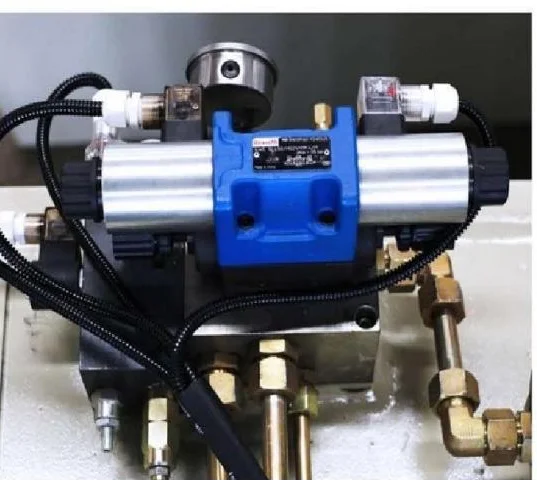

SUPERIOR HYDRAULIC SYSTEM

Integrated Rexroth hydraulic system, quick response. The low failure rate makes the machine run safely, efficiently and stably.The
whole series of standard is equipped with galvanized cold drawn pipe and German EMB ferrule type pipe joint. Reduce the risk of
oil leakage by 50% compared with rubber and welded seamless tubing. And in can be longer service life.

HYDRAULIC SYSTEM

Our press brake adopt Schneider electrical components. The high quality electric parts can make the machine performing well even
the electricity is not stable and customers can easily get the replacement anywhere in the world.

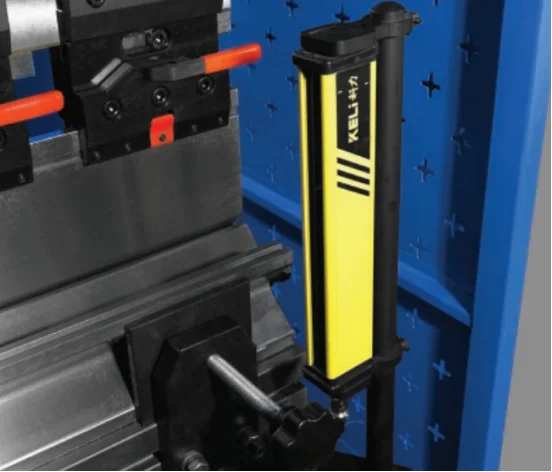

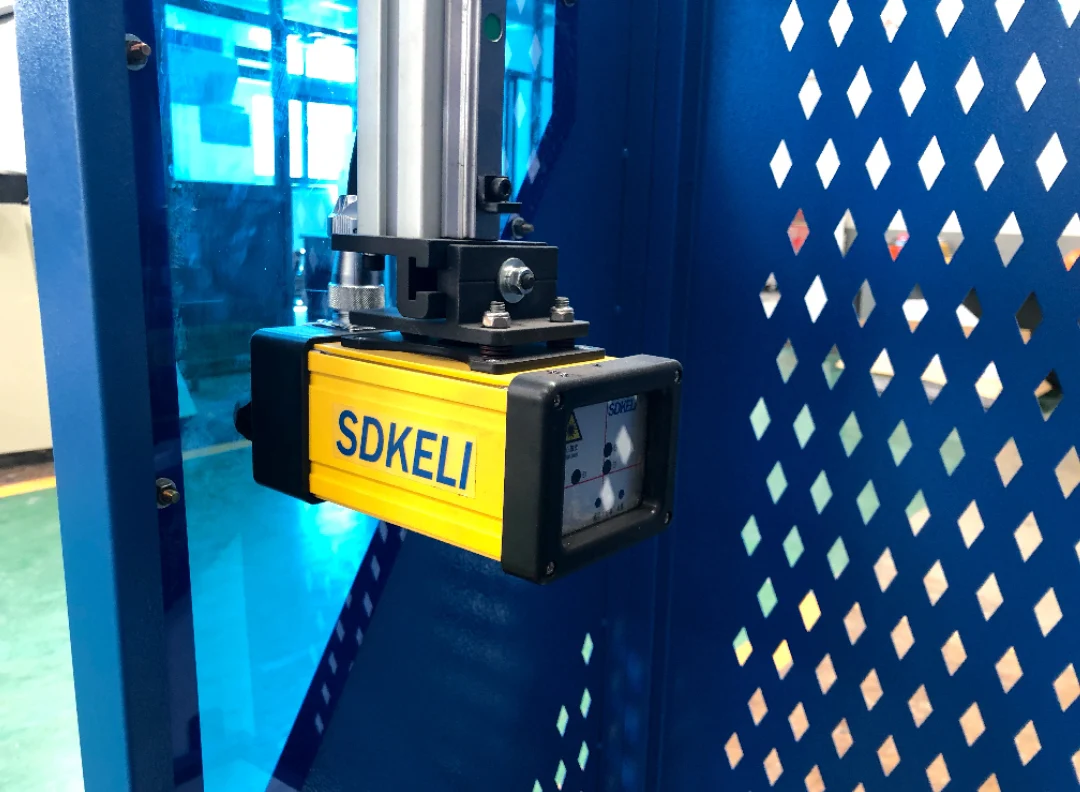

FRONT LIGHT CURTAIN

Output contacts are connected in series for mutual detection, with high safety performance. Good anti-light interference ability
protects the personal safety of workers during bending operations.

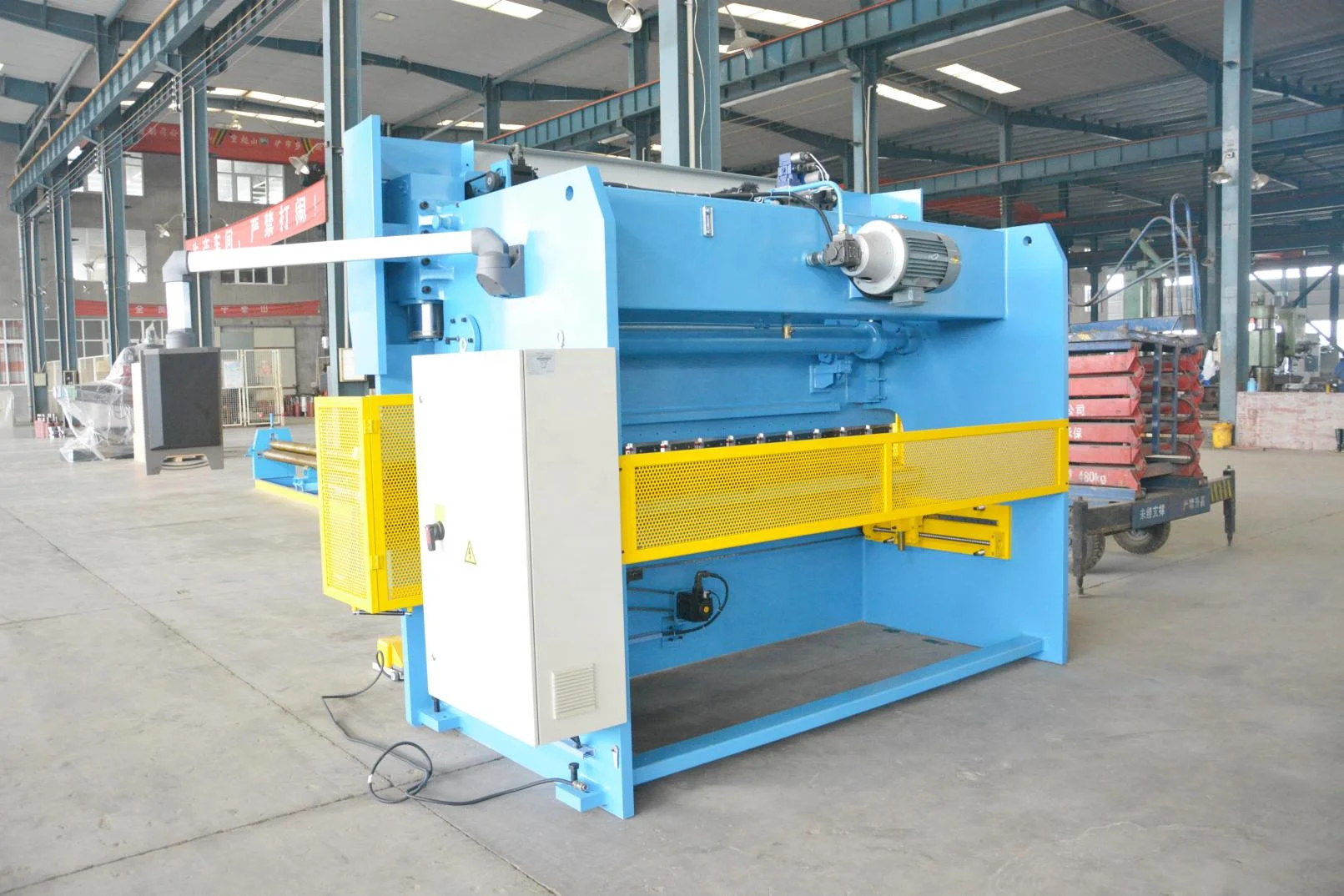

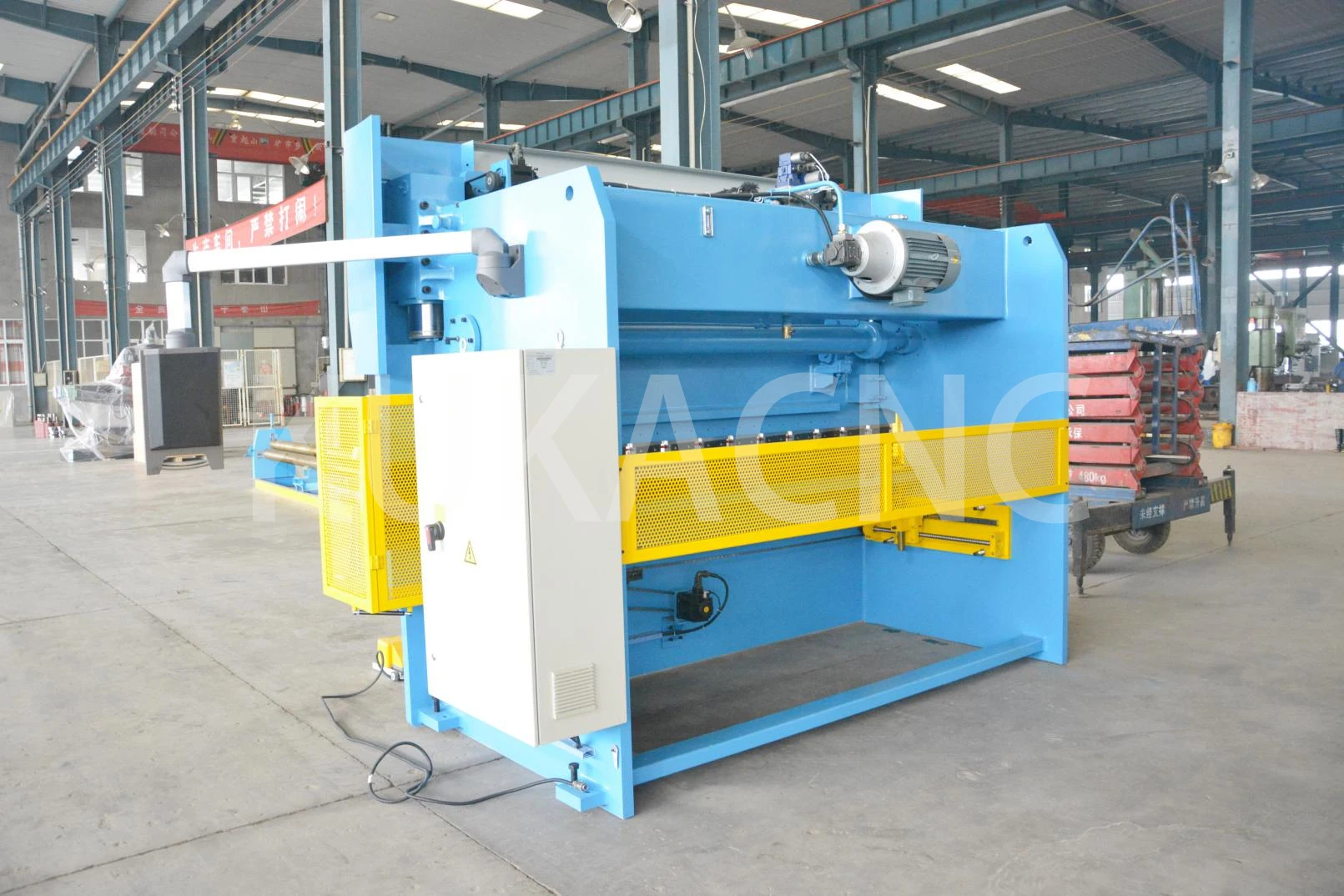

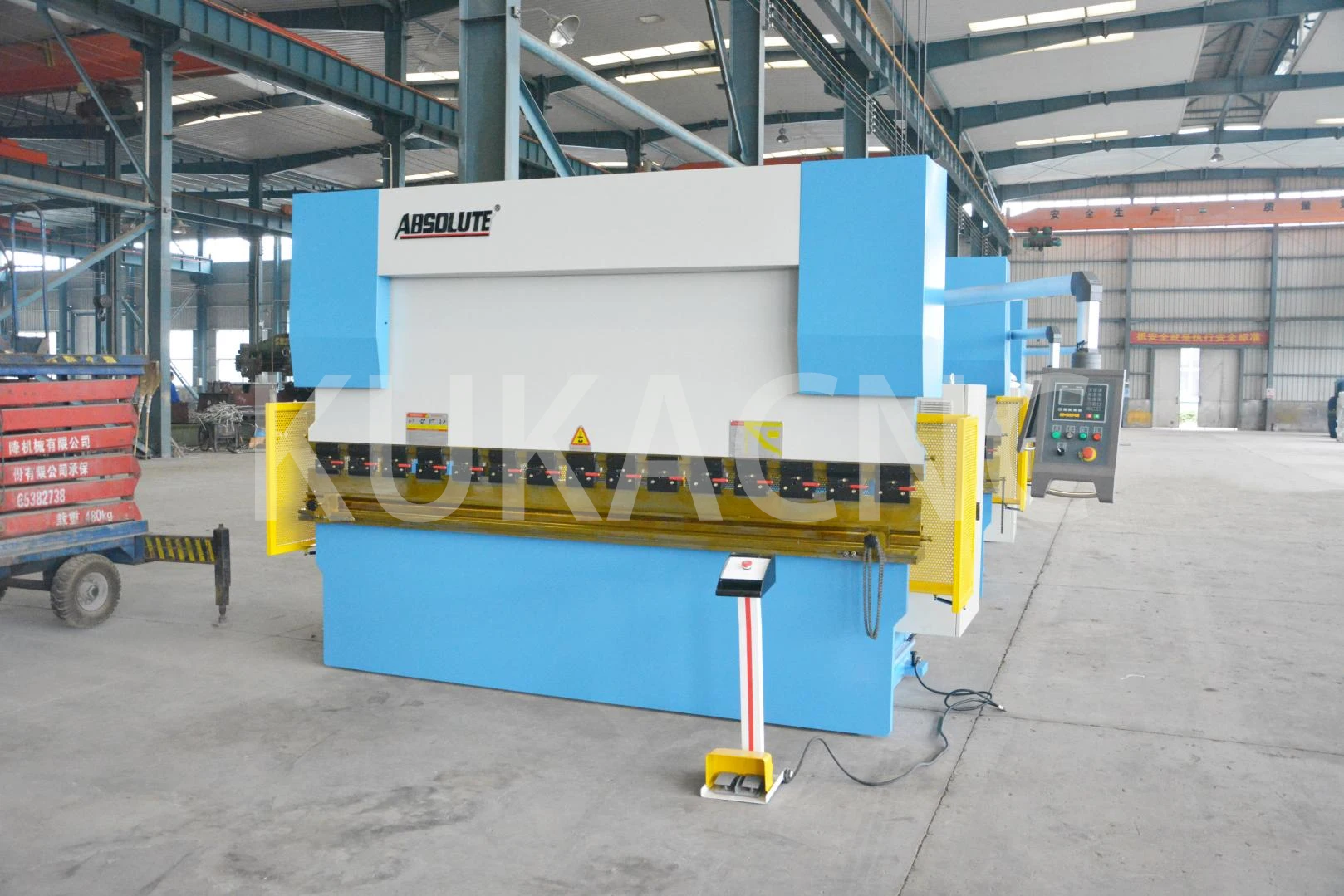

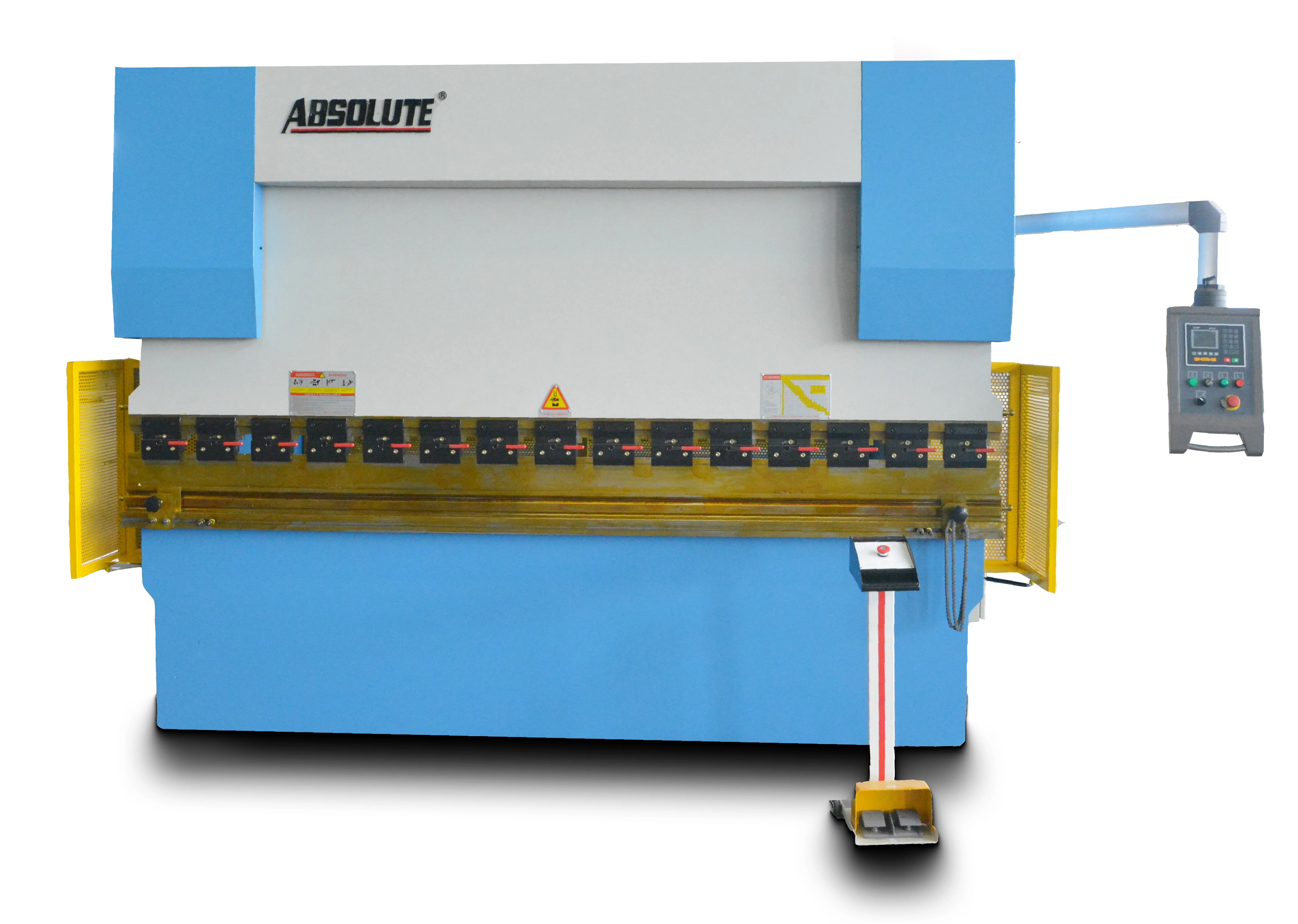

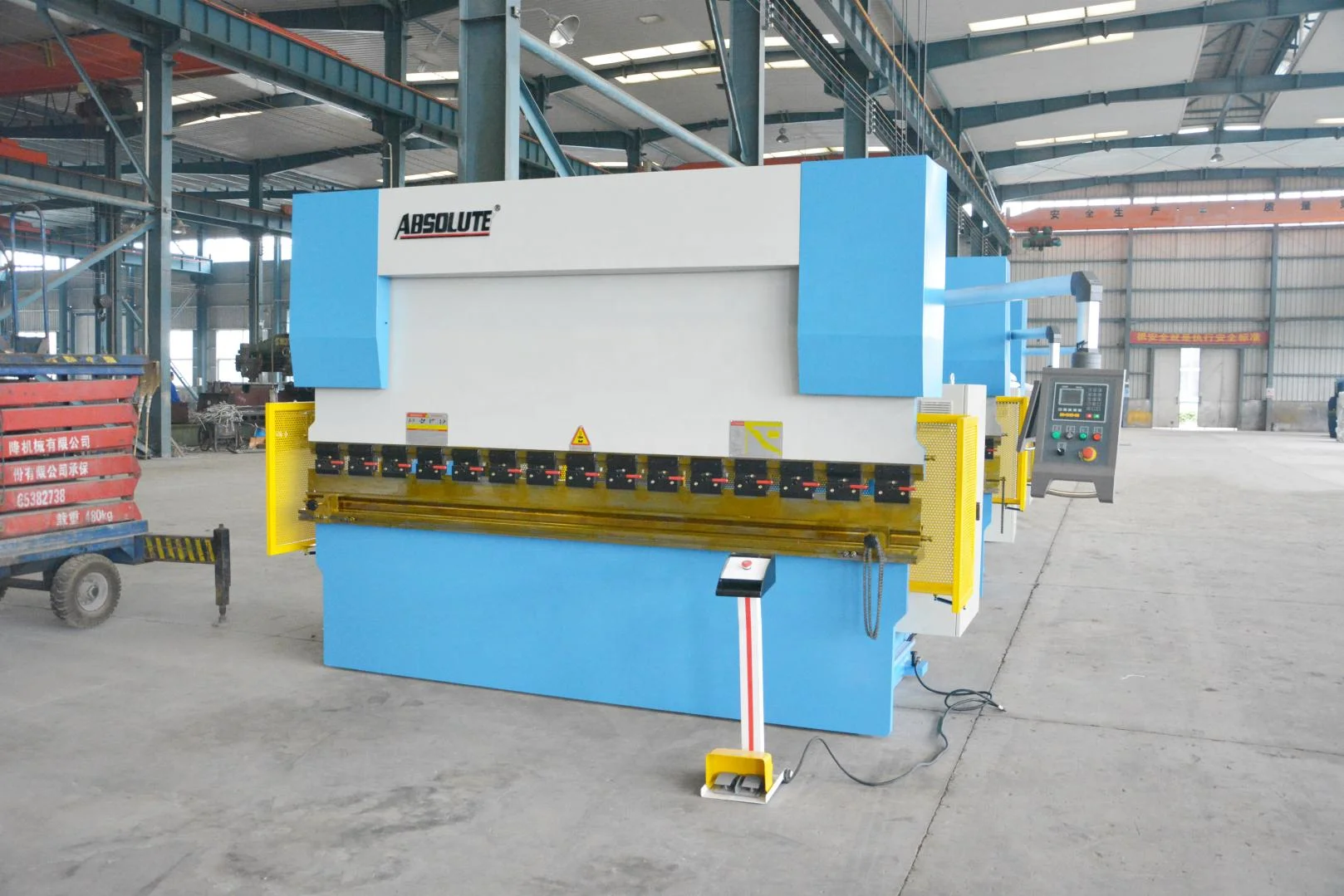

Physical picture








Some available colors




Technical Specifications




Model
Bending Force
(Kn)
Bending Length
(mm)
Column Distance(mm)
Stroke(mm)
Throat Depth(mm)
Daylight(mm)
Main Motor(KW)
Dimensions
(mm)
Unit
/
(A)
(B)
(C)
(D)
(E)
/
L×W×H
30t/1600
300
1600
1300
80
200
320
5.5
1650*1200*1700
30t/2000
300
2000
1600
80
200
320
5.5
2000*1200*1700
40t/2500
400
2500
2030
100
250
340
5.5
2500*1200*1900
63t/2500
630
2500
2050
120
250
340
5.5
2500*1350*2100
63t/3200
630
3200
2510
120
250
340
5.5
3200*1350*2100
80t/2500
800
2500
2050
120
250
350
5.5
2500*1400*2150
80t/3200
800
3200
2510
120
250
350
5.5
3200*1400*2150
100t/2500
1000
2500
2050
160
320
420
7.5
2500*1500*2200
100t/3200
1000
3200
2510
160
320
420
7.5
3200*1500*2300
100t/4000
1000
4000
3100
160
320
420
7.5
4000*1750*2590
125t/3200
1250
3200
2510
160
320
420
7.5
3200*1600*2350
125t/4000
1250
4000
3100
160
320
420
7.5
4000*1600*2450
125t/5000
1250
5000
3800
160
320
420
7.5
5000*1600*2450
125t/6000
1250
6000
4600
160
320
420
7.5
6000*1600*2450
160t/2500
1600
2500
2050
200
350
470
11
2500*1650*2700
160t/3200
1600
3200
2510
200
350
470
11
3200*1650*2800
160t/4000
1600
4000
3100
200
350
470
11
4000*1650*2800
160t/5000
1600
5000
3800
200
350
470
11
5000*1750*3100
160t/6000
1600
6000
4600
200
350
470
11
6000*1750*3300
200T/3200
2000
3200
2510
200
350
470
15
3200*1650*2800
200T/4000
2000
4000
3100
200
350
470
15
4000*1650*2800
200T/5000
2000
5000
3800
250
350
540
15
5000*1950*3100
200T/6000
2000
6000
4600
250
350
540
15
6000*1950*3100
250T/3200
2500
3200
2600
250
400
580
18.5
3300*2100*3150
250T/4000
2500
4000
3300
250
400
580
18.5
4000*2100*3150
250T/5000
2500
5000
3800
250
400
580
18.5
5000*2100*3200
250T/6000
2500
6000
4600
250
400
580
18.5
6000*2100*3200
300T/3200
3000
3200
2600
250
400
580
18.5
3200*2200*3200
300T/4000
3000
4000
3100
250
400
580
18.5
4000*2200*3200
300T/5000
3000
5000
3800
250
400
580
18.5
5000*2200*3200
300T/6000
3000
6000
4600
250
400
580
18.5
6000*2200*3200
400T/4000
4000
4000
3100
250
400
580
22
4000*2400*3200
400T/5000
4000
5000
3800
250
400
580
22
5000*2400*3200
400T/6000
4000
6000
4400
250
400
580
22
6000*2400*3200
500T/4000
5000
4000
3100
320
500
620
30
4000*2650*3200
500T/5000
5000
5000
3800
320
500
620
30
5000*2650*3200
500T/6000
5000
6000
4410
320
500
620
30
6000*2700*3200
500T/7000
5000
7000
5400
320
500
620
30
7000*2700*3200
