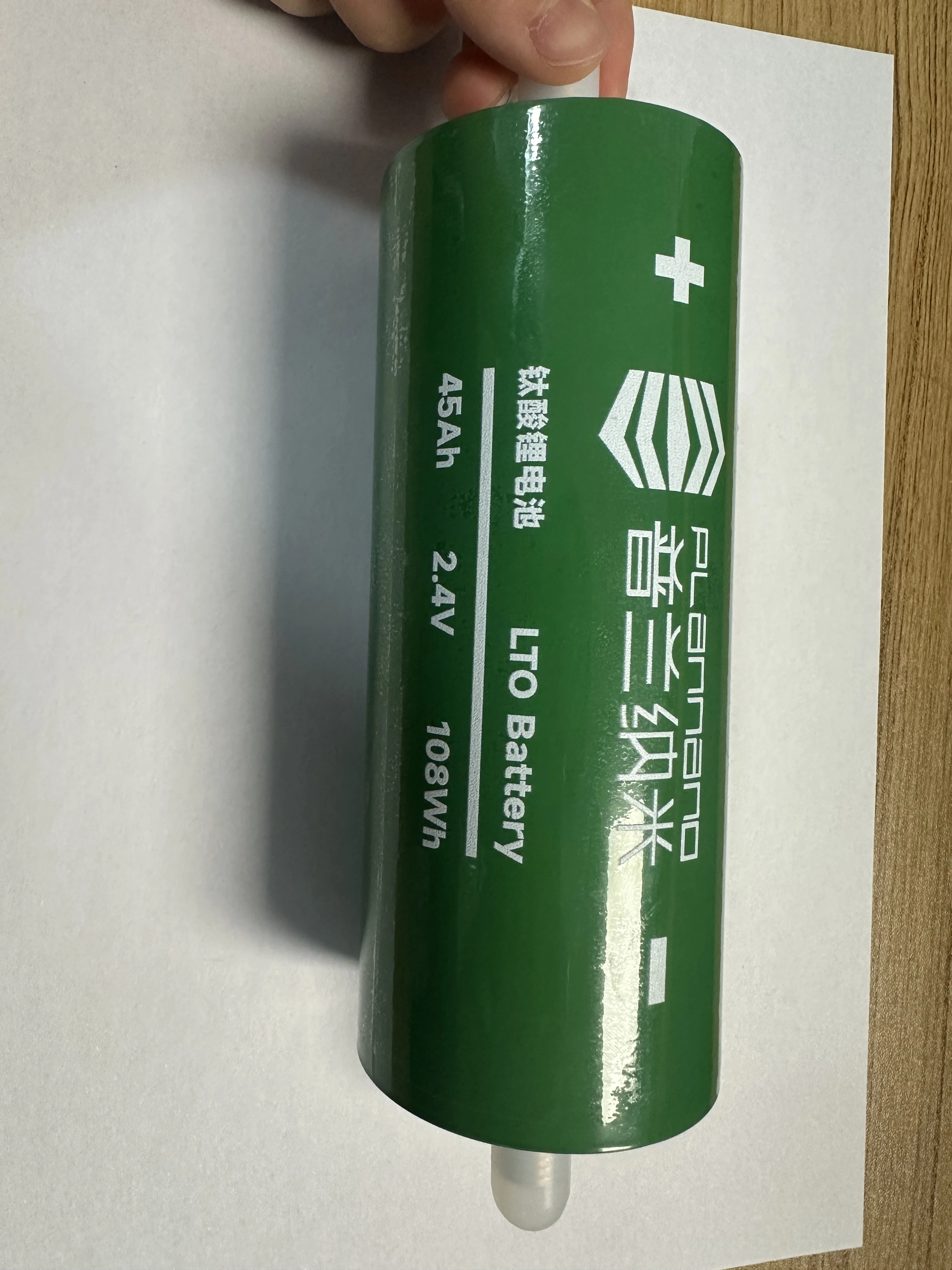

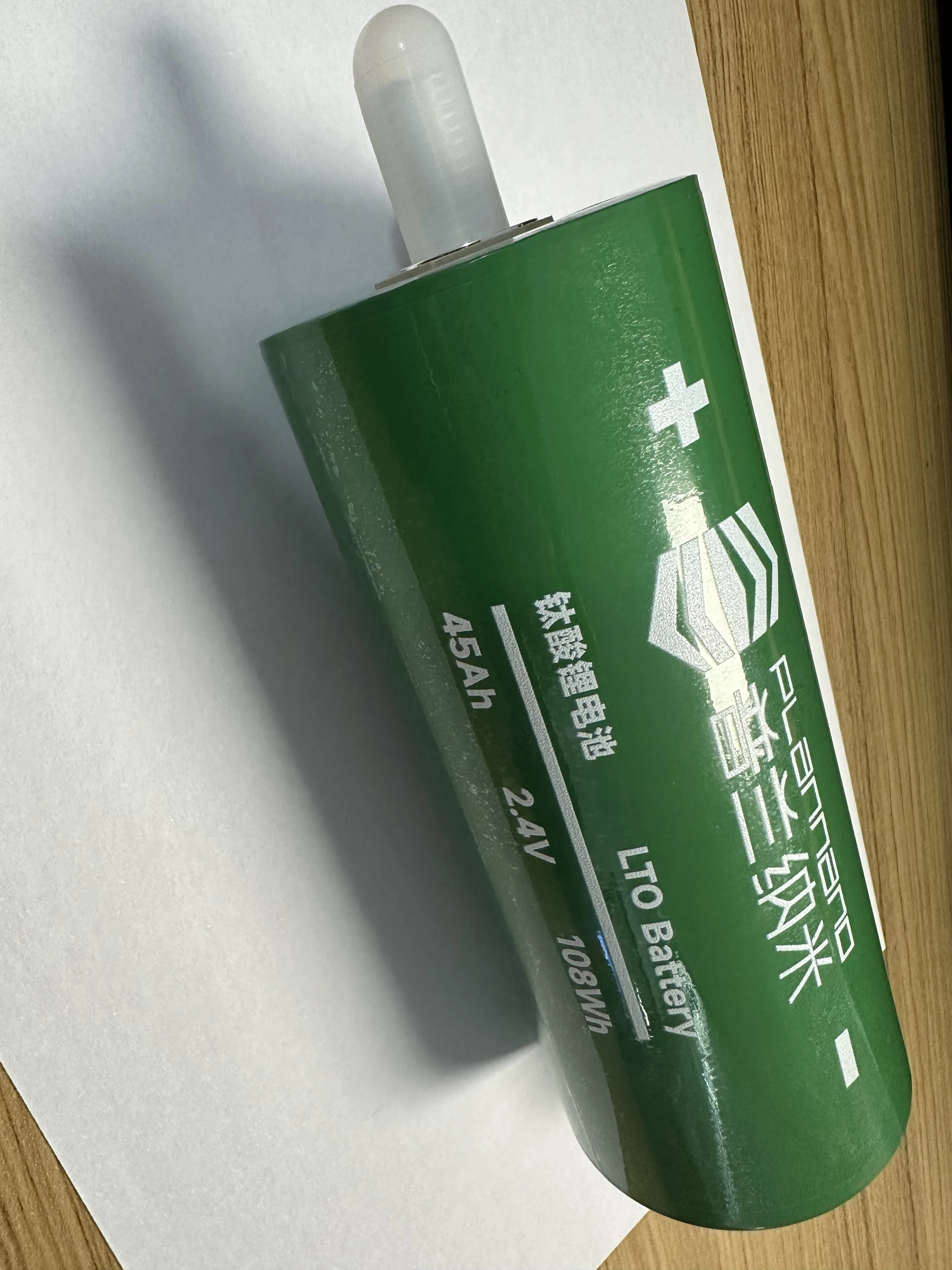

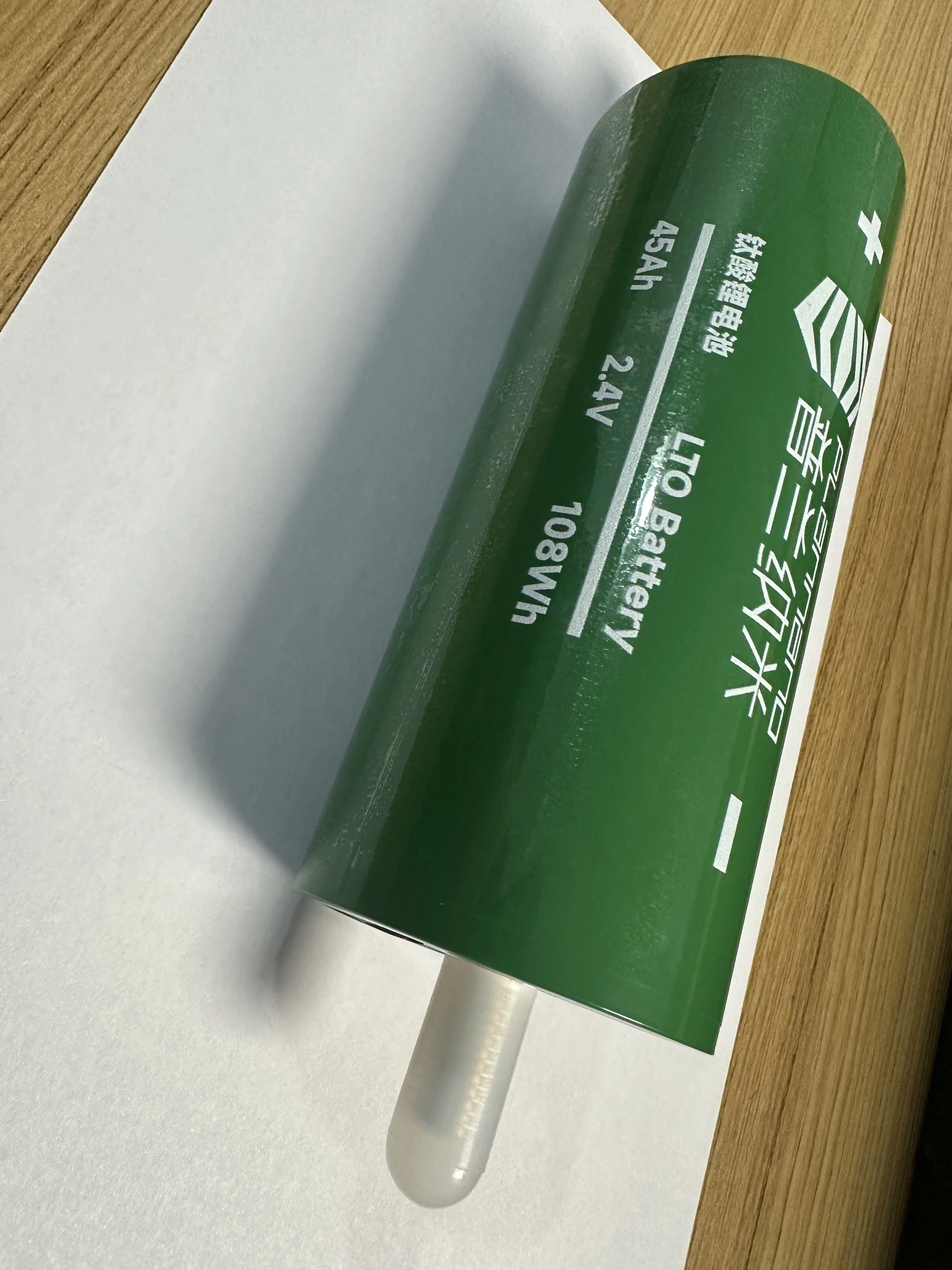

Hot Sale Wholesale Lithium Titanate New Model 45Ah 2.4V LTO Battery for Car Audio/Starting Pack 66160 Plannano LTO
- Category: >>>
- Supplier: Tianjin Pulan Energy Technology Co. Ltd.Tianjin Ltd.
Share on (1601147993124):
Product Overview
Description
Products Description
Items | 60138 | 60100 | 60318 | 60138 | 60165 |
Nominal voltage | 2.3V | 2.4V | 2.4V | 2.4V | 2.4V |
Nominal capacity | 24Ah | 20Ah | 24Ah | 30Ah | 37Ah |
Weight | ≤850g | ≤650g | ≤800g | ≤850g | ≤1030g |
Nominal Energy | 55.2Wh | 48Wh | 57.6Wh | 72Wh | 88.8Wh |
Energy Density | 65Wh/kg | 73.8Wh/kg | 72Wh/kg | 85Wh/kg | 86.2Wh/kg |
Resistance | ≤0.5mΩ | ≤0.5mΩ | ≤0.5mΩ | ≤0.5mΩ | ≤0.5mΩ |
Charging cut-off voltage | 2.7V | 2.8V | 2.8V | 2.8V | 2.8V |
Discharging cut-off voltage | 1.5V | 1.5V | 1.5V | 1.5V | 1.5V |
Standard charging current | 1C1A(24A) | 1C1A(20A) | 1C1A(24A) | 1C1A(30A) | 1C1A(37A) |
Standard discharging current | 1C1A(24A) | 1C1A(20A) | 1C1A(24A) | 1C1A(30A) | 1C1A(37A) |
Max. Constant Charging Current | 8C1A(192A) | 4C1A(80A) | 3C1A(72A) | 4C1A(120A) | 4C1A(148A) |
Max. Constant Discharging Current | 8C1A(192A) | 8C1A(160A) | 5C1A(120A) | 8C1A(240A) | 8C1A(296A) |
Max. Charging Current | 20C1A(480A) | 12C1A(240A) | 6C1A(144A) | 12C1A(360A) | 12C1A(444A) |
Max. Discharging Current | 30C1A(720A) | 20C1A(400A) | 10C1A(240A) | 20C1A(600A) | 20C1A(740A) |
Charging Temperature | -40°C ~ +60°C | -40°C ~ +60°C | -40°C ~ +60°C | -40°C ~ +60°C | -40°C ~ +60°C |
Discharging Temperature | -40°C ~ +60°C | -50°C ~ +60°C | -40°C ~ +60°C | -40°C ~ +60°C | -50°C ~ +60°C |
RT Cycle Life | 20000 Cycles | 15000 Cycles | 10000 Cycles | 10000 Cycles |
Product Date

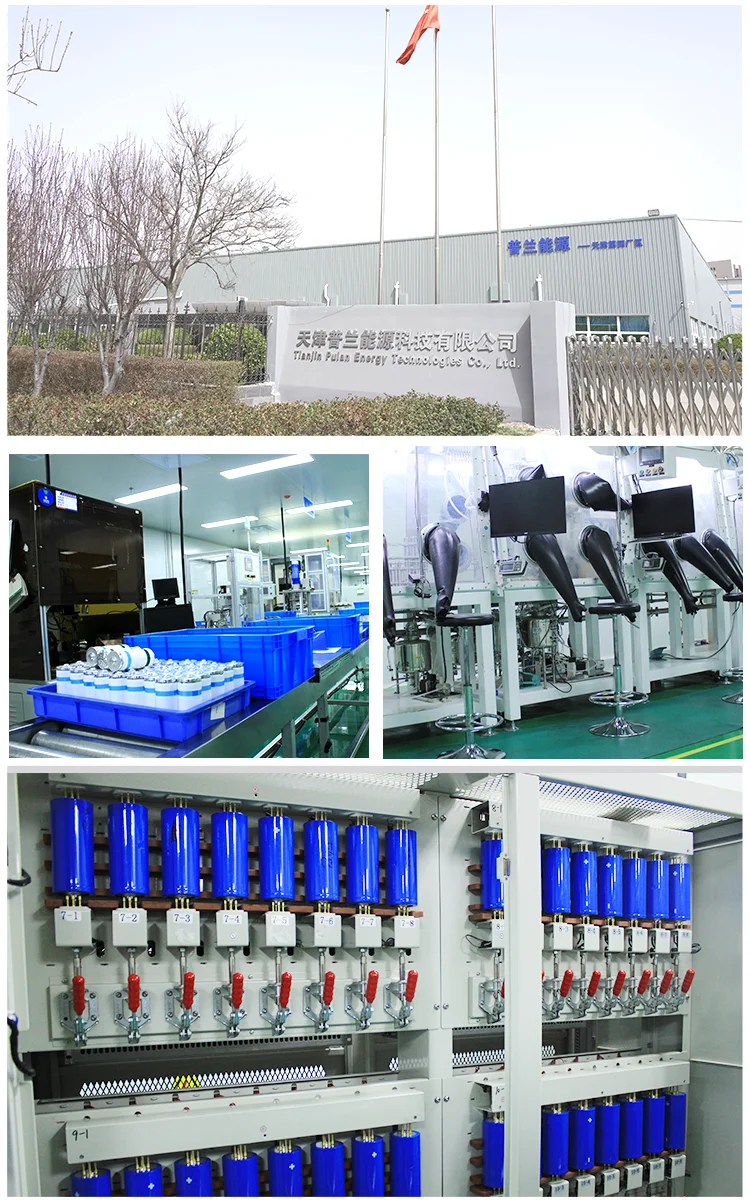

Factory Show
Tianjin Plannano Energy Technology Co., Ltd.
A High-Tech Company, Focuses On The Research And Development, Manufacturing, Marketing And Technical Service Of Graphene-Based Materials And Their Applications IN Clean Energy. Based On Excellent Technical Service And Support, Plannano IS Aimed To Supply a Complete Solution To Green-Energy Storage And Products IN Power System For The Clients.Together With Research Labs At Nankai University, Plannano Owns High-Standard Test Instruments, A Top-Class Technical And Management Team.With More Than 50 Patents IN Preparation And Application OF Graphene-Based Material, Plannano Has Completed The Building OF The Production Lines For The Material And Products And Successfully Developed And Mass-Produced Such Products AS Graphene, LTO, Si/C Material, Super Capacitor Cells Ranging From 0.1F to 3000F, 16V500F/48V165F Super Capacitor Modules, LTO Battery Cells And Modules Ranging From 20Ah to 500Ah. The Main Products Can Be Widely Applied To New-Energy Vehicles, Rail Transportation, Smart Grid, Micro
Our Certifications

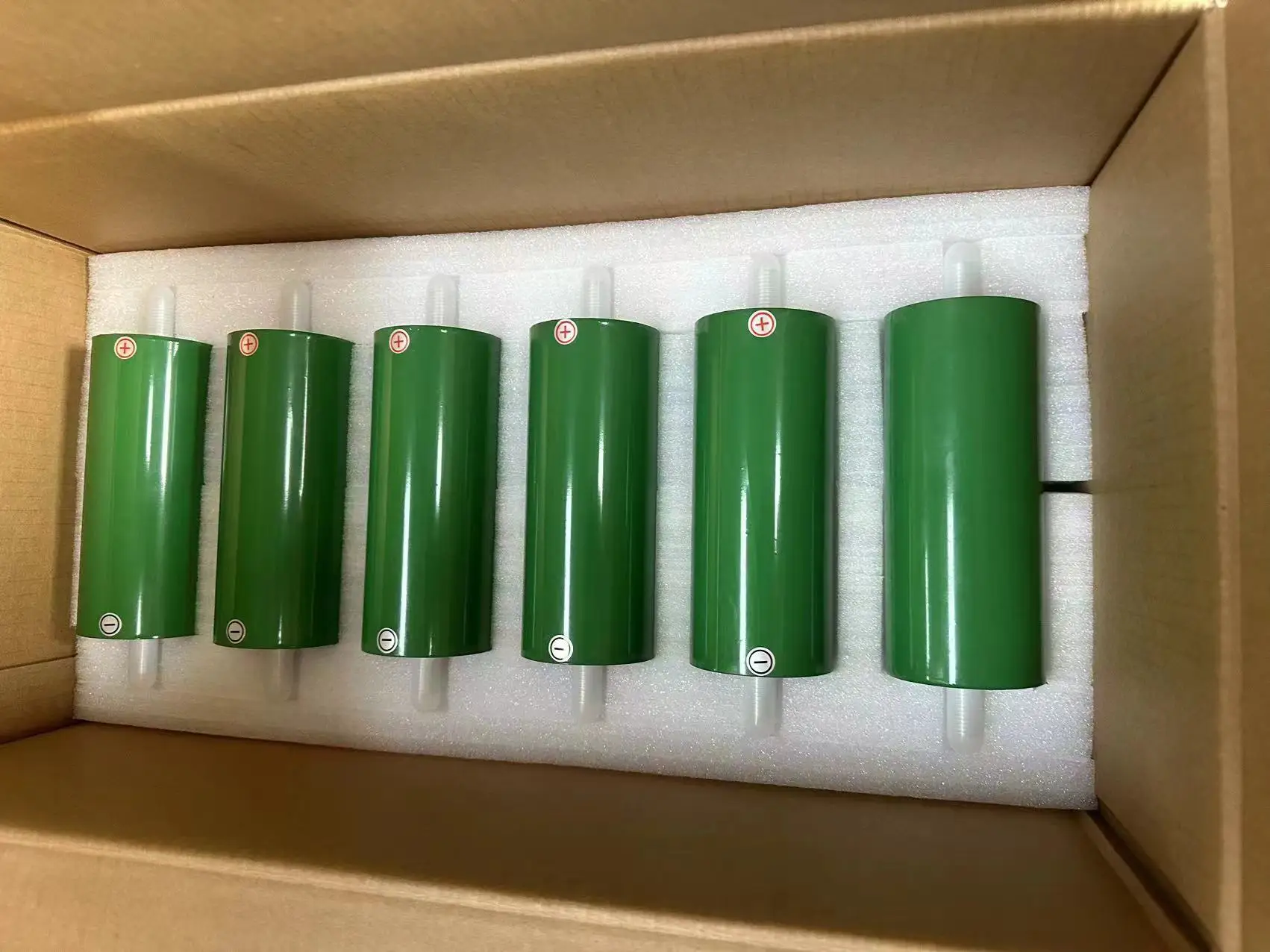

Packing & Shipping
Model | 60138 2.3V 24Ah | 60138 2.4V 24Ah | 60165 2.4V 37Ah | 60100 2.4V 20Ah | ||||
Carton | 380×380×220(mm) | 380×380×220(mm) | 380×380×220(mm) | 380×380×220(mm) | ||||
Weight | 24KG | 22KG | 28KG | 18KG | ||||
Delivery time | ||||||||
1-50Pieces | 3Days | |||||||
51-100Pieces | 5Days | |||||||
101-500Piece | 20Days | |||||||
≥ 500 | 20-30Days | |||||||
Transportation time | ||||||||
America | 3-5Days | |||||||
Australia | 5-8Days | |||||||
Eastern Europe | 10-15Days | |||||||
Western Europe | 10-15Days | |||||||
Southeast Asia | 5-8Days | |||||||
Middle East | 10-20Days | |||||||
Africa | 10-30Days | |||||||
Why Choose Us
1. We have our own factory and company, which belong to an absolute integration of industry and trade.
2. A large number of batteries are in stock.
3. Have very good product resources.
4. Good product quality and favorable price.
5. The product is 100% original and brand new.
6. 100% on time delivery. Fast delivery.(including pack <7 days).
7. Long warranty 5 years.
8. provide sample 2-7 days.
9. Professional after-sales service.
10. We have a complete industrial chain and professional engineers can make battery packs that satisfy
2. A large number of batteries are in stock.
3. Have very good product resources.
4. Good product quality and favorable price.
5. The product is 100% original and brand new.
6. 100% on time delivery. Fast delivery.(including pack <7 days).
7. Long warranty 5 years.
8. provide sample 2-7 days.
9. Professional after-sales service.
10. We have a complete industrial chain and professional engineers can make battery packs that satisfy
you as quickly as possible. (one can also be made)
