Product Overview
Description

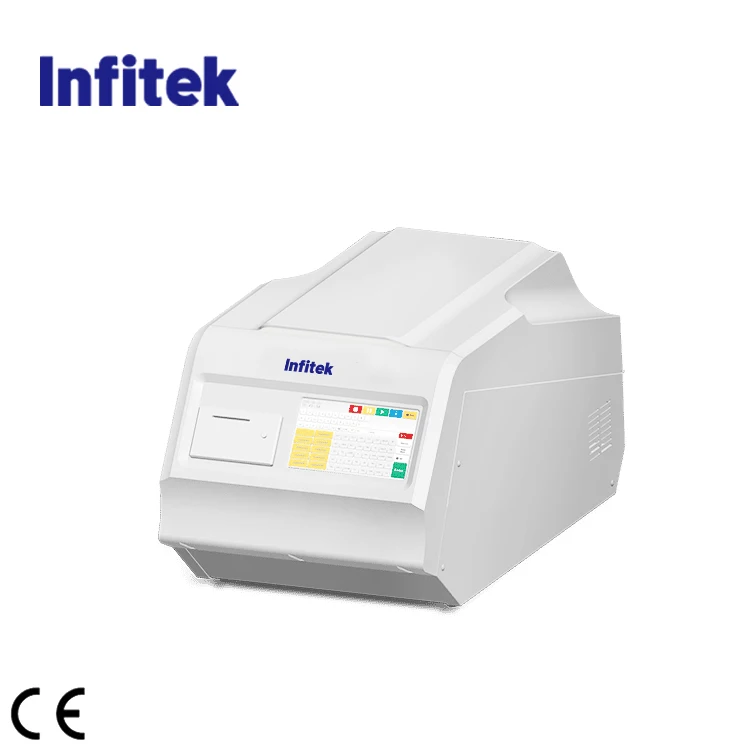

Infitek Biochemistry Analyzer with CE
Model: BA-A-S120mini
Product Parameters
Fully auto Biochemistry Analyzer, BA-A-S120Mini：
* One button to test
* All-in-one machine
* Direct print report
* Touch screen operation
* Up to constant 120 tests/h
* One button to test
* All-in-one machine
* Direct print report
* Touch screen operation
Description:
DescriptionThe Biochemistry Analyzer is fast, easy to use, and has a very friendly user interface. It is widely used in hospitals at all
levels, epidemic prevention stations, and family planning service stations.
Product features
* Up to constant 120 tests/h
* Discrete/random access
* STAT sample priority
* Easy to use
* User friendly interface
* No computer
* Internal thermal printer
* Direct print report
* All-in-one machine
* Up to constant 120 tests/h
* Discrete/random access
* STAT sample priority
* Easy to use
* User friendly interface
* No computer
* Internal thermal printer
* Direct print report
* All-in-one machine
Product Description
General Information | ||
Machine type | Random access, open reagent & locked reagent (optional) | |
Test speed | Constant 120 tests/hour (Mono reagent or double reagent) | |
Test principle | Colorimetric, turbidimetry | |
Test method | 1 point end, 2 point end, Fixed-Time, Kinetics | |
Calibration type | Linear & nonlinear | |
Sample Unit | ||
Sample tray | 24+5(Tube 12*100) sample positions | |
Sample tube | Micro cup & test tube & blood collection tube can be used.(φ 12 -13 )mm *(25-100 )mm | |
Sample volume | 2-30μl step by 0.1μl | |
Sample probe | Liquid surface detection, timely tracking for liquid volume. | |
Collision avoidance | ||
Probe cleaning | Automatic washing for both interior and exterior ,carry-over < 0.05% | |
Sample barcode | Sample barcode reader (optional) | |
Reagent Unit | ||
Reagent tray | 54 positions for reagent, Non-stop | |
cooling system with peltier pad inside, 24 hours 2℃-14℃, | ||
open system, coμld accept any reagent. | ||
Reagent volume | 20-300μl, step by l μl | |
Reagent needle | Liquid surface detection, timely tracking for liquid volume. | |
Collision avoidance. | ||
Probe cleaning | Automatic washing for both interior and exterior ,carry-over < 0.05% | |
Regent barcode | Regent barcode reader (optional) | |
Reaction Unit | ||
Reaction tray | 81 reaction cuvettes, new amorphous optical plastics | |
reaction cups, perfect transmittance. | ||
Reaction volume | 150 μl-330 μl | |
Reaction time | 10 minutes | |
Cuvette washing steps | 5-stage, 2 times automatic washing system, alkaline cleaning solution | |
Temperature | Peltier pad incubation system, reaction temperature | |
(37°C ±0.1 °C) | ||
Mixing System | ||
Mixer | Paddle-type mixing,surface teflon treatment, wash before and after mixing ,effective reducing of carry-over | |
Optical System | ||
Light source | Halogen lamp | |
Wavelength | 340nm; 405nm; 450nm; 500nm; 546nm; 578nm; 630nm;670nm(4 more options) | |
Absorbance range | 0-3.8 Abs | |
Resolution | 0.0001 Abs | |
Operating System | ||
Operation system | Windows XP, Windows 7, Windows 8, Windows 10 | |
Report printing | 6 formats optional, surpport custom pattern | |
Interface | TCP/IP network interface | |

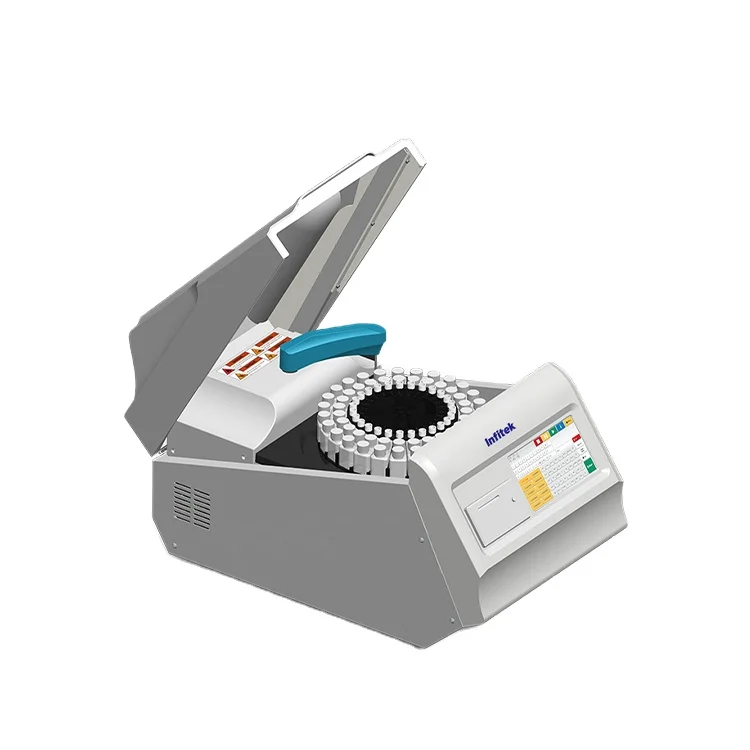

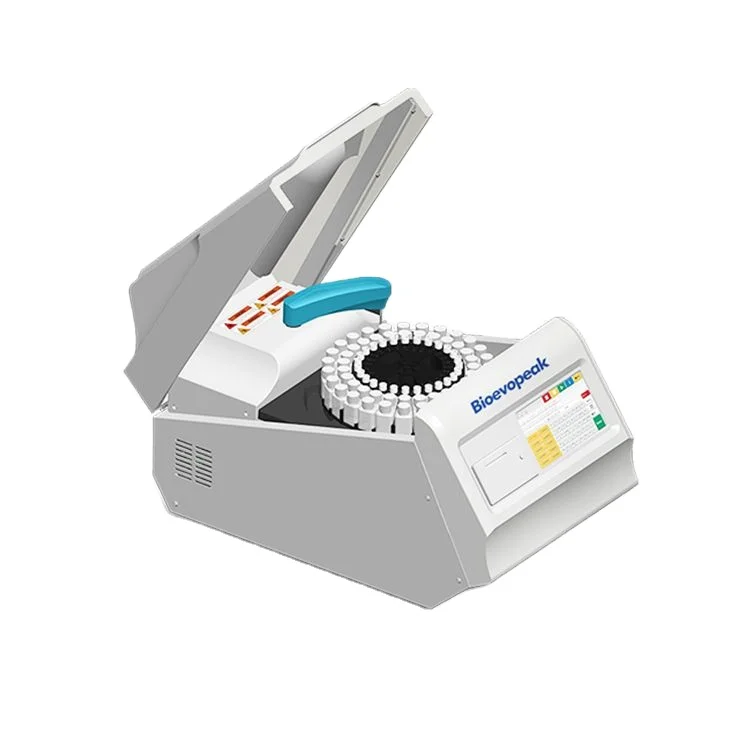

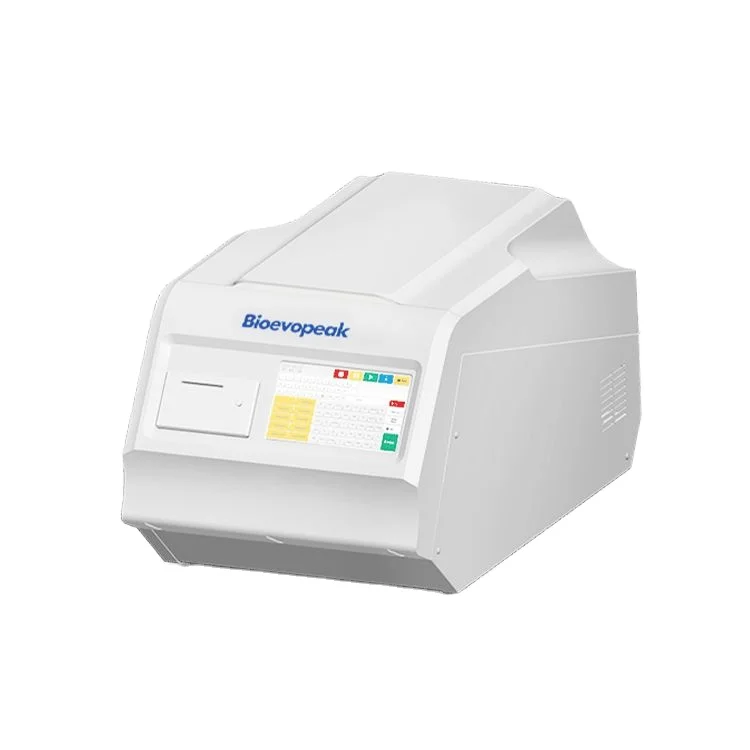

Product detail picture
Packing & Delivery
Certifications
Company Profile
FAQ
Q: How about quality of the goods?
All the running products comply with CE standards.
Independent quality inspection team, conducting multiple inspections and random inspections from parts supply to product dispatch.
Well-known third-party testing service available, such as SGS, BV, and TUV, etc.
Q: What are your pre- and after-sales services?
Timely reply to pre-sales enquiries
Real-time update of manufacturing and shipment status
Contracted third-party maintenance company in over 60 countries
Assured availability of parts supply for 10 years at least
Q: Is OEM service available.
A: Most of the running products are available for OEM customization, including logo, package and function, if attainable,
customization.
Q: How long is the lead time:
A: Generally, the lead time for most stocked products is about 7~15 days, vary by models and production schedule. For thosenon-stocked products, the manufacturing lead time is around 20 days.
Independent quality inspection team, conducting multiple inspections and random inspections from parts supply to product dispatch.
Well-known third-party testing service available, such as SGS, BV, and TUV, etc.
Q: What are your pre- and after-sales services?
Timely reply to pre-sales enquiries
Real-time update of manufacturing and shipment status
Contracted third-party maintenance company in over 60 countries
Assured availability of parts supply for 10 years at least
Q: Is OEM service available.
A: Most of the running products are available for OEM customization, including logo, package and function, if attainable,
customization.
Q: How long is the lead time:
A: Generally, the lead time for most stocked products is about 7~15 days, vary by models and production schedule. For thosenon-stocked products, the manufacturing lead time is around 20 days.
