Precision cast iron welding table 3D adjustable fixture welding table
- Category: >>>
- Supplier: Hebei Yuanpeng Machine Tool And Measuring Implement Co. Ltd.
Share on (1601149660507):
Product Overview
Description
Table Iso 9901 Certification Automatic 3d Welding Table
3D Steel Welding Table (D28):
Sizes L*W*H(mm) | Model No. | Weight (kg) |
1000x1000x200 | ST-PT281010H | 500 |
1200x1200x200 | ST-PT281212H | 600 |
1500x1500x200 | ST-PT281515H | 700 |
2000x1000x200 | ST-PT282010H | 650 |
2400x1200x200 | ST-PT282412H | 1000 |
3000x1500x200 | ST-PT283015H | 1700 |
4000x2000x200 | ST-PT284020H | 2600 |
3D Casting Welding Table (D28):
Sizes L*W*H(mm) | Model No. | Weight (kg) |
2000X1000X200 | ST-PT282010Z | 800 |
2400x1200x200 | ST-PT282412Z | 1200 |
3000x1500x200 | ST-PT283015Z | 1900 |
4000x2000x200 | ST-PT284020Z | 3200 |

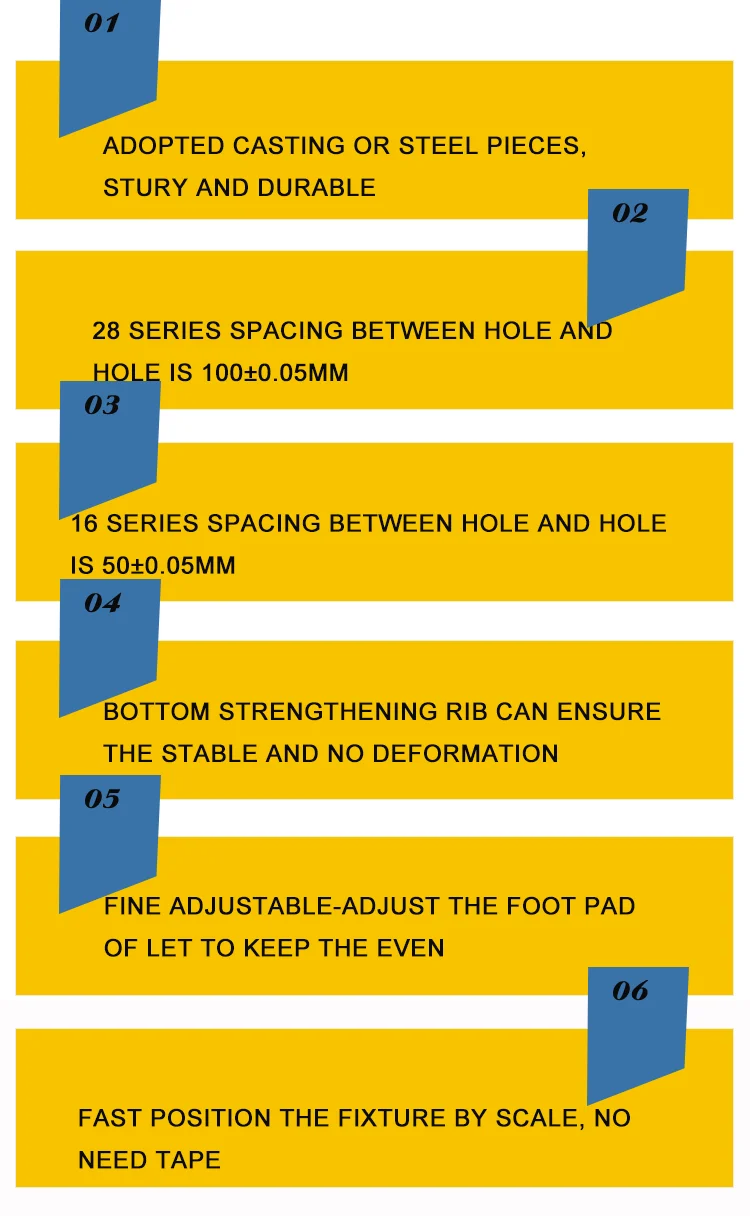

3D welding table —— D28 series
Be made of cast iron
5 precision machined working surfaces 3d steel welding table
Hole diameter: 28mm
Grid lines: 100mm*100mm
Hole pitch: 100mm
Material thickness: approx.23mm
Side surfaces height: 200mm
Be reinforced on the underneath side by ribs
3D welding table —— D16 series
Be made of cast iron
5 precision machined working surfaces
Hole diameter: 16mm
Be made of cast iron
5 precision machined working surfaces 3d steel welding table
Hole diameter: 28mm
Grid lines: 100mm*100mm
Hole pitch: 100mm
Material thickness: approx.23mm
Side surfaces height: 200mm
Be reinforced on the underneath side by ribs
3D welding table —— D16 series
Be made of cast iron
5 precision machined working surfaces
Hole diameter: 16mm

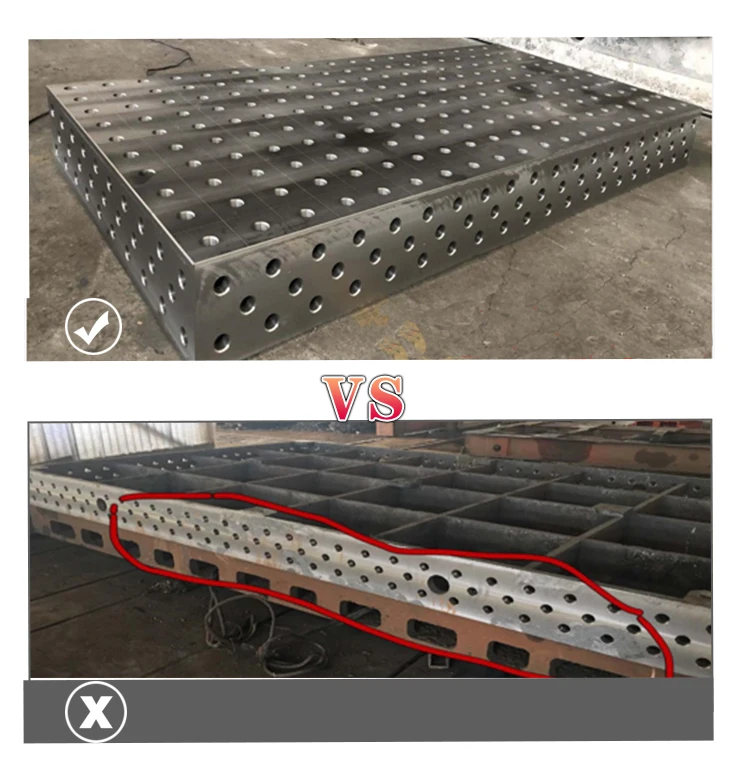

Bad Platform:
The side of bad platform has stoma trachoma with glue filling,After the high temperature,
the filling will overflow, making the platform uneven, affecting the accuracy and use of the platform
Yuanpeng Platform:
Professional platform don't have stomatal trachoma 3d steel welding table
The side of bad platform has stoma trachoma with glue filling,After the high temperature,
the filling will overflow, making the platform uneven, affecting the accuracy and use of the platform
Yuanpeng Platform:
Professional platform don't have stomatal trachoma 3d steel welding table

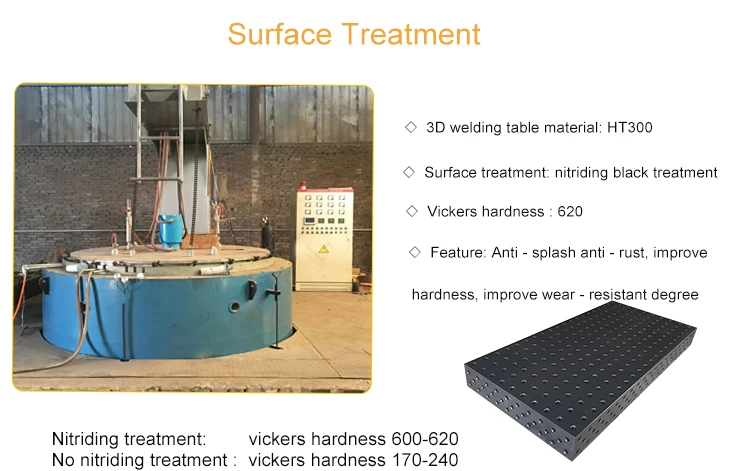

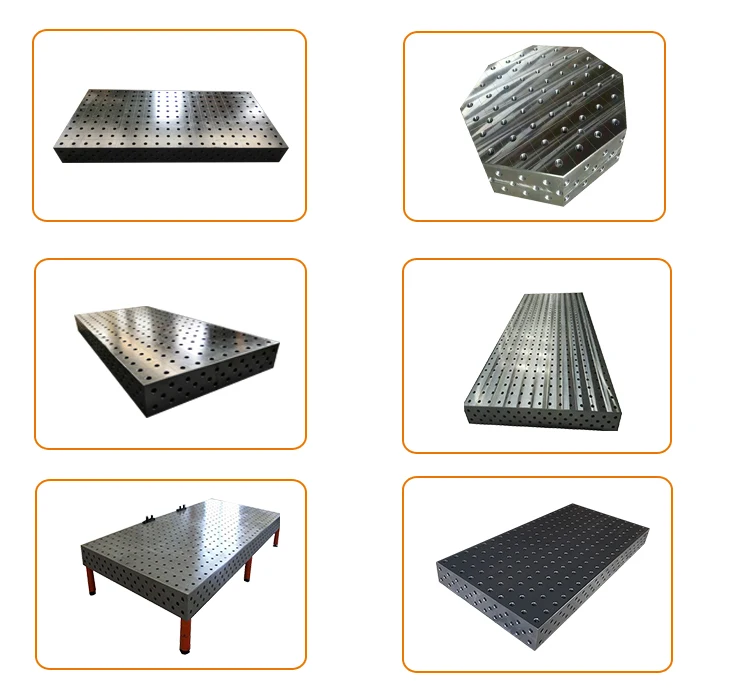

Product Show After Nitriding Treatment

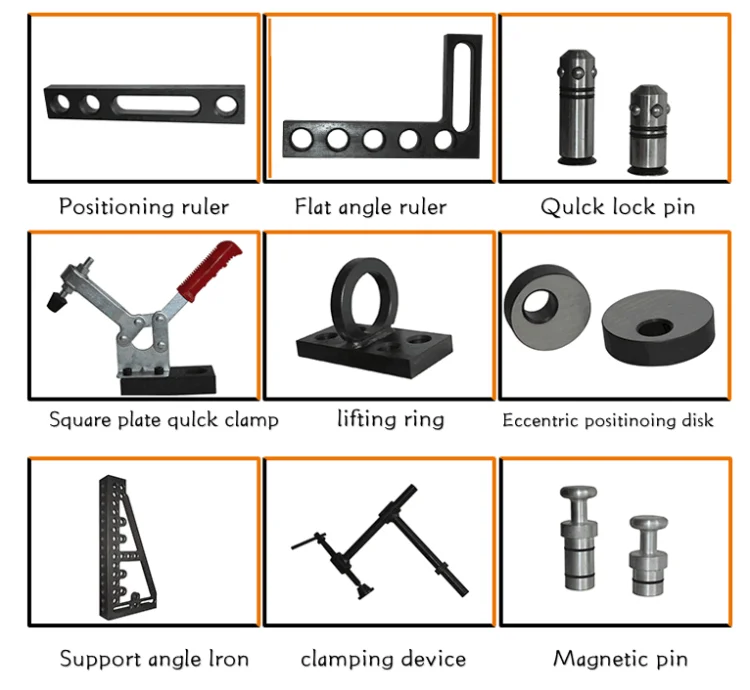

More 3D Welding Table Fittings
Manufacturing Technique
Horizontal machining center
5m*10m Gantry machining center
2.7m*10mGantry planer
3m*10mGantry milling machine
Horizontal machining center
2m*3m Gantry machining center

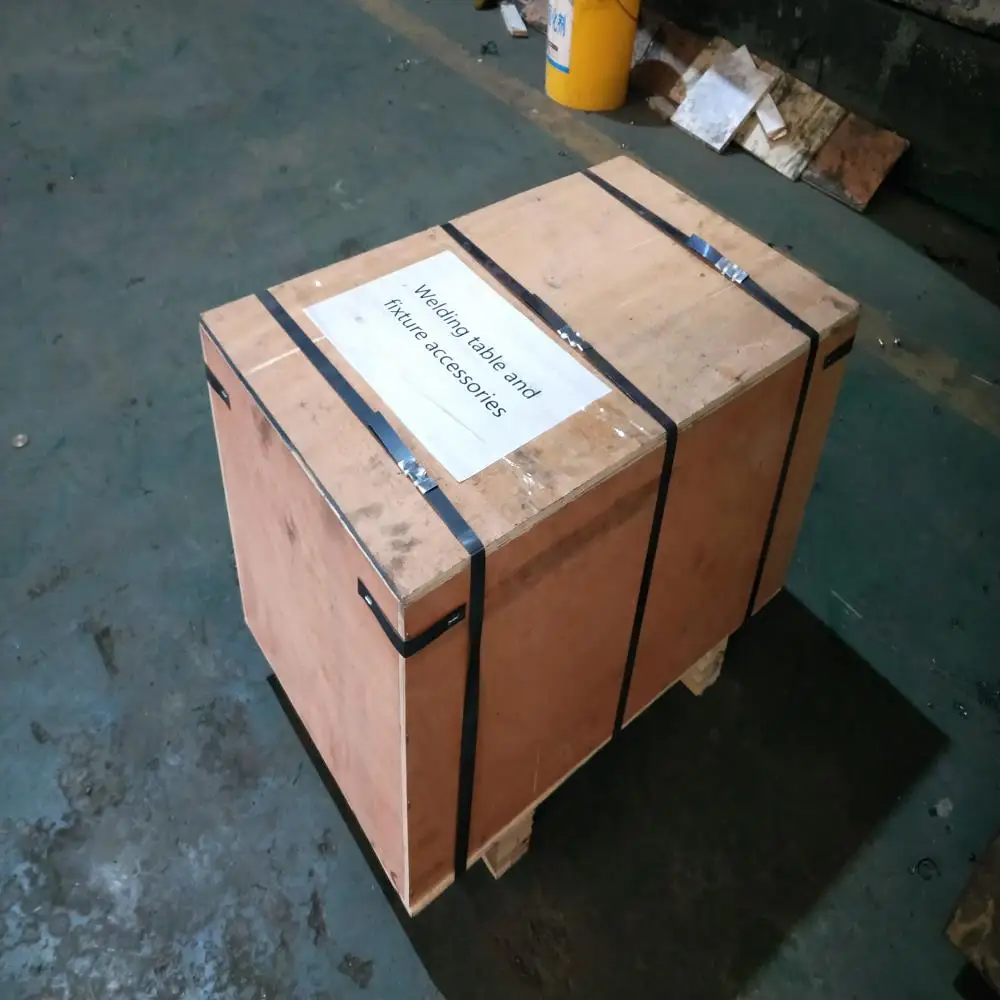

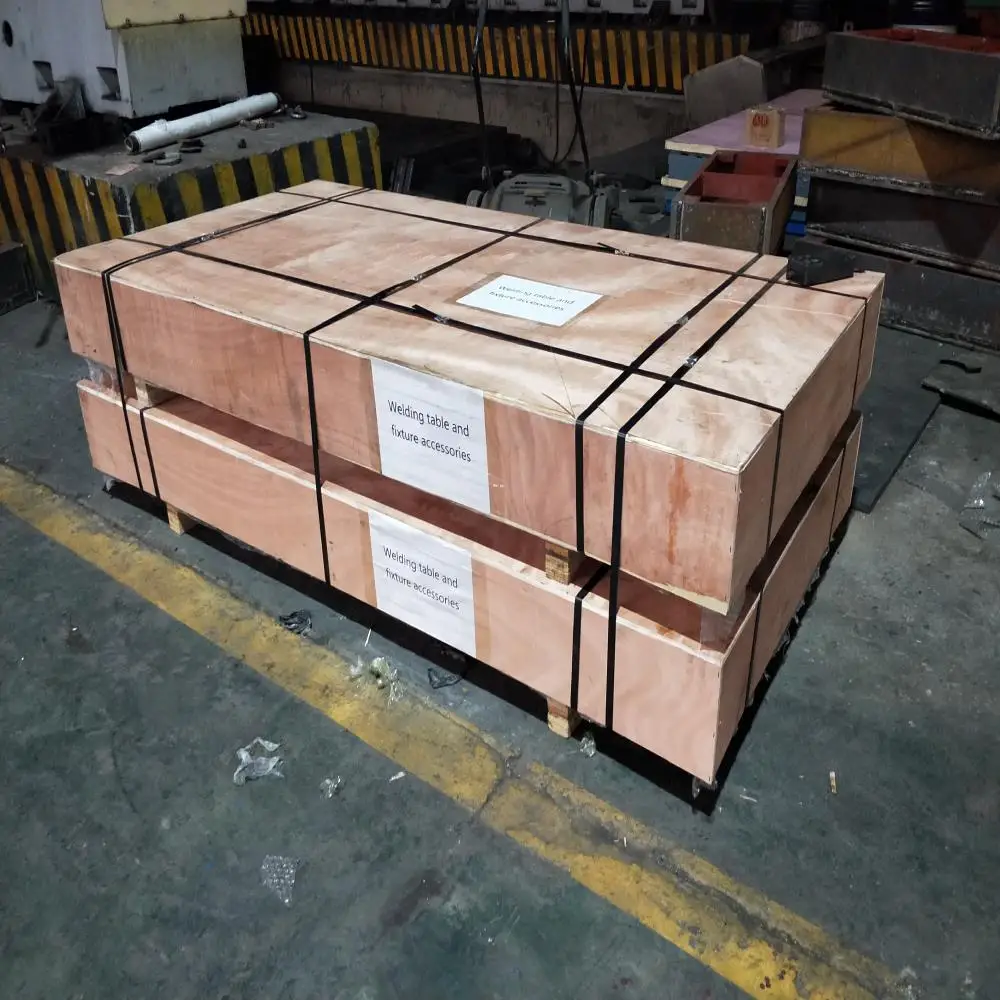

Packaging Shipping
