2L 100L Liquid Nitrogen Semen Cryogenic Tank Semen Storage Container

Product Overview

Description

2L-100L Liquid Nitrogen Semen Cryogenic Tank Semen Storage Container



1. High-strength aluminum alloy structure, light empty weight for Cryogenic Tank

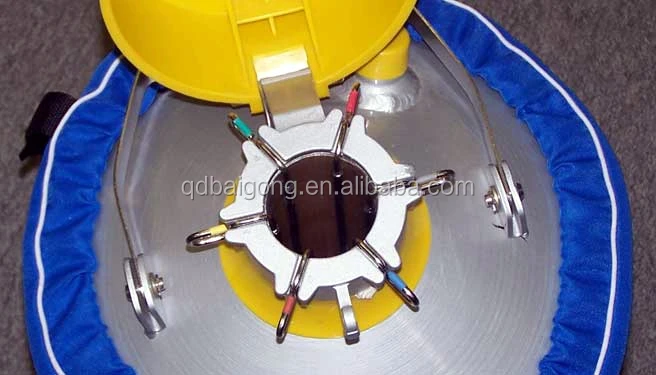

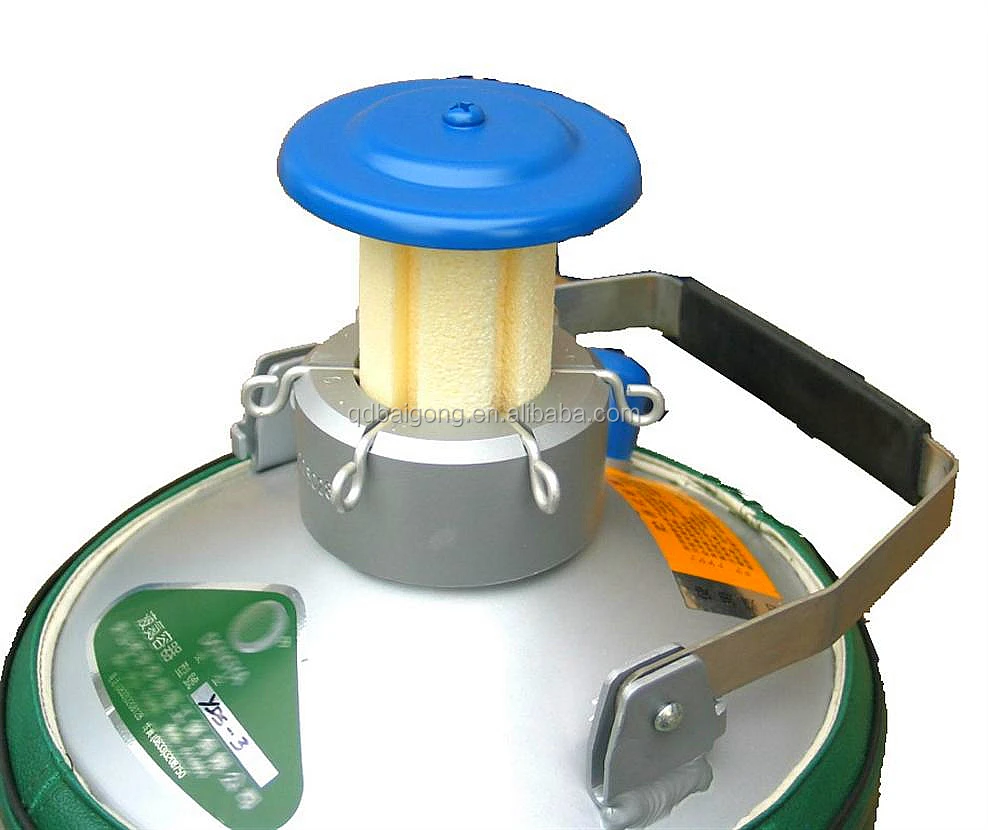

2. The lockable device can be installed to the container lid upon customer's requirements so as to protect biological samples stored (limit for 50mm,80mm and 125mm calibers)

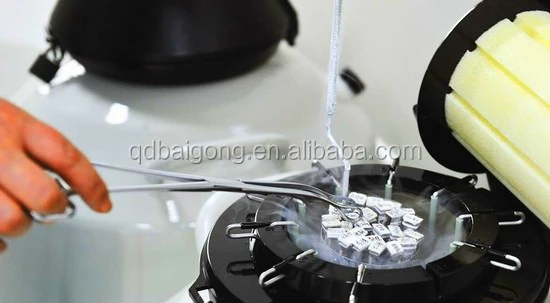

3. Encoding system is applied on canisters for easy recognition and convenient accessing of samples

4. More than 1 years of vacuum quality guarantee is ensured with the multi-layer thermal isolation design

5. Not suitable for long –distance transportation or frequent pouring.





   Our liquid nitrogen containers/ tanks/ dewars are widely used in biological engineering and medical sanitation for storing the active biological materials such as the breeding livestock's semen and embryos, marek’s disease vaccine, genes and dry cell. Up to now, our products have been sold well both in domestic and abroad and gained good reputation from our customers.





  We can supply the Cryogenic Tank form capacity 2Liter to 100Liter.



Below is small capacity Cryogenic Tank products specification as an example. If you want to know other size products, please contact us!



  The series products are of moderate capacity,and the best choices for the customers who will stroe biological samples or liquid nitrogen indoors for a long period under static environment. It is less static evaporation loss mass of liquid nitrogen and being economical in usage.

Model	Unit	YDS-15	YDS-15-80	YDS-15-125	YDS-20	YDS-20-80	YDS-20-125	YDS-30	YDS-30 -80	YDS-30 -125	YDS-30 -200
Capacity	L	15.0	15.0	15.0	20.0	20.0	20.0	30.0	30.0	30.0	30.0
Empty Weight	kg	10.1	10.1	10.1	10.6	10.2	10.2	15.6	15.7	15.8	15.9
Full Weight	kg	22.22	22.22	22.22	26.76	26.76	26.76	39.84	39.94	40.04	40.14
Neck Diameter	mm	50	80	125	50	80	125	50	80	125	200
Outer Diameter	mm	345	345	345	345	380	380	455	455	455	455
Height	mm	650	595	595	650	650	650	690	690	690	690
Static Evaporation Loss Mass	L/d	0.097	0.190	0.323	0.111	0.207	0.359	0.10	0.18	0.253	0.527
Static Holding Time≥	d	125	85	50	145	78	45	242	134	96	46
Canister Outer Diameter	mm	38	60	95	38	60	95	38	60	95	168
Canister Height	mm	120	120	120	120	120	120	120	120	120	245
Number of Canisters: n	Nos	3~6	3~6	3~6	3~6	3~6	3~6	3~6	3~6	3~6	1
Straw Holding Capacity	0.5ml	132×n	132×n	132×n	132×n	132×n	132×n	132×n	360×n	854×n	—
	0.25ml	298×n	298×n	298×n	298×n	298×n	298×n	298×n	846×n	1992×n	—

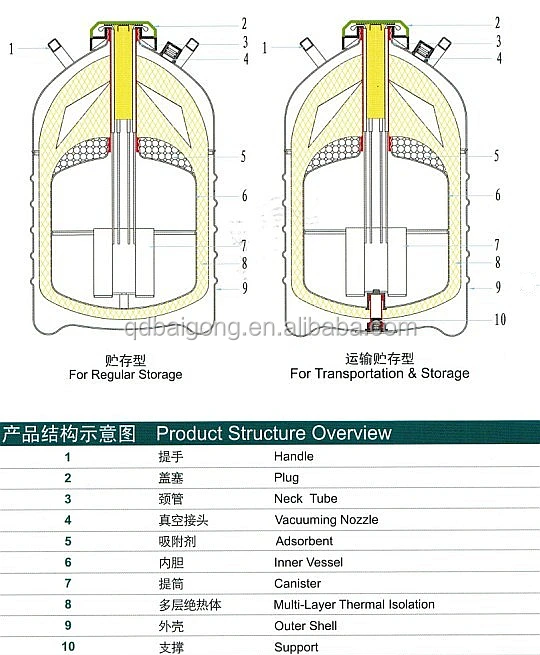

The Drawing of Cryogenic Tank





  The storage type Cryogenic Tank is mainly used to store the biological samples, and the transport type Cryogenic Tank was added the bottom support and side support in the inner tank, it could avoid the shake of the inner tank during transportation, so it could be used both for transport and storage the biological samples.





  Storage Type Cryogenic Tank





Transportation Type Cryogenic Tank











 Packing:Carton for Cryogenic Tank .





Reply your enquiry in 24 working hours.



Cryogenic Tank color could be painted according to customer's requirements.



Customer name could be engraved or painted on Cryogenic Tank .



Fast delivery, usually 3 days for Cryogenic Tank .





Payment term: 40% T/T deposit, 60% T/T against B/L copy. Or 100% Irrevocable L/C at sight.



Delivery time: usually within 3 days after the receipt of firm order.





Also we could supply all kinds of industrial gases such as oxygen, nitrogen, ethyne, helium, argon, carbon dioxide, hydrogen, cutting gas, ammonia, condensed air and high purity gas, standard gas, mixed gas, lab gas, liquid gas,etc. which makes us could export both empty gas cylinders and cylinders filling with gas.
