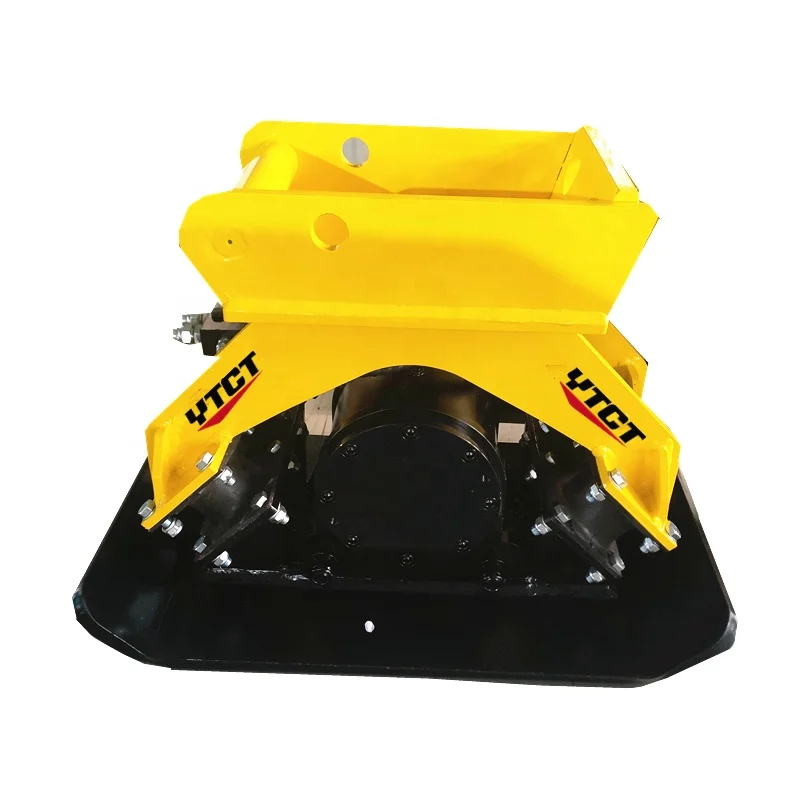

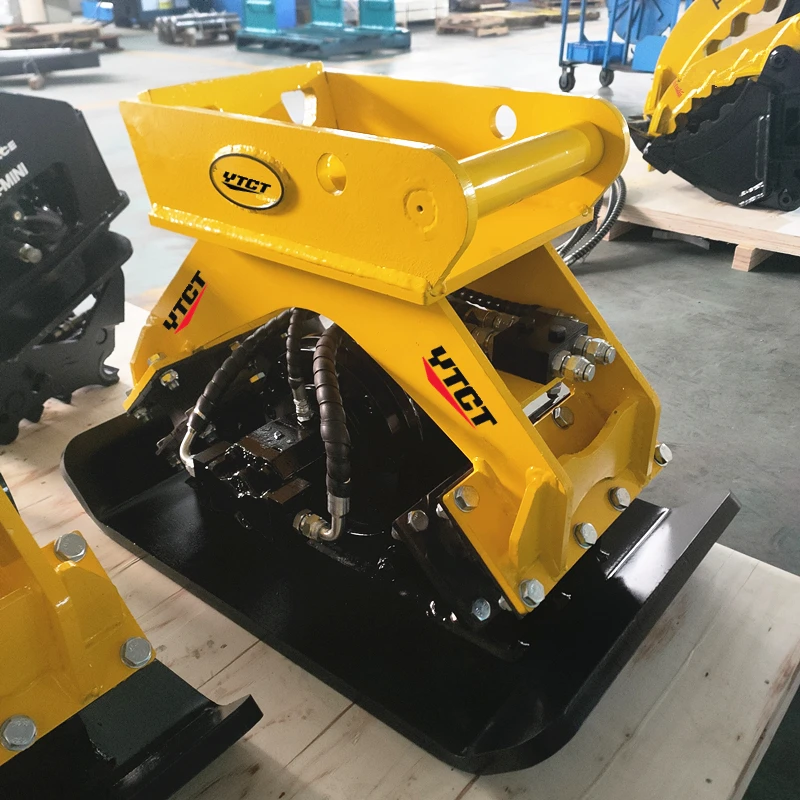

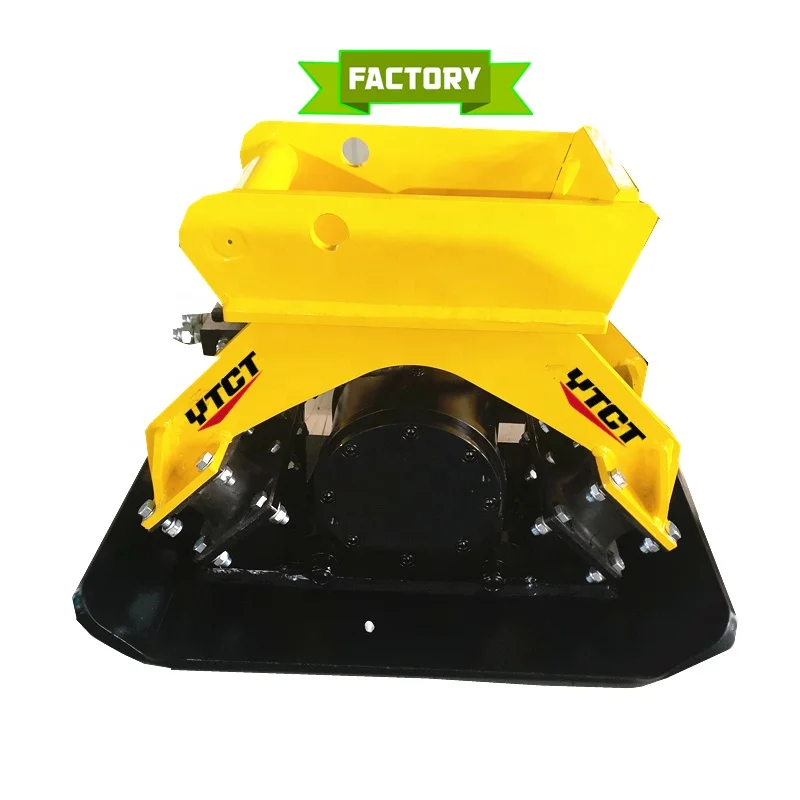

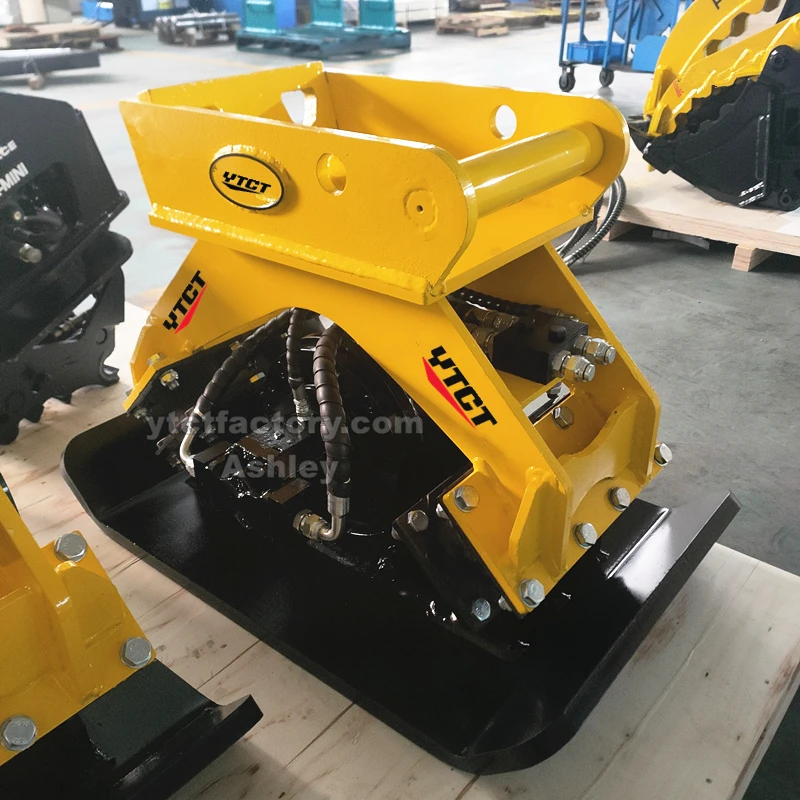

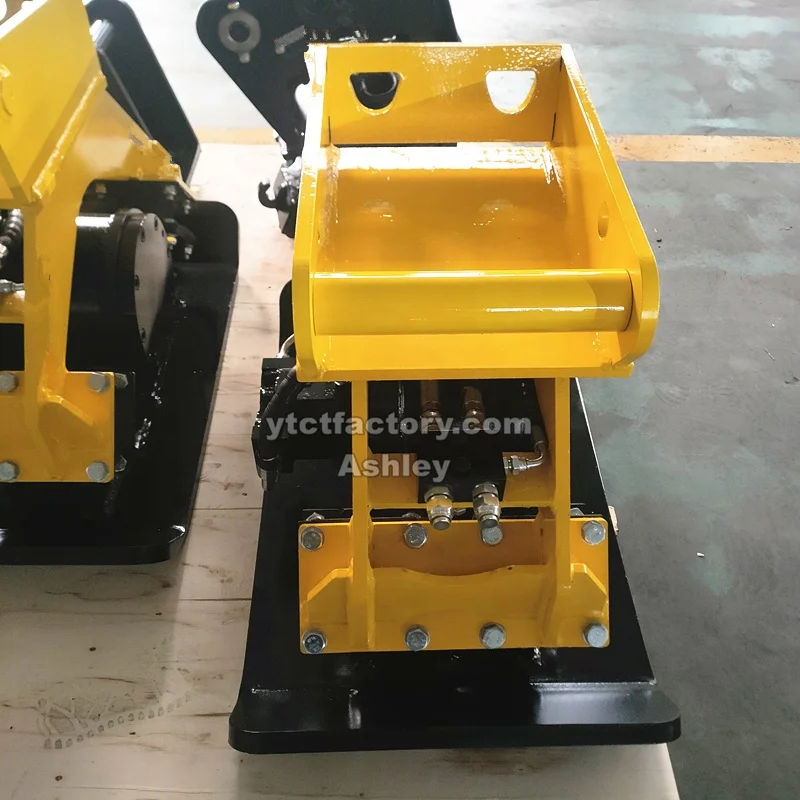

excavator sand construction concrete reversible vibrating vibratory hydraulic plate compactor
- Category: >>>
- Supplier: Yantai Chengtai Construction Machinery Co. Ltd.
Share on (1601150085019):
Product Overview
Description
Product Description
Product name | excavator hydraulic plate compactor |
Main Material | Q345B steel |
Testing | do test one by one before send goods |
fit to excavator | 1-30ton weight any brand excavator |
Logo | YTCT .if do OEM your logo is ok |
Packing | inside with film |
outside use export plywood box | |
Shipment | by sea ,or by air . |
Specification

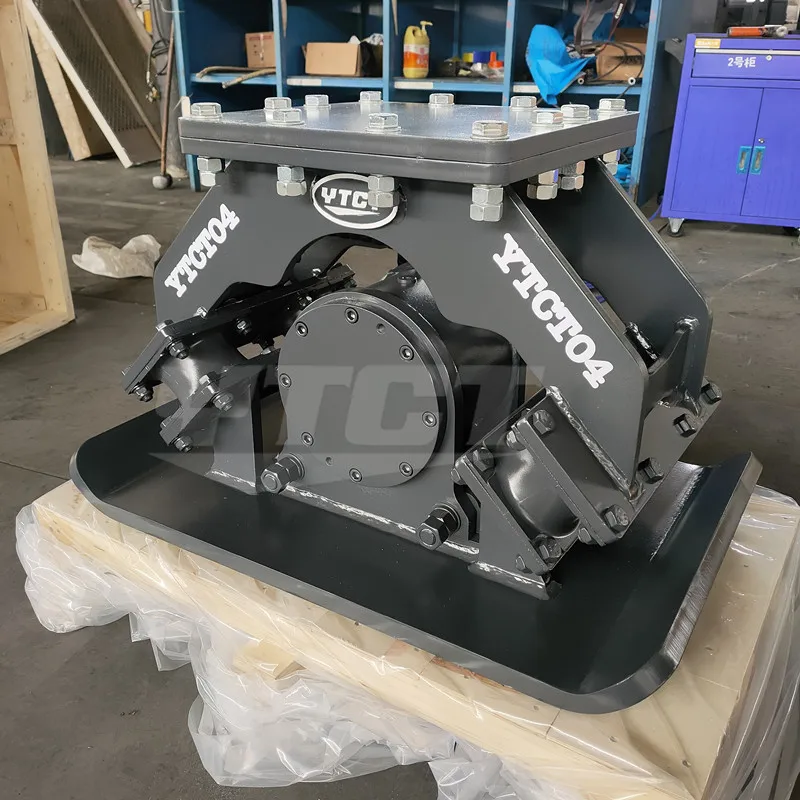

model number | YTCTMINI | YTCT02/04 | YTCT06 | YTCT08 | YTCT10 | |
fit to excavator (any brand) | ton | 1--5 | 6--10 | 11--19 | 20-29 | 30-40 |
height | mm | 600 | 750 | 930 | 1000 | 1100 |
width | mm | 415 | 550 | 700 | 900 | 900 |
impulse force | ton | 3 | 4 | 6.5 | 11 | 15 |
Vibration frequency | rpm/min | 2000 | 2000 | 2000 | 2200 | 2200 |
oil flow | l/min | 30-60 | 45-85 | 85-105 | 120-170 | 120-170 |
Operating pressure | kg/cm2 | 100-130 | 100-130 | 100-150 | 150-200 | 150-200 |
Bottom measurement | mm | 800*420 | 900*550 | 1160*700 | 1350*900 | 1500*1000 |
weight | kg | 180-220 | 200-350 | 650-750 | 900-1000 | 1100-1300 |
Packing & Delivery
1.inside with film
2. outside with export plywood box
Company Profile
we are a factory in yantai city ,shandong ,china
manufacture hydraulic breaker,hydraulic plate compactor,hydraulic ripper ,bucket ,grapple and other front attachments.
FAQ
Are you a factory ?
Yes we are a factory in yantai city ,shandong ,China
we have two factory manufacture the goods .
Do you accepet OEM order ?
Yes ,OEM is ok ,do your brand and our brand all ok ,welcome to be our dealer and agent ,too
how about MOQ ?
1 pcs is ok ,we have all spare parts ,too
