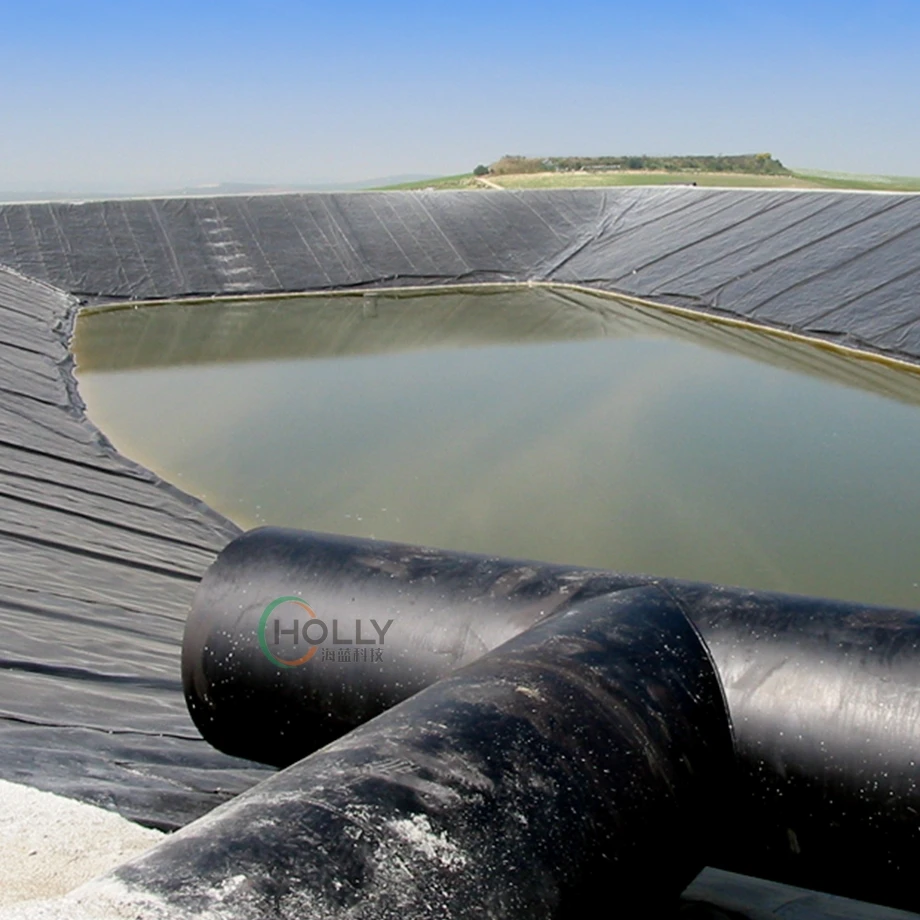

HDPE Geomembrane for Fish Pond/Agriculture/Dam/Landfill/Lake/Biogas/Aquaculture Project
- Category: >>>
- Supplier: Yixing Holly Technology Co. Ltd.
Share on (1601150107149):
Product Overview
Description
Geomembrane
HDPE Geomembrane
Geomembrane Liner

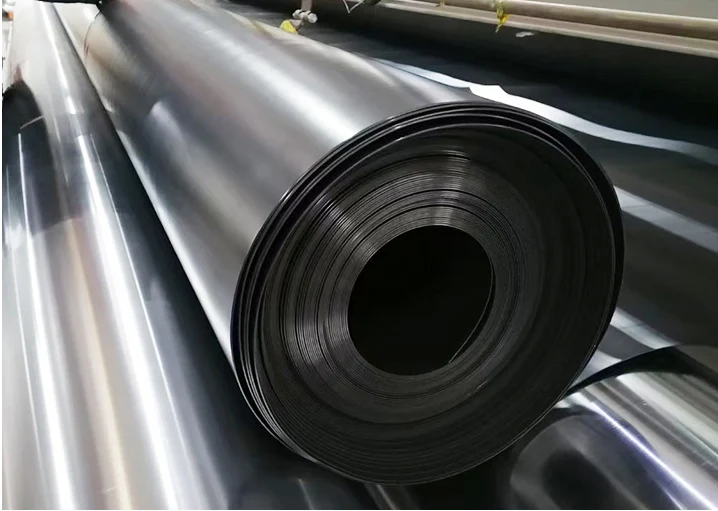

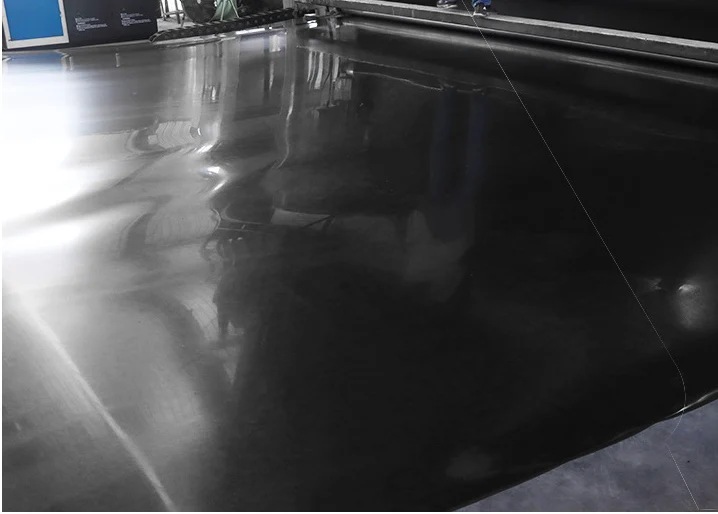

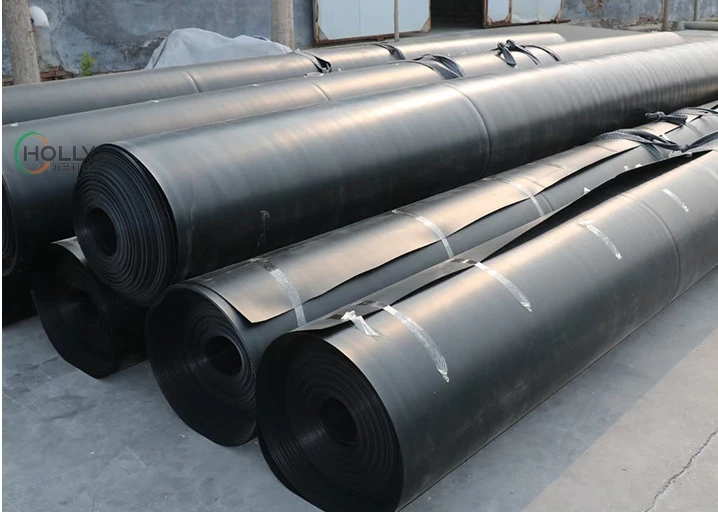

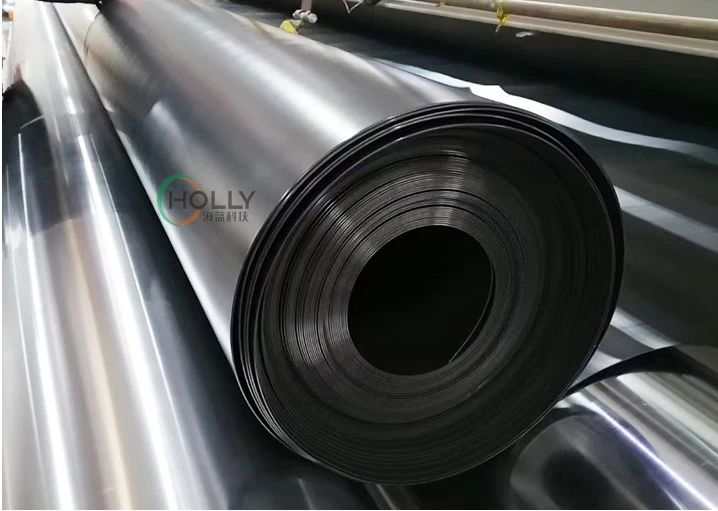

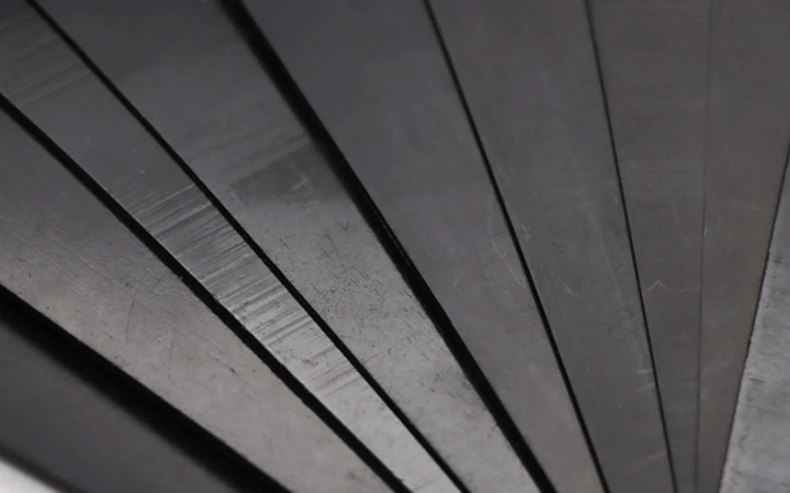

The HDPE smooth (rough) geomembrane is manufactured with high-quality high-density polyethylene resin and imported from Germany with flat extrusion equipment and four layer co extrusion blown film equipment. Complete specifications; Smooth (rough) geomembrane thickness: 0.25-3.0mm, with a maximum width of up to 8m.
Its exceptional chemical and ultraviolet resistance properties uses polyethylene fabric for long-term water containment and industrial waste applications.
Its exceptional chemical and ultraviolet resistance properties uses polyethylene fabric for long-term water containment and industrial waste applications.
Target | Test Value | ||||||||||||
0.75mm | 1.00mm | 1.25mm | 1.50mm | 2.00mm | 2.50mm | 3.00mm | |||||||
Minimum density(g/cm2) | ≥0.939 | ||||||||||||
Rough Height | ≥0.25 | ||||||||||||
Yield strength (stress),N/min | 11 | 15 | 18 | 22 | 29 | 37 | 44 | ||||||
Breaking strength (stress),N/min | 20 | 27 | 33 | 40 | 53 | 67 | 80 | ||||||
Elongation at yield,% | 12 | ||||||||||||
Elongation at break,% | 700 | ||||||||||||
Right angle tear strength,N | 93 | 125 | 156 | 187 | 249 | 311 | 374 | ||||||
Puncture strength,N | 240 | 320 | 400 | 480 | 640 | 800 | 960 | ||||||
Resistance to environmental stress cracking | 300 | ||||||||||||
Conductex | |||||||||||||
Carbon black content (range),% | 2.0～3.0 | ||||||||||||
Carbon black Dispersity | 9 out of 10 observation areas should belong to level 1 or 2,and no more than 1 observation area should belong to level 3 | ||||||||||||
Oxidation induction time (OIT) | |||||||||||||
StandardOIT,min | 100 | ||||||||||||
High-handedOIT,min | 400 | ||||||||||||
85 frying aging (minimum average) | |||||||||||||
After 90 days of baking, the standard OIT remains at% | 55 | ||||||||||||
Bake for 90 days, high-pressure OIT retention% | 80 | ||||||||||||
UV resistance | |||||||||||||
UV irradiation for 1600 hours, standard OIT retention%; | 50 | ||||||||||||
UV irradiation for 1600h, high-pressure OIT retention% | 50 | ||||||||||||
-70 low-temperature,impact demonization performance | pass through | ||||||||||||
Water vapor permeability coefficient | ≤1.0&×10-13 | ||||||||||||
Dimensional stability | ±2 | ||||||||||||
1.Good anti-seepage performance: water vapor permeability coefficientK≤1.0×10-13g.cm/(㎝².s.pa) High strength: tensile strength at break≥28MPa
2.Long service life: The material can have a service life of over a hundred years
3.Low temperature resistance: cold brittleness temperature-66℃~77℃
4.Corrosion resistance: capable of withstanding over 80 types of strong acid and alkali lamp chemicals for corrosion
5.Environmental protection: It does not pollute the environment and is widely used in drinking water projects abroad.
6.Good economic benefits: low total cost, low investment, good welding performance: hot melt welding, high weld strength
7.Help sustain water quality, Establish erosion control, Reduce maintenance cost,Lower disease risk
2.Long service life: The material can have a service life of over a hundred years
3.Low temperature resistance: cold brittleness temperature-66℃~77℃
4.Corrosion resistance: capable of withstanding over 80 types of strong acid and alkali lamp chemicals for corrosion
5.Environmental protection: It does not pollute the environment and is widely used in drinking water projects abroad.
6.Good economic benefits: low total cost, low investment, good welding performance: hot melt welding, high weld strength
7.Help sustain water quality, Establish erosion control, Reduce maintenance cost,Lower disease risk
High Quality Material
Crafted from HDPE material without plasticizers, Sinimaka pond liner is more flexible and durable, offering a safe environment for fish and plants.
Easy to Fold
The flexibility of the pond liner facilitates effortless folding, providing convenience during laying and storage.
Easy to Cut
The pond liner material is exceptionally soft and easy to cut. You can simply use scissors to cut out the size you need.
Waterproof & Leak-Proof
The liner is waterproof and leak-proof, effectively blocking soil and water, holding water well, and protecting your pond.
Puncture Resistance
Sinimaka liners feature excellent ductility, effectively resisting sharp objects with high puncture resistance and impact strength.
High Tear Resistance
The pond liner exhibits remarkable tear resistance, without deforming or breaking, effectively safeguarding your pond.
Geomembranes For Fish Farm

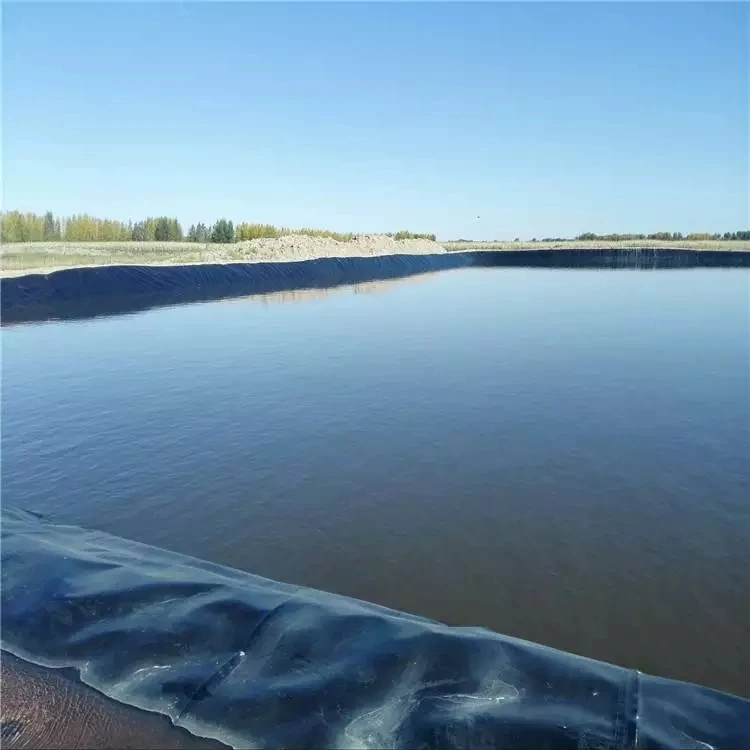

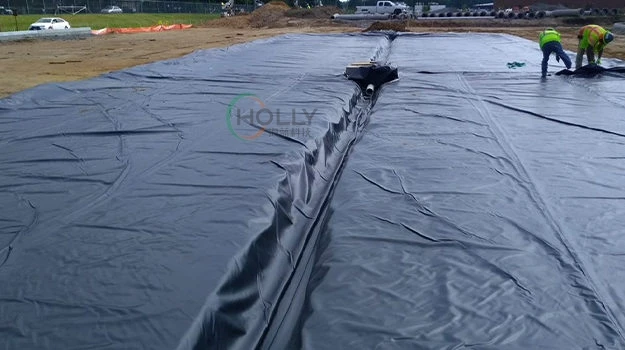

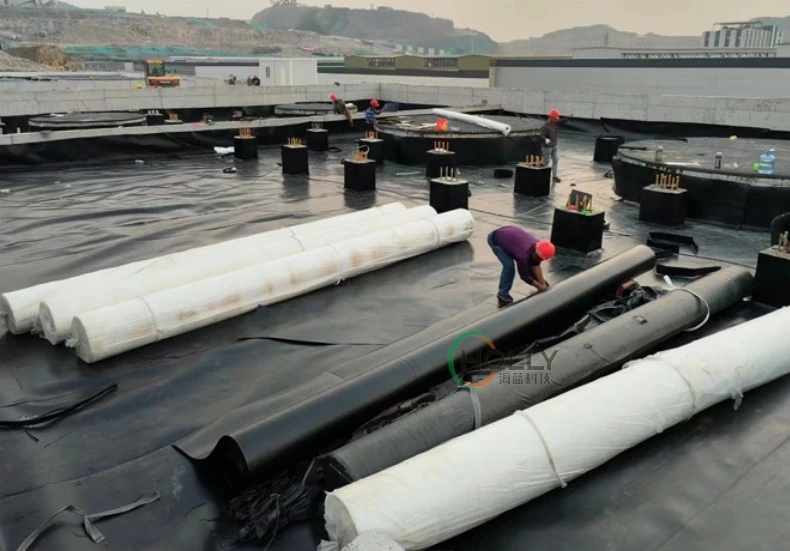

Environmental protection projects such as garbage disposal sites, sewage treatment plants, petrochemicals, metallurgy, etc; Water conservancy projects such as reservoirs, embankments, rivers, lakes, etc; Subway, tunnel, underground warehouse, etc; Artificial lakes, scenic spots, and other landscaping projects; Construction market and other waterproofing projects.
Garden Courtyard

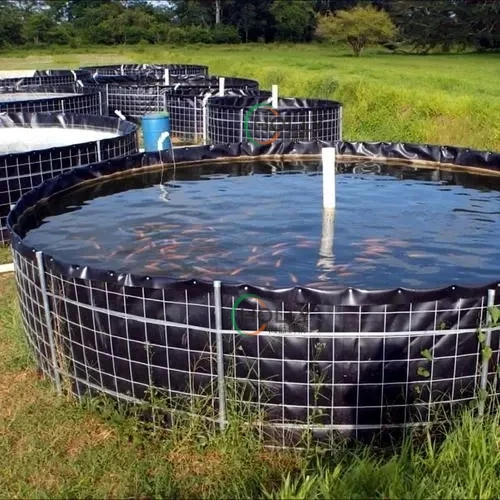

Fish Pond
Yixing Holly Technology
Yixing Holly Technology Co., Ltd is located in Yixing, Jiangsu Province, China. Established in 2007, Holly Technology is a domestic forerunner in producing environmental equipments and parts used for sewage treatment. Nowadays, our company has developed into a comprehensive enterprise integrating production, trading, design and installation service of sewage treatment equipments.
