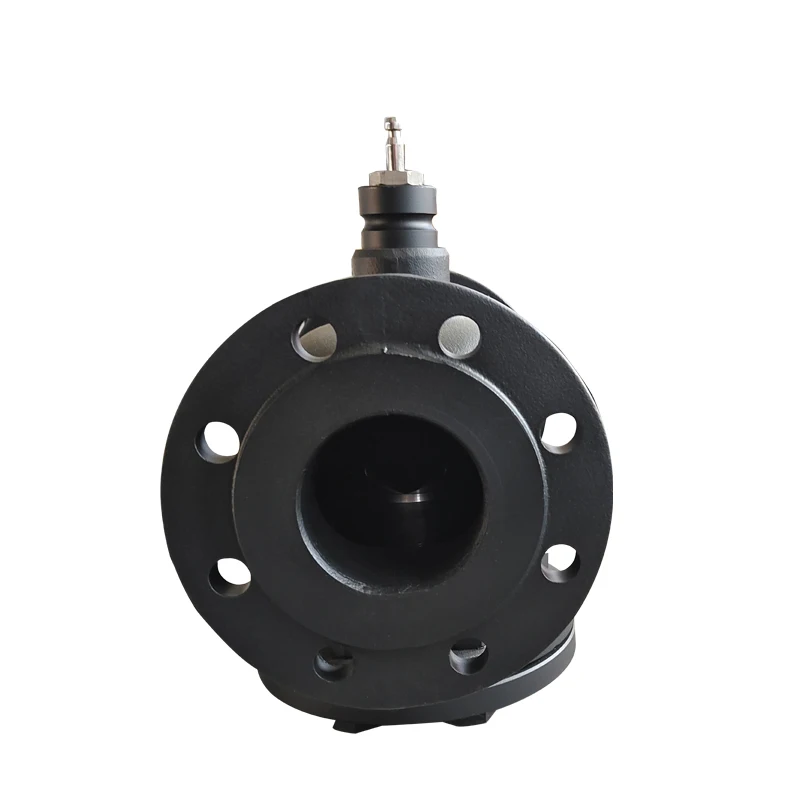

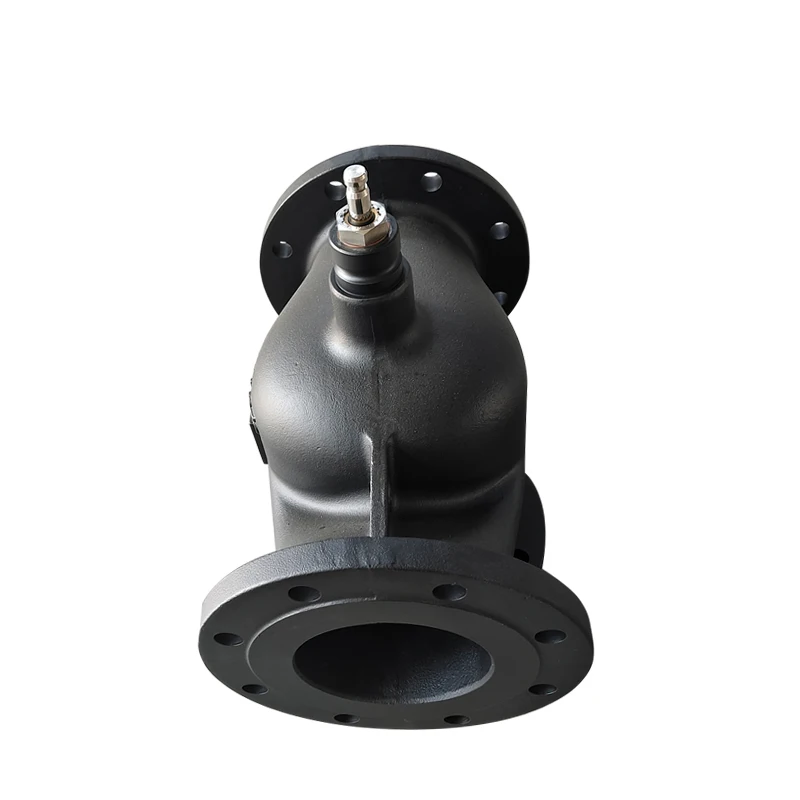

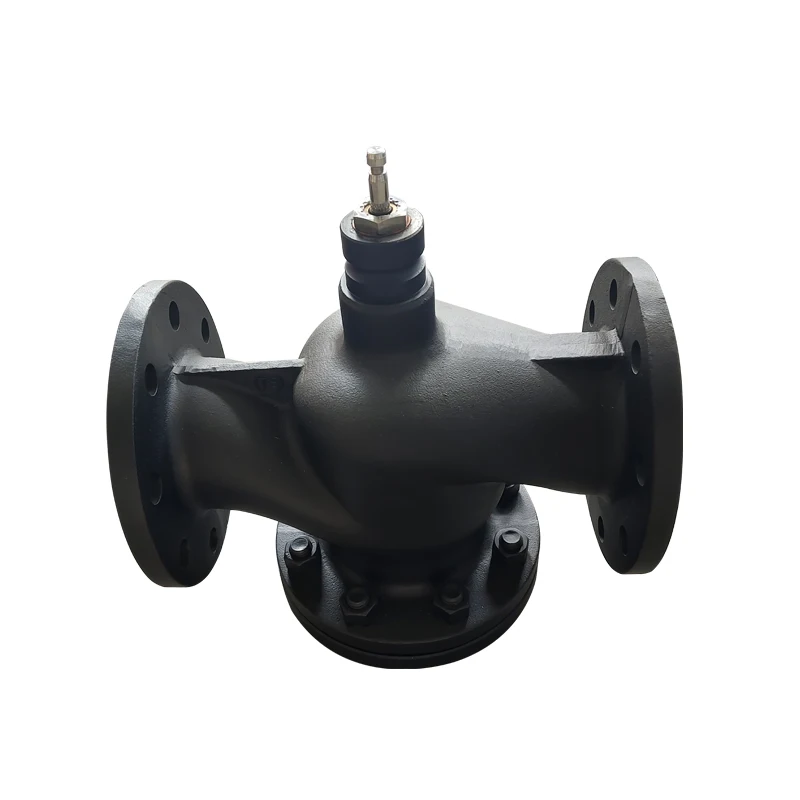

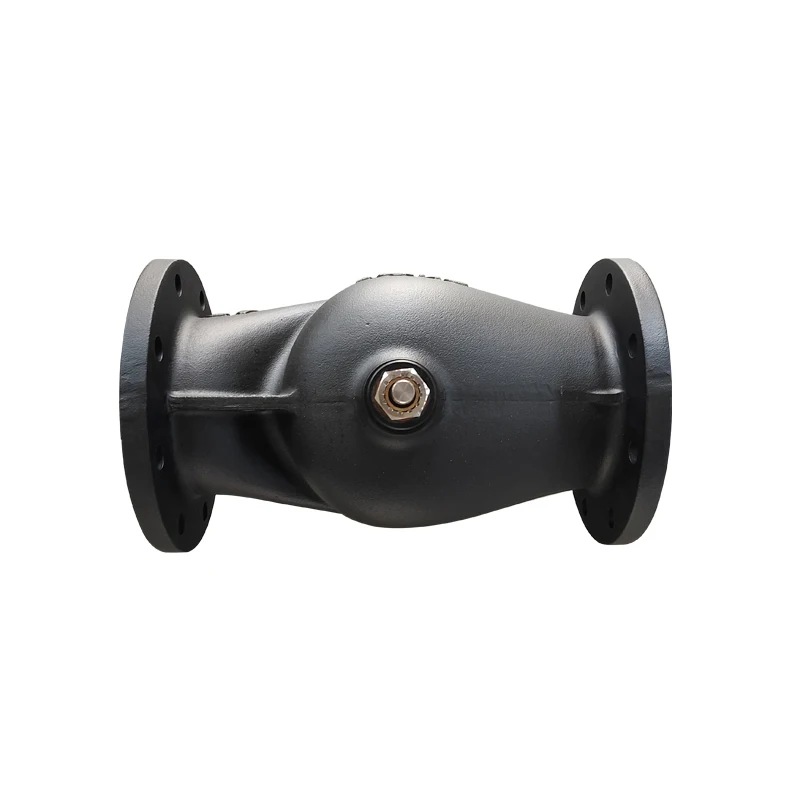

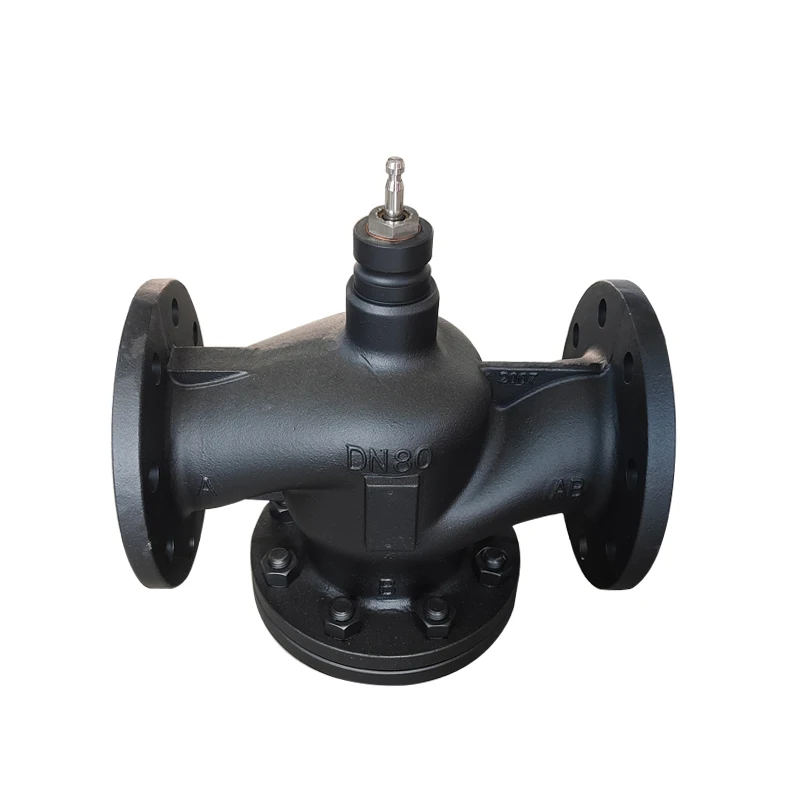

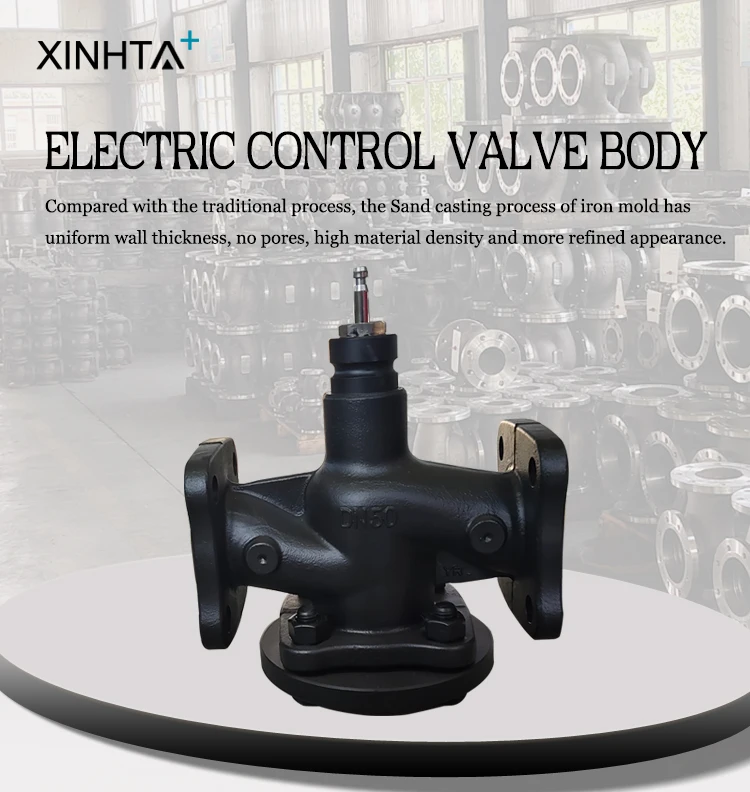

balance chamber valve body balance valve core structure DN80 electric control valve body
- Category: >>>
- Supplier: Taian Xin Haitai Sensor Co. Ltd.
Share on (1601150135541):
Product Overview
Description

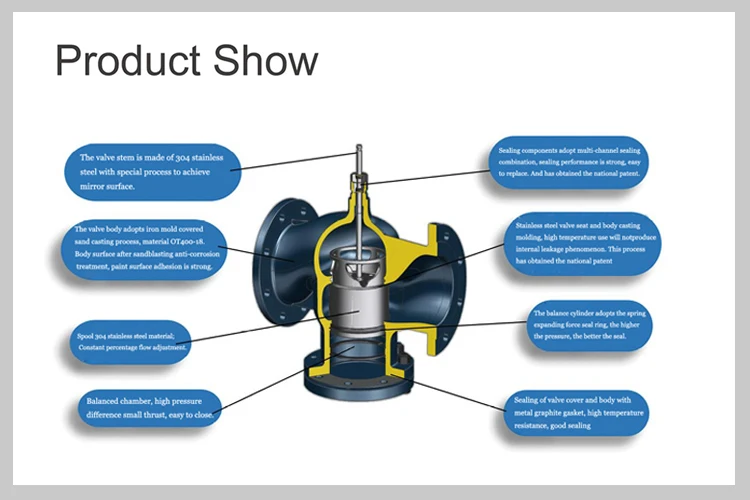

Product features:
1.Adopting a balanced chamber valve body, ensuring the shut-off ability of high pressure differential under low force conditions。2.Adopting a balanced valve core structure, the valve core has no deviation or shaking allowance under high medium flow rates, greatly reducing the noise situation of the valve。
3.Flexible to use, the three-way valve body can be used for split or combined flow。
4.Beautiful appearance, made of ductile iron material, sturdy and durable。
5.Widely used in building automatic control systems for air conditioning and refrigeration, it is economically applicable。
Technical Parameter：
Caliber: DN40-N200
Nominal pressure: PN16
Connection method: flange connection (ISO7005-2)
Medium temperature: -20~150 ℃
Applicable media:water
Leakage rate: 0~0.02% kvs
Flow characteristics: equal percentage flow characteristics
Nominal pressure: PN16
Connection method: flange connection (ISO7005-2)
Medium temperature: -20~150 ℃
Applicable media:water
Leakage rate: 0~0.02% kvs
Flow characteristics: equal percentage flow characteristics
Materials:
Valve body: ductile iron EN-GJS-400-18 (GGG40) Valve stem: stainless steel (304)
Valve core: stainless steel (304) Sealing ring: EPDM
Valve body: ductile iron EN-GJS-400-18 (GGG40) Valve stem: stainless steel (304)
Valve core: stainless steel (304) Sealing ring: EPDM

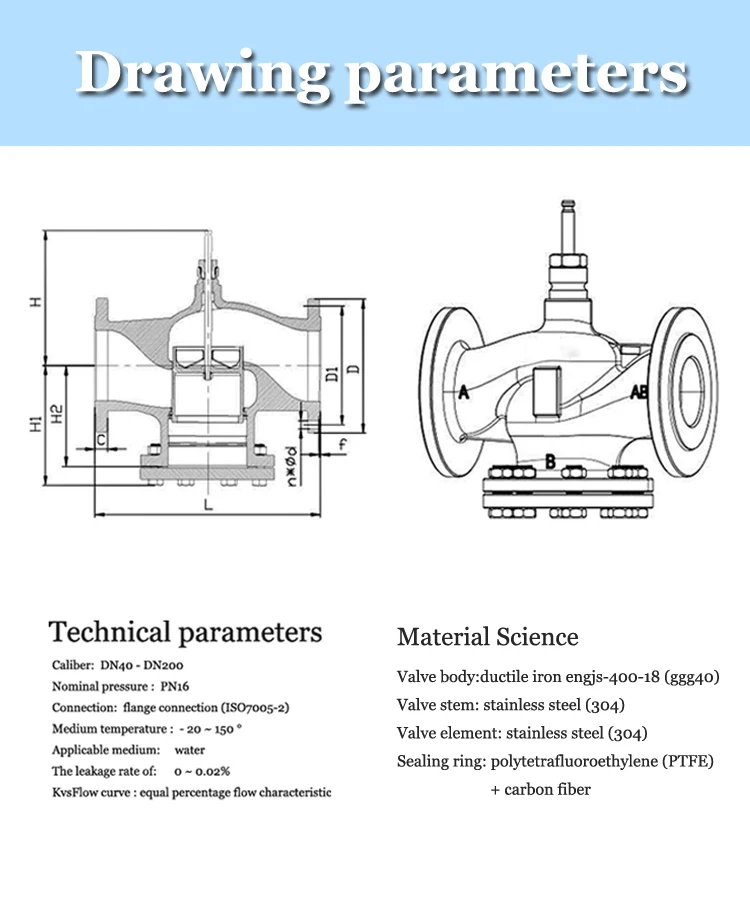

Model | ΦD | ΦD1 | n*Φd | f | L | H | H1 | H2 | |
PN16 | PN16 | PN16 | |||||||
DN40 | 18 | 150 | 110 | 4*Φ18 | 3 | 200 | 160 | 120 | 94 |
DN50 | 20 | 165 | 125 | 4*Φ18 | 3 | 230 | 192 | 105 | 75 |
DN65 | 18 | 185 | 145 | 4*Φ18 | 3 | 290 | 206 | 148 | 118 |
DN80 | 20 | 200 | 160 | 8*Φ18 | 3 | 310 | 207 | 150 | 120 |
DN100 | 24 | 220 | 180 | 8*Φ18 | 3 | 350 | 228 | 182 | 150 |
DN125 | 24 | 250 | 210 | 8*Φ18 | 3 | 400 | 275 | 202 | 170 |
DN150 | 24 | 285 | 240 | 8*Φ22 | 3 | 480 | 290 | 245 | 206 |
DN200 | 24 | 340 | 295 | 8*Φ22 | 3 | 495 | 322 | 216 | 180 |
