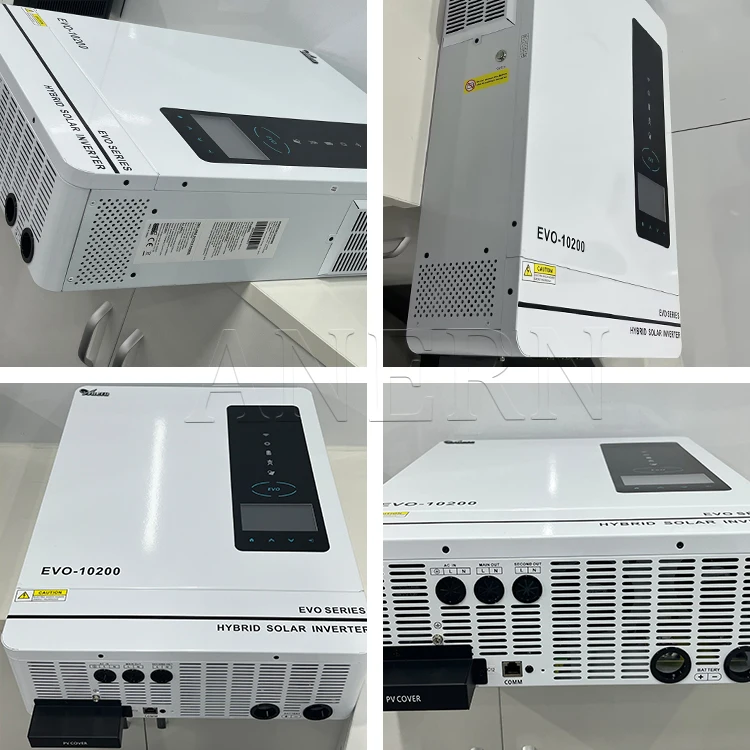

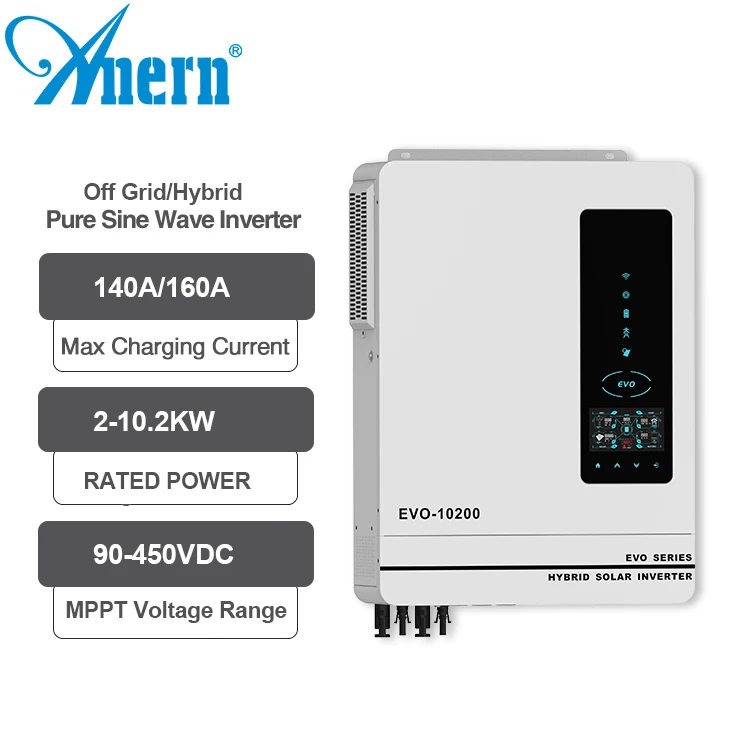

Global bestseller Anern 10.2KW Hybrid Solar Inverter with charger
Global bestseller Anern 10.2KW Hybrid Solar Inverter with charger
Global bestseller Anern 10.2KW Hybrid Solar Inverter with charger
Global bestseller Anern 10.2KW Hybrid Solar Inverter with charger
Global bestseller Anern 10.2KW Hybrid Solar Inverter with charger
Global bestseller Anern 10.2KW Hybrid Solar Inverter with charger
Global bestseller Anern 10.2KW Hybrid Solar Inverter with charger

Global bestseller Anern 10.2KW Hybrid Solar Inverter with charger

Share on (1601150221303):


Price:$325.35 - $335.21

Quantity:


Product Overview

Description



Related Products




Product Description




Key Features:\t\t\t\t

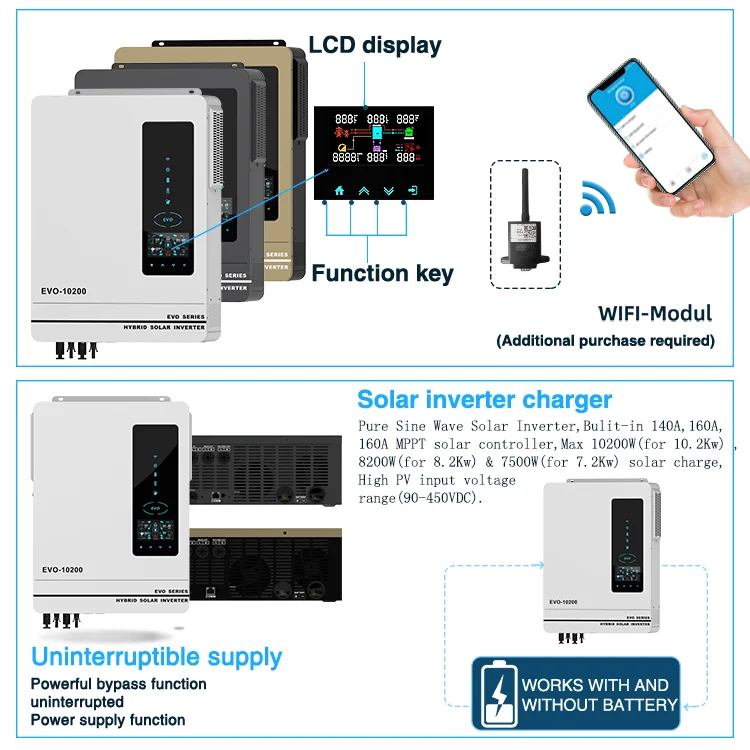

◆Pure Sine Wave Solar Hybrid Inverter,
◆Be able to run without battery,
◆One-key restoring to factory default settings:
◆With function ofLithium battery automatic activation by PV;
◆Bulit-in 160A MPPT solar controller(for 10.2KW), 140A(for 7.2KW);
◆ Wide PV input voltage range (90-450VDC);
◆ Built-in anti-dusk kit for harsh environment;
◆Smart battery charge design to maximize battery lifespan;
◆Dual AC output;
◆WlFl available for lOS and Android systems.


Product Specification:


Model
SCI-EVO-7200
SCI-EVO-8200
SCI-EVO-10200
RATED POWER
7200W
8200W
10200W
Maximum PV Input Power
7500W
8200W
10800W
GRID-TIED OPERATION
PV INPUT (DC)
Nominal DC Voltage/Maximum DC Voltage
360VDC/500VDC
Start-up Voltage/Initial Feeding Voltage
90VDC/120VDC
MPPT DC Voltage Range
90-450VDC
Number of MPPT Trackers/Maximum Input Current
1/27A
1/27A
2/18A
GRID OUTPUT (AC)
Nominal AC Output Voltage
220/230/240VAC
AC Output Voltage Range
195.5-253VAC
Nominal AC Output Current
31.3A
35.6A
44.3A
Power Factor
>0.99
Feed-in Grid Frequency Range
49-51±1Hz / 59-61±1Hz
EFFICIENCY
Maximum Conversion Efficiency (Solar to AC)
98%
TWO LOADS OUTPUT POWER
Full Load
7200W
8200W
10200W
Maximum Main Load
7200W
8200W
10200W
Maximum Second Load (battery mode)
2400W
2733W
3400W
Main Load Cut Off Voltage
44VDC
44VDC
44VDC
Main Load Return Voltage
48VDC
48VDC
48VDC
OFF-GRID OPERATION
AC Start-up Voltage/Auto Restart Voltage
120-140VAC/180VAC
Acceptable AC Input Voltage Range
90-280VAC or 170-280VAC
Maximum AC Input Current
40A
40A
50A
Nominal Operating Frequency
50/60Hz
Surge Power
14400W
16400W
20400W
BATTERY MODE OUTPUT (AC)
Nominal Output Voltage
220/230/240VAC
Output Waveform
Pure sine wave
Efficiency (DC to AC)
94%
BATTERY & CHARGER
Nominal DC Voltage
48VDC
48VDC
48VDC
Maximum Charging Current(Solar to AC)
140A
160A
160A
Maximum AC Charging Current
120A
140A
160A
GENERAL

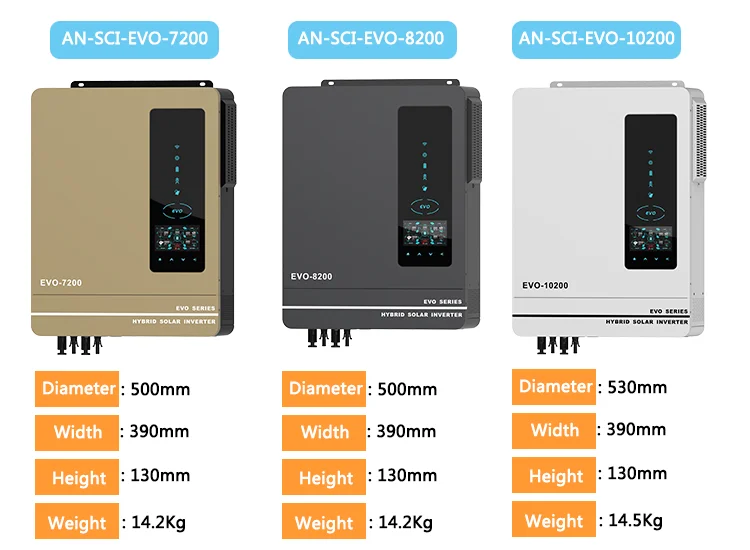

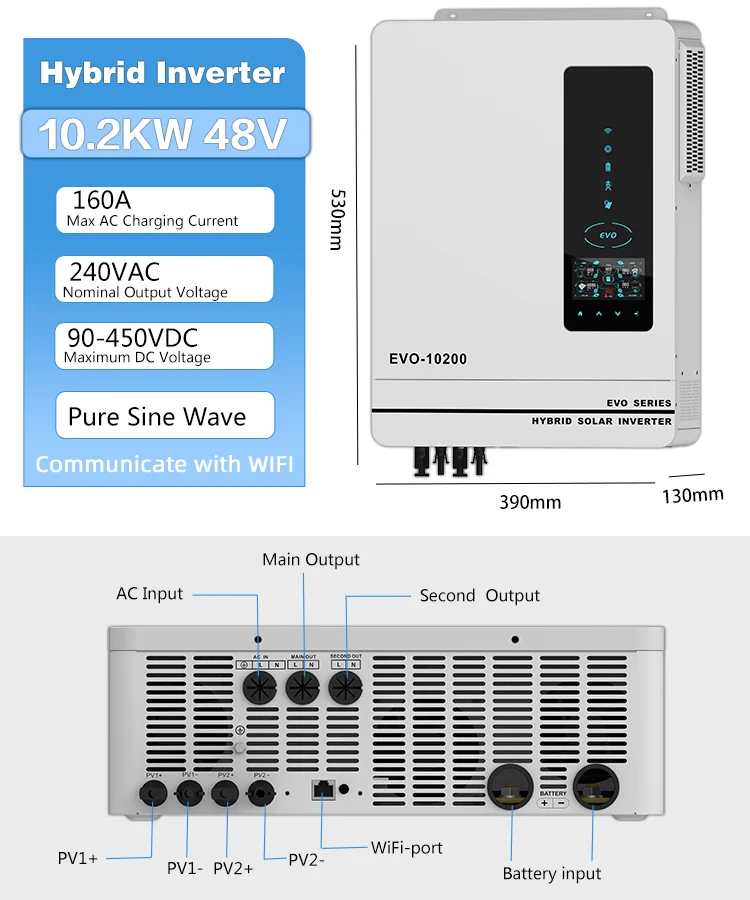

Dimension, D x W x H (mm)
500*390*130mm
500*390*130mm
530*390*130mm
Net Weight (kgs)
13.1kg
13.1kg
14.5kg
Communication interface
WIFI
Humidity
5% to 95% Relative Humidity (Non-condensing)
Operating Temperature
–10°C - 50°C
Storage Temperature
–15°C - 60°C
