AGFRC A86BHMW Large Size 55kg 0.110sec Fast Respond Waterproof Digital Brushless High Torque Servo Motor For 1/10 RC Car

Share on (1601150277346):


Price:$49.50 - $129.99

Quantity:


Product Overview

Description



Product Description

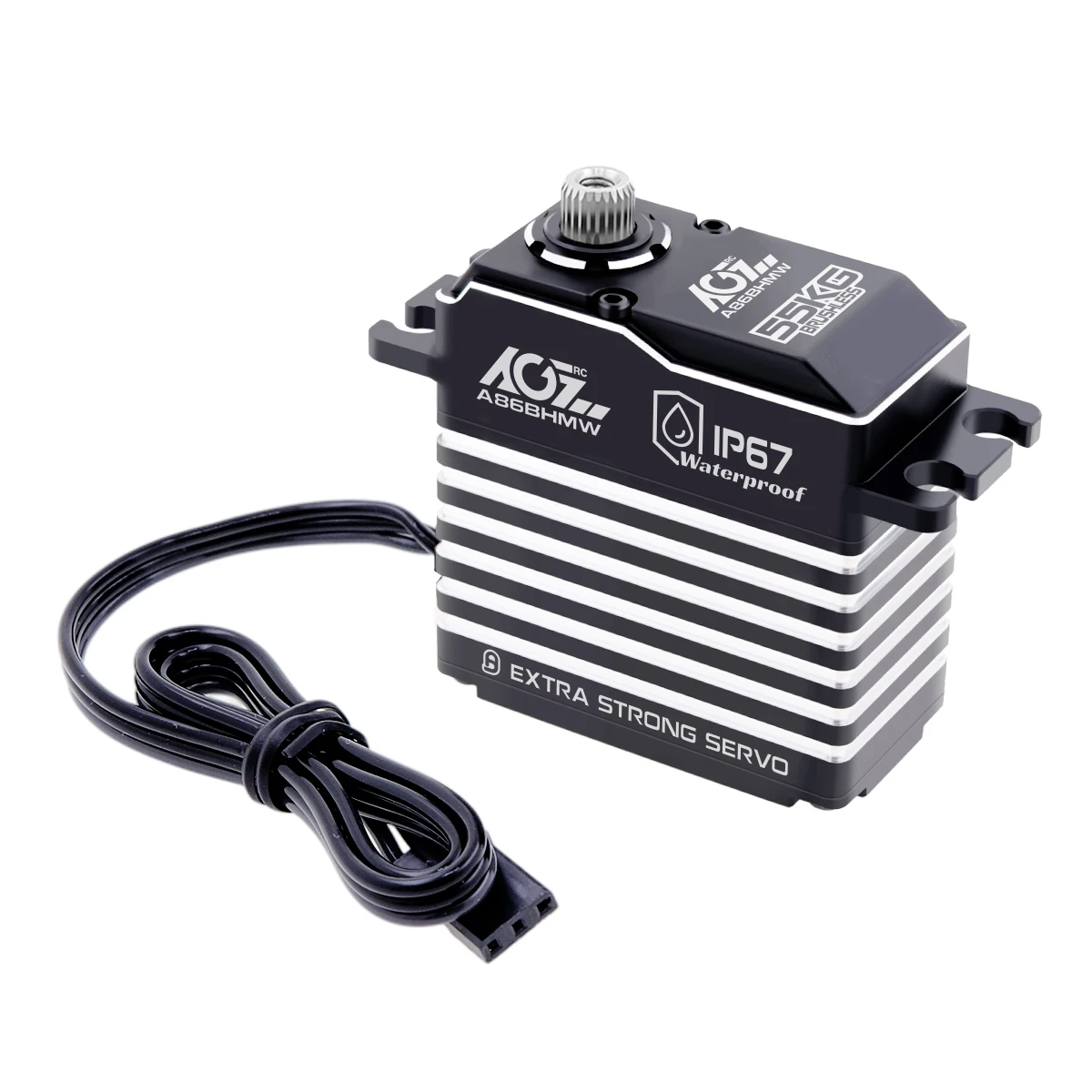

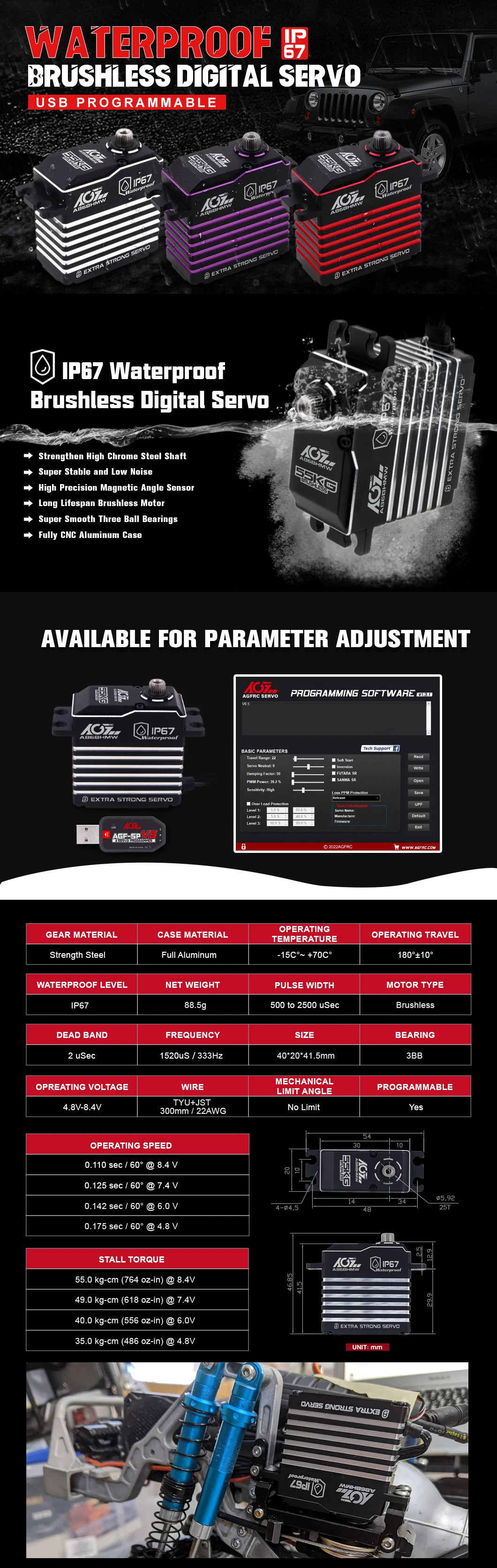

AGFRC A86BHMW Large Size 55kg 0.110sec Fast Respond Waterproof Digital Brushless High Torque Servo Motor For 1/10 RC Car

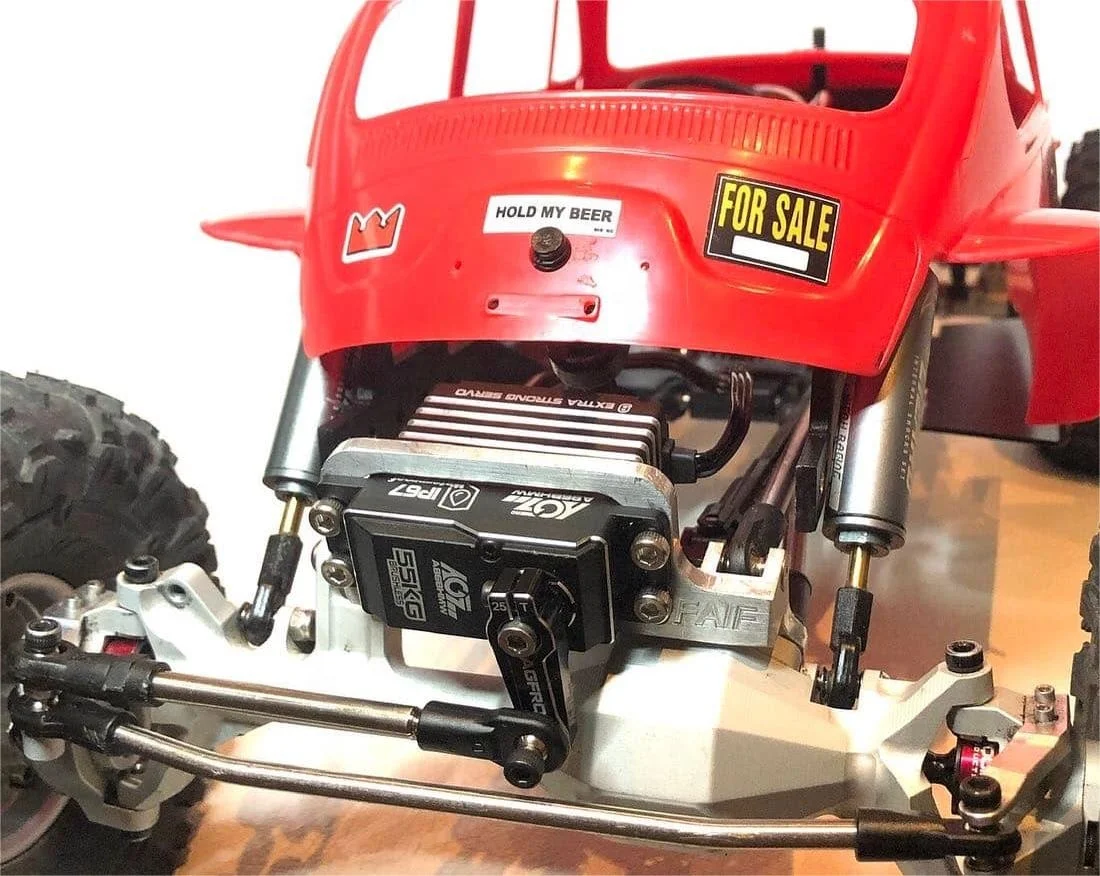

The 55KG ultra-high torque A86BHMW programmable waterproof servo adopts the CNC heat sink and heightened shell design, which can prevent the servo from getting hot during operation, so as to achieve the effect of rapid heat dissipation. It is a good choice for large size 1/10 1/8 scale monster trucks, crawlers, off-road vehicles, large rc planes, racing boats. In addition, it also has dustproof and IP67 waterproof function, which is very suitable for rainy, humid, snowy and other harsh weather environments. Under the close cooperation of high-precision reinforced steel gears and reinforced shafts, the anti-collision performance is improved. Reliable and silky three bearings and long-life brushless motor keep the servo in smooth working condition. By the way, this servo is available in three colors: black, red, and purple.




Feature


Ultra Light Unique Design With Heat Sink Machining
Slightly Taller Case Design
High Precision Magnetic Angle Sensor
Waterproof Up to IP67 Grade
Strengthen High Chrome Steel Shaft
Extremely Strong Patent Steel Gears
Super Smooth Three Ball Bearings
Long Lifespan Brushless Motor
Programmable Digital Circuit
Ideal for Giant Scale Aircraft, Monster Truck, and 1/8 1/10 Scale On Road, Off road, Truck, Boat, Airplane, Helicopter, Robot and engine etc.

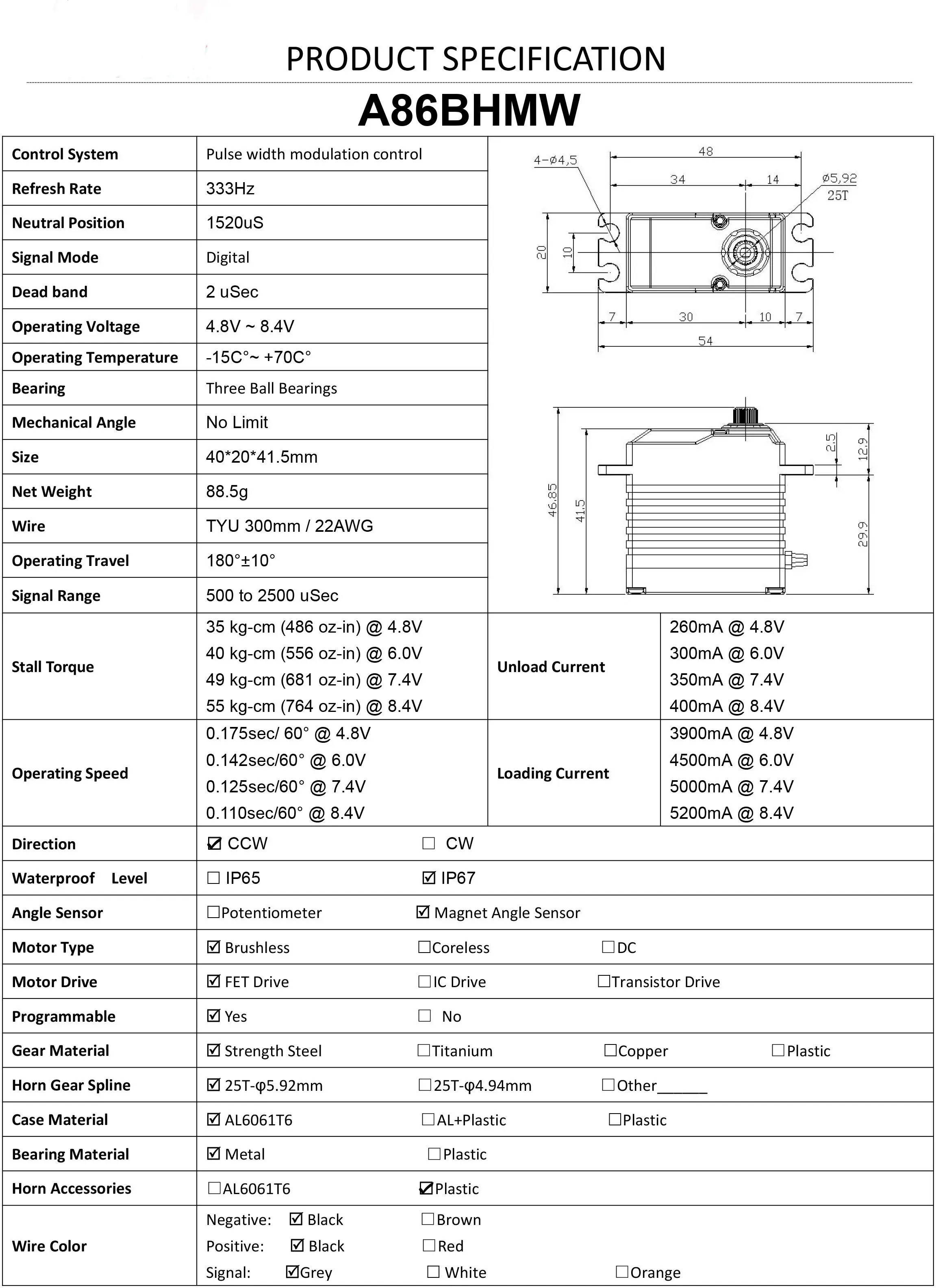

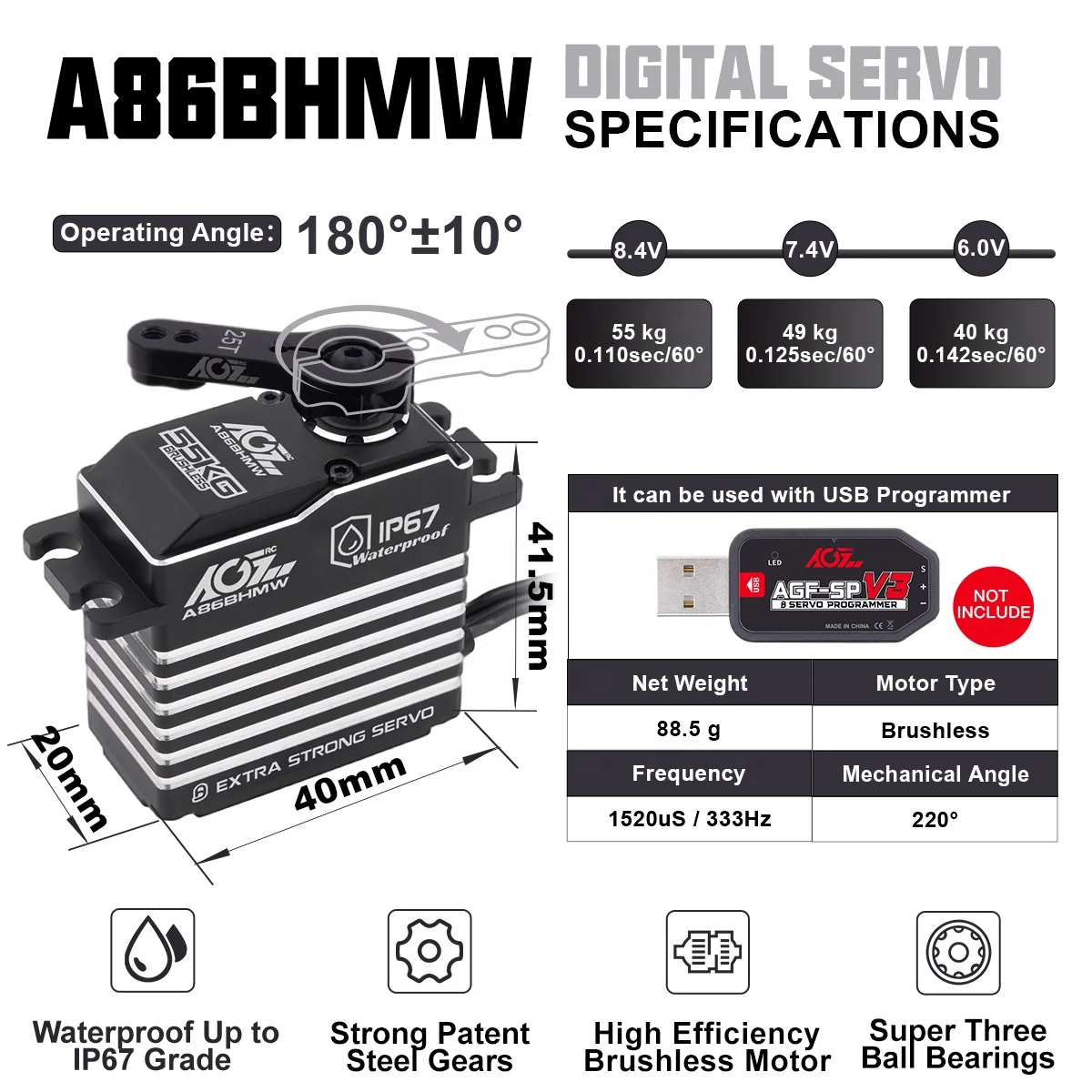

Specification


Item name
A86BHMW(Black)
Operating Voltage
4.8V ~ 8.4V

Operating Speed
0.175sec/ 60° @ 4.8V
0.142sec/60° @ 6.0V
0.125sec/60° @ 7.4V
0.110sec/60° @ 8.4V

Stall Torque
35 kg-cm (486 oz-in) @ 4.8V
40 kg-cm (556 oz-in) @ 6.0V
49 kg-cm (681 oz-in) @ 7.4V
55 kg-cm (764 oz-in) @ 8.4V
Programmable
Yes
Operating Temperature
-15C°~ +70C°
Bearing
Three Ball Bearings
Mechanical Angle
No Limit
Motor Type
Brushless
Angle Sensor
Magnet Angle Sensor
Gear Material
Strength Steel
Case Material
AL6061T6
Bearing Material
Metal
Size
40*20*41.5mm
Net Weight
88.5g
Wire
TYU 300mm / 22AWG




Company Profile

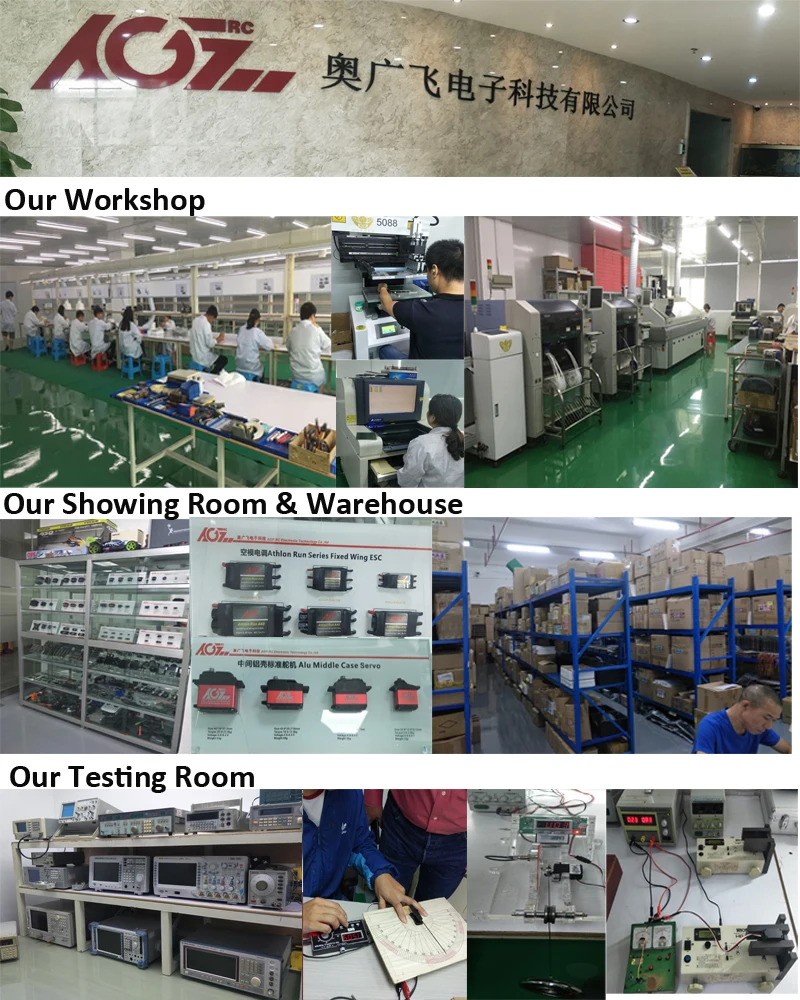

Huizhou AGFRC Electronic Technology Co.,Ltd, created in 2009, is a high-tech enterprise owning more than 1200 square meters clean electronic manufacturing workshop, professional electronic R&D lab, SMT lines and high-precision CNC machines. Our company top team comes from Taiwan GWS and Guangzhou Audi, both are famous branded enterprises in RC area. We have strong R&D ability and confidence to provide professional OEM/ODM RC solution for all clients.

Since 2009, AGFRC has been focus on all series of
RC servos, speed controllers(ESC), receiver modules and car gyros,supplying high quality RC products and RC solutions for many domestic and abroad famous brands. We are attracting more talents to join us for diversified development in RC control area, including high-frequency circuit,software design and structural design, aim to achieve industrial- leading level in the field of motor control area or even other applications.

AGFRC is our new brand and all the products are certified with CE,ROHS,FCC. Hereby we welcome domestic and abroad dealers and distributors to be our agent, promote AGFRC all over the world. AGFRC expects to establish long term win-win cooperation with you! We promise AGFRC will provide all clients with higher standard, better quality, and considerate service.




Exhibition




Certifications




FAQ


1. who are we?
We are based in Guangdong, China, start from 2017,sell to South America(20.00%),North America(20.00%),Southern Europe(10.00%),Domestic Market(10.00%),Central America(10.00%),Western Europe(10.00%),South Asia(10.00%),Northern Europe(5.00%),Eastern Europe(5.00%). There are total about 51-100 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
Servo,ESC,Receiver,Gyroscope,Controller board

4. why should you buy from us not from other suppliers?
1. AGFRC has more than 10 years experience in product customization service (OEM and ODM);
2. AGFRC has 11 senior engineers and 80 prefessional employees;
3. AGFRC has its own SMT line, CNC & Mould workshop, high frenquency lab and dust-free workshop.

5. what services can we provide?
Accepted Delivery Terms: ,EXW,CFR;
Accepted Payment Currency:USD,CNY;
Accepted Payment Type: T/T,PayPal,Western Union,Cash;
Language Spoken:English,Chinese

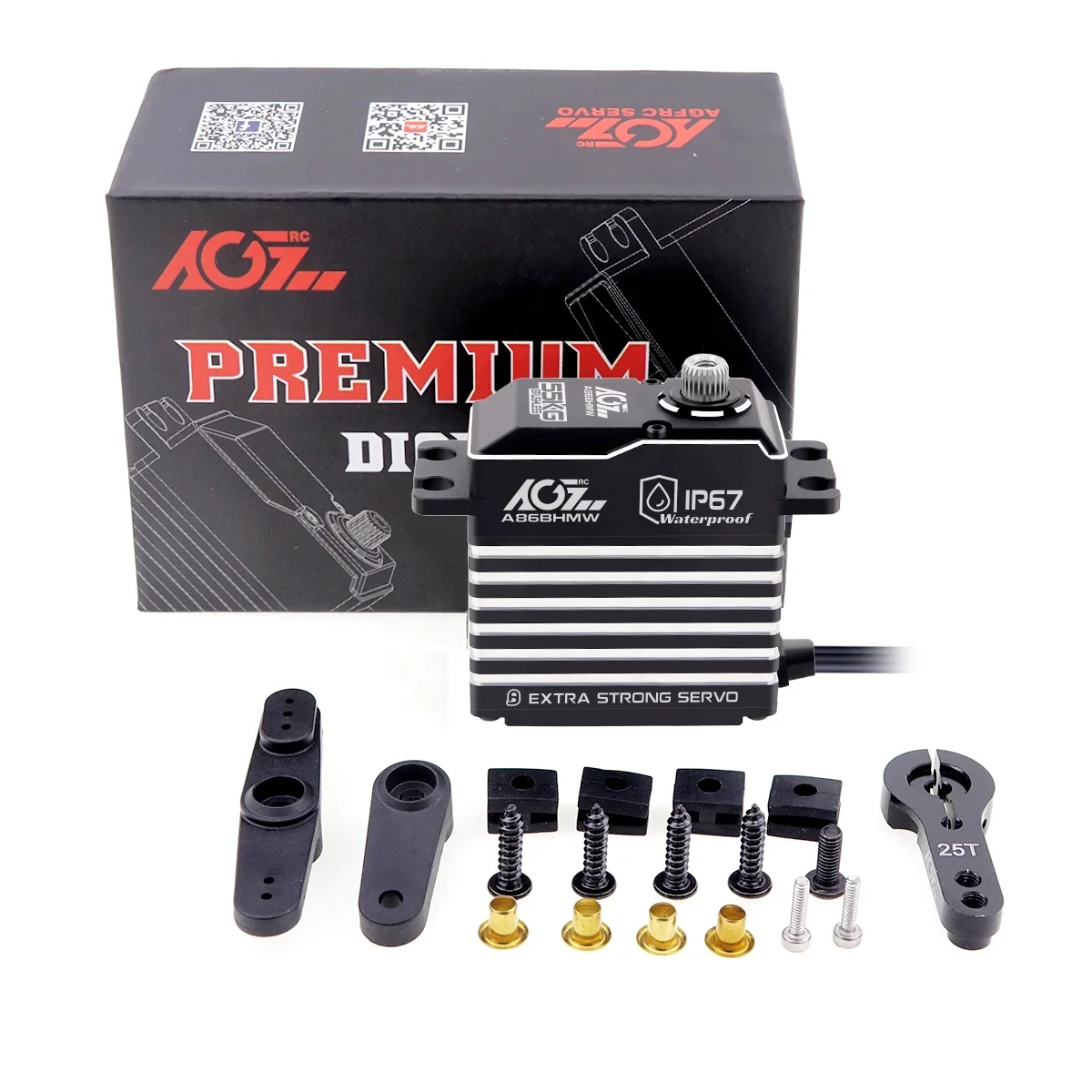

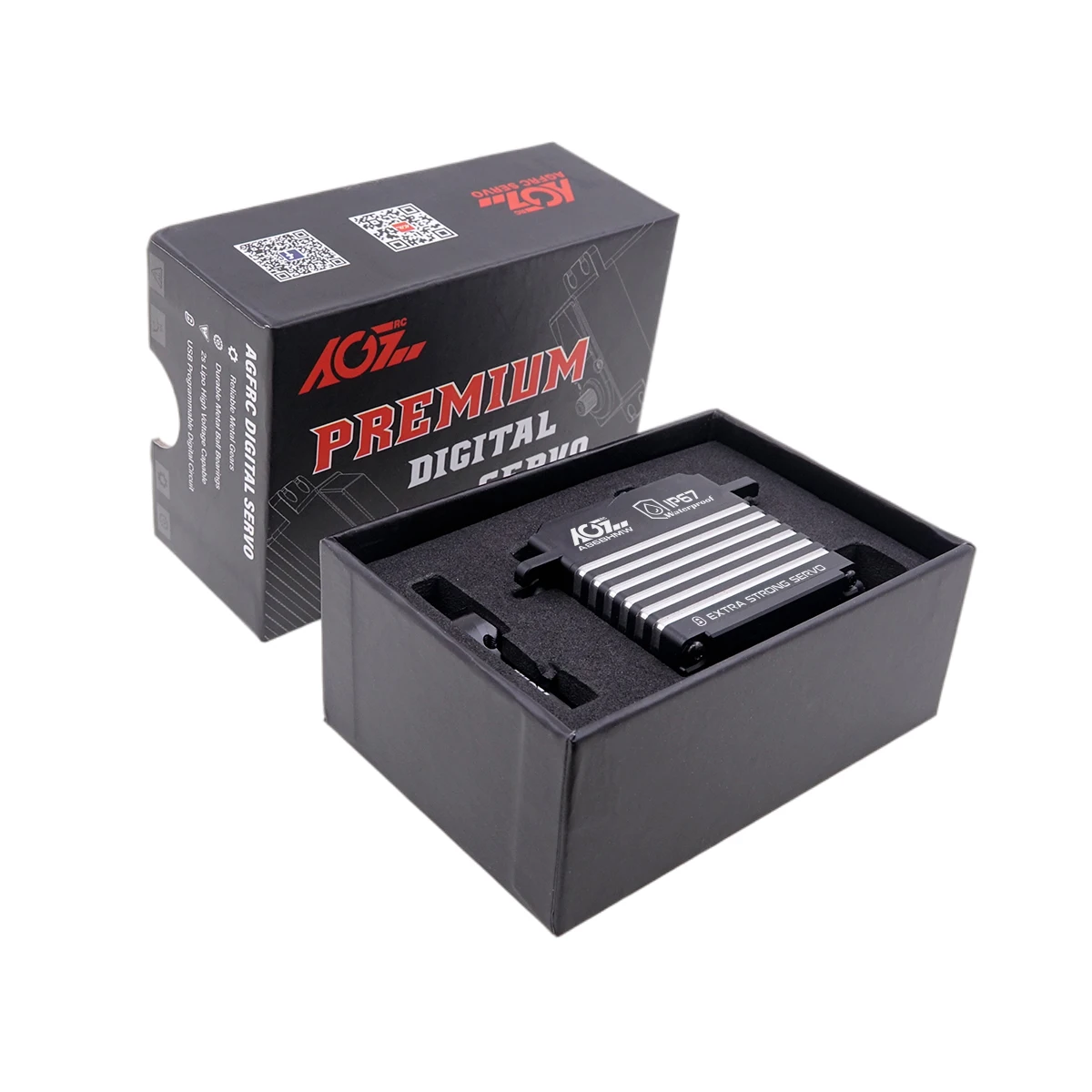

Product packaging
