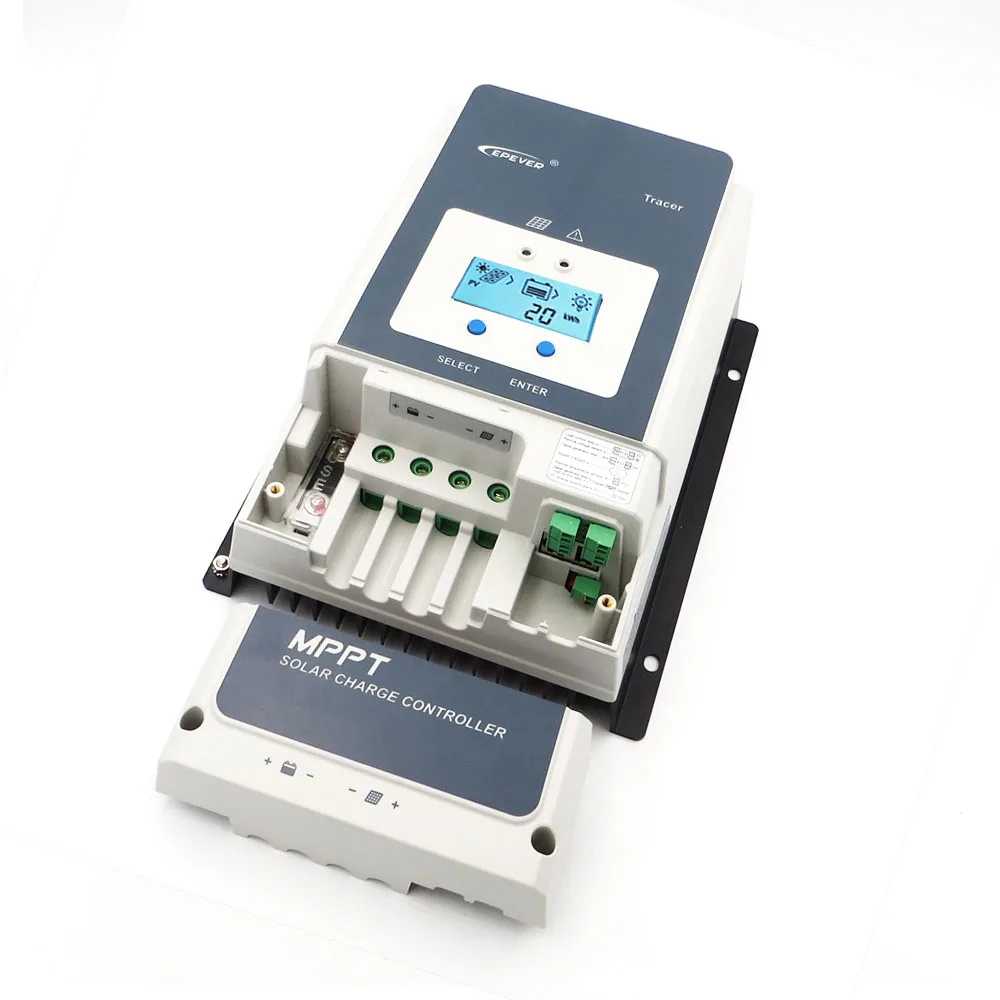

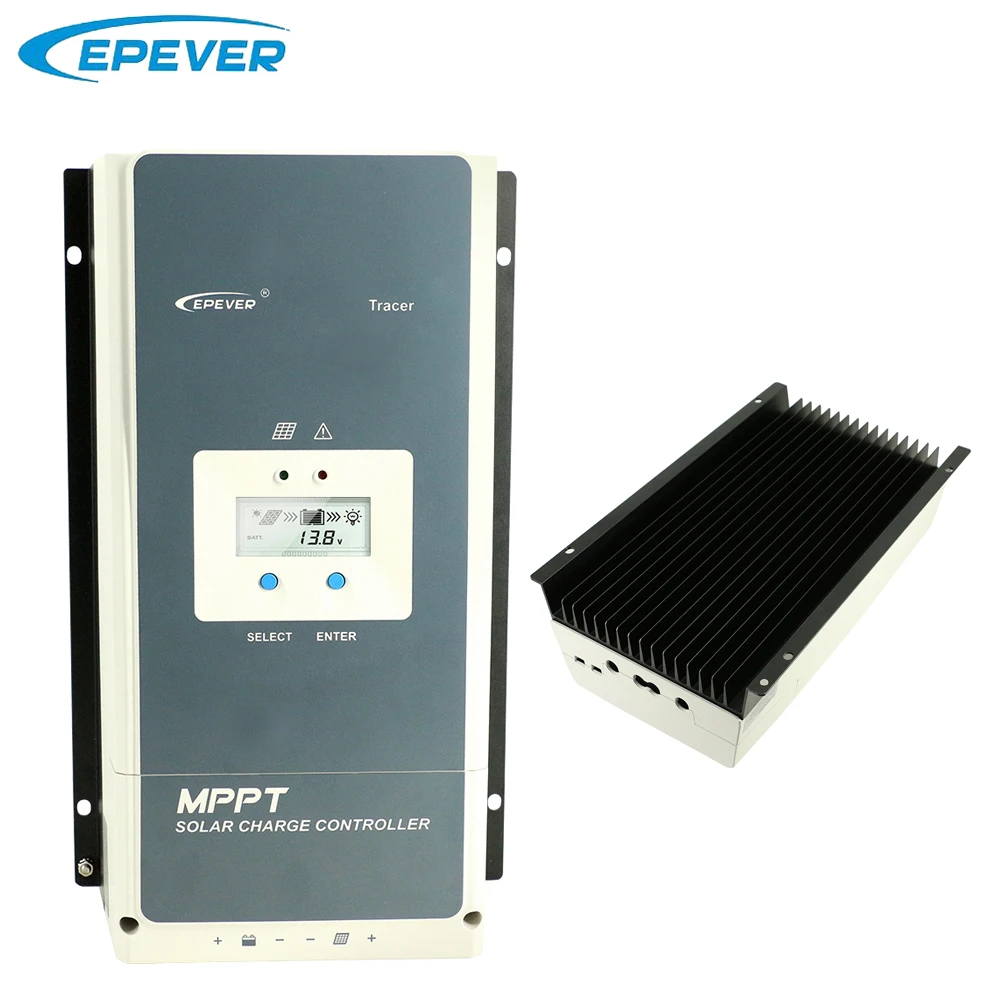

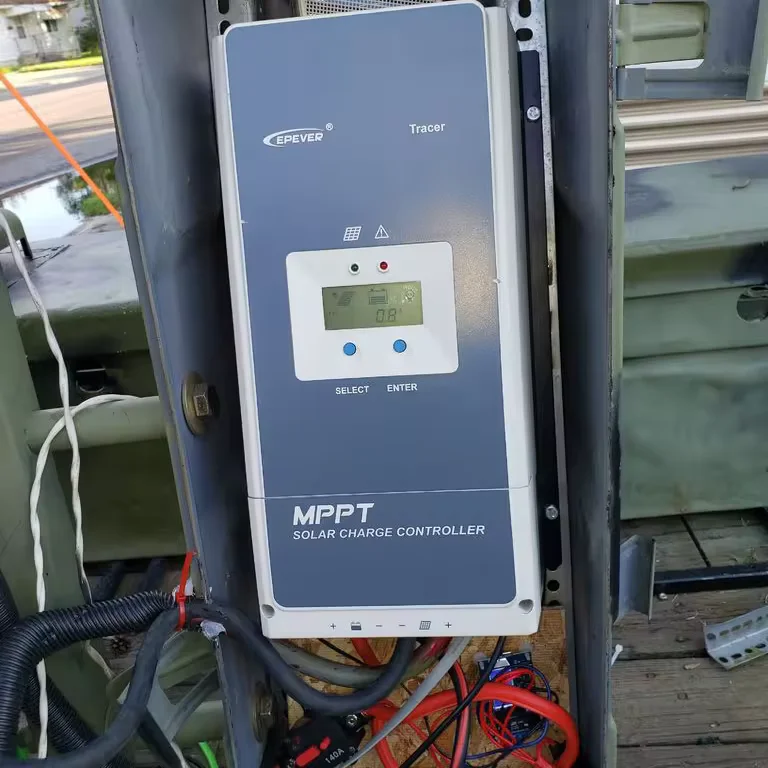

EPEVER Tracer10420AN 12V/24V/36V/48V Battery Charger 50A 60A 80A 100A mppt Solar charge controller max PV voltage 150V 200V
Tracer-AN (50A-100A) series is the largest charge controller series in EPEVER's product range and can take up to 5KW solar panel.

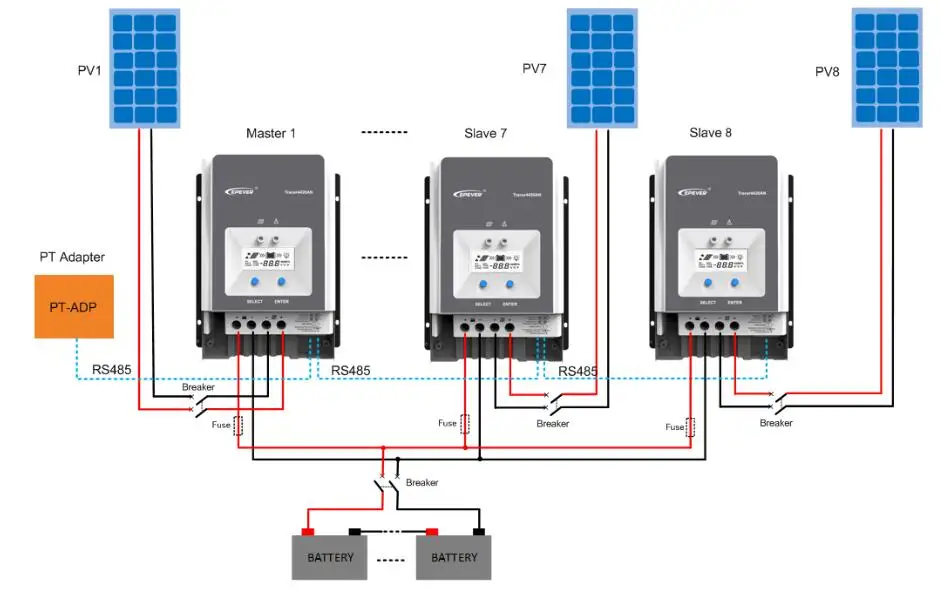

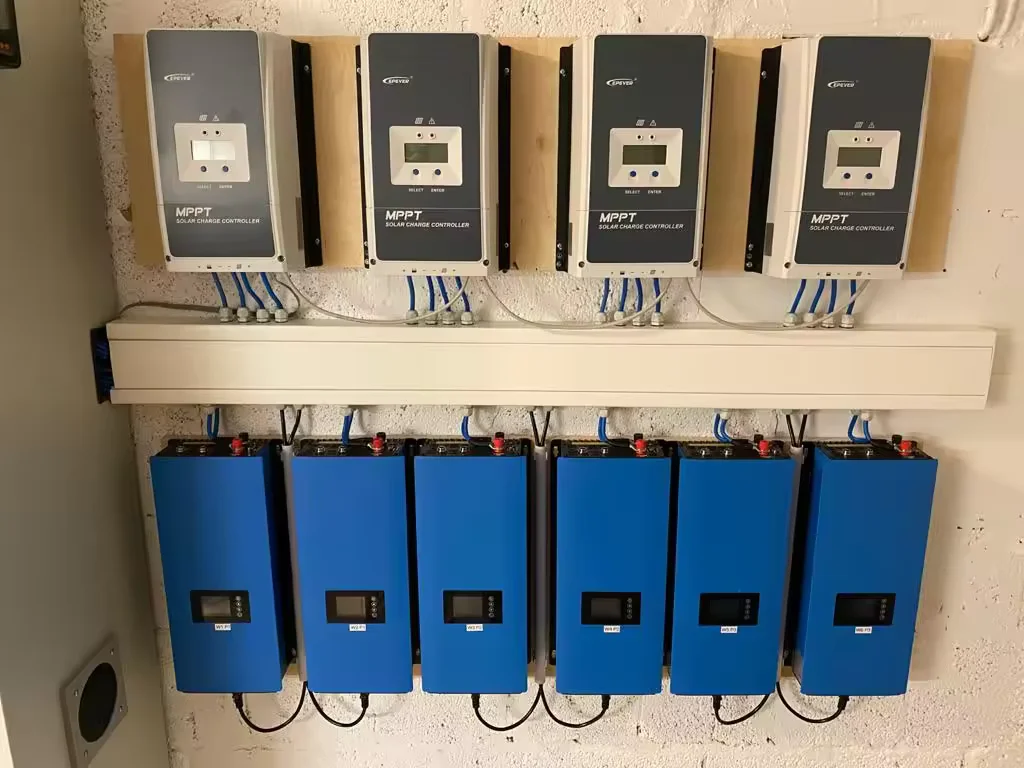

For even more power, the user can use PAL-ADP-50N to connect max. 6 units of a controller in parallel for up to 30KW system. The multiple dry contact signals are designed for a diversified application.
For even more power, the user can use PAL-ADP-50N to connect max. 6 units of a controller in parallel for up to 30KW system. The multiple dry contact signals are designed for a diversified application.
Good reviews
Features
1. MPPT tracking efficiency above 99.5% 2.Maximum charge conversion efficiency as high as 98% 3.Battery type selection: Sealed,
Gel, Flooded and User(programmable) 4.Common negative grounding, Charging current up to 100A
Gel, Flooded and User(programmable) 4.Common negative grounding, Charging current up to 100A
5.Charging power and current
limitation function
limitation function
6.High –temperature charging power derating function
7.3 relays design for different demand: utility,generator and load

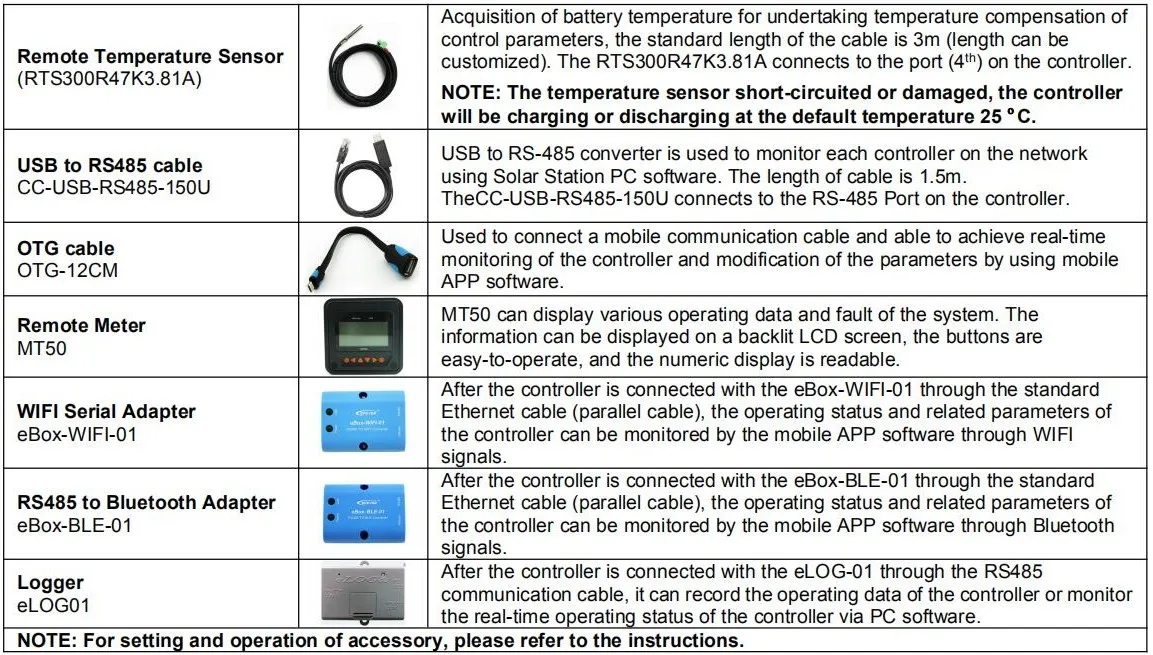

8.Support up to 6 units in parallel 9.Remote temperature and voltage sensor design
10.Isolated RS-485 with 5VDC/200Ma with MODBUS protocol
11.CE certification (LVD EN/IEC62109, EMC EN61000-6-1/3)

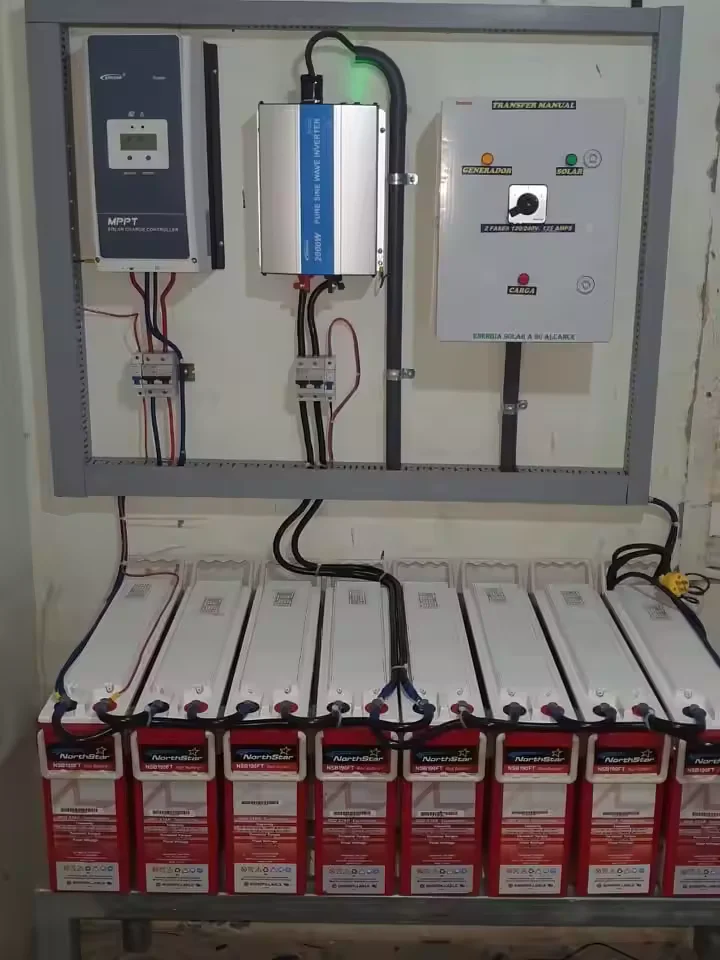

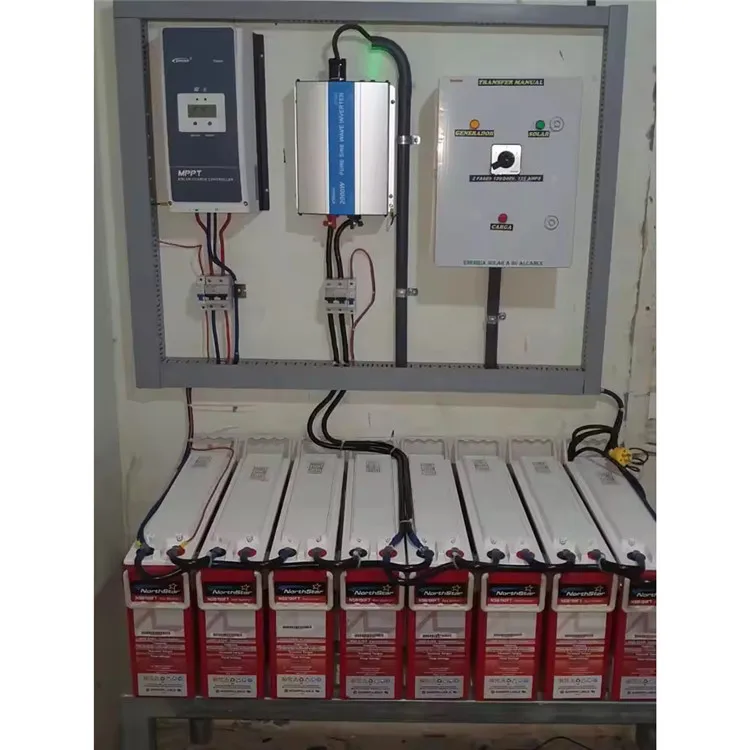

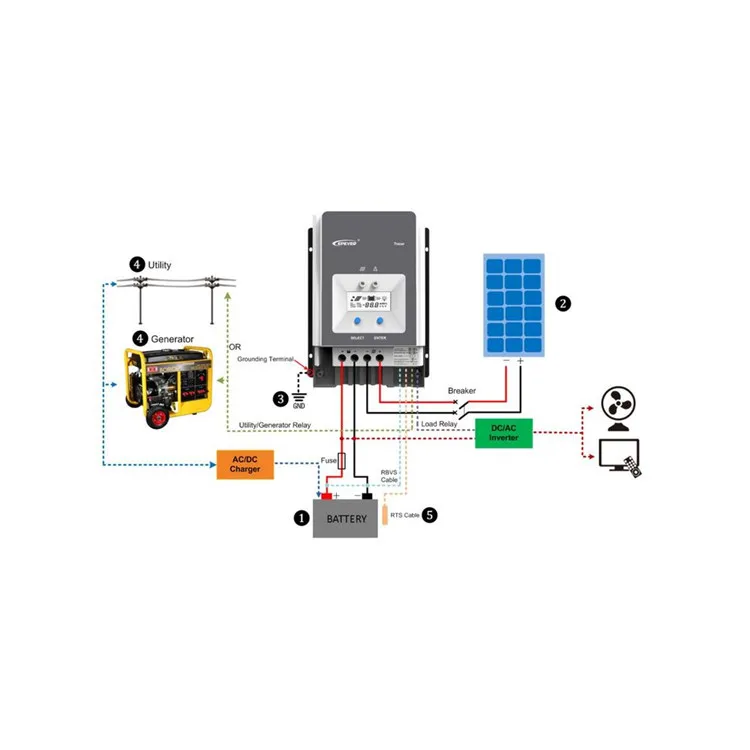

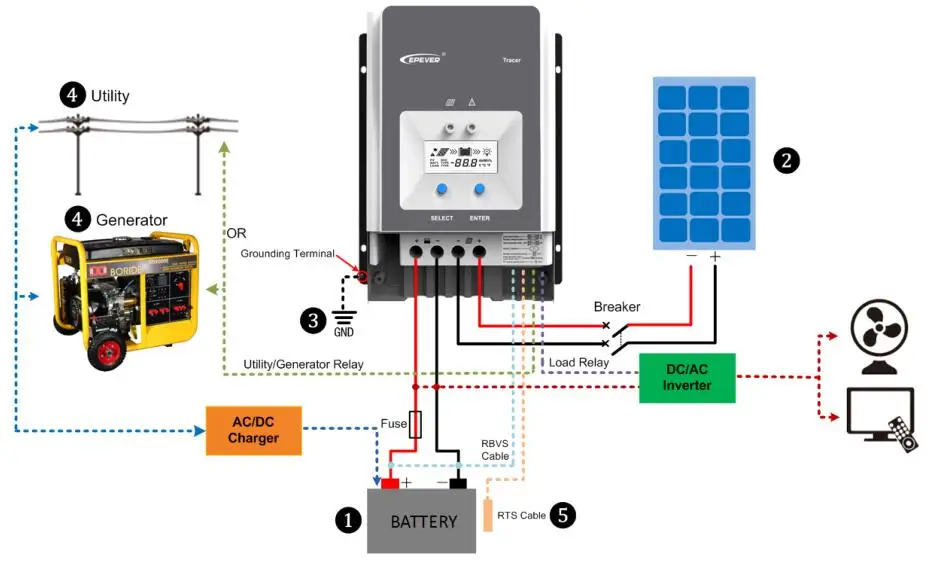

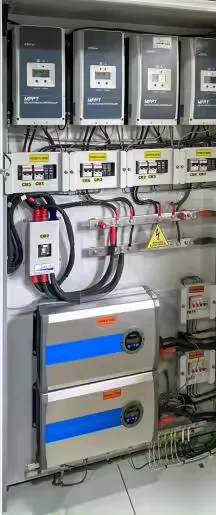

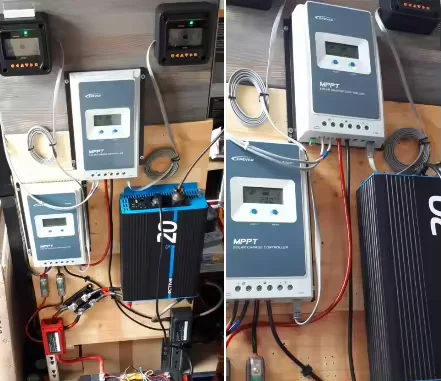

Installation Instructions
Product Paramenters
Model | Tracer5415AN | Tracer6415AN | Tracer8415AN | Tracer10415AN | ||||
Nominal System Voltage | 12/24/36/48VDC or Auto | |||||||
Battery Input Voltage Range | 8V～68V | |||||||
Battery Type | Lead-acid Battery :Sealed(Default)/Gel/Flooded/User | |||||||
Lithium Battery :LiFePO4/ Li(NiCoMn)O2/ User | ||||||||
Battery fuse | 80A/58V | |||||||
Rated charge current | 50A | 60A | 80A | 100A | ||||
Rated charge Power | 625W/12V 1250W/24V 1875W/36V 2500W/48V | 750W/12V 1500W/24V 2250W/36V 3000W/48V | 1000W/12V 2000W/24V 3000W/36V 4000W/48V | 1250W/12V 2500W/24V 3750W/36V 5000W/48V | ||||
Max. PV open circuit voltage | 150V① 138V② | |||||||
MPP Voltage Range | (Battery Voltage +2V) ～108V② | |||||||
Tracking efficiency | ≥99.5% | |||||||
Max. conversion efficiency | 98.30% | 98.60% | 98.50% | 98.60% | ||||
Full load efficiency | 97.80% | 98.00% | 98.00% | 98.00% | ||||
Temperature compensate coefficient | －3mV/℃/2V(Default) | |||||||
Self-consumption | 98mA/12V;60mA/24V;50mA/36V;46mA/48V | |||||||
Grounding | Common negative grounding | |||||||
Relay | Rated Value:5A/30VDC; Max. Value:0.5A/60VDC | |||||||
RS485 interface | RS485(5VDC/200mA, Two RJ45 ports in parallel) ③ | |||||||
LCD backlight time | Default:60S,Range:0～999S(0S:the backlight is ON all the time) | |||||||
①At minimum operating environment temperature; | ||||||||
②At 25℃ environment temperature; | ||||||||
③When connect the controller to external devices,only one of the ports can be used; when use multiple controllers in parallel, the port are for cascaded use | ||||||||
Ambient temperature range | -25℃～+60℃(Derate above 45℃) | |||||||
LCD temperature range | -20℃～+70℃ | |||||||
Storage temperature range | -30℃～+85℃ | |||||||
Relative humidity range | 5% to 95% (N.C.) | |||||||
Enclosure | IP20 | |||||||
Pollution degree | PD2 | |||||||

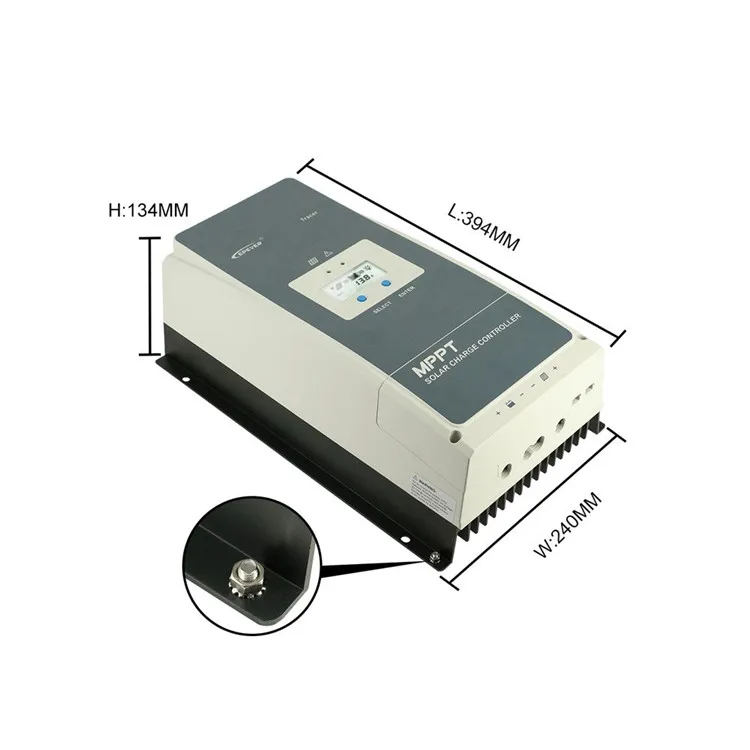

Dimension(mm) | 261×216×119 | 340×236×119 | 394×240×134 | 394×242×143 | ||||
Mounting dimension(mm) | 180×204 | 260×224 | 300×228 | 300×230 | ||||
Mounting hole size | Φ7 | |||||||
Terminal | 6AWG/16mm2 | 2AWG/35mm2 | 2AWG/35mm2 | 2AWG/35mm2 | ||||
Recommended cable | 6AWG/16mm2 | 6AWG/16mm2 | 4AWG/25mm2 | 2AWG/35mm2 | ||||
Weight | 3.5kg | 4.5kg | 6.1kg | 7.4kg | ||||
Model | Tracer5420AN | Tracer6420AN | Tracer8420AN | Tracer10420AN | ||||
Nominal System Voltage | 12/24/36/48VDC or Auto | |||||||
Battery Input Voltage Range | 8V～68V | |||||||
Battery Type | Lead-acid Battery :Sealed(Default)/Gel/Flooded/User | |||||||
Lithium Battery :LiFePO4/ Li(NiCoMn)O2/ User | ||||||||
Battery fuse | 80A/58V | |||||||
Rated charge current | 50A | 60A | 80A | 100A | ||||
Rated charge Power | 625W/12V 1250W/24V 1875W/36V 2500W/48V | 750W/12V 1500W/24V 2250W/36V 3000W/48V | 1000W/12V 2000W/24V 3000W/36V 4000W/48V | 1250W/12V 2500W/24V 3750W/36V 5000W/48V | ||||
Max. PV open circuit voltage | 200V ① 180V ② | |||||||
MPP Voltage Range | (Battery Voltage+2V) ～144V ② | |||||||
Tracking efficiency | ≥99.5% | |||||||
Max. conversion efficiency | 98.30% | 98.10% | 98.50% | 98.50% | ||||
Full load efficiency | 97.10% | 97.50% | 97.50% | 97.60% | ||||
Temperature compensate coefficient | －3mV/℃/2V(Default) | |||||||
Self-consumption | 98mA/12V;60mA/24V;50mA/36V;46mA/48V | |||||||
Grounding | Common negative grounding | |||||||
Relay | Rated Value:5A/30VDC; Max. Value:0.5A/60VDC | |||||||
RS485 interface | RS485(5VDC/200mA, Two RJ45 ports in parallel) ③ | |||||||
LCD backlight time | Default:60S,Range:0～999S(0S:the backlight is ON all the time) | |||||||
①At minimum operating environment temperature; | ||||||||
②At 25℃ environment temperature; | ||||||||
③When connect the controller to external devices,only one of the ports can be used; when use multiple controllers in parallel, the port are for cascaded use | ||||||||
Ambient temperature range | -25℃～+60℃(Derate above 45℃) | |||||||
LCD temperature range | -20℃～+70℃ | |||||||
Storage temperature range | -30℃～+85℃ | |||||||
Relative humidity range | 5% to 95% (N.C.) | |||||||
Enclosure | IP20 | |||||||
Pollution degree | PD2 | |||||||
Dimension(mm) | 261×216×119 | 340×236×119 | 394×240×134 | 394×242×143 | ||||
Mounting dimension(mm) | 180×204 | 260×224 | 300×228 | 300×230 | ||||
Mounting hole size | Φ7 | |||||||
Terminal | 6AWG/16mm2 | 2AWG/35mm2 | 2AWG/35mm2 | 2AWG/35mm2 | ||||
Recommended cable | 6AWG/16mm2 | 6AWG/16mm2 | 4AWG/25mm2 | 2AWG/35mm2 | ||||
Weight | 3.5kg | 4.5kg | 6.1kg | 7.4kg | ||||

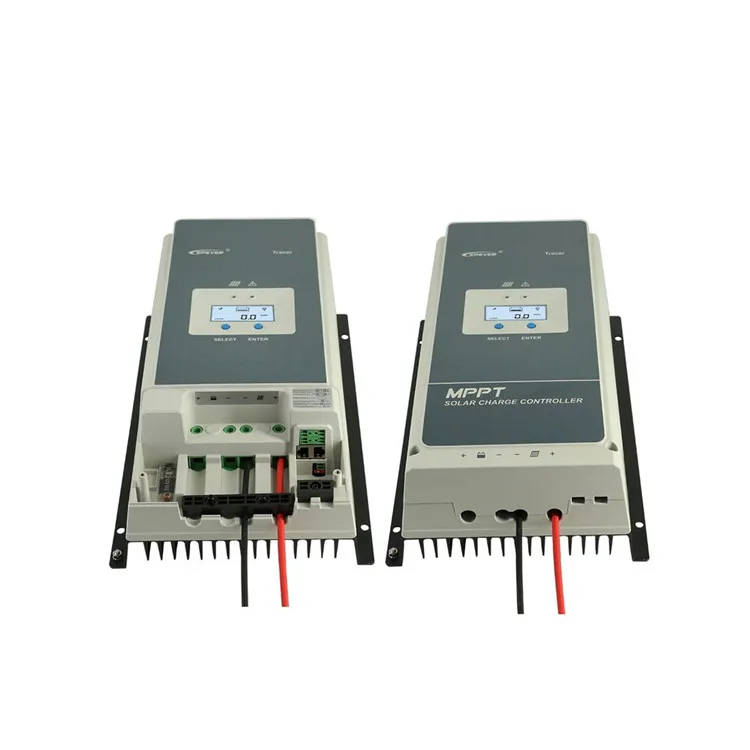

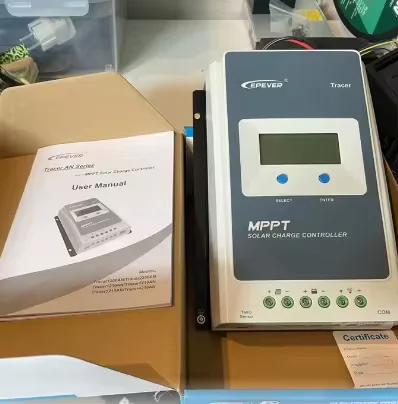

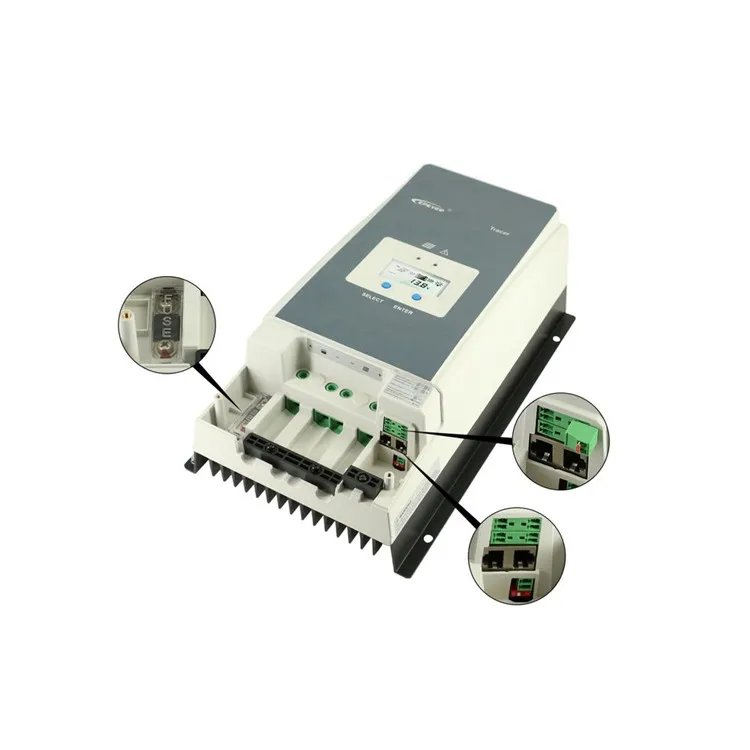

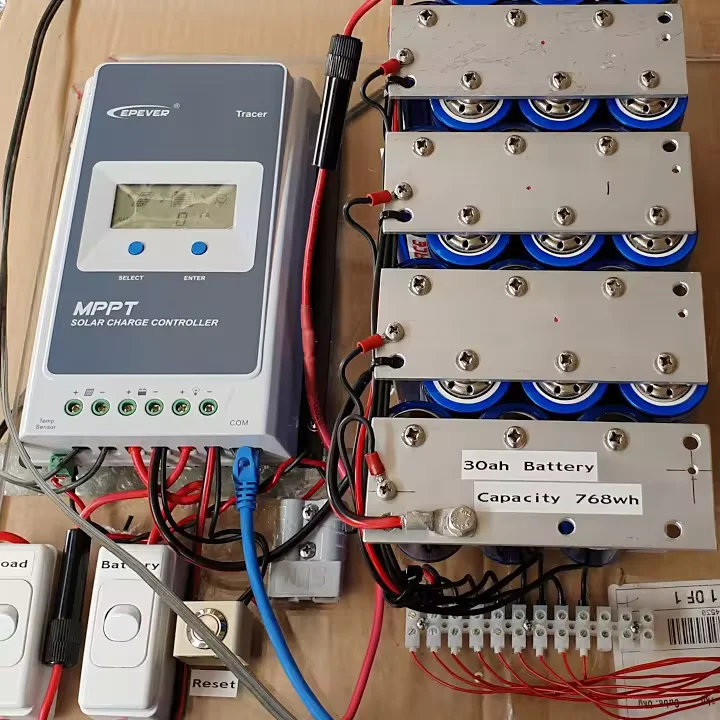

Details Images

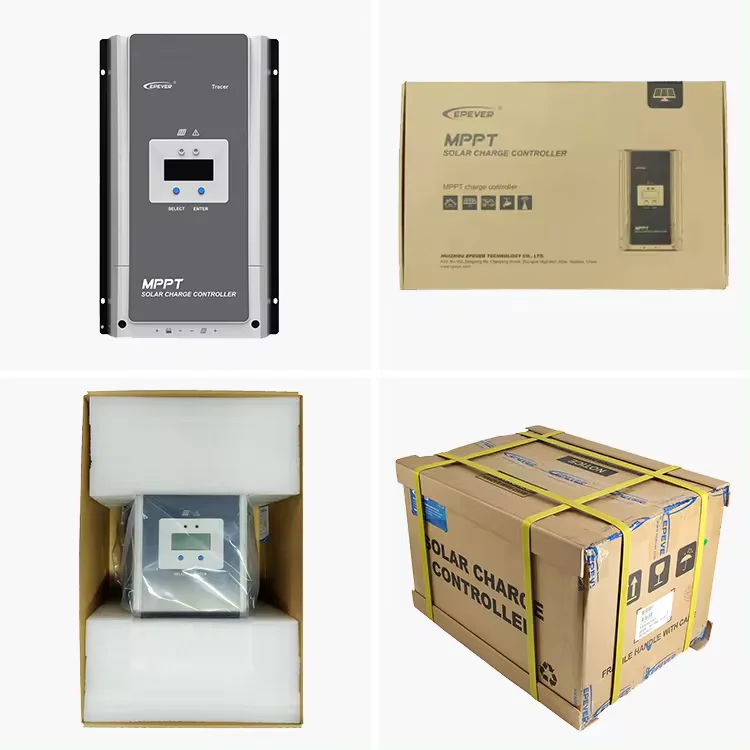

Product packaging
PACKING LIST | ||||||||
Description | Quantity (PCS)/CTN | Gross.w (KG)/CTN | Net.w (KG)/CTN | Measurement (CM)/CTN | ||||
Tracer1206AN | 24 | 18 | 17.52 | 48*41.5*31 | ||||
Tracer2206AN | 12 | 14.4 | 13.8 | 52*36*24 | ||||
Tracer1210AN | 24 | 18 | 17.52 | 48*41.5*31 | ||||
Tracer2210AN | 12 | 14 | 13.44 | 51*36*23.6 | ||||
Tracer3210AN | 12 | 15.85 | 15 | 53*38*24.5 | ||||
Tracer4210AN | 6 | 12 | 11.46 | 41*29.5*27 | ||||
