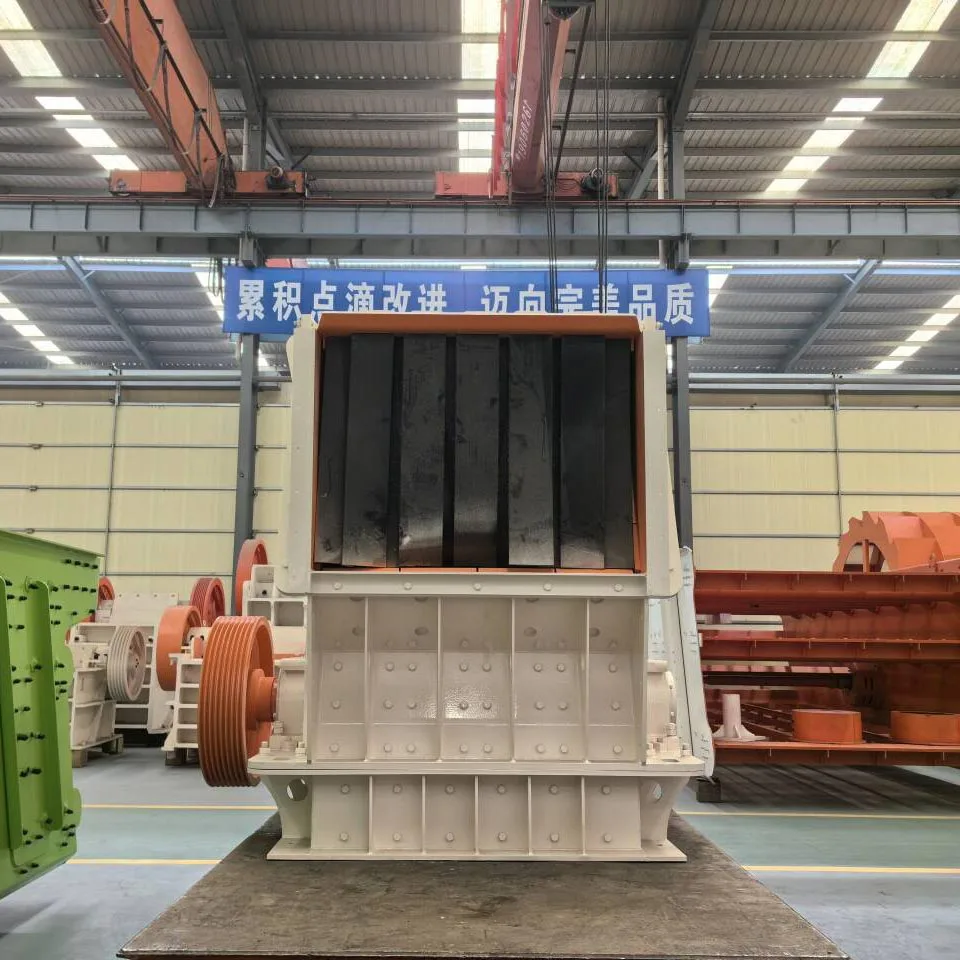

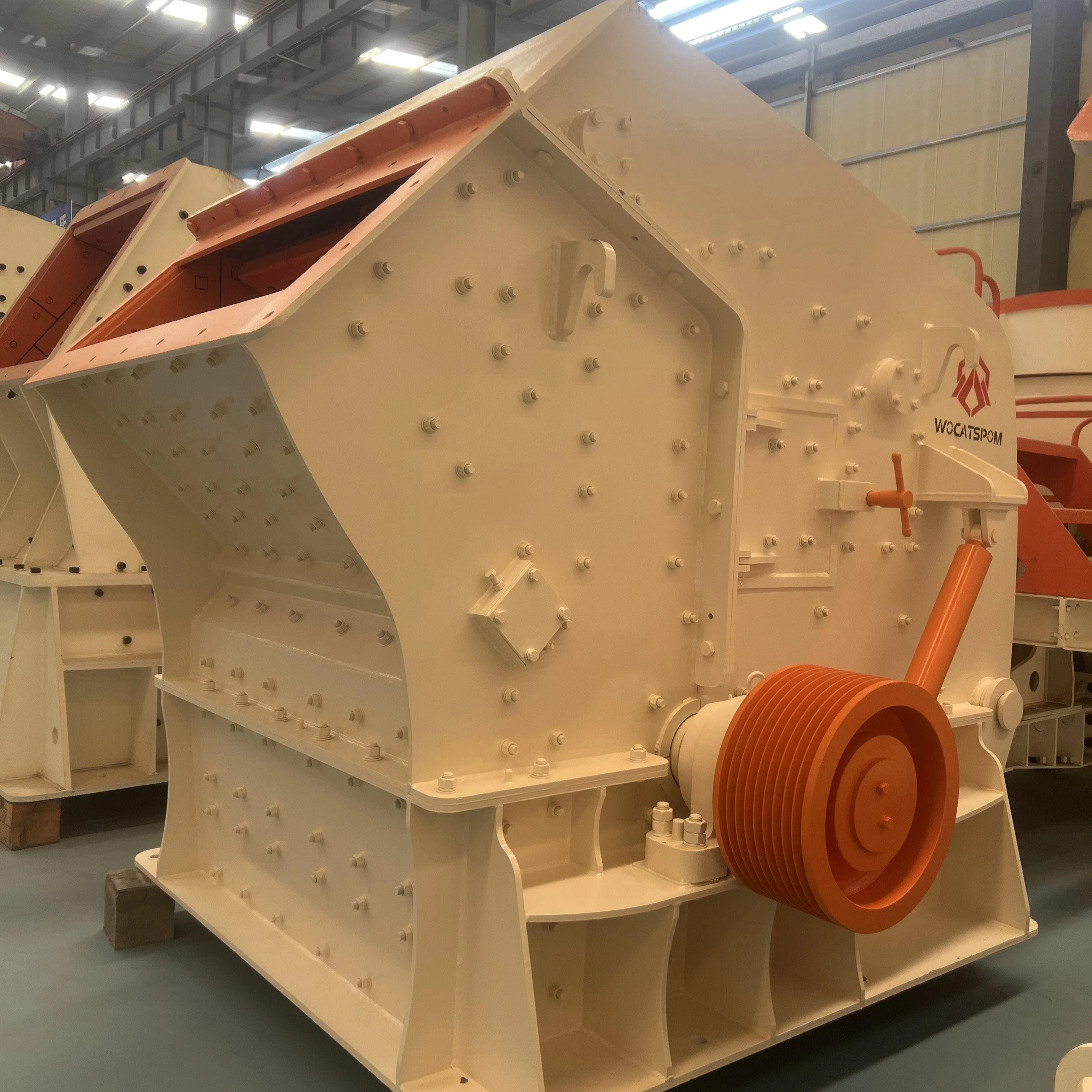

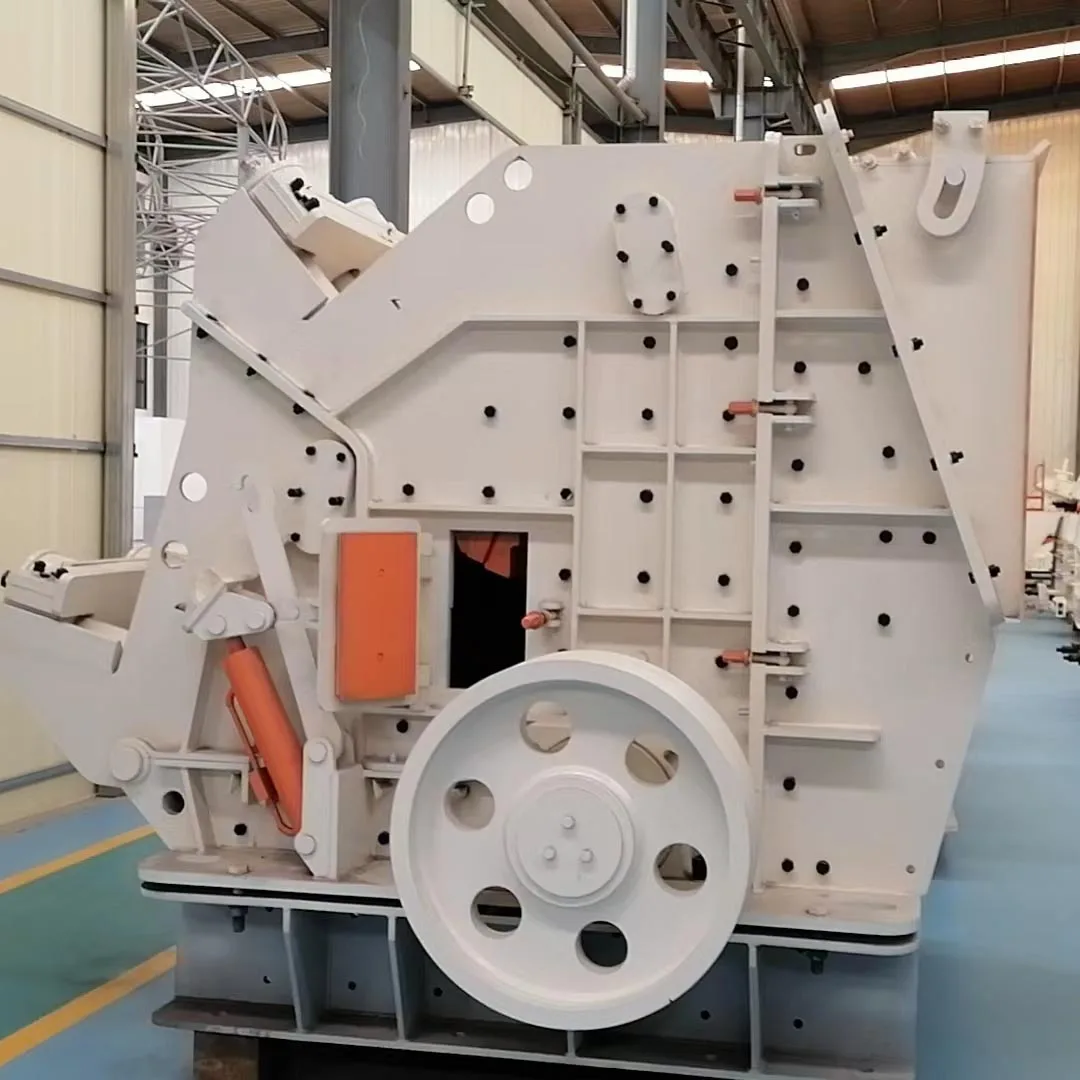

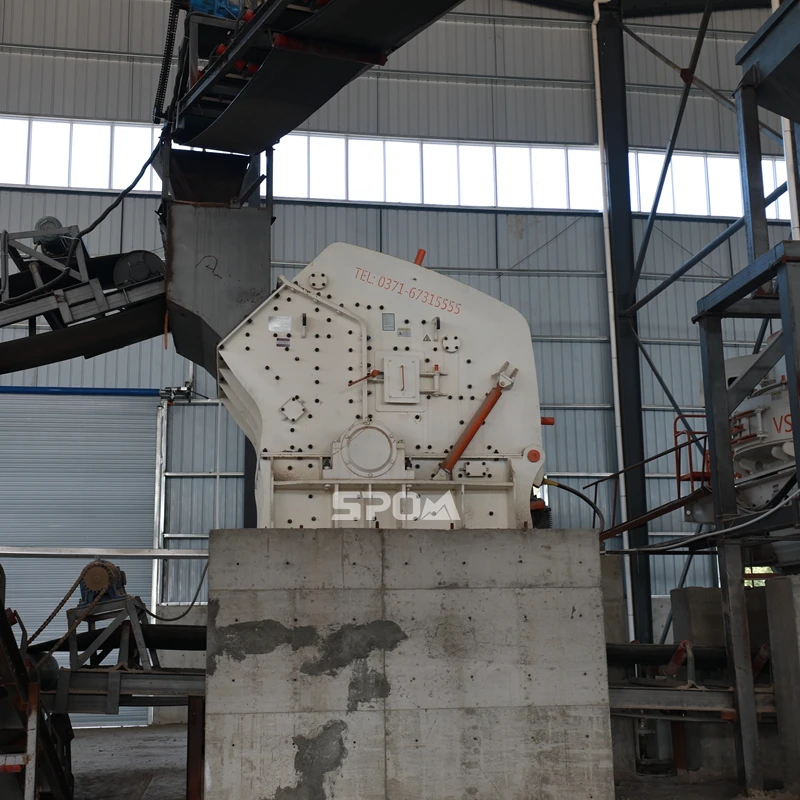

Mining and quarrying 150 tph 200 tph 250 tph granite chromite ore three cavity impact crusher pf 1315 pebble stone
- Category: >>>
- Supplier: Zhengzhou Shibo Machinery Manufacturing Co. Ltd.
Share on (1601151609528):
Product Overview
Description
Products Description

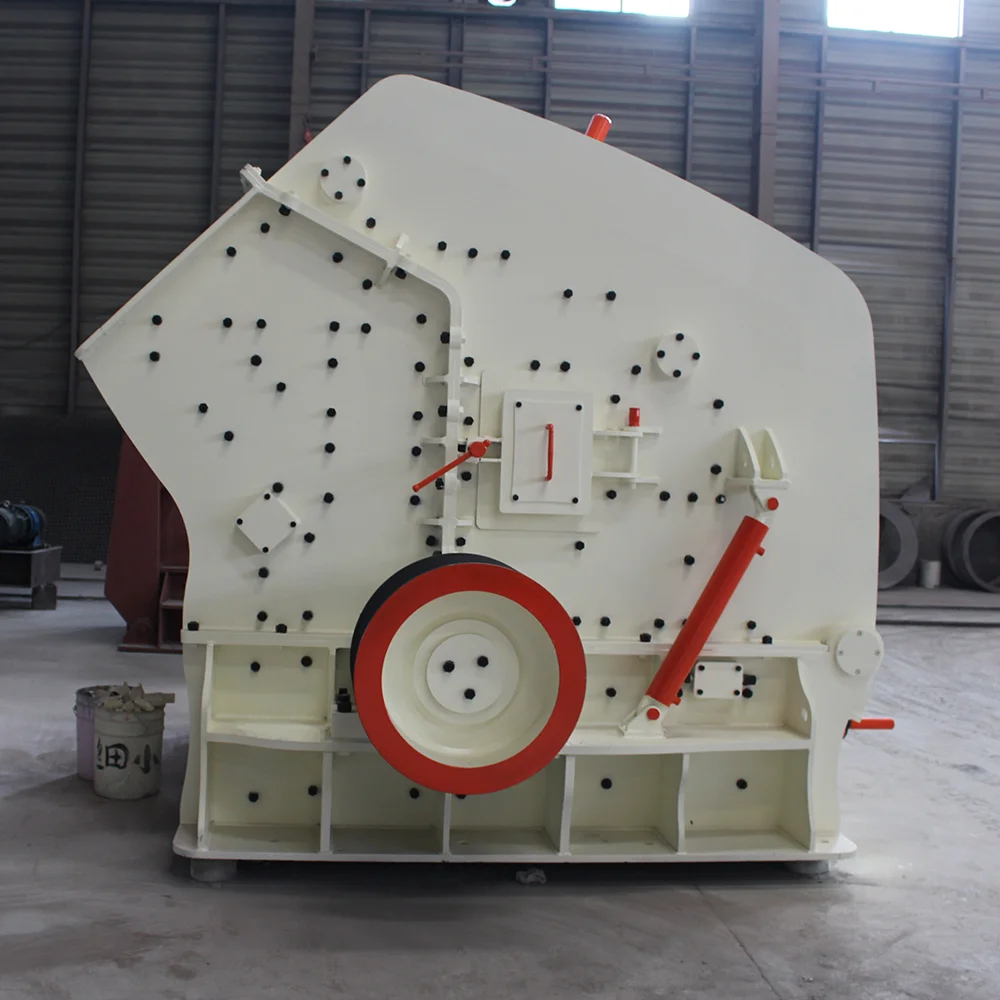

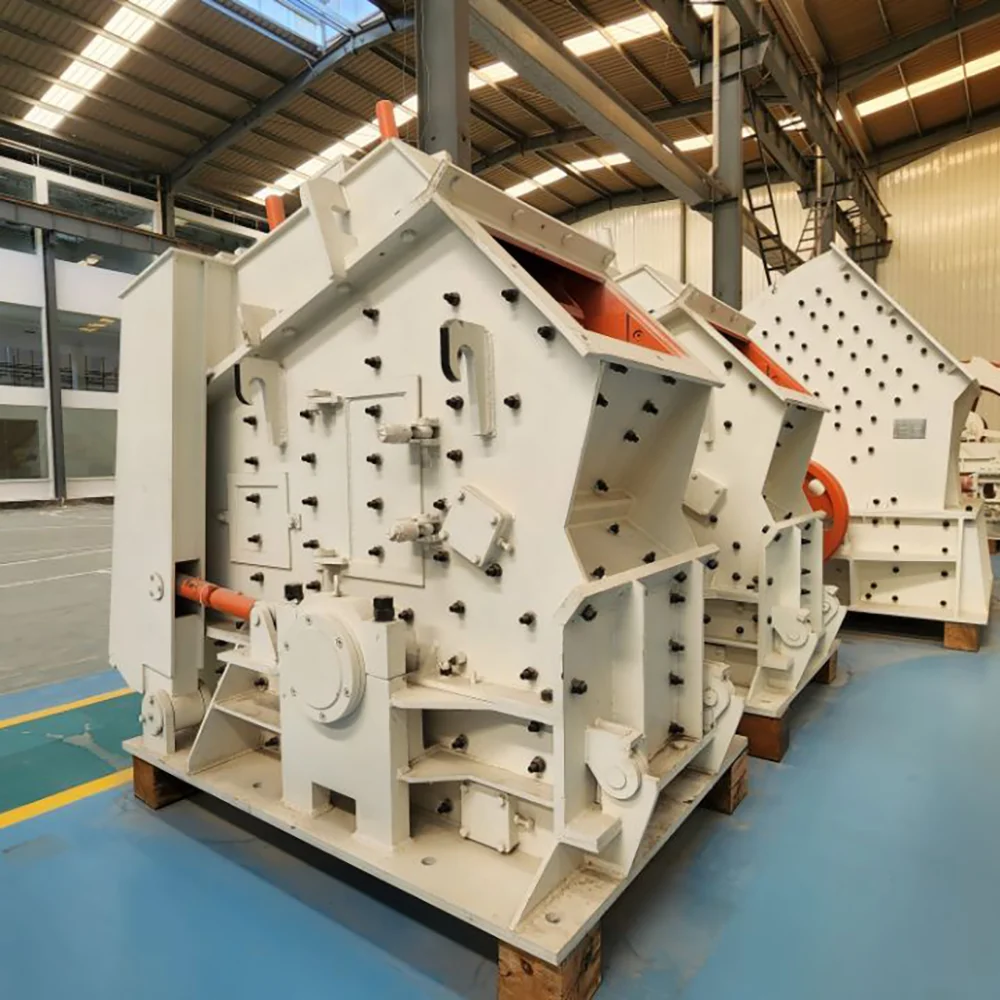

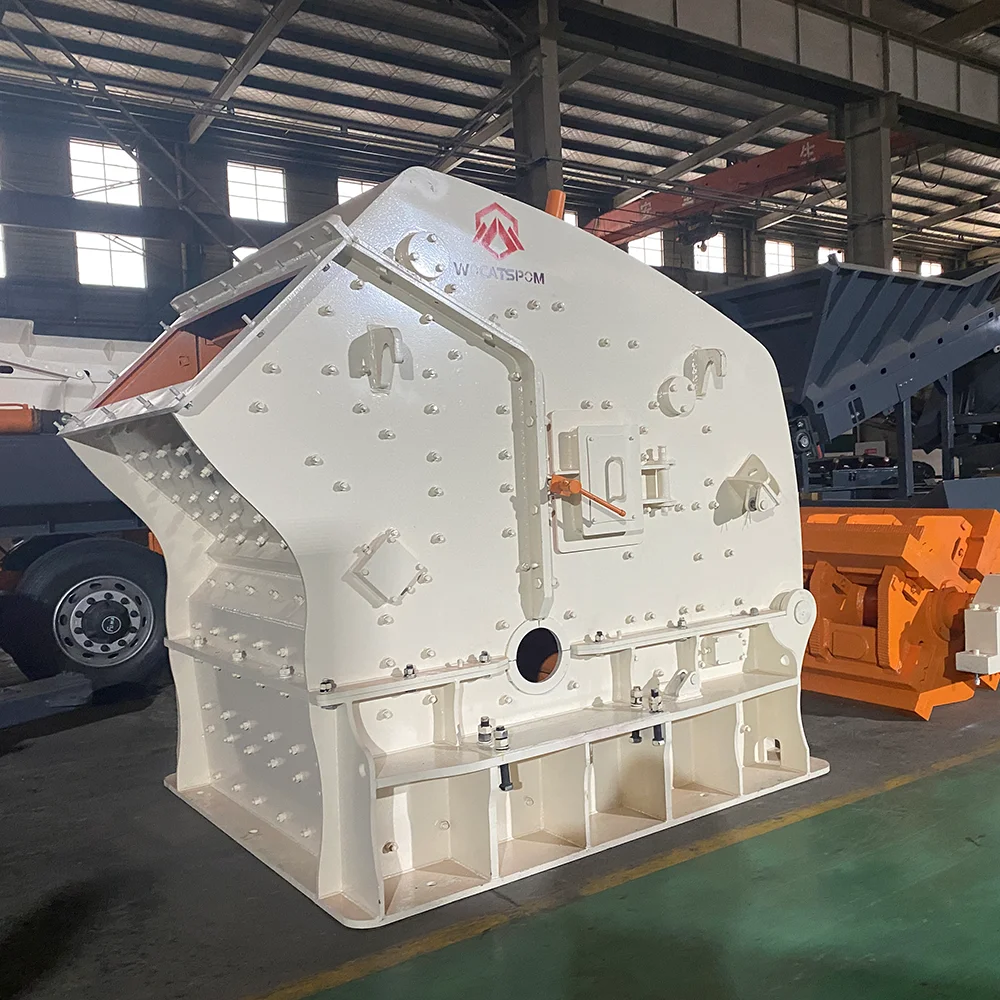

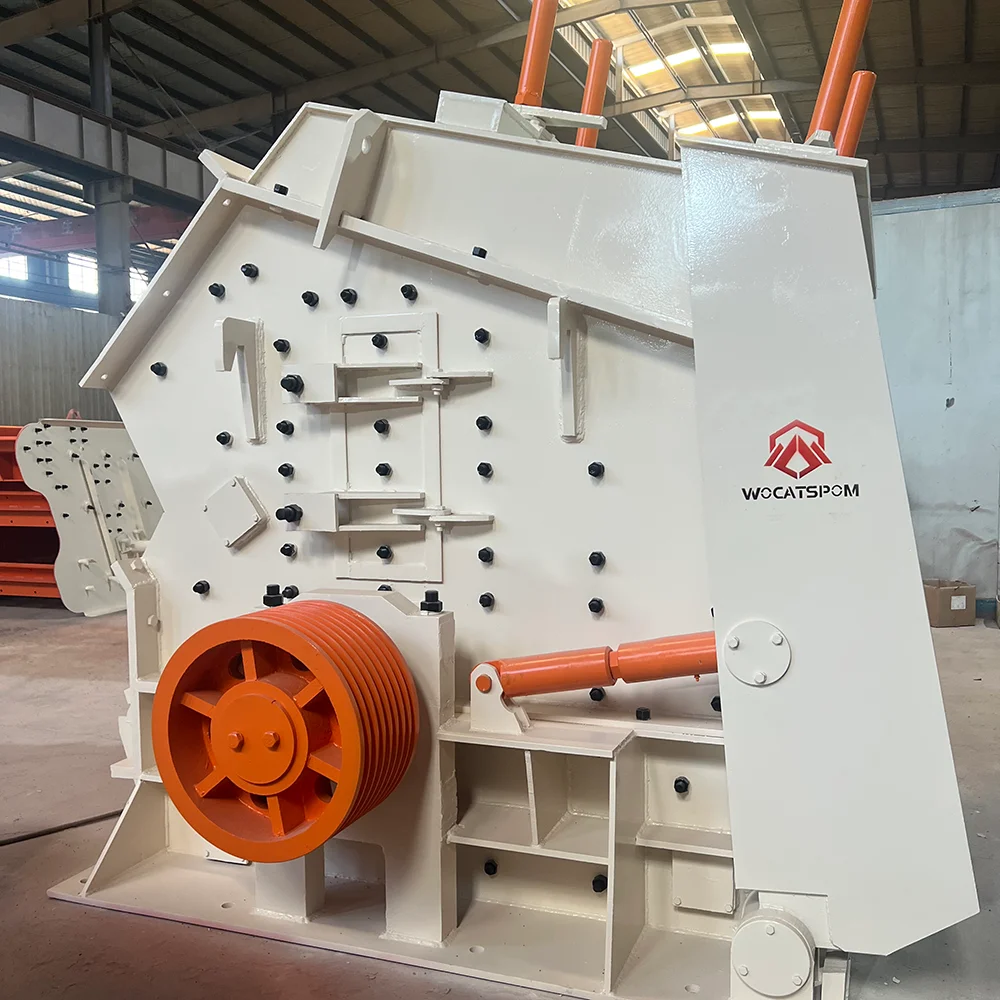

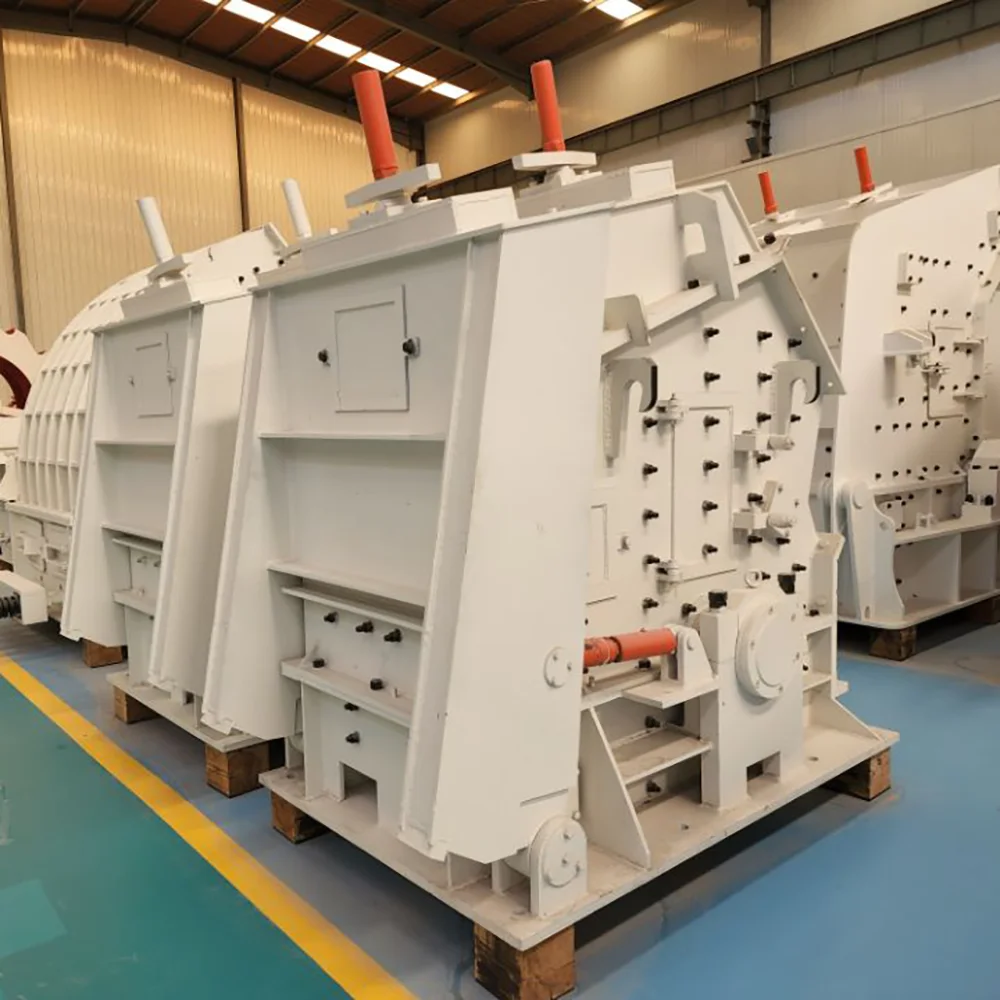

PF Impact Crusher is the impact crusher which is improved and manufactured by WocatSpom on the basis of absorbing domestic and foreign advanced technology and combining with the industry experience. With high-chromium and unique lining plate, it has many different models, which can satisfy the different capacity from 15 to 800 tons per hour. Blow bar has a service life of over 5000 hours if process soft rocks. The discharge size of PF Impact Crusher can be adjusted and the crushing specifications are diversified.
Impact crusher is very suitable for processing limestone, coal, gypsum and other soft rocks, with cubic product shape, it is an irreplaceable equipment for high-grade sand and gravel crushing. Impact crushers are widely used in various ore crushing, railway,highway, and construction industry artificial sand and gravel production.
Product Paramenters
Model | Maximum Feed size (mm) | Feed Opening size (mm) | Processing Capacity (t/h) | Motor Power (kw) | Overall Dimension (mm) |
PF-1007 | 250 | 400×730 | 15-60 | 45 | 2319×1654×2558 |
PF-1010 | 300 | 400×1080 | 50-90 | 55 | 2319×2001×2558 |
PF-1210 | 300 | 450×1060 | 80-150 | 90 | 2582×2053×2809 |
PFV-1214 | 300 | 450×1440 | 100-200 | 132 | 2582×2403×2809 |

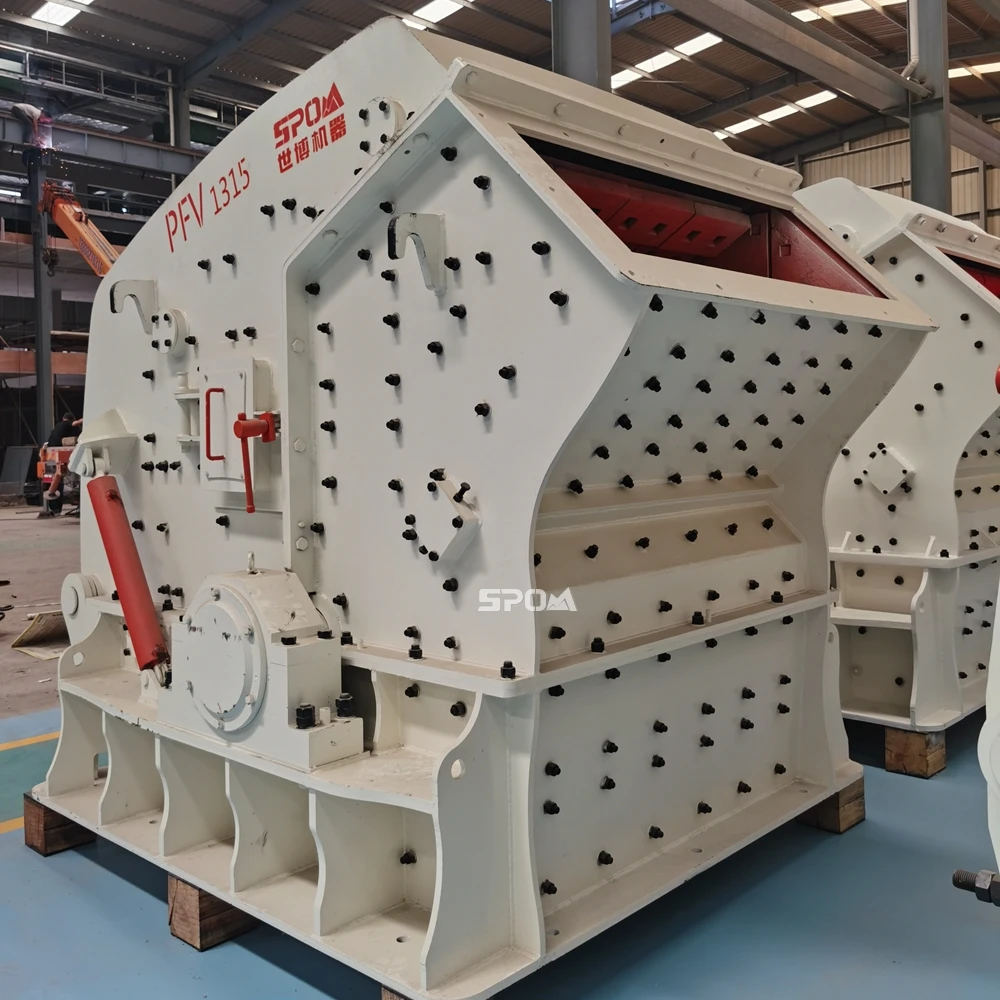

PFV-1315 | 350 | 550×1530 | 130-280 | 200 | 2930×2761×3053 |
PFV-1320 | 500 | 610×1900 | 180-400 | 280 | 3224×3175×2706 |
PFV-1520 | 700 | 830×2040 | 300-550 | (220-250)×2 | 3959×3564×3330 |
PFV-1820 | 800 | 1260×2040 | 600-800 | 630-710 | 4400×3866×4009 |
Product Advantage
High crushing ratio
The finished material processed by PF Impact Crusher has good shape, cubic particles, no flakiness and cracks, excellent particle size. This excellent product can be widely used in a variety of industrial fields to meet the demand for high quality crushing products.
Uniform crushing strength

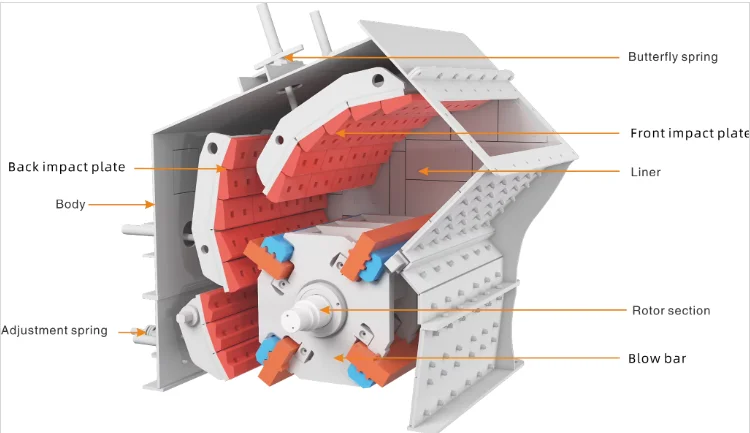

Easy maintenance. The key components of the impact crusher, such as blow bars and impact plates, are easy to replace, and maintenance time and costs are relatively low.
Low noise and dust

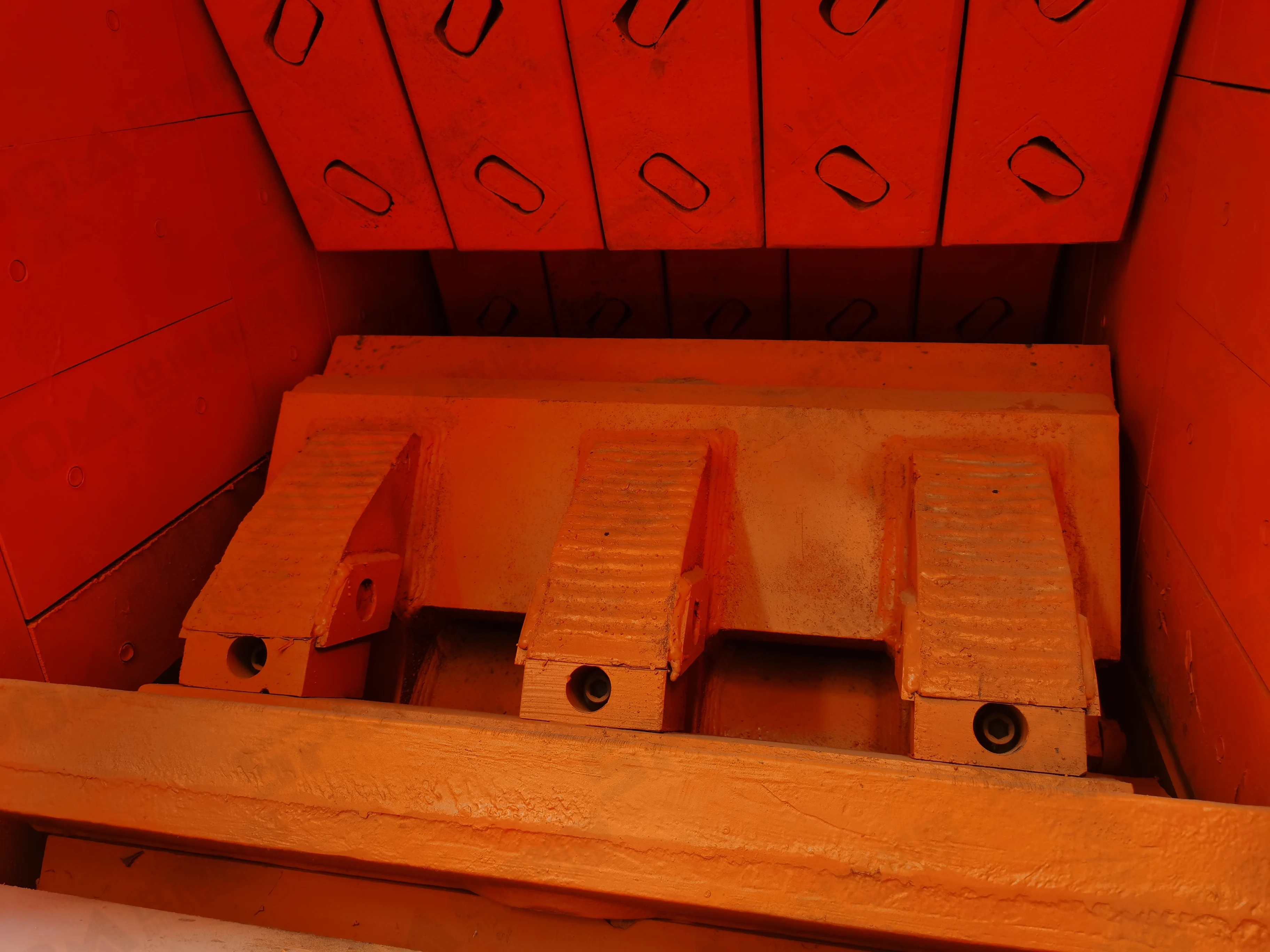

Wear and impact resistant. The key components made of high chrome blow bar and Mn-13 high mangense steel have the characteristics of impact and wear resistance, which makes the impact crusher with low failure rate and long service life.
Packing & Shipping
Our motor , v-belt , anchor bolt , control cabinet, spare parts etc. are packing into wooden box. Big model jaw crushers are nude packing into container directly. Some super big jaw crusher have to disassemble and load into several container or bulk carrier.
About us

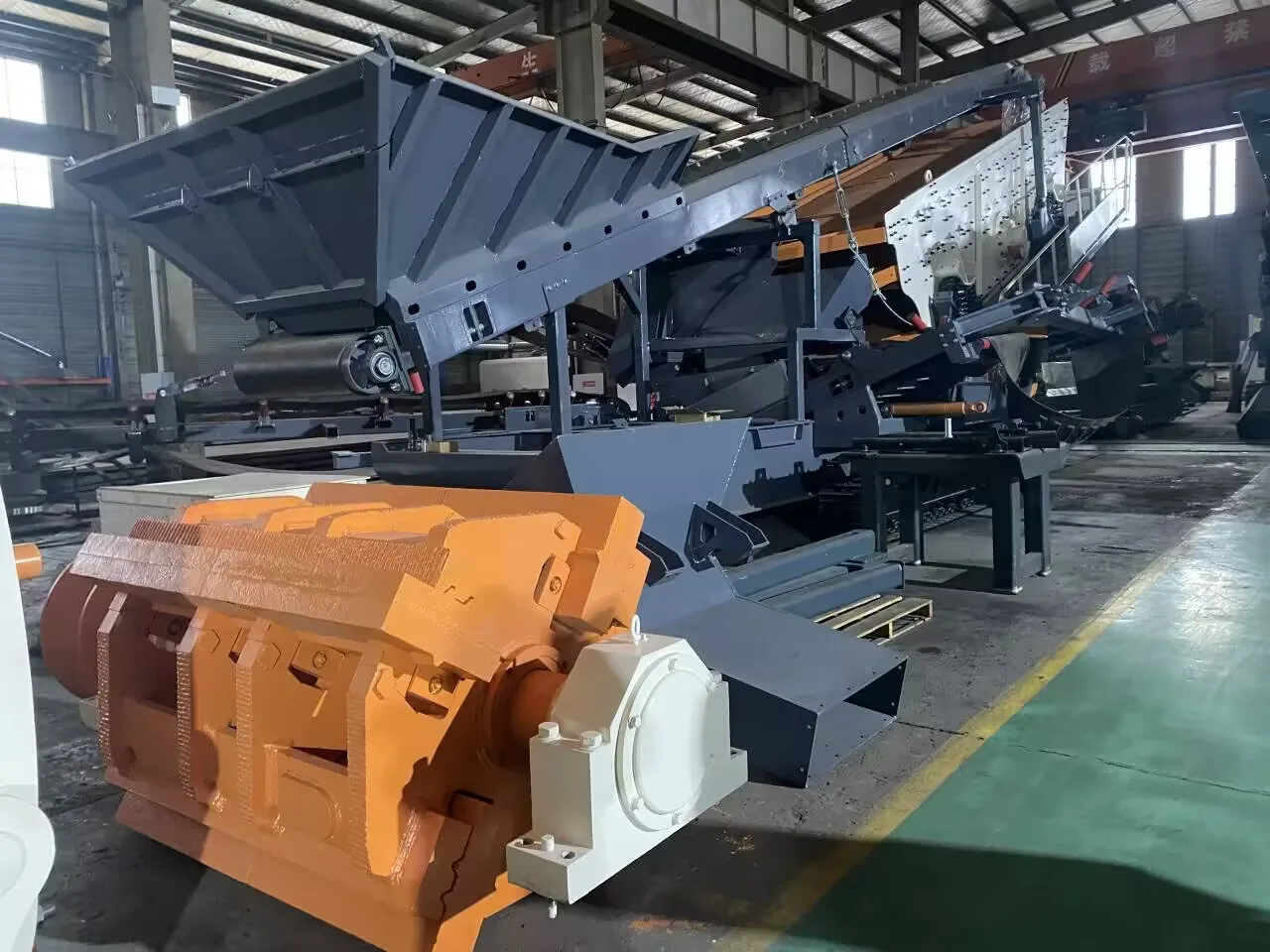

Wocat Spom Group Mineral Tech Co., Ltd., a professional manufacturer of stone crushers, grinding mills as well as solution provider, is located in Zhengzhou, Henan province with 25,000 square meters of standardized heavy industrial plants. The total number of employees is 125, of which 30 are professional technicians and engineers. We integrate research and development, design, manufacturing, sales and after-sales service, focusing on the development of automatic and mobile, energy-saving and environmental protection equipment. We are an expert in mobile crushers including crawler crusher, wheel-mounted crusher and skid-mounted crusher etc, helping to process construction waste, contributing to efficient infrastructure development and green mining.
Our products have been sold to 120 countries and regions in Southeast Asia, Eastern Europe, South America, the Middle East and Africa, and we will expand to more foreign markets in the future.
FAQ
1、If I need a complete stone production line, can you build it for us?
Yes, our company welcomes customers from all over the world to visit our factory at any time. We can also provide you with program customization, mine design, equipment manufacturing, after-sales service, etc.
2、Are you a stone crusher and grinding mill manufacturer?
Yes, our company has a strong design, R&D and manufacturing team, we can design the complete mineral production and processing line combined with your actual needs, and provide you with relevant professional advice when needed. We have set up many mining projects in China and overseas. We can set up the complete processing line according to your requirements.
3、Which countries have your products been exported to?
3、Which countries have your products been exported to?
We have been exporting business for 15 years, we have many customers in the world. For example, Middle East, South Asia. South Africa. Canada, and so on.
4、How to get free solution and quotation?
In order to save your time more efficiently, please send us your inquiry, leave your e-mail or other contact information, our sales manager will contact you in the shortest time!
5、Does the company have related crusher parts service?
We can provide all kinds of accessories about crusher equipment with advanced technology, reliable performance and durability to ensure that customers' needs can be met in a timely and effective manner.
