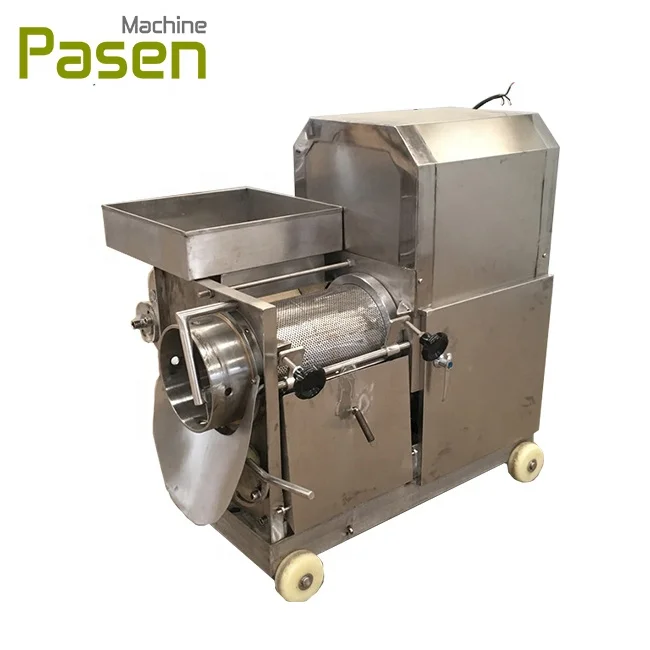

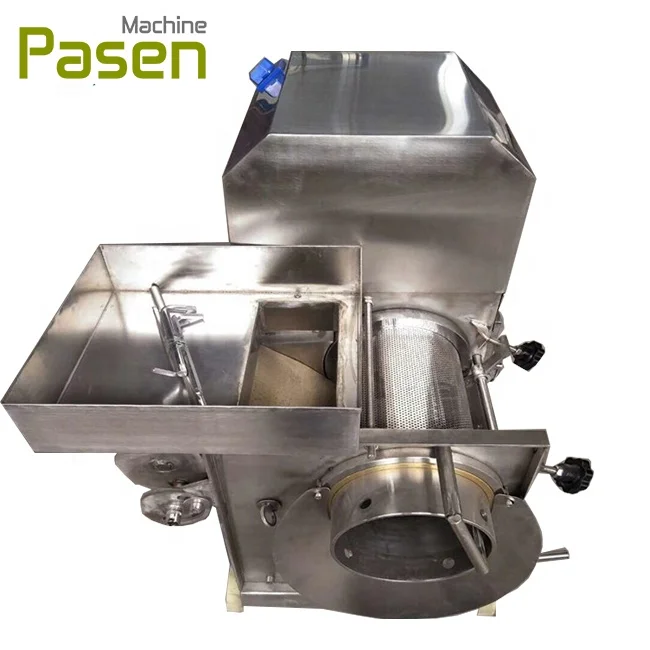

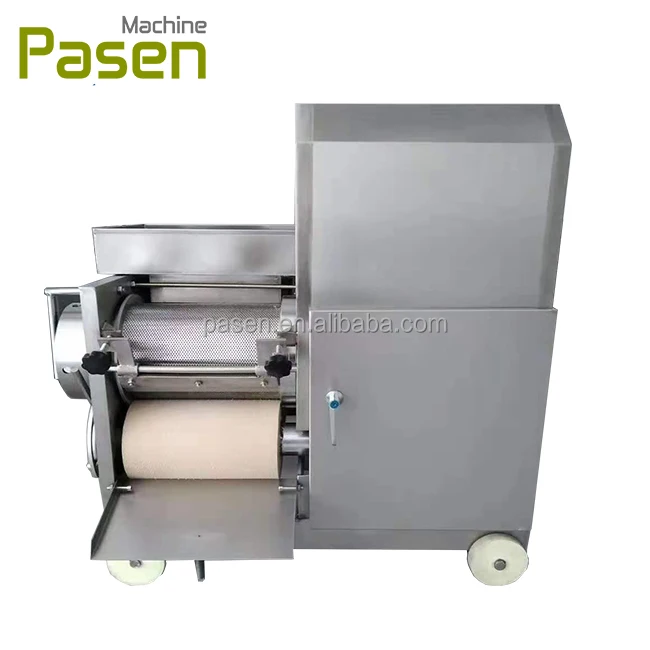

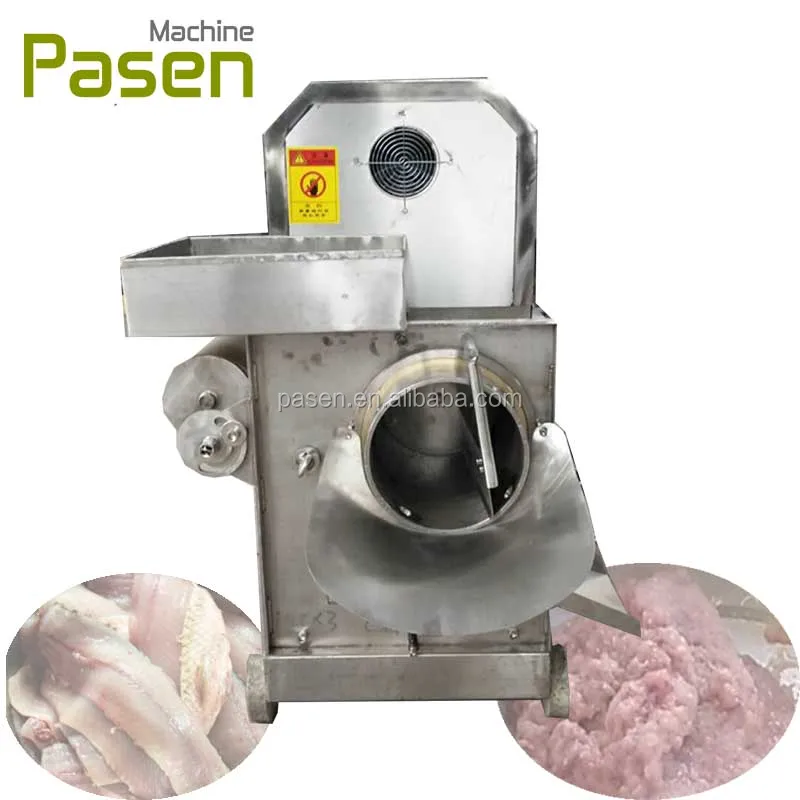

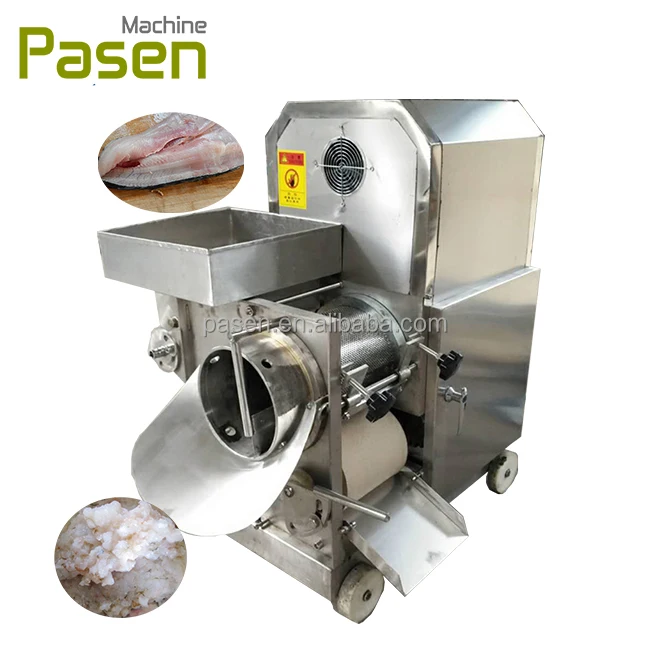

Fish Flesh Separator and Bone Separating Machine Minced Fillet Separating Machine Fish meat picking machinery
- Category: >>>
- Supplier: Zhengzhou Pasen Machinery Co. Ltd.Zhengzhou Ltd.
Share on (1601151657623):
Product Overview
Description
Product Description
This machine can raise the fish use rate and save manpower
Automatic fish boner separate is mainly used in fish meat collect and pick up. This machine can separate fish meat from fish bone,
fish skin, fish tendon in order to raise the fish use rate and save manpower. This machine is mainly made by stainless steel.. it
can debone small whole fish or half bigger fish or fish leftover.
Automatic fish boner separate is mainly used in fish meat collect and pick up. This machine can separate fish meat from fish bone,
fish skin, fish tendon in order to raise the fish use rate and save manpower. This machine is mainly made by stainless steel.. it
can debone small whole fish or half bigger fish or fish leftover.
Product Paramenters
model | PSFD-150 | PSFD-200 | PSFD-300 | PSFD-350 |
machine size | 800*550*800 mm | 900*700*1000 | 900*750*1150 | 1300*1000*1050 |
material | SS 304 | SS304 | SS 304 | SS 304 |
capacity | 180 kgs/H | 280 kgs/H | 500 kgs/H | 1.5 T/H |
motor | 3 kw | 3 kw | 3 kw | 7.5 KW |
belts thickness | 20 mm | 20 mm | 20 mm | 20 mm |
belts out length | 1300 mm | 1470 mm | 1470 mm | 2500 mm |
drum diameter | 162 mm | 219 mm | 219 mm | 300 mm |
drum length | 300 mm | 350 mm | 485 mm | 500 mm |
drum thickness | 8 mm | 8 mm | 8 mm | 12 mm |
netting diameter | 2.7 /3 /3.2 mm | 2.7 /3 /3.2 mm | 2.7 /3 /3.2 mm | 2.7 /3 /3.2 mm |
machine weight | 190 kgs | 240 kgs | 320 kgs | 750 kgs |
packing size | 900*650*950 | 1050*800*1150 | 1050*850*1160 | 1050*850*1160 |
