Single Stage Centrifugal Water Pump High Pressure Ihf Fluoro Resistant Stainless Steel Electric Water Pump
- Category: >>>
- Supplier: Ocean Pump Co. Ltd.
Share on (1601152741982):
Product Overview
Description
Products Description
1. Main Datas:
Capacity: 1.75~130m³/h
Head : 4.25~87m
Head : 4.25~87m
2.Structure and Characteristic:
1.The pump has the advantages such as anticorrosion,wearable,anti-high tempeture,no aging,high mechanical strength and toxin decomposer etc.
2.The pump has an adcanced and reasonable structure,corrosion-resistant,tight and reliable sealed performance, work stability,low noise and long life.
3.The pump body is metal shell with FEP(F46) ling.
4.Impeller and pump cover are made by integrade sintering and pressure moulding of metal inset and fluorin plastic housing .

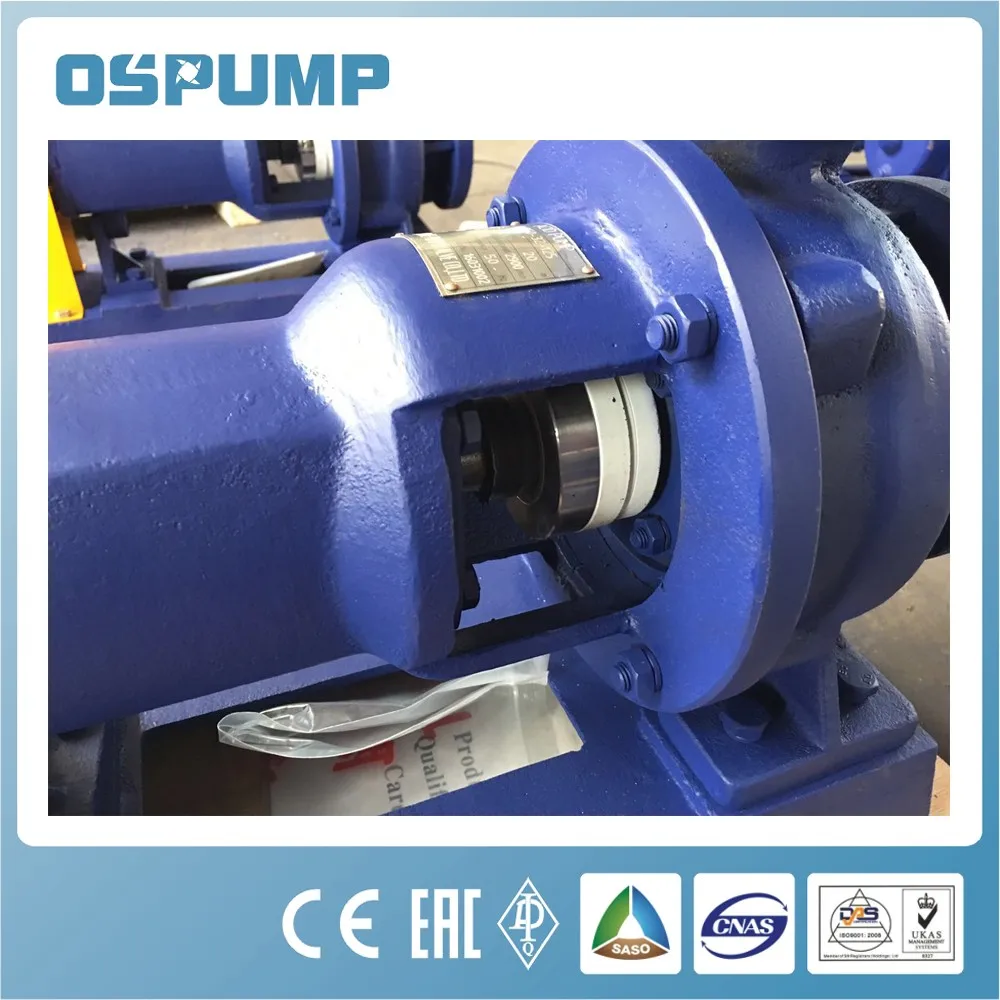

5.Shaft seal is external waviness mechanical seal. Stationary seal ring is made of 99.9% Alumina ceramic or Silicone carbin.
2.The pump has an adcanced and reasonable structure,corrosion-resistant,tight and reliable sealed performance, work stability,low noise and long life.
3.The pump body is metal shell with FEP(F46) ling.
4.Impeller and pump cover are made by integrade sintering and pressure moulding of metal inset and fluorin plastic housing .
5.Shaft seal is external waviness mechanical seal. Stationary seal ring is made of 99.9% Alumina ceramic or Silicone carbin.
3.Application:
The medium temperature is -85°C~-200°C.The pump are widely used to transport the liquid ,wastewater and add acid etc.In chemical,pharmaceutical,petroleum,metallurgical,power,electroplating,pickling,pesticides,paper and other industries.The pump can be used in transporting strong corrosive medium of any concentration,such as sulfuric acid,hydrochloric acid ,nitric acid, acetic acid,aqua regia,strong alkali,strong oxidants and organic solvents,etc.
Model | Rotary Speed | Capacity | Head | Motor Power | NPSH |
(r/min) | (m³/h) | (m) | (KW) | (m) | |
IHF65-50-125 | 2900 | 25 | 20 | 3 | 3.5 |
1450 | 12.5 | 5 | 0.75 | 3.5 | |
IHF65-50-125A | 2900 | 22.3 | 16 | 2.2 | 3.5 |
IHF65-50-160 | 2900 | 25 | 32 | 5.5 | 3.5 |
1450 | 12.5 | 8 | 1.1 | 3.5 | |
IHF65-50-160A | 2900 | 23.3 | 28 | 4 | 3.5 |
IHF65-40-200 | 2900 | 25 | 50 | 11 | 3.5 |
1450 | 12.5 | 12.5 | 1.5 | 3.5 | |
IHF65-40-200A | 2900 | 23.3 | 44 | 7.5 | 3.5 |
IHF65-40-250 | 2900 | 25 | 80 | 18.5 | 3.5 |
1450 | 12.5 | 20 | 3 | 3.5 | |
IHF65-40-250A | 2900 | 23.3 | 70 | 15 | 3.5 |
IHF80-65-125 | 2900 | 50 | 20 | 5.5 | 4.0 |
1450 | 25 | 5 | 1.1 | 4.0 | |
IHF80-65-125A | 2900 | 45 | 16 | 4 | 4.0 |
IHF80-65-160 | 2900 | 50 | 32 | 11 | 4.0 |
1450 | 25 | 8 | 1.5 | 4.0 | |
IHF80-65-160A | 2900 | 45 | 28 | 7.5 | 4.0 |
IHF80-50-200 | 2900 | 50 | 50 | 15 | 4.0 |
1450 | 25 | 12.5 | 3 | 4.0 | |
IHF80-50-200A | 2900 | 45 | 44 | 11 | 4.0 |
IH80-50-250 | 2900 | 50 | 80 | 30 | 4.0 |
1450 | 25 | 20 | 4 | 4.0 | |
IHF80-50-250A | 2900 | 45 | 70 | 22 | 4.0 |
IHF100-80-125 | 2900 | 100 | 20 | 11 | 5.0 |
1450 | 50 | 5 | 1.5 | 4.5 | |
IHF100-80-125A | 2900 | 89 | 16 | 7.5 | 5.0 |
IHF100-80-160 | 2900 | 100 | 32 | 15 | 5.0 |
1450 | 50 | 8 | 2.2 | 4.5 | |
IHF100-80-160A | 2900 | 93.5 | 28 | 11 | 5.0 |
IHF100-65-200 | 2900 | 100 | 50 | 30 | 5.0 |
1450 | 50 | 12.5 | 4 | 4.5 | |
IHF100-65-200A | 2900 | 93.5 | 44 | 22 | 5.0 |
IHF100-65-250 | 2900 | 100 | 80 | 45 | 4.0 |
1450 | 50 | 20 | 5.5 | 4.5 | |
IHF100-65-250A | 2900 | 93.5 | 70 | 37 | 4.5 |
