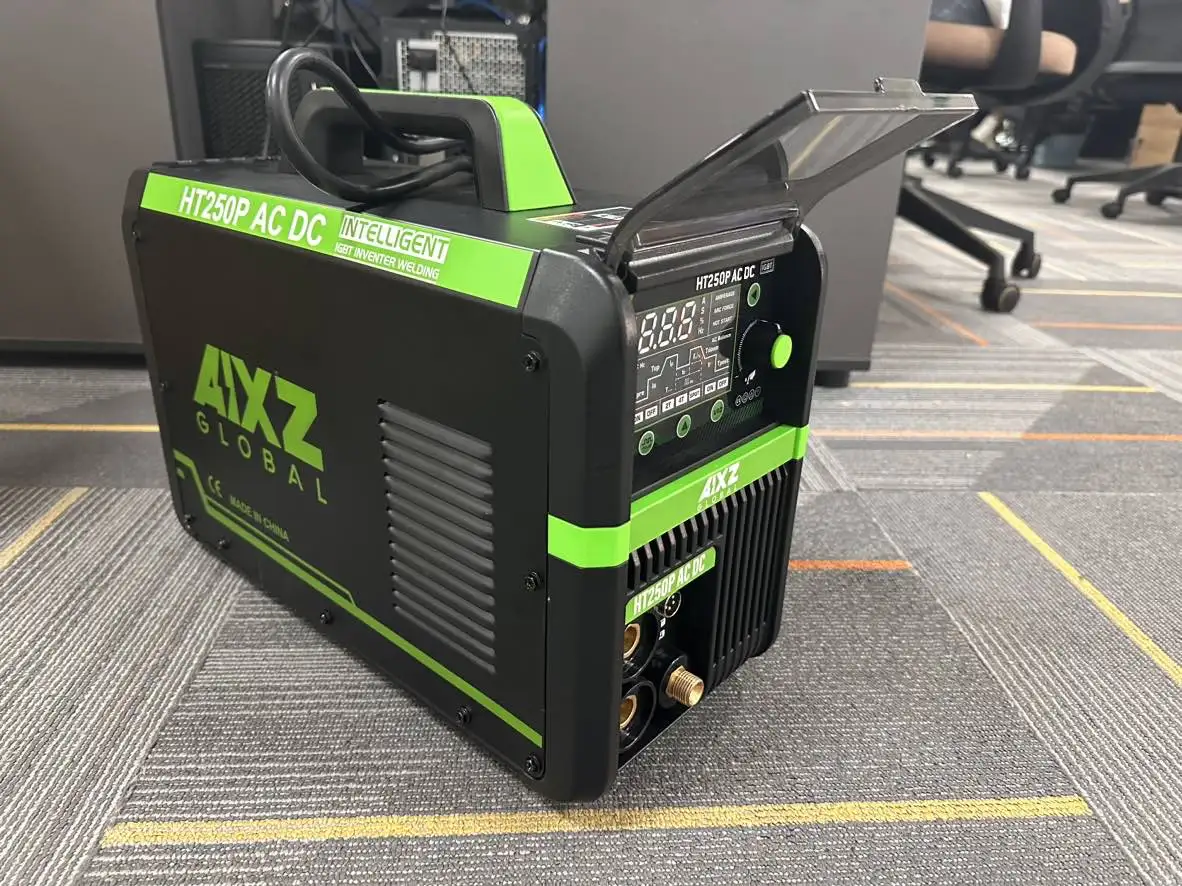

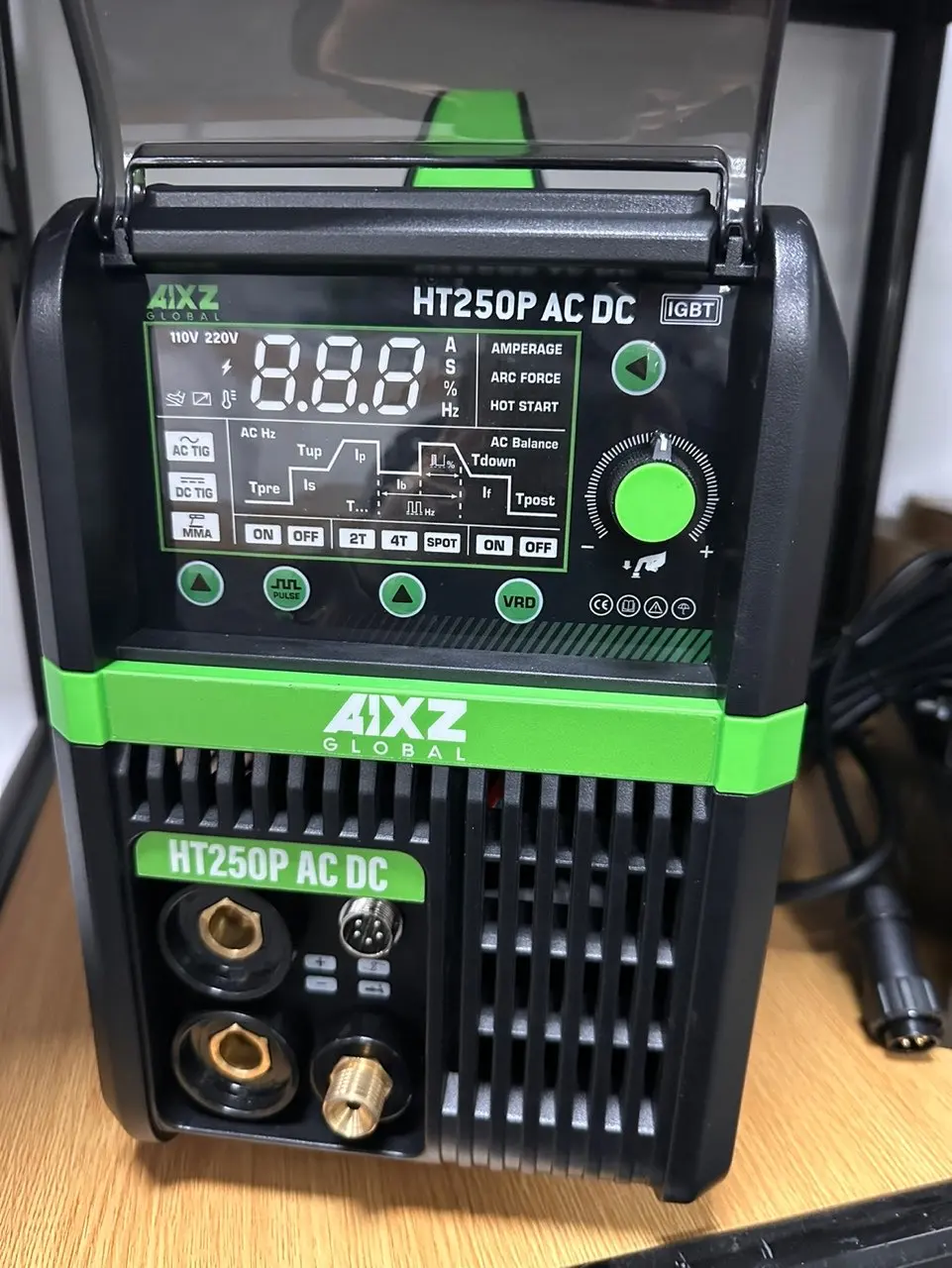

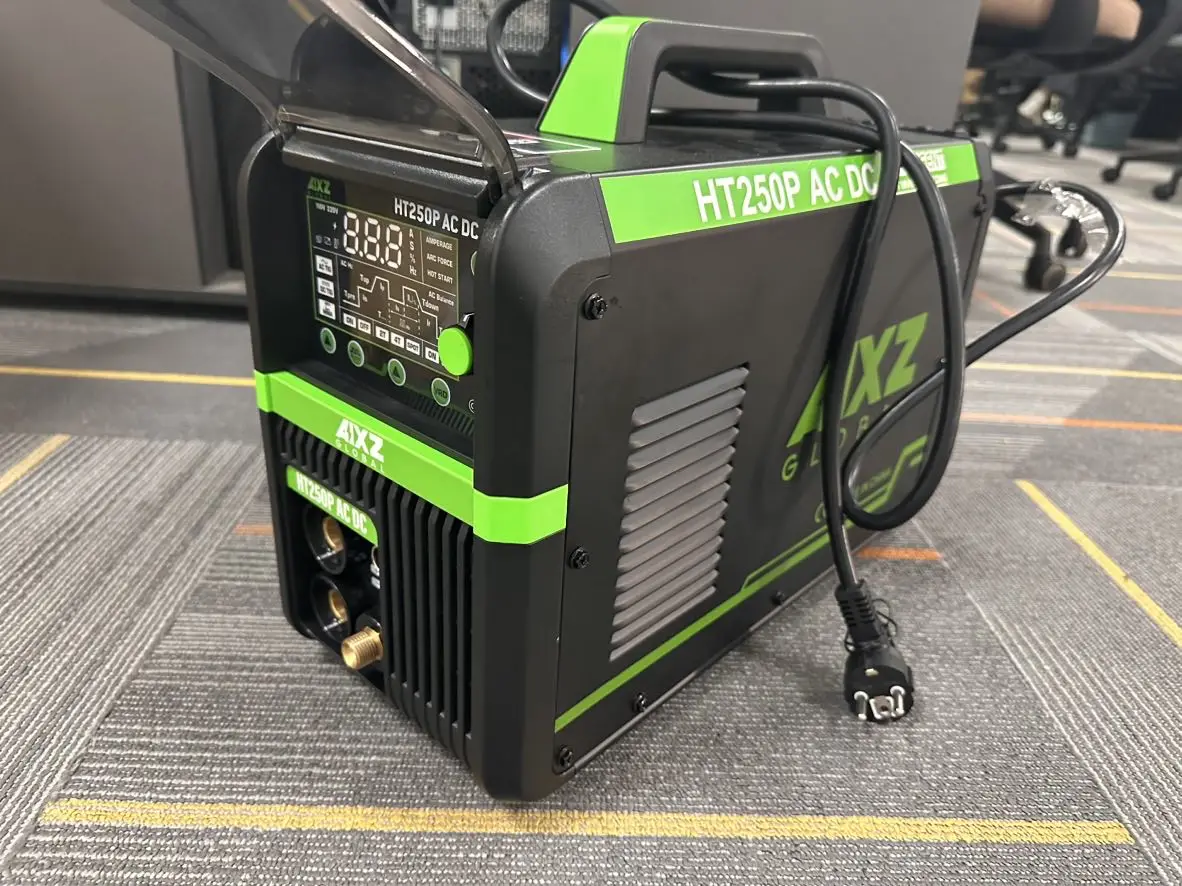

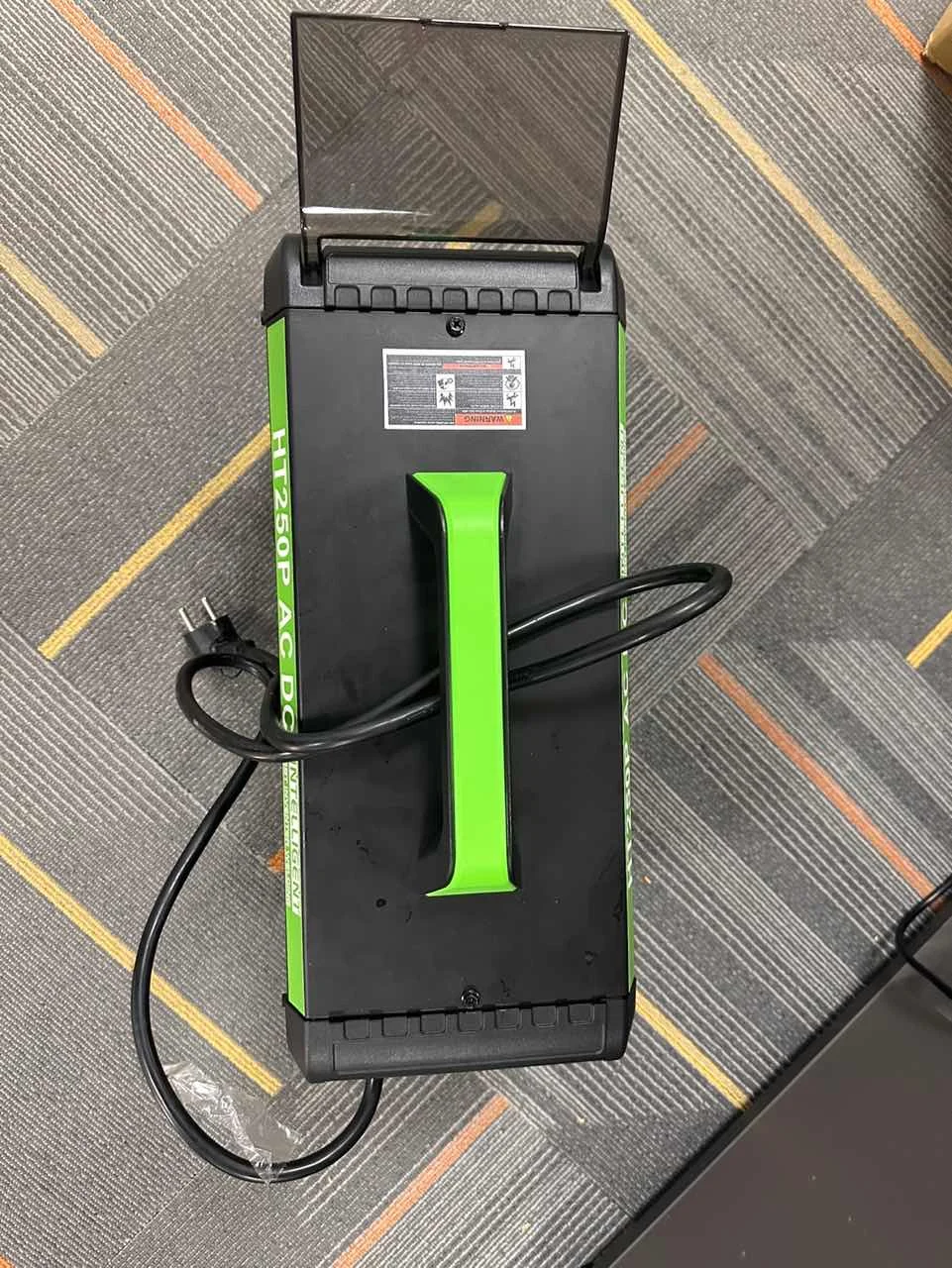

AIXZ AIT250P 03 16mm Wire Size Acdc Tig Multi Process Cold Welding Machine With Pot Cold Welding
- Category: >>>
- Supplier: Shenzhen Unitweld Welding And Motor Co. Ltd.Shenzhen Ltd.
Share on (1601152823270):
Product Overview
Description
Product Overview
* * Synergic Control MIG Function allows the automatic change of the voltage & wire feeding speed by adjusting the amperage or choosing different thicknesses. It will match the welding chart set in the data. making it extremely easy for your welding works
* MMA/ARC Stick : Hot start function make the arc ignition in MMA welding easier and avoid adhesion. The arc force up to 200A current obviously improve the performance of the machine in long-cable welding. Ability to use up to 165 feet (50 meters) leads without any power loss at the weld
* Lift Tig: For welding with higher requirements, the lift-tig mode is recommended.to use this process, you will need to purchase the appropriate torch, regulator, hose, tungsten electrodes and gas separately(available in our shop)
* MMA/ARC Stick : Hot start function make the arc ignition in MMA welding easier and avoid adhesion. The arc force up to 200A current obviously improve the performance of the machine in long-cable welding. Ability to use up to 165 feet (50 meters) leads without any power loss at the weld
* Lift Tig: For welding with higher requirements, the lift-tig mode is recommended.to use this process, you will need to purchase the appropriate torch, regulator, hose, tungsten electrodes and gas separately(available in our shop)
FEATURES AT A GLANCE
PRODUCT SPECIFICATIONS

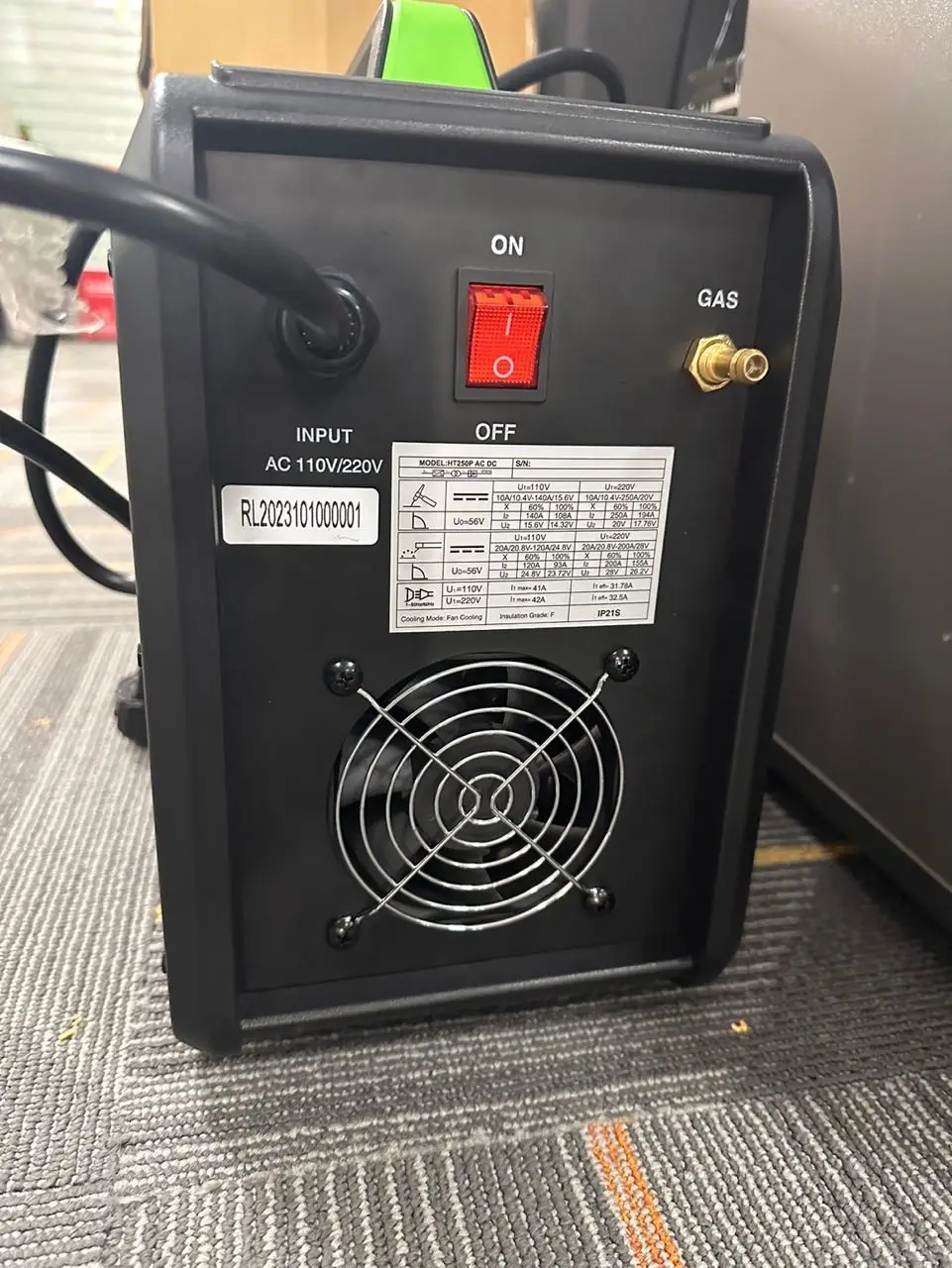

Rated input voltage (V) | 220V |
Frequency (HZ) | 50/60 HZ |
Rated input power (KW) | MIG: 5.7; TIG: 4.37; MMA: 6.3 |
Rated input current (A) | MIG: 36.0; TIG: 28.1; MMA: 40.5 |
Rated input apparent power (KVA) | MIG: 7.8; TIG: 6.21; MMA: 8.9 |
Welding current adjust range (A) | 10 ~ 200 |
Welding voltage adjust range (V) | 10 ~ 26 |
No load voltage (V) | 50V (adjustable) |
Function | MIG gasless welder、MIG MIX gas welder、MIG CO2 gas welder、TIG welder（Lift）、ARC welder. |

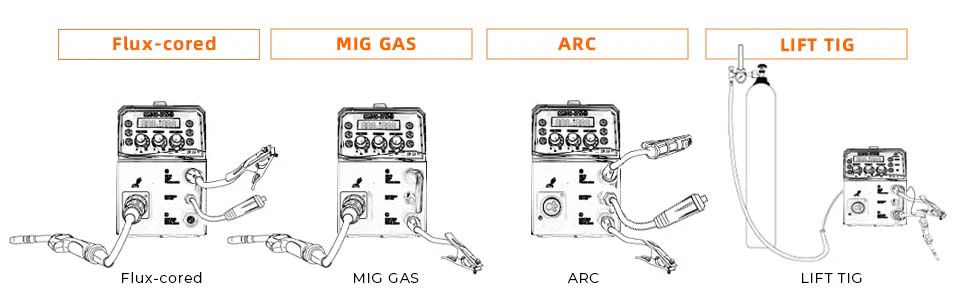

About mig welding
* MIG gasless: connects the ground clamp to the positive terminal.
* Flux wire .035"; Aluminum Wire .035"/.045"(Gasless MIG)
* Selection Wire Diameters (Solid Wire .023"/.030"/.035")
Note: The MIG function does not display the current, only the wire feed speed(0-14m/min)
About Lift TIG welding
* Connect the WP-17V tig torch to the negative terminal
* Application of Tungsten electrodes diameter:1/8”,3/32",3/16",1/16",5/32"
Recommend using tungsten needles within a diameter of 3.2mm for arc start.
Note: WP-17V torch not included,
About MMA welding
* Connect the electrode holder to the positive terminal
Ideal performance for most 6010, 6011, 6013 and 7018 rods. electrodes up to 5/32"
Why Choose Us
Shenzhen Unitweld Welding and Motor Co., Ltd has registered a U.S. company named HITBOX ELECTRIC LLC. This is a strategic move by the company to expand its business operations in the United States and provide better customer service to its clients in theregion.
HITBOX ELECTRIC LLC specializes in the distribution and sales of welding equipment and accessories in the United States. We offer a wide range of products, including MIG welding machines, TIG welding machines, plasma cutters, welding helmets, and welding accessories. The company is committed to providing high-quality products and excellent customer service to its clients.
HITBOX ELECTRIC LLC specializes in the distribution and sales of welding equipment and accessories in the United States. We offer a wide range of products, including MIG welding machines, TIG welding machines, plasma cutters, welding helmets, and welding accessories. The company is committed to providing high-quality products and excellent customer service to its clients.
FAQ
1, Are you a factory or trading company?
3,how about quality control in your factory?
pay attentions to quality control from the beginning to the end, We have strict quality system and dedicated QC personnelto check quality
5,can i get some samples?
Yes, we are glad to offer you samples. after large order confirmed , the samples fee will be regressed.
6, Is OEM and ODM service available?
Yes, product could print your logo, or customized by your design.
7,Payment?
30% advance payment 70% payment to delivery
we are a manufacture
2, where is your factory located?
302, Building 13, Hejing Industrial Park, No.87, Hexiu West Road, Zhancheng Community, Fuhai Subdist rict, Bao'an District,
Shenzhen City, Guangdong Province, China
302, Building 13, Hejing Industrial Park, No.87, Hexiu West Road, Zhancheng Community, Fuhai Subdist rict, Bao'an District,
Shenzhen City, Guangdong Province, China
3,how about quality control in your factory?
pay attentions to quality control from the beginning to the end, We have strict quality system and dedicated QC personnelto check quality
4, how about guarantee?
It is within 1 year after goods is discharged in the destionation.
It is within 1 year after goods is discharged in the destionation.
5,can i get some samples?
Yes, we are glad to offer you samples. after large order confirmed , the samples fee will be regressed.
6, Is OEM and ODM service available?
Yes, product could print your logo, or customized by your design.
7,Payment?
30% advance payment 70% payment to delivery
