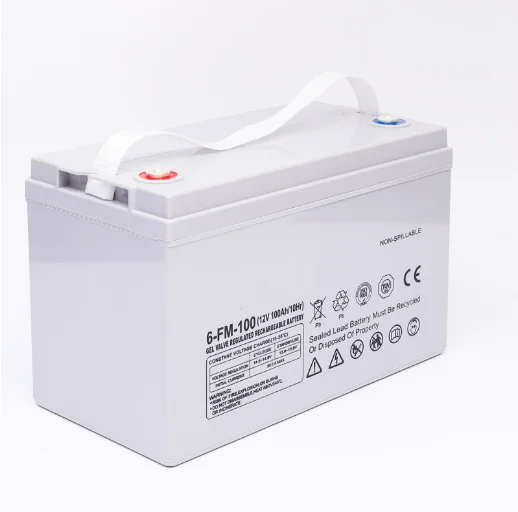

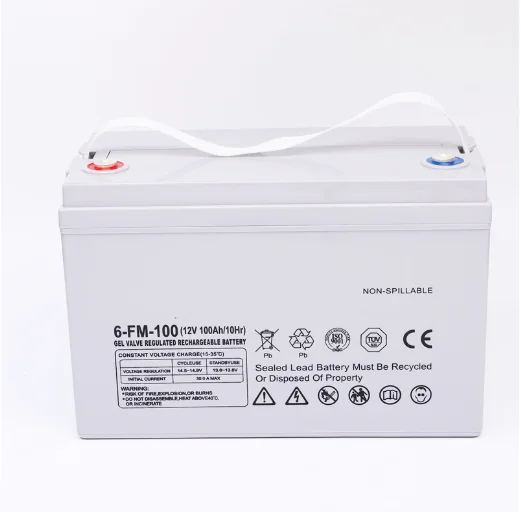

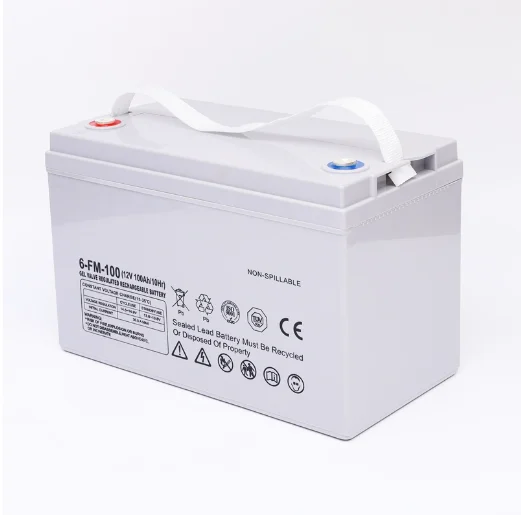

Hot sale wholesale Solar Battery for Solar Power System
- Category: >>>
- Supplier: Shijiazhuang Randa Technology Co. Ltd.Shijiazhuang Ltd.
Share on (1601152828857):
Product Overview
Description
Product Description

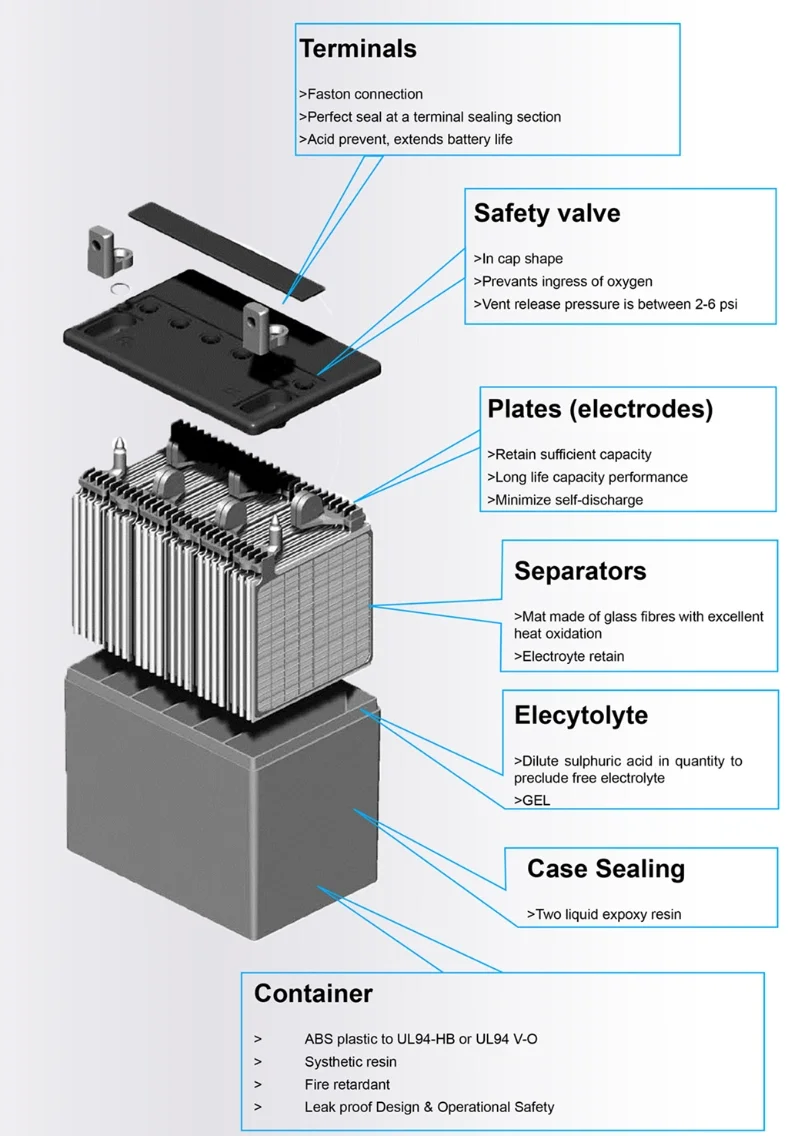

Generally Features:
1. Long battery life, high capacity, Superior recovery after discharge.
2. ABS material: increase the strength of the battery container. (Flame-retardant ABS is optional)
3. High purity raw material: ensure low self-discharge rate.

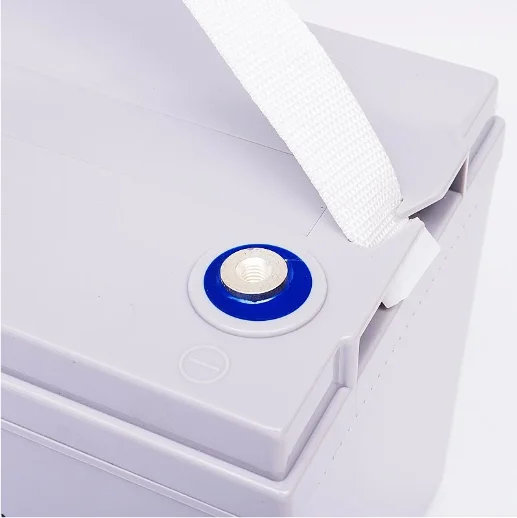

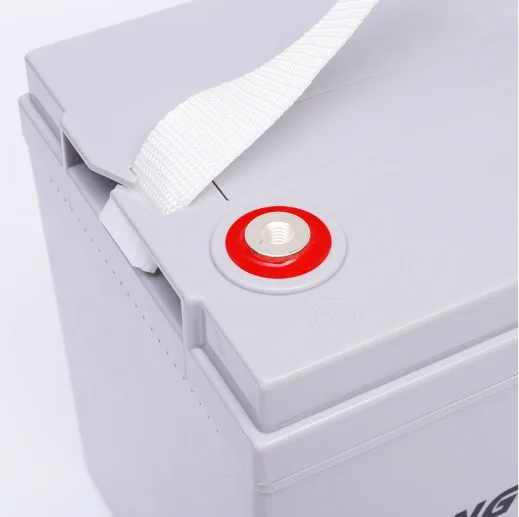

4. Silver-coated copper terminals, brass insert terminals, and lead terminals improve the electric conductivity.
5. Pb CaSn alloy for plate grids: less gassing, less self-discharging high quality.
6. Maintenance-Free Operation
7. Low Self-Discharge
8. Safety valve installation for explosion-proof.
2. ABS material: increase the strength of the battery container. (Flame-retardant ABS is optional)
3. High purity raw material: ensure low self-discharge rate.
4. Silver-coated copper terminals, brass insert terminals, and lead terminals improve the electric conductivity.
5. Pb CaSn alloy for plate grids: less gassing, less self-discharging high quality.
6. Maintenance-Free Operation
7. Low Self-Discharge
8. Safety valve installation for explosion-proof.
Specification
1. Functional Parameter | 5. Environment Temperature | ||||
Nominal Voltage | 12V | Discharge Temperature | -20~60ºC | ||
Nominal Capacity (20 hour rate) | 100Ah | Charge Temperature | 0~50ºC | ||
Storage Temperature | -20~60ºC | ||||
2. Rated Capacity at 25ºC (77° F) | 6. Inner Resistance & Max . Discharge Current | ||||
20 hour rate (0.1C, 10.8V) | 111Ah | Fully Charged battery at 25ºC | <5mΩ | ||
5 hour rate (0.25C, 10.8V) | 91.5Ah | Max. Discharge Current (5s) | 1500A | ||
1 hour rate (0.55C, 10.5V) | 66.5Ah | Short Circuit Current (10 sec) | 5000A | ||
3. Capacity affected by Temperature (20 hour rate) | 7. Shelf Life at 25ºC (77° F) | ||||
40ºC (104° F) | 103% | Capacity after 3 month storage | 91% | ||
25ºC (77° F) | 100% | Capacity after 6 month storage | 82% | ||
0ºC (32° F) | 85% | Capacity after 9 month storage | 73% | ||
-15ºC (5° F) | 65% | Capacity after 12 month storage | 64% | ||
4. Dimension and Weight | 8. Constant voltage charging at 25ºC (77° F) | ||||
Length | 330mm | Cyclic use | 14.4~14.9V | ||
Width | 171mm | Maximum charging current | 25A | ||
Height | 217mm | Temperature compensation | -30mV/ºC | ||
Total Height | 225mm | Float use | 13.6~13.8V | ||
Reference Weight | 29.5kg | Temperature compensation | -20mV/ºC | ||
Quality Control
Battery Use and Maintenance:
1) Please use a constant-voltage charge.
1) Please use a constant-voltage charge.
2) In floating charge, the voltage is 2.23 to 2.27 per unit cell.
3) In cycle use, the voltage is 2.35 to 2.45 per unit cell, the max. Current is no more than 25%° C
4) Please do tighten the bolts to avoid sparkle and poor contact when the battery is in use.
5) Please do not use it near the heat source and open flame.
6) Please keep it at a low temperature. Please change it while there is liquid leaking or damage.
3) In cycle use, the voltage is 2.35 to 2.45 per unit cell, the max. Current is no more than 25%° C
4) Please do tighten the bolts to avoid sparkle and poor contact when the battery is in use.
5) Please do not use it near the heat source and open flame.
6) Please keep it at a low temperature. Please change it while there is liquid leaking or damage.

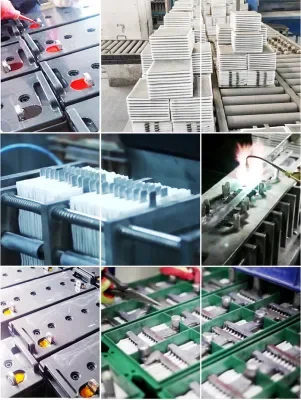

Manufacturing Technique

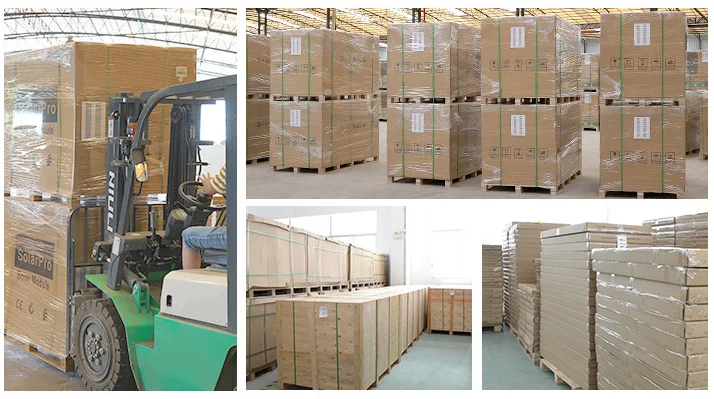

Packing & Delivery
Our Services:
Samples and OEM, Warranty and After-Sale Service:
Sample can be provided for quality testing
Samples and OEM, Warranty and After-Sale Service:
Sample can be provided for quality testing
* OEM Welcomed
* Warranty: 5 Years Lifespan 10 Years
* After-Sale Service: 24 Hour-Hot Line for Consultancy and Technical Support
* Warranty: 5 Years Lifespan 10 Years
* After-Sale Service: 24 Hour-Hot Line for Consultancy and Technical Support
Company Profile
FAQ
Q：Many buyers ask us why the electrical current with the multimeter test can not reach the nominal current?
A：Because the short circuit current is a measure of the quality of the solar cell parameter, this parameter can only be tested with the component test, and the multimeter itself is the load, so the test parameter is the working current, please don't misunderstand. And the solar panel test conditions are irradiance 1000W/㎡, the ambient temperature is 25℃, AM1.5(atmospheric transparency), our solar panels are tested under the standard light intensity, is a theoretical concept, solar energy will be based on the buyer's region, the weather and the degree of pollution will moderate decline.
Q：How much power can solar panels drive?
A：This depends on the battery capacity of the customer terminal and the power of the inverter, which has nothing to do with our solar panels, our solar panels are only responsible for charging your battery, it does not store electricity itself, the solar energy is responsible for charging the battery, the battery discharges the electrical equipment, which is a charging and discharging process. Customers must understand some basic knowledge of electricians, so that they can go back to do DIY.
Q：Can solar panels work on cloudy days?
A：This concept is very vague, cloudy days need to see the intensity of the light, if the light is strong there will be weak
current and voltage, but compared with the bright light in sunny days tens to hundreds of times worse. In short, the stronger the light, the better the effect of power generation, the weaker the light, the worse the effect.
Q：How about solar panels without controllers?
A：Better use a controller! It's okay if you can't use it, but it depends on how you use it, the role of the
controller is only to control the relationship between solar energy and the battery and the load, protect the battery from
overcharging and overdischarging, short circuit protection, etc., and can only control the working time state of the load, etc., specific reference to the controller manual, in addition, the controller's load has current requirements, 10A controller generally its load is not higher than 12A current, correspondingly, 10A can drive electrical appliances below 120W, 20A can drive electrical appliances below 200W, 30A can drive electrical appliances below 500W, if not used, but there may be a problem of overcharging the battery, which will damage the battery. At the same time, overdischarge will also affect the life of the battery.
Q：How much power can solar panels drive?
A：This depends on the battery capacity of the customer terminal and the power of the inverter, which has nothing to do with our solar panels, our solar panels are only responsible for charging your battery, it does not store electricity itself, the solar energy is responsible for charging the battery, the battery discharges the electrical equipment, which is a charging and discharging process. Customers must understand some basic knowledge of electricians, so that they can go back to do DIY.
Q：Can solar panels work on cloudy days?
A：This concept is very vague, cloudy days need to see the intensity of the light, if the light is strong there will be weak
current and voltage, but compared with the bright light in sunny days tens to hundreds of times worse. In short, the stronger the light, the better the effect of power generation, the weaker the light, the worse the effect.
Q：How about solar panels without controllers?
A：Better use a controller! It's okay if you can't use it, but it depends on how you use it, the role of the
controller is only to control the relationship between solar energy and the battery and the load, protect the battery from
overcharging and overdischarging, short circuit protection, etc., and can only control the working time state of the load, etc., specific reference to the controller manual, in addition, the controller's load has current requirements, 10A controller generally its load is not higher than 12A current, correspondingly, 10A can drive electrical appliances below 120W, 20A can drive electrical appliances below 200W, 30A can drive electrical appliances below 500W, if not used, but there may be a problem of overcharging the battery, which will damage the battery. At the same time, overdischarge will also affect the life of the battery.
